Metal FX Delta 6R Beadlock UTV Wheel
Stealth Delta for Can-Am's Flagship.

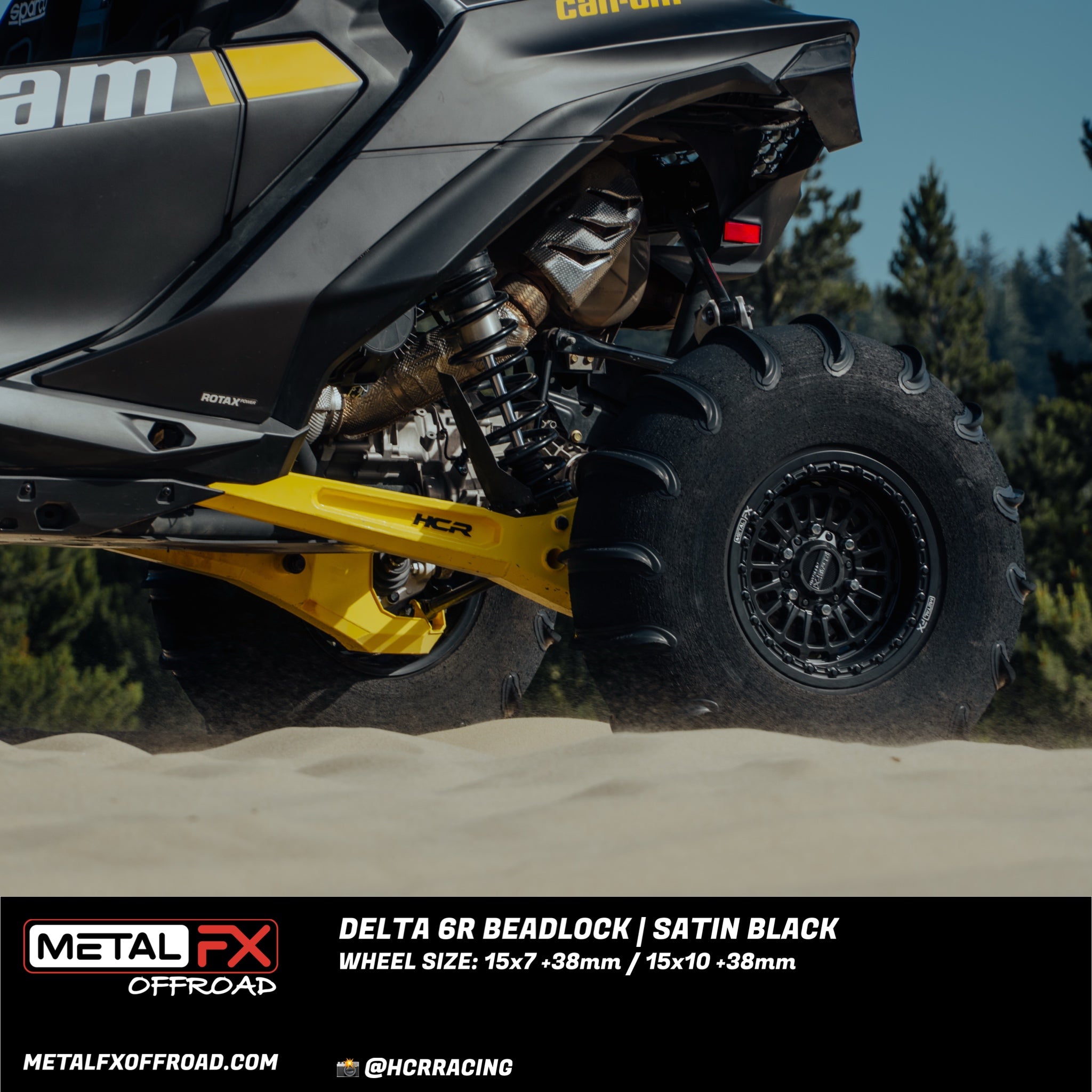

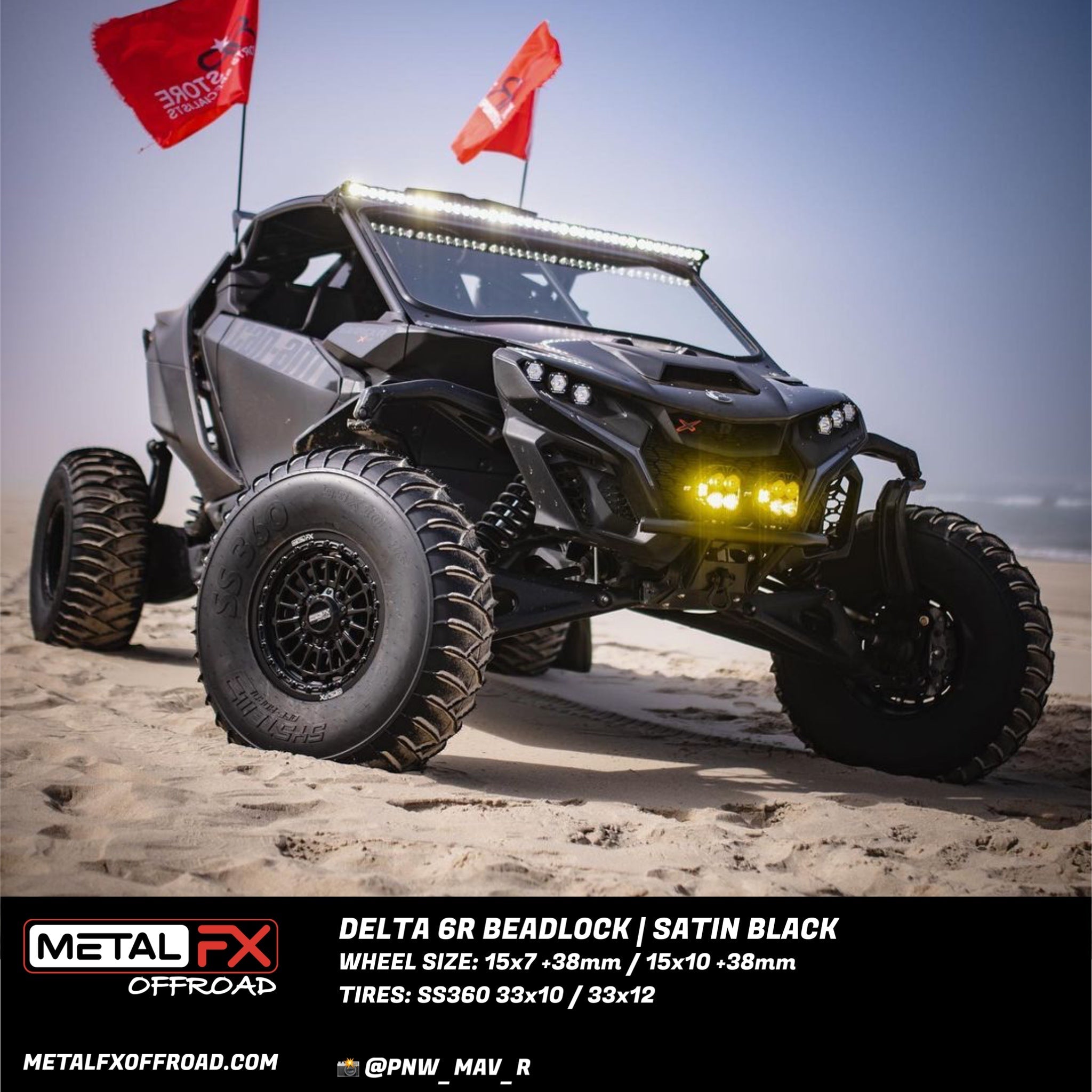

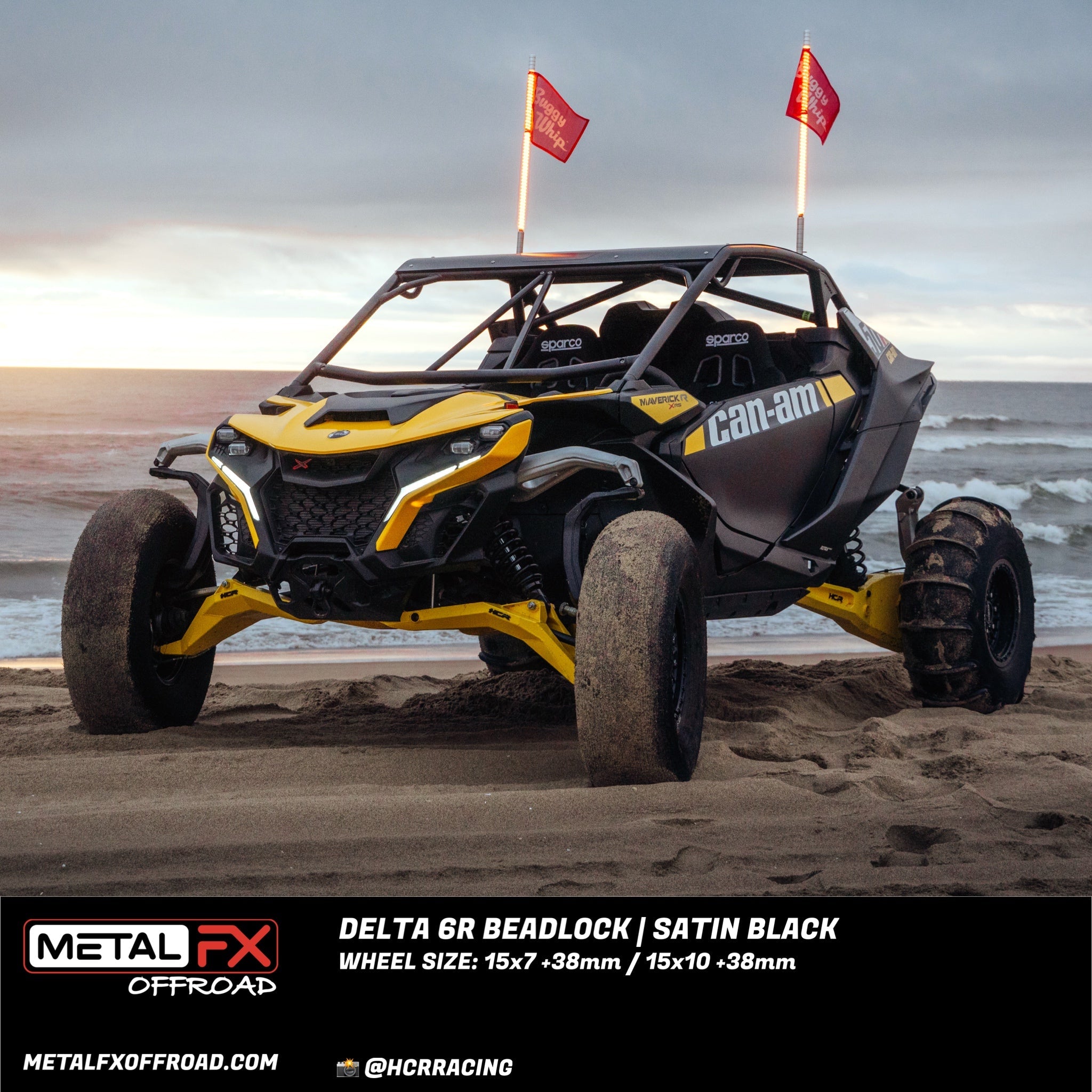

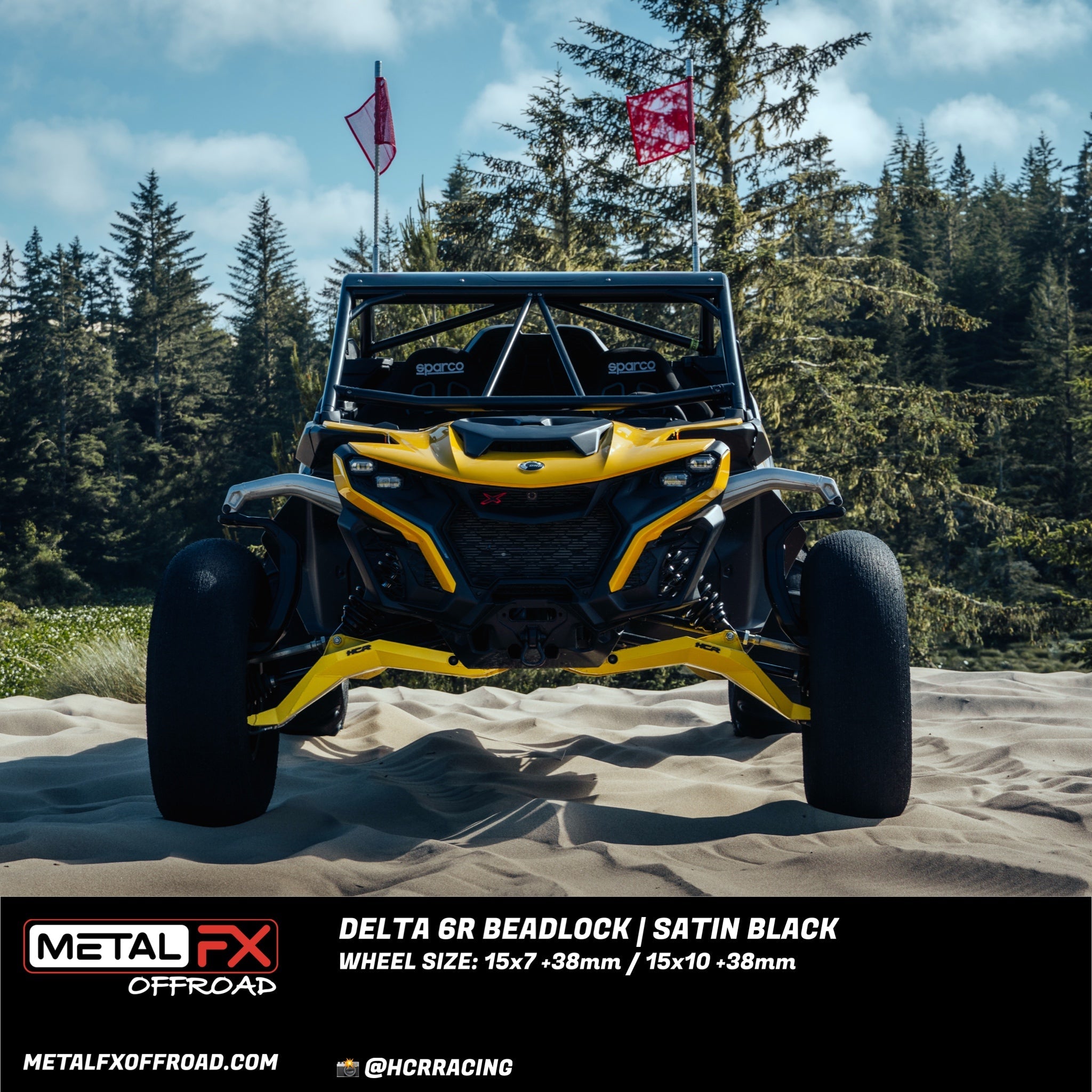

Can-Am Maverick R owners can run the concave Delta too. In Satin Black it is the most subdued finish in the family, matte enough to suit a stealthy build.
Unlike the other Deltas, both 6R widths use a +38mm offset: the 15x7 at 5+2 and the 15x10 at 6.5+3.5. That keeps the wider wheel tucked in, a useful trait on a machine as wide as the Maverick R. Metal FX lists the satin 15x10 at 22.1 lbs.

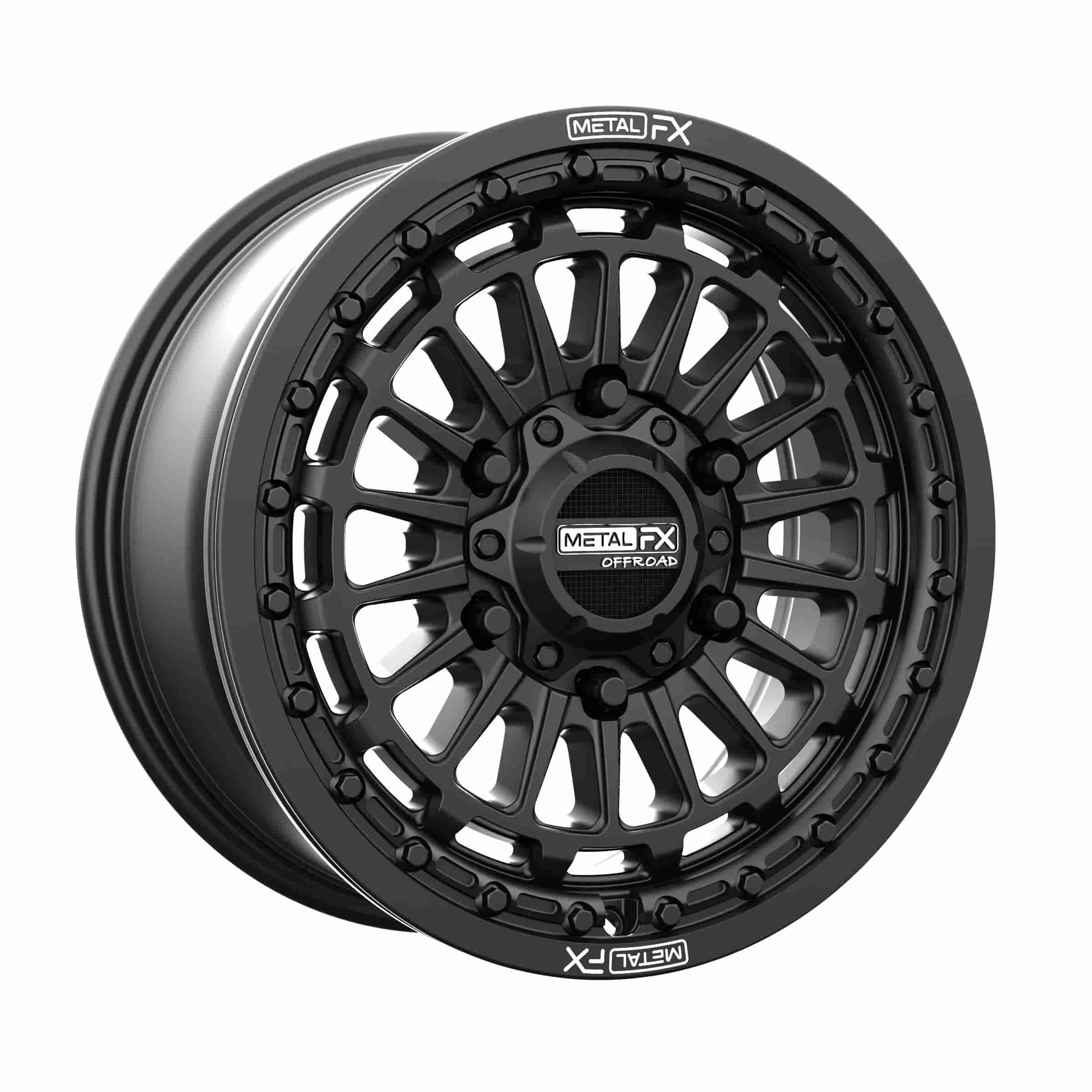

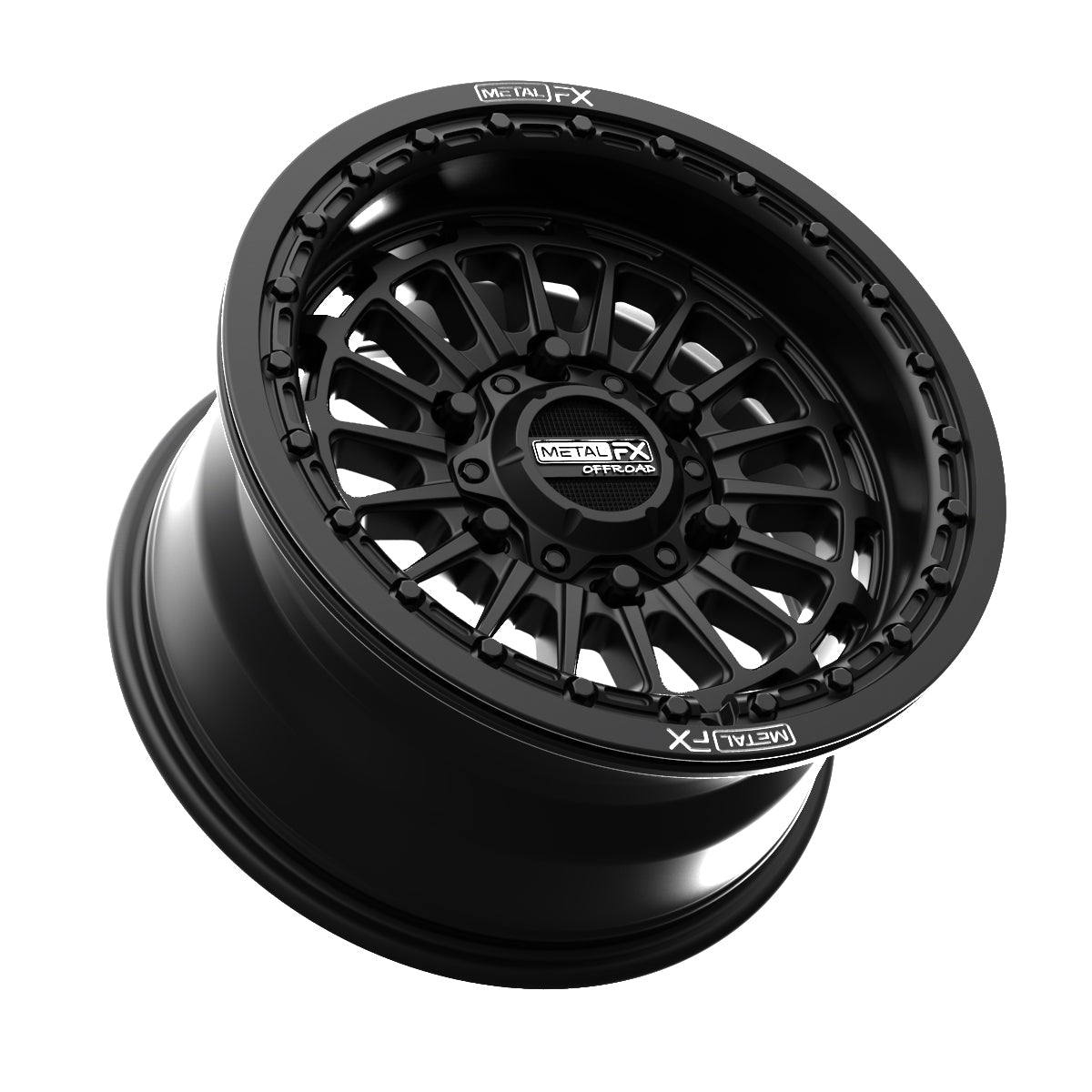

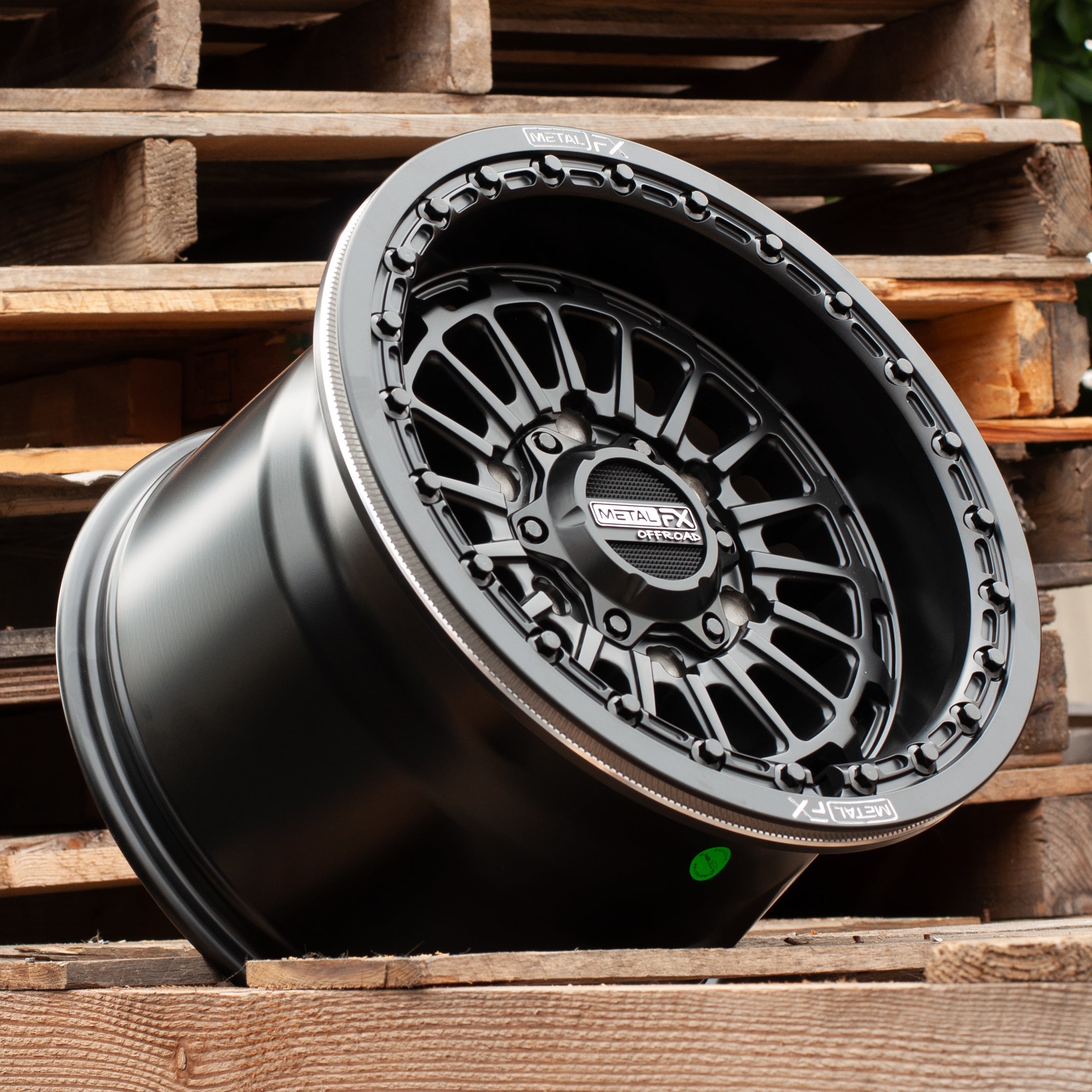

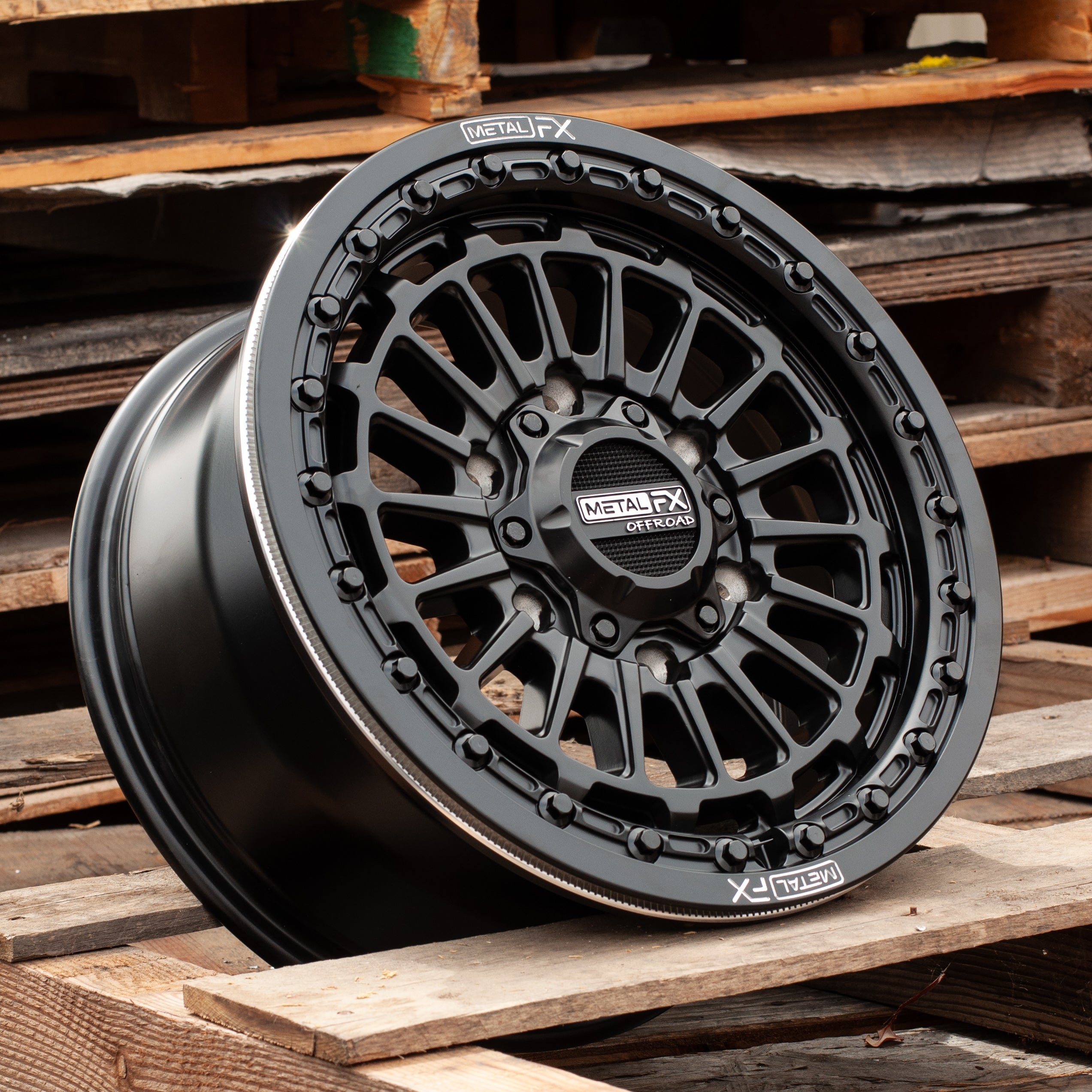

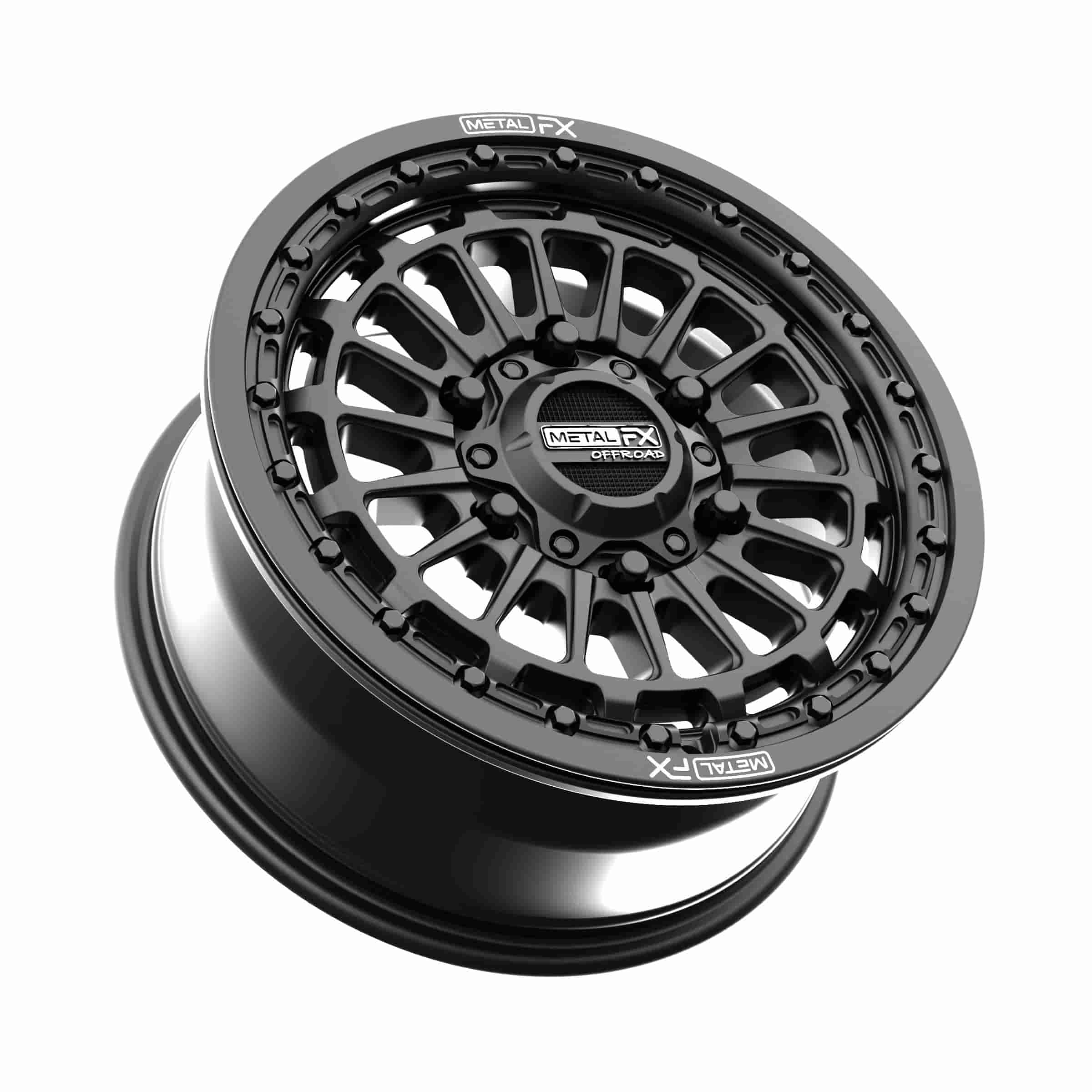

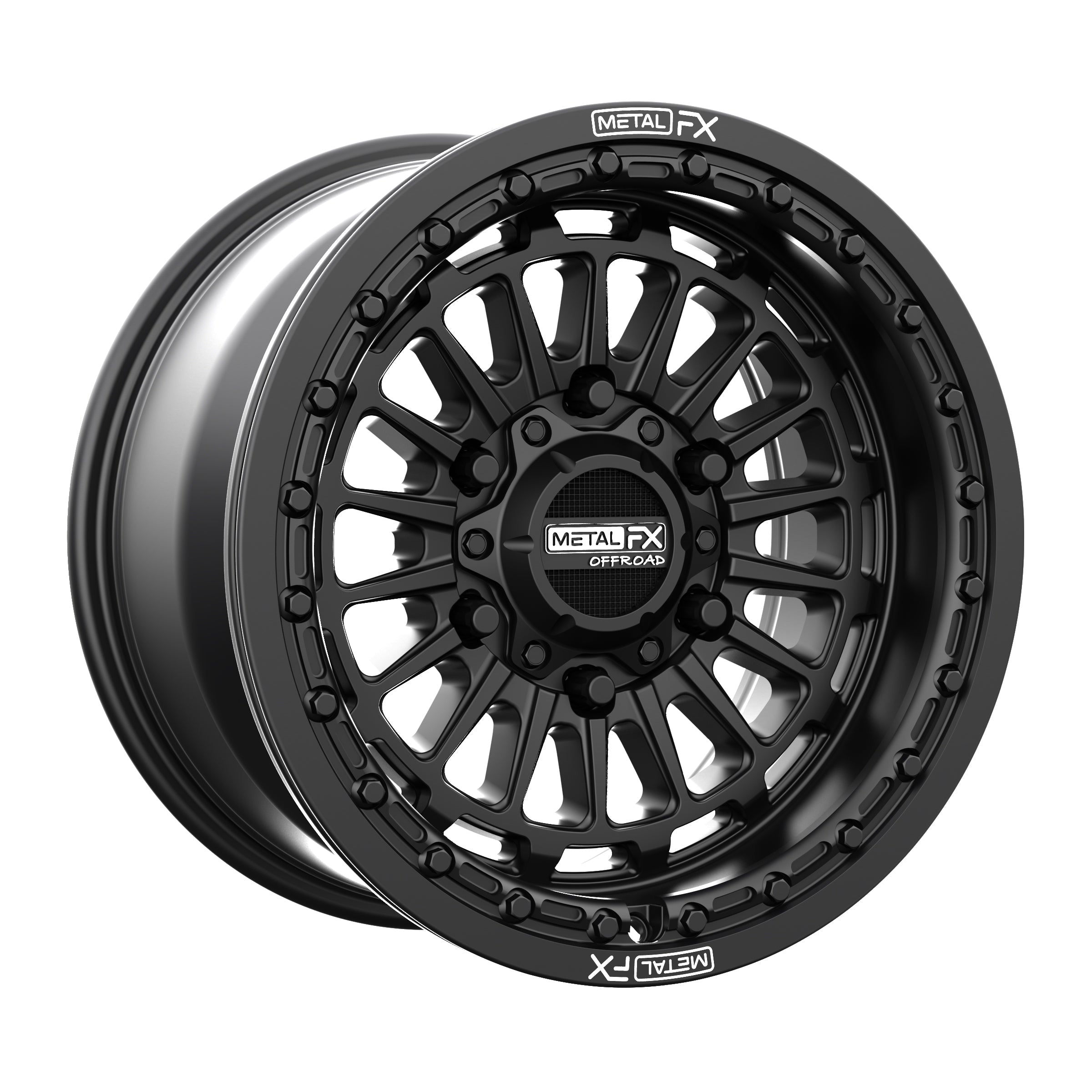

Each Delta 6R wheel in Satin Black is A356-T6 cast aluminum with a 6061-T6 forged aluminum beadlock ring. Metal FX lists the weight at 19.8 lbs for the 15x7 and 22.1 lbs for the 15x10. Center caps for this finish are part 10324. The matching replacement beadlock ring is part 10211.
Features and Benefits
-
Satin Black: A single-color Delta 6R for Maverick R owners building a stealth look.
-
+38mm on Both Widths: Even the 15x10 keeps a positive offset to hold the wheel inboard.
Bolt Pattern Application Guide
Always confirm your machine's bolt pattern, hub and brake clearance before ordering.
-
6x139.7 (6x5.5) Bolt Pattern (78.1mm center bore; 15x7 +38mm, 15x10 +38mm): Metal FX lists this pattern for Can-Am Maverick R. Remove the factory mud scrapers before installing.
Delta 6R Satin Black Specifications
| Spec |
15x7 Wheel |
15x10 Wheel |
| Part Number |
78340 |
78341 |
| Finish |
Satin Black |
Satin Black |
| Bolt Pattern |
6x139.7 |
6x139.7 |
| Center Bore |
78.1mm |
78.1mm |
| Offset |
+38mm |
+38mm |
| Backspacing |
5+2 (5.4") |
6.5+3.5 (6.9") |
| Weight |
19.8 lbs |
22.1 lbs |
| Load Rating |
1,260 lbs |
1,260 lbs |
| Lip Size |
1.01" |
2.47" |
| Center Cap |
10324 |
10324 |
| Center Cap Hardware |
10641 |
10641 |
| Beadlock Ring |
10211 |
10211 |
| Beadlock Hardware |
10601 |
10601 |
| Construction |
Cast wheel, forged ring |
Cast wheel, forged ring |
PLEASE NOTE: Single wheel purchase only, tire and extra vehicle accessories NOT included! Double-check your machine's bolt pattern, offset, and fitment clearances before ordering to ensure absolute accuracy.
Important Fitment & Legal Notes
-
Off-Road Use Only: Metal FX builds its beadlock wheels for dedicated off-road use. Beadlock wheels are not legal on public roads in many states and provinces, so check your local laws before you ride.
-
Beadlock Maintenance: Torque the beadlock ring bolts to Metal FX's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
-
Lug Nuts Required: These wheels require aftermarket lug nuts (sold separately).
-
Remove Mud Scrapers: Before installing, remove your machine's factory mud scrapers to avoid damaging the wheels. Metal FX publishes removal instructions.
-
Construction: A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring.
-
Warranty: Covered by Metal FX's One-Year Limited Structural manufacturer warranty: one year against material defects and 30 days against workmanship defects from the date of receipt. Beadlock rings are not covered, and bent or cosmetically damaged wheels are excluded.
UTV Application Warning: Customers and/or users are responsible for ensuring that this product is compatible with their machines as currently configured. Professional installation of beadlock hardware is highly recommended, and routine safety inspections on the beadlock ring torque specs are required before trail usage.
