Metal FX Delta 6R Beadlock UTV Wheel
Gunmetal Edge. 6-Lug Character.

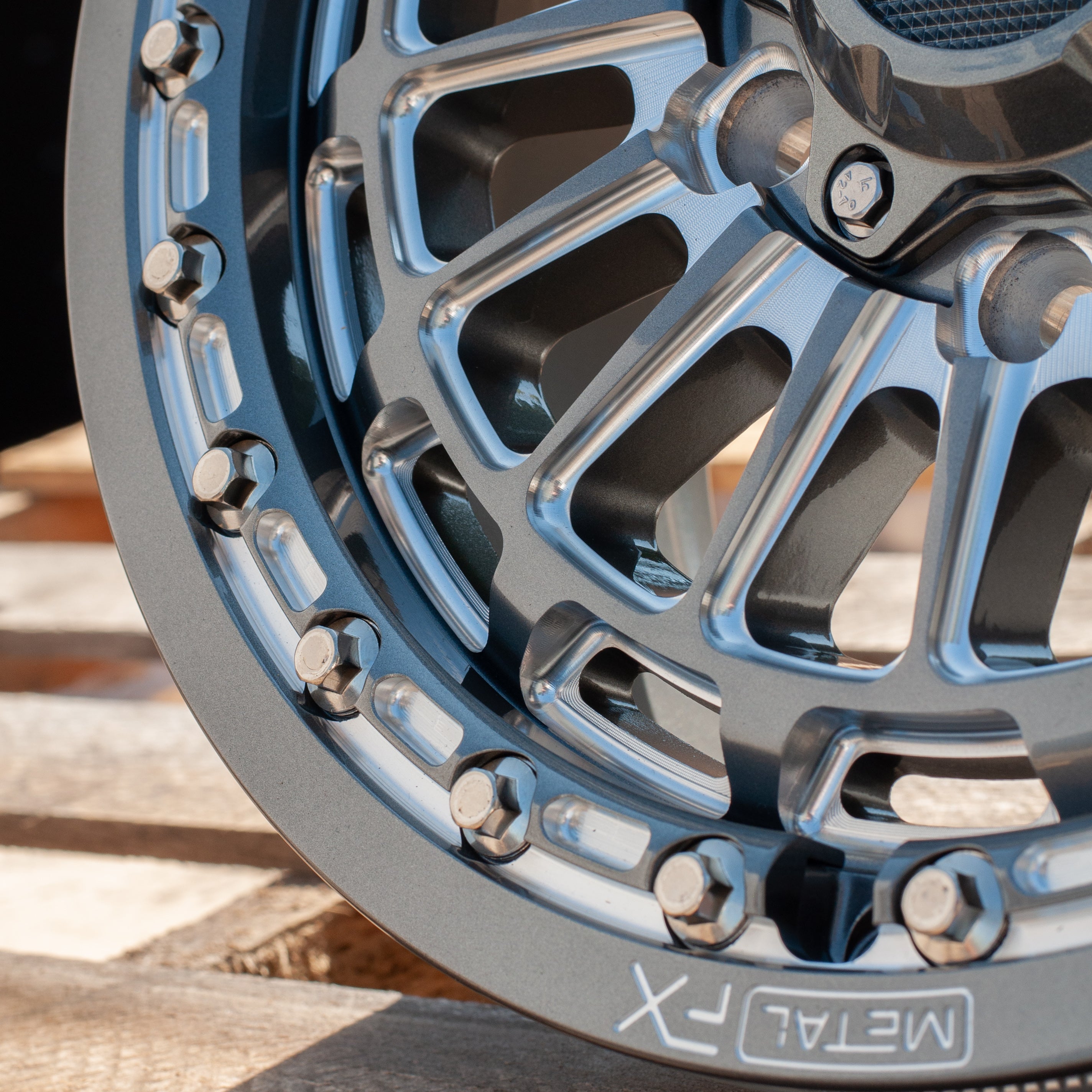

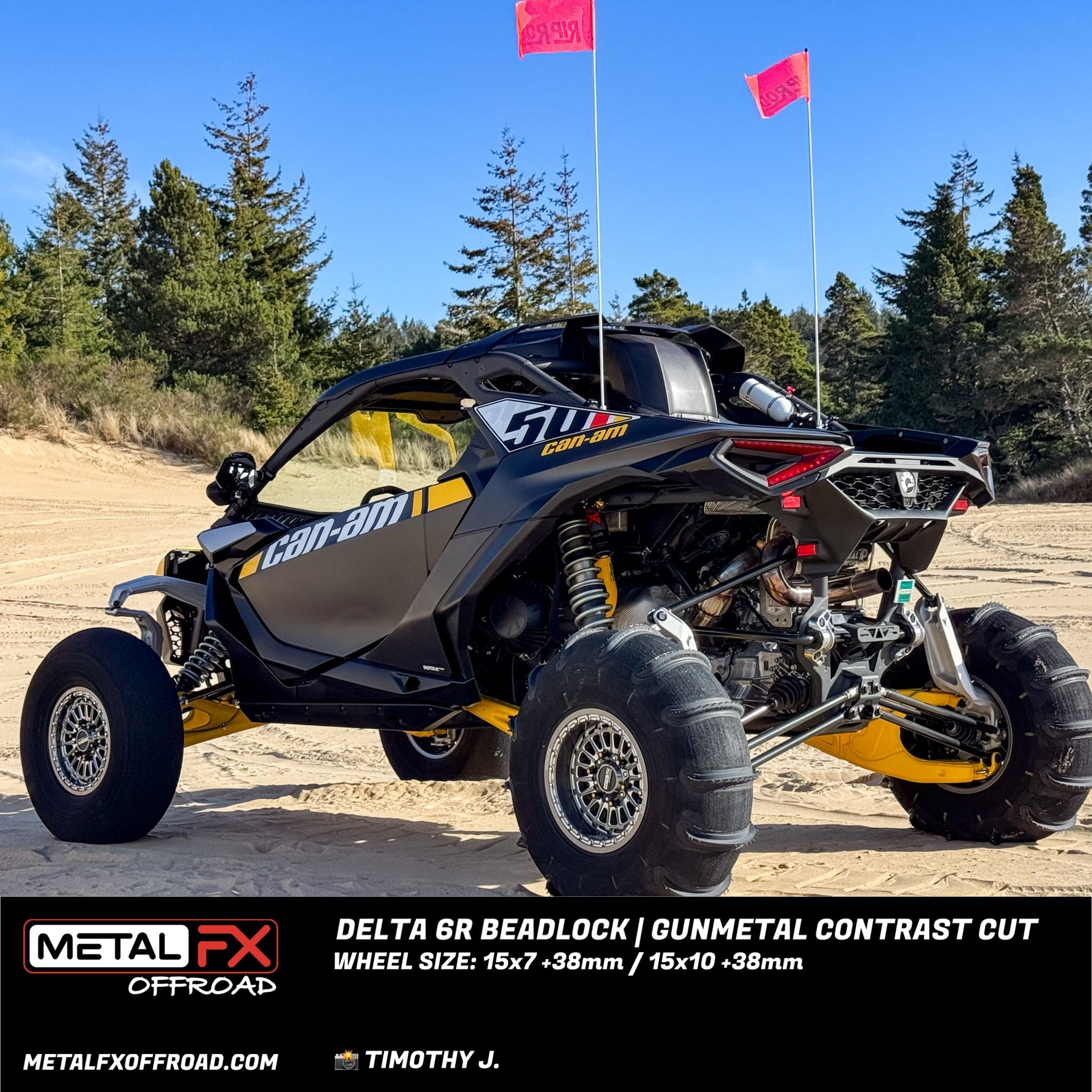

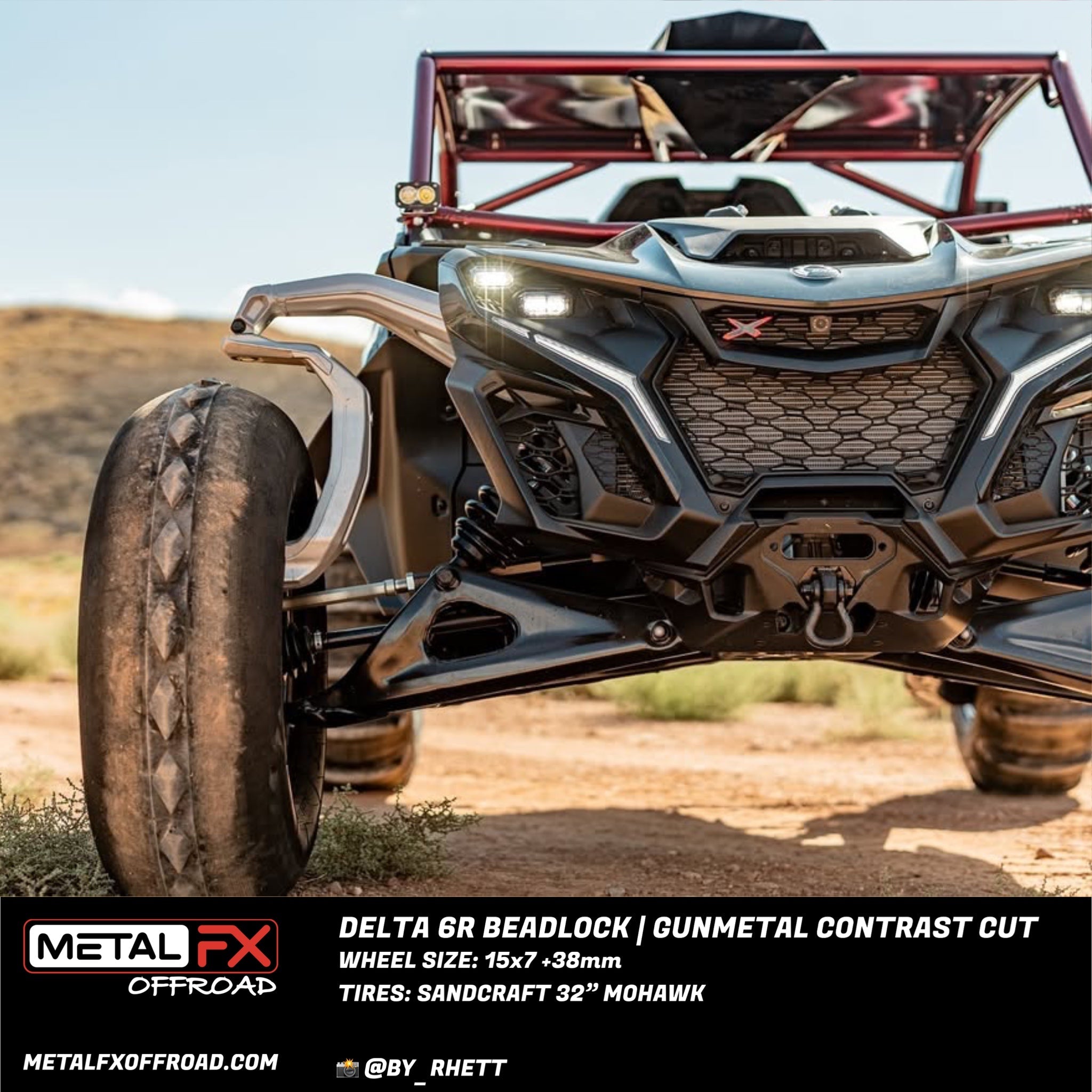

Metal FX pairs a gunmetal base with bright machined accents on this Delta 6R. The finish gives the concave center visual depth on a Maverick R and makes a good match for gray or silver body panels.

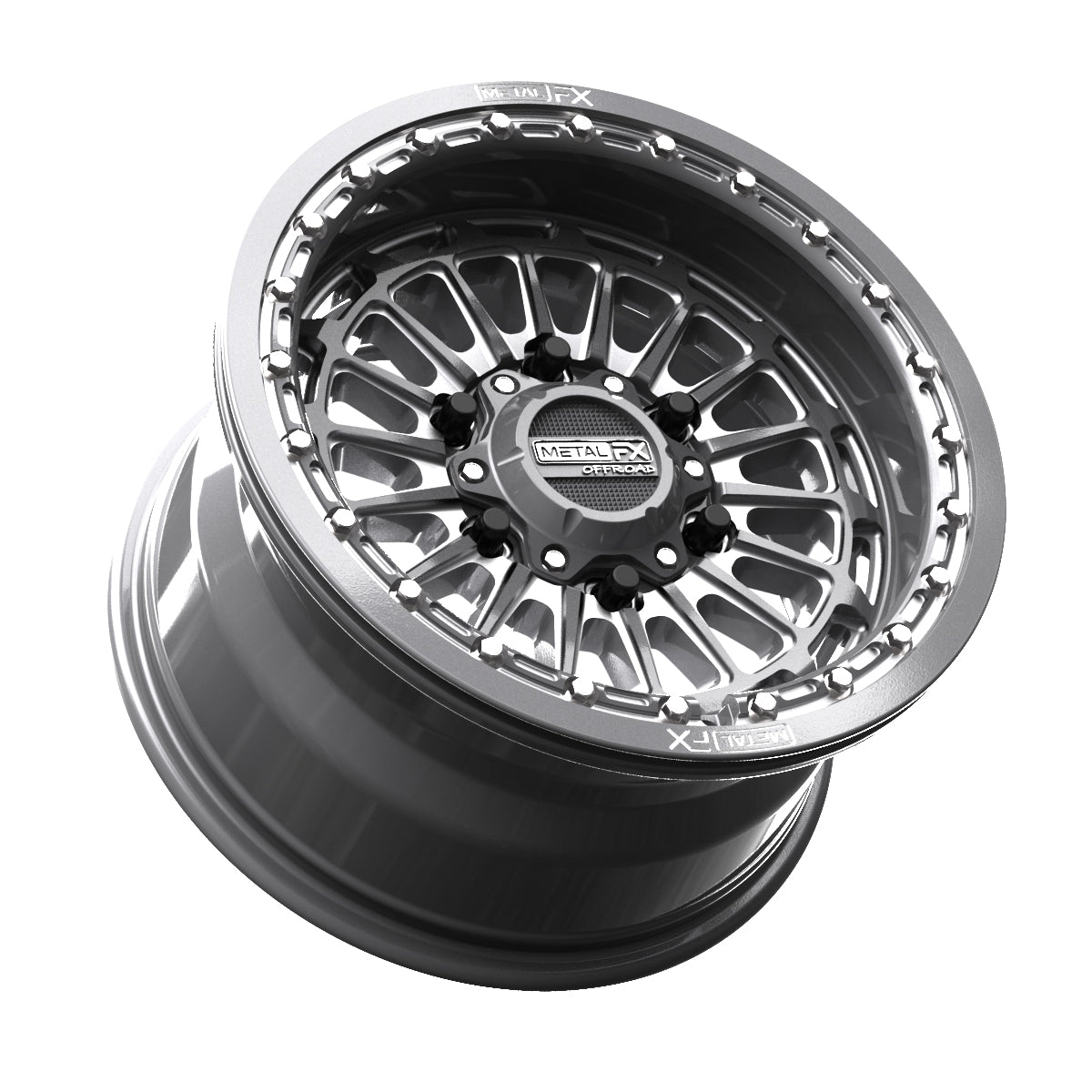

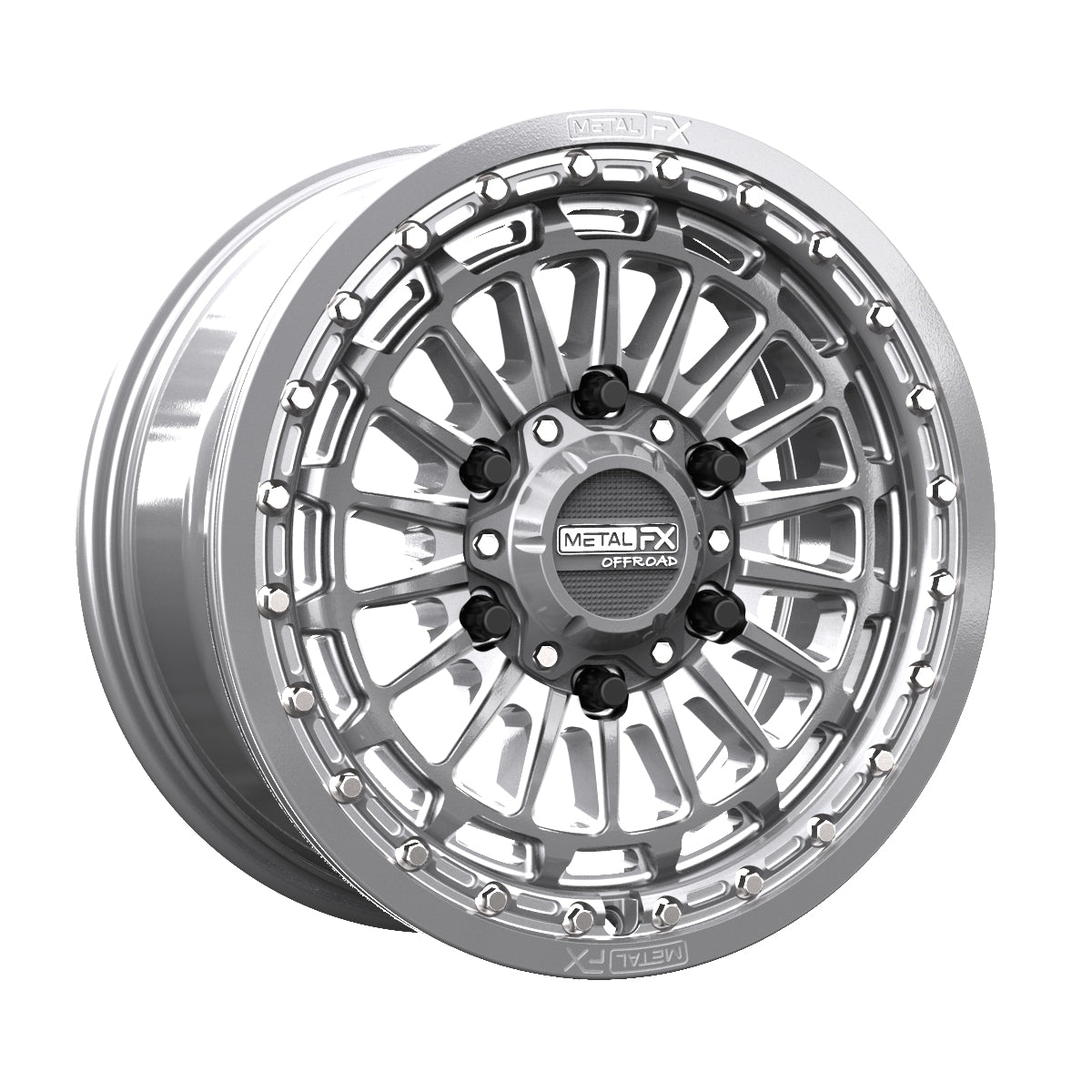

The 15x7 runs 5+2 backspacing and the 15x10 6.5+3.5, so the wider wheel adds more tire without pushing far outboard. Pairing a gunmetal wheel with a dark tire and a gray or silver body is where this finish looks its best. Confirm overall vehicle width with your tire choice before ordering.

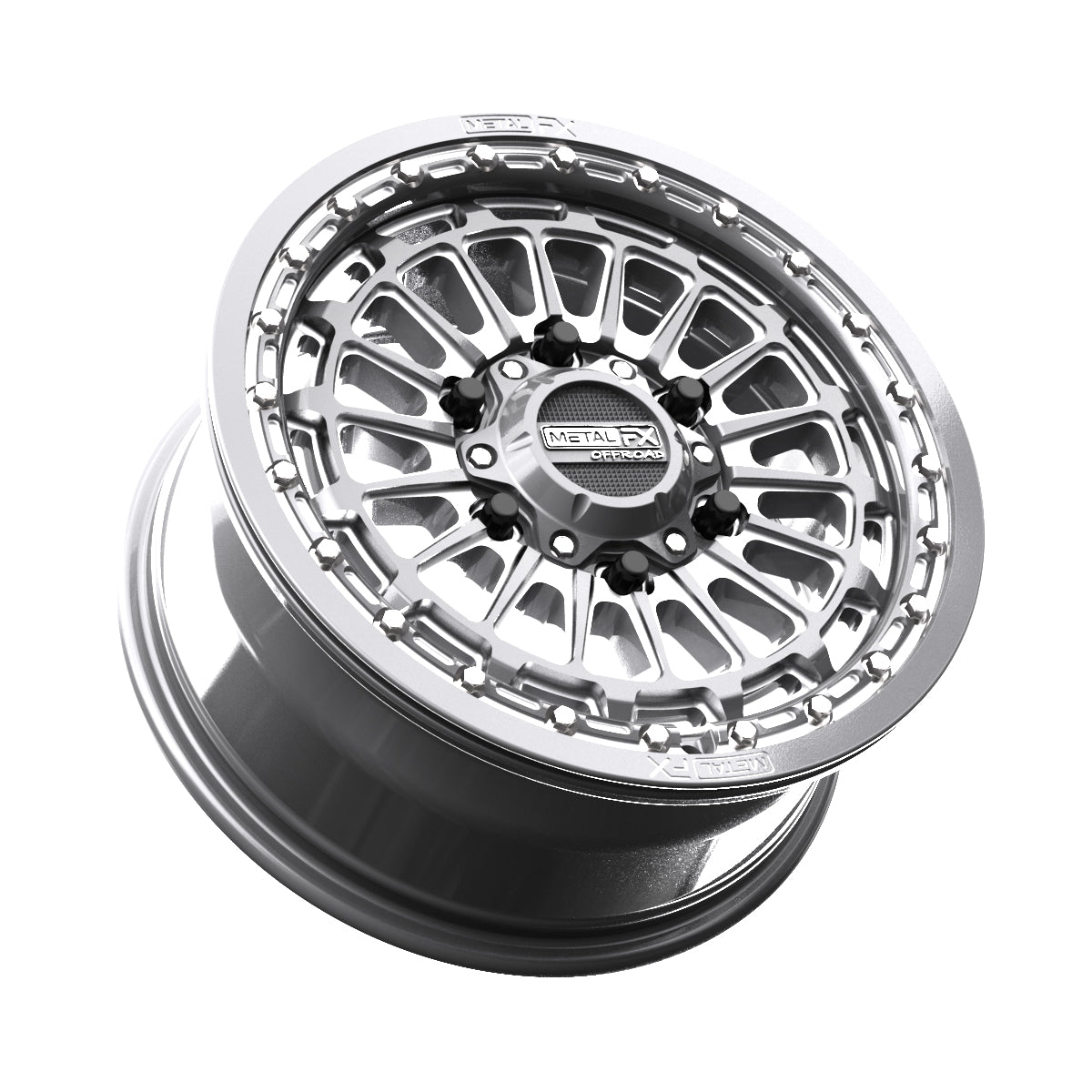

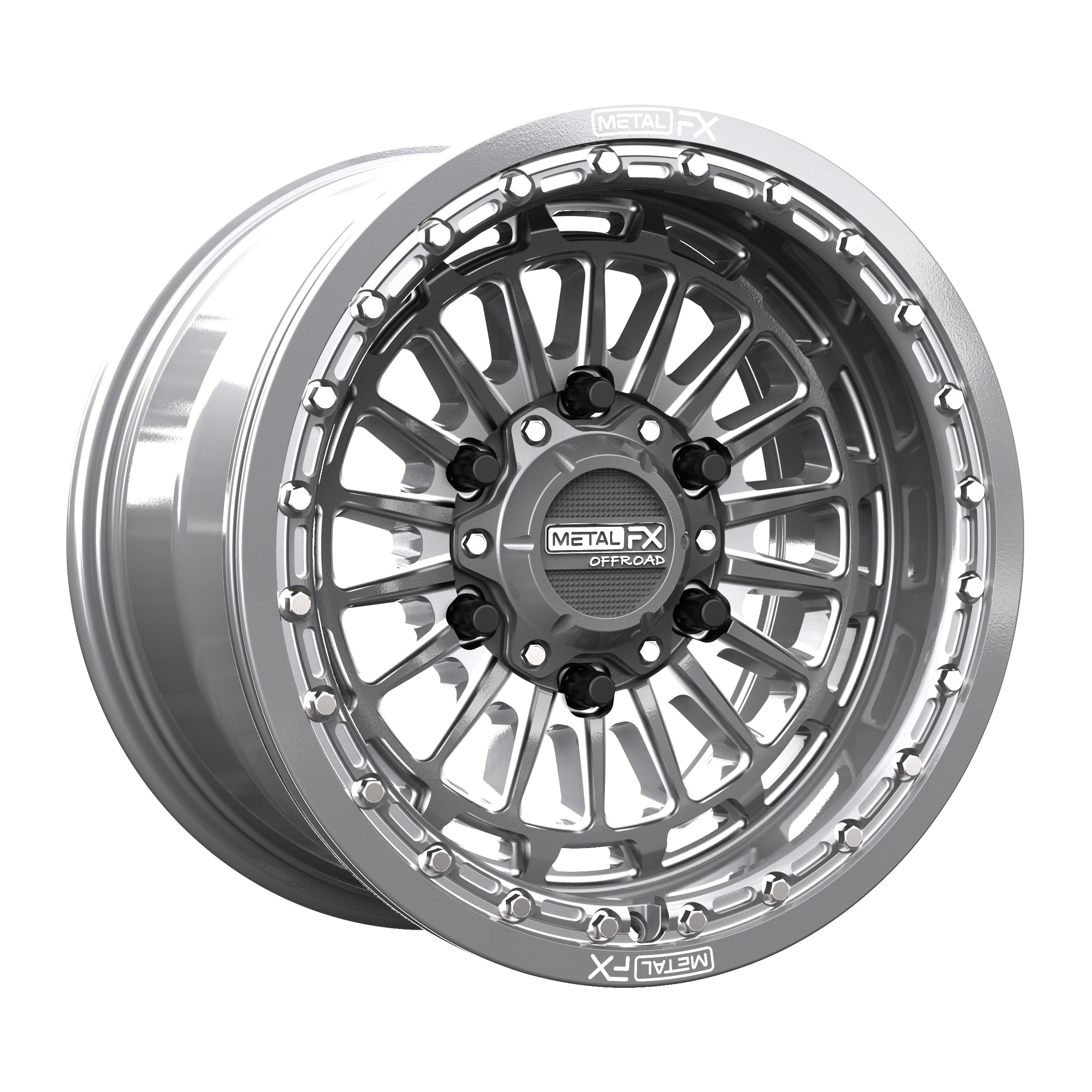

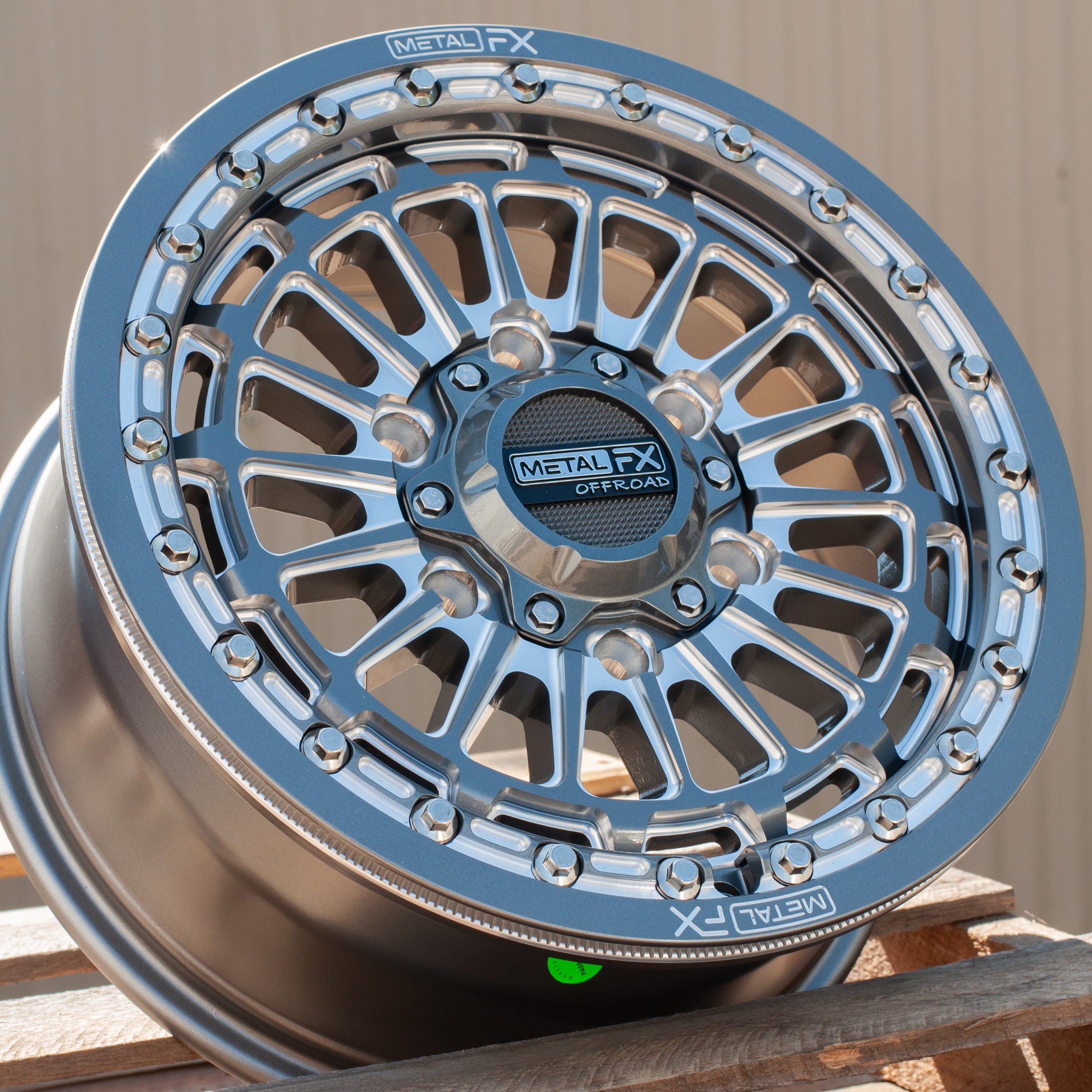

Each Delta 6R wheel in Gunmetal Contrast Cut is A356-T6 cast aluminum with a 6061-T6 forged aluminum beadlock ring. Metal FX lists the weight at 19.4 lbs for the 15x7 and 21.6 lbs for the 15x10. Center caps for this finish are part 10325. The matching replacement beadlock ring is part 10213.
Features and Benefits
-
Gunmetal Contrast Cut: The Delta 6R finish best suited to silver or gray Maverick R panels.
-
Offset Strategy: +38mm across both widths keeps added width moderate.
Bolt Pattern Application Guide
Always confirm your machine's bolt pattern, hub and brake clearance before ordering.
-
6x139.7 (6x5.5) Bolt Pattern (78.1mm center bore; 15x7 +38mm, 15x10 +38mm): Metal FX lists this pattern for Can-Am Maverick R. Remove the factory mud scrapers before installing.
Delta 6R Gunmetal Contrast Cut Specifications
| Spec |
15x7 Wheel |
15x10 Wheel |
| Part Number |
78344 |
78345 |
| Finish |
Gunmetal Contrast Cut |
Gunmetal Contrast Cut |
| Bolt Pattern |
6x139.7 |
6x139.7 |
| Center Bore |
78.1mm |
78.1mm |
| Offset |
+38mm |
+38mm |
| Backspacing |
5+2 (5.4") |
6.5+3.5 (6.9") |
| Weight |
19.4 lbs |
21.6 lbs |
| Load Rating |
1,260 lbs |
1,260 lbs |
| Lip Size |
1.01" |
2.47" |
| Center Cap |
10325 |
10325 |
| Center Cap Hardware |
10640 |
10640 |
| Beadlock Ring |
10213 |
10213 |
| Beadlock Hardware |
10602 |
10602 |
| Construction |
Cast wheel, forged ring |
Cast wheel, forged ring |
PLEASE NOTE: Single wheel purchase only, tire and extra vehicle accessories NOT included! Double-check your machine's bolt pattern, offset, and fitment clearances before ordering to ensure absolute accuracy.
Important Fitment & Legal Notes
-
Off-Road Use Only: Metal FX builds its beadlock wheels for dedicated off-road use. Beadlock wheels are not legal on public roads in many states and provinces, so check your local laws before you ride.
-
Beadlock Maintenance: Torque the beadlock ring bolts to Metal FX's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
-
Lug Nuts Required: These wheels require aftermarket lug nuts (sold separately).
-
Remove Mud Scrapers: Before installing, remove your machine's factory mud scrapers to avoid damaging the wheels. Metal FX publishes removal instructions.
-
Construction: A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring.
-
Warranty: Covered by Metal FX's One-Year Limited Structural manufacturer warranty: one year against material defects and 30 days against workmanship defects from the date of receipt. Beadlock rings are not covered, and bent or cosmetically damaged wheels are excluded.
UTV Application Warning: Customers and/or users are responsible for ensuring that this product is compatible with their machines as currently configured. Professional installation of beadlock hardware is highly recommended, and routine safety inspections on the beadlock ring torque specs are required before trail usage.
