Metal FX® Delta R 15" UTV Beadlock Wheel: 5x114.3 | Gunmetal Contrast Cut

Metal FX Delta R Beadlock UTV Wheel

Gunmetal R Series With Machined Detail.

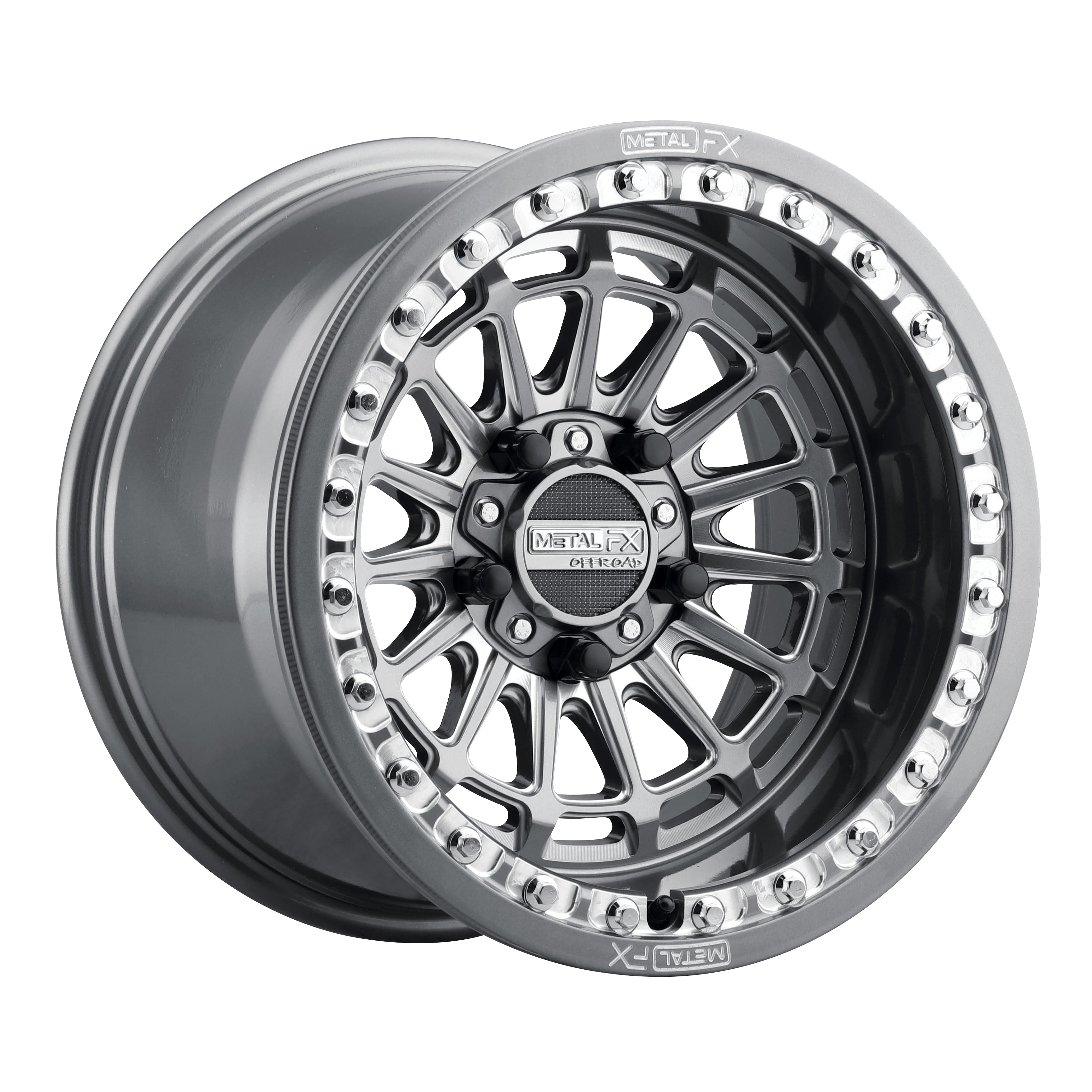

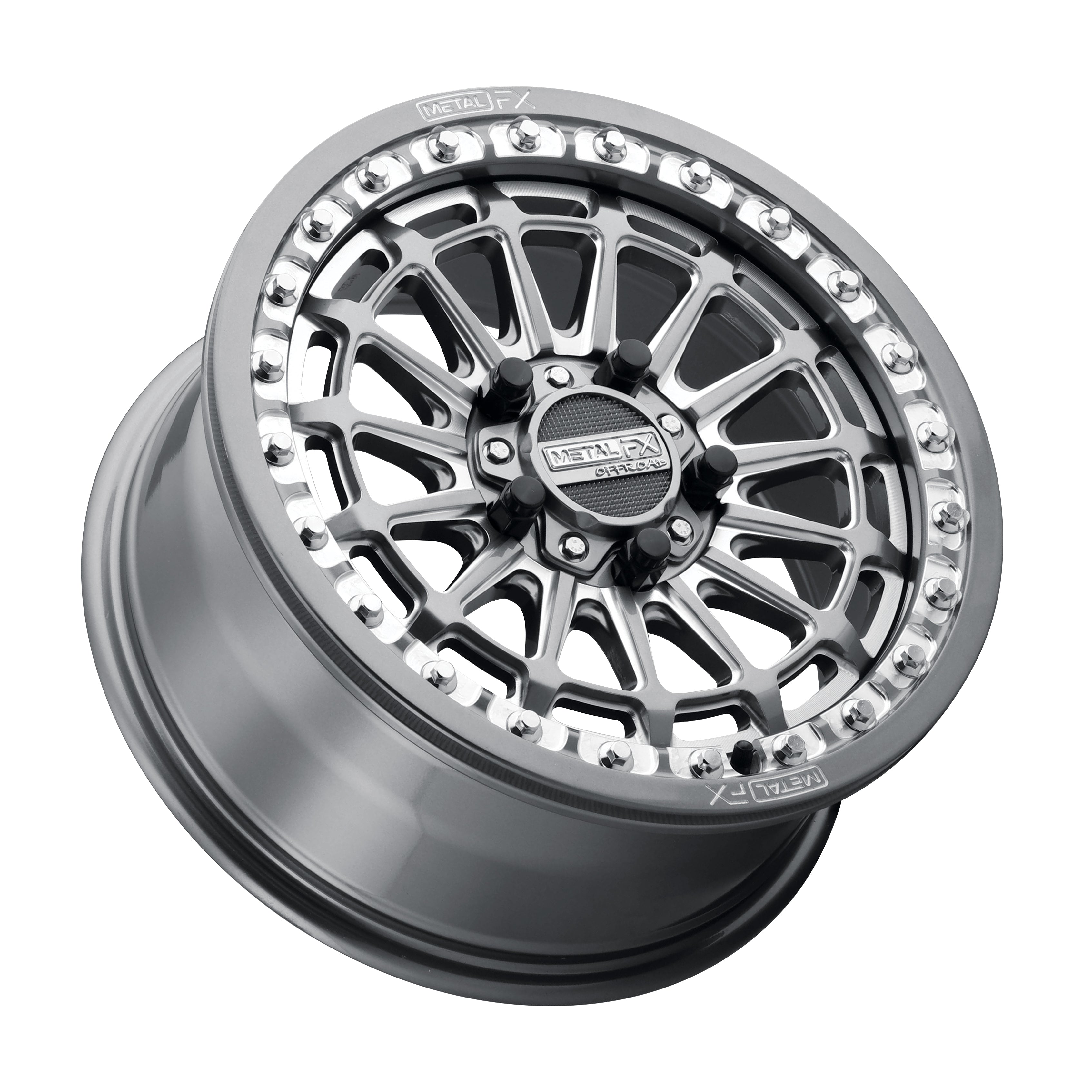

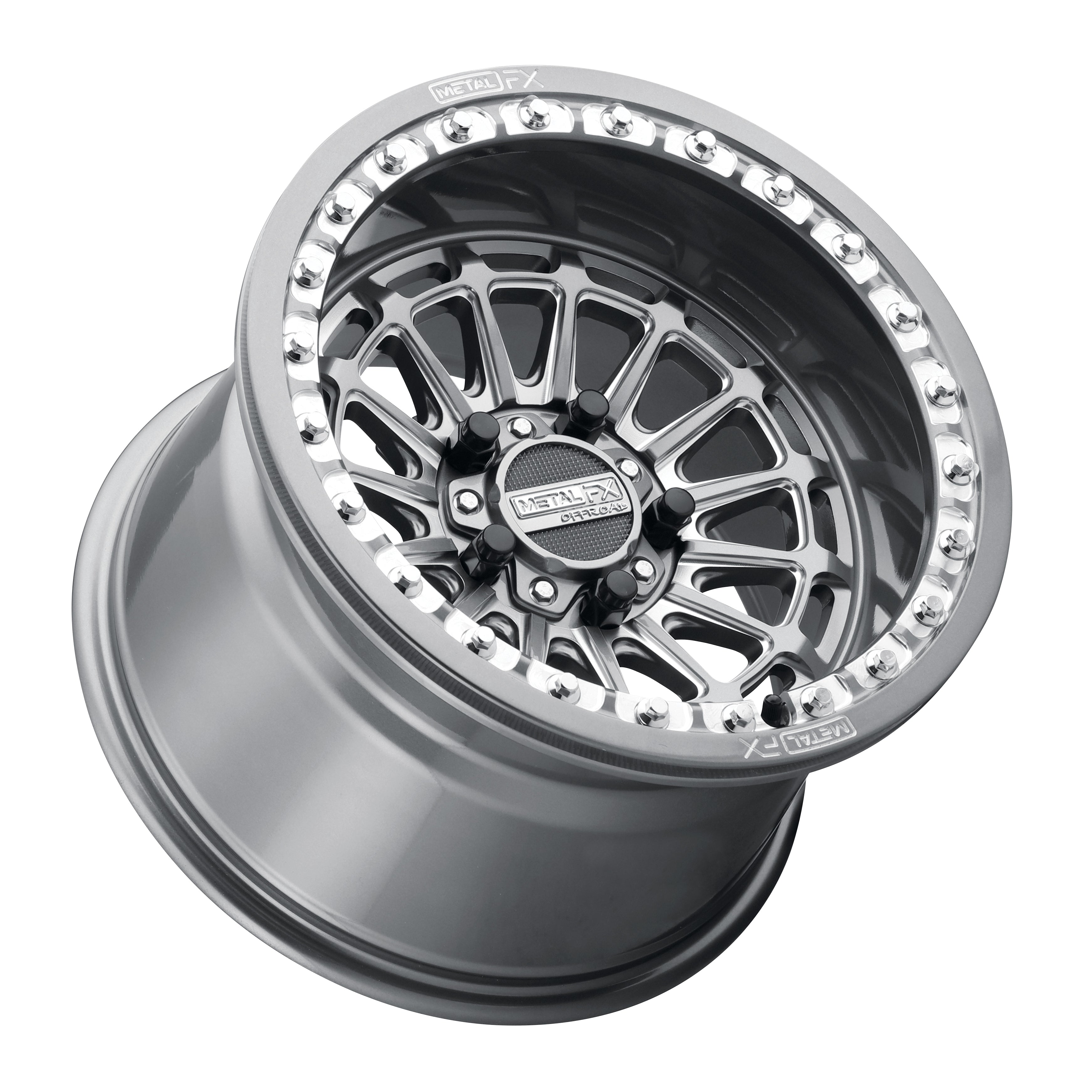

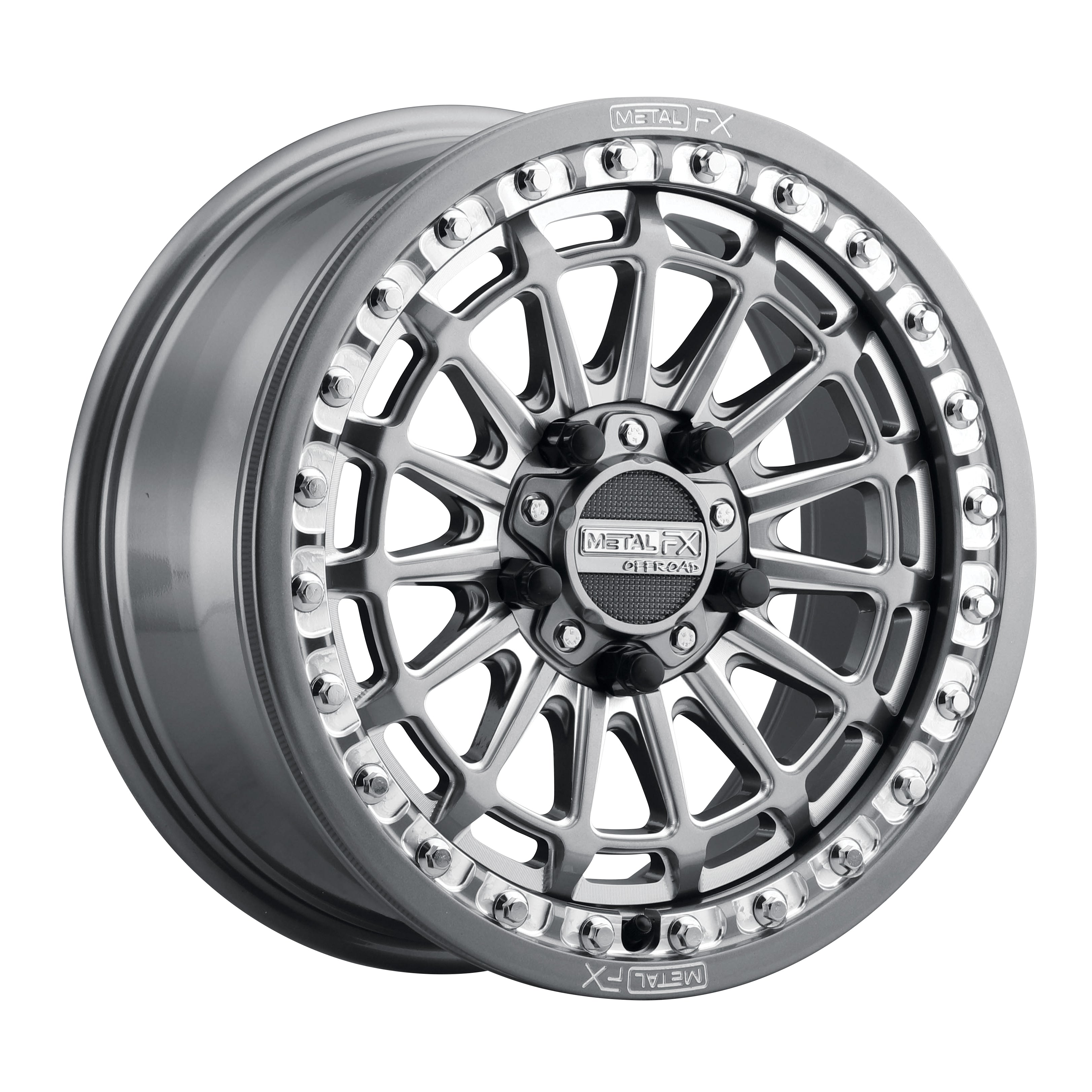

Gunmetal brings a cooler, metallic tone to the Delta R, and the machined cuts let raw aluminum show through on the face. On a gray, white or silver machine it blends in better than black does.

Choose the 15x7 (+38mm, 5+2) for a narrower stance or the 15x10 (+0mm, 5+5) for more tire. The 5x4.5 drilling fits Polaris 5-lug hubs, and caps for this finish are Metal FX part 10320.

Each Delta R wheel in Gunmetal Contrast Cut is A356-T6 cast aluminum with a 6061-T6 forged aluminum beadlock ring. Metal FX lists the weight at 17.9 lbs for the 15x7 and 19.8 lbs for the 15x10. Center caps for this finish are part 10320. The matching replacement beadlock ring is part 10203.

Features and Benefits

• Gunmetal Contrast Cut: Metallic gray paired with bare-aluminum cuts suits light-colored Polaris bodywork.
• Concave Center: The same dished face as every Delta, highlighted by the cut finish.

Bolt Pattern Application Guide

Always confirm your machine's bolt pattern, hub and brake clearance before ordering.

• 5x114.3 (5x4.5) Bolt Pattern (66.1mm center bore; 15x7 +38mm, 15x10 +0mm): Metal FX lists this pattern for Polaris 5-lug machines and Segway Super Villain.

Delta R Gunmetal Contrast Cut Specifications

PLEASE NOTE: Single wheel purchase only, tire and extra vehicle accessories NOT included! Double-check your machine's bolt pattern, offset, and fitment clearances before ordering to ensure absolute accuracy.

Important Fitment & Legal Notes

• Off-Road Use Only: Metal FX builds its beadlock wheels for dedicated off-road use. Beadlock wheels are not legal on public roads in many states and provinces, so check your local laws before you ride.
• Beadlock Maintenance: Torque the beadlock ring bolts to Metal FX's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
• Lug Nuts Required: These wheels require aftermarket lug nuts (sold separately).
• Remove Mud Scrapers: Before installing, remove your machine's factory mud scrapers to avoid damaging the wheels. Metal FX publishes removal instructions.
• Construction: A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring.
• Warranty: Covered by Metal FX's One-Year Limited Structural manufacturer warranty: one year against material defects and 30 days against workmanship defects from the date of receipt. Beadlock rings are not covered, and bent or cosmetically damaged wheels are excluded.

UTV Application Warning: Customers and/or users are responsible for ensuring that this product is compatible with their machines as currently configured. Professional installation of beadlock hardware is highly recommended, and routine safety inspections on the beadlock ring torque specs are required before trail usage.
