Metal FX® Delta R 15" UTV Beadlock Wheel: 5x114.3 | Satin Black

Metal FX Delta R Beadlock UTV Wheel

5-Lug Delta, Blacked Out.

Polaris 5-lug owners get the Delta's concave look in the R series, and Satin Black is its most understated version. The finish is flat enough to hide trail dust and dark enough to suit any color of machine.

The 15x7 runs +38mm with 5+2 backspacing, while the 15x10 sits at +0mm with 5+5. Both use a 5x4.5 pattern and a 66.1mm bore, with a 1,260 lb load rating, a step up from the 4-lug Delta.

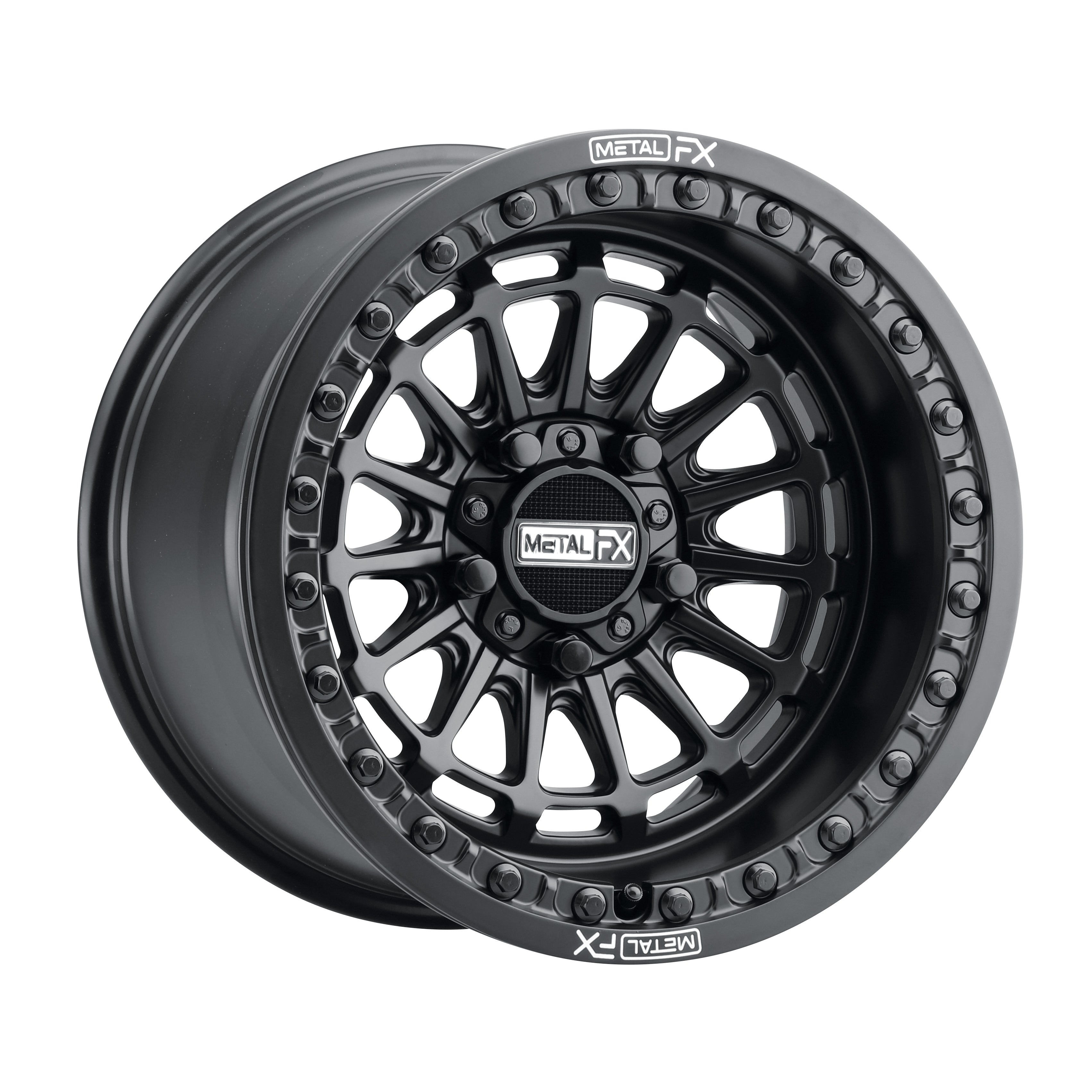

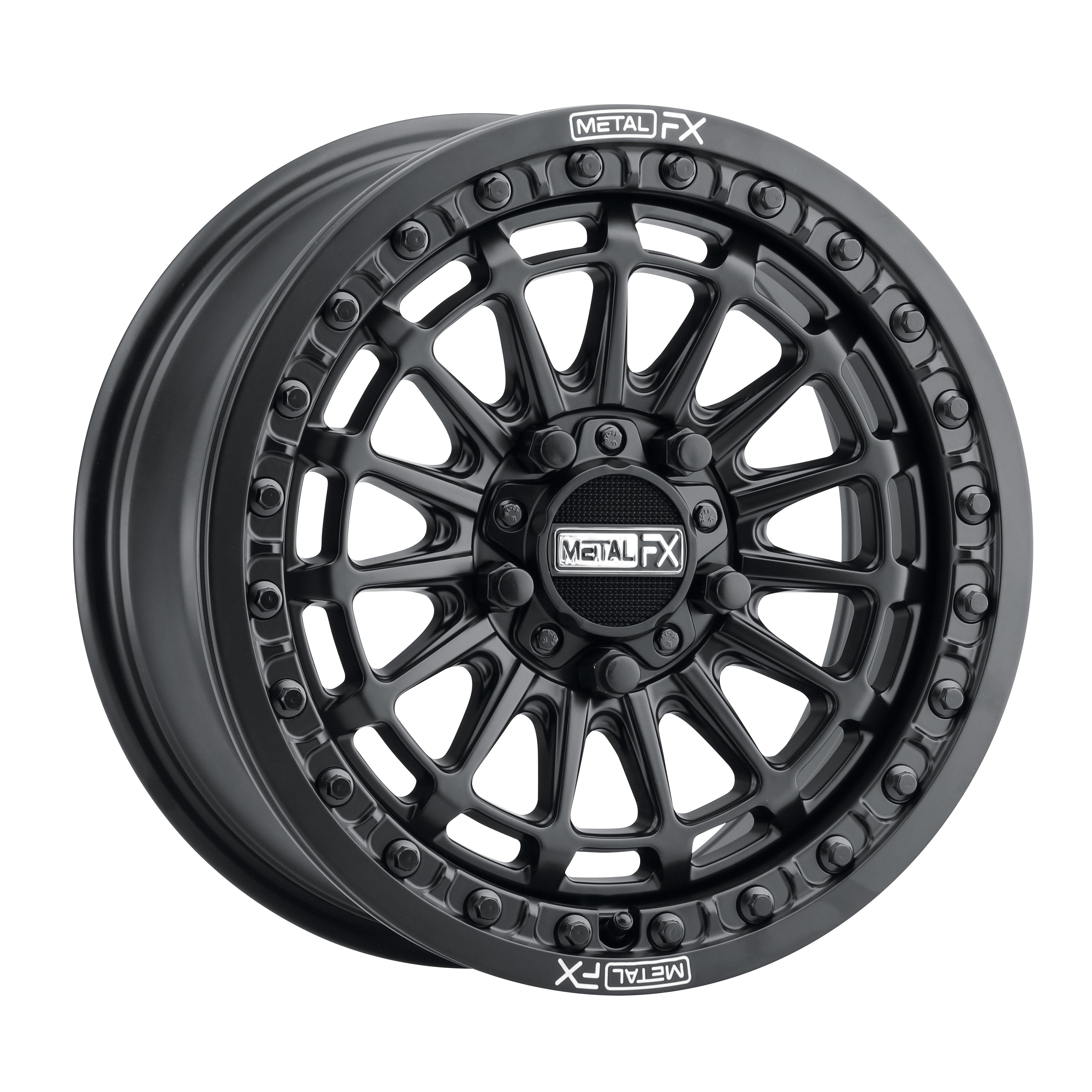

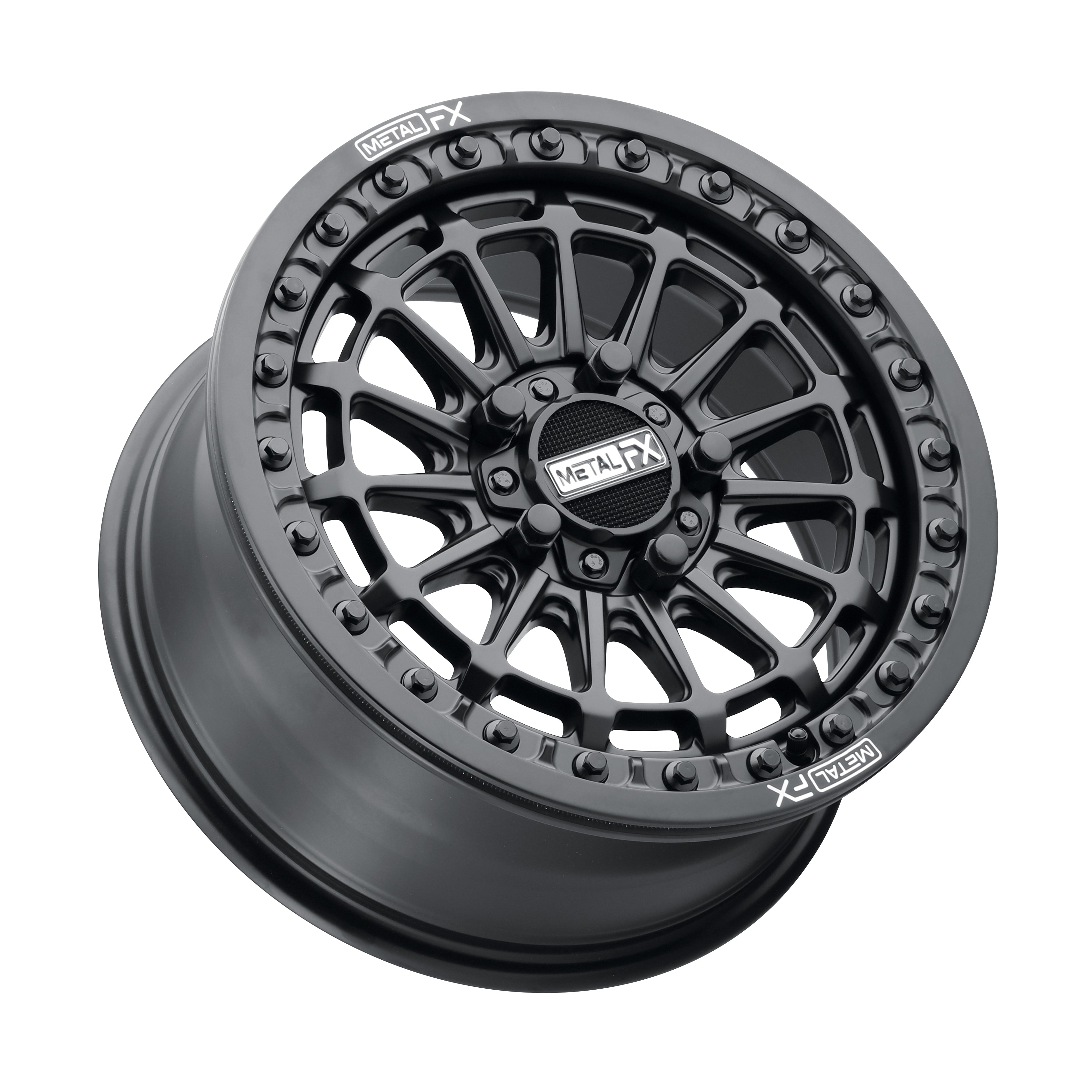

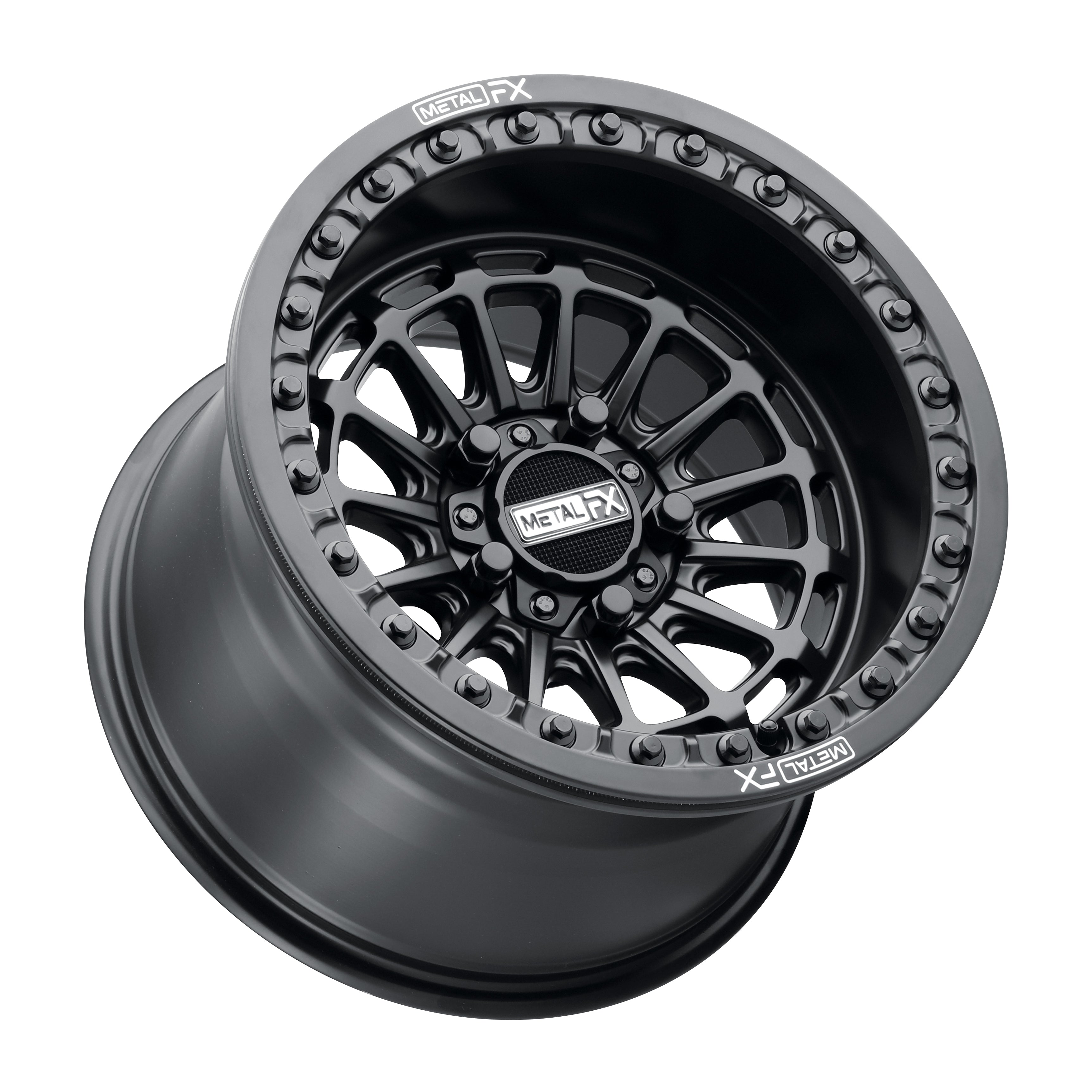

Each Delta R wheel in Satin Black is A356-T6 cast aluminum with a 6061-T6 forged aluminum beadlock ring. Metal FX lists the weight at 17.9 lbs for the 15x7 and 19.8 lbs for the 15x10. Center caps for this finish are part 10313. The matching replacement beadlock ring is part 10201.

Features and Benefits

• Satin Black: The quietest Delta R, flat enough to hide trail dust between washes.
• Higher Rating Than the 4-Lug: 1,260 lbs per wheel versus 1,000 lbs on the 4-lug Delta.

Bolt Pattern Application Guide

Always confirm your machine's bolt pattern, hub and brake clearance before ordering.

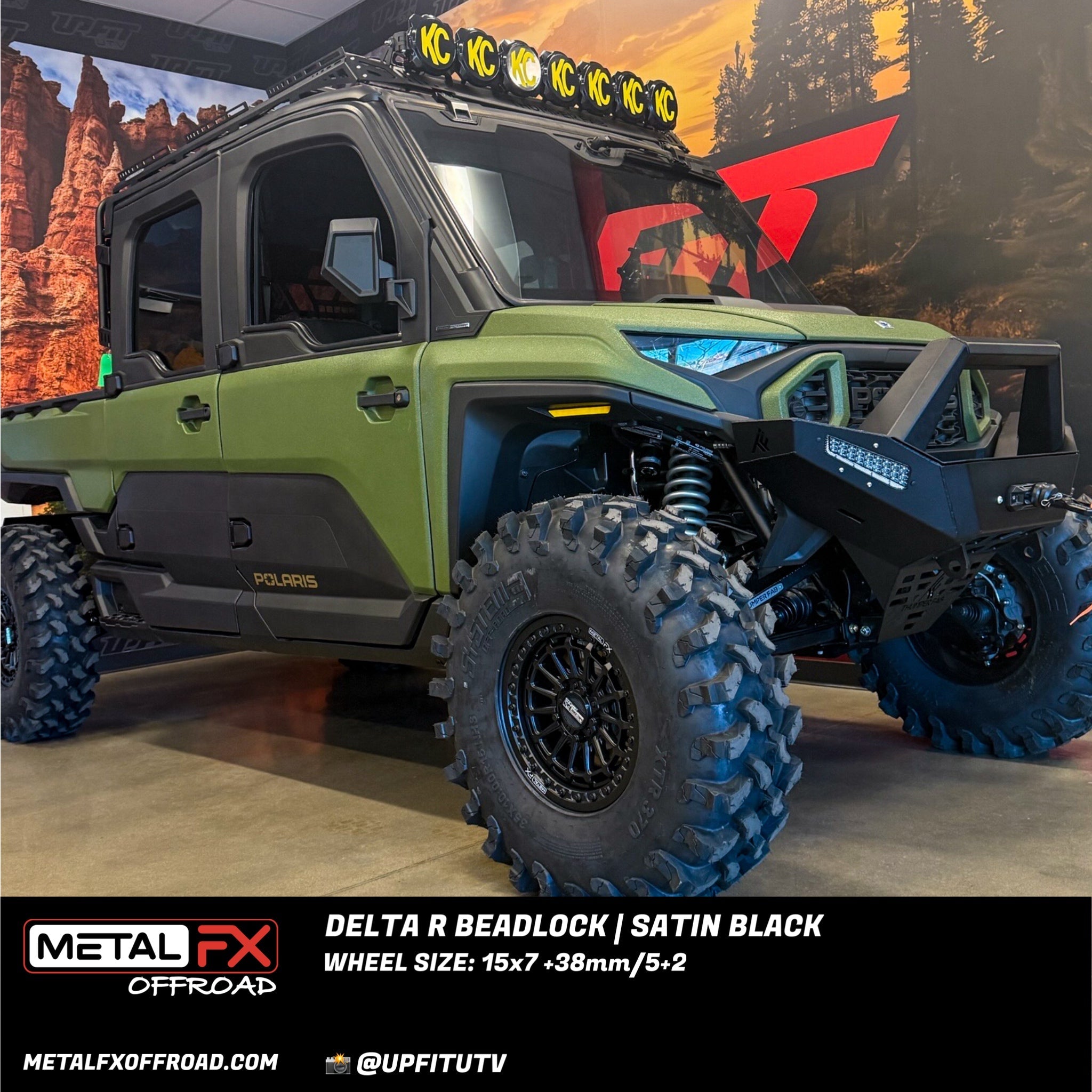

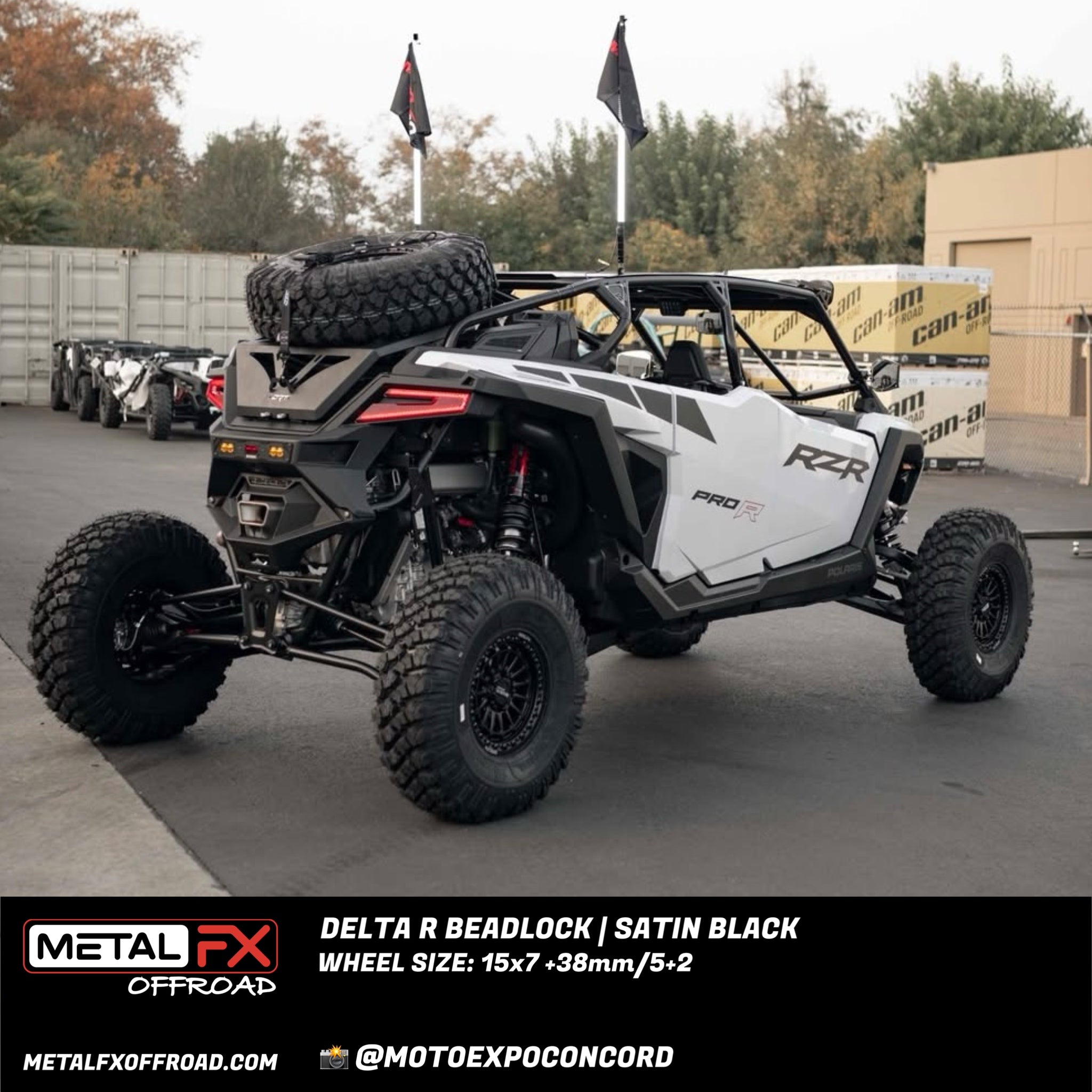

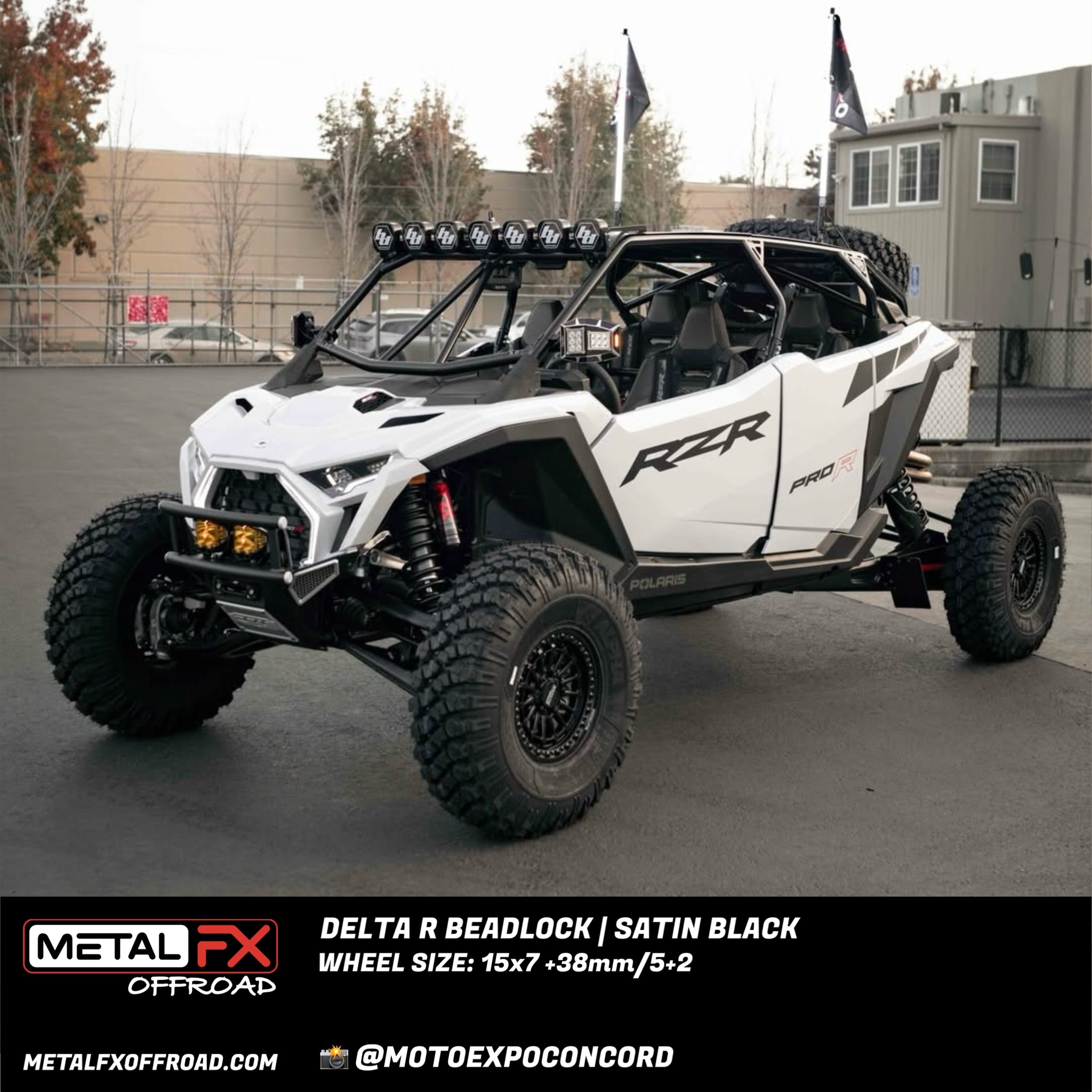

• 5x114.3 (5x4.5) Bolt Pattern (66.1mm center bore; 15x7 +38mm, 15x10 +0mm): Metal FX lists this pattern for Polaris 5-lug machines and Segway Super Villain.

Delta R Satin Black Specifications

PLEASE NOTE: Single wheel purchase only, tire and extra vehicle accessories NOT included! Double-check your machine's bolt pattern, offset, and fitment clearances before ordering to ensure absolute accuracy.

Important Fitment & Legal Notes

• Off-Road Use Only: Metal FX builds its beadlock wheels for dedicated off-road use. Beadlock wheels are not legal on public roads in many states and provinces, so check your local laws before you ride.
• Beadlock Maintenance: Torque the beadlock ring bolts to Metal FX's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
• Lug Nuts Required: These wheels require aftermarket lug nuts (sold separately).
• Remove Mud Scrapers: Before installing, remove your machine's factory mud scrapers to avoid damaging the wheels. Metal FX publishes removal instructions.
• Construction: A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring.
• Warranty: Covered by Metal FX's One-Year Limited Structural manufacturer warranty: one year against material defects and 30 days against workmanship defects from the date of receipt. Beadlock rings are not covered, and bent or cosmetically damaged wheels are excluded.

UTV Application Warning: Customers and/or users are responsible for ensuring that this product is compatible with their machines as currently configured. Professional installation of beadlock hardware is highly recommended, and routine safety inspections on the beadlock ring torque specs are required before trail usage.
