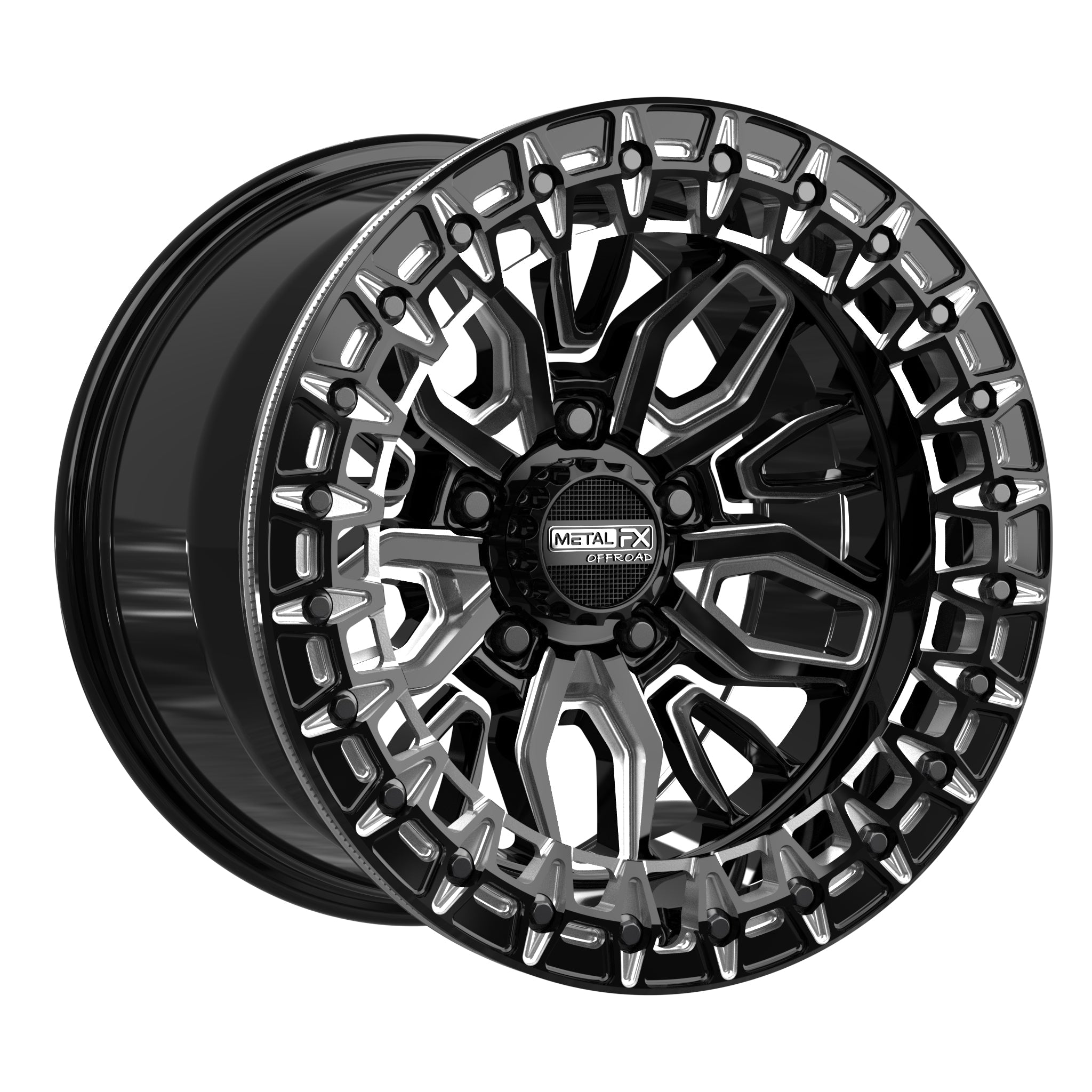

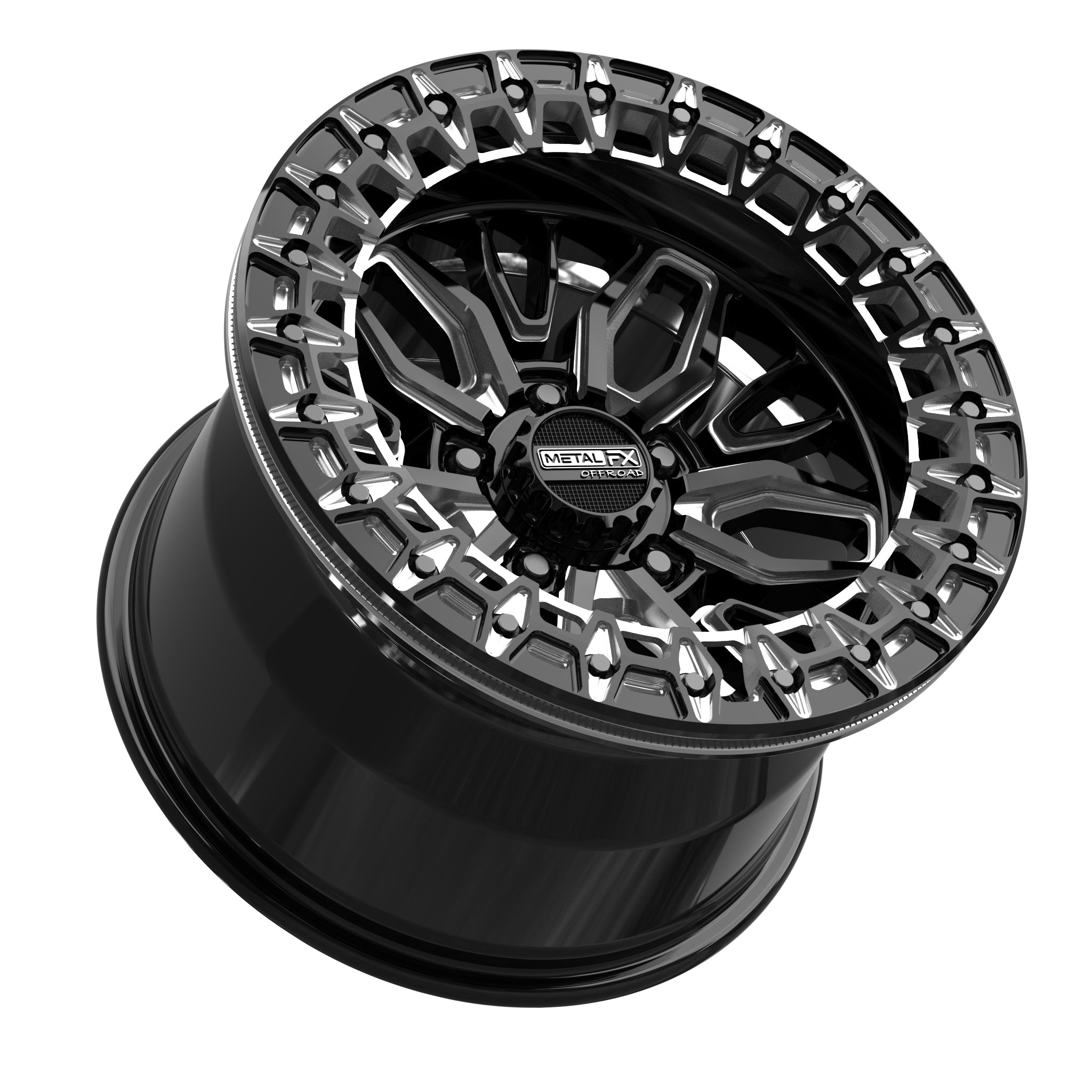

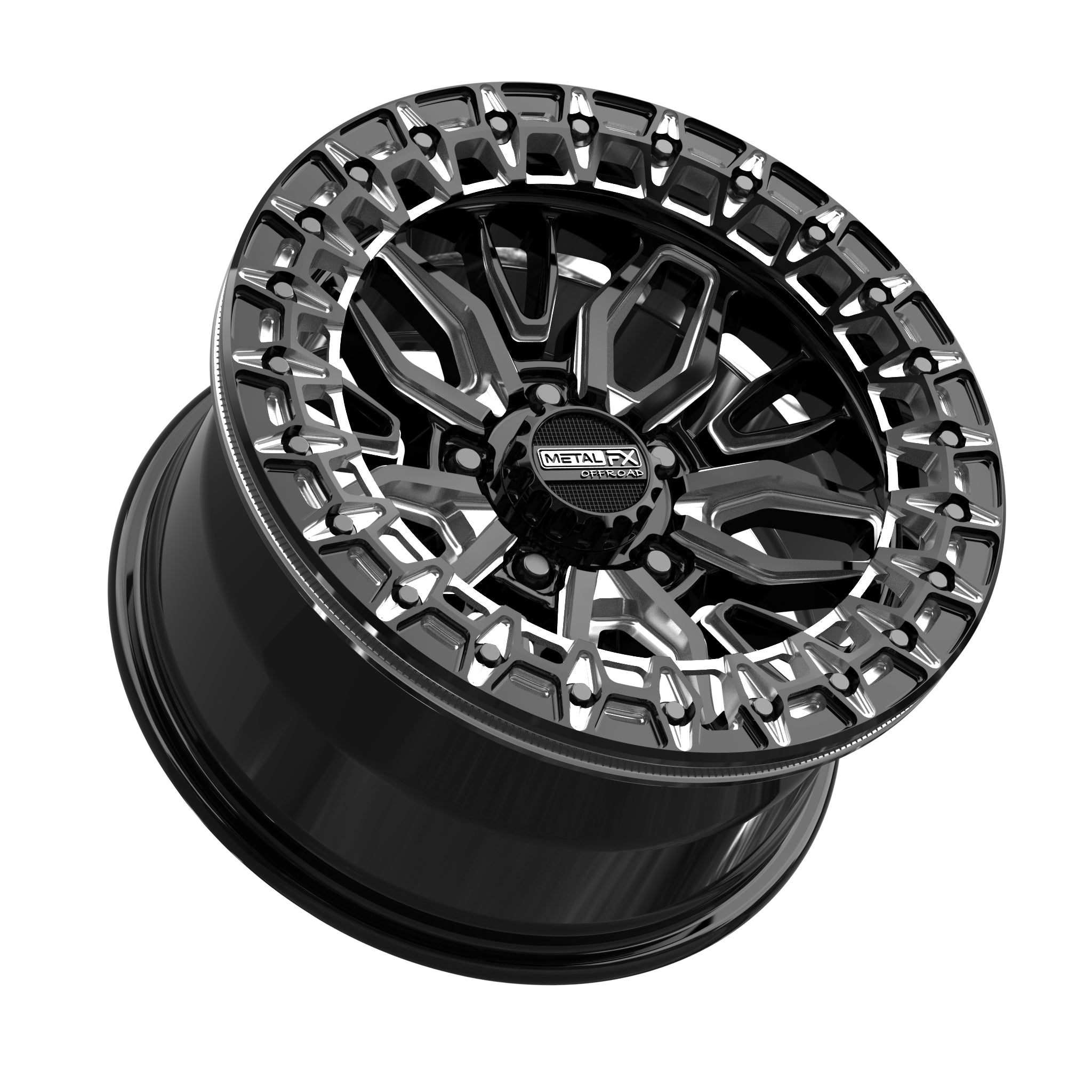

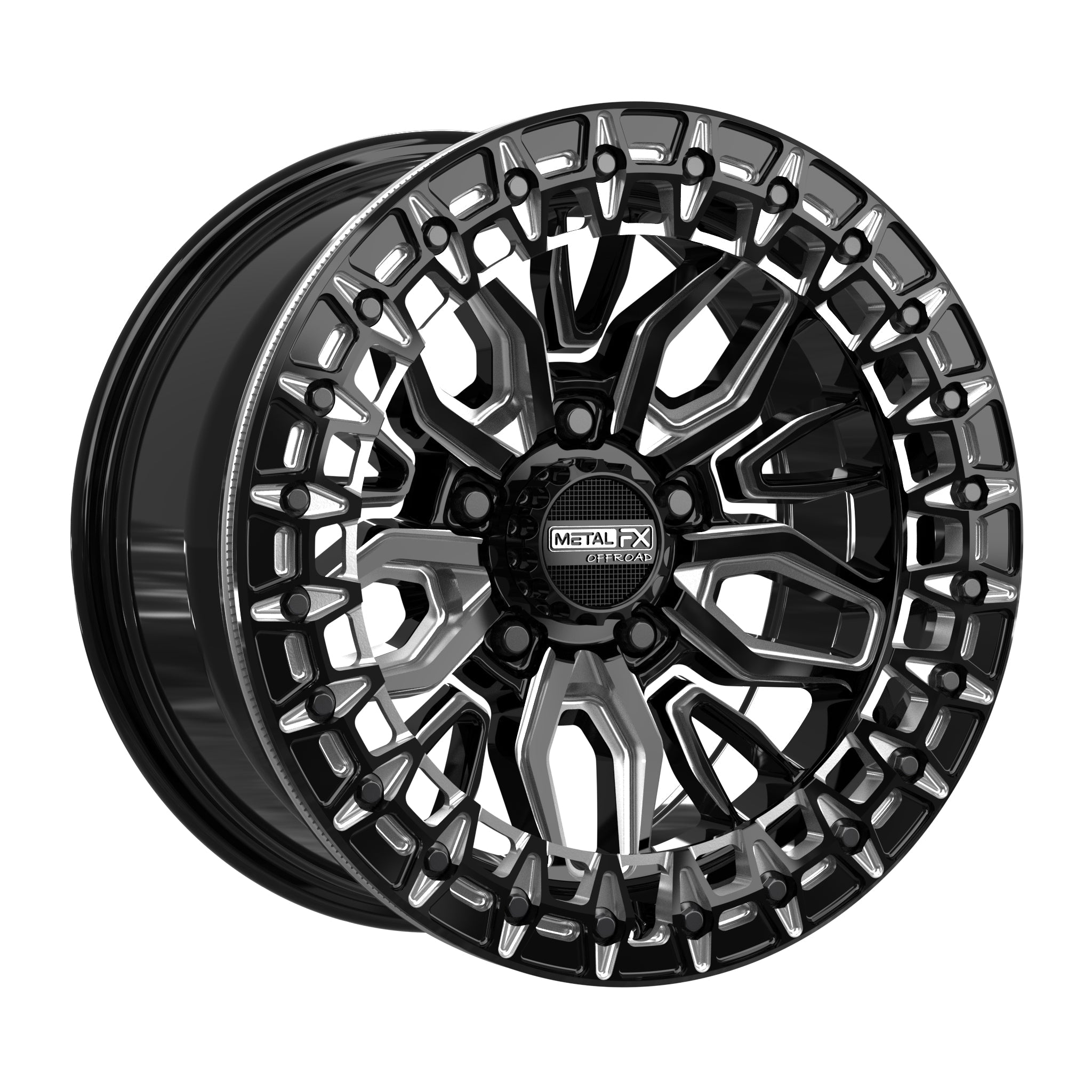

Metal FX® Mayhem R 15" UTV Beadlock Wheel: 5x114.3 | Gloss Black Contrast Cut

Metal FX Mayhem R Beadlock UTV Wheel

Machined Edges, Black Body.

Contrast-cut machining lifts the Mayhem R's spoke edges out of a gloss black base. It sits between the all-black version and the silver machined one, dark overall but bright where the light catches.

Like every Mayhem R, it fits 5-lug hubs drilled 5x4.5, with a 15x8 (4+4) or 15x10 (5+5) at zero offset. Load capacity is 1,260 lbs per wheel, and replacement rings for this finish are part 10256.

Each Mayhem R wheel in Gloss Black Contrast Cut is A356-T6 cast aluminum with a 6061-T6 forged aluminum beadlock ring. Metal FX does not currently publish a weight for this finish. Center caps for this finish are part 10333. The matching replacement beadlock ring is part 10256.

Features and Benefits

• Gloss Black Contrast Cut: Spoke edges flash bright while the Mayhem R body stays black.
• Matching Ring: Metal FX lists a dedicated contrast-cut beadlock ring (10256) for this finish.

Bolt Pattern Application Guide

Always confirm your machine's bolt pattern, hub and brake clearance before ordering.

• 5x114.3 (5x4.5) Bolt Pattern (66.1mm center bore; 15x8 +0mm, 15x10 +0mm): Metal FX lists this pattern for Polaris 5-lug machines and Segway Super Villain.

Mayhem R Gloss Black Contrast Cut Specifications

PLEASE NOTE: Single wheel purchase only, tire and extra vehicle accessories NOT included! Double-check your machine's bolt pattern, offset, and fitment clearances before ordering to ensure absolute accuracy.

Important Fitment & Legal Notes

• Off-Road Use Only: Metal FX builds its beadlock wheels for dedicated off-road use. Beadlock wheels are not legal on public roads in many states and provinces, so check your local laws before you ride.
• Beadlock Maintenance: Torque the beadlock ring bolts to Metal FX's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
• Lug Nuts Required: These wheels require aftermarket lug nuts (sold separately).
• Remove Mud Scrapers: Before installing, remove your machine's factory mud scrapers to avoid damaging the wheels. Metal FX publishes removal instructions.
• Construction: A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring.
• Warranty: Covered by Metal FX's One-Year Limited Structural manufacturer warranty: one year against material defects and 30 days against workmanship defects from the date of receipt. Beadlock rings are not covered, and bent or cosmetically damaged wheels are excluded.

UTV Application Warning: Customers and/or users are responsible for ensuring that this product is compatible with their machines as currently configured. Professional installation of beadlock hardware is highly recommended, and routine safety inspections on the beadlock ring torque specs are required before trail usage.
