UTV Tire DOT Ratings and Construction Explained

When shopping for UTV or Side-by-Side (SxS) tires, most owners focus on tread depth, ply rating / construction, and price. However, as modern machines like the Polaris RZR Pro R and Can-Am Maverick R push past 200+ horsepower, the method by which a tire is built has become more important than the tread pattern itself.

To get the best performance, you need to look past the marketing and understand two critical industry truths: the myth of the DOT rating and the true superiority of automotive-grade segmented mold construction. Please note that currently there are conflicting state and federal regulations in place (i.e. Michigan) that cause a lot of confusion for tire consumers, which we will dive into further in another article.

1. The myth of the DOT rating and The Reality Check: There is No Such Thing as a "DOT Approved" UTV Tire

For years, "DOT Approved" has been a major selling point for UTV tires, but it is time to set the record straight: Despite what you may read on certain other SXS related websites who confuse the issue or simply don't understand it, There are no DOT-rated, approved, or certified UTV tires. Up until the last several years, some manufacturers were manufacturing UTV tires with DOT stamping on the sidewall, despite the majority of those tires not even using steel belted radial construction. In short, this violation of consumer trust and federal law led to the NHTSA cracking down on UTV tire manufacturers.

According to the National Highway Traffic Safety Administration (NHTSA) and Federal Motor Vehicle Safety Standards (FMVSS), the "DOT" symbol can only be applied to tires manufactured for "motor vehicles intended for use on public streets and highways". Since UTVs are not manufactured primarily for public road use, they fall outside these regulations and consequently are considered categorically as off road vehicles.

Why this matters to you:

  • Prohibited Labeling: The symbol “DOT” is actually prohibited from appearing on any UTV, ATV, or "Not for Highway Service" (NHS) tire.
  • Safety vs. Marketing: If a tire is marketed as "DOT Approved," it is a misnomer. While some tires are built to handle high speeds and hard surfaces, no U.S. law or regulation governs the highway use of UTV tires.

  • The NHS Label: Most high-quality UTV tires are correctly labeled as NHS (Not for Highway Service). This doesn't mean the tire is weak or unable to handle your off road demands; it simply means it wasn't designed for a 4,000 lb passenger car on a freeway.

2. What is Segmented Mold Construction?

If you can’t rely on a DOT stamp for quality, how do you judge a tire’s build? The answer lies in the mold. It is crucial to understand that all passenger car, light truck, and large trucks (such as semis, dump trucks, etc...) all use tires that feature Steel Belted Radial, Segmented Mold construction.

Most UTV tires are made using a two-piece "clamshell" mold. This is a traditional method where the tire is pressed between two halves (like a waffle iron). You can identify clamshell mold tires by the mold mark that runs near the centerline of the tire tread, and continues all the way around circumference of the tire. In contrast, high-end tires—like the Valor Offroad Tango or Kenda Klever X/T—use Segmented Mold Construction, which is the gold standard for automotive grade tires.

Helpful Hint: You know that phrase: "All bourbon is whiskey but not all whiskey is bourbon?" Looking at you, Kentucky! Well, the same can be said for tires: Any tire that uses segmented mold construction is a steel belted radial but not every steel belted radial uses segmented mold construction (i.e. BFGoodrich KM3 UTV tire, which is a clamshell mold steel belted radial).

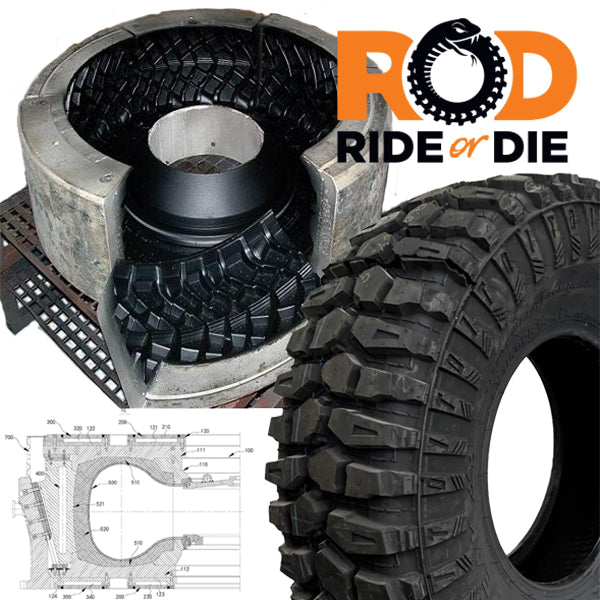

In a segmented mold, the tire is surrounded by multiple pieces (usually 8 or more) that close radially around the tire. This "iris-like" closing mechanism allows for a level of precision that two-piece clamshell molds simply cannot match.

3. The Benefits of Segmented Molds (Automotive Grade)

Superior Uniformity and Balance

In a traditional clamshell mold, the "green" (uncured) tire can shift as the two halves press together, leading to "heavy spots" or a tire that isn't perfectly round. Segmented molds close from all sides simultaneously, locking the tire in place. This results in a tire with nearly perfect dimensions and balance, significantly reducing the "death wobble" or steering vibration often felt at high speeds.

Intricate Tread Performance

Because the segments move straight into the tread, engineers can design much more complex and aggressive tread patterns. Two-piece molds are limited by "draw angles"—if the tread is too intricate, the tire will get stuck in the mold when it tries to open. Segmented molds remove these limits, allowing for sharper edges and better traction. This enhanced tread construction also lengthens tread life and wear, helping you to get more miles out of your set of tires.

Enhanced Tread Adhesion and Durability

Segmented molds can withstand much higher internal air pressure during the curing (vulcanization) process. This high pressure forces the rubber deeper into the casing and ensures a superior bond between the tread and the tire body. For a UTV rider, this means a tire that is far more resistant to tread chunking or delamination under high heat and heavy torque.

Consistency Across the Set

When you buy four tires for your SxS, you want them to be identical. Two-piece molds are prone to "flash" (that extra line of rubber around the center) and slight variations in diameter. Segmented molds produce highly consistent tires, which is vital for modern 4WD and AWD systems that can be damaged by mismatched tire diameters. This manufacturing consistency also produces a tire that is quieter on pavement and hardpack, while simultaneously providing a highly cushioned and comfortable ride.

Summary: What to Look For

When you are ready to upgrade your UTV tires, don't look for a "DOT" stamp that shouldn't be there. Instead, ask about the construction.

Automotive-grade segmented mold construction is the single best indicator of a high-performance tire. It ensures your tires are round, balanced, and durable enough to handle the extreme horsepower of today's sport UTVs. By choosing a tire from Ride or Die Tire's Premium Automotive Grade Segmented-Mold UTV and SXS Tires, you are investing in the same manufacturing technology used for high-performance street cars, providing a smoother ride and better longevity on the trail.
