Warn® R25 2,500 Pound Winch | 50' Steel Cable
Estimated Shipping Widget will be displayed here!
Upgrade today to the All-New 2,500lb Warn UTV / SXS R25 Winch with 50' Steel Cable - FREE SHIPPING!
WARN R-Series Powersports Winches
The WARN R-Series delivers proven performance and legendary reliability from one of the most trusted names in off-road equipment. With capacities ranging from 2,500 lbs to 6,000 lbs—the highest ever in WARN’s powersports lineup—these winches are built for everything from ATVs and UTVs to small trucks and SUVs. Compact, durable, and ready for any challenge, the R-Series gives you the strength you need without compromise.
Backed by WARN
Engineered in Oregon and tested for reliability. Built to the same standards that made WARN an off-road icon.
IP67 Waterproof
Sealed to keep water, mud, and debris out—ensuring consistent performance in harsh conditions.
All-Metal Durability
Features a strong, efficient, all-metal three-stage planetary gear train for maximum power and longevity.
Automatic Load-Holding Brake
Provides reliable control and stopping power during recovery operations.
Compact & Easy to Install
Streamlined design fits a wide range of ATVs, UTVs, and smaller vehicles.
Superior Warranty
5-year mechanical and 3-year electrical warranty, backed by a U.S.-based support team.
The WARN R-Series Powersports Winches are built to perform—and built to last. Whether you’re on the trail, in the mud, or out on the job, the R-Series is your trusted partner in power and performance.

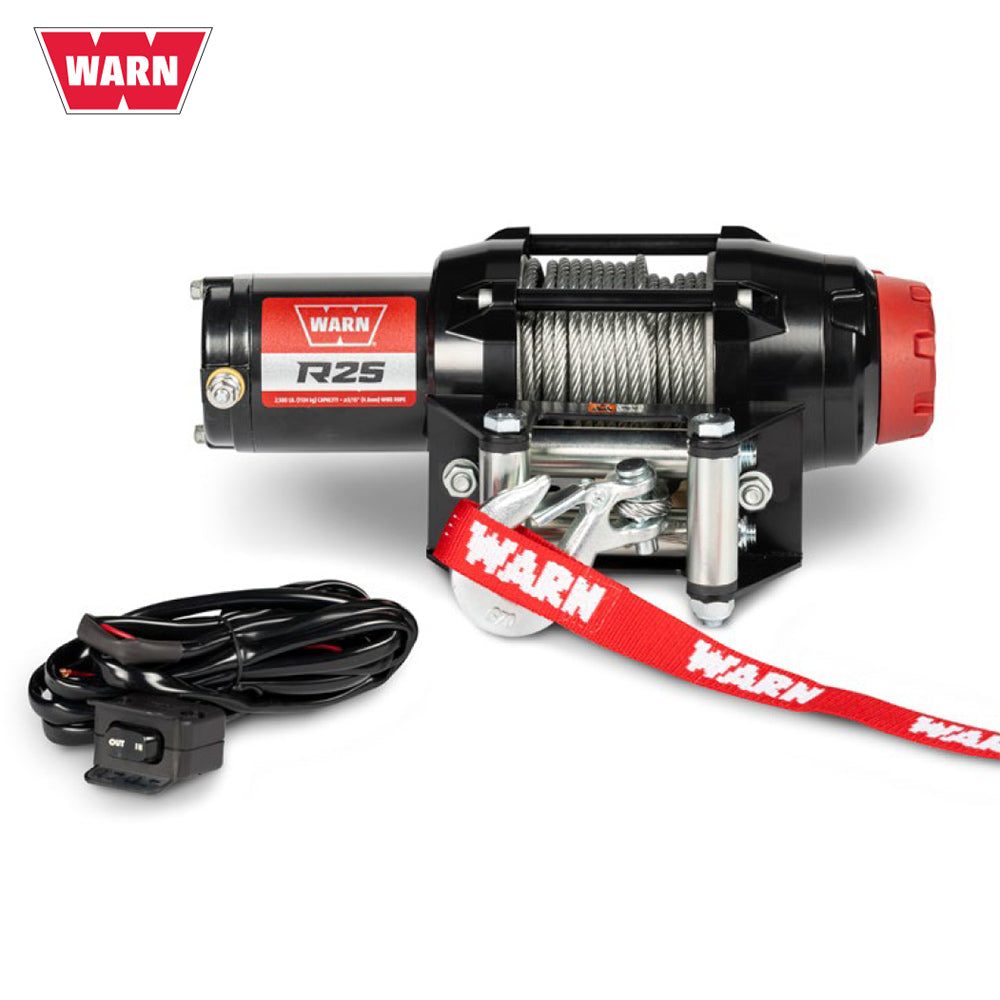

R25 UTV Winch Includes
- Warn Part #110025
- Manufacturer's Warranty 5 Year Mechanical, 3 Year Electrical
- Extra Length 50' Steel Cable
- Handlebar Mounted Rocker Switch Control
- UTV Model Specific Mounting Brackets and Hardware Not Included, Must be purchased separately. Contact us to determine correct mounting brackets for your model!
R25 UTV Winch Specifications
| Specification | R25 (WW-110025) | R25-S (WW-110020) |
|---|---|---|
| Part Number | WW-110025 | WW-110020 |
| Rated Line Pull | 2,500 lbs (1134 kg) single-line | 2,500 lbs (1134 kg) single-line |
| Motor | 12V DC permanent magnet | 12V DC permanent magnet |
| Sealing | IP67 rated waterproof | IP67 rated waterproof |
| Gear Train | Differential planetary | Differential planetary |
| Fasteners | Zinc plated | Zinc plated |
| Rope | 50' x 3/16" (15m x 4.8mm) steel | 50' x 3/16" (15m x 4.8mm) synthetic |
| Hook | Zinc plated | Zinc plated |
| Fairlead | Roller fairlead | Cast aluminum hawse |
| Primary Control | Handle-bar mounted rocker switch | Handle-bar mounted rocker switch |
| Remote Control | Sold Separately | Sold Separately |
| Brake | Dynamic brake | Dynamic brake |
| Warranty | 5 years mechanical, 3 years electrical | 5 years mechanical, 3 years electrical |
| Dimensions (L x H x W) | 12.4" x 4.5" x 4.0" (315mm x 114mm x 102mm) | 12.4" x 4.5" x 4.0" (315mm x 114mm x 102mm) |
| Mounting Bolt Pattern | 3" x 4.9" (76.2mm x 167.4mm) | 3" x 4.9" (76.2mm x 167.4mm) |
