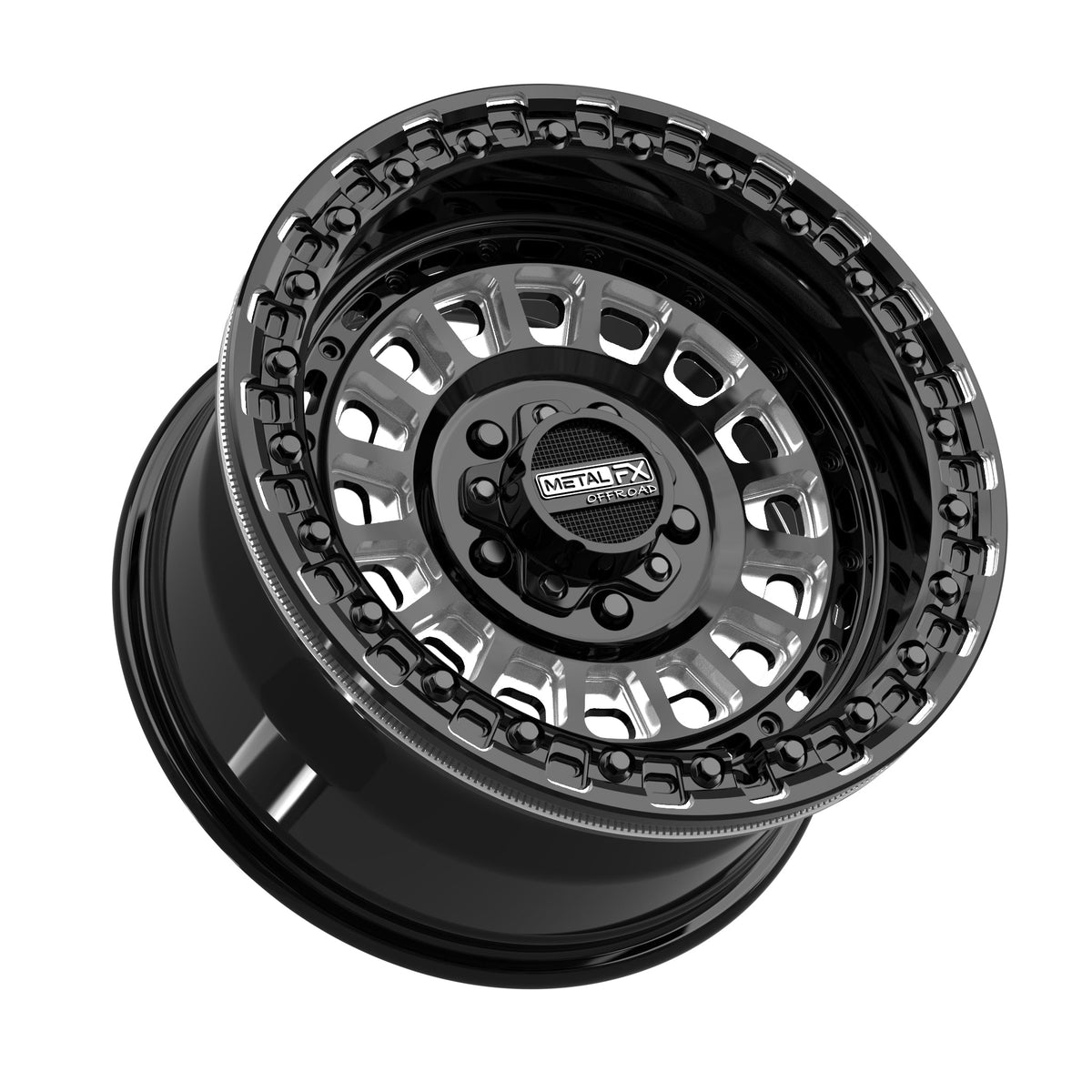

Metal FX Sicario R Beadlock UTV wheel, Gloss Black Contrast Cut, 15x8 5x114.3 (SKU 78906), view 2

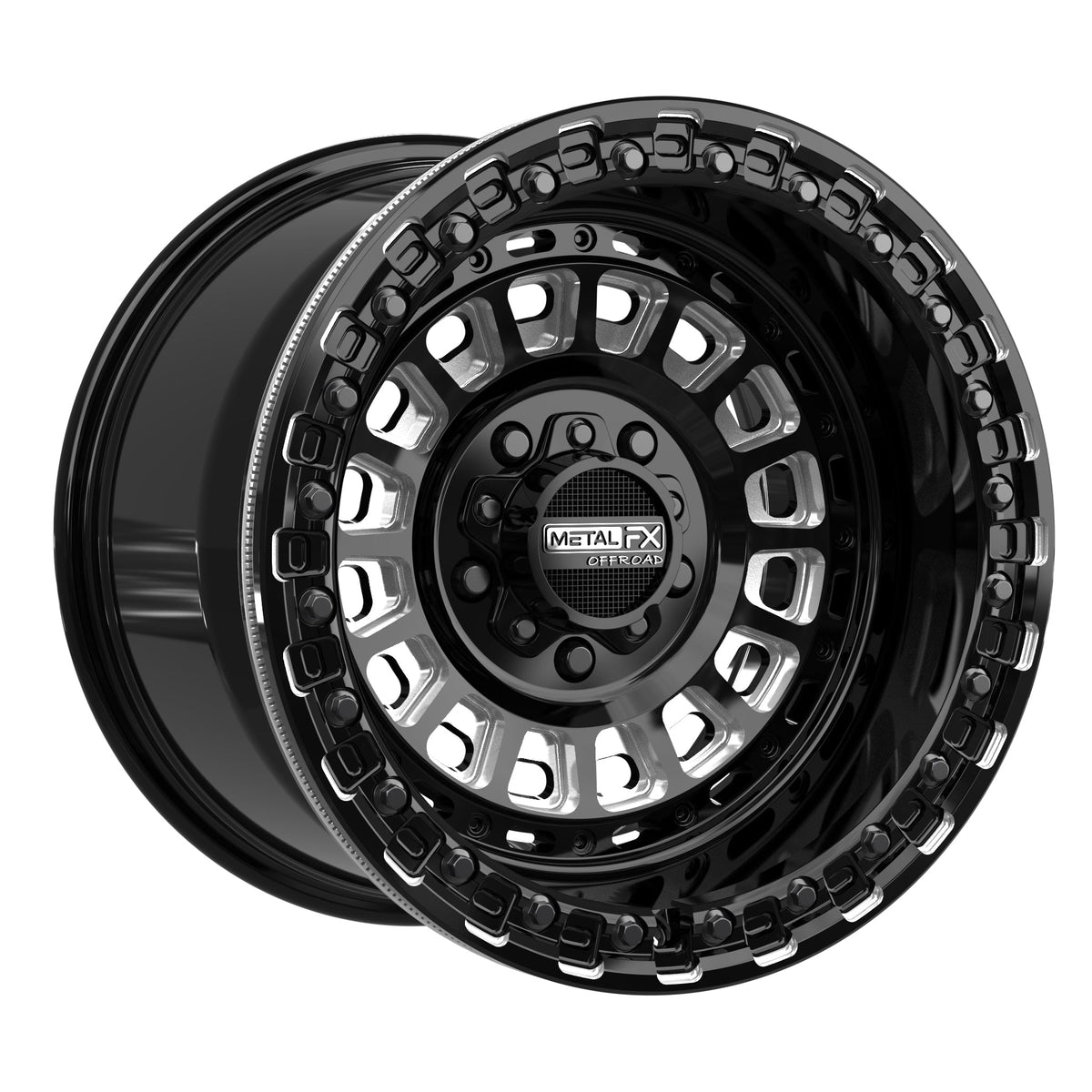

Metal FX Sicario R Beadlock UTV wheel, Gloss Black Contrast Cut, 15x10 5x114.3 (SKU 78918)

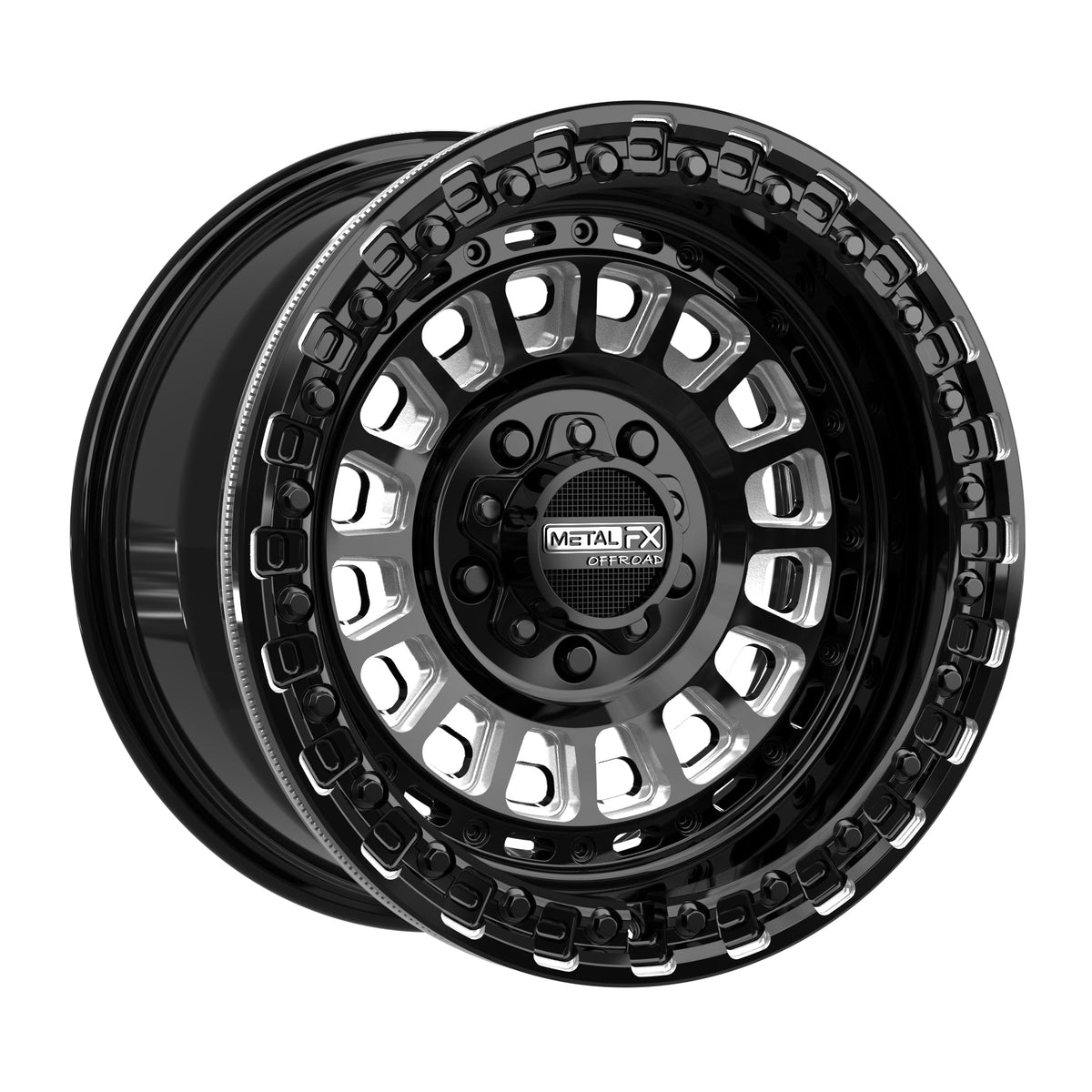

Metal FX Sicario R Beadlock UTV wheel, Gloss Black Contrast Cut, 15x8 5x114.3 (SKU 78906)

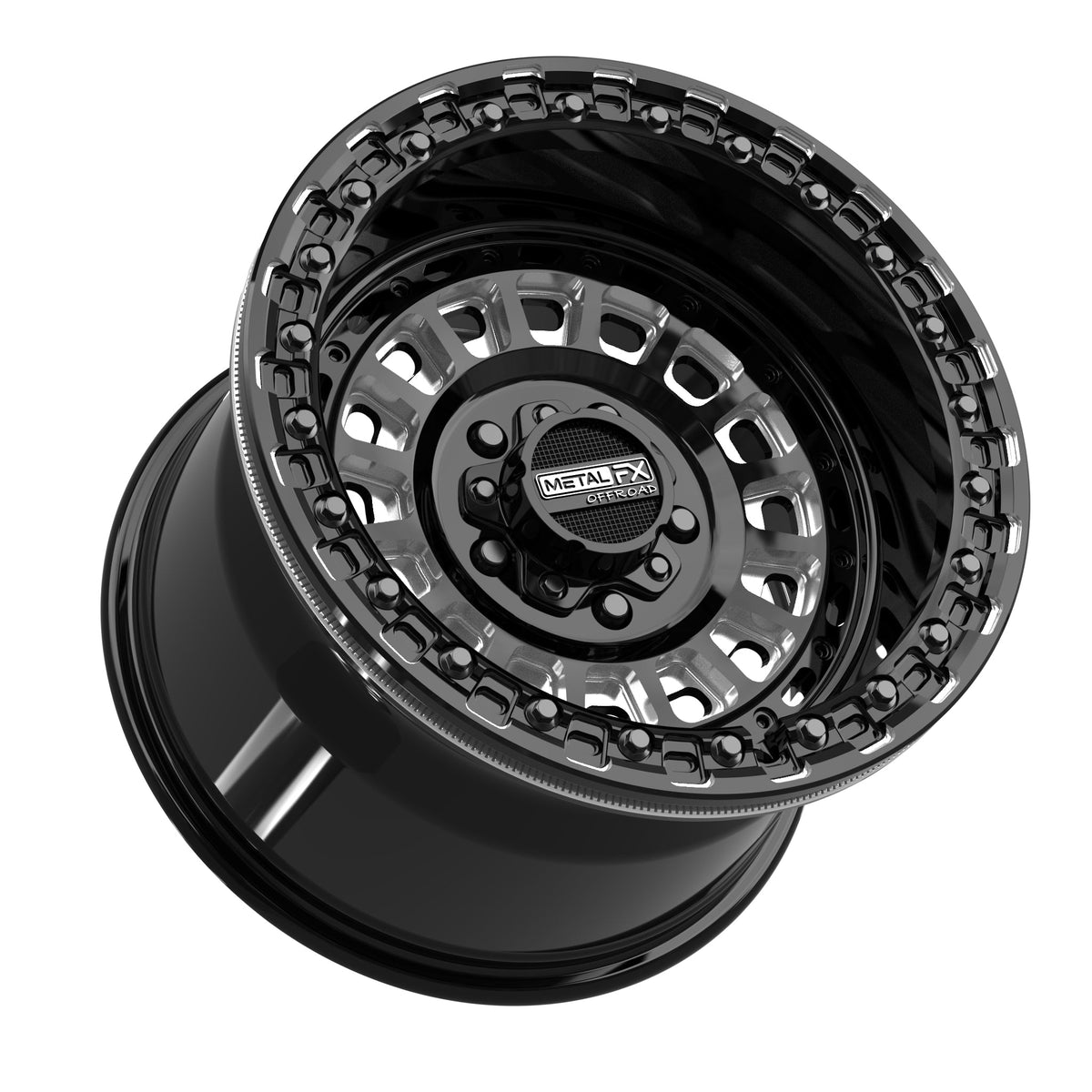

Metal FX Sicario R Beadlock UTV wheel, Gloss Black Contrast Cut, 15x10 5x114.3 (SKU 78918), view 2

METAL FX OFFROAD

Metal FX® Sicario R Beadlock 15" UTV Wheel | Gloss Black Contrast Cut

$409.00 – $419.00

Wheel Color: Gloss Black Contrast Cut
Size: 15x8 | 15x10
Bolt Pattern: 5x114.3
Offset: +0mm
Wheel Type: Beadlock

Metal FX Sicario R Beadlock UTV Wheel

Portal-Ready Cap. Contrast-Cut Spokes.

The Sicario R adds something the 4-lug version does not have: a newly designed XL center cap that Metal FX says clears portal axles without modification. In Gloss Black Contrast Cut, its machined spoke faces stand out against the black.

It fits Polaris 5-lug hubs with a 5x4.5 pattern, in 15x8 (4+4) or 15x10 (5+5) at +0mm. Metal FX lists 20.1 lbs per wheel and a 1,600 lb rating, and the XL cap means portal-axle machines need no modification.

Features and Benefits

Gloss Black Contrast Cut: Bright spokes on a portal-ready 5-lug Sicario.
XL Center Cap: Clears portal axles without modification, per Metal FX.

Bolt Pattern Application Guide

Always confirm your machine's bolt pattern, hub and brake clearance before ordering.

5x114.3 (5x4.5) Bolt Pattern (66.1mm center bore; 15x8 +0mm, 15x10 +0mm): Metal FX lists this pattern for Polaris 5-lug machines, Segway Super Villain and Kawasaki H2.

Sicario Series Wheel Specifications

SKU	Model	Finish	Wheel Size	Bolt Pattern	Backspace (in)	Offset (mm)	Offset (in)	Center Bore	Weight (lbs)	Load Rating	Lip Size	Cap SKU	Cap HW SKU	BL Ring SKU	BL HW SKU
SICARIO R BEADLOCK (5-LUG)
78906	Sicario R Beadlock	Gloss Black Contrast Cut	15x8	5x114.3	4.4"	+0mm	4+4	66.1	20.1	1600	2.54"	10332	10641	10276	10601
78918	Sicario R Beadlock	Gloss Black Contrast Cut	15x10	5x114.3	5.4"	+0mm	5+5	66.1	20.1	1600	3.54"	10332	10641	10276	10601
78907	Sicario R Beadlock	Gloss Silver Machined	15x8	5x114.3	4.4"	+0mm	4+4	66.1	20.6	1600	2.54"	10347	10644	10274	10608
78919	Sicario R Beadlock	Gloss Silver Machined	15x10	5x114.3	5.4"	+0mm	5+5	66.1	20.6	1600	3.54"	10347	10644	10274	10608
78908	Sicario R Beadlock	Satin Black w/ Gloss Black Ring	15x8	5x114.3	4.4"	+0mm	4+4	66.1	20.6	1600	2.54"	10332	10641	10278	10601
78920	Sicario R Beadlock	Satin Black w/ Gloss Black Ring	15x10	5x114.3	5.4"	+0mm	5+5	66.1	20.6	1600	3.54"	10332	10641	10278	10601
SICARIO BEADLOCK (4-LUG)
78900	Sicario Beadlock	Gloss Black Contrast Cut	15x8	4x136/4x137	4.4"	+0mm	4+4	110.2	20.1	1600	2.54"	10329	10641	10276	10601
78912	Sicario Beadlock	Gloss Black Contrast Cut	15x10	4x136/4x137	5.4"	+0mm	5+5	110.2	20.1	1600	3.54"	10329	10641	10276	10601
78903	Sicario Beadlock	Gloss Black Contrast Cut	15x8	4x156	4.4"	+0mm	4+4	132	20.1	1600	2.54"	10329	10641	10276	10601
78915	Sicario Beadlock	Gloss Black Contrast Cut	15x10	4x156	5.4"	+0mm	5+5	132	20.1	1600	3.54"	10329	10641	10276	10601
78901	Sicario Beadlock	Gloss Silver Machined	15x8	4x136/4x137	4.4"	+0mm	4+4	110.2	20.6	1600	2.54"	10346	10644	10274	10608
78913	Sicario Beadlock	Gloss Silver Machined	15x10	4x136/4x137	5.4"	+0mm	5+5	110.2	20.6	1600	3.54"	10346	10644	10274	10608
78904	Sicario Beadlock	Gloss Silver Machined	15x8	4x156	4.4"	+0mm	4+4	132	20.6	1600	2.54"	10346	10644	10274	10608
78916	Sicario Beadlock	Gloss Silver Machined	15x10	4x156	5.4"	+0mm	5+5	132	20.6	1600	3.54"	10346	10644	10274	10608
78902	Sicario Beadlock	Satin Black w/ Gloss Black Ring	15x8	4x136/4x137	4.4"	+0mm	4+4	110.2	20.6	1600	2.54"	10329	10641	10278	10601
78914	Sicario Beadlock	Satin Black w/ Gloss Black Ring	15x10	4x136/4x137	5.4"	+0mm	5+5	110.2	20.6	1600	3.54"	10329	10641	10278	10601
78905	Sicario Beadlock	Satin Black w/ Gloss Black Ring	15x8	4x156	4.4"	+0mm	4+4	132	20.6	1600	2.54"	10329	10641	10278	10601
78917	Sicario Beadlock	Satin Black w/ Gloss Black Ring	15x10	4x156	5.4"	+0mm	5+5	132	20.6	1600	3.54"	10329	10641	10278	10601
SICARIO 6R BEADLOCK (6-LUG)
78909	Sicario 6R Beadlock	Gloss Black Contrast Cut	15x8	6x139.7	4.4"	+0mm	4+4	78.1	20.1	1600	2.54"	10337	10641	10276	10601
78921	Sicario 6R Beadlock	Gloss Black Contrast Cut	15x10	6x139.7	5.4"	+0mm	5+5	78.1	20.1	1600	3.54"	10337	10641	10276	10601
78910	Sicario 6R Beadlock	Gloss Silver Machined	15x8	6x139.7	4.4"	+0mm	4+4	78.1	20.6	1600	2.54"	10345	10644	10274	10608
78922	Sicario 6R Beadlock	Gloss Silver Machined	15x10	6x139.7	5.4"	+0mm	5+5	78.1	20.6	1600	3.54"	10345	10644	10274	10608
78911	Sicario 6R Beadlock	Satin Black w/ Gloss Black Ring	15x8	6x139.7	4.4"	+0mm	4+4	78.1	20.6	1600	2.54"	10337	10641	10278	10601
78923	Sicario 6R Beadlock	Satin Black w/ Gloss Black Ring	15x10	6x139.7	5.4"	+0mm	5+5	78.1	20.6	1600	3.54"	10337	10641	10278	10601

PLEASE NOTE: Single wheel purchase only, tire and extra vehicle accessories NOT included! Double-check your machine's bolt pattern, offset, and fitment clearances before ordering to ensure absolute accuracy.

Important Fitment & Legal Notes

Off-Road Use Only: Metal FX builds its beadlock wheels for dedicated off-road use. Beadlock wheels are not legal on public roads in many states and provinces, so check your local laws before you ride.
Beadlock Maintenance: Torque the beadlock ring bolts to Metal FX's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
Lug Nuts Required: These wheels require aftermarket lug nuts (sold separately).
Remove Mud Scrapers: Before installing, remove your machine's factory mud scrapers to avoid damaging the wheels. Metal FX publishes removal instructions.
Construction: A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring.
Warranty: Covered by Metal FX's One-Year Limited Structural manufacturer warranty: one year against material defects and 30 days against workmanship defects from the date of receipt. Beadlock rings are not covered, and bent or cosmetically damaged wheels are excluded.

UTV Application Warning: Customers and/or users are responsible for ensuring that this product is compatible with their machines as currently configured. Professional installation of beadlock hardware is highly recommended, and routine safety inspections on the beadlock ring torque specs are required before trail usage.

About Metal FX Motorsports

Handmade Quality. Professionally Built.
Metal FX Offroad designs and manufactures custom UTV and off-road truck wheels engineered to push the limits of modern off-road vehicles. As a family-operated, California-based company, their close-knit team of industry insiders brings a wealth of knowledge from the forefront of the forged wheel industry. By combining advanced materials, innovative in-house engineering, and rigorous testing to SAE standards, Metal FX delivers premium wheels that offer the ultimate in trail performance and durability.
