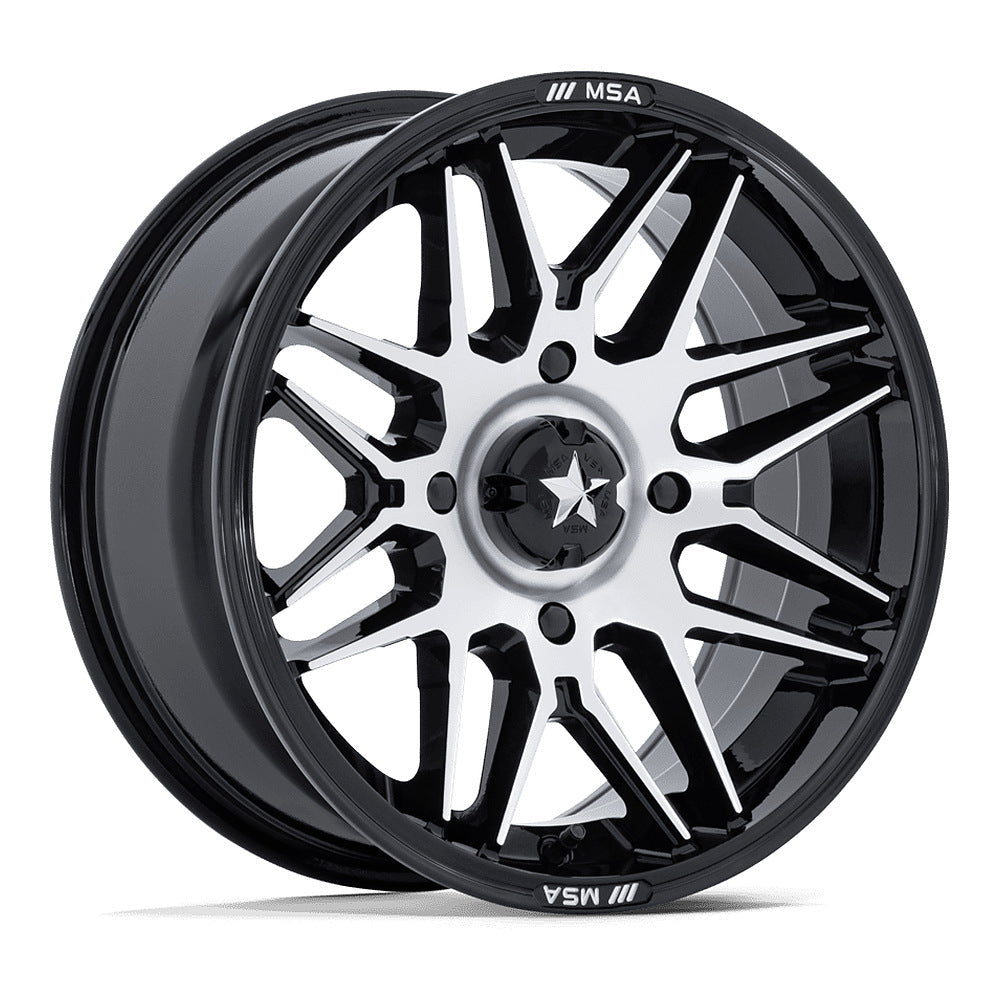

MSA Radar (M52) UTV wheel in gloss black with machined face, angled front view

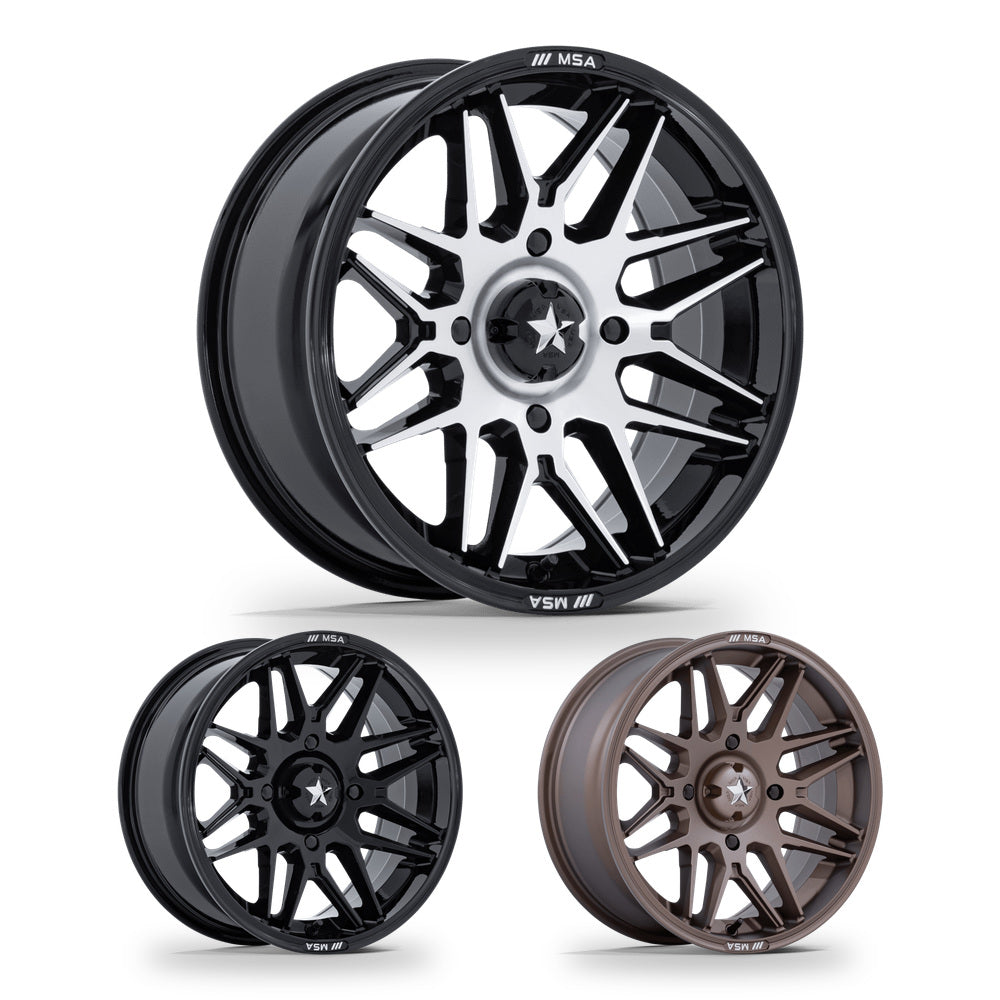

MSA Radar (M52) UTV wheel in every finish: gloss black with machined face, gloss black and matte bronze

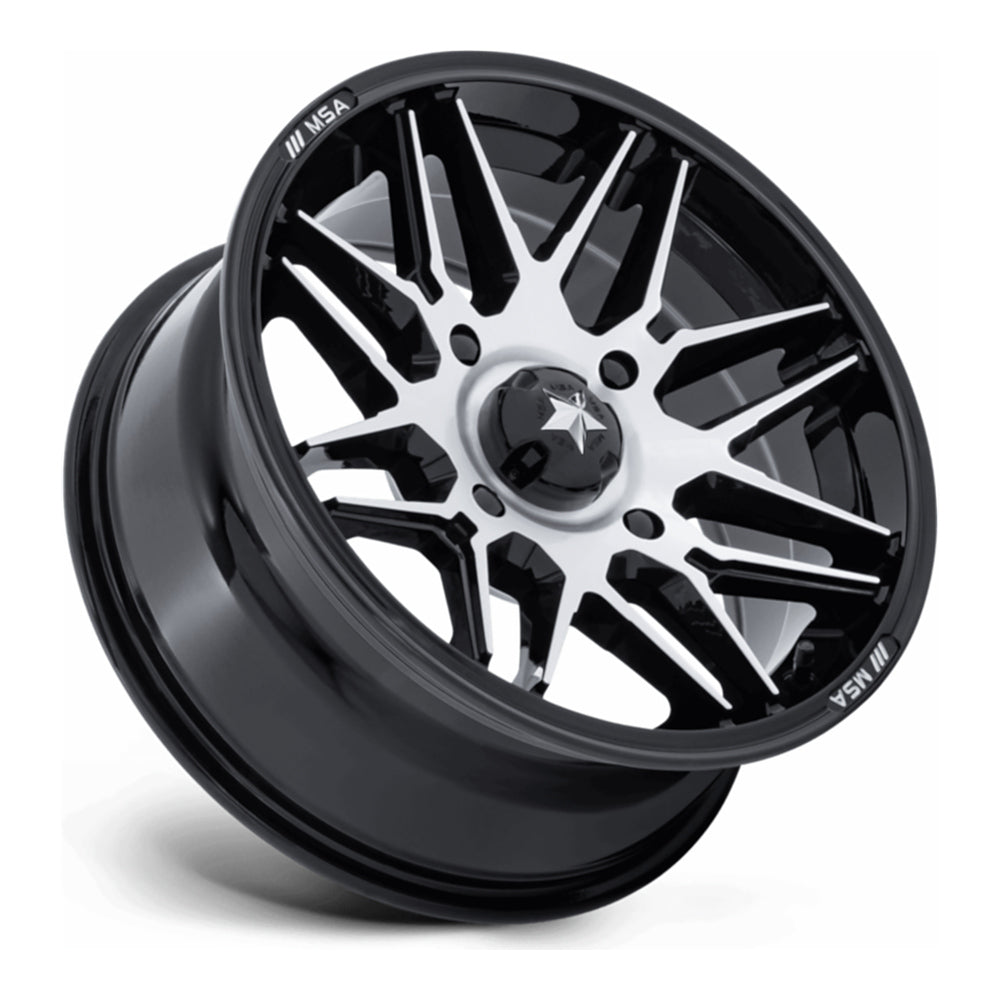

MSA Radar (M52) UTV wheel in gloss black with machined face, side angle showing the barrel and lip

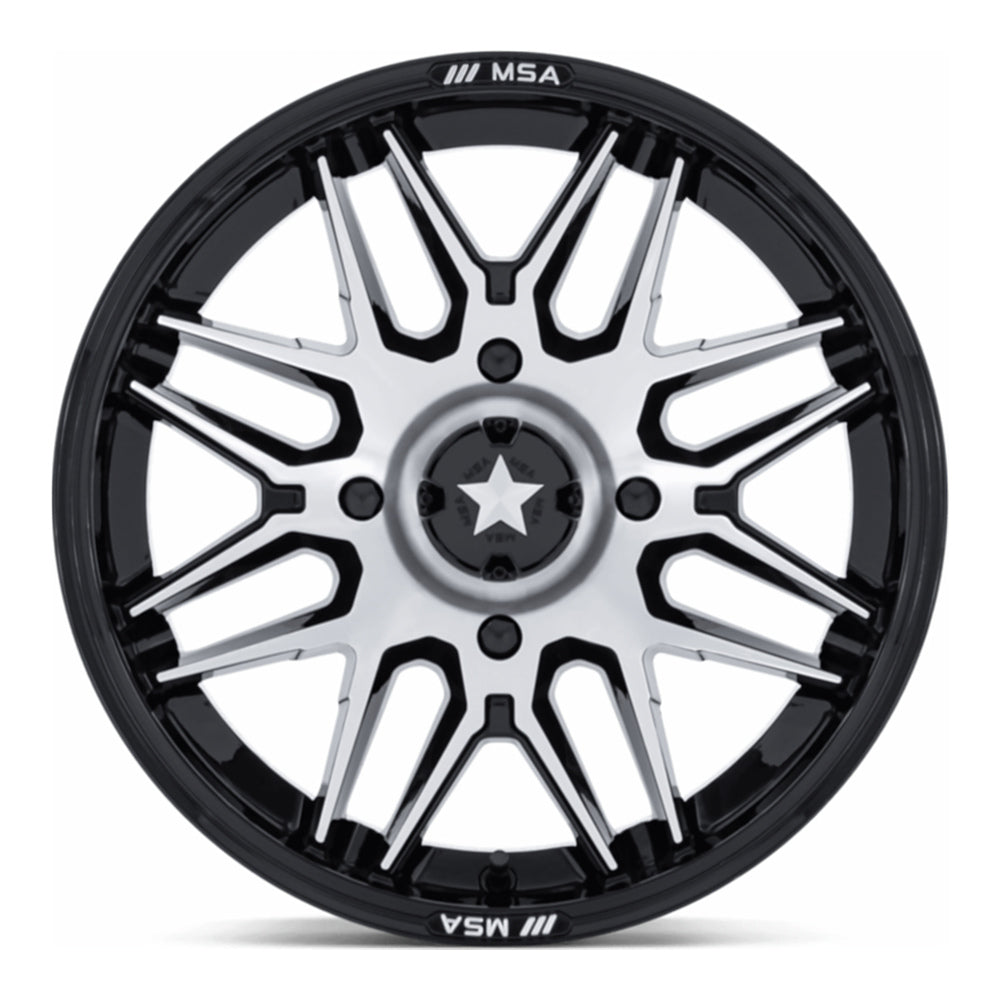

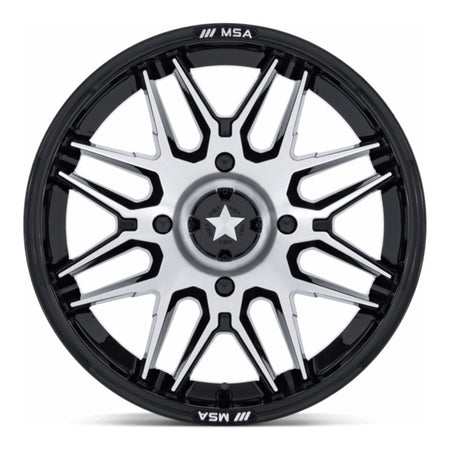

MSA Radar (M52) UTV wheel in gloss black with machined face, straight-on face view

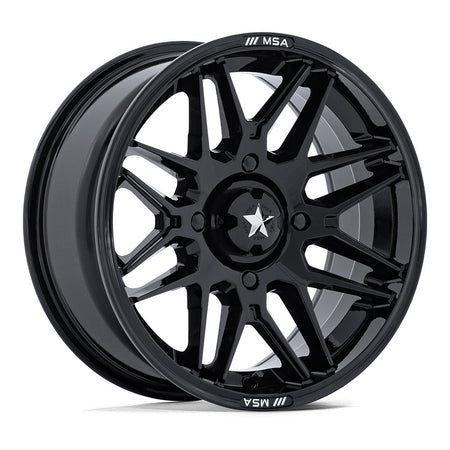

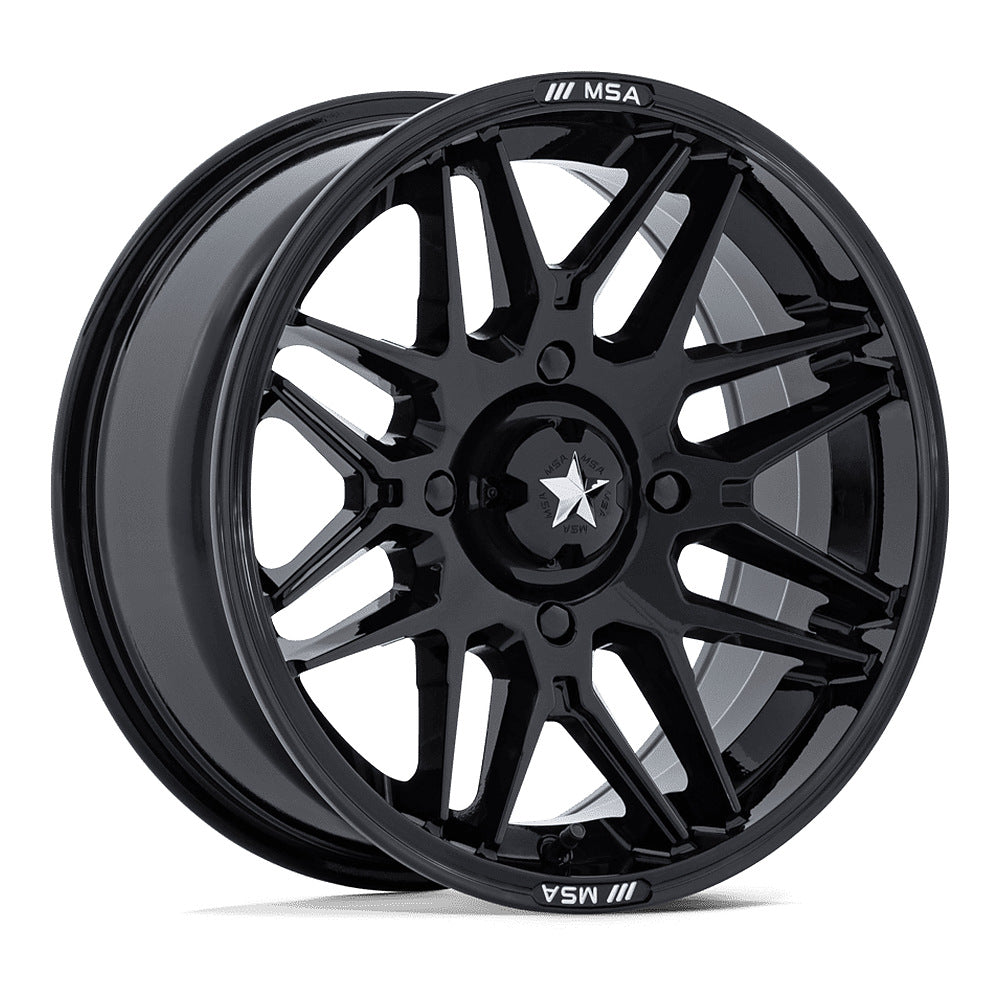

MSA Radar (M52) UTV wheel in gloss black, angled front view

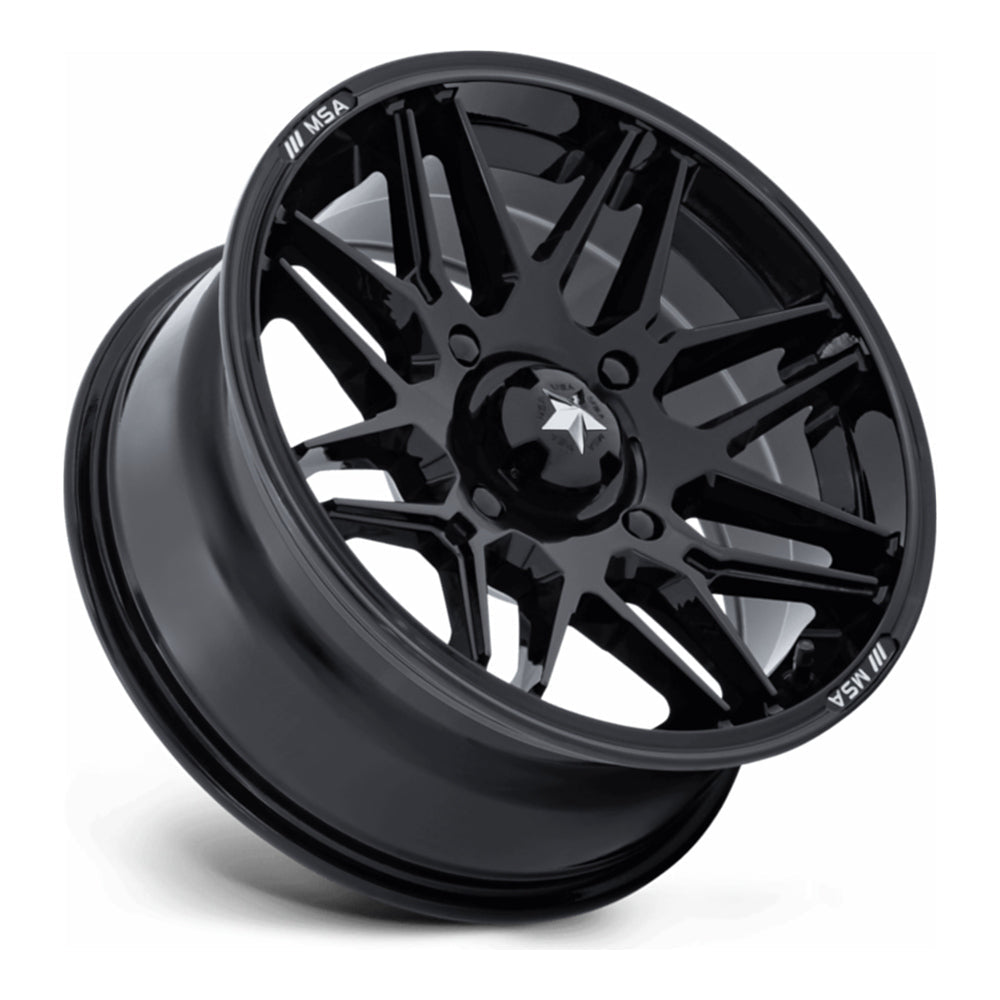

MSA Radar (M52) UTV wheel in gloss black, side angle showing the barrel and lip

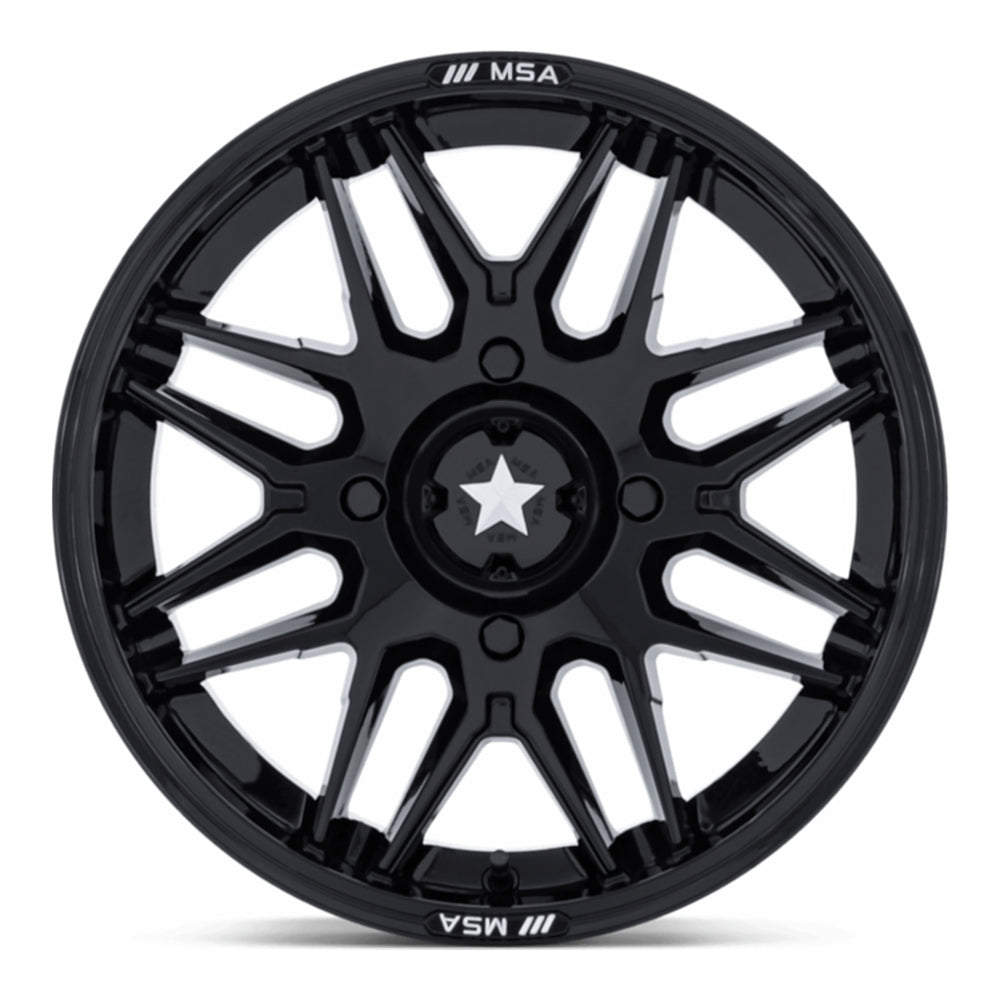

MSA Radar (M52) UTV wheel in gloss black, straight-on face view

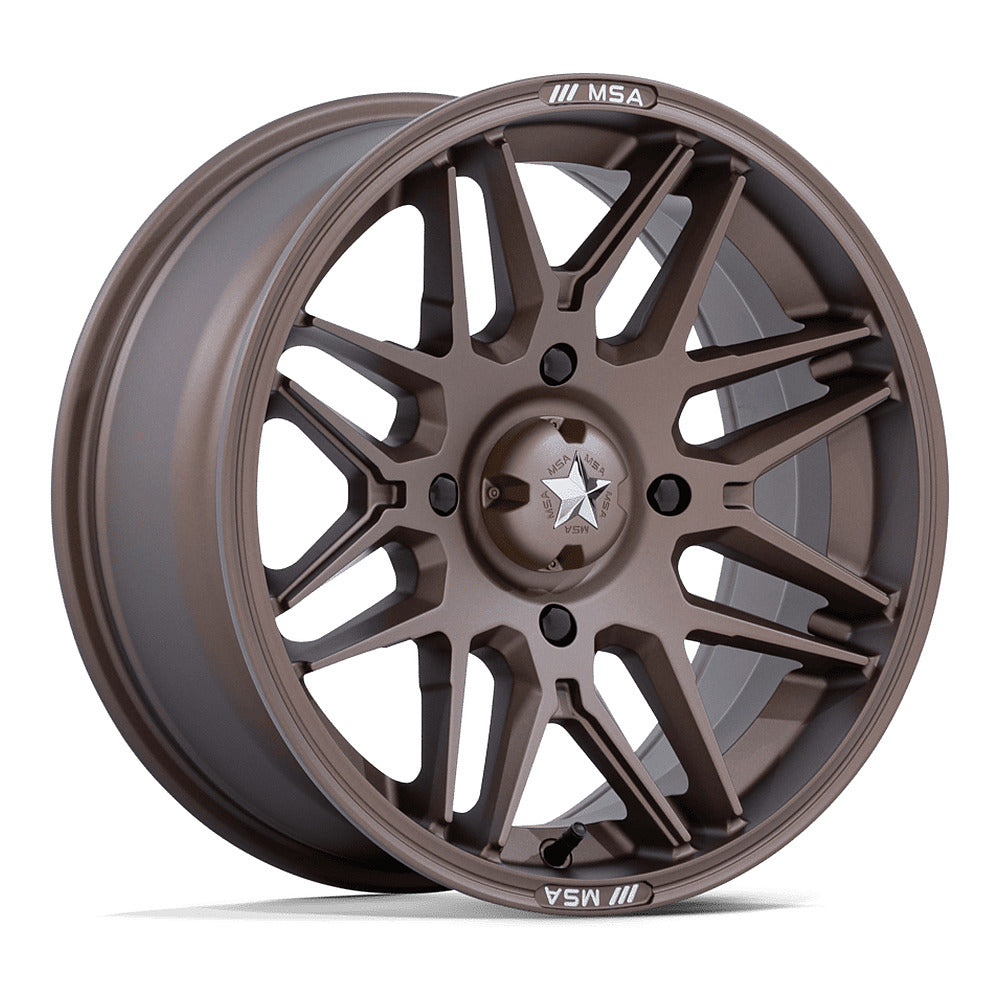

MSA Radar (M52) UTV wheel in matte bronze, angled front view

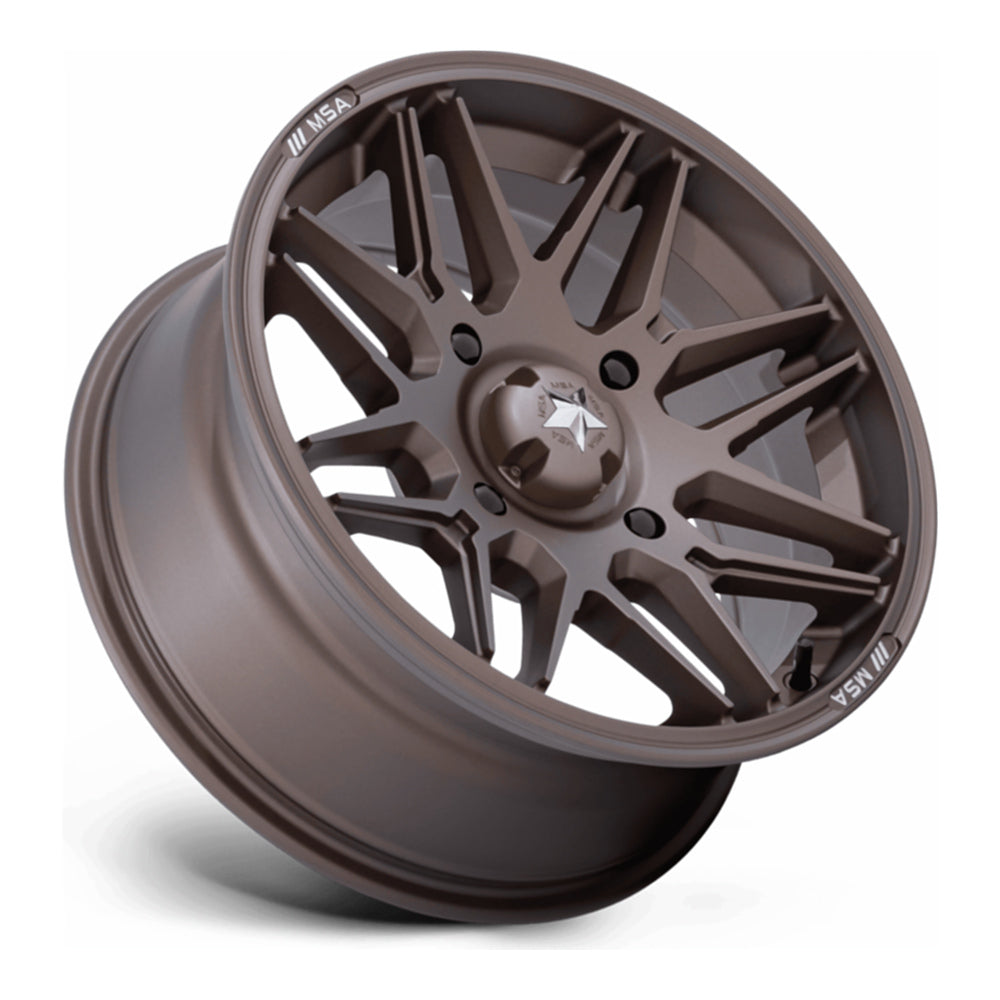

MSA Radar (M52) UTV wheel in matte bronze, side angle showing the barrel and lip

MSA Offroad Wheels

MSA Radar (M52) UTV Wheel

$186.00 – $271.00

Wheel Color: Gloss Black w/ Machined Face | Gloss Black | Matte Bronze
Size: 14x7 | 15x7 | 16x7
Bolt Pattern: 4/110 | 4/137 | 4/156 | 5/114.3
Offset: +10 mm | -47 mm
Wheel Type: Standard

Vintage motorsport meets the modern side-by-side in the MSA Radar (M52). Its multi-stepped mesh face and kick-down spoke taper borrow from classic race wheels, while a deep concave profile and a cast-iron-inspired lip give it the attitude to hold its own in the dirt.

MSA offers three finishes. Gloss black is the clean, all-dark take on the retro shape, gloss black with a machined face brings every layer of the stepped mesh forward, and matte bronze pairs a warm, flat color with those classic race-car lines.

Each finish has the same 13 fitments: 14, 15 and 16-inch diameters at +10mm in 4x110, 4x137, 4x156 or 5x114.3, plus an extreme 14x7 4x110 at -47mm with only 2.15" of backspacing for a wide stance. MSA's own riding shots put it in the dunes with a Can-Am Maverick, on rock climbs with a Polaris RZR and out on the trail with a Ranger.

MSA Radar (M52) Key Features

Stepped Mesh: Layers of mesh drop toward the center, giving the face real depth.
Kick-Down Taper: The spoke profile falls away toward the rim, a nod to old-school race wheels.
Matched Size Chart: Black, machined and bronze all share the same diameters, patterns and offsets.

Bolt Pattern Guide

Always confirm your machine's bolt pattern before ordering.

4x110 (86.00mm center bore; 14x7, 15x7, 16x7): Common on many Honda, Yamaha, Kawasaki, and Suzuki ATVs and some utility side-by-sides.
4x137 (96.00mm center bore; 14x7, 15x7, 16x7): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
4x156 (115.10mm center bore; 14x7, 15x7, 16x7): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.
5x114.3 (72.56mm center bore; 14x7, 15x7, 16x7): Also listed as 5/4.5. Used on Polaris Pro R and Turbo R models.

Important Fitment & Use Notes

About Negative Offset: The -47mm size here pushes the wheel outward for a wider stance. That changes how the tire sits in the fender and adds leverage on wheel bearings, so make sure your machine has the clearance for it.
Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
Replacement Center Caps: MSA part numbers by finish: Gloss Black w/ Machined Face: MSA-CAP-B; Gloss Black: MSA-CAP-B; Matte Bronze: MSA-CAP-BRONZE.

MSA Radar (M52) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
Gloss Black w/ Machined Face	14x7	MA052BD14704010	194933412549	Cast Aluminum	4/110	+10mm	4.39	86.00	17.86	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	14x7	MA052BD14704047N	194933412532	Cast Aluminum	4/110	-47mm	2.15	86.00	17.20	1,250 lbs	2.56	MSA-CAP-B
Gloss Black w/ Machined Face	14x7	MA052BD14704810	194933412501	Cast Aluminum	4/137	+10mm	4.39	96.00	18.30	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	14x7	MA052BD14704410	194933412525	Cast Aluminum	4/156	+10mm	4.39	115.10	18.30	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	14x7	MA052BD14701210	194933412556	Cast Aluminum	5/114.3	+10mm	4.39	72.56	17.86	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	15x7	MA052BD15704010	194933412471	Cast Aluminum	4/110	+10mm	4.39	86.00	18.96	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	15x7	MA052BD15704810	194933412457	Cast Aluminum	4/137	+10mm	4.39	96.00	19.62	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	15x7	MA052BD15704410	194933412464	Cast Aluminum	4/156	+10mm	4.39	115.10	19.62	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	15x7	MA052BD15701210	194933412488	Cast Aluminum	5/114.3	+10mm	4.39	72.56	18.96	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	16x7	MA052BD16704010	194933412433	Cast Aluminum	4/110	+10mm	4.39	86.00	20.28	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	16x7	MA052BD16704810	194933412419	Cast Aluminum	4/137	+10mm	4.39	96.00	20.72	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	16x7	MA052BD16704410	194933412426	Cast Aluminum	4/156	+10mm	4.39	115.10	20.72	1,250 lbs	0.33	MSA-CAP-B
Gloss Black w/ Machined Face	16x7	MA052BD16701210	194933412440	Cast Aluminum	5/114.3	+10mm	4.39	72.56	20.28	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	14x7	MA052BX14704010	194933412396	Cast Aluminum	4/110	+10mm	4.39	86.00	17.86	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	14x7	MA052BX14704047N	194933412389	Cast Aluminum	4/110	-47mm	2.15	86.00	17.20	1,250 lbs	2.56	MSA-CAP-B
Gloss Black	14x7	MA052BX14704810	194933412358	Cast Aluminum	4/137	+10mm	4.39	96.00	18.30	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	14x7	MA052BX14704410	194933412372	Cast Aluminum	4/156	+10mm	4.39	115.10	18.30	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	14x7	MA052BX14701210	194933412402	Cast Aluminum	5/114.3	+10mm	4.39	72.56	17.86	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	15x7	MA052BX15704010	194933412327	Cast Aluminum	4/110	+10mm	4.39	86.00	18.96	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	15x7	MA052BX15704810	194933412303	Cast Aluminum	4/137	+10mm	4.39	96.00	19.62	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	15x7	MA052BX15704410	194933412310	Cast Aluminum	4/156	+10mm	4.39	115.10	19.62	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	15x7	MA052BX15701210	194933412334	Cast Aluminum	5/114.3	+10mm	4.39	72.56	18.96	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	16x7	MA052BX16704010	194933412280	Cast Aluminum	4/110	+10mm	4.39	86.00	20.28	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	16x7	MA052BX16704810	194933412266	Cast Aluminum	4/137	+10mm	4.39	96.00	20.72	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	16x7	MA052BX16704410	194933412273	Cast Aluminum	4/156	+10mm	4.39	115.10	20.72	1,250 lbs	0.33	MSA-CAP-B
Gloss Black	16x7	MA052BX16701210	194933412297	Cast Aluminum	5/114.3	+10mm	4.39	72.56	20.28	1,250 lbs	0.33	MSA-CAP-B
Matte Bronze	14x7	MA052ZX14704010	194933412242	Cast Aluminum	4/110	+10mm	4.39	86.00	17.86	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	14x7	MA052ZX14704047N	194933412235	Cast Aluminum	4/110	-47mm	2.15	86.00	17.20	1,250 lbs	2.56	MSA-CAP-BRONZE
Matte Bronze	14x7	MA052ZX14704810	194933412204	Cast Aluminum	4/137	+10mm	4.39	96.00	18.30	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	14x7	MA052ZX14704410	194933412228	Cast Aluminum	4/156	+10mm	4.39	115.10	18.30	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	14x7	MA052ZX14701210	194933412259	Cast Aluminum	5/114.3	+10mm	4.39	72.56	17.86	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	15x7	MA052ZX15704010	194933412075	Cast Aluminum	4/110	+10mm	4.39	86.00	18.96	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	15x7	MA052ZX15704810	194933412051	Cast Aluminum	4/137	+10mm	4.39	96.00	19.62	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	15x7	MA052ZX15704410	194933412068	Cast Aluminum	4/156	+10mm	4.39	115.10	19.62	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	15x7	MA052ZX15701210	194933412082	Cast Aluminum	5/114.3	+10mm	4.39	72.56	18.96	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	16x7	MA052ZX16704010	194933412037	Cast Aluminum	4/110	+10mm	4.39	86.00	20.28	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	16x7	MA052ZX16704810	194933412013	Cast Aluminum	4/137	+10mm	4.39	96.00	20.72	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	16x7	MA052ZX16704410	194933412020	Cast Aluminum	4/156	+10mm	4.39	115.10	20.72	1,250 lbs	0.33	MSA-CAP-BRONZE
Matte Bronze	16x7	MA052ZX16701210	194933412044	Cast Aluminum	5/114.3	+10mm	4.39	72.56	20.28	1,250 lbs	0.33	MSA-CAP-BRONZE
