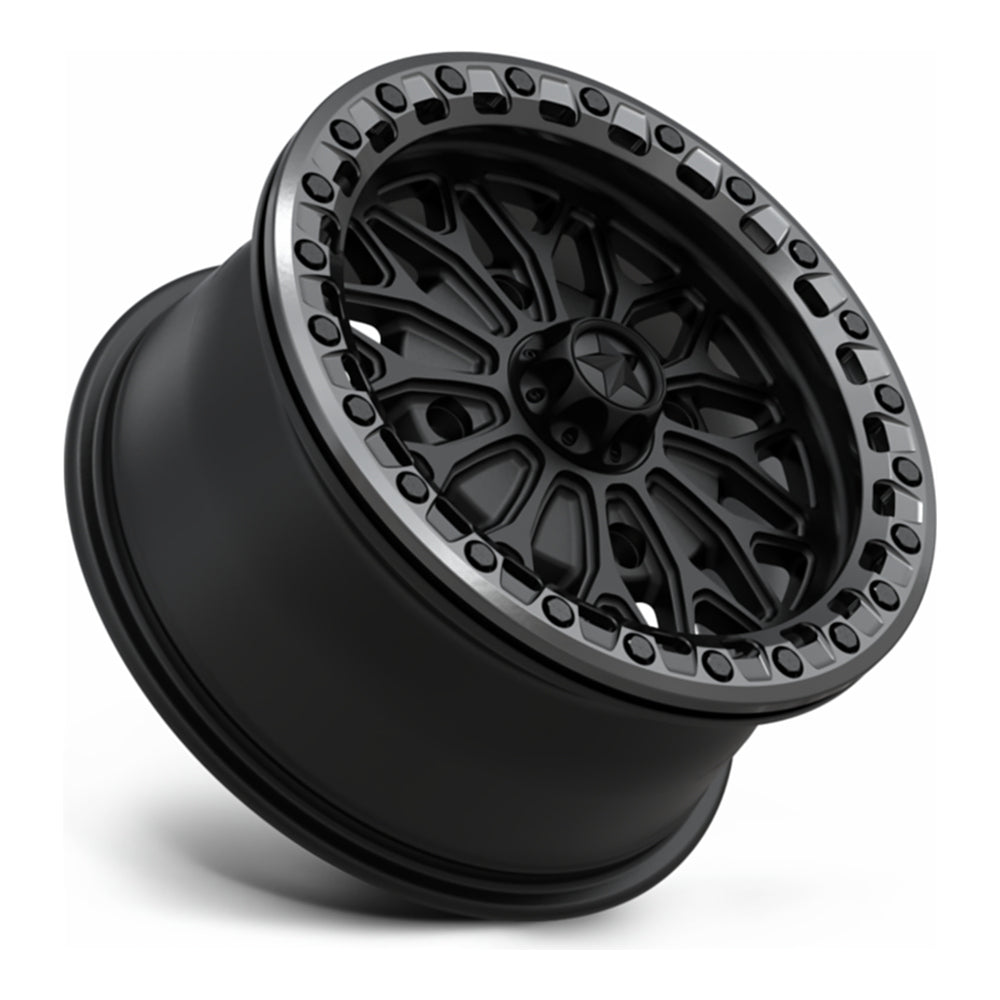

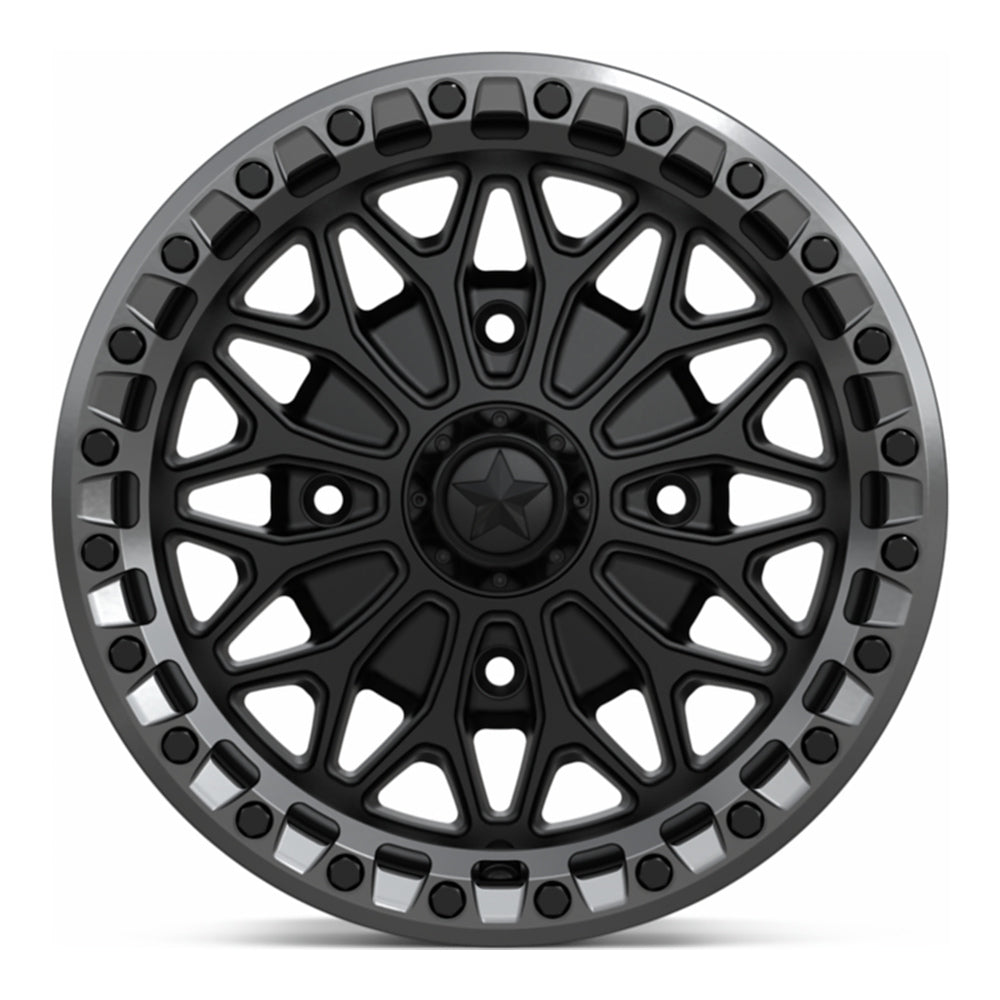

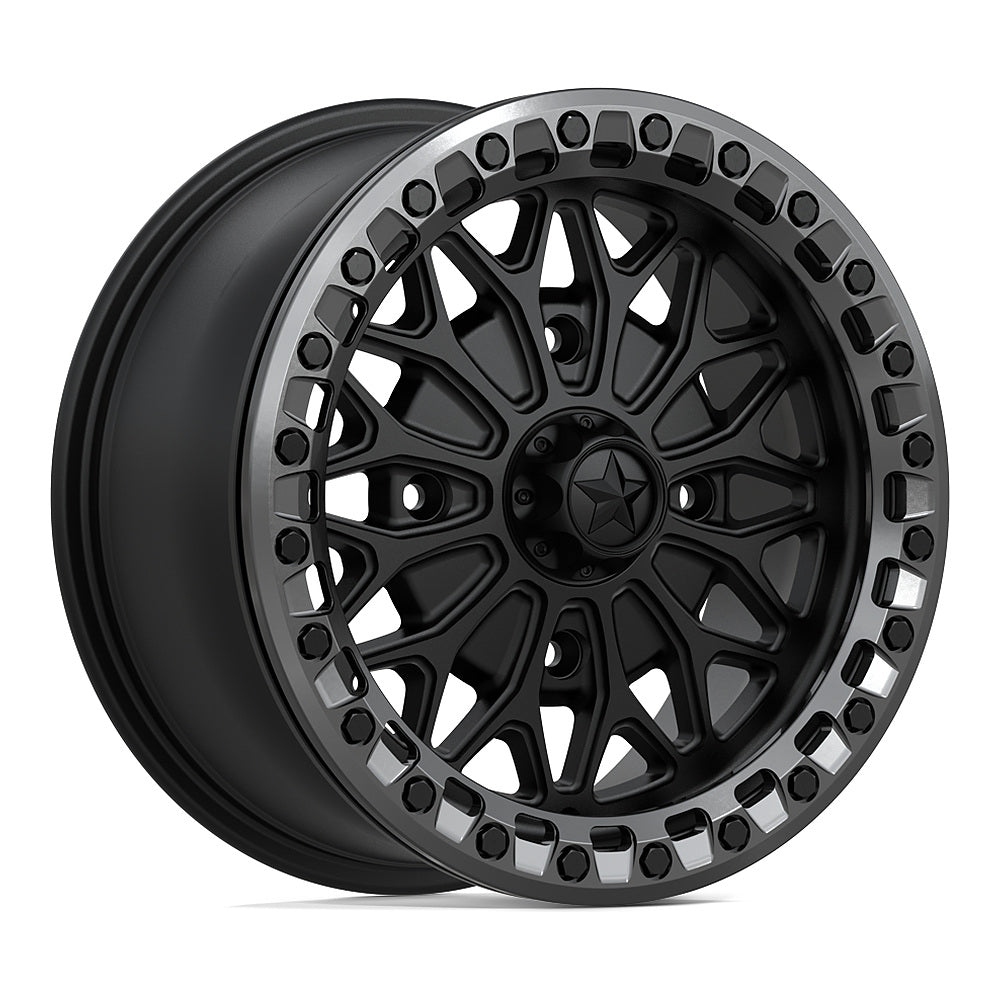

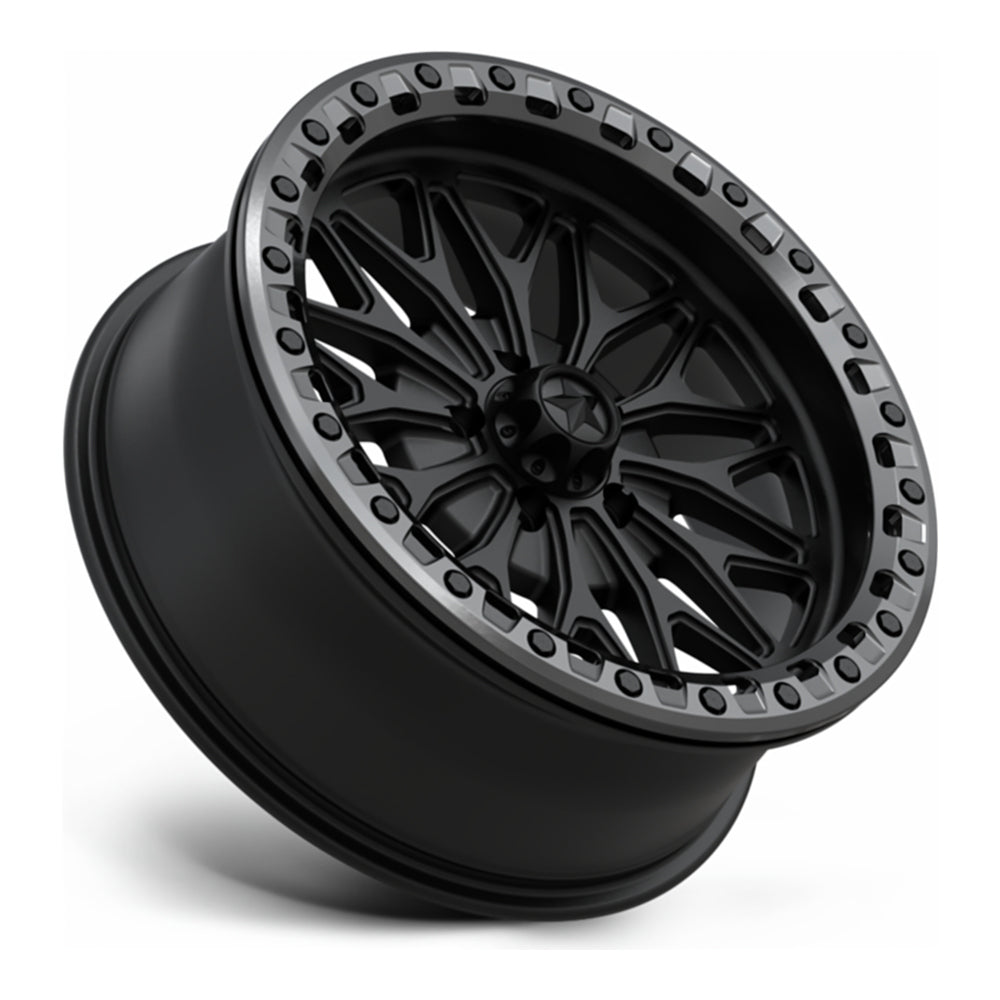

Up close, the contrast is what you notice: a flat matte black wheel framed by a glossy gunmetal beadlock ring. From across the pits it reads as a stealthy black wheel, which makes this the Bolo for riders who don't want silver or milling.
MSA designed the Bolo for high-performance machines like the Maverick X3 and RMAX, with a ring system that holds the tire under heavy load. The 18x7 suits taller builds, and the 15x7 is offered at either +10mm or +38mm.
MSA Bolo Beadlock (MA53) Key Features
- Two-Tone Ring: Gloss gunmetal accent ring over a matte black center.
- Matte Finish: A flat finish that hides dust and handling marks.
- Heavy-Load Ring System: MSA designed the ring to hold the tire on high-horsepower machines.
Bolt Pattern Guide
Always confirm your machine's bolt pattern before ordering.
- 4x110 (86.00mm center bore; 15x7): Common on many Honda, Yamaha, Kawasaki, and Suzuki ATVs and some utility side-by-sides.
- 4x137 (96.00mm center bore; 15x7, 18x7): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
- 4x156 (115.10mm center bore; 15x7, 18x7): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.
- 5x114.3 (72.56mm center bore; 15x7, 18x7): Also listed as 5/4.5. Used on Polaris Pro R and Turbo R models.
Important Fitment & Use Notes
- Off-Road Use Only: MSA sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
- Beadlock Maintenance: Torque the beadlock ring bolts to MSA's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
- Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
- Replacement Center Caps: MSA part number: MACAP100MXB0001SX.
