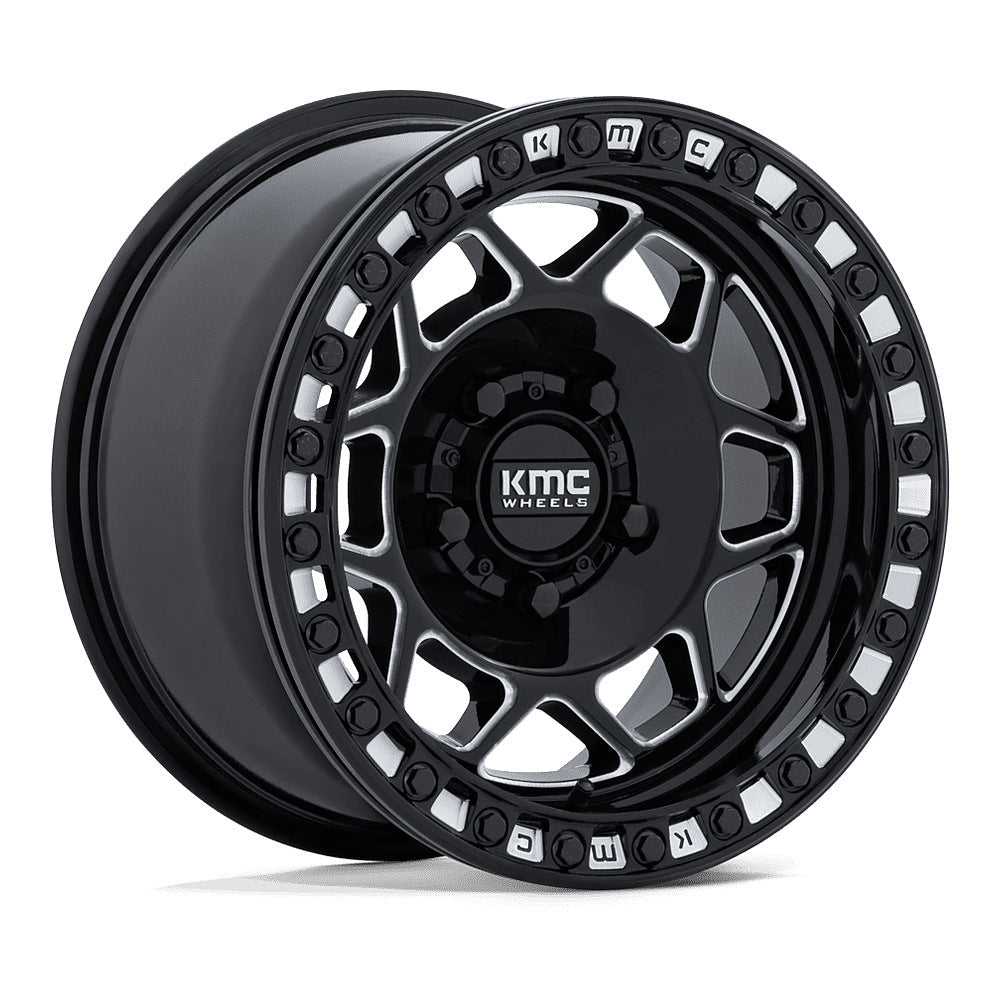

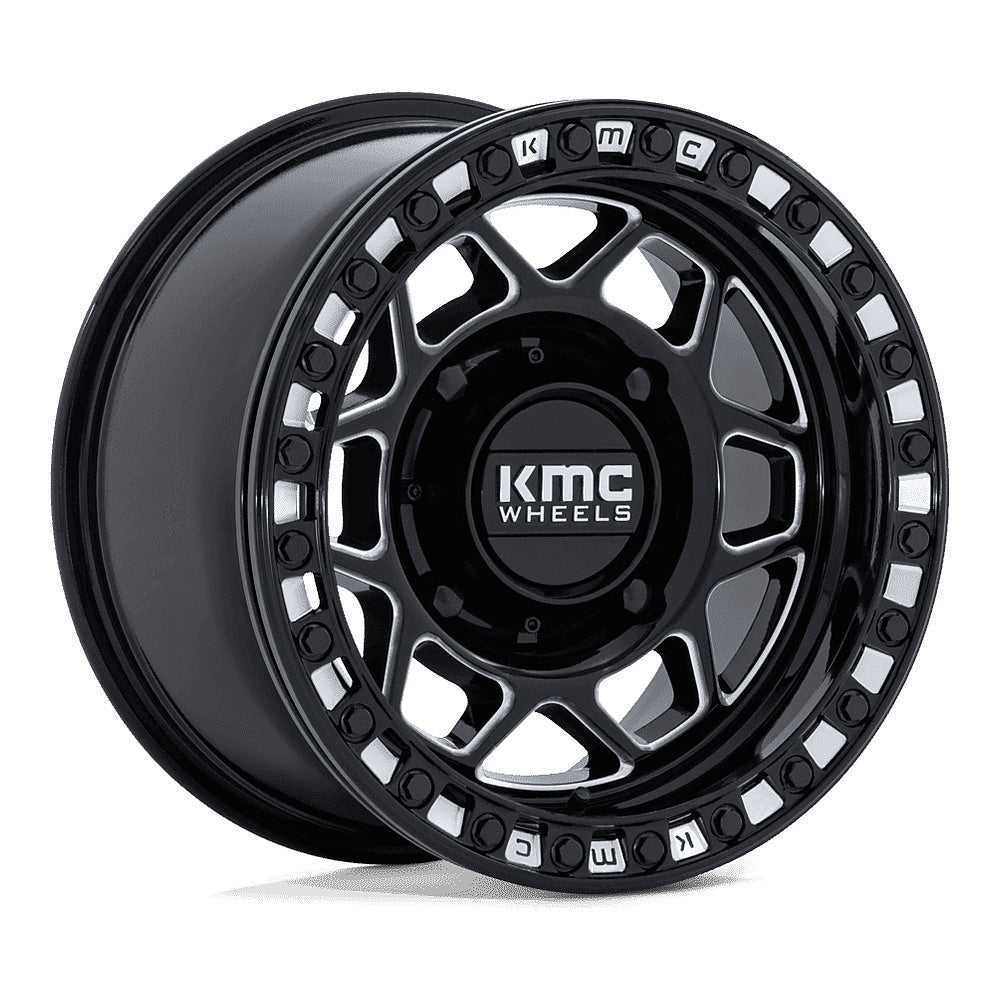

KMC Torx Beadlock KS241 UTV wheel in gloss black milled, angled front view

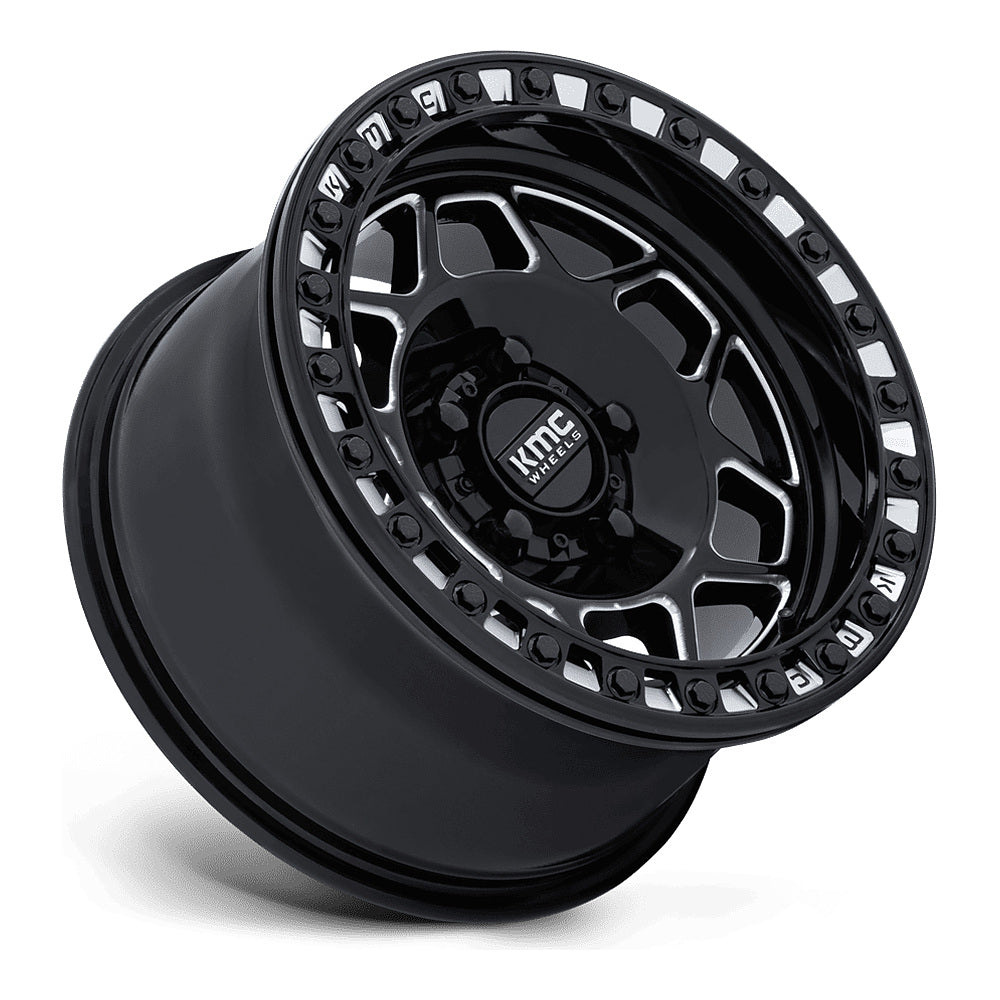

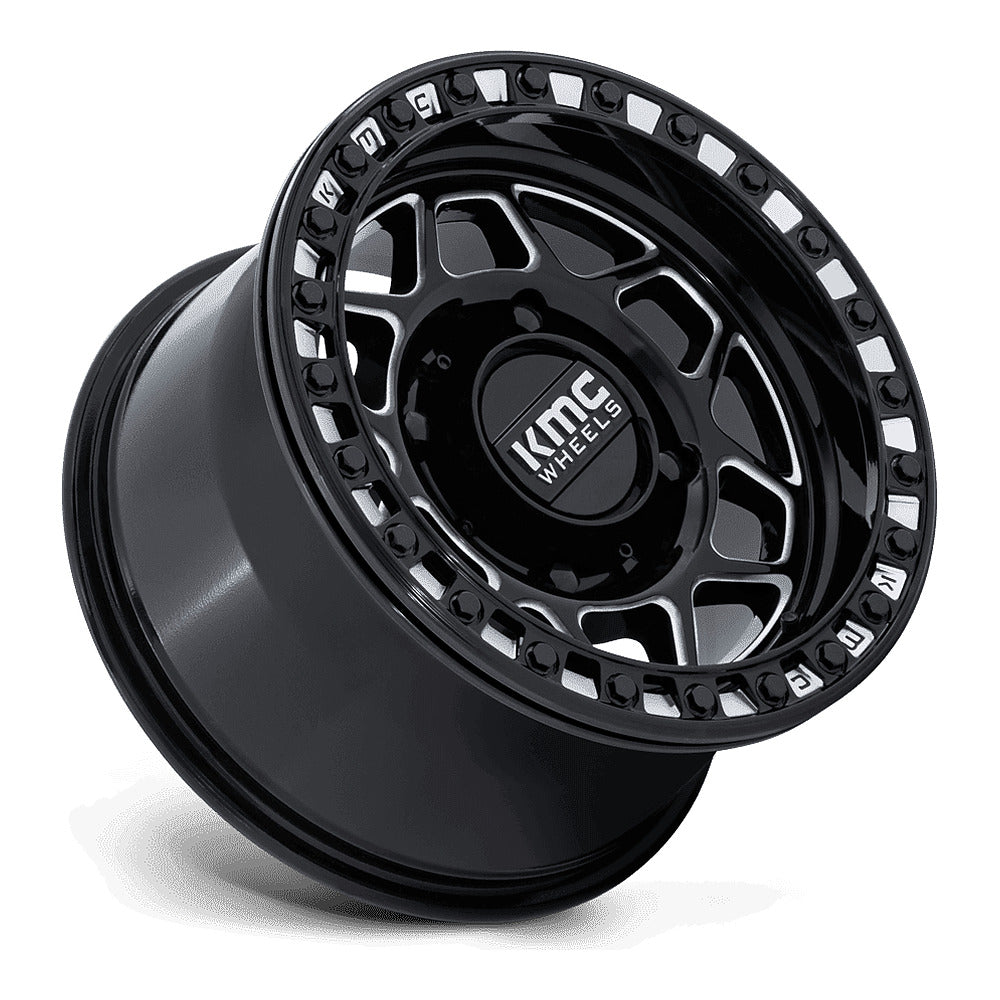

KMC Torx Beadlock KS241 UTV wheel in gloss black milled, side angle showing the barrel and lip

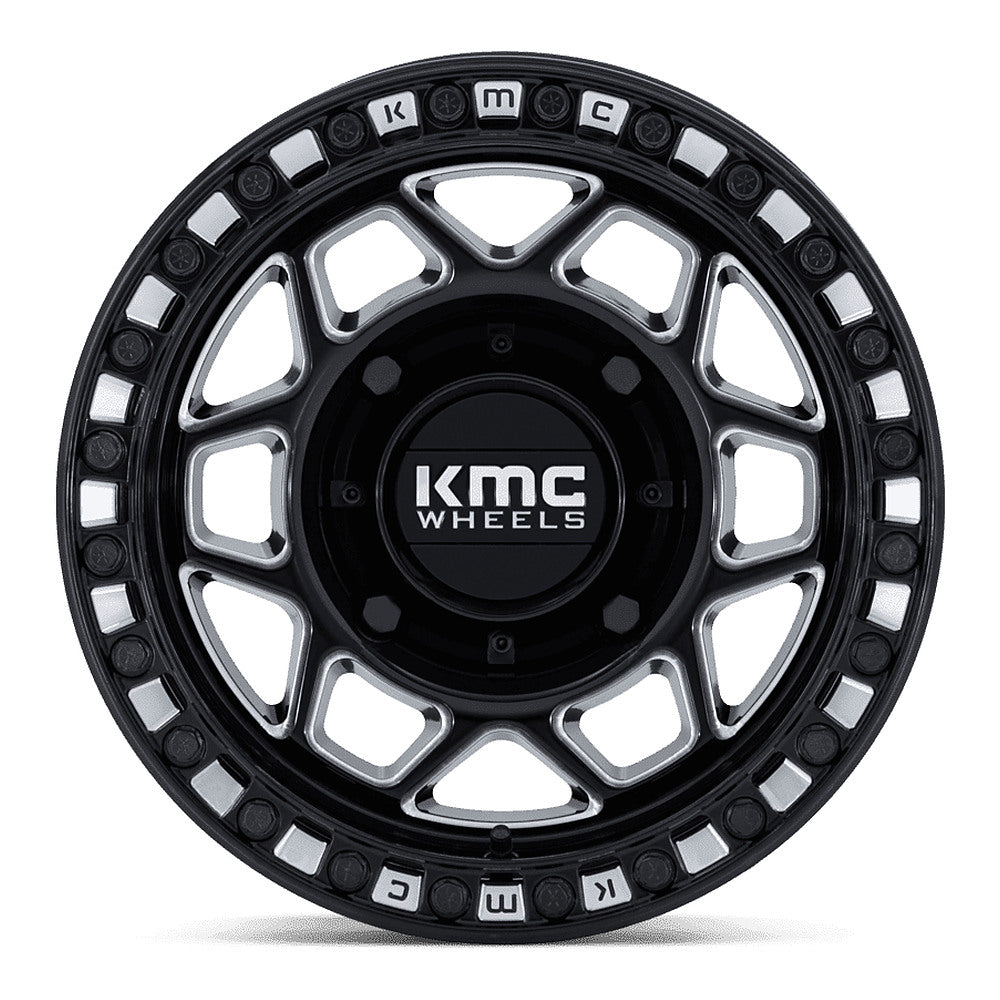

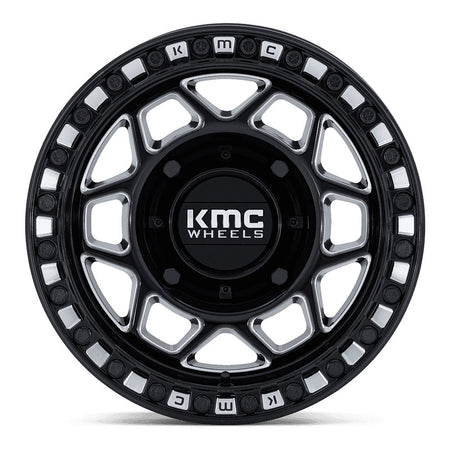

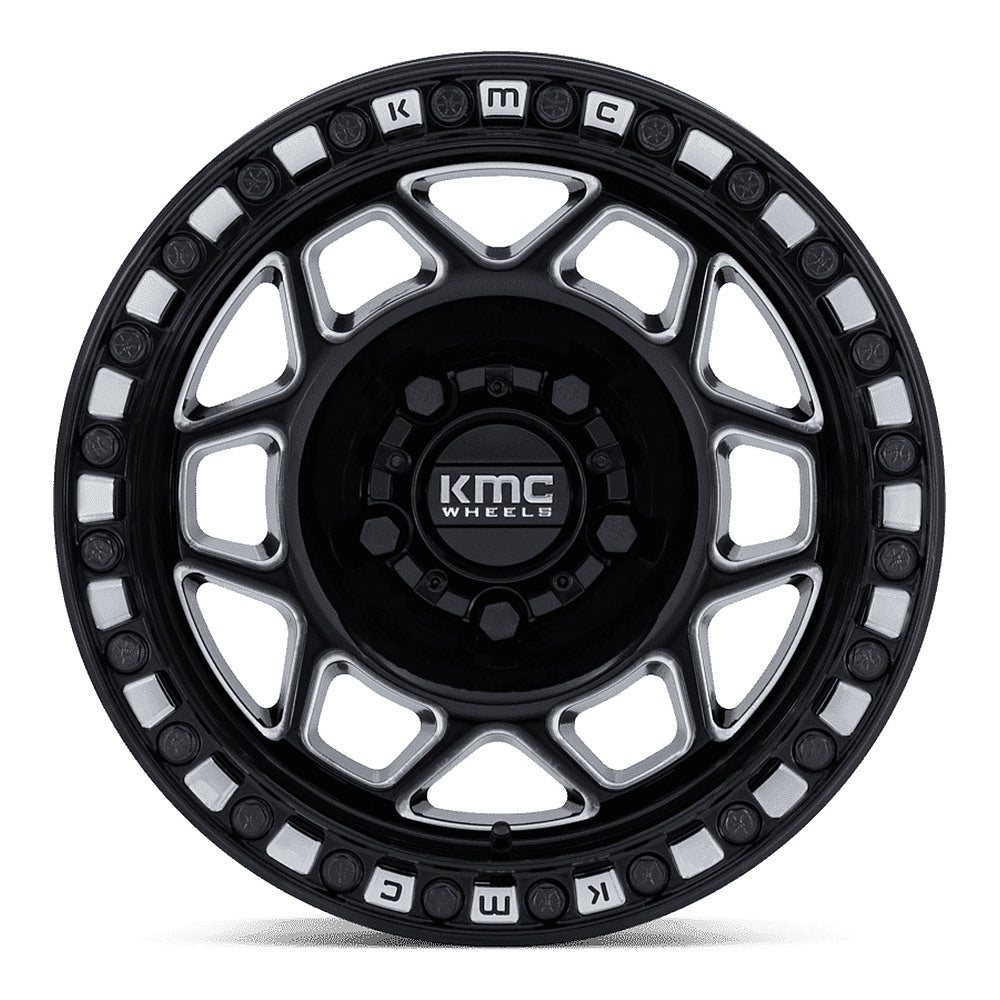

KMC Torx Beadlock KS241 UTV wheel in gloss black milled, straight-on face view

KMC

KMC Torx Beadlock (KS241) UTV Wheel - Gloss Black Milled

$405.00

Wheel Size: 15x7 | 15x8
Bolt Pattern: 4/137 | 4/156 | 5/114.3 | 6/139.7
Offset: 0 mm | +38 mm
Wheel Type: Beadlock

The KS241 Torx is built for high-performance UTVs like Polaris RZR, Can-Am Maverick, and other off-road machines that demand aired out performance. With true beadlock construction and integrated scutes to protect the hardware from rocks and trail debris, the Torx doesn't flinch under pressure.

Its wide-open 6-element mesh design boosts airflow and sheds weight without giving up strength. In Gloss Black Milled, the Torx comes in 15x7 +38mm and 15x8 0mm across 4x137, 4x156, 5x114.3, and 6x139.7.

KMC Torx Beadlock (KS241) Key Features

Sizes: 15x7 +38mm (5.50" backspacing, 0.83" lip) and 15x8 0mm (4.50" backspacing, 2.49" lip).
Weight and Load: 18.04–19.58 lbs per wheel, 1,250 lb load rating.

Bolt Pattern Guide

Always confirm your machine's bolt pattern before ordering.

4x137 (96.00mm center bore; 15x7, 15x8): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
4x156 (115.10mm center bore; 15x7, 15x8): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.
5x114.3 (72.56mm center bore; 15x7, 15x8): Also listed as 5/4.5. KMC lists this pattern for Polaris Pro R and Turbo R applications.
6x139.7 (100.30mm center bore; 15x7, 15x8): Also listed as 6/5.5. Used on some newer high-performance machines.

Important Fitment & Use Notes

Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
Replacement Center Caps: KMC part numbers by size: KMCAP101BXP6135SX, KSCAP101BXP4137SX, KSCAP101BXP4156SX, KSCAP101BXP4156SXT, KSCAP101BXP5114SX.

KMC Torx Beadlock (KS241) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
15x7	KS241BE15704838	194933420162	Gloss Black Milled	Cast Aluminum Beadlock	4/137	+38mm	5.50	96.00	19.25	1,250 lbs	0.83	KSCAP101BXP4137SX
15x7	KS241BE15704438	194933420179	Gloss Black Milled	Cast Aluminum Beadlock	4/156	+38mm	5.50	115.10	18.04	1,250 lbs	0.83	KSCAP101BXP4156SX
15x7	KS241BE15701238	194933420186	Gloss Black Milled	Cast Aluminum Beadlock	5/114.3	+38mm	5.50	72.56	18.92	1,250 lbs	0.83	KSCAP101BXP5114SX
15x7	KS241BE15706U38	194933420155	Gloss Black Milled	Cast Aluminum Beadlock	6/139.7	+38mm	5.50	100.30	18.48	1,250 lbs	0.83	KMCAP101BXP6135SX
15x8	KS241BE15804800	194933420124	Gloss Black Milled	Cast Aluminum Beadlock	4/137	0mm	4.50	96.00	19.58	1,250 lbs	2.49	KSCAP101BXP4137SX
15x8	KS241BE15804400	194933420131	Gloss Black Milled	Cast Aluminum Beadlock	4/156	0mm	4.50	115.10	18.70	1,250 lbs	2.49	KSCAP101BXP4156SXT
15x8	KS241BE15801200	194933420148	Gloss Black Milled	Cast Aluminum Beadlock	5/114.3	0mm	4.50	72.56	19.03	1,250 lbs	2.49	KSCAP101BXP5114SX
15x8	KS241BE15806U00	194933420117	Gloss Black Milled	Cast Aluminum Beadlock	6/139.7	0mm	4.50	100.30	19.03	1,250 lbs	2.49	KMCAP101BXP6135SX
