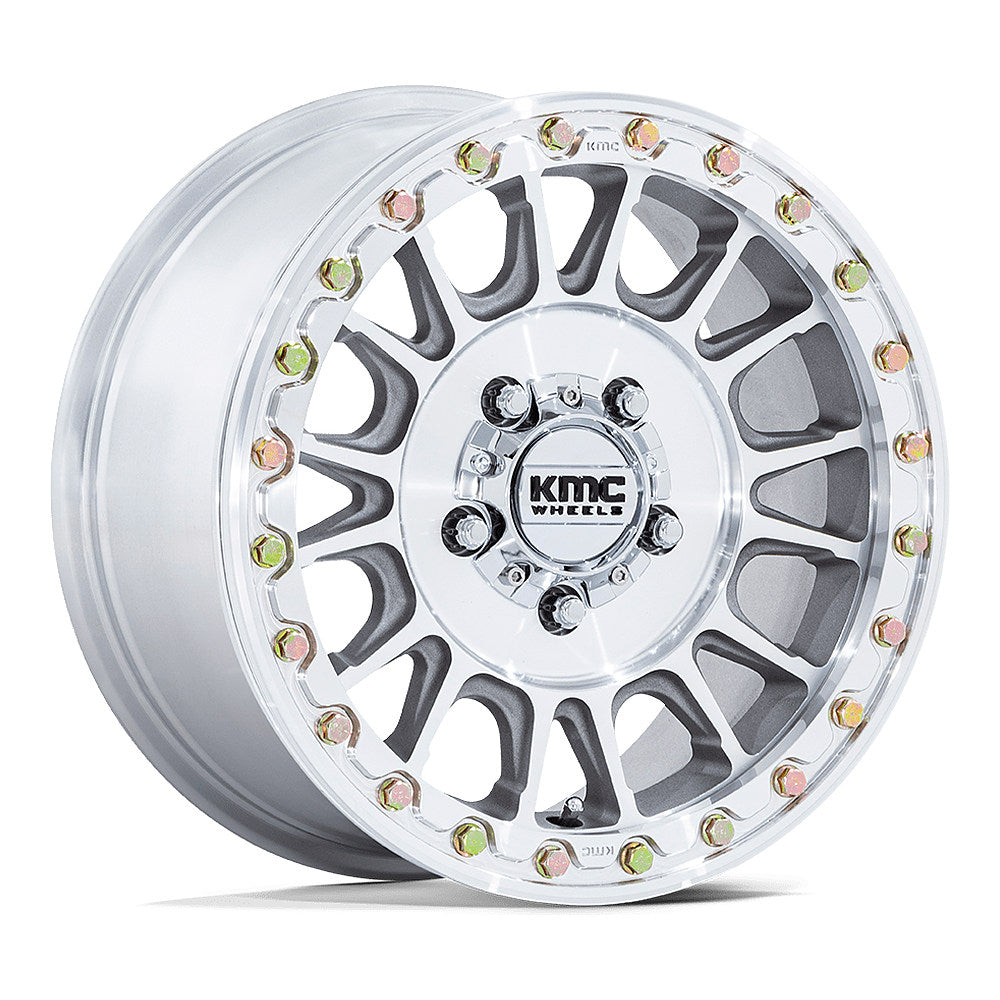

KMC Impact Beadlock KS239 UTV wheel in machined, angled front view

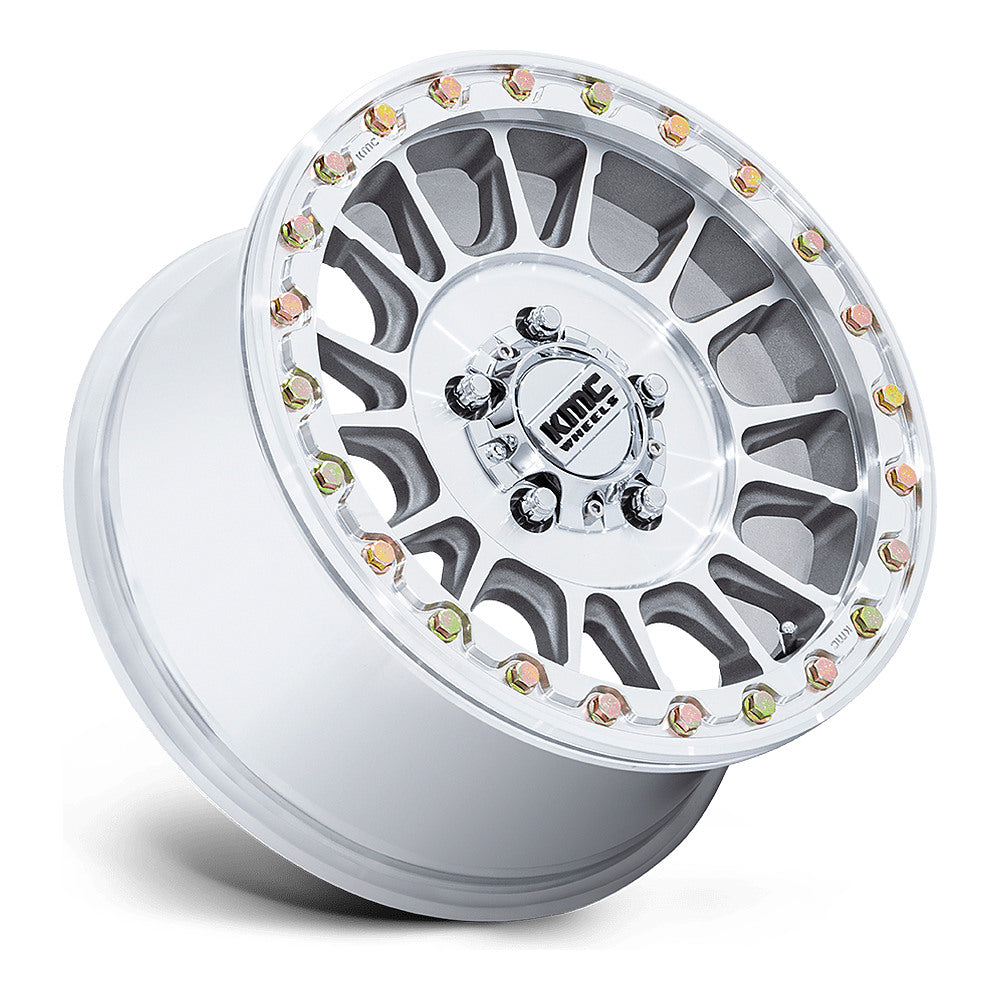

KMC Impact Beadlock KS239 UTV wheel in machined, side angle showing the barrel and lip

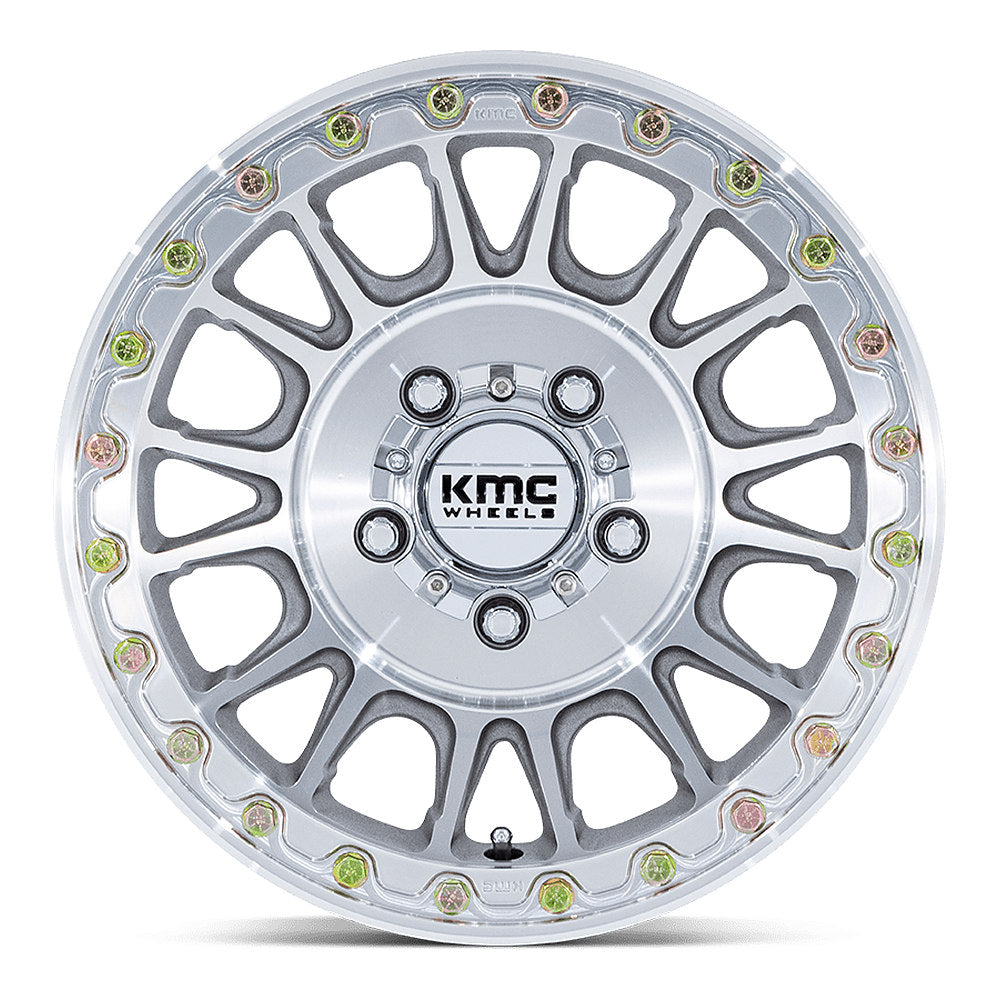

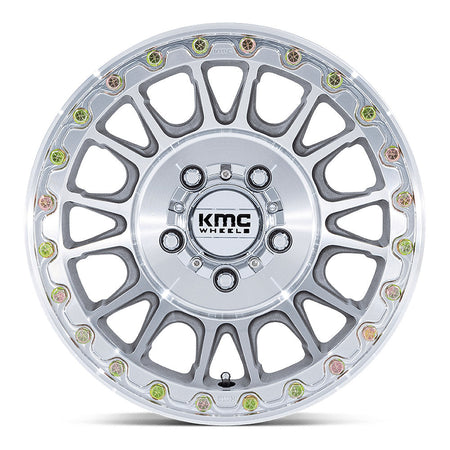

KMC Impact Beadlock KS239 UTV wheel in machined, straight-on face view

KMC

KMC Impact Beadlock (KS239) UTV Wheel - Machined

$317.00 – $334.00

Wheel Size: 15x7 | 15x8 | 15x10
Bolt Pattern: 4/137 | 4/156 | 5/114.3 | 6/139.7
Offset: 0 mm | +10 mm | +38 mm
Wheel Type: Beadlock

Fourteen sizes in a bright Machined finish make the KS239 Impact Beadlock one of the most versatile wheels we carry: 15x7, 15x8, and 15x10, across four bolt patterns.

KMC built the Impact Beadlock to get beat up. True beadlock construction keeps the tire locked in when you air down, debris ports clear the junk, and dual-embossed KMC logos sit on the beadlock ring.

KMC Impact Beadlock (KS239) Key Features

Four Bolt Patterns: 4x137, 4x156, 5x114.3, and 6x139.7, covering Polaris RZR, Can-Am Maverick, Honda Talon, Kawasaki KRX, and more, per KMC.
Offsets by Size: 15x7 in +10mm or +38mm, 15x8 at 0mm, 15x10 at 0mm.
Weight and Load: 17.38–19.58 lbs per wheel, all rated to 1,250 lbs.

Bolt Pattern Guide

Always confirm your machine's bolt pattern before ordering.

4x137 (96.00mm center bore; 15x7, 15x8, 15x10): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
4x156 (115.10mm center bore; 15x7, 15x8, 15x10): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.
5x114.3 (72.56mm center bore; 15x7, 15x8, 15x10): Also listed as 5/4.5. KMC lists this pattern for Polaris Pro R and Turbo R applications.
6x139.7 (100.30mm center bore; 15x7): Also listed as 6/5.5. Used on some newer high-performance machines.

Important Fitment & Use Notes

Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
Replacement Center Caps: KMC part numbers by size: KMCAP101PXB6135SX, KSCAP101PXB4137SX, KSCAP101PXB4156SX, KSCAP101PXB4156SXT, KSCAP101PXB5114SX.

KMC Impact Beadlock (KS239) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
15x7	KS239DX15704810	194933396436	Machined	Cast Aluminum Beadlock	4/137	+10mm	4.39	96.00	18.48	1,250 lbs	1.50	KSCAP101PXB4137SX
15x7	KS239DX15704838	194933396429	Machined	Cast Aluminum Beadlock	4/137	+38mm	5.50	96.00	18.92	1,250 lbs	0.38	KSCAP101PXB4137SX
15x7	KS239DX15704410	194933396450	Machined	Cast Aluminum Beadlock	4/156	+10mm	4.39	115.10	17.82	1,250 lbs	1.50	KSCAP101PXB4156SXT
15x7	KS239DX15704438	194933396443	Machined	Cast Aluminum Beadlock	4/156	+38mm	5.50	115.10	18.26	1,250 lbs	0.38	KSCAP101PXB4156SX
15x7	KS239DX15701210	194933396474	Machined	Cast Aluminum Beadlock	5/114.3	+10mm	4.39	72.56	18.04	1,250 lbs	1.50	KSCAP101PXB5114SX
15x7	KS239DX15701238	194933396467	Machined	Cast Aluminum Beadlock	5/114.3	+38mm	5.50	72.56	18.48	1,250 lbs	0.38	KSCAP101PXB5114SX
15x7	KS239DX15706U10	194933396412	Machined	Cast Aluminum Beadlock	6/139.7	+10mm	4.39	100.30	17.38	1,250 lbs	1.50	KMCAP101PXB6135SX
15x7	KS239DX15706U38	194933396405	Machined	Cast Aluminum Beadlock	6/139.7	+38mm	5.50	100.30	17.82	1,250 lbs	0.38	KMCAP101PXB6135SX
15x8	KS239DX15804800	194933398850	Machined	Cast Aluminum Beadlock	4/137	0mm	4.50	96.00	18.92	1,250 lbs	2.42	KSCAP101PXB4137SX
15x8	KS239DX15804400	194933398867	Machined	Cast Aluminum Beadlock	4/156	0mm	4.50	115.10	18.48	1,250 lbs	2.42	KSCAP101PXB4156SXT
15x8	KS239DX15801200	194933398874	Machined	Cast Aluminum Beadlock	5/114.3	0mm	4.50	72.56	19.14	1,250 lbs	2.42	KSCAP101PXB5114SX
15x10	KS239DX15104800	194933396498	Machined	Cast Aluminum Beadlock	4/137	0mm	5.50	96.00	19.58	1,250 lbs	3.44	KSCAP101PXB4137SX
15x10	KS239DX15104400	194933396504	Machined	Cast Aluminum Beadlock	4/156	0mm	5.50	115.10	18.92	1,250 lbs	3.44	KSCAP101PXB4156SX
15x10	KS239DX15101200	194933396511	Machined	Cast Aluminum Beadlock	5/114.3	0mm	5.50	72.56	19.14	1,250 lbs	3.44	KSCAP101PXB5114SX

About KMC Wheels

KMC Wheels has been pushing the boundaries of performance and design since the early 1980s, earning a reputation as one of the most trusted names in the aftermarket wheel industry. Now part of the Hoonigan Group (formerly Wheel Pros), KMC benefits from one of the largest distribution and manufacturing networks in the off-road and performance world. Their wheels are built with a clear purpose- combining strength, innovation, and bold styling for drivers who expect more than just basic function. From forged beadlock wheels built to handle extreme rock-crawling to lightweight designs for high-performance applications, KMC’s lineup reflects decades of engineering experience. Not only that, but their wheels have been tested and proven in some of the toughest environments, including the legendary King of the Hammers, where KMC serves as the official wheel. This race-proven pedigree isn’t just for show, it directly influences the durability and capability of every wheel they produce. With a commitment to advanced manufacturing, striking design, and real-world performance, KMC Wheels has become a go-to choice for off-road enthusiasts, racers, and builders who want reliability without sacrificing style. Whether you’re tackling rugged trails or building a head-turning street machine, KMC delivers wheels designed to perform in ways that truly set them apart.
