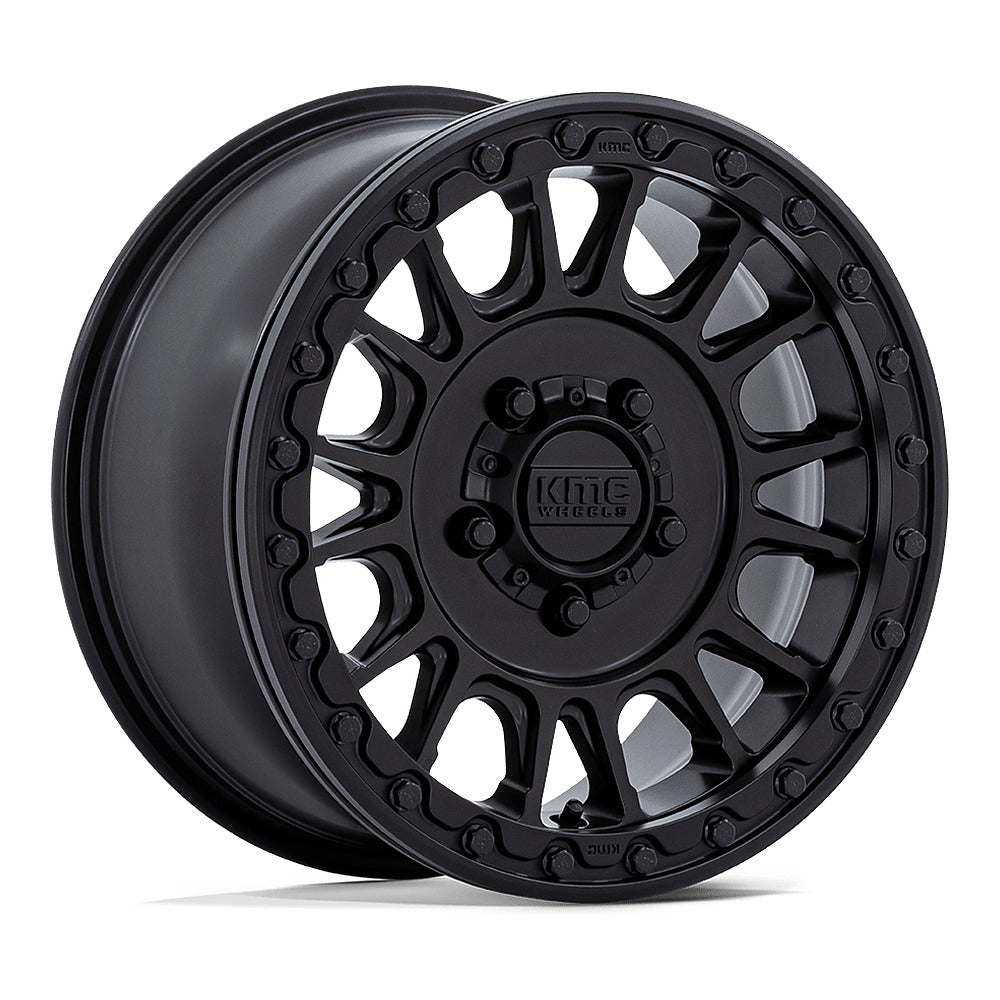

KMC Impact Beadlock KS239 UTV wheel in satin black, angled front view

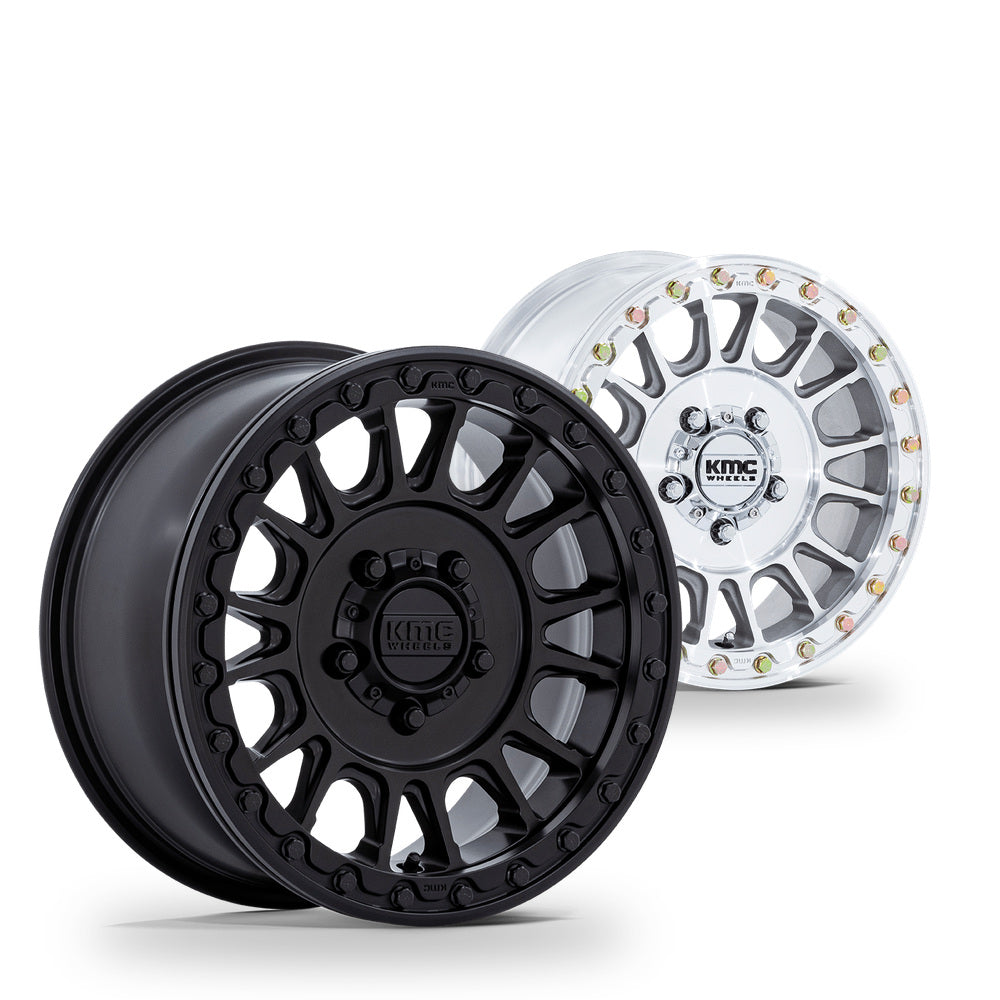

KMC Impact Beadlock (KS239) UTV wheel in every finish: satin black and machined

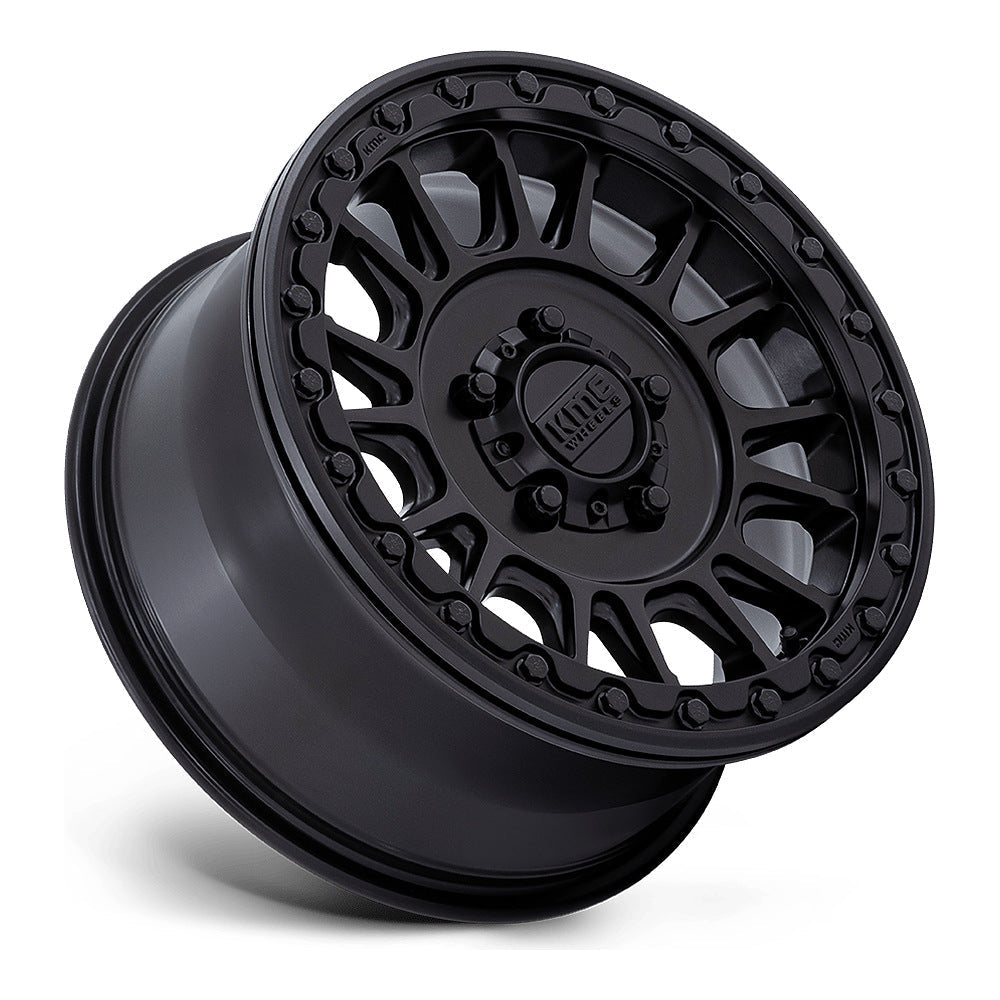

KMC Impact Beadlock KS239 UTV wheel in satin black, side angle showing the barrel and lip

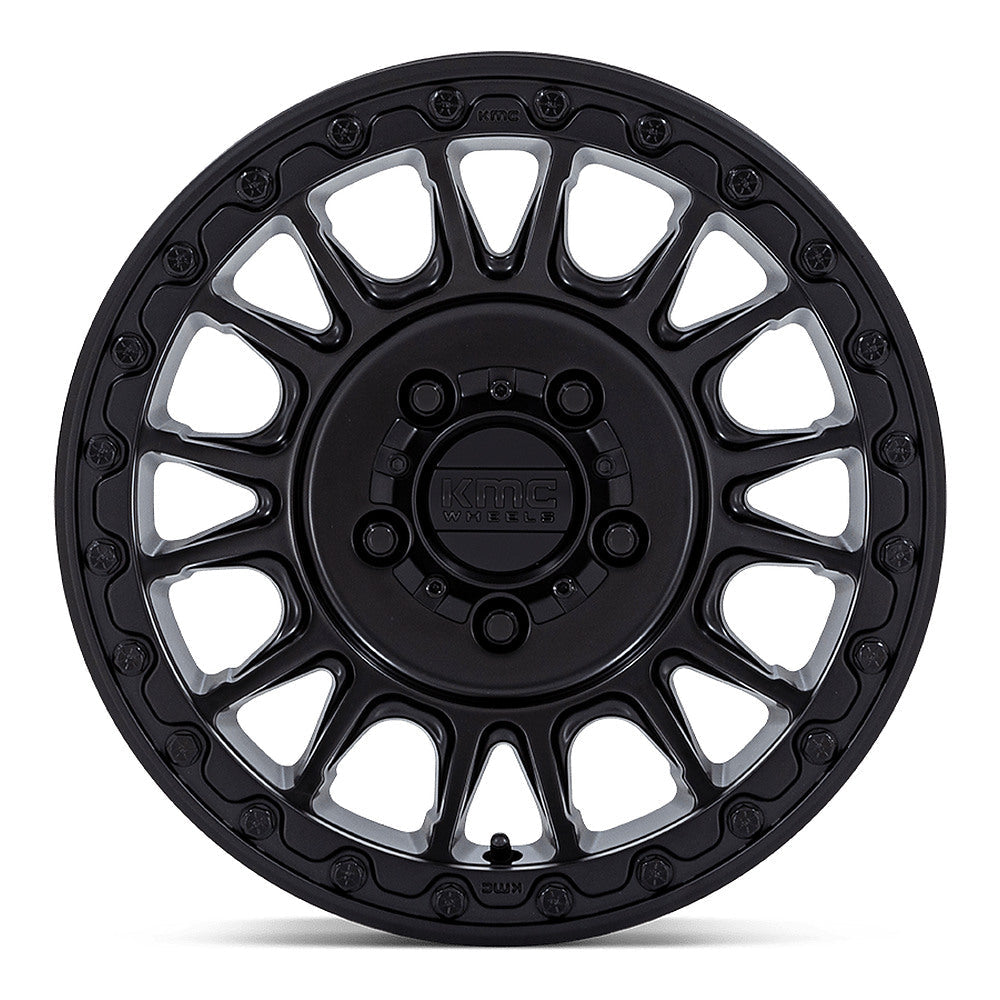

KMC Impact Beadlock KS239 UTV wheel in satin black, straight-on face view

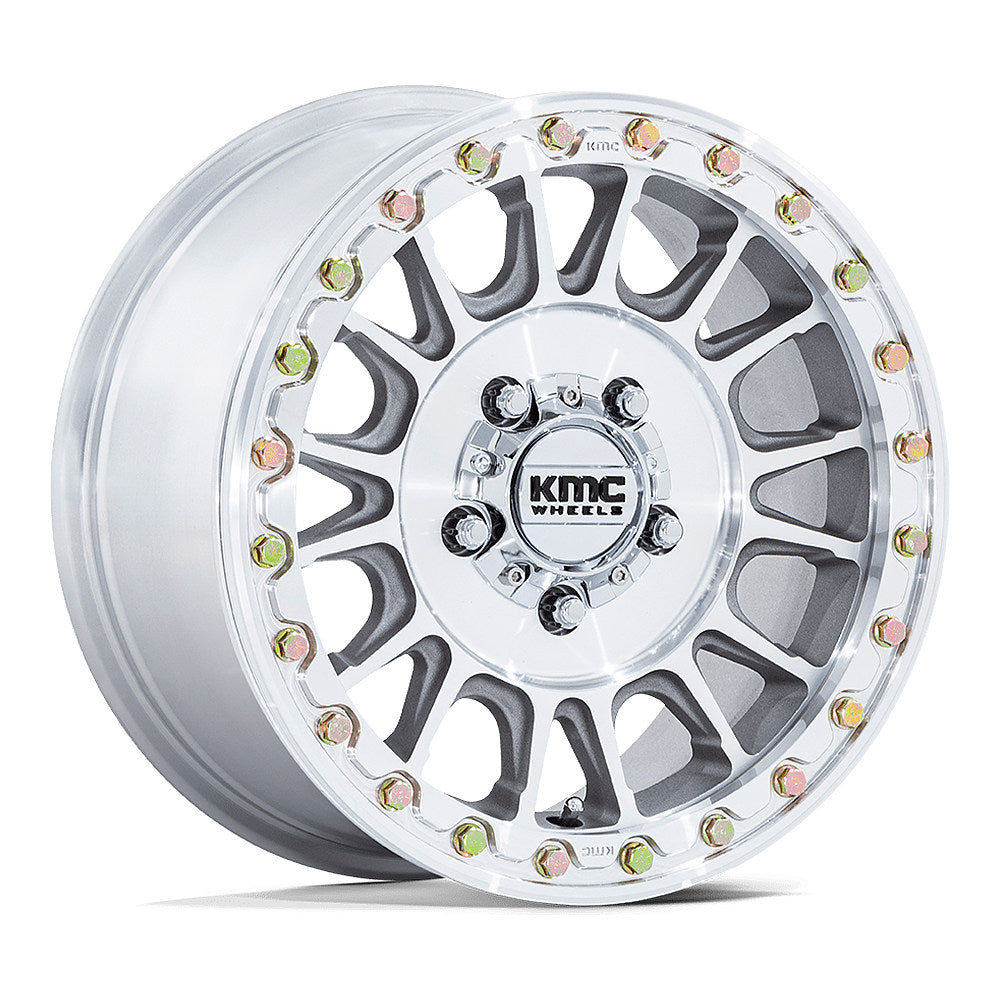

KMC Impact Beadlock KS239 UTV wheel in machined, angled front view

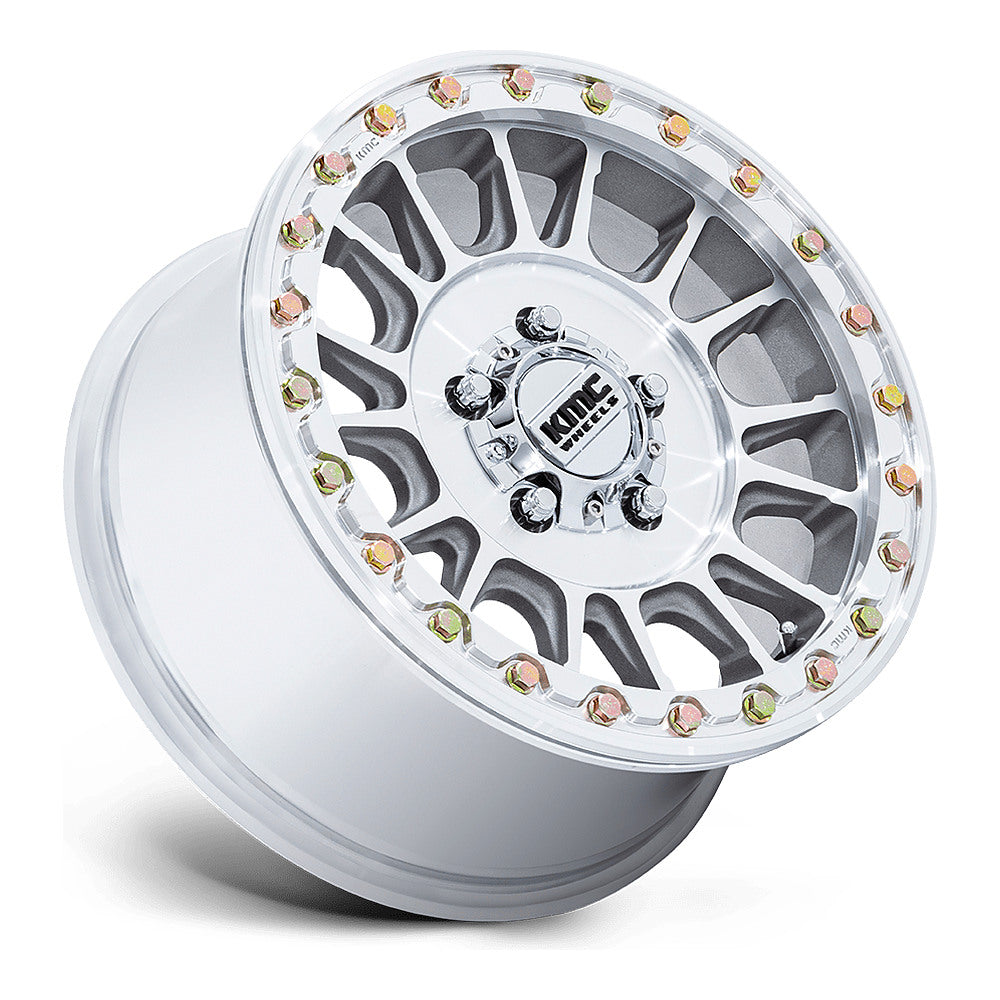

KMC Impact Beadlock KS239 UTV wheel in machined, side angle showing the barrel and lip

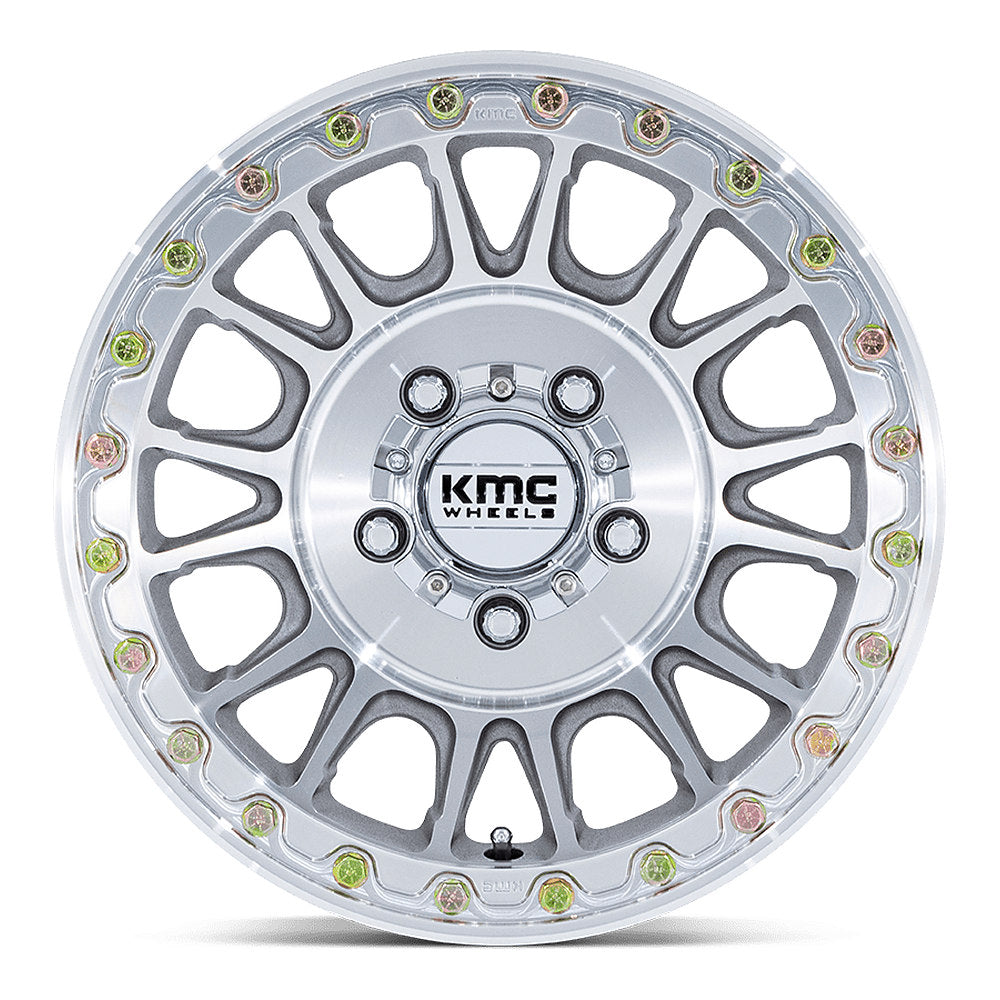

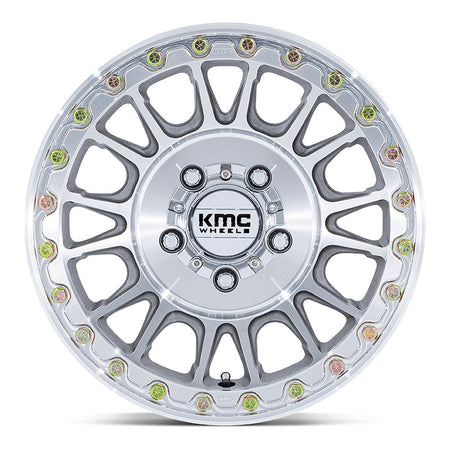

KMC Impact Beadlock KS239 UTV wheel in machined, straight-on face view
KMC Impact Beadlock KS239 UTV wheel in satin black, angled front view
KMC Impact Beadlock (KS239) UTV wheel in every finish: satin black and machined
KMC Impact Beadlock KS239 UTV wheel in satin black, side angle showing the barrel and lip
KMC Impact Beadlock KS239 UTV wheel in satin black, straight-on face view
KMC Impact Beadlock KS239 UTV wheel in machined, angled front view
KMC Impact Beadlock KS239 UTV wheel in machined, side angle showing the barrel and lip
KMC Impact Beadlock KS239 UTV wheel in machined, straight-on face view
KMC

KMC Impact Beadlock (KS239) UTV Wheel

$317.00 – $334.00

  • Wheel Color: Satin Black | Machined
  • Size: 15x7 | 15x8 | 15x10
  • Bolt Pattern: 4/137 | 4/156 | 5/114.3 | 6/139.7
  • Offset: +38 mm | +10 mm | 0 mm
  • Wheel Type: Beadlock
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...

Made to get beat up is how KMC sums up the KS239 Impact Beadlock. A deep multi-spoke face and a deep lip give it attitude, debris ports help clear mud and rocks, and dual-embossed KMC logos sit on the beadlock ring.

It's offered in Satin Black and Machined, with the same 15x7, 15x8, and 15x10 sizes in both. KMC builds it in 4-, 5-, and 6-lug patterns for machines such as the Polaris RZR, Can-Am Maverick, Honda Talon, and Kawasaki KRX. The 15x10 in 6x139.7 is Satin Black only.

The 15x7 comes at +10mm or +38mm, while the 15x8 and 15x10 run 0mm. Weights range from 17.38 to 19.58 lbs, and every size is rated to 1,250 lbs.

KMC Impact Beadlock (KS239) Key Features

  • Locked Bead: Built so you can air down for rough terrain while the bead stays clamped.
  • Lug Counts: 4-lug (4x137, 4x156), 5-lug (5x114.3), and 6-lug (6x139.7).
  • 15x7 Offsets: Choose +10mm or +38mm on the 15x7; the 15x8 and 15x10 sit at 0mm.
  • Debris Ports: Help clear mud, sand, and rocks from the wheel.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

  • 4x137 Bolt Pattern (96.00mm center bore; 15x7, 15x8, 15x10): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
  • 4x156 Bolt Pattern (115.10mm center bore; 15x7, 15x8, 15x10): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.
  • 5x114.3 Bolt Pattern (72.56mm center bore; 15x7, 15x8, 15x10): Also listed as 5/4.5. KMC lists this pattern for Polaris Pro R and Turbo R applications.
  • 6x139.7 Bolt Pattern (100.30mm center bore; 15x7, 15x10): Also listed as 6/5.5. Used on 6-lug setups such as the Can-Am Maverick R and many portal gear lifts.

Important Fitment & Legal Notes

  • Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
  • Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
  • Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
  • Replacement Center Caps: KMC part numbers: KMCAP101MXB6135SX, KMCAP101PXB6135SX, KSCAP101MXB4137SX, KSCAP101MXB4156SX, KSCAP101MXB4156SXT, KSCAP101MXB5114SX, KSCAP101PXB4137SX, KSCAP101PXB4156SX, KSCAP101PXB4156SXT, KSCAP101PXB5114SX (see the Replacement Cap column below for each size).
  • Warranty: Covered by KMC's manufacturer warranty.

KMC Impact Beadlock (KS239) Specifications

Finish Wheel Size SKU UPC Code Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
Satin Black 15x7 KS239MX15704838 194933396306 Cast Aluminum Beadlock 4/137 +38mm 5.50 96.00 18.92 1,250 lbs 0.38 KSCAP101MXB4137SX
Satin Black 15x7 KS239MX15704810 194933396313 Cast Aluminum Beadlock 4/137 +10mm 4.39 96.00 18.48 1,250 lbs 1.50 KSCAP101MXB4137SX
Satin Black 15x7 KS239MX15704438 194933396320 Cast Aluminum Beadlock 4/156 +38mm 5.50 115.10 18.26 1,250 lbs 0.38 KSCAP101MXB4156SX
Satin Black 15x7 KS239MX15704410 194933396337 Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 17.82 1,250 lbs 1.50 KSCAP101MXB4156SXT
Satin Black 15x7 KS239MX15701238 194933396344 Cast Aluminum Beadlock 5/114.3 +38mm 5.50 72.56 18.48 1,250 lbs 0.38 KSCAP101MXB5114SX
Satin Black 15x7 KS239MX15701210 194933396351 Cast Aluminum Beadlock 5/114.3 +10mm 4.39 72.56 18.04 1,250 lbs 1.50 KSCAP101MXB5114SX
Satin Black 15x7 KS239MX15706U38 194933396283 Cast Aluminum Beadlock 6/139.7 +38mm 5.50 100.30 17.82 1,250 lbs 0.38 KMCAP101MXB6135SX
Satin Black 15x7 KS239MX15706U10 194933396290 Cast Aluminum Beadlock 6/139.7 +10mm 4.39 100.30 17.38 1,250 lbs 1.50 KMCAP101MXB6135SX
Satin Black 15x8 KS239MX15804800 194933398829 Cast Aluminum Beadlock 4/137 0mm 4.50 96.00 18.92 1,250 lbs 2.42 KSCAP101MXB4137SX
Satin Black 15x8 KS239MX15804400 194933398836 Cast Aluminum Beadlock 4/156 0mm 4.50 115.10 18.48 1,250 lbs 2.42 KSCAP101MXB4156SXT
Satin Black 15x8 KS239MX15801200 194933398843 Cast Aluminum Beadlock 5/114.3 0mm 4.50 72.56 19.14 1,250 lbs 2.42 KSCAP101MXB5114SX
Satin Black 15x10 KS239MX15104800 194933396375 Cast Aluminum Beadlock 4/137 0mm 5.50 96.00 19.58 1,250 lbs 3.44 KSCAP101MXB4137SX
Satin Black 15x10 KS239MX15104400 194933396382 Cast Aluminum Beadlock 4/156 0mm 5.50 115.10 18.92 1,250 lbs 3.44 KSCAP101MXB4156SX
Satin Black 15x10 KS239MX15101200 194933396399 Cast Aluminum Beadlock 5/114.3 0mm 5.50 72.56 19.14 1,250 lbs 3.44 KSCAP101MXB5114SX
Satin Black 15x10 KS239MX15106U00 194933396368 Cast Aluminum Beadlock 6/139.7 0mm 5.50 100.30 18.48 1,250 lbs 3.44 KMCAP101MXB6135SX
Machined 15x7 KS239DX15704838 194933396429 Cast Aluminum Beadlock 4/137 +38mm 5.50 96.00 18.92 1,250 lbs 0.38 KSCAP101PXB4137SX
Machined 15x7 KS239DX15704810 194933396436 Cast Aluminum Beadlock 4/137 +10mm 4.39 96.00 18.48 1,250 lbs 1.50 KSCAP101PXB4137SX
Machined 15x7 KS239DX15704438 194933396443 Cast Aluminum Beadlock 4/156 +38mm 5.50 115.10 18.26 1,250 lbs 0.38 KSCAP101PXB4156SX
Machined 15x7 KS239DX15704410 194933396450 Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 17.82 1,250 lbs 1.50 KSCAP101PXB4156SXT
Machined 15x7 KS239DX15701238 194933396467 Cast Aluminum Beadlock 5/114.3 +38mm 5.50 72.56 18.48 1,250 lbs 0.38 KSCAP101PXB5114SX
Machined 15x7 KS239DX15701210 194933396474 Cast Aluminum Beadlock 5/114.3 +10mm 4.39 72.56 18.04 1,250 lbs 1.50 KSCAP101PXB5114SX
Machined 15x7 KS239DX15706U38 194933396405 Cast Aluminum Beadlock 6/139.7 +38mm 5.50 100.30 17.82 1,250 lbs 0.38 KMCAP101PXB6135SX
Machined 15x7 KS239DX15706U10 194933396412 Cast Aluminum Beadlock 6/139.7 +10mm 4.39 100.30 17.38 1,250 lbs 1.50 KMCAP101PXB6135SX
Machined 15x8 KS239DX15804800 194933398850 Cast Aluminum Beadlock 4/137 0mm 4.50 96.00 18.92 1,250 lbs 2.42 KSCAP101PXB4137SX
Machined 15x8 KS239DX15804400 194933398867 Cast Aluminum Beadlock 4/156 0mm 4.50 115.10 18.48 1,250 lbs 2.42 KSCAP101PXB4156SXT
Machined 15x8 KS239DX15801200 194933398874 Cast Aluminum Beadlock 5/114.3 0mm 4.50 72.56 19.14 1,250 lbs 2.42 KSCAP101PXB5114SX
Machined 15x10 KS239DX15104800 194933396498 Cast Aluminum Beadlock 4/137 0mm 5.50 96.00 19.58 1,250 lbs 3.44 KSCAP101PXB4137SX
Machined 15x10 KS239DX15104400 194933396504 Cast Aluminum Beadlock 4/156 0mm 5.50 115.10 18.92 1,250 lbs 3.44 KSCAP101PXB4156SX
Machined 15x10 KS239DX15101200 194933396511 Cast Aluminum Beadlock 5/114.3 0mm 5.50 72.56 19.14 1,250 lbs 3.44 KSCAP101PXB5114SX
