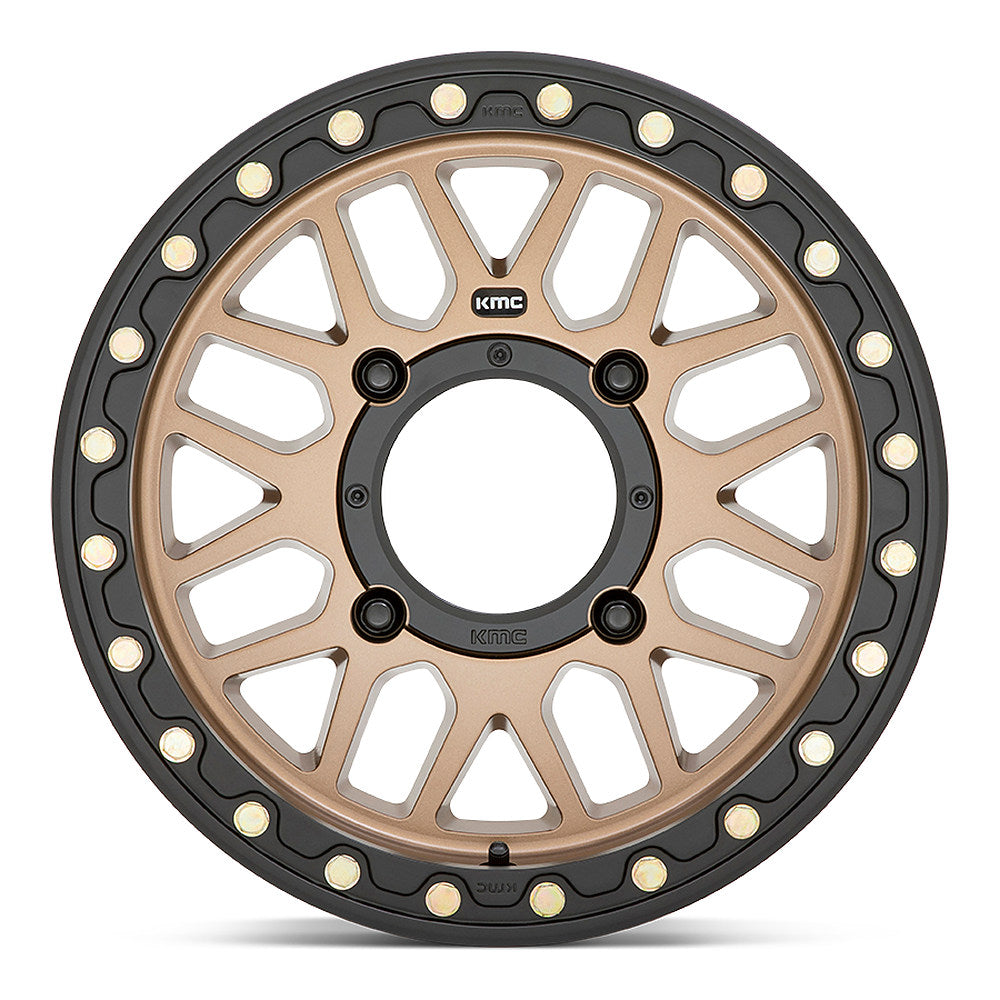

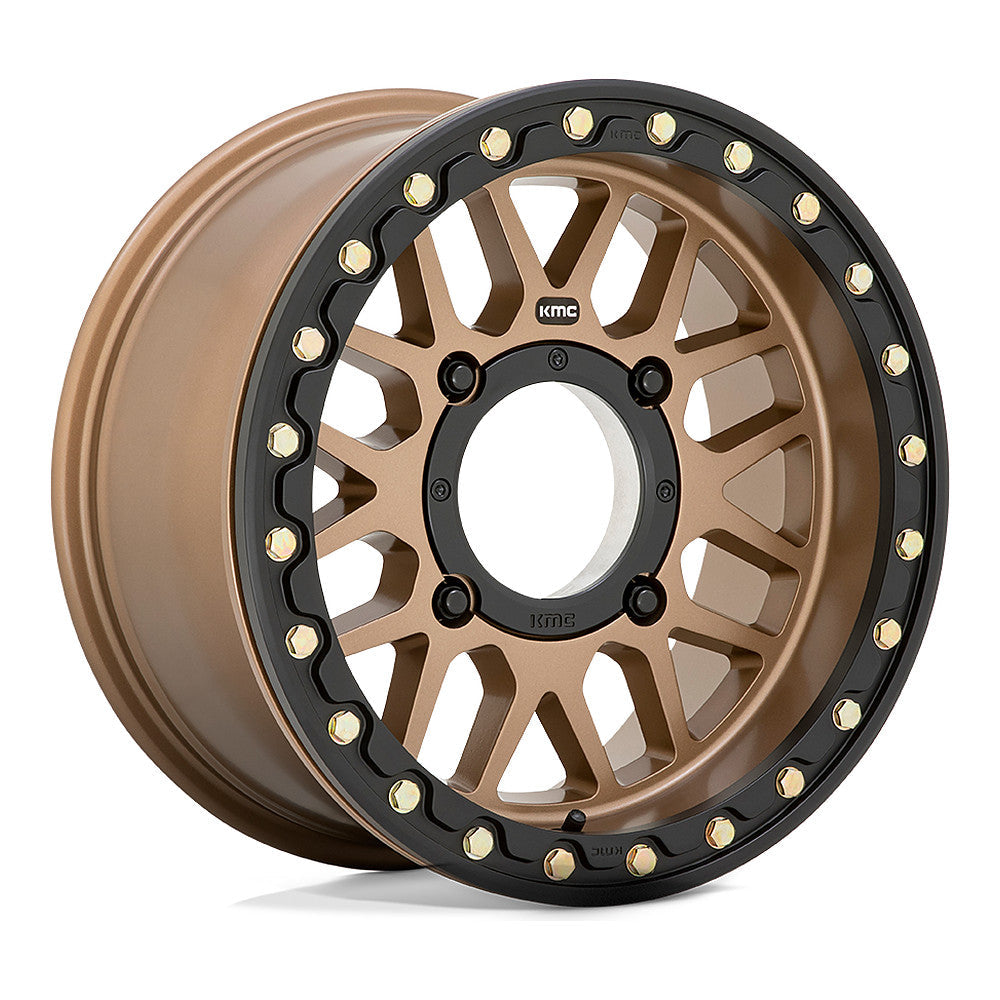

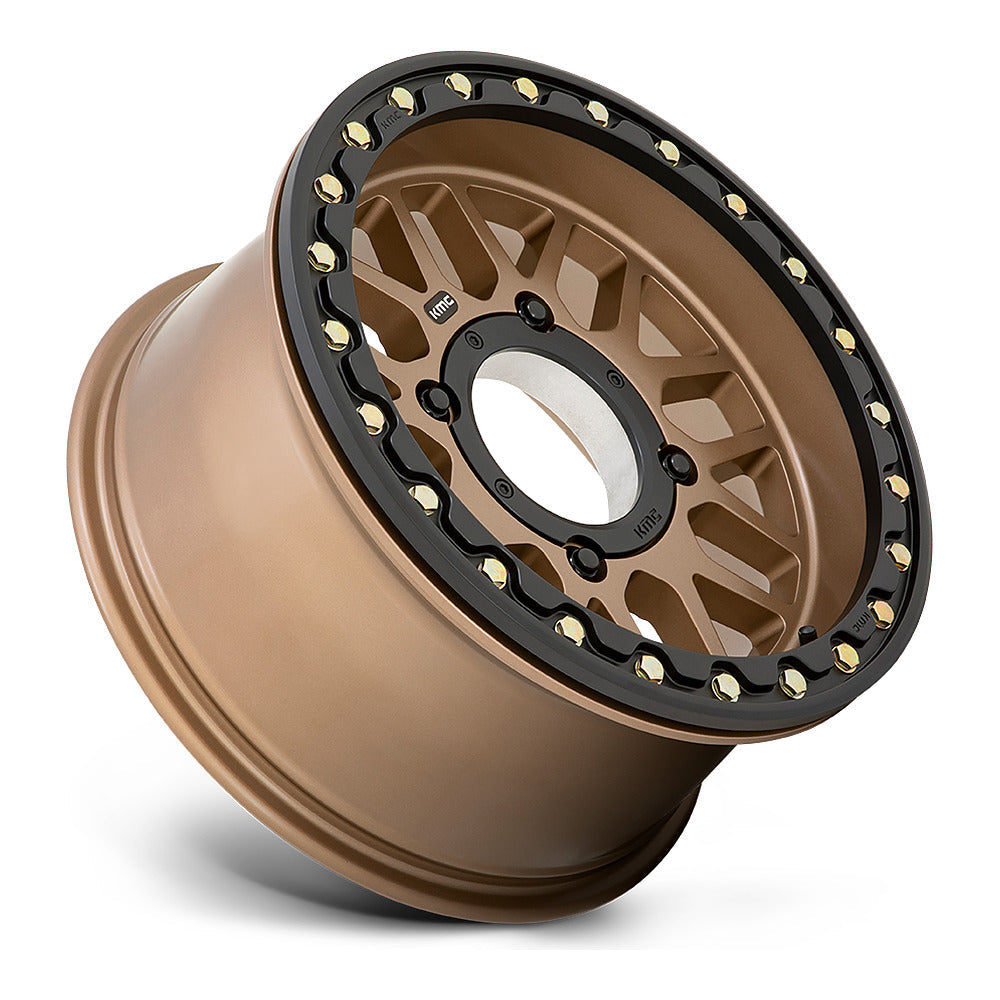

KMC Grenade Beadlock (KS235) UTV Wheel - Satin Bronze

SKU: KS23556048638

$317.00

  • Wheel Size: 15x6 | 15x7
  • Bolt Pattern: 4/137 | 4/156
  • Offset: +10 mm | +38 mm
  • Wheel Type: Beadlock
Regular price $317.00
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...

Satin Bronze gives the KS235 Grenade Beadlock a warmer look than its black and machined versions. Choose from 15x6 +38mm or 15x7 +10mm, in 4x137 and 4x156.

Under the color it's the same true beadlock with a billet ring and a split eight-spoke face built for ventilation and debris pass-through.

KMC Grenade Beadlock (KS235) Key Features

  • True Beadlock: The billet ring clamps the outer bead so you can run low pressures without the tire unseating.
  • 15x6 vs 15x7: 15x6 at +38mm (5.00" backspacing, 1,000 lb rating) or 15x7 at +10mm (4.39" backspacing, 1,300 lb rating).
  • Weight: 16.55–17.21 lbs per wheel.

Bolt Pattern Guide

Always confirm your machine's bolt pattern before ordering.

  • 4x137 (112.10mm center bore; 15x6, 15x7): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
  • 4x156 (115.10 / 132.00mm center bore; 15x6, 15x7): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.

Important Fitment & Use Notes

  • Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
  • Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
  • Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
  • Replacement Center Caps: KMC part numbers by size: KS2CAP141548-SB, KS2CAP1548-SB38, KS2CAP44-SB.

KMC Grenade Beadlock (KS235) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
15x6 KS23556048638 194933018109 Satin Bronze Cast Aluminum Beadlock 4/137 +38mm 5.00 112.10 17.21 1,000 lbs 0.24 KS2CAP1548-SB38
15x6 KS23556044638 194933018123 Satin Bronze Cast Aluminum Beadlock 4/156 +38mm 5.00 132.00 16.55 1,000 lbs 0.24 KS2CAP44-SB
15x7 KS23557048610 194933104512 Satin Bronze Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 16.80 1,300 lbs 1.69 KS2CAP141548-SB
15x7 KS23557044610 194933104543 Satin Bronze Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 16.80 1,300 lbs 1.69 KS2CAP44-SB
