KMC

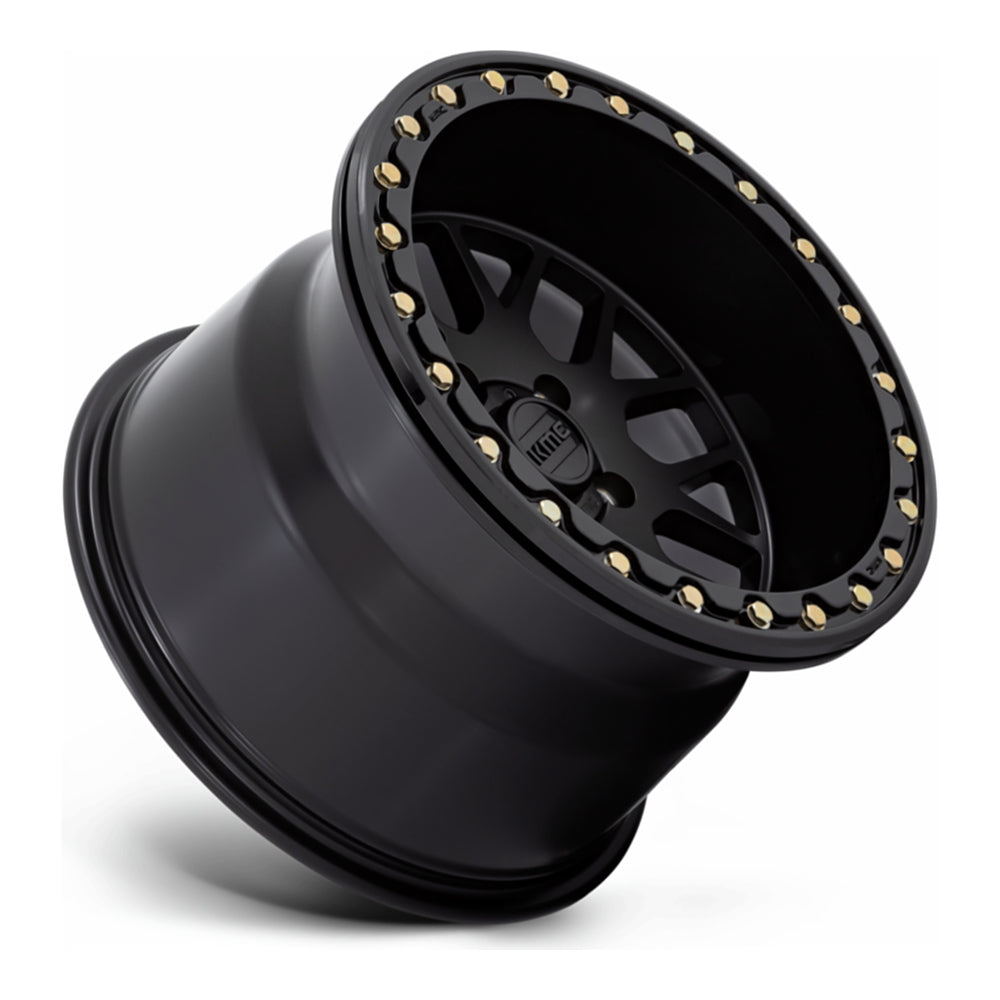

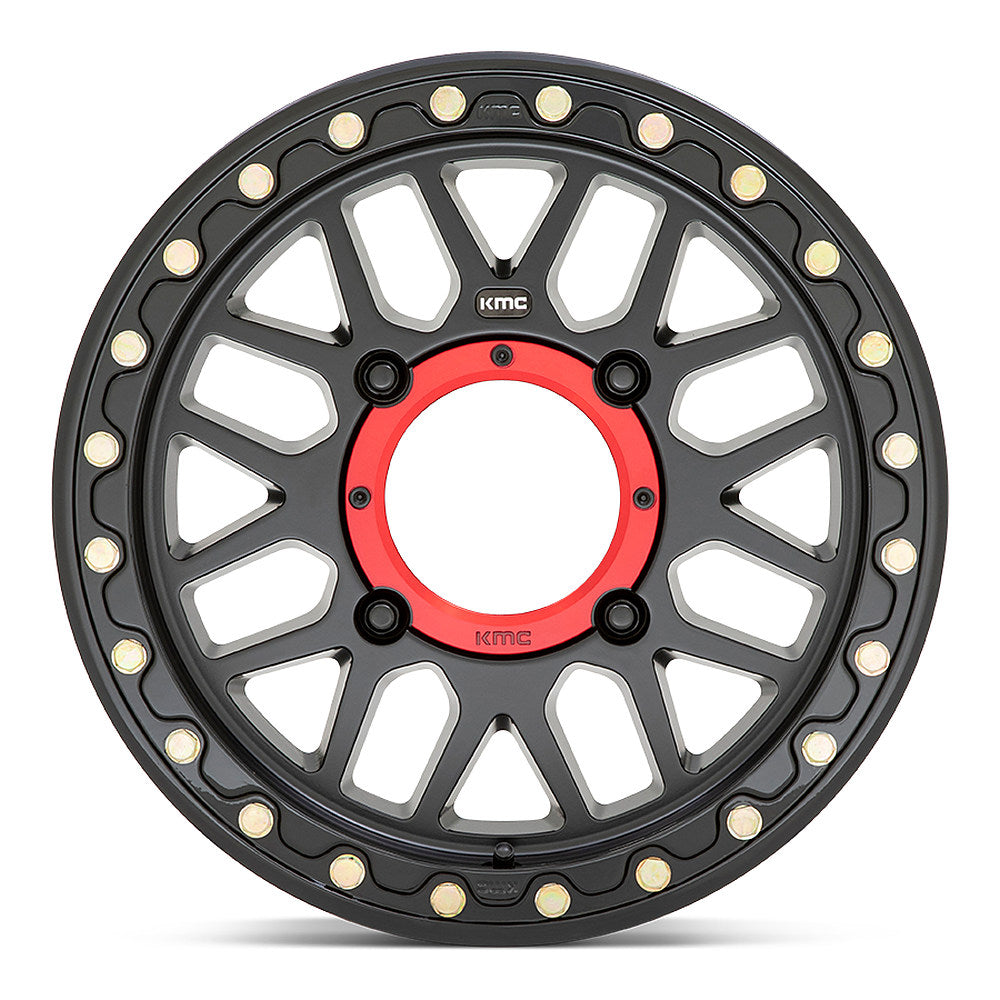

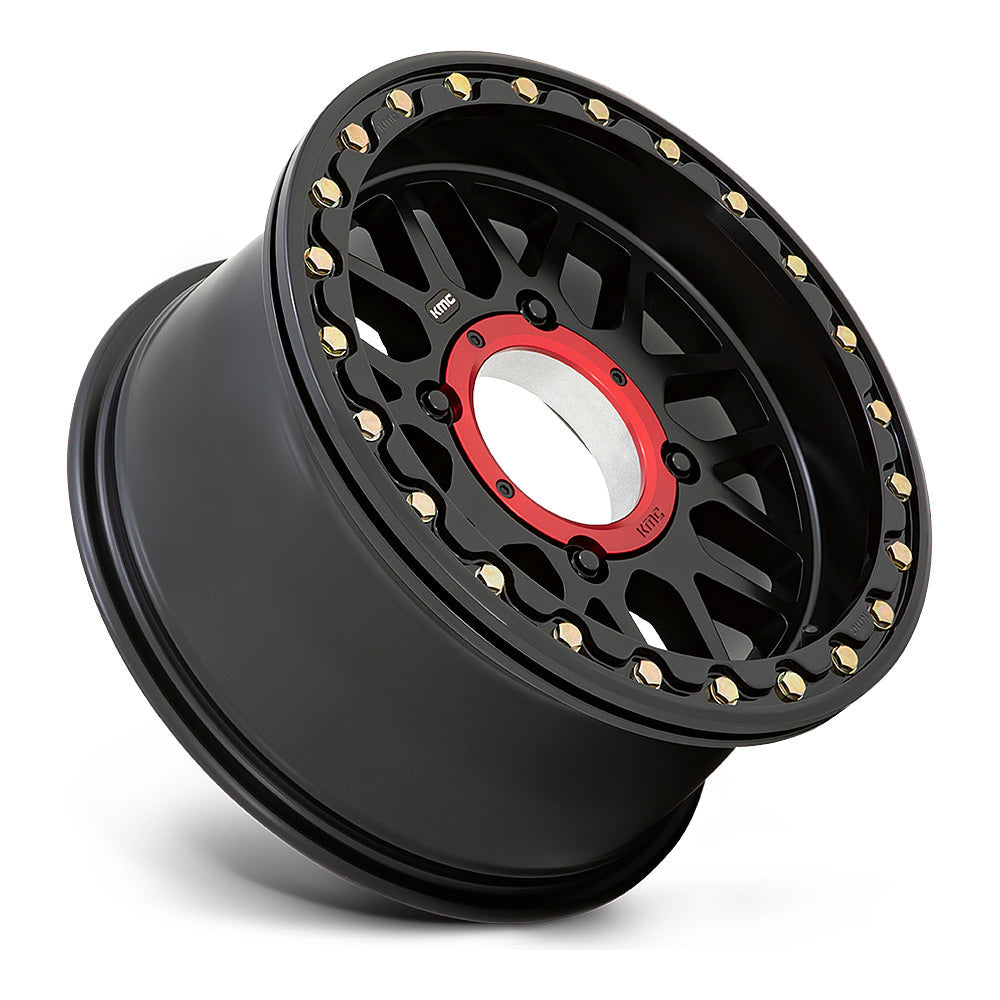

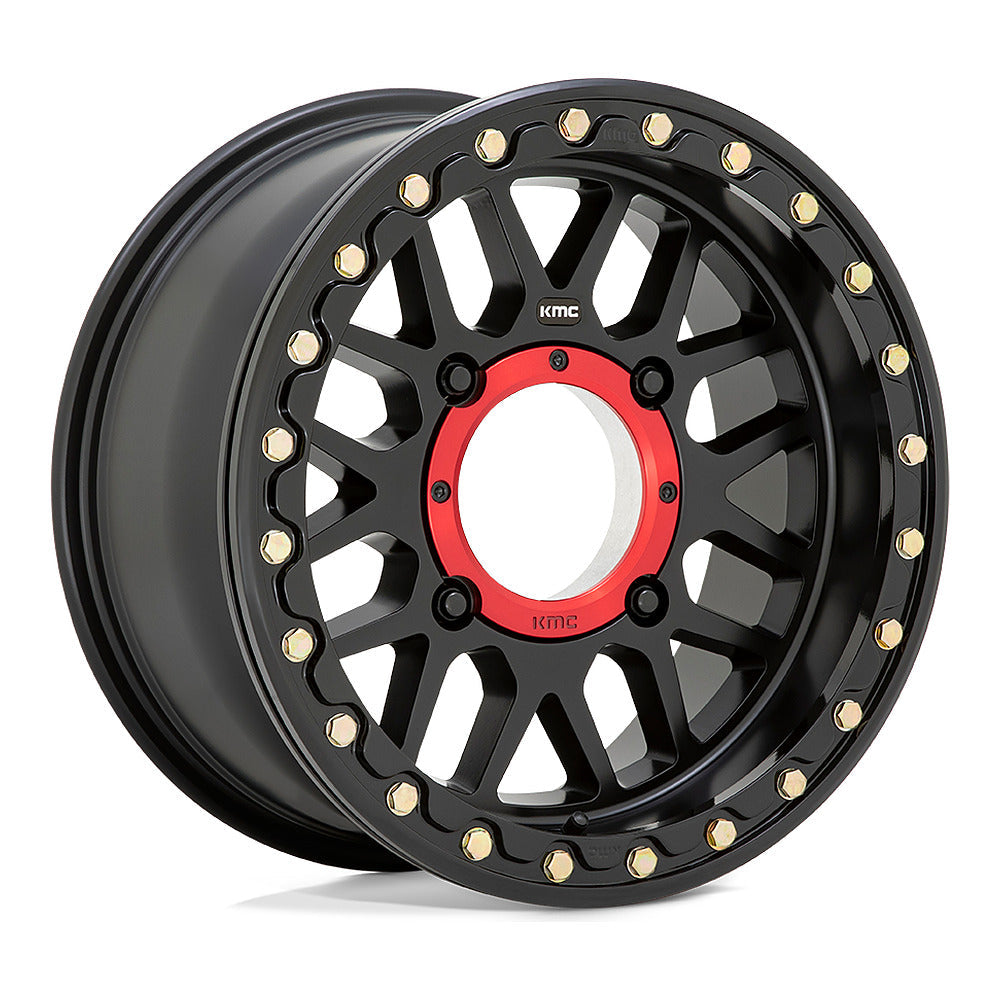

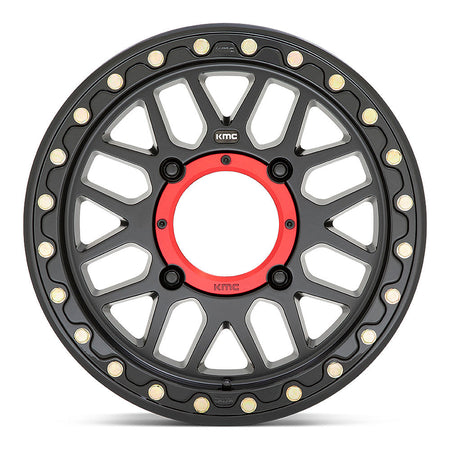

KMC Grenade Beadlock (KS235) UTV Wheel - Satin Black

SKU: KS23547048710

$299.00 – $334.00

  • Wheel Size: 14x7 | 14x10 | 15x6 | 15x7 | 15x10
  • Bolt Pattern: 4/110 | 4/137 | 4/156
  • Offset: 0 mm | +10 mm | +38 mm
  • Wheel Type: Beadlock
Regular price $299.00
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...

Satin Black is where the KS235 Grenade Beadlock has its widest range: twelve size combinations, from 14x7 to 15x10, including a 4x110 option.

The Grenade's split eight-spoke face and billet beadlock ring are what made it KMC's best-known UTV beadlock. True beadlock construction keeps the tire mounted when you air down.

KMC Grenade Beadlock (KS235) Key Features

  • Available Sizes: 14x7 (+10 and +38mm), 14x10 0mm, 15x6 +38mm, 15x7 +10mm, and 15x10 0mm.
  • Bolt Patterns: 4x137 and 4x156 across the range, plus 4x110 in 15x7.
  • Load Ratings: 1,300 lbs on 15x7 and 1,000 lbs on the other sizes; 16.11–20.30 lbs per wheel.

Bolt Pattern Guide

Always confirm your machine's bolt pattern before ordering.

  • 4x110 (86.00mm center bore; 15x7): Common on many Honda, Yamaha, Kawasaki, and Suzuki ATVs and some utility side-by-sides.
  • 4x137 (112.10mm center bore; 14x7, 15x6, 15x7, 15x10): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
  • 4x156 (115.10 / 132.00mm center bore; 14x7, 14x10, 15x6, 15x7, 15x10): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.

Important Fitment & Use Notes

  • Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
  • Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
  • Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
  • Replacement Center Caps: KMC part numbers by size: KS2CAP141540-SB, KS2CAP141548-SB, KS2CAP1548-SB38, KS2CAP44-SB.
  • 14x10 Ring Hardware: Supplier part numbers for the 14x10 (KS23541044700): ring KSBRS14C-GB, ring bolts H8X23-W-ZP (24 per wheel).

KMC Grenade Beadlock (KS235) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
14x7 KS23547048710 194933018178 Satin Black Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 17.03 1,000 lbs 1.69 KS2CAP141548-SB
14x7 KS23547048738 194933018161 Satin Black Cast Aluminum Beadlock 4/137 +38mm 5.50 112.10 17.49 1,000 lbs 0.35 KS2CAP141548-SB
14x7 KS23547044710 194933018192 Satin Black Cast Aluminum Beadlock 4/156 +10mm 4.39 132.00 16.11 1,000 lbs 1.69 KS2CAP44-SB
14x7 KS23547044738 194933018185 Satin Black Cast Aluminum Beadlock 4/156 +38mm 5.50 132.00 16.55 1,000 lbs 0.35 KS2CAP44-SB
14x10 KS23541044700 194933018239 Satin Black Cast Aluminum Beadlock 4/156 0mm 5.50 132.00 17.64 1,000 lbs 3.41 KS2CAP44-SB
15x6 KS23556048738 194933017997 Satin Black Cast Aluminum Beadlock 4/137 +38mm 5.00 112.10 17.21 1,000 lbs 0.24 KS2CAP1548-SB38
15x6 KS23556044738 194933018116 Satin Black Cast Aluminum Beadlock 4/156 +38mm 5.00 132.00 16.55 1,000 lbs 0.24 KS2CAP44-SB
15x7 KS23557040710 194933104567 Satin Black Cast Aluminum Beadlock 4/110 +10mm 4.39 86.00 16.80 1,300 lbs 1.69 KS2CAP141540-SB
15x7 KS23557048710 194933104505 Satin Black Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 16.80 1,300 lbs 1.69 KS2CAP141548-SB
15x7 KS23557044710 194933104536 Satin Black Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 16.80 1,300 lbs 1.69 KS2CAP44-SB
15x10 KS23551048700 194933018147 Satin Black Cast Aluminum Beadlock 4/137 0mm 5.50 112.10 20.30 1,000 lbs 3.34 KS2CAP141548-SB
15x10 KS23551044700 194933018154 Satin Black Cast Aluminum Beadlock 4/156 0mm 5.50 132.00 19.68 1,000 lbs 3.34 KS2CAP44-SB
