KMC

KMC Grenade Beadlock (KS235) UTV Wheel - Machined

SKU: KS23547048510

$299.00 – $334.00

  • Wheel Size: 14x7 | 15x6 | 15x7 | 15x10
  • Bolt Pattern: 4/137 | 4/156
  • Offset: 0 mm | +10 mm | +38 mm
  • Wheel Type: Beadlock
Regular price $299.00
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...

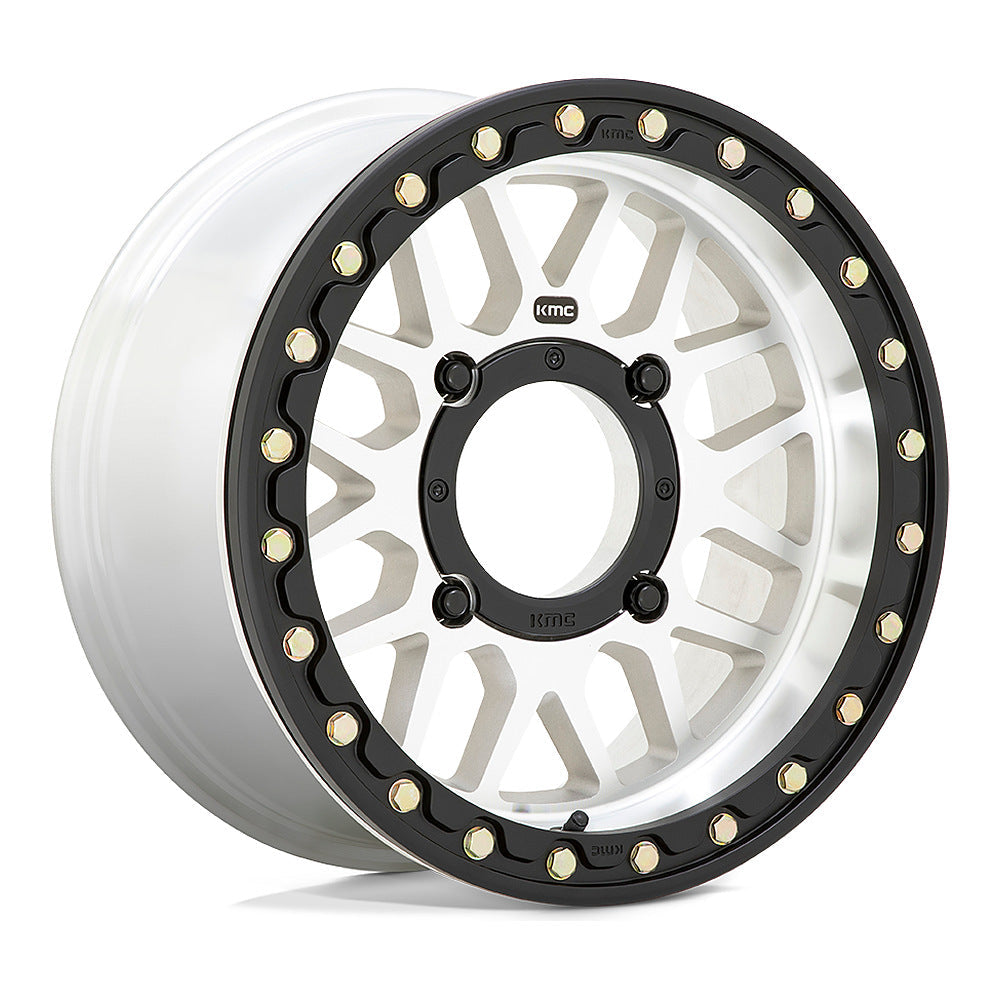

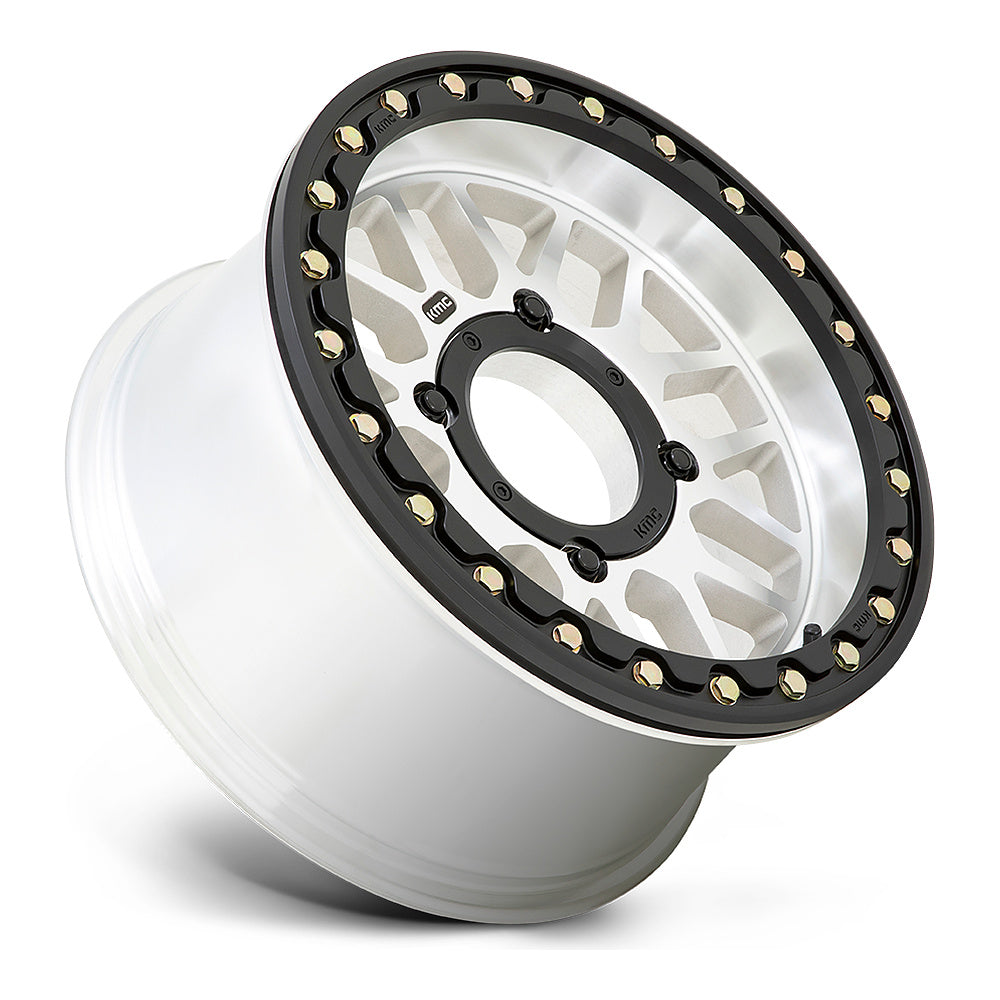

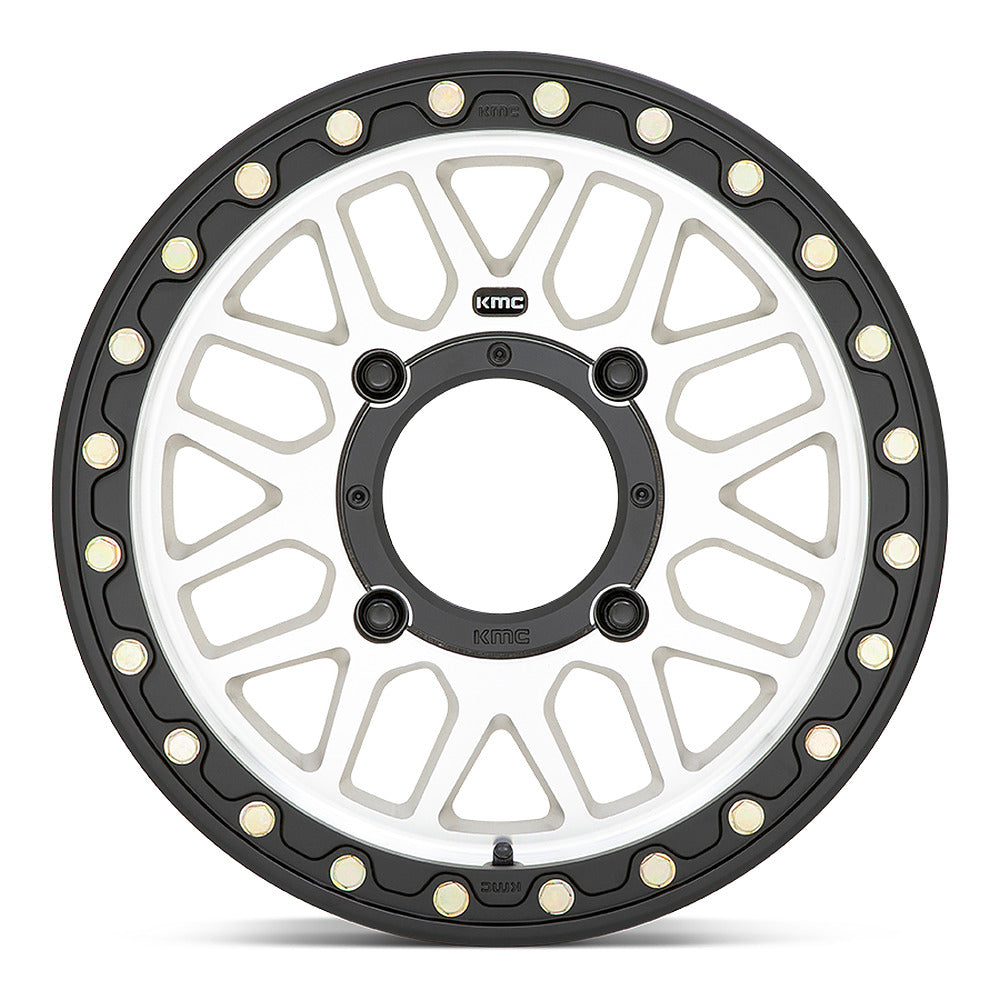

Machined surfaces make the KS235 Grenade Beadlock's split eight-spoke design stand out, and you can choose anything from a 14x7 up to a 15x10.

KMC pairs true beadlock construction with a billet beadlock ring, built to keep your tires mounted when you air down. The spokes are spaced for ventilation and debris pass-through.

KMC Grenade Beadlock (KS235) Key Features

  • Billet Beadlock Ring: Clamps the outer bead so you can run low pressures in rocks and sand.
  • Available Sizes: 14x7 +10mm, 15x6 +38mm, 15x7 +10mm, and 15x10 0mm, in 4x137 and 4x156 (the 14x7 is 4x137 only).
  • Weight and Load: 14.60–18.50 lbs depending on size; 15x7 is rated to 1,300 lbs and the other sizes to 1,000 lbs.

Bolt Pattern Guide

Always confirm your machine's bolt pattern before ordering.

  • 4x137 (112.10mm center bore; 14x7, 15x6, 15x7, 15x10): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
  • 4x156 (115.10 / 132.00mm center bore; 15x6, 15x7, 15x10): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.

Important Fitment & Use Notes

  • Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
  • Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
  • Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
  • Replacement Center Caps: KMC part numbers by size: KS2CAP141548-SB, KS2CAP1548-SB38, KS2CAP44-SB.

KMC Grenade Beadlock (KS235) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
14x7 KS23547048510 194933104666 Machined Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 14.60 1,000 lbs 1.69 KS2CAP141548-SB
15x6 KS23556048538 194933104598 Machined Cast Aluminum Beadlock 4/137 +38mm 5.00 112.10 15.70 1,000 lbs 0.24 KS2CAP1548-SB38
15x6 KS23556044538 194933104604 Machined Cast Aluminum Beadlock 4/156 +38mm 5.00 132.00 14.80 1,000 lbs 0.24 KS2CAP44-SB
15x7 KS23557048510 194933104529 Machined Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 16.80 1,300 lbs 1.69 KS2CAP141548-SB
15x7 KS23557044510 194933104550 Machined Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 16.80 1,300 lbs 1.69 KS2CAP44-SB
15x10 KS23551048500 194933104628 Machined Cast Aluminum Beadlock 4/137 0mm 5.50 112.10 18.50 1,000 lbs 3.35 KS2CAP141548-SB
15x10 KS23551044500 194933104635 Machined Cast Aluminum Beadlock 4/156 0mm 5.50 132.00 17.20 1,000 lbs 3.35 KS2CAP44-SB
