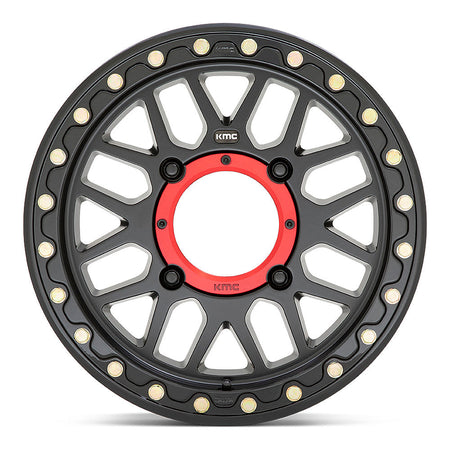

KMC Grenade Beadlock KS235 UTV wheel in satin black, straight-on face view
KMC Grenade Beadlock KS235 UTV wheel in satin black, side angle showing the barrel and lip
KMC Grenade Beadlock KS235 UTV wheel in machined, angled front view

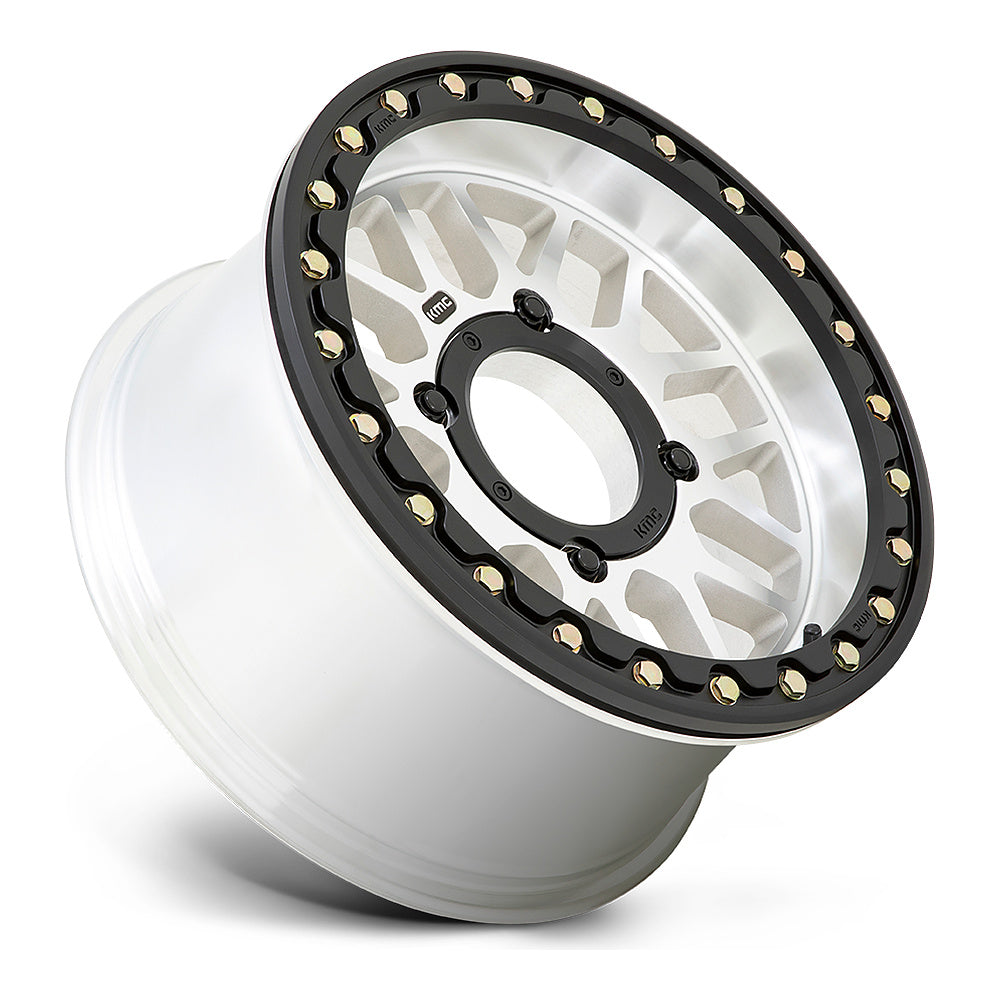

KMC Grenade Beadlock KS235 UTV wheel in machined, side angle showing the barrel and lip

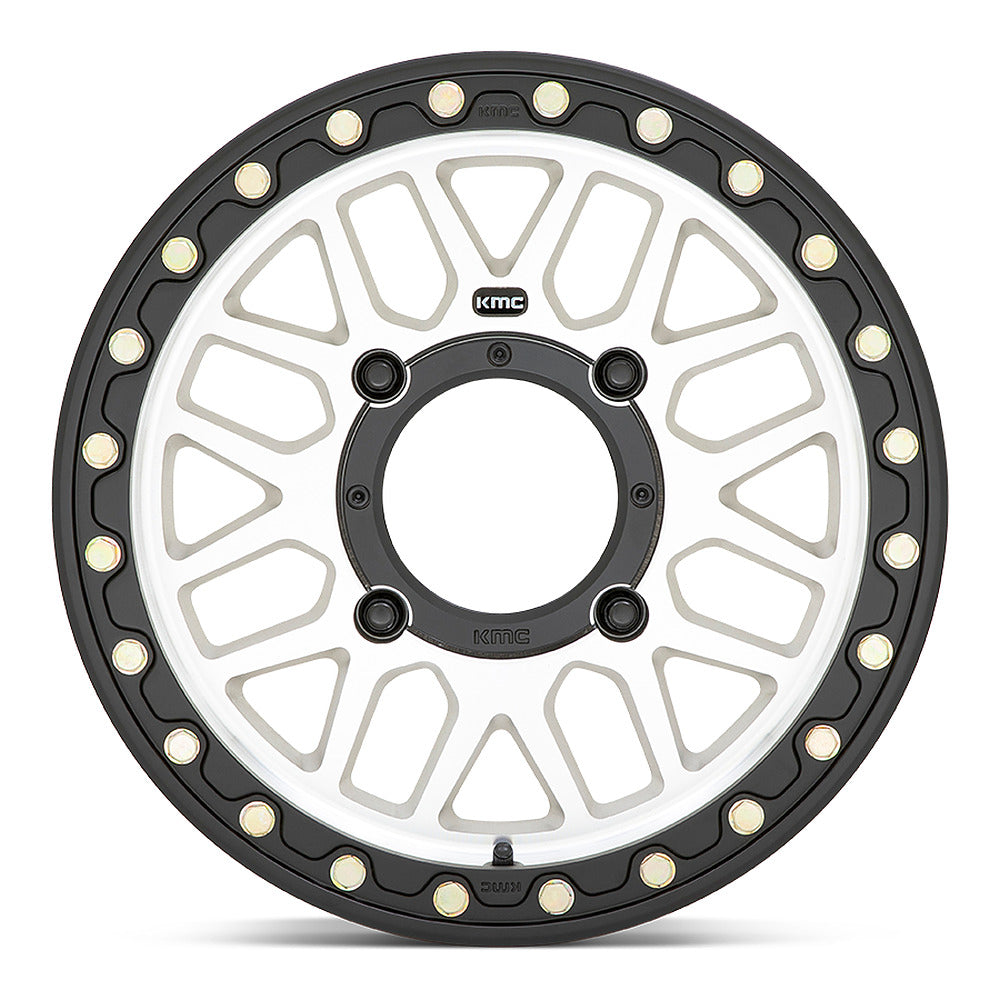

KMC Grenade Beadlock KS235 UTV wheel in machined, straight-on face view

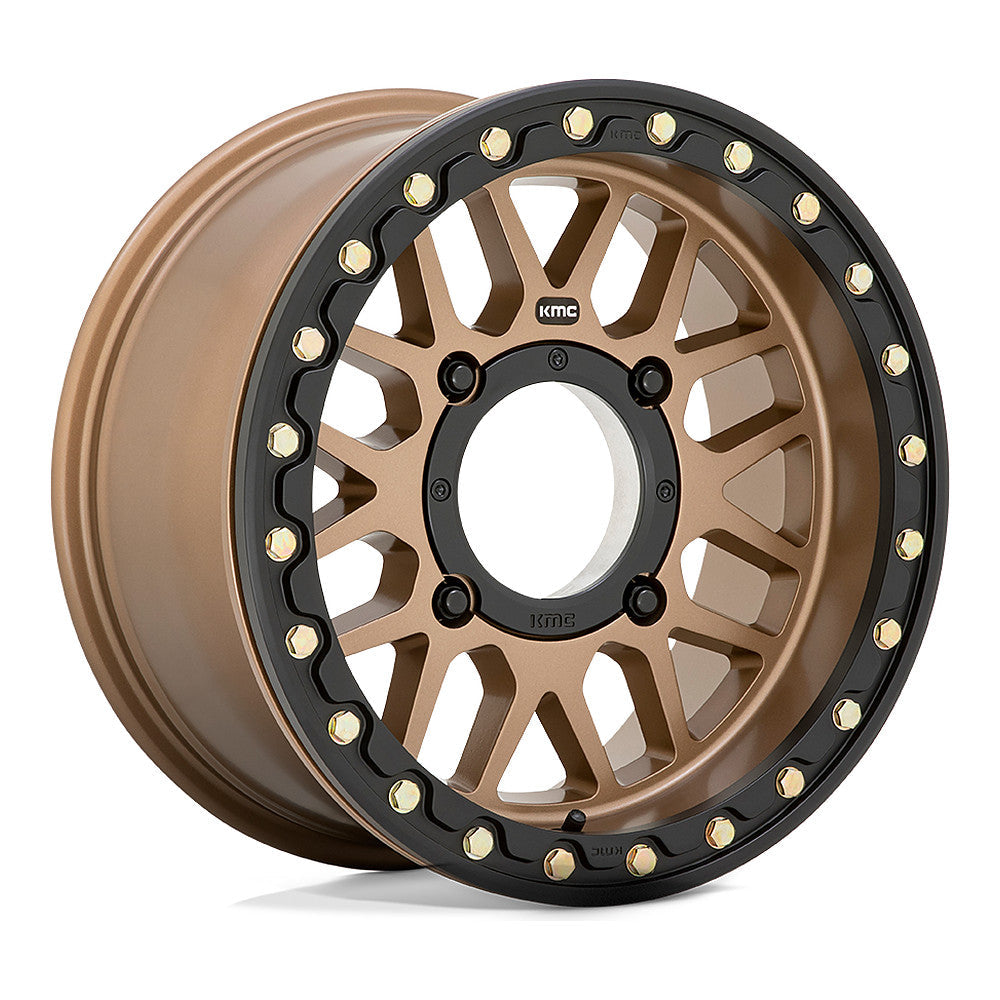

KMC Grenade Beadlock KS235 UTV wheel in satin bronze, angled front view
KMC Grenade Beadlock KS235 UTV wheel in satin bronze, side angle showing the barrel and lip
KMC Grenade Beadlock KS235 UTV wheel in satin bronze, straight-on face view
KMC Grenade Beadlock KS235 UTV wheel in satin black, angled front view
KMC Grenade Beadlock (KS235) UTV wheel in every finish: satin black, machined and satin bronze
KMC Grenade Beadlock KS235 UTV wheel in satin black, side angle showing the barrel and lip
KMC Grenade Beadlock KS235 UTV wheel in satin black, straight-on face view
KMC Grenade Beadlock KS235 UTV wheel in satin black, side angle showing the barrel and lip
KMC Grenade Beadlock KS235 UTV wheel in machined, angled front view
KMC Grenade Beadlock KS235 UTV wheel in machined, side angle showing the barrel and lip
KMC Grenade Beadlock KS235 UTV wheel in machined, straight-on face view
KMC Grenade Beadlock KS235 UTV wheel in satin bronze, angled front view
KMC Grenade Beadlock KS235 UTV wheel in satin bronze, side angle showing the barrel and lip
KMC Grenade Beadlock KS235 UTV wheel in satin bronze, straight-on face view
KMC

KMC Grenade Beadlock (KS235) UTV Wheel

$299.00 – $334.00

  • Wheel Color: Satin Black | Machined | Satin Bronze
  • Size: 14x7 | 14x10 | 15x6 | 15x7 | 15x10
  • Bolt Pattern: 4/110 | 4/137 | 4/156
  • Offset: +38 mm | +10 mm | 0 mm
  • Wheel Type: Beadlock
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...

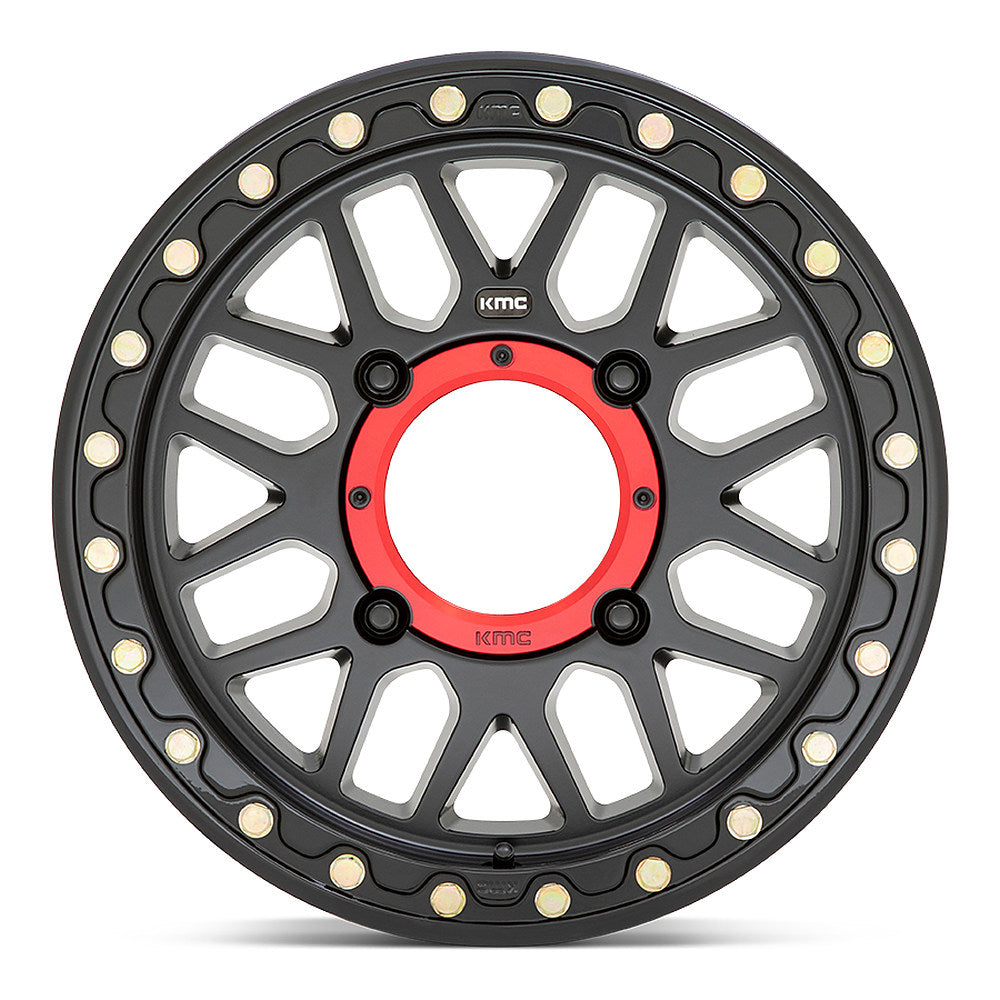

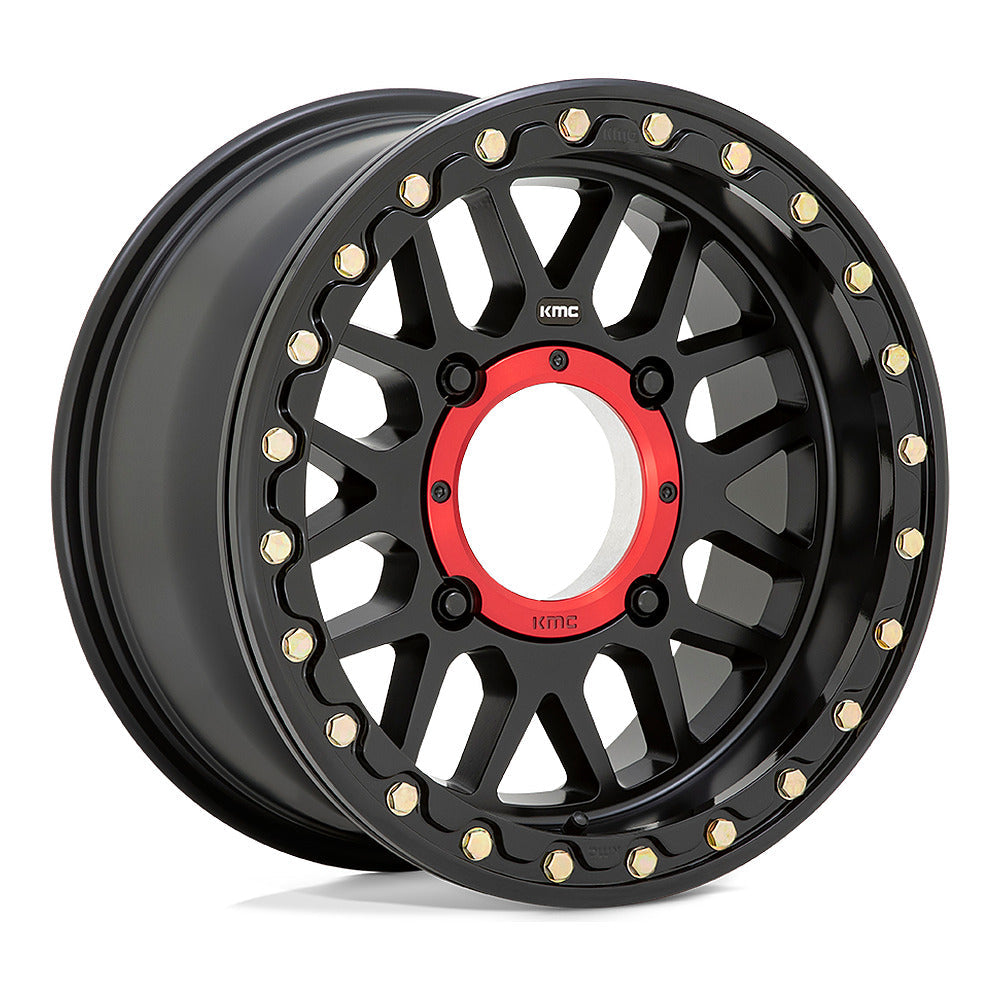

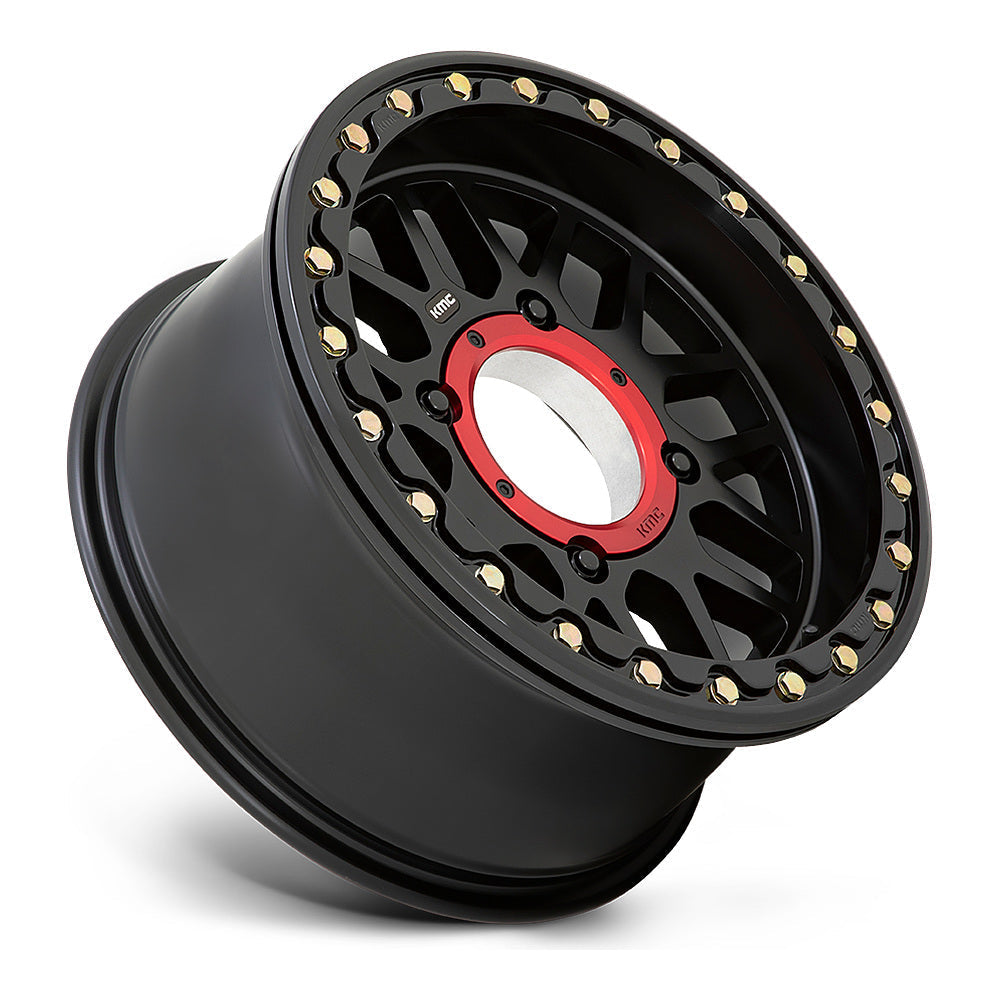

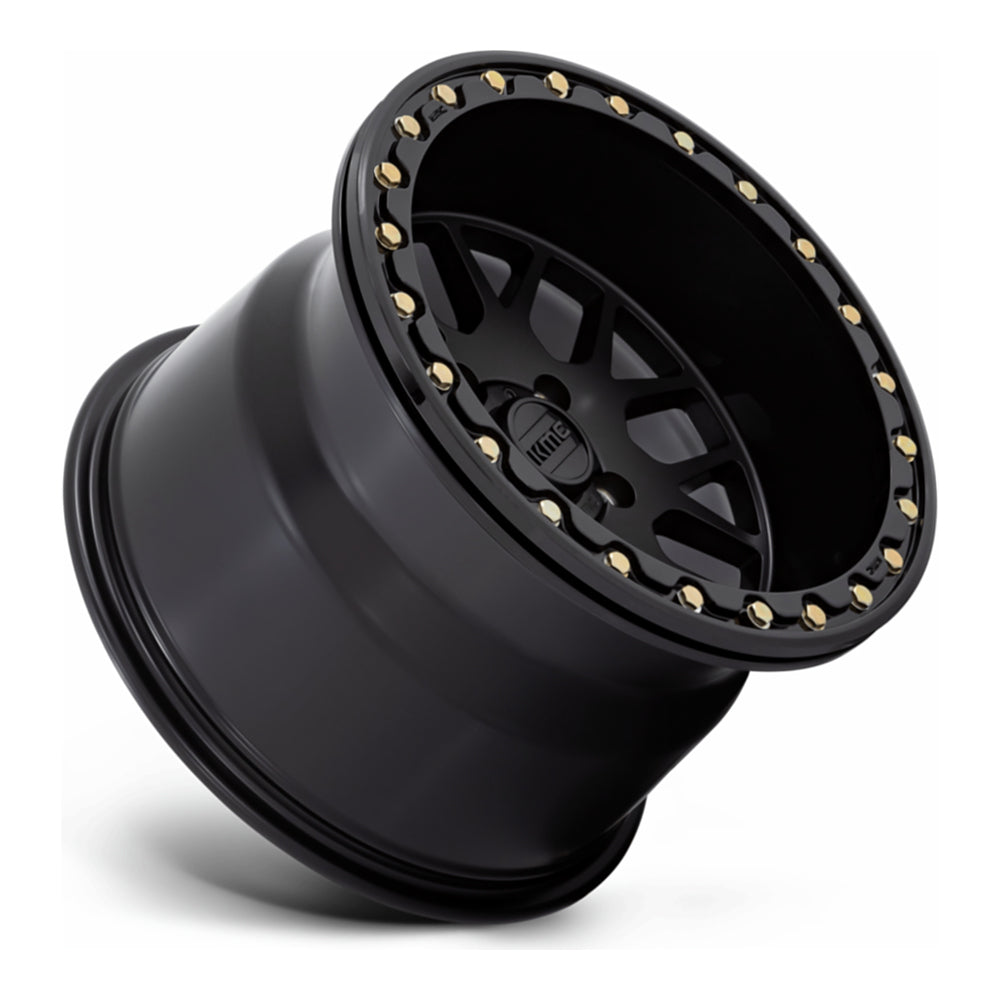

KMC calls the KS235 Grenade Beadlock a powerhouse, and the split eight-spoke face is the reason it's so recognizable. Gaps between the spokes aid ventilation and let debris pass through, while a billet beadlock ring clamps the tire's outer bead.

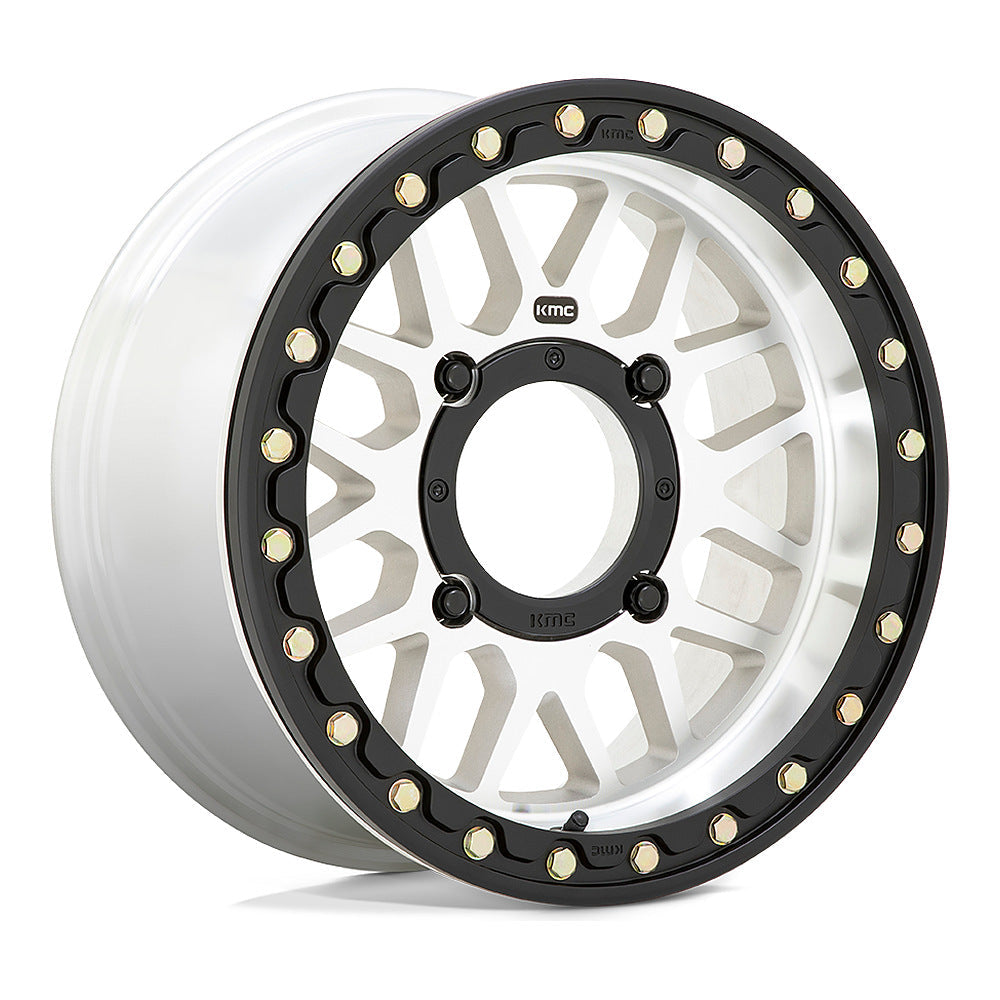

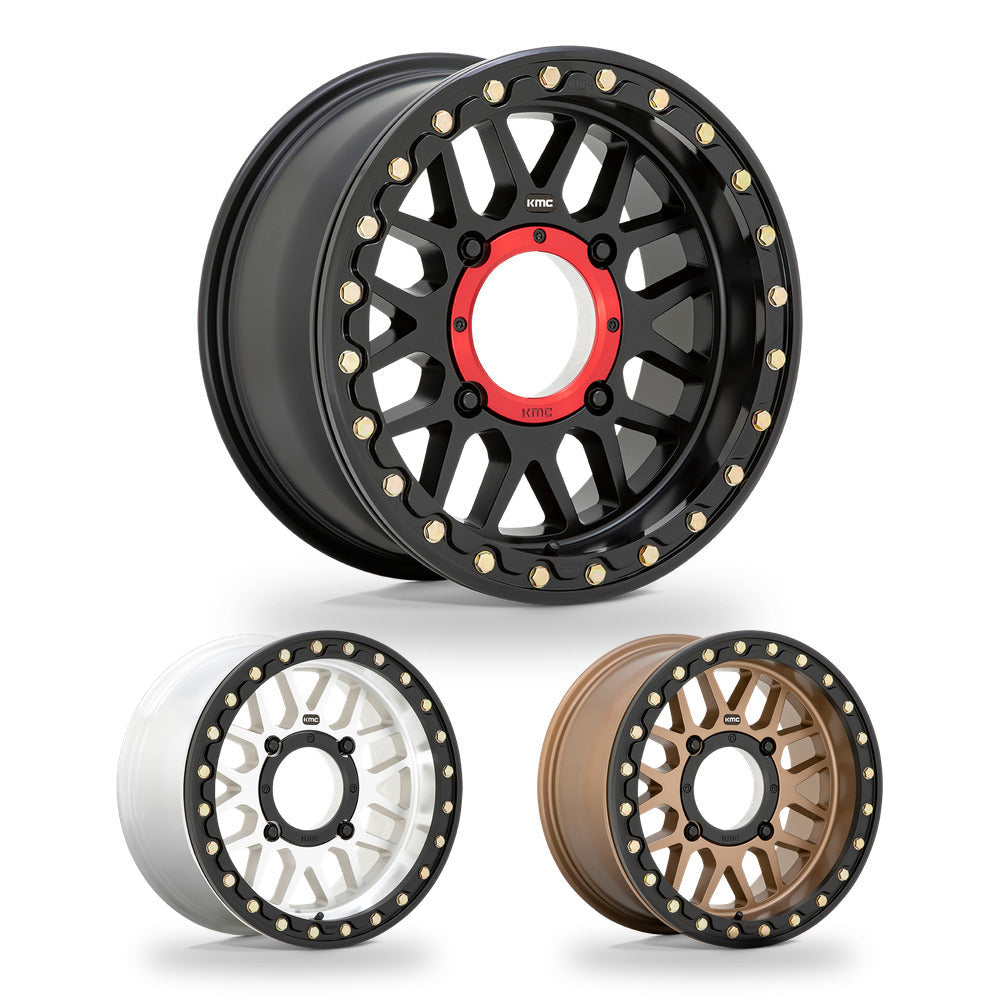

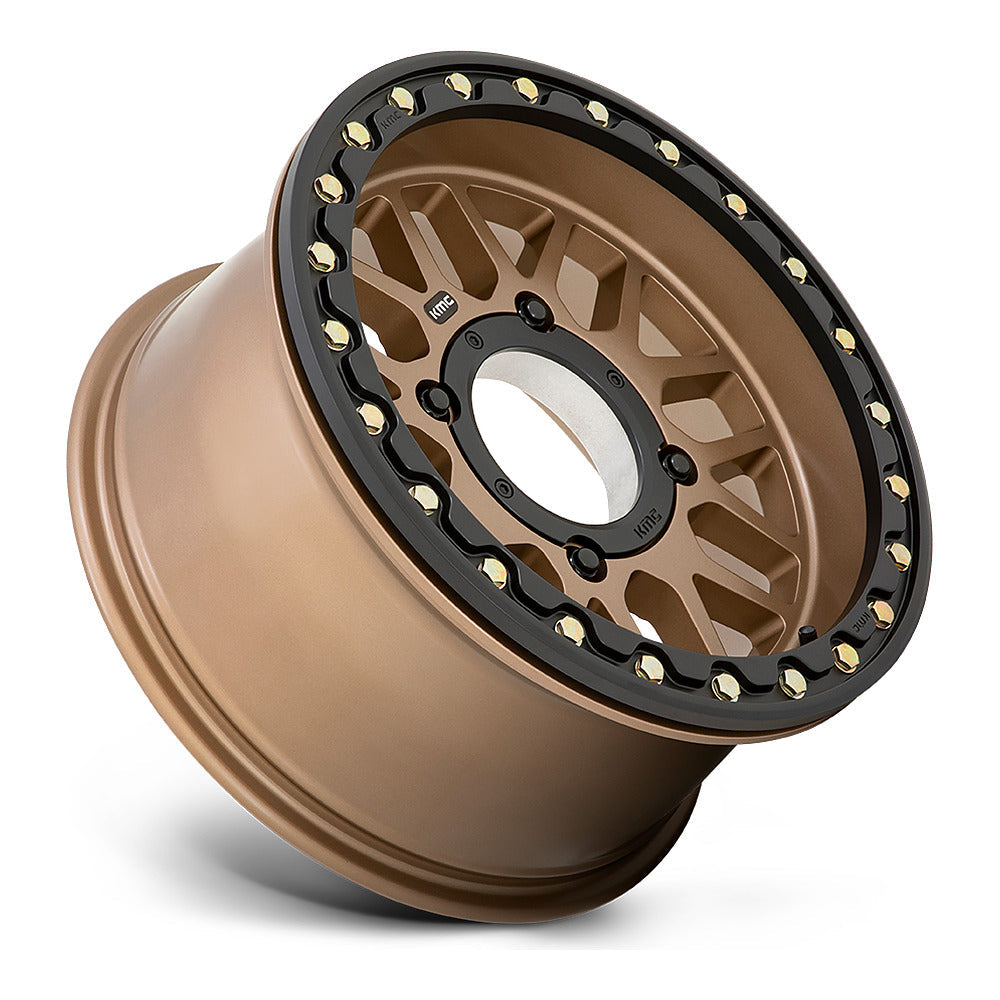

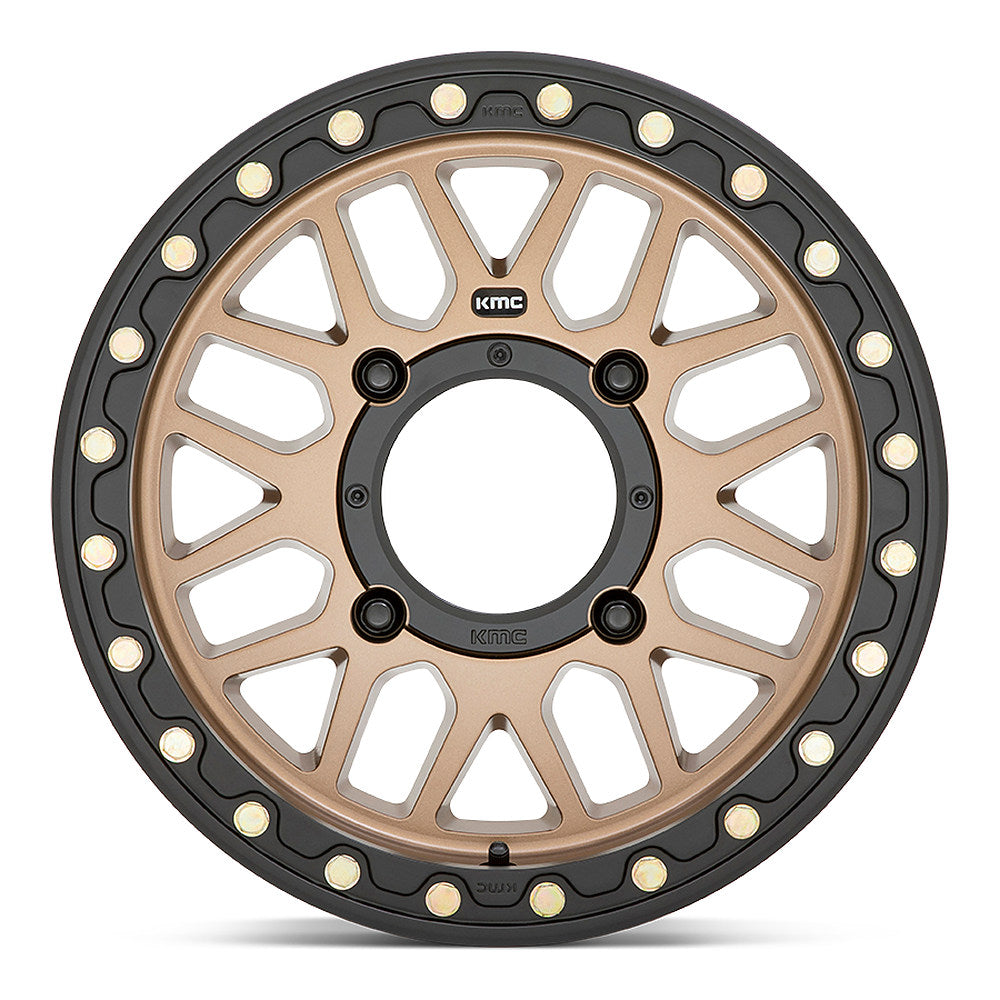

Satin Black, Machined, and Satin Bronze are all offered here. Satin Black has the deepest range, from 14x7 to 15x10 and including a 15x7 in 4x110. Machined runs from 14x7 (4x137 only) to 15x10, and Satin Bronze covers the 15x6 and 15x7.

True beadlock construction is what lets you drop tire pressure for rocks or sand without the bead letting go. Load capacity tops out at 1,300 lbs on the 15x7 +10mm.

KMC Grenade Beadlock (KS235) Key Features

  • Billet Beadlock Ring: A billet ring bolts over the outer bead to hold it at low pressure.
  • Wide Size Range: 14x7, 14x10, 15x6, 15x7, and 15x10, depending on finish.
  • Patterns by Finish: Every finish offers 4x137 and 4x156; Satin Black also has a 15x7 in 4x110.
  • Load Capacity: The 15x7 +10mm carries 1,300 lbs per wheel; every other size carries 1,000 lbs.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

  • 4x110 Bolt Pattern (86.00mm center bore; 15x7): Common on many Honda, Yamaha, Kawasaki, and Suzuki ATVs and some utility side-by-sides.
  • 4x137 Bolt Pattern (112.10mm center bore; 14x7, 15x6, 15x7, 15x10): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
  • 4x156 Bolt Pattern (115.10 / 132.00mm center bore; 14x7, 14x10, 15x6, 15x7, 15x10): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.

Important Fitment & Legal Notes

  • Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
  • Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
  • Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
  • Replacement Center Caps: KMC part numbers: KS2CAP141540-SB, KS2CAP141548-SB, KS2CAP1548-SB38, KS2CAP44-SB (see the Replacement Cap column below for each size).
  • 14x10 Ring Hardware: Supplier part numbers for the Satin Black 14x10 (KS23541044700): ring KSBRS14C-GB, ring bolts H8X23-W-ZP (24 per wheel).
  • Warranty: Covered by KMC's manufacturer warranty.

KMC Grenade Beadlock (KS235) Specifications

Finish Wheel Size SKU UPC Code Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
Satin Black 14x7 KS23547048738 194933018161 Cast Aluminum Beadlock 4/137 +38mm 5.50 112.10 17.49 1,000 lbs 0.35 KS2CAP141548-SB
Satin Black 14x7 KS23547048710 194933018178 Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 17.03 1,000 lbs 1.69 KS2CAP141548-SB
Satin Black 14x7 KS23547044738 194933018185 Cast Aluminum Beadlock 4/156 +38mm 5.50 132.00 16.55 1,000 lbs 0.35 KS2CAP44-SB
Satin Black 14x7 KS23547044710 194933018192 Cast Aluminum Beadlock 4/156 +10mm 4.39 132.00 16.11 1,000 lbs 1.69 KS2CAP44-SB
Satin Black 14x10 KS23541044700 194933018239 Cast Aluminum Beadlock 4/156 0mm 5.50 132.00 17.64 1,000 lbs 3.41 KS2CAP44-SB
Satin Black 15x6 KS23556048738 194933017997 Cast Aluminum Beadlock 4/137 +38mm 5.00 112.10 17.21 1,000 lbs 0.24 KS2CAP1548-SB38
Satin Black 15x6 KS23556044738 194933018116 Cast Aluminum Beadlock 4/156 +38mm 5.00 132.00 16.55 1,000 lbs 0.24 KS2CAP44-SB
Satin Black 15x7 KS23557040710 194933104567 Cast Aluminum Beadlock 4/110 +10mm 4.39 86.00 16.80 1,300 lbs 1.69 KS2CAP141540-SB
Satin Black 15x7 KS23557048710 194933104505 Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 16.80 1,300 lbs 1.69 KS2CAP141548-SB
Satin Black 15x7 KS23557044710 194933104536 Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 16.80 1,300 lbs 1.69 KS2CAP44-SB
Satin Black 15x10 KS23551048700 194933018147 Cast Aluminum Beadlock 4/137 0mm 5.50 112.10 20.30 1,000 lbs 3.34 KS2CAP141548-SB
Satin Black 15x10 KS23551044700 194933018154 Cast Aluminum Beadlock 4/156 0mm 5.50 132.00 19.68 1,000 lbs 3.34 KS2CAP44-SB
Machined 14x7 KS23547048510 194933104666 Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 14.60 1,000 lbs 1.69 KS2CAP141548-SB
Machined 15x6 KS23556048538 194933104598 Cast Aluminum Beadlock 4/137 +38mm 5.00 112.10 15.70 1,000 lbs 0.24 KS2CAP1548-SB38
Machined 15x6 KS23556044538 194933104604 Cast Aluminum Beadlock 4/156 +38mm 5.00 132.00 14.80 1,000 lbs 0.24 KS2CAP44-SB
Machined 15x7 KS23557048510 194933104529 Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 16.80 1,300 lbs 1.69 KS2CAP141548-SB
Machined 15x7 KS23557044510 194933104550 Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 16.80 1,300 lbs 1.69 KS2CAP44-SB
Machined 15x10 KS23551048500 194933104628 Cast Aluminum Beadlock 4/137 0mm 5.50 112.10 18.50 1,000 lbs 3.35 KS2CAP141548-SB
Machined 15x10 KS23551044500 194933104635 Cast Aluminum Beadlock 4/156 0mm 5.50 132.00 17.20 1,000 lbs 3.35 KS2CAP44-SB
Satin Bronze 15x6 KS23556048638 194933018109 Cast Aluminum Beadlock 4/137 +38mm 5.00 112.10 17.21 1,000 lbs 0.24 KS2CAP1548-SB38
Satin Bronze 15x6 KS23556044638 194933018123 Cast Aluminum Beadlock 4/156 +38mm 5.00 132.00 16.55 1,000 lbs 0.24 KS2CAP44-SB
Satin Bronze 15x7 KS23557048610 194933104512 Cast Aluminum Beadlock 4/137 +10mm 4.39 112.10 16.80 1,300 lbs 1.69 KS2CAP141548-SB
Satin Bronze 15x7 KS23557044610 194933104543 Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 16.80 1,300 lbs 1.69 KS2CAP44-SB
