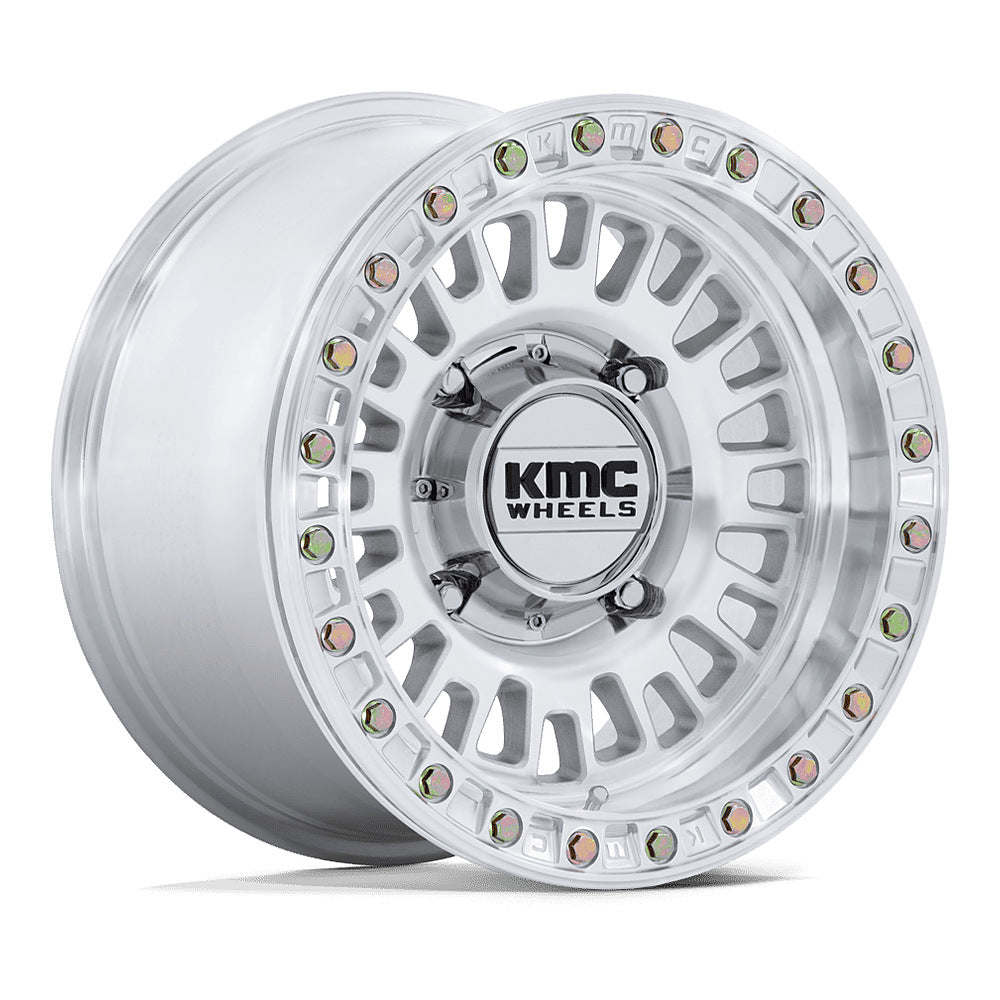

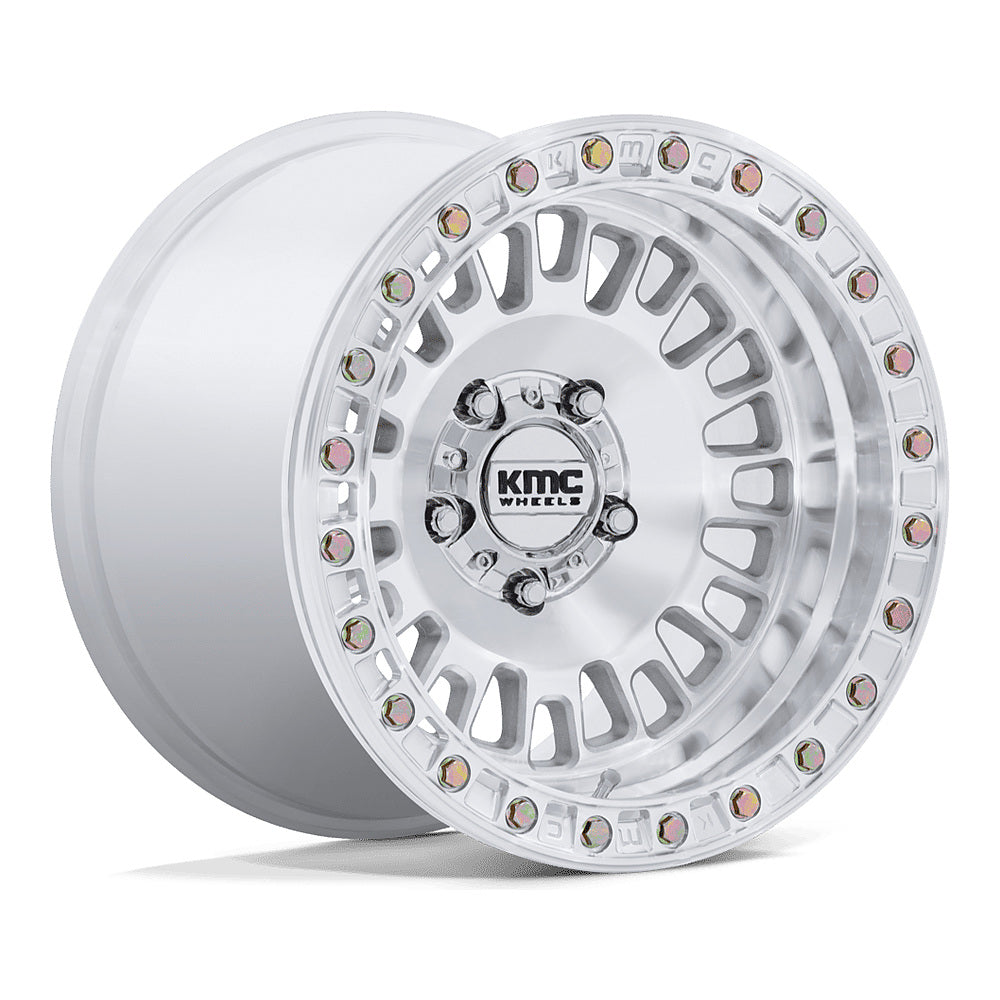

KMC Aztec Beadlock KS242 UTV wheel in machined, angled front view

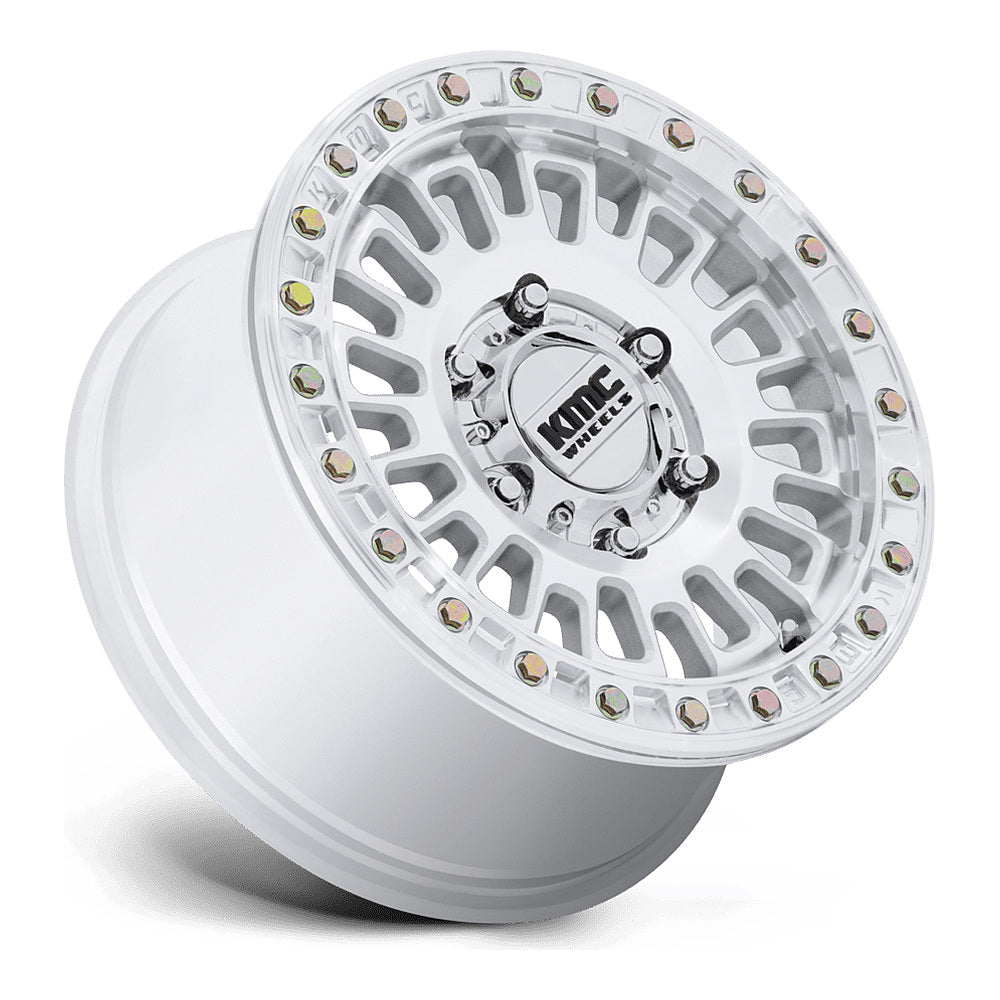

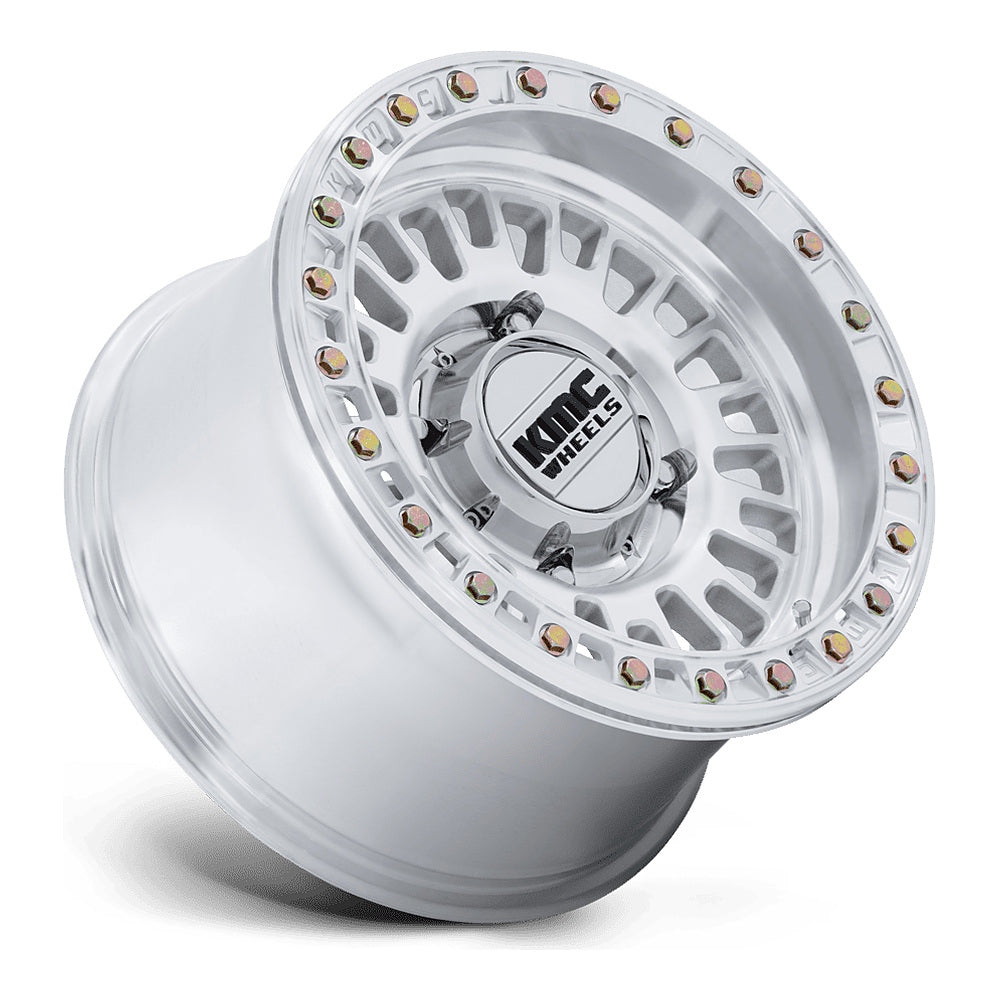

KMC Aztec Beadlock KS242 UTV wheel in machined, side angle showing the barrel and lip

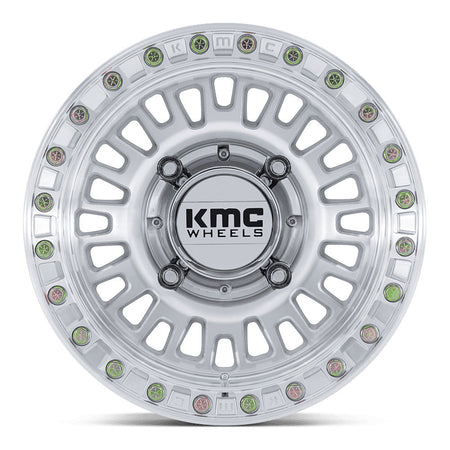

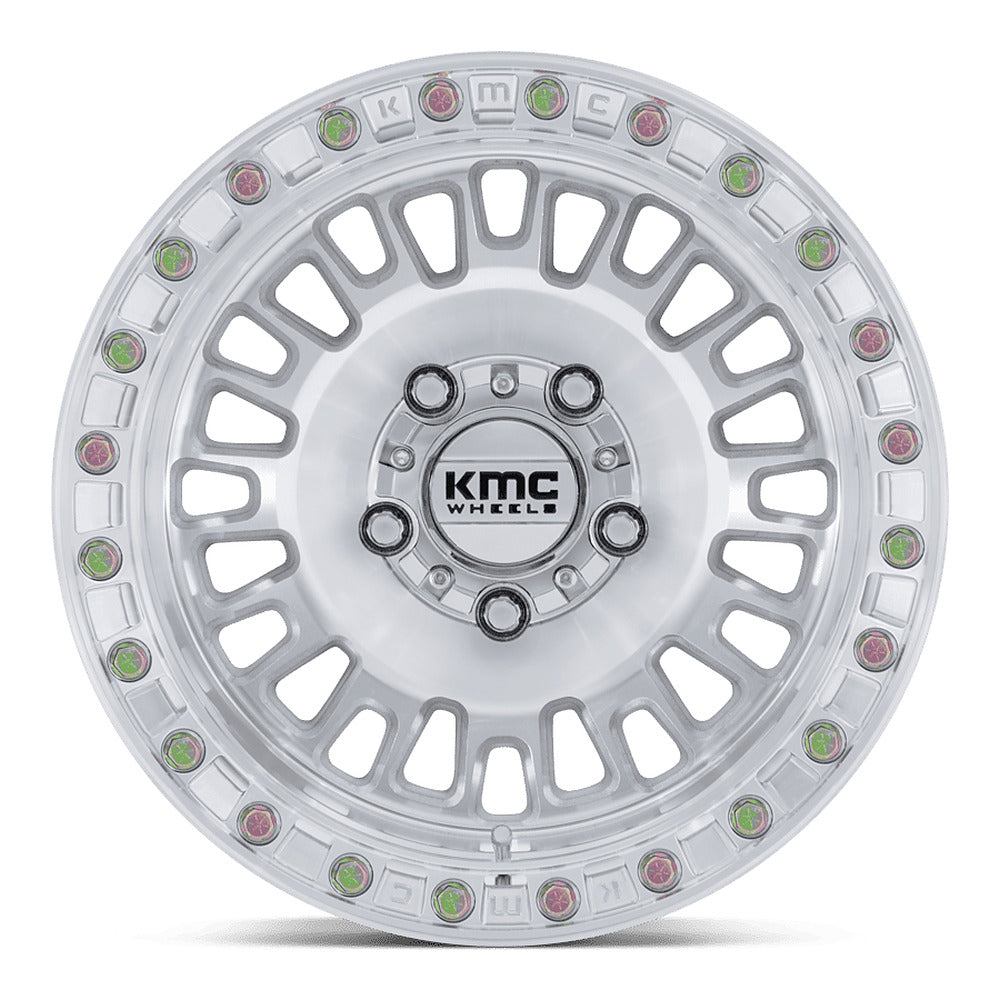

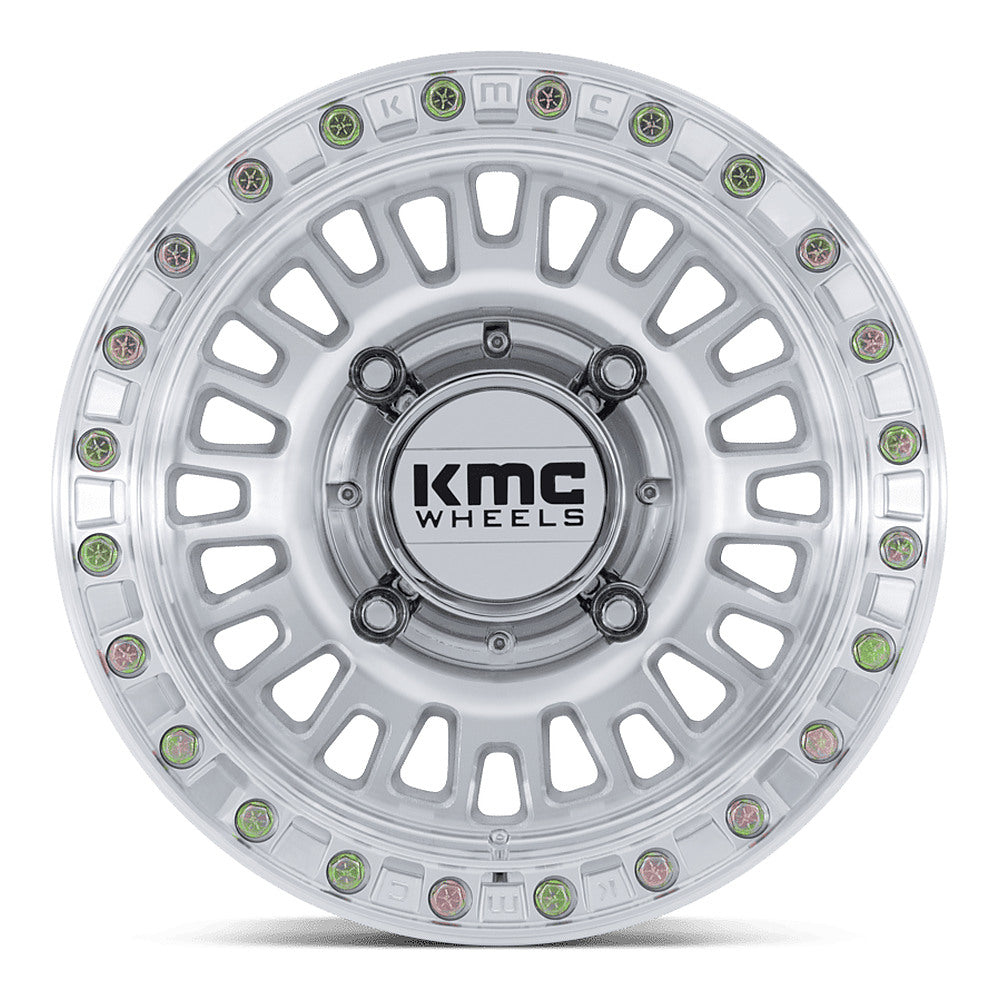

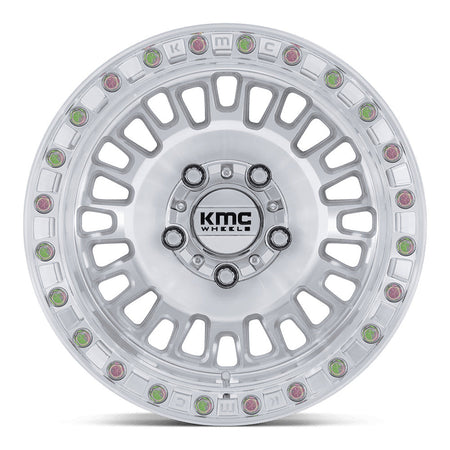

KMC Aztec Beadlock KS242 UTV wheel in machined, straight-on face view

KMC

KMC Aztec Beadlock (KS242) UTV Wheel - Machined

$317.00 – $334.00

Wheel Size: 15x7 | 15x8 | 15x10
Bolt Pattern: 4/137 | 4/156 | 5/114.3 | 6/139.7
Offset: 0 mm | +38 mm
Wheel Type: Beadlock

Which width does your machine need? The Machined KS242 Aztec Beadlock comes in 15x7, 15x8, and 15x10, so you can run matching wheels front and rear or go wider in back.

KMC's Aztec is a true beadlock with a reinforced mesh face, sized for machines from the Polaris RZR to the Can-Am Maverick.

KMC Aztec Beadlock (KS242) Key Features

15x7 +38mm: 5.50" backspacing and a 0.35" lip; tucks in for a narrower track.
15x8 and 15x10 at 0mm: 4.50" and 5.50" backspacing, with 1.95" and 2.88" lips.
Weight and Load: 18.95–20.50 lbs, 1,250 lb load rating.

Bolt Pattern Guide

Always confirm your machine's bolt pattern before ordering.

4x137 (96.00mm center bore; 15x7, 15x8, 15x10): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
4x156 (115.10mm center bore; 15x7, 15x8, 15x10): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.
5x114.3 (72.56mm center bore; 15x7, 15x8, 15x10): Also listed as 5/4.5. KMC lists this pattern for Polaris Pro R and Turbo R applications.
6x139.7 (100.30mm center bore; 15x7, 15x10): Also listed as 6/5.5. Used on some newer high-performance machines.

Important Fitment & Use Notes

Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
Replacement Center Caps: KMC part numbers by size: KMCAP101PXB6135SX, KSCAP101PXB4137SX, KSCAP101PXB4156SX, KSCAP101PXB4156SXT, KSCAP101PXB5114SX.

KMC Aztec Beadlock (KS242) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
15x7	KS242DX15704838	194933402434	Machined	Cast Aluminum Beadlock	4/137	+38mm	5.50	96.00	19.40	1,250 lbs	0.35	KSCAP101PXB4137SX
15x7	KS242DX15704438	194933402441	Machined	Cast Aluminum Beadlock	4/156	+38mm	5.50	115.10	19.18	1,250 lbs	0.35	KSCAP101PXB4156SX
15x7	KS242DX15701238	194933402458	Machined	Cast Aluminum Beadlock	5/114.3	+38mm	5.50	72.56	19.40	1,250 lbs	0.35	KSCAP101PXB5114SX
15x7	KS242DX15706U38	194933402427	Machined	Cast Aluminum Beadlock	6/139.7	+38mm	5.50	100.30	19.40	1,250 lbs	0.35	KMCAP101PXB6135SX
15x8	KS242DX15804800	194933402397	Machined	Cast Aluminum Beadlock	4/137	0mm	4.50	96.00	19.18	1,250 lbs	1.95	KSCAP101PXB4137SX
15x8	KS242DX15804400	194933402403	Machined	Cast Aluminum Beadlock	4/156	0mm	4.50	115.10	18.95	1,250 lbs	1.95	KSCAP101PXB4156SXT
15x8	KS242DX15801200	194933402410	Machined	Cast Aluminum Beadlock	5/114.3	0mm	4.50	72.56	19.40	1,250 lbs	1.95	KSCAP101PXB5114SX
15x10	KS242DX15104800	194933402472	Machined	Cast Aluminum Beadlock	4/137	0mm	5.50	96.00	20.28	1,250 lbs	2.88	KSCAP101PXB4137SX
15x10	KS242DX15104400	194933402489	Machined	Cast Aluminum Beadlock	4/156	0mm	5.50	115.10	20.06	1,250 lbs	2.88	KSCAP101PXB4156SX
15x10	KS242DX15101200	194933402496	Machined	Cast Aluminum Beadlock	5/114.3	0mm	5.50	72.56	20.28	1,250 lbs	2.88	KSCAP101PXB5114SX
15x10	KS242DX15106U00	194933402465	Machined	Cast Aluminum Beadlock	6/139.7	0mm	5.50	100.30	20.50	1,250 lbs	2.88	KMCAP101PXB6135SX
