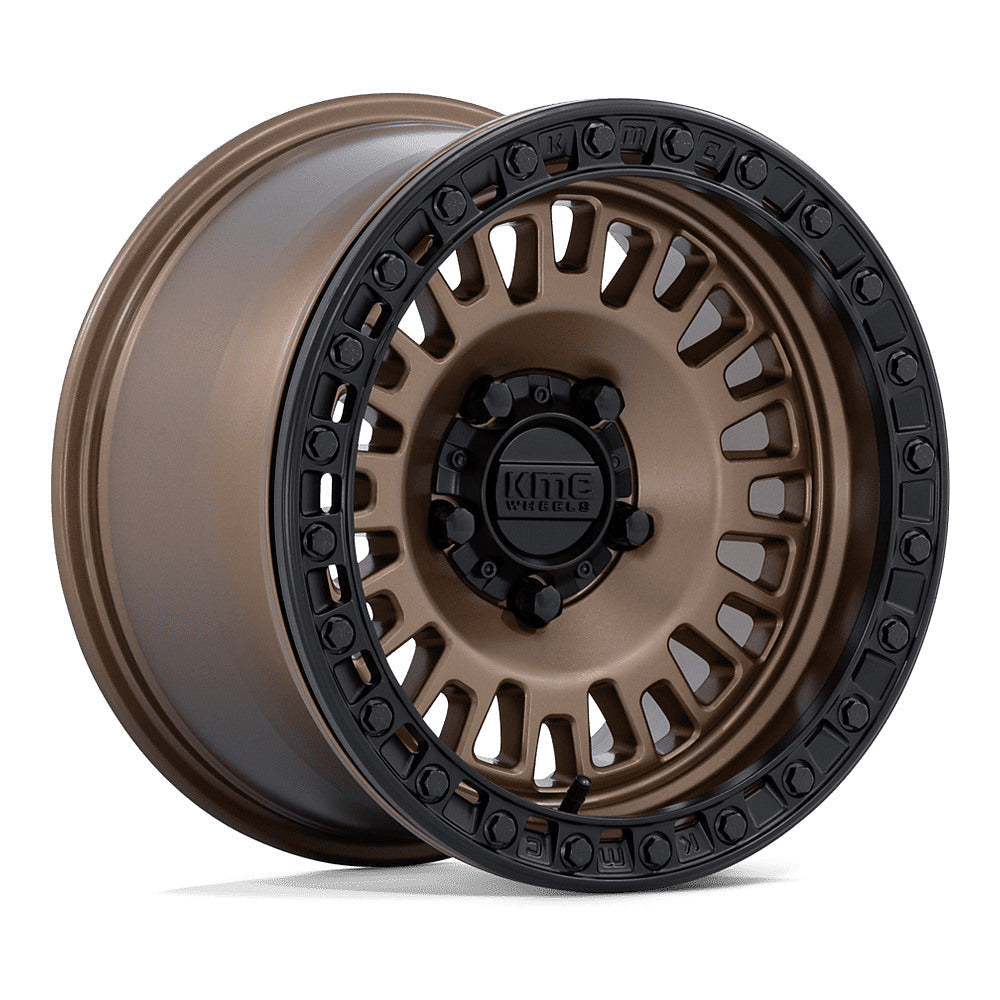

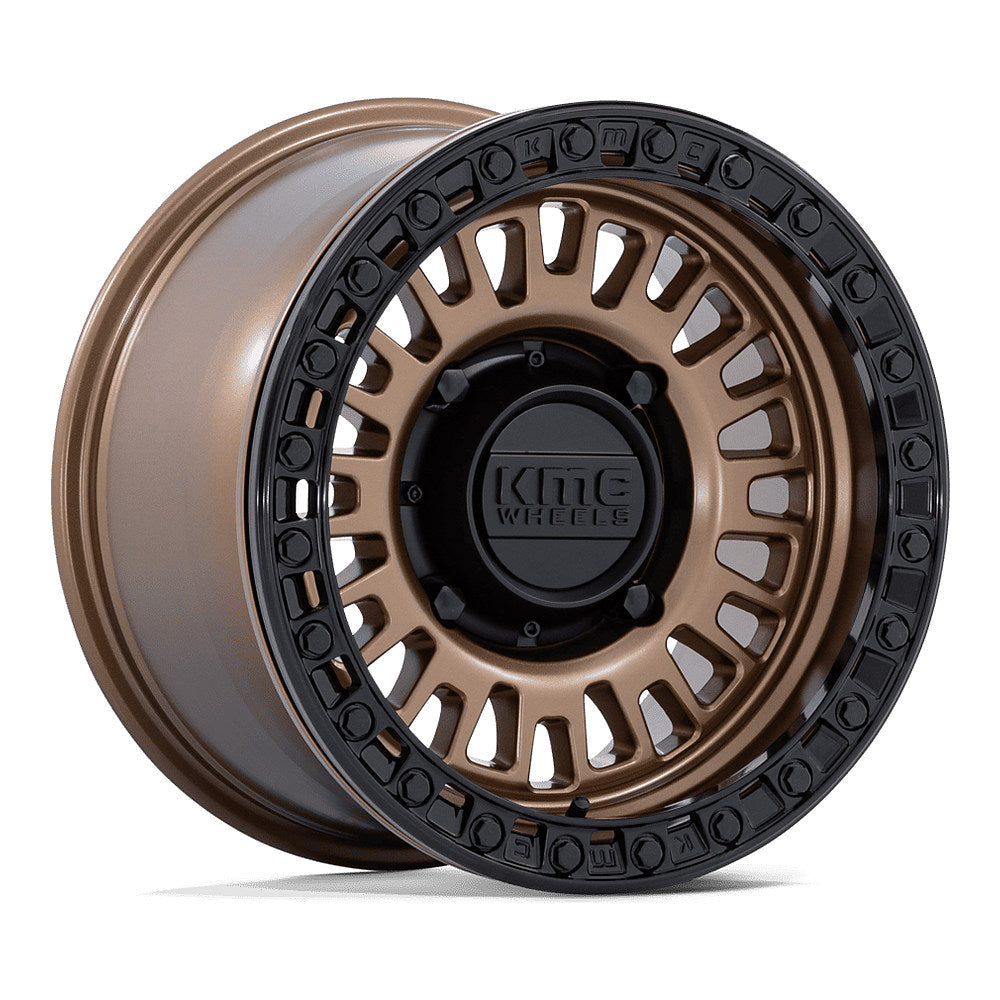

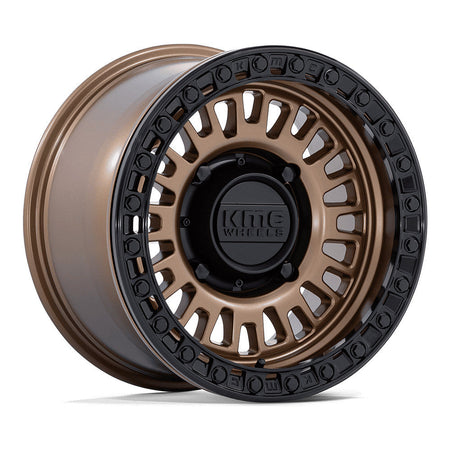

KMC Aztec Beadlock KS242 UTV wheel in matte bronze with matte black ring, angled front view

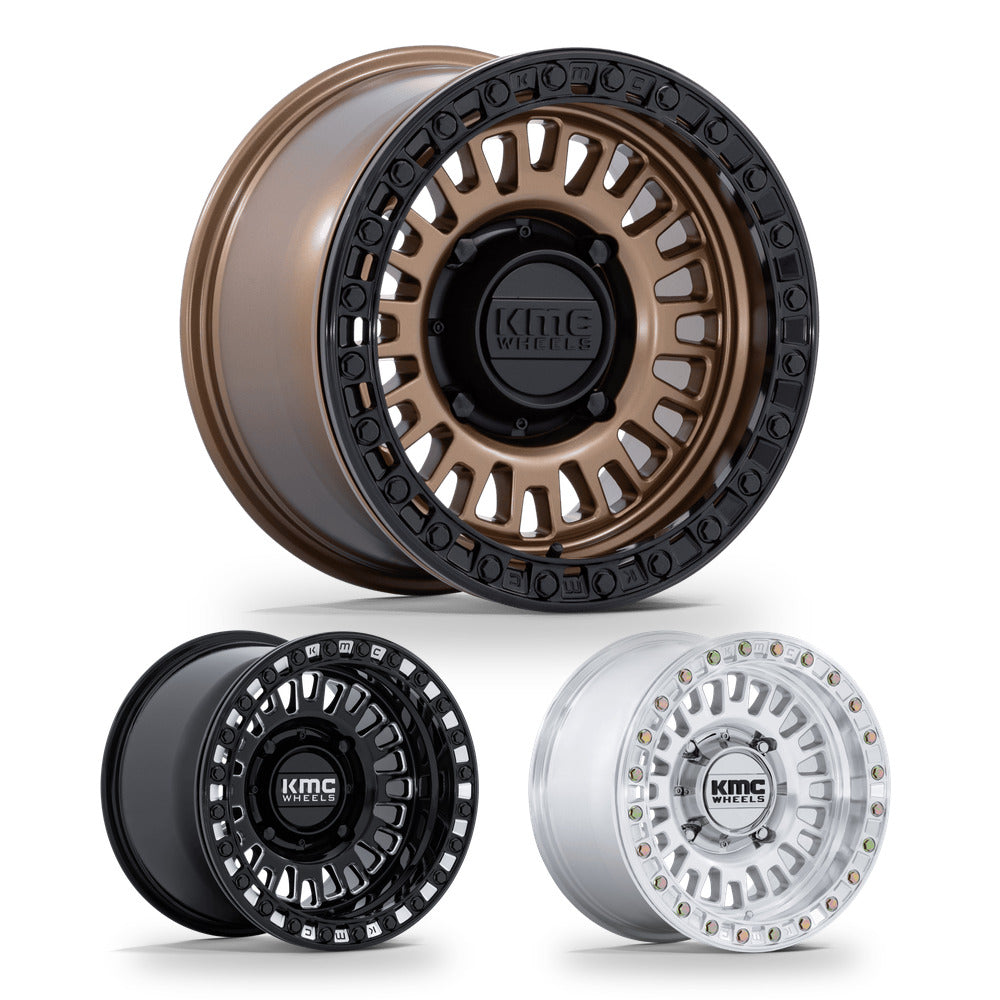

KMC Aztec Beadlock (KS242) UTV wheel in every finish: matte bronze with matte black ring, gloss black milled and machined

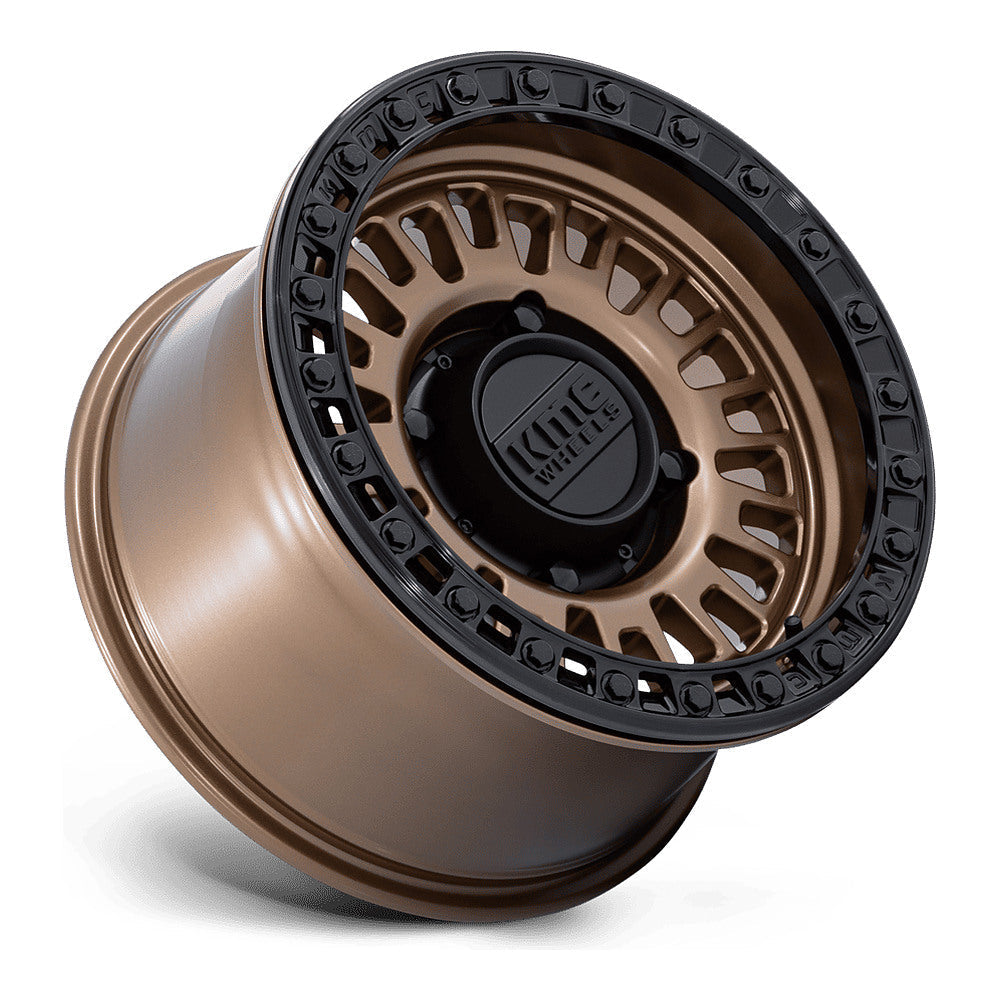

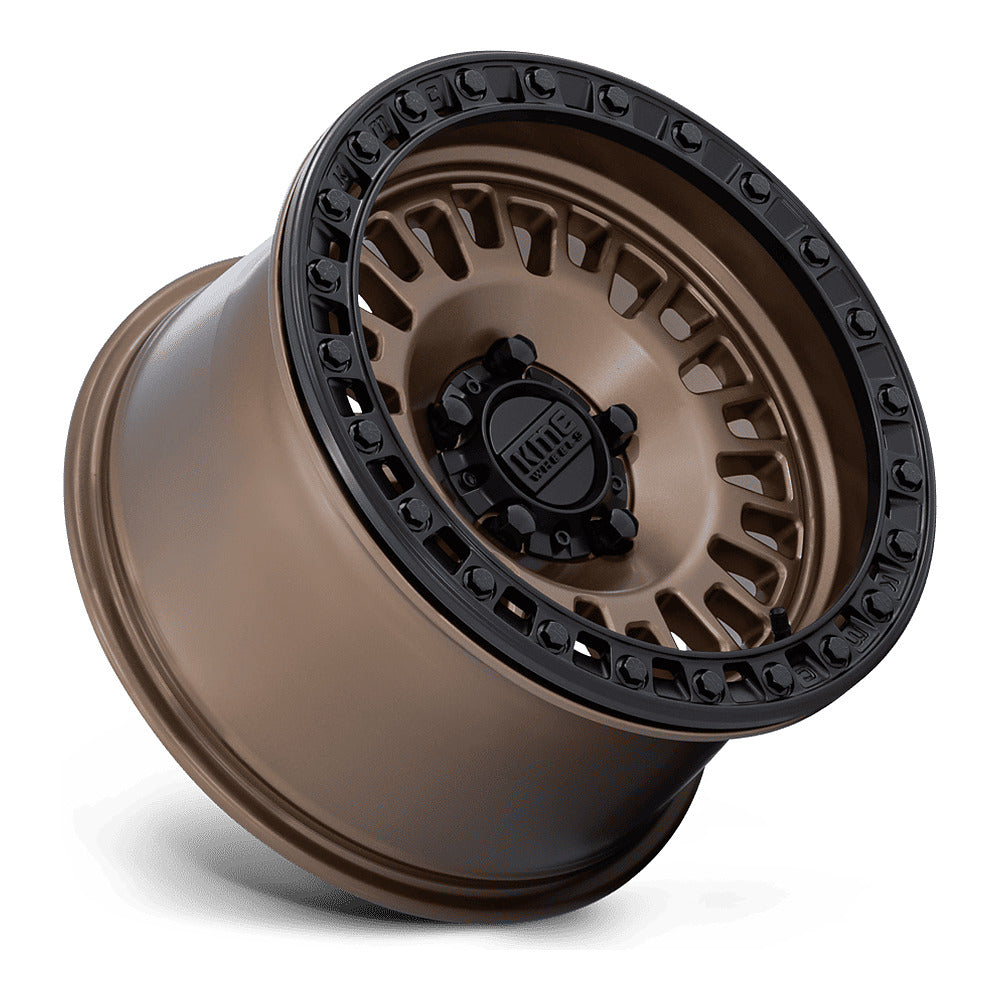

KMC Aztec Beadlock KS242 UTV wheel in matte bronze with matte black ring, side angle showing the barrel and lip

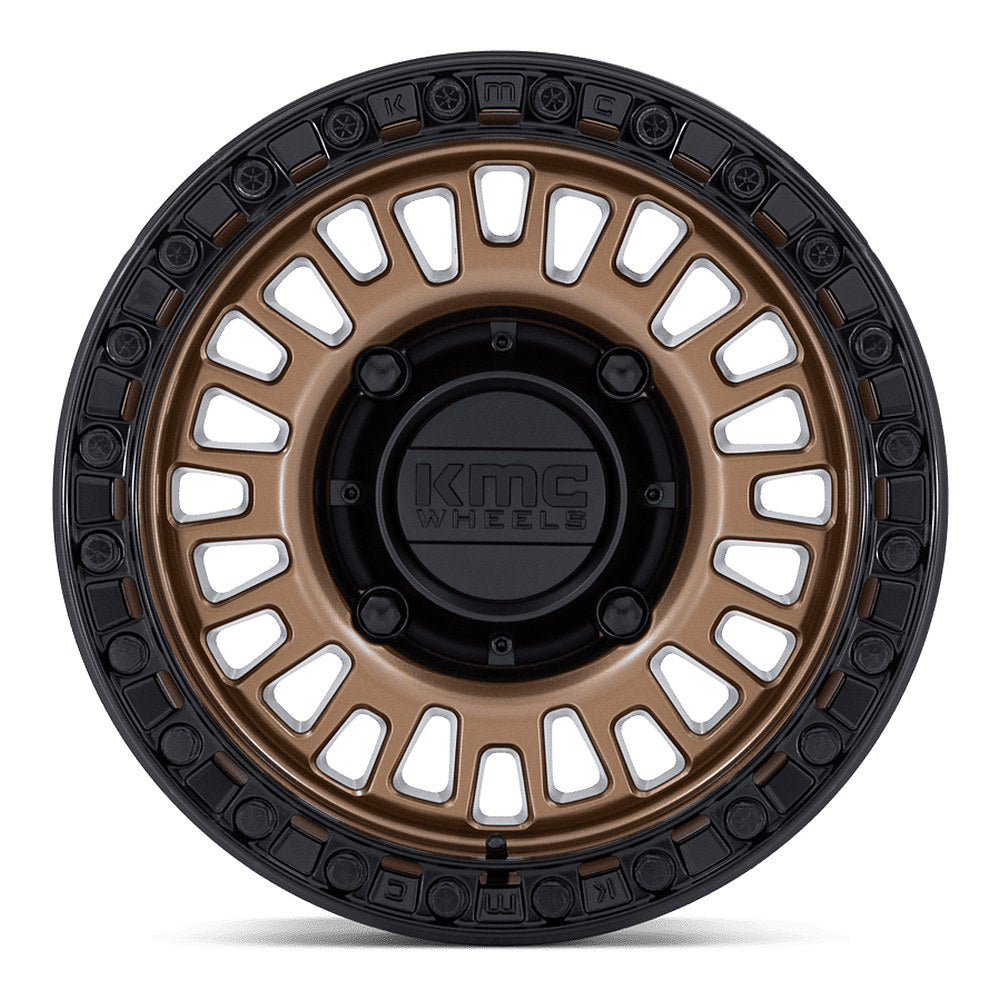

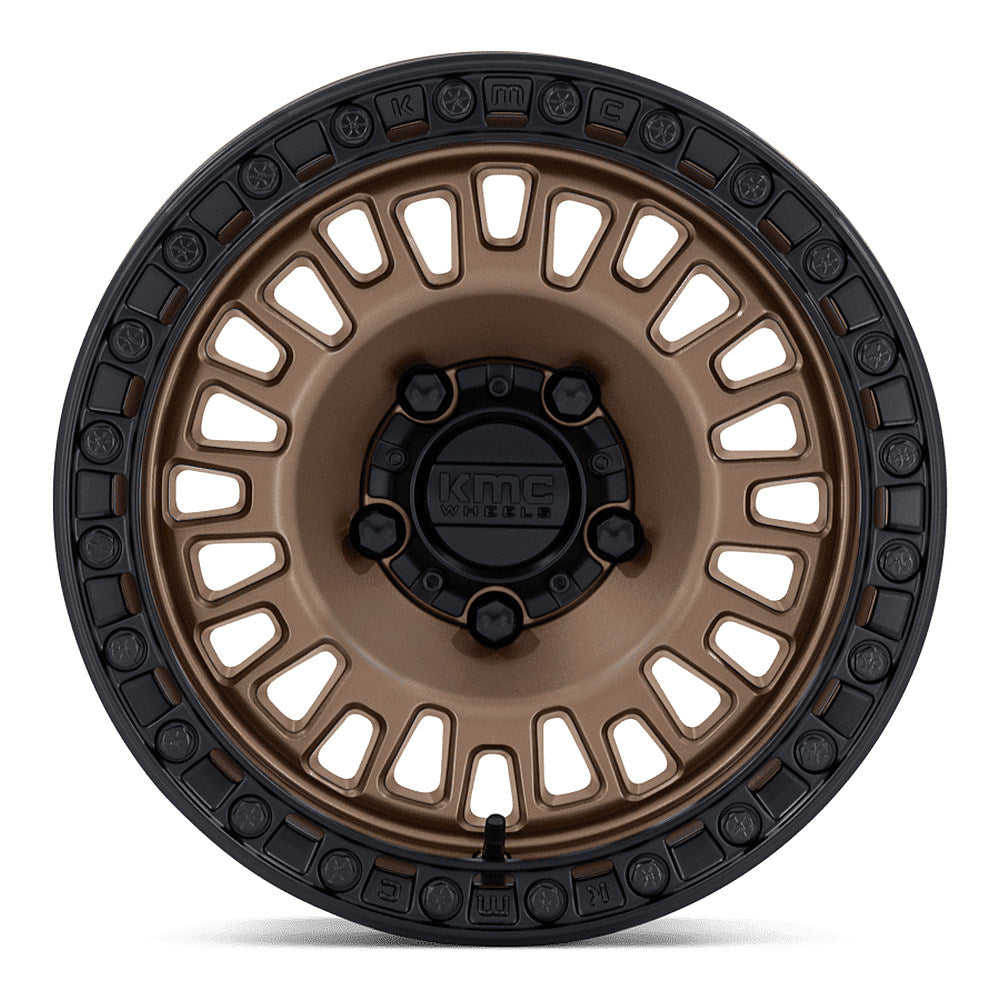

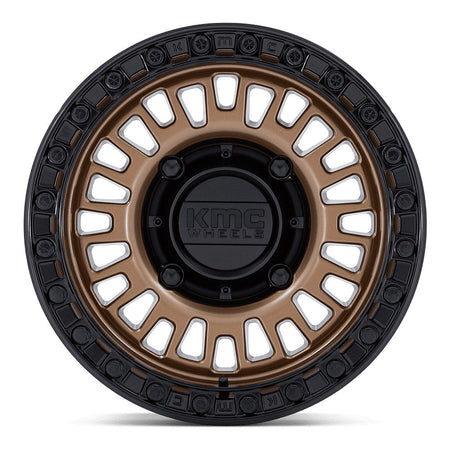

KMC Aztec Beadlock KS242 UTV wheel in matte bronze with matte black ring, straight-on face view

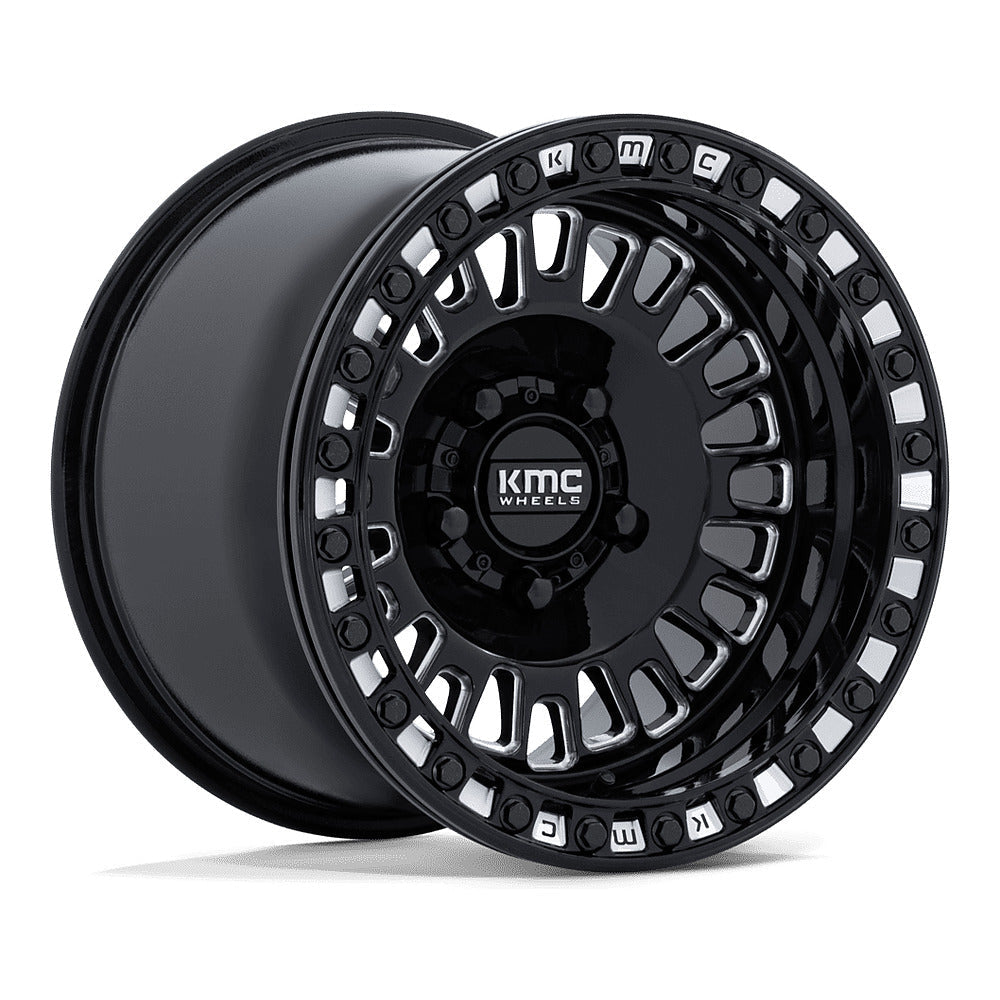

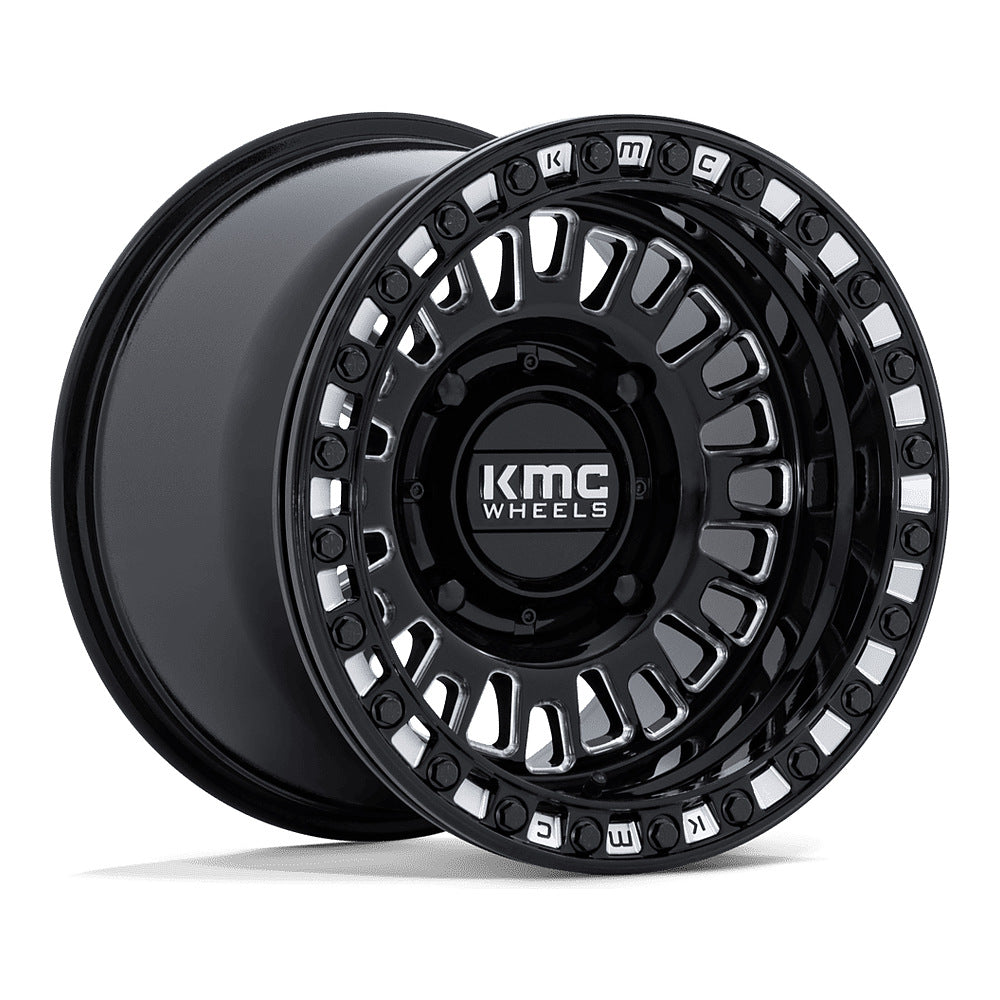

KMC Aztec Beadlock KS242 UTV wheel in gloss black milled, angled front view

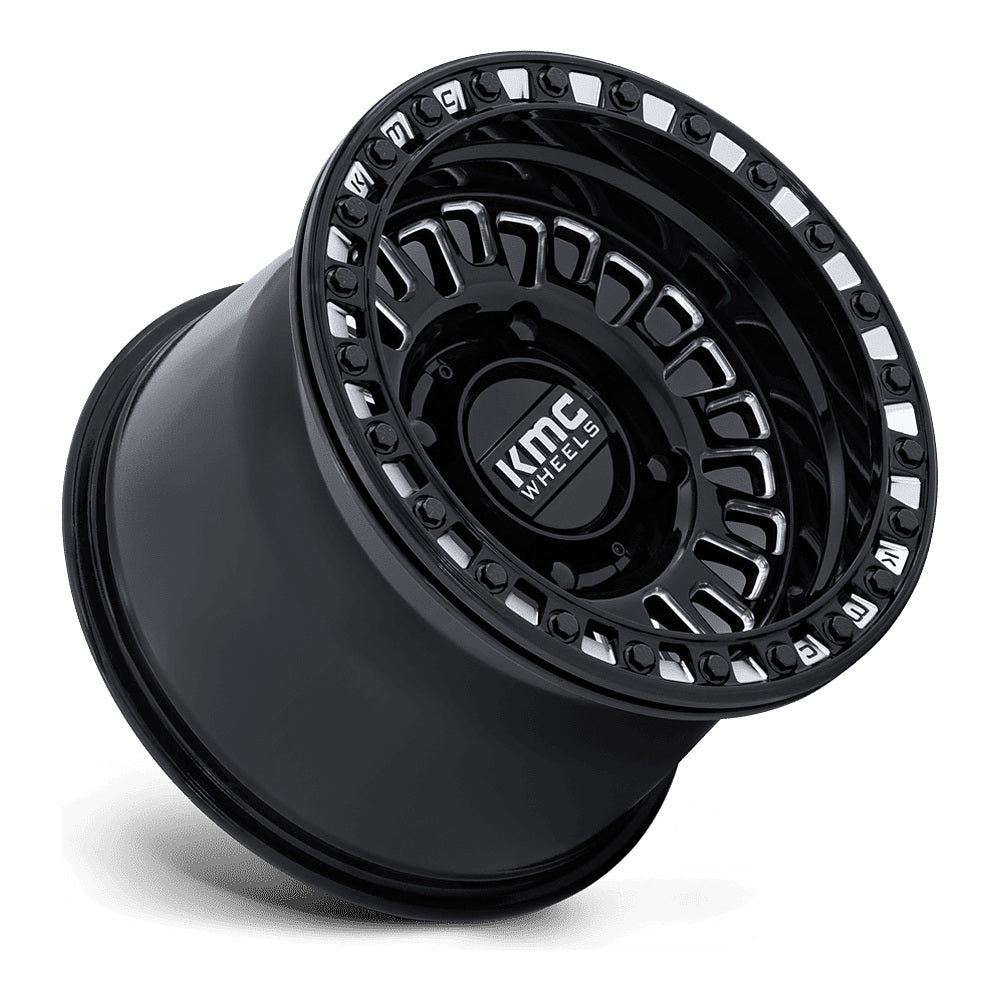

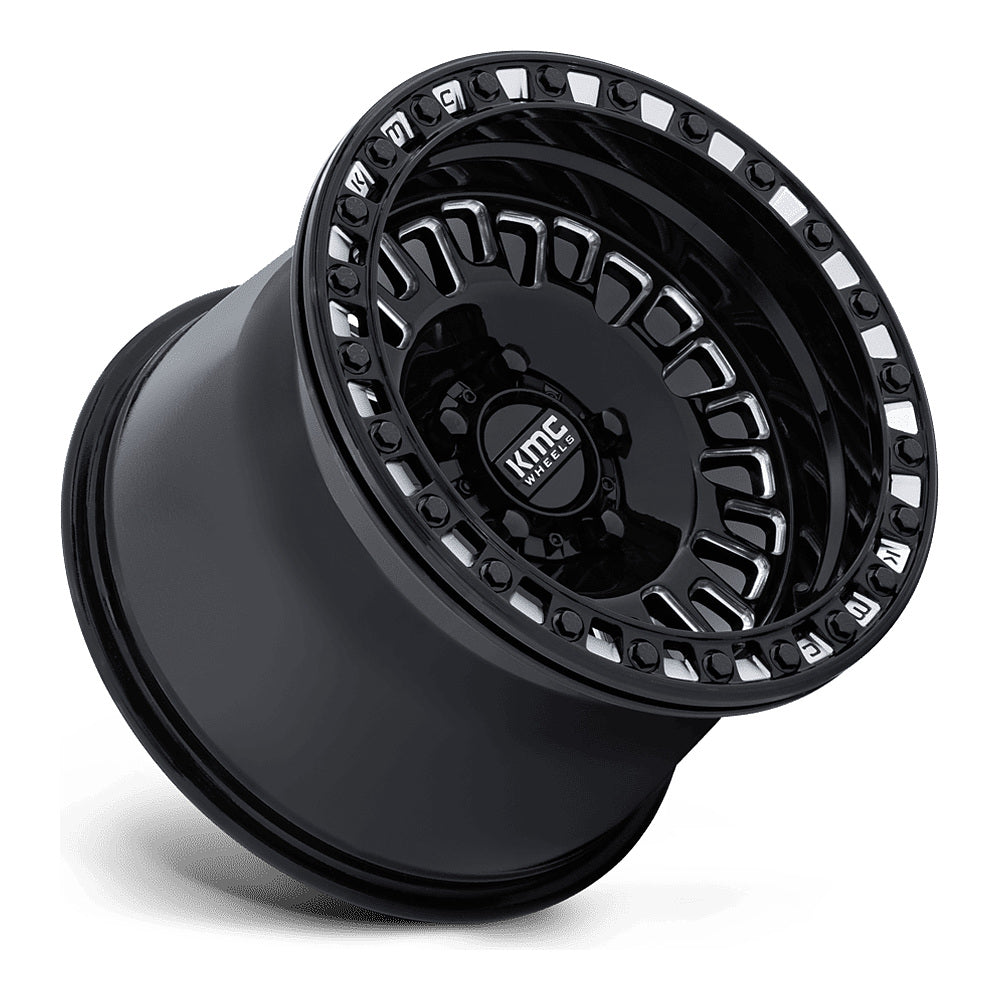

KMC Aztec Beadlock KS242 UTV wheel in gloss black milled, side angle showing the barrel and lip

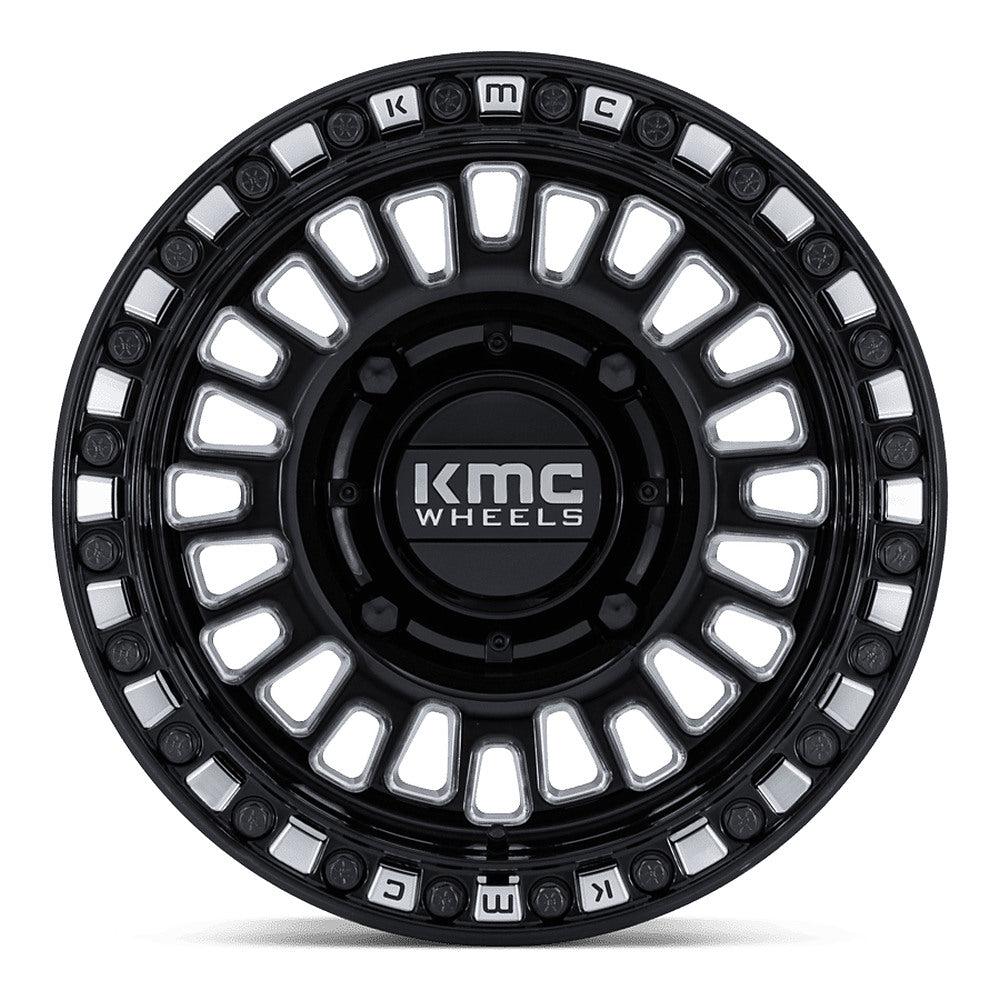

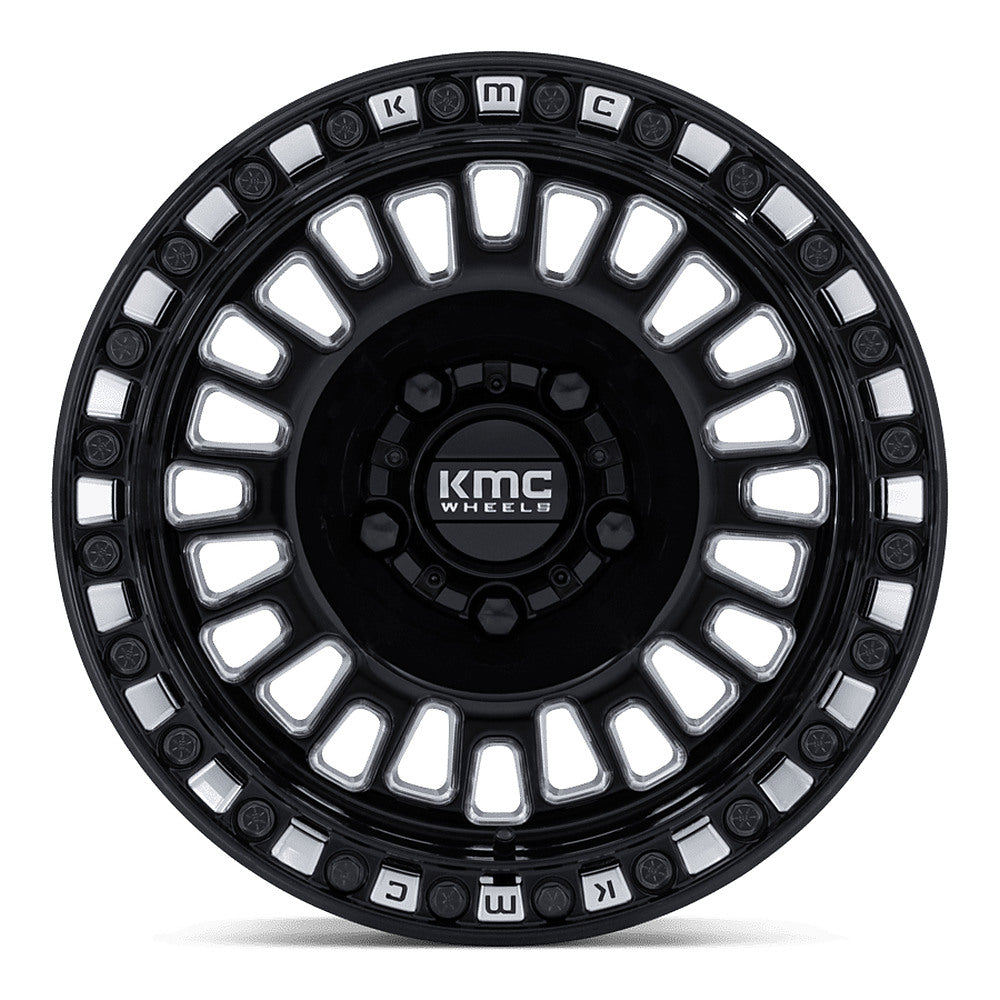

KMC Aztec Beadlock KS242 UTV wheel in gloss black milled, straight-on face view

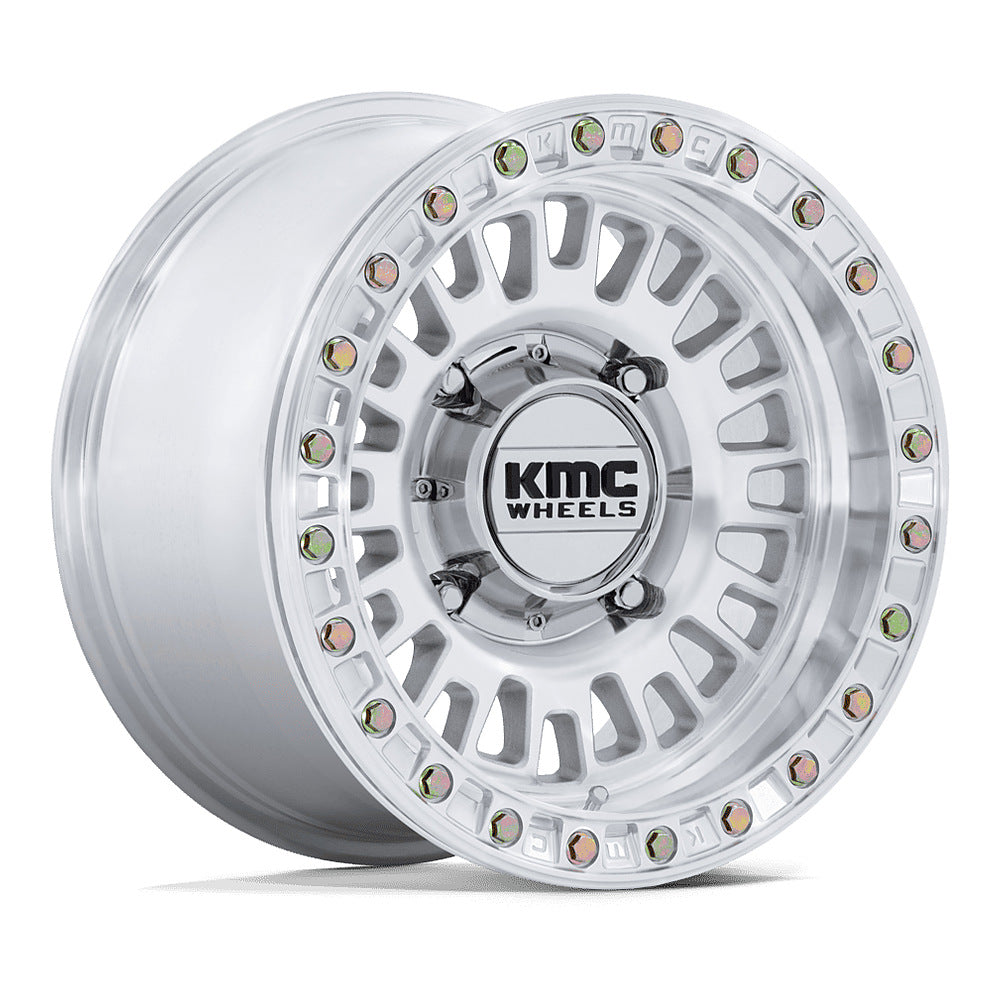

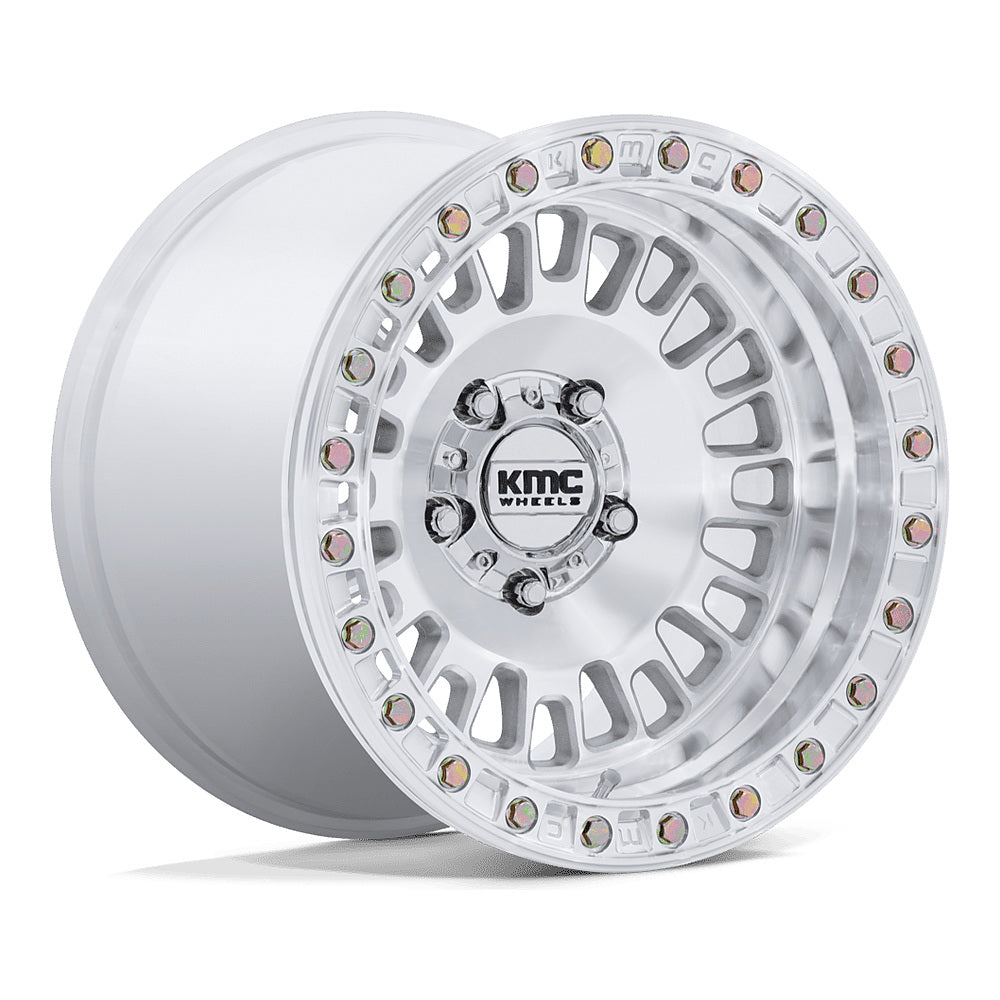

KMC Aztec Beadlock KS242 UTV wheel in machined, angled front view

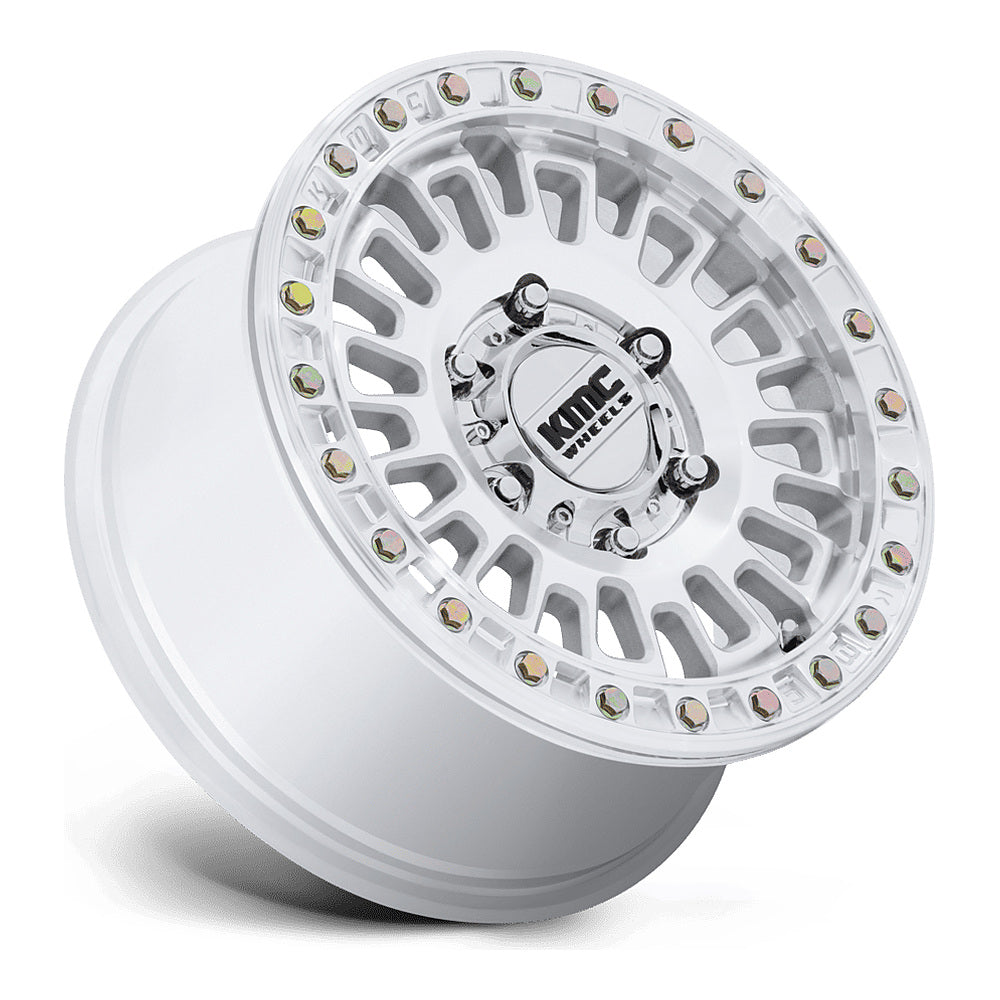

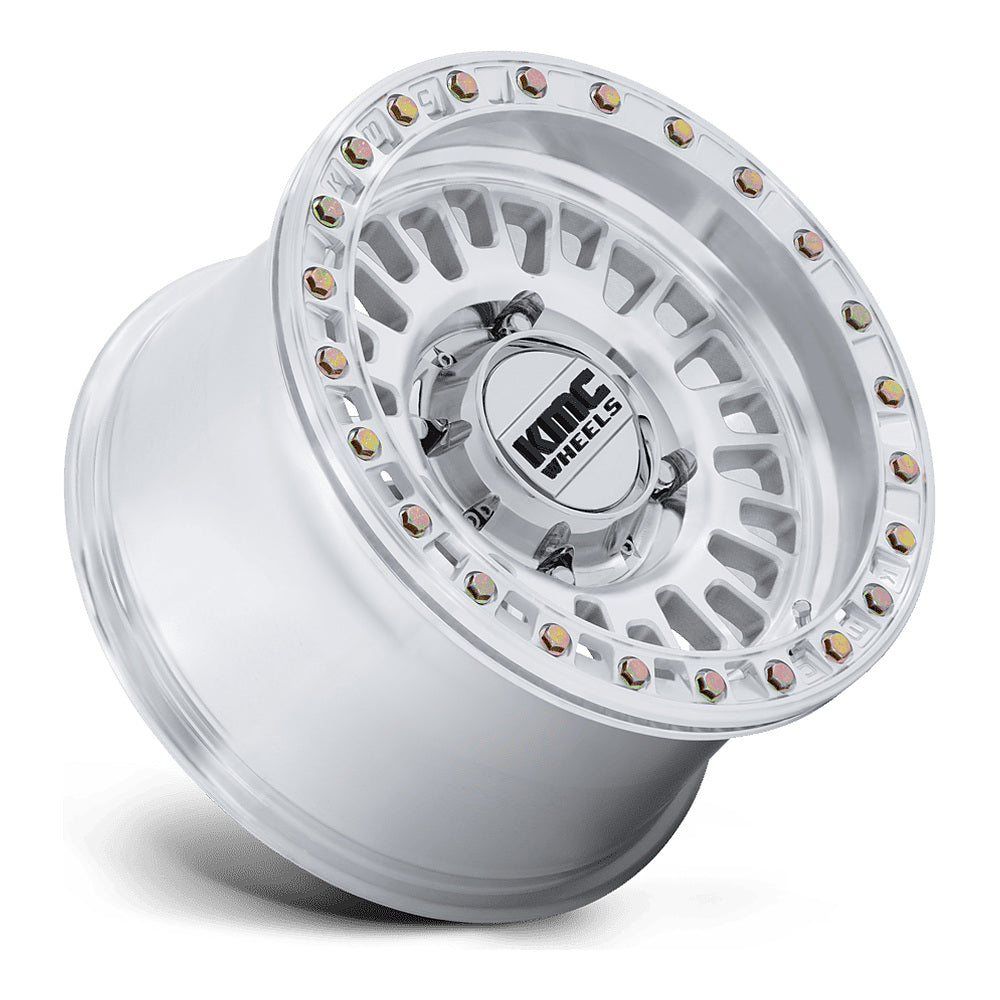

KMC Aztec Beadlock KS242 UTV wheel in machined, side angle showing the barrel and lip

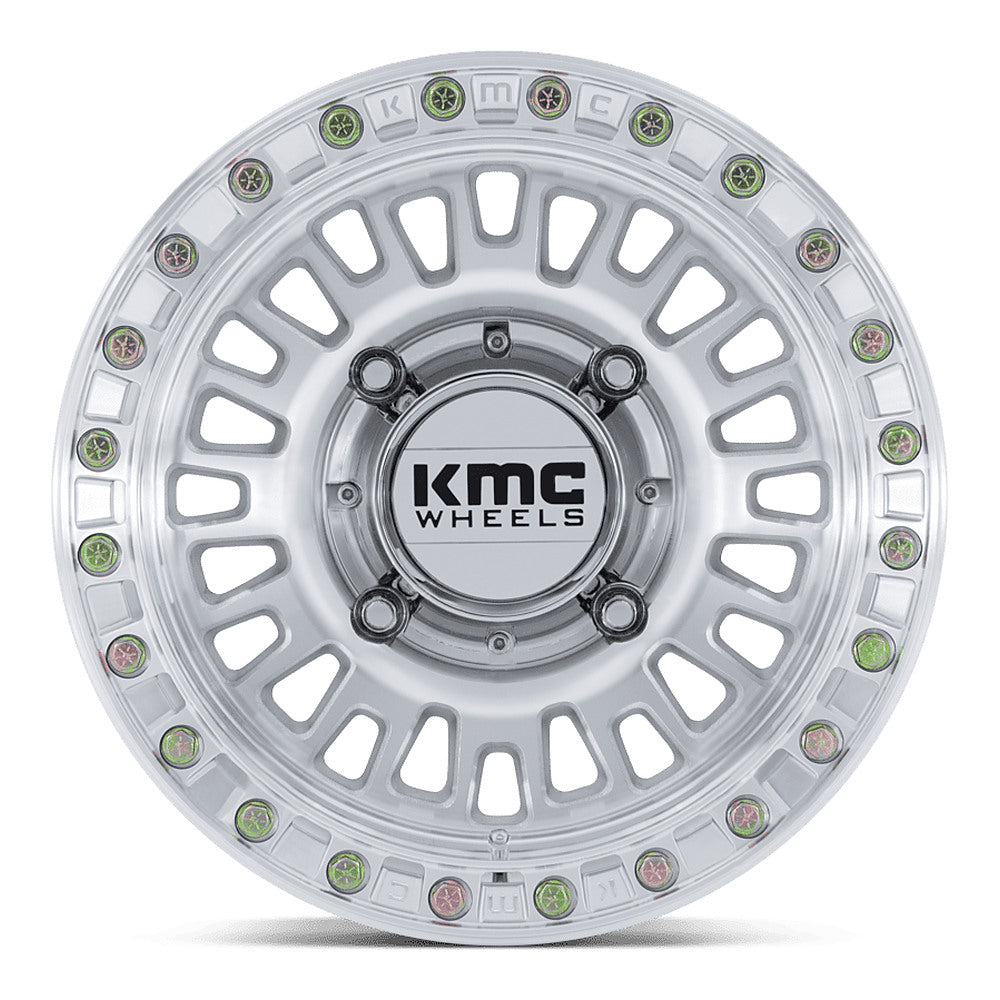

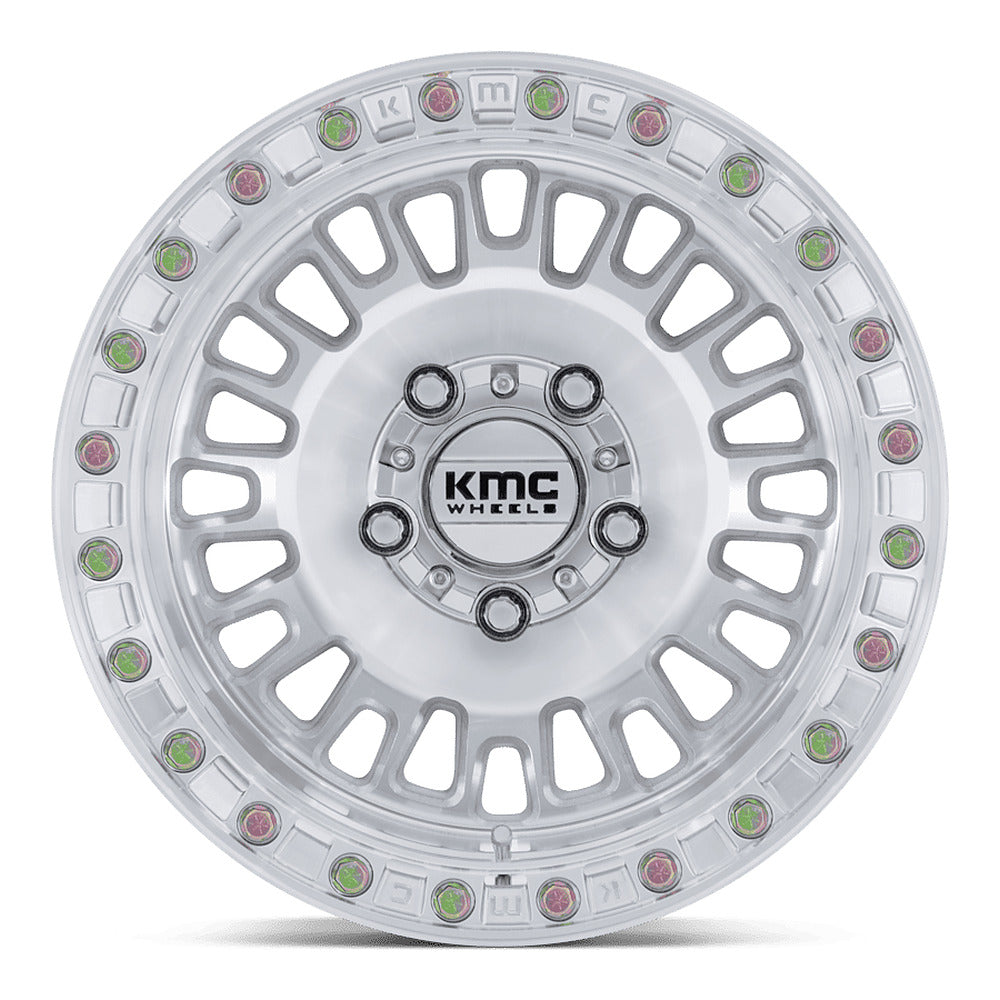

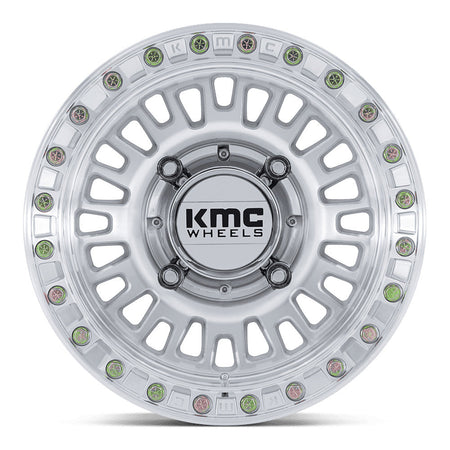

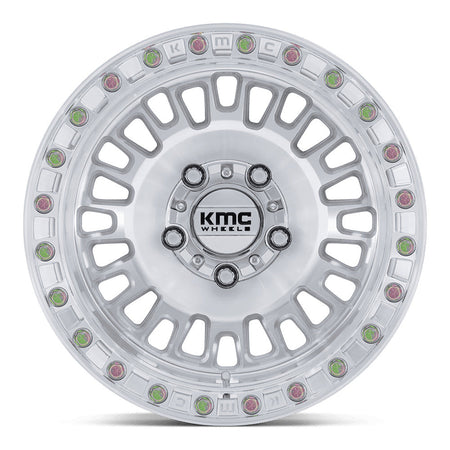

KMC Aztec Beadlock KS242 UTV wheel in machined, straight-on face view

KMC

KMC Aztec Beadlock (KS242) UTV Wheel

$317.00 – $410.00

Wheel Color: Matte Bronze w/ Matte Black Ring | Gloss Black Milled | Machined
Size: 15x7 | 15x8 | 15x10
Bolt Pattern: 4/137 | 4/156 | 5/114.3 | 6/139.7
Offset: +38 mm | 0 mm
Wheel Type: Beadlock

KMC built the KS242 Aztec for off-road beatdowns. Its reinforced mesh face is made to take abuse, and true beadlock construction keeps the tire seated when you run low pressure.

Pick from Matte Bronze w/ Matte Black Ring, Gloss Black Milled, or Machined. KMC describes the bronze version as "aggressive where it counts, clean where it matters," while the milled accents on Gloss Black give the face more contrast.

Sizes run 15x7 +38mm, 15x8 0mm, and 15x10 0mm across 4x137, 4x156, and 5x114.3, with 6x139.7 in 15x7 and 15x10 for every finish and in 15x8 for Gloss Black Milled. Each wheel weighs 18.95–20.50 lbs and is rated to 1,250 lbs, from Polaris RZR to Can-Am Maverick builds.

KMC Aztec Beadlock (KS242) Key Features

Reinforced Mesh Face: Built for strength under hard use, per KMC.
Three Widths: 15x7 +38mm (0.35" lip), 15x8 0mm (1.95" lip), and 15x10 0mm (2.88" lip).
4-, 5-, and 6-Lug: 4x137, 4x156, 5x114.3, and 6x139.7.
Air-Down Ready: The beadlock ring holds the tire's outer bead in place at low pressure.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (96.00mm center bore; 15x7, 15x8, 15x10): Common on Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) machines.
4x156 Bolt Pattern (115.10mm center bore; 15x7, 15x8, 15x10): Common on Polaris (RZR, Ranger, General) and late-model Yamaha machines.
5x114.3 Bolt Pattern (72.56mm center bore; 15x7, 15x8, 15x10): Also listed as 5/4.5. KMC lists this pattern for Polaris Pro R and Turbo R applications.
6x139.7 Bolt Pattern (100.30mm center bore; 15x7, 15x8, 15x10): Also listed as 6/5.5. Used on 6-lug setups such as the Can-Am Maverick R and many portal gear lifts.

Important Fitment & Legal Notes

Off-Road Use Only: KMC sells its beadlock wheels for off-road use only. Off-road-only wheels are illegal on public roads in many states and provinces, so check your state and local laws before you ride.
Beadlock Maintenance: Torque the beadlock ring bolts to KMC's specification when the tire is mounted, then recheck them after the first few rides and after any hard hit. Mounting a beadlock takes longer than a standard wheel, so use a shop experienced with beadlocks if you aren't set up for it.
Fitment Check: Confirm your machine's bolt pattern, and check that the offset and tire size clear your suspension, brakes, and fenders at full lock and full compression before mounting.
Replacement Center Caps: KMC part numbers: KMCAP101BXP6135SX, KMCAP101MXB6135SX, KMCAP101PXB6135SX, KSCAP101BXP4137SX, KSCAP101BXP4156SX, KSCAP101BXP4156SXT, KSCAP101BXP5114SX, KSCAP101MXB4137SX, KSCAP101MXB4156SX, KSCAP101MXB4156SXT, KSCAP101MXB5114SX, KSCAP101PXB4137SX, KSCAP101PXB4156SX, KSCAP101PXB4156SXT, KSCAP101PXB5114SX (see the Replacement Cap column below for each size).
Warranty: Covered by KMC's manufacturer warranty.

KMC Aztec Beadlock (KS242) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
Matte Bronze w/ Matte Black Ring	15x7	KS242ZB15704838	194933402311	Cast Aluminum Beadlock	4/137	+38mm	5.50	96.00	19.40	1,250 lbs	0.35	KSCAP101MXB4137SX
Matte Bronze w/ Matte Black Ring	15x7	KS242ZB15704438	194933402328	Cast Aluminum Beadlock	4/156	+38mm	5.50	115.10	19.18	1,250 lbs	0.35	KSCAP101MXB4156SX
Matte Bronze w/ Matte Black Ring	15x7	KS242ZB15701238	194933402335	Cast Aluminum Beadlock	5/114.3	+38mm	5.50	72.56	19.40	1,250 lbs	0.35	KSCAP101MXB5114SX
Matte Bronze w/ Matte Black Ring	15x7	KS242ZB15706U38	194933402304	Cast Aluminum Beadlock	6/139.7	+38mm	5.50	100.30	19.40	1,250 lbs	0.35	KMCAP101MXB6135SX
Matte Bronze w/ Matte Black Ring	15x8	KS242ZB15804800	194933402274	Cast Aluminum Beadlock	4/137	0mm	4.50	96.00	19.18	1,250 lbs	1.95	KSCAP101MXB4137SX
Matte Bronze w/ Matte Black Ring	15x8	KS242ZB15804400	194933402281	Cast Aluminum Beadlock	4/156	0mm	4.50	115.10	18.95	1,250 lbs	1.95	KSCAP101MXB4156SXT
Matte Bronze w/ Matte Black Ring	15x8	KS242ZB15801200	194933402298	Cast Aluminum Beadlock	5/114.3	0mm	4.50	72.56	19.40	1,250 lbs	1.95	KSCAP101MXB5114SX
Matte Bronze w/ Matte Black Ring	15x10	KS242ZB15104800	194933402359	Cast Aluminum Beadlock	4/137	0mm	5.50	96.00	20.28	1,250 lbs	2.88	KSCAP101MXB4137SX
Matte Bronze w/ Matte Black Ring	15x10	KS242ZB15104400	194933402366	Cast Aluminum Beadlock	4/156	0mm	5.50	115.10	20.06	1,250 lbs	2.88	KSCAP101MXB4156SX
Matte Bronze w/ Matte Black Ring	15x10	KS242ZB15101200	194933402373	Cast Aluminum Beadlock	5/114.3	0mm	5.50	72.56	20.28	1,250 lbs	2.88	KSCAP101MXB5114SX
Matte Bronze w/ Matte Black Ring	15x10	KS242ZB15106U00	194933402342	Cast Aluminum Beadlock	6/139.7	0mm	5.50	100.30	20.50	1,250 lbs	2.88	KMCAP101MXB6135SX
Gloss Black Milled	15x7	KS242BE15704838	194933419487	Cast Aluminum Beadlock	4/137	+38mm	5.50	96.00	19.40	1,250 lbs	0.35	KSCAP101BXP4137SX
Gloss Black Milled	15x7	KS242BE15704438	194933419494	Cast Aluminum Beadlock	4/156	+38mm	5.50	115.10	19.18	1,250 lbs	0.35	KSCAP101BXP4156SX
Gloss Black Milled	15x7	KS242BE15701238	194933420209	Cast Aluminum Beadlock	5/114.3	+38mm	5.50	72.56	19.40	1,250 lbs	0.35	KSCAP101BXP5114SX
Gloss Black Milled	15x7	KS242BE15706U38	194933419470	Cast Aluminum Beadlock	6/139.7	+38mm	5.50	100.30	19.40	1,250 lbs	0.35	KMCAP101BXP6135SX
Gloss Black Milled	15x8	KS242BE15804800	194933419449	Cast Aluminum Beadlock	4/137	0mm	4.50	96.00	19.18	1,250 lbs	1.95	KSCAP101BXP4137SX
Gloss Black Milled	15x8	KS242BE15804400	194933419456	Cast Aluminum Beadlock	4/156	0mm	4.50	115.10	18.95	1,250 lbs	1.95	KSCAP101BXP4156SXT
Gloss Black Milled	15x8	KS242BE15801200	194933419463	Cast Aluminum Beadlock	5/114.3	0mm	4.50	72.56	19.40	1,250 lbs	1.95	KSCAP101BXP5114SX
Gloss Black Milled	15x8	KS242BE15806U00	194933419432	Cast Aluminum Beadlock	6/139.7	0mm	4.50	100.30	19.40	1,250 lbs	1.95	KMCAP101BXP6135SX
Gloss Black Milled	15x10	KS242BE15104800	194933420223	Cast Aluminum Beadlock	4/137	0mm	5.50	96.00	20.28	1,250 lbs	2.88	KSCAP101BXP4137SX
Gloss Black Milled	15x10	KS242BE15104400	194933420230	Cast Aluminum Beadlock	4/156	0mm	5.50	115.10	20.06	1,250 lbs	2.88	KSCAP101BXP4156SX
Gloss Black Milled	15x10	KS242BE15101200	194933420247	Cast Aluminum Beadlock	5/114.3	0mm	5.50	72.56	20.28	1,250 lbs	2.88	KSCAP101BXP5114SX
Gloss Black Milled	15x10	KS242BE15106U00	194933420216	Cast Aluminum Beadlock	6/139.7	0mm	5.50	100.30	20.50	1,250 lbs	2.88	KMCAP101BXP6135SX
Machined	15x7	KS242DX15704838	194933402434	Cast Aluminum Beadlock	4/137	+38mm	5.50	96.00	19.40	1,250 lbs	0.35	KSCAP101PXB4137SX
Machined	15x7	KS242DX15704438	194933402441	Cast Aluminum Beadlock	4/156	+38mm	5.50	115.10	19.18	1,250 lbs	0.35	KSCAP101PXB4156SX
Machined	15x7	KS242DX15701238	194933402458	Cast Aluminum Beadlock	5/114.3	+38mm	5.50	72.56	19.40	1,250 lbs	0.35	KSCAP101PXB5114SX
Machined	15x7	KS242DX15706U38	194933402427	Cast Aluminum Beadlock	6/139.7	+38mm	5.50	100.30	19.40	1,250 lbs	0.35	KMCAP101PXB6135SX
Machined	15x8	KS242DX15804800	194933402397	Cast Aluminum Beadlock	4/137	0mm	4.50	96.00	19.18	1,250 lbs	1.95	KSCAP101PXB4137SX
Machined	15x8	KS242DX15804400	194933402403	Cast Aluminum Beadlock	4/156	0mm	4.50	115.10	18.95	1,250 lbs	1.95	KSCAP101PXB4156SXT
Machined	15x8	KS242DX15801200	194933402410	Cast Aluminum Beadlock	5/114.3	0mm	4.50	72.56	19.40	1,250 lbs	1.95	KSCAP101PXB5114SX
Machined	15x10	KS242DX15104800	194933402472	Cast Aluminum Beadlock	4/137	0mm	5.50	96.00	20.28	1,250 lbs	2.88	KSCAP101PXB4137SX
Machined	15x10	KS242DX15104400	194933402489	Cast Aluminum Beadlock	4/156	0mm	5.50	115.10	20.06	1,250 lbs	2.88	KSCAP101PXB4156SX
Machined	15x10	KS242DX15101200	194933402496	Cast Aluminum Beadlock	5/114.3	0mm	5.50	72.56	20.28	1,250 lbs	2.88	KSCAP101PXB5114SX
Machined	15x10	KS242DX15106U00	194933402465	Cast Aluminum Beadlock	6/139.7	0mm	5.50	100.30	20.50	1,250 lbs	2.88	KMCAP101PXB6135SX
