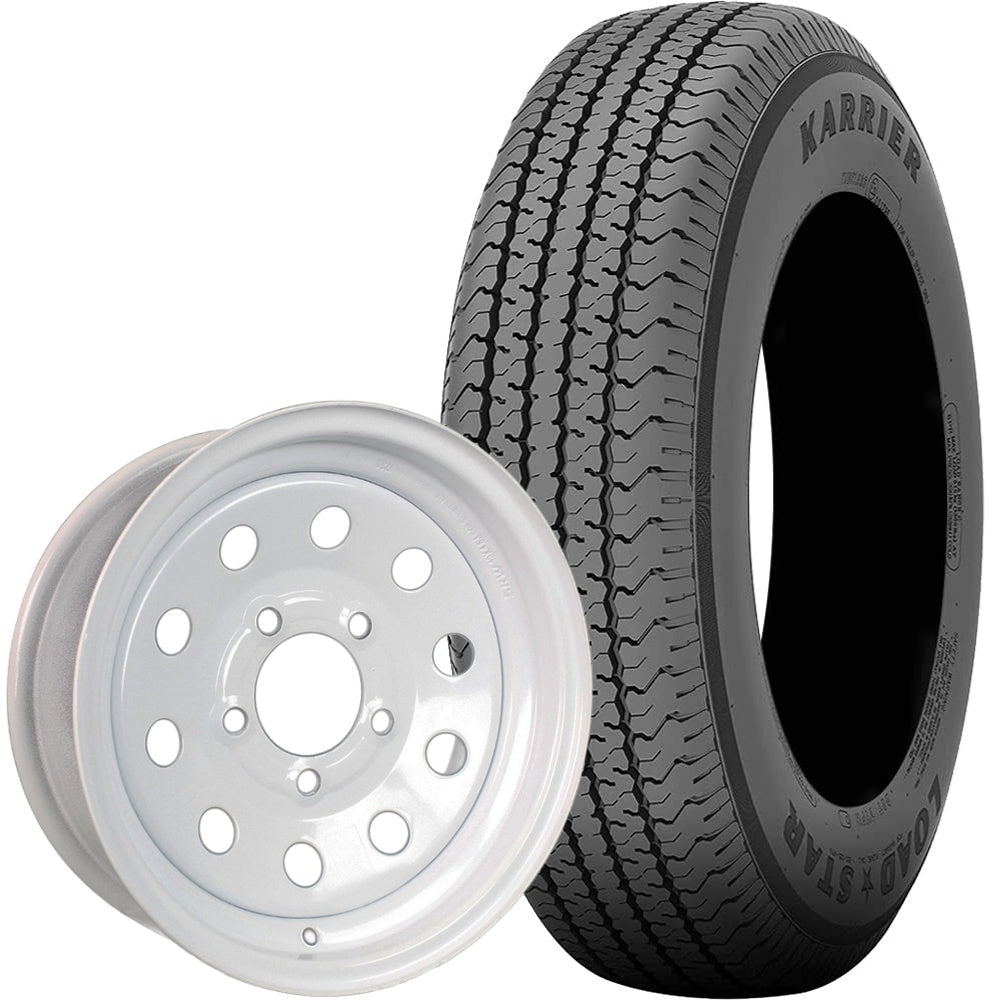

Kenda® Karrier Radial Trailer Tire (KR03) and 16" MOD Steel Trailer Wheel Combo

By Kenda®
From $199.99
Rocket ship image

Fast & Free shipping on every order

Kenda Tires logo

Discover the ultimate in towing excellence with the Kenda Karrier Loadstar KR03 trailer tire paired with Kenda's elite MOD steel trailer wheel. This powerful combination enhances your towing capabilities, delivering a smooth, secure, and enjoyable ride every time.

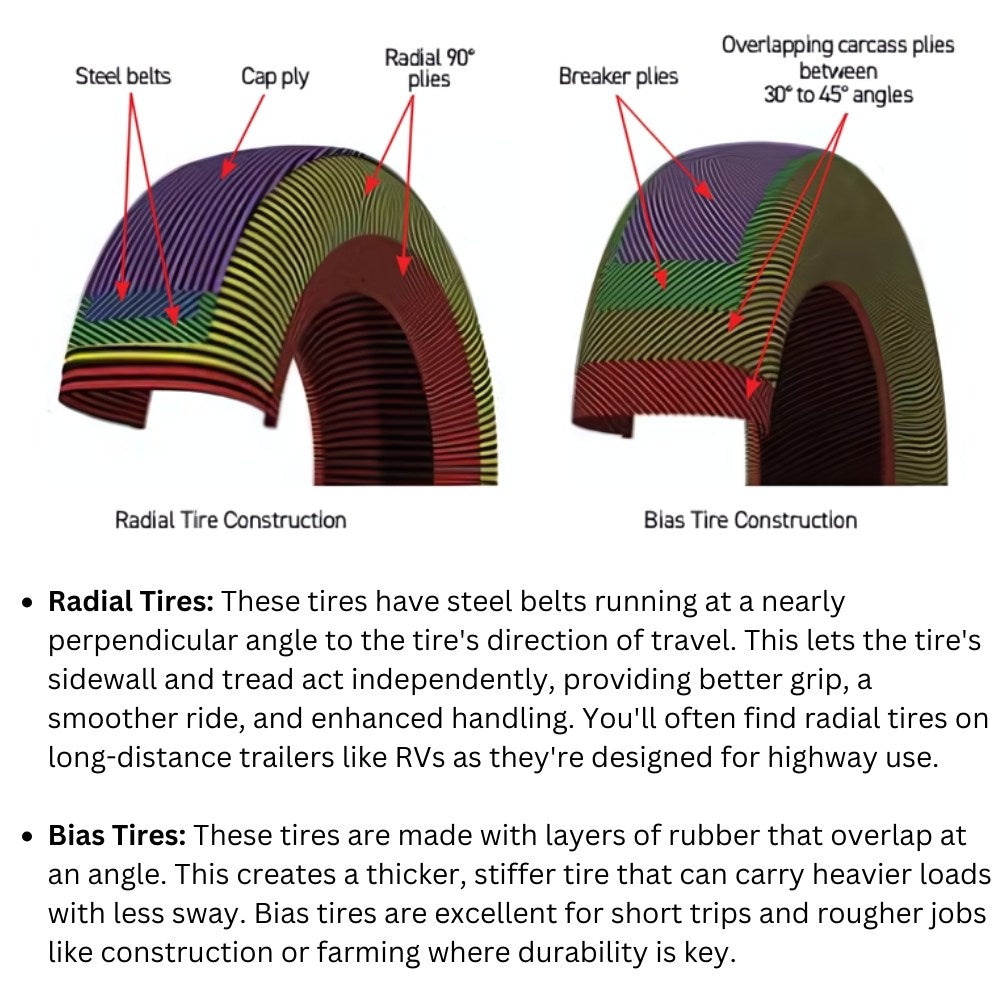

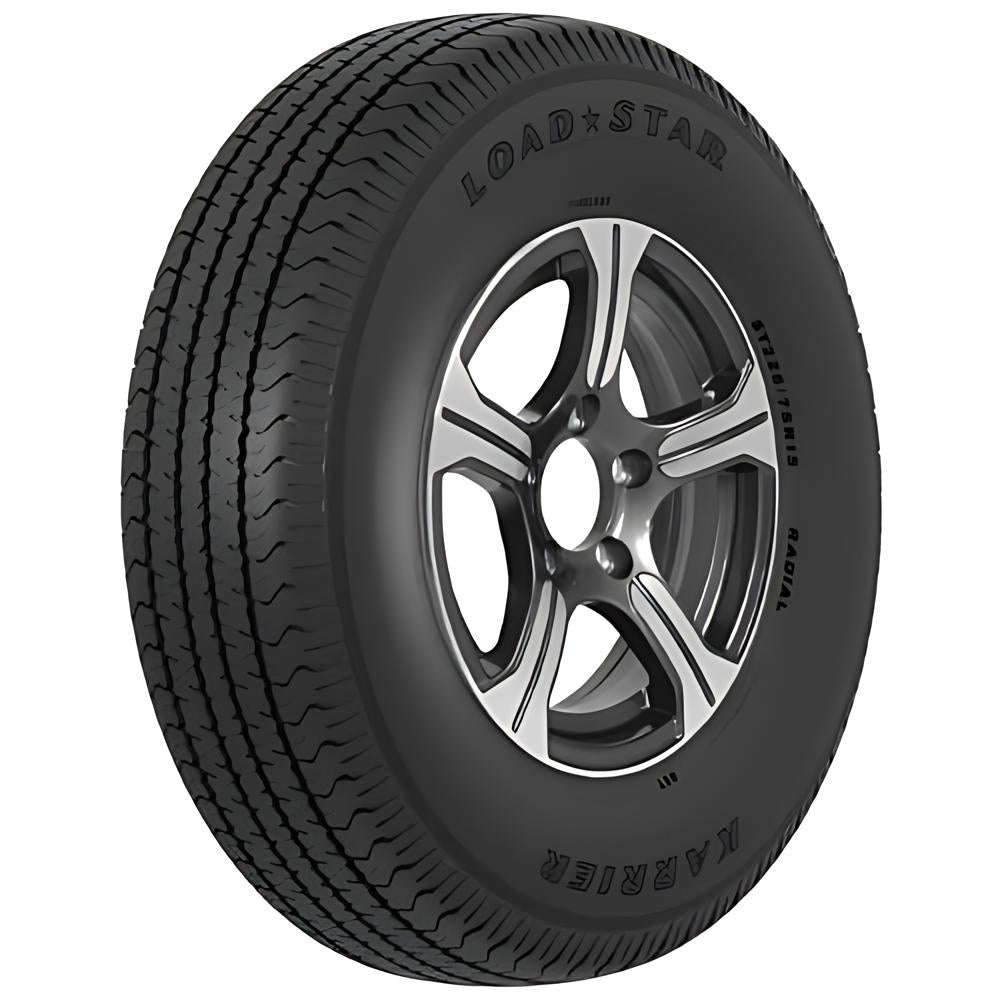

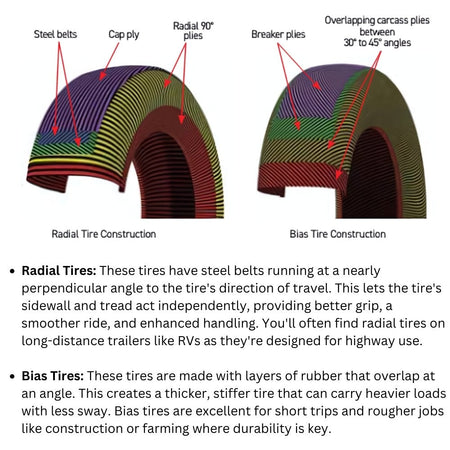

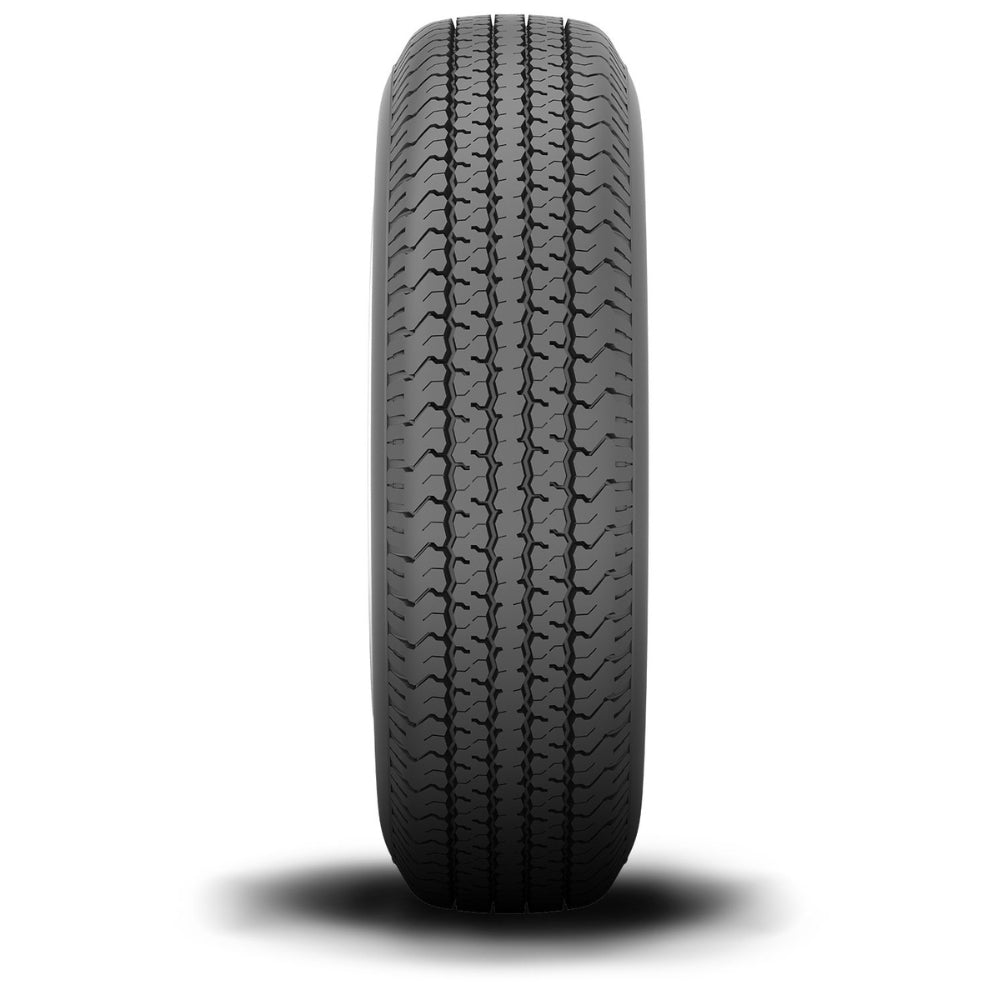

The Kenda Karrier Loadstar ST radial tire features advanced radial construction that reliably absorbs road imperfections, transforming even the roughest terrains into a comfortable journey. Its precisely engineered tread pattern offers outstanding grip and shorter stopping distances in all weather conditions, while innovative shoulder blocks help dissipate heat and promote even wear for extended tire life. With the Karrier Loadstar ST, you can trust that your cargo and passengers are safe, as Kenda ensures all of their tires exceed the Department of Transportation safety standards.

Matched with Kenda's superior MOD steel trailer wheel, this pairing is designed for top-tier performance. Cutting-edge manufacturing techniques and a thorough coating system protect the wheel from rust and ensure long-lasting resilience.

Ideal For:

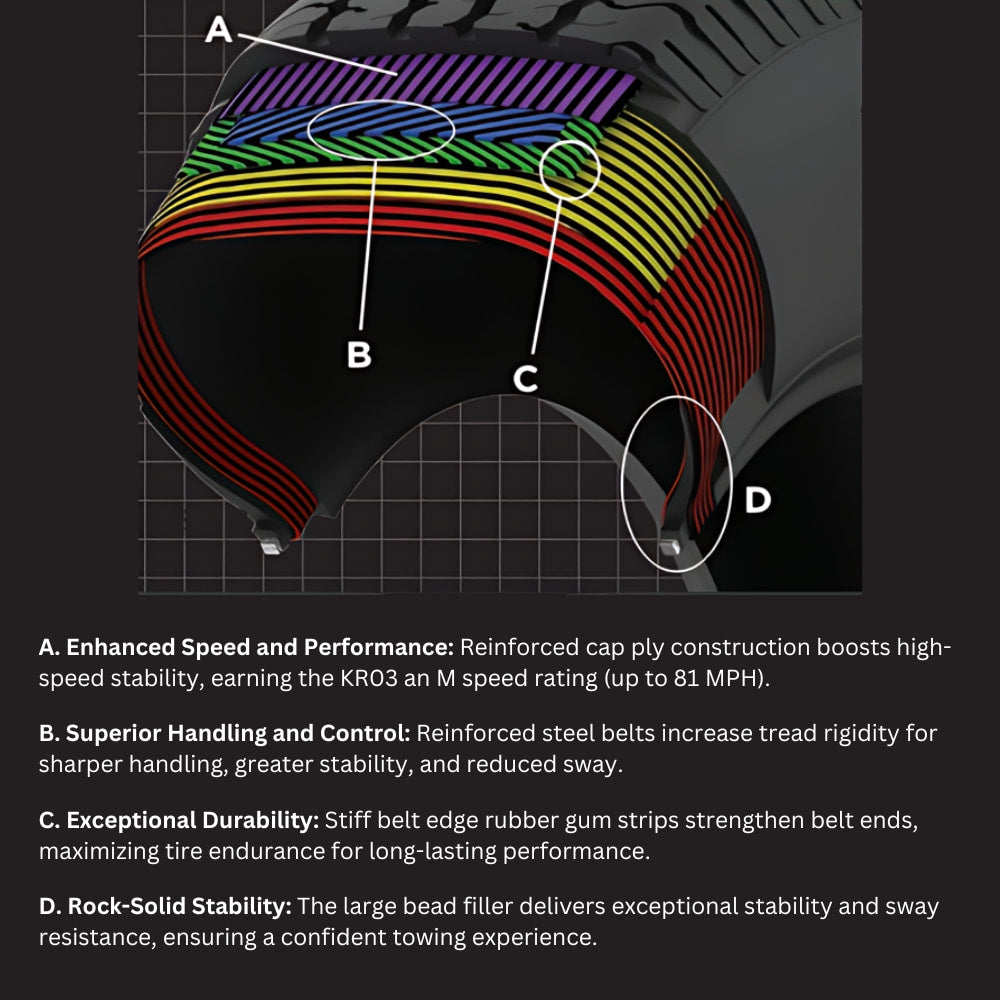

  • Heavy Duty Hauling: Whether you're towing a boat, camper, or fully-loaded trailer, the Kenda Karrier, with its strong double steel belts and full nylon plies, effortlessly manages the heaviest loads, ensuring your cargo arrives safely.
  • Long-Distance Travel: Enjoy the open road with the Kenda Karrier’s advanced radial construction and optimized tread design. Experience exceptional stability, reduced road noise, and a comfortable ride, allowing you to focus on your destination- not the road to get there.

Enhance your trailer with the Kenda Karrier KR03 and MOD wheel duo, and feel the assurance and peace of mind that come with unparalleled towing performance.

Available In The Following Tire Sizes:

  • ST235/80R16 (Load Range D / 8-Ply)
  • ST235/80R16 (Load Range E / 10-Ply)
15" Kenda Karrier KR03 Tire Specifications

Tire Size: ST235/80R16

Load Range: D Load Range: E
Ply Rating: 8-Ply
Ply Rating: 10-Ply
Overall Diameter: 30.9 inches
Overall Diameter: 30.9 inches
Speed Rating: M (81 mph)
Speed Rating: M (81 mph)
Max Load: 3000 lbs.
Max Load: 3500 lbs.
Max PSI: 65
Max PSI: 90
Section Width: 9.4 inches
Section Width: 9.4 inches
Sidewall Height: 7.4 inches Sidewall Height: 7.4 inches
Rim Size: 16x6.5 inches

Rim Size: 16x6.5 inches

Kenda/Americana Tire and Wheel Part #: 10246

Kenda/Americana Tire and Wheel Part #: 10248

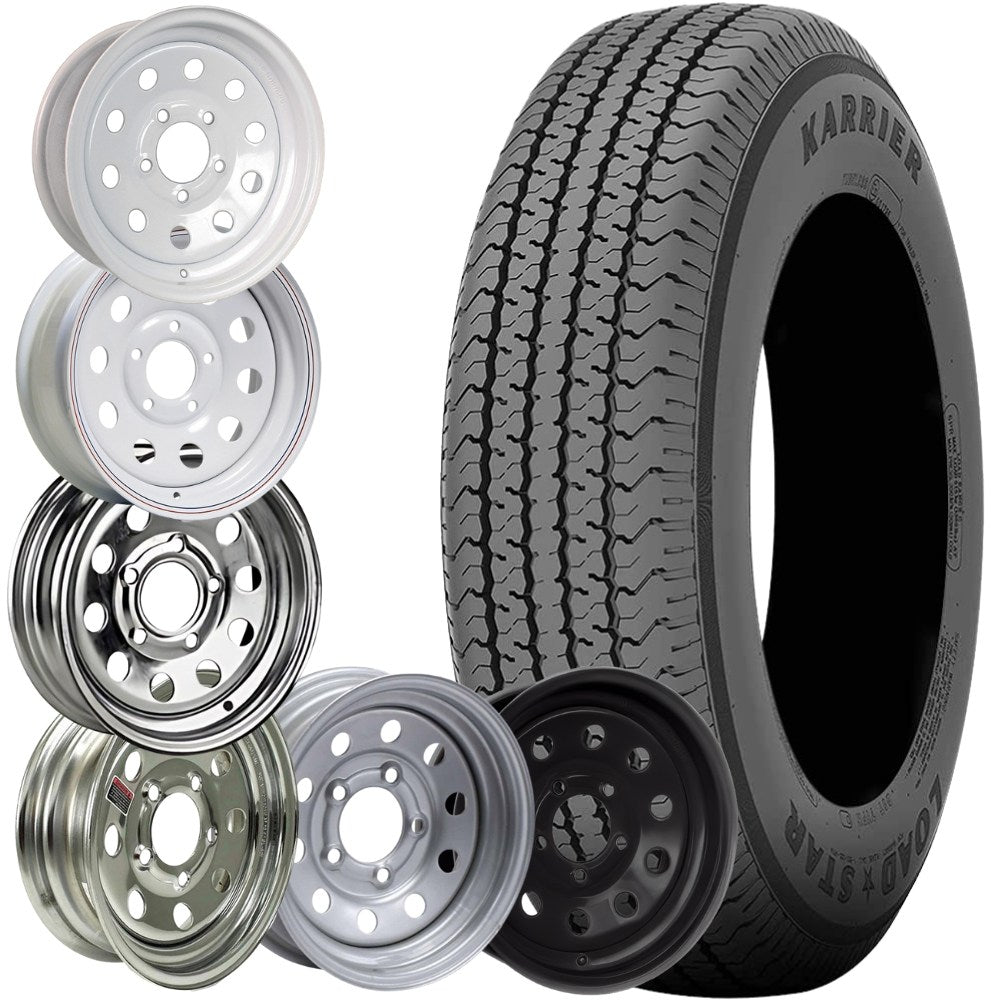

16" MOD Steel Trailer Wheel Specifications

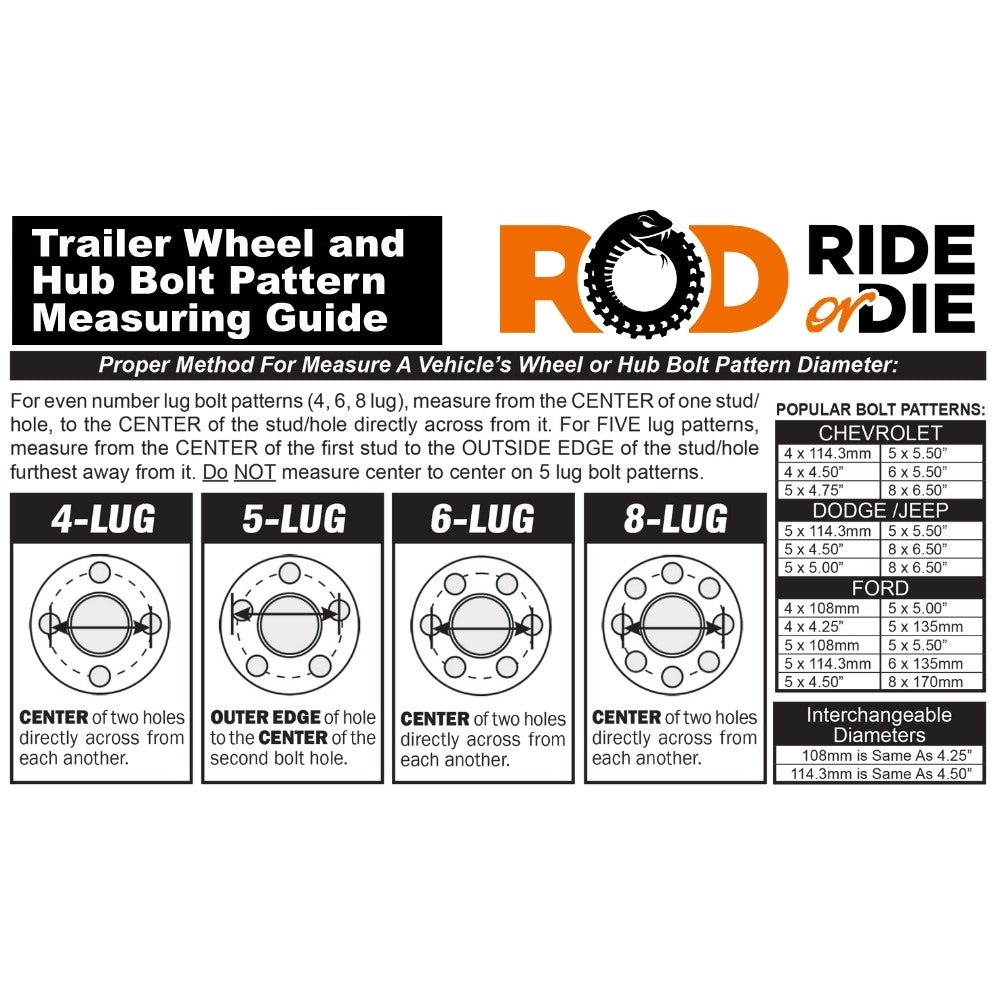

16"x6" with 6-5.5 Lug Pattern

  • Rim Diameter: 16 inches
  • Rim Width: 6 inches
  • Bolt Pattern: 6-5.5 (6-lug on 5.5" bolt circle)
  • Pilot: 4.27
  • Offset: 0
  • Load Capacity: 3050 lbs.
  • Kenda Americana Part # (White): 20742

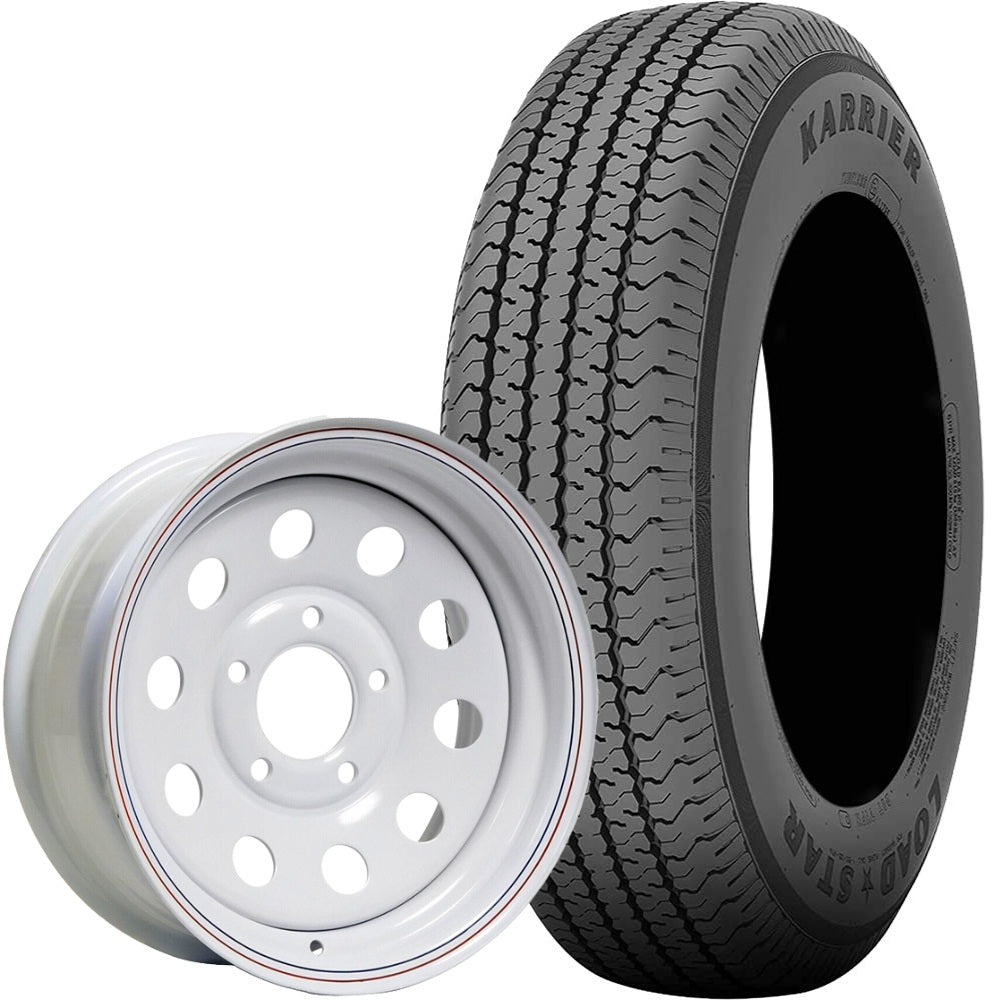

  • Kenda Americana Part # (White w/ Stripes): 20748

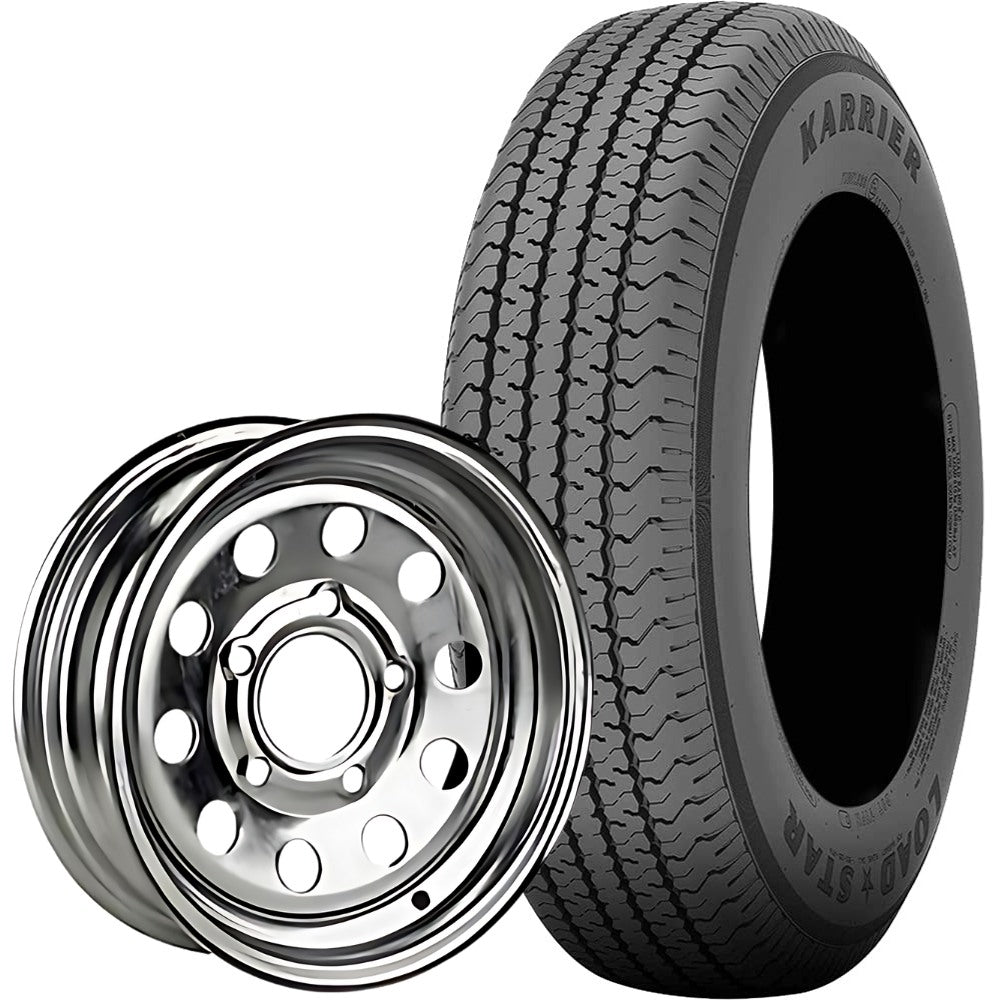

  • Kenda Americana Part # (Galvanized): 20744

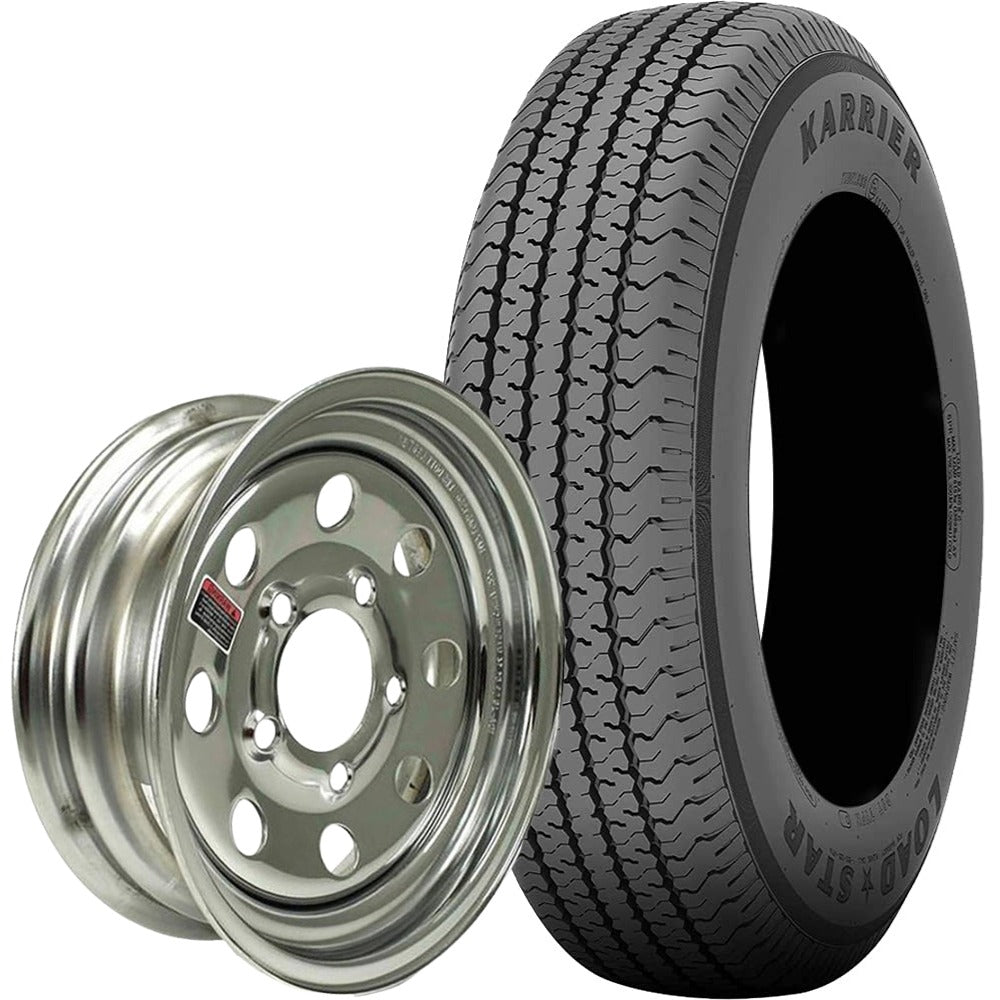

  • Kenda Americana Part # (Chrome): 20788

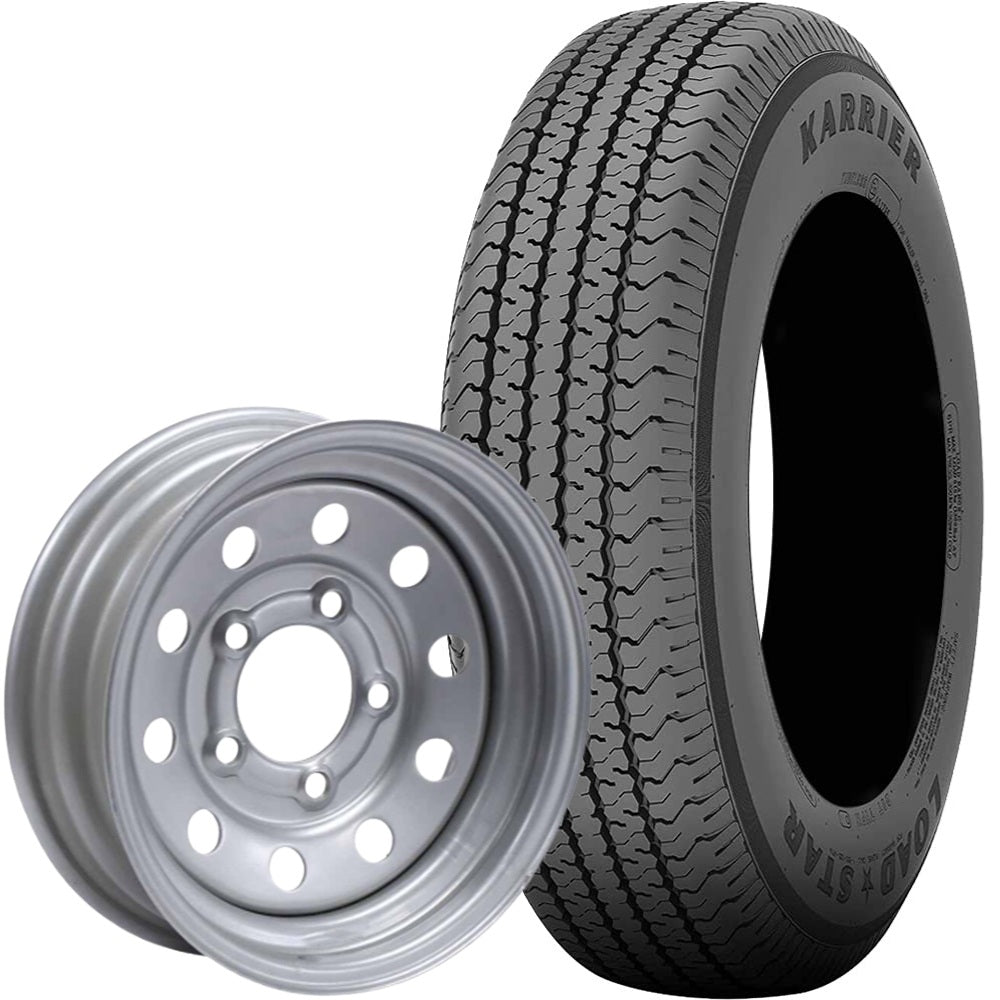

  • Kenda Americana Part # (Silver): 20746

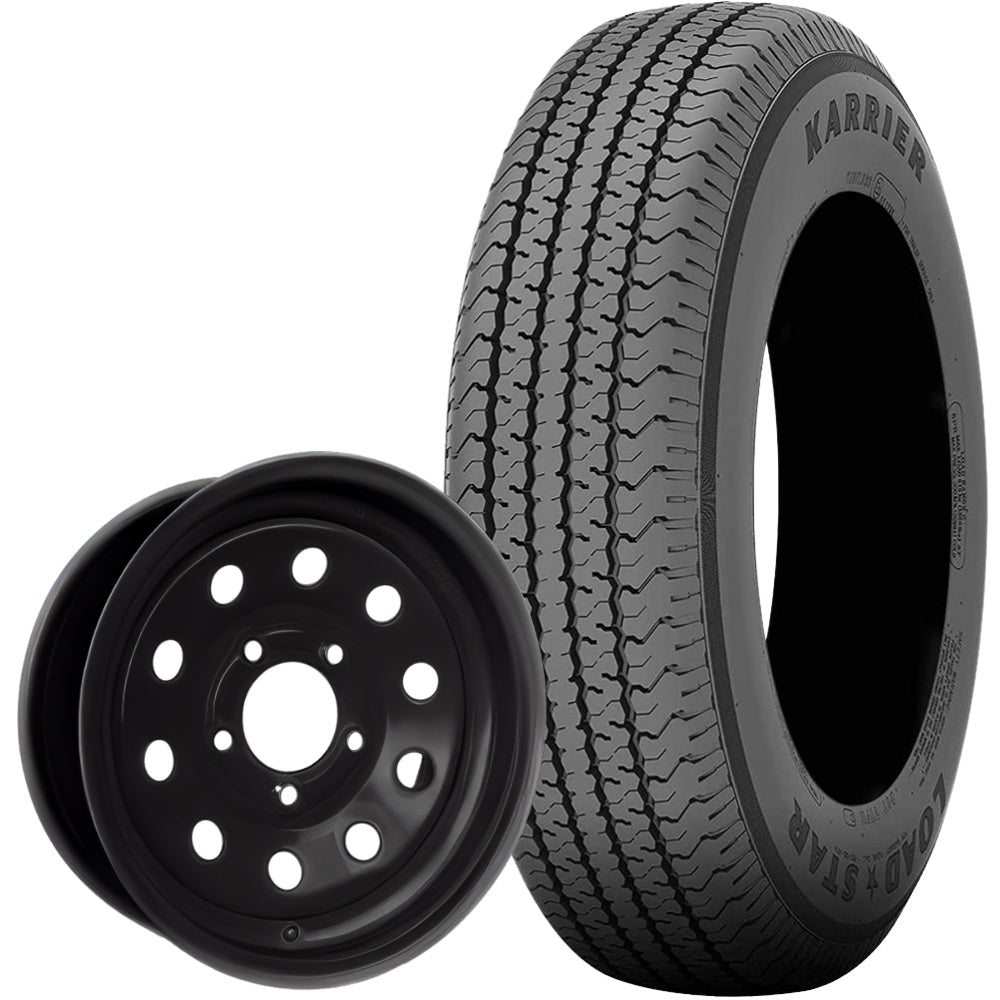

  • Kenda Americana Part # (Black): 20757

16"x6" with 8-6.5 Lug Pattern

  • Rim Diameter: 16 inches
  • Rim Width: 6 inches
  • Bolt Pattern: 8-6.5 (8-lug on 6.5" bolt circle)
  • Pilot: 4.9
  • Offset: +.50
  • Load Capacity: 3750 lbs.
  • Kenda Americana Part # (White): 20759
  • Kenda Americana Part # (White w/ Stripes): 20795
  • Kenda Americana Part # (Galvanized): Unavailable
  • Kenda Americana Part # (Chrome): Unavailable
  • Kenda Americana Part # (Silver): 20808
  • Kenda Americana Part # (Black): Unavailable

16"x6" with 8-6.5 Lug Pattern

  • Rim Diameter: 16 inches
  • Rim Width: 6 inches
  • Bolt Pattern: 8-6.5 (8-lug on 6.5" bolt circle)
  • Pilot: 4.9
  • Offset: 0
  • Load Capacity: 3750 lbs.
  • Kenda Americana Part # (White): 20762
  • Kenda Americana Part # (White w/ Stripes): 20761
  • Kenda Americana Part # (Galvanized): 20761G
  • Kenda Americana Part # (Chrome): 20791
  • Kenda Americana Part # (Silver): 20760
  • Kenda Americana Part # (Black): 20761B

16"x6" with 8-6.5 Lug Pattern

  • Rim Diameter: 16 inches
  • Rim Width: 6 inches
  • Bolt Pattern: 8-6.5 (8-lug on 6.5" bolt circle)
  • Pilot: 4.9
  • Offset: 0
  • Load Capacity: 4400 lbs.
  • Kenda Americana Part # (White): 20789
  • Kenda Americana Part # (White w/ Stripes): 20785
  • Kenda Americana Part # (Galvanized): 20785G
  • Kenda Americana Part # (Chrome): Unavailable
  • Kenda Americana Part # (Silver): 20794
  • Kenda Americana Part # (Black): 20799

16"x6" with 8-6.5 Lug Pattern

  • Rim Diameter: 16 inches
  • Rim Width: 6 inches
  • Bolt Pattern: 8-6.5 (8-lug on 6.5" bolt circle)
  • Pilot: 4.9
  • Offset: +.50
  • Load Capacity: 4400 lbs.
  • Kenda Americana Part # (White): 20793
  • Kenda Americana Part # (White w/ Stripes): Unavailable
  • Kenda Americana Part # (Galvanized): Unavailable
  • Kenda Americana Part # (Chrome): Unavailable
  • Kenda Americana Part # (Silver): Unavailable
  • Kenda Americana Part # (Black): Unavailable
Kenda Trailer Tires and Wheels Lifestyle

About Kenda® Tires and Wheels

From the road to the trails, to the racetrack and everything in between, Kenda has been leading the way with tires that are built for the perfect blend of performance and value since 1962. Renowned for their research and development, Kenda spares no expense when it comes to developing and improving their top tier tires. With tires available for a whole range of applications, Kenda is a name that has garnered respect from industry veterans across the globe.
