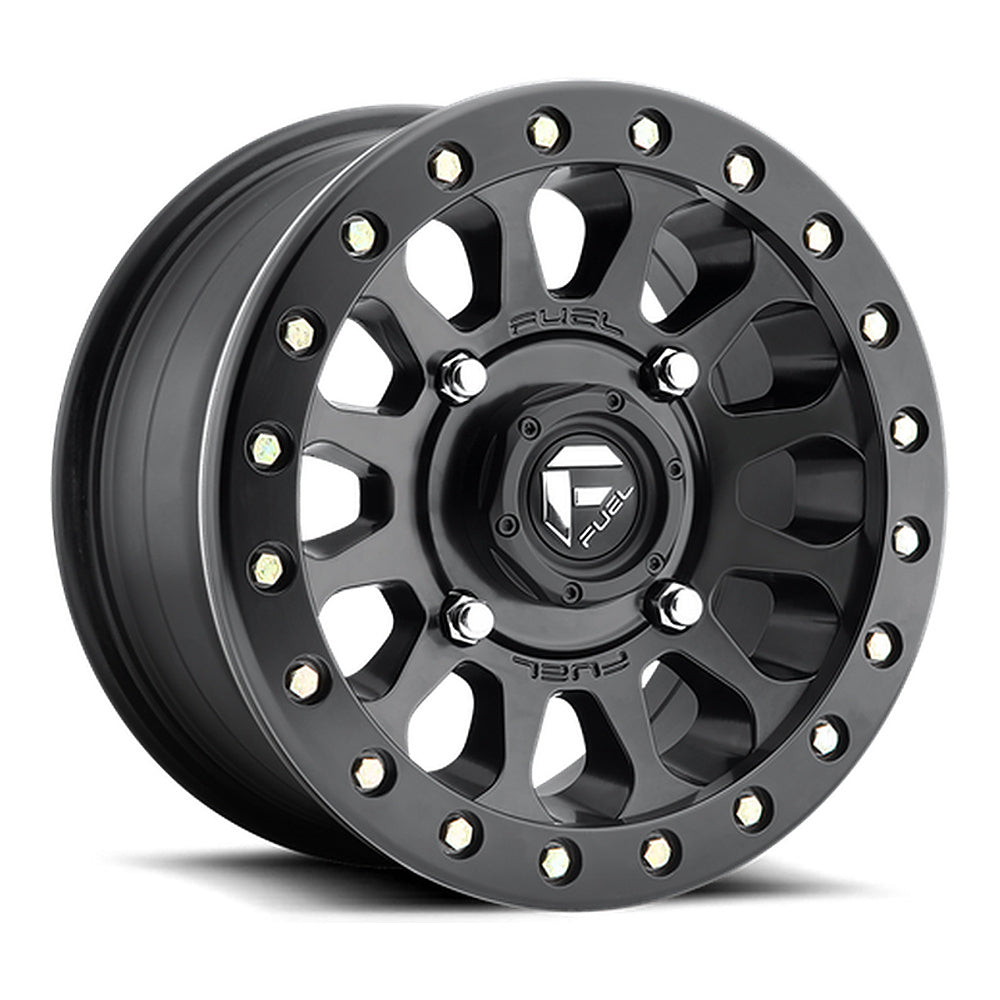

Fuel Vector Beadlock D920 UTV wheel in matte black, angled front view
Fuel Vector Beadlock D920 UTV wheel in matte black, angled front view
Fuel UTV

Fuel Vector Beadlock (D920) 15x7 UTV Wheel - Matte Black

$374.00

  • Wheel Size: 15x7
  • Bolt Pattern: 4/137 | 4/156
  • Offset: +13 mm | +38 mm
  • Wheel Type: Beadlock
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...
Fuel UTV Logo

This is the Vector as a true beadlock, finished in matte black. A bolted outer ring clamps the tire bead to the wheel, so you can run low pressures in rocks and sand without the tire unseating.

This listing is the 15x7, in 4x137 with a +38mm offset and in 4x156 with a +13mm offset.

Fuel Vector Beadlock (D920) Key Features

  • Why Run a Beadlock: Airing down widens the tire's footprint for traction and a softer ride, but at low pressure a standard wheel can let the bead slip. The D920's ring locks the outer bead mechanically to prevent that.
  • Fitment by Bolt Pattern: 4x137 uses a +38mm offset (5.50" backspacing, 110.10mm center bore); 4x156 uses +13mm (4.51" backspacing, 132.00mm center bore).
  • Matte Black: A low-sheen black that hides trail grime. Wash with mild soap and water and avoid acid-based cleaners.
  • Weight and Rating: 20 lbs per wheel with a 1,000 lb load rating.

Vehicle Application Guide

The Fuel Vector Beadlock (D920) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

  • 4x137 Bolt Pattern (110.10mm center bore) – 15x7 (+38mm): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
  • 4x156 Bolt Pattern (132.00mm center bore) – 15x7 (+13mm): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

  • Off-Road Use Only: True beadlock wheels are sold for off-road use only and are illegal on public roads in many states and provinces. It is the buyer's responsibility to check state and local laws.
  • Beadlock Maintenance: Beadlock ring bolts must be torqued to the manufacturer's specification during mounting and rechecked regularly, especially after the first few rides and after any hard impact. Mounting a beadlock takes more time than a standard wheel, so have it done by a shop experienced with beadlocks if you aren't set up for it.
  • Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
  • Center Cap: Replacement center cap is Fuel part number 1003-42MB.

Fuel Vector Beadlock (D920) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
15x7 D9201570A655 885463810768 Matte Black Cast Aluminum Beadlock 4/137 +38mm 5.50 110.10 20.00 1,000 lbs 0.67 1003-42MB
15x7 D9201570A545 885463810775 Matte Black Cast Aluminum Beadlock 4/156 +13mm 4.51 132.00 20.00 1,000 lbs 0.67 1003-42MB
