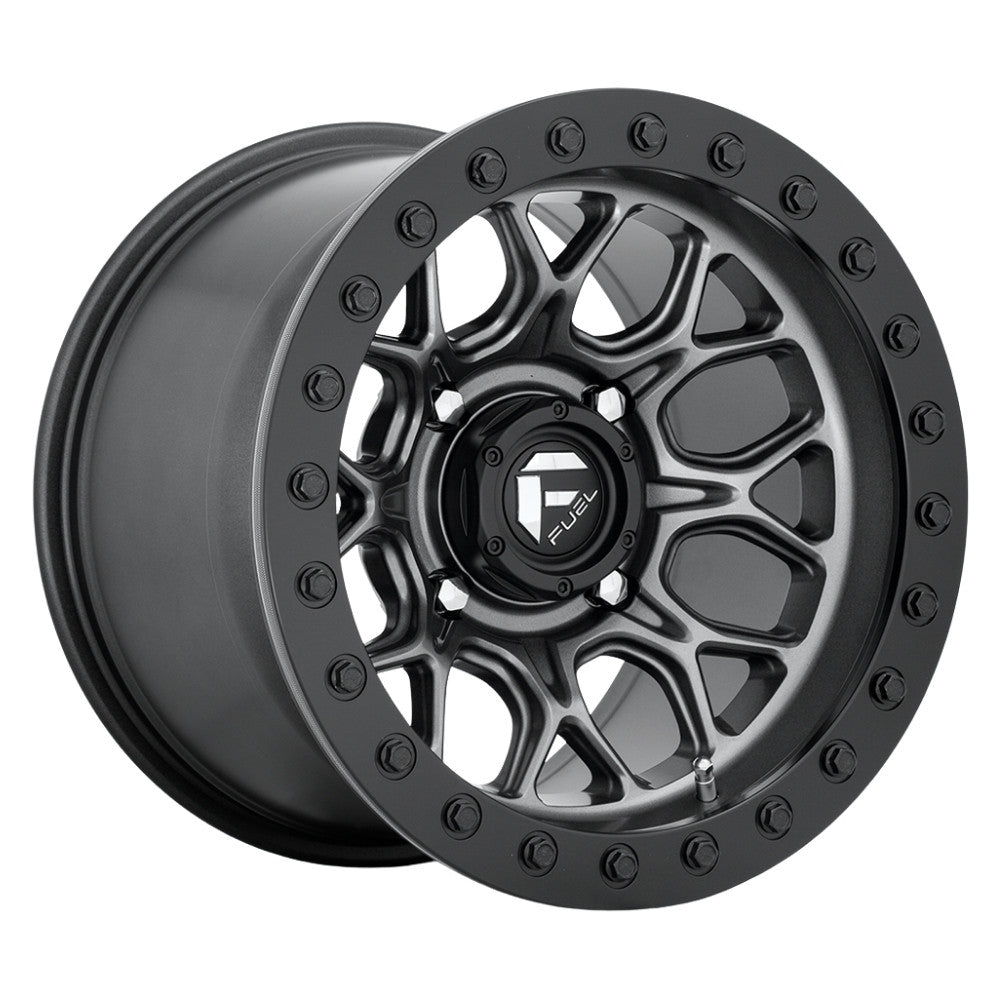

Fuel UTV Tech UTV Beadlock Wheel- Matte Gunmetal Black Bead Ring

$374.00 – $397.00

Wheel Size: 15x7 | 15x10
Bolt Pattern: 4/137 | 4/156
Offset: +30 mm ( ≈5+2) | 0 mm (5+5)
Wheel Type: Beadlock

When you need to drop your tire pressure to single digits without risking a blown bead, the Fuel UTV Tech Beadlock Wheel (D919) delivers. Purpose-built for modern, high-output side-by-sides from Can-Am, Polaris, Yamaha, Honda and Kawasaki, the Tech series pairs a competition-ready true beadlock ring with a fortified cast-aluminum, split-spoke core. Beyond its rugged 1,000-pound load rating and D.O.T.-approved construction, this wheel stands out with a premium Matte Gunmetal finish that aggressively masks trail wear while turning heads in the dunes, dirt, or mud.

Fuel Tech Key Features

True Beadlock Security: Clamps the tire bead firmly to the rim, allowing you to run ultra-low air pressures and maintain tire stability during aggressive riding and high-torque rock crawling without the fear of de-beading.
Classic Split-Spoke Design: Engineered to provide superior stiffness and power transfer while giving your UTV a premium, competition-ready aesthetic.
Optimized Offsets: The 15x7 sizes feature a +38mm positive offset (roughly 5+2) to optimize clearance, track width, and handling, while the 15x10 sizes utilize a Zero-offset (0mm / 5+5) configuration for a balanced, wide-stance alignment. All sizes maintain a consistent 5.50-inch backspacing.
Rugged Matte Finish: Coated in a durable Matte Gunmetal finish with a contrasting Matte Black beadlock ring. Backed by a one-year finish manufacturer's warranty and a lifetime structural warranty.
Heavy-Duty Construction: Built from D.O.T. approved cast aluminum to handle the abuse of modern high-horsepower side-by-sides, featuring a robust 1,000 lb load capacity per wheel.

Important Fitment Notes

Vehicle Compatibility: These wheels are available in the two most common UTV bolt patterns. The 4/137 options utilize a 110.10mm center bore (ideal for Can-Am/Honda), while the 4/156 options utilize a 132.00mm center bore (ideal for Polaris/Yamaha).
Lug Nut Hardware: These wheels feature enlarged lug holes designed to accept standard aftermarket hardware. However, factory OEM lug nuts typically will not work. A set of aftermarket splined/tapered lug nuts (sold separately) is required for proper and safe installation.

Fuel Tech Beadlock Sizes & Specifications

Wheel Size	SKU	UPC Code	Model	Finish	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap	Ring Bolts	Ring Part No.
15x7	D9191570A654	885463810805	D919 Tech Beadlock	Matte Gunmetal / Black Ring	4/137	+38mm	5.50	110.10	19.0	1,000 lbs	0.55	1003-42MB	BOLTS-UTV15	24240-21MB
15x7	D9191570A554	885463810812	D919 Tech Beadlock	Matte Gunmetal / Black Ring	4/156	+38mm	5.50	132.00	19.0	1,000 lbs	0.55	1003-42MB	BOLTS-UTV15	24240-21MB
15x10	D9191500A654	885463810829	D919 Tech Beadlock	Matte Gunmetal / Black Ring	4/137	0mm	5.50	110.10	21.0	1,000 lbs	2.15	1003-42MB	BOLTS-UTV15	24240-21MB
15x10	D9191500A554	885463810836	D919 Tech Beadlock	Matte Gunmetal / Black Ring	4/156	0mm	5.50	132.00	21.0	1,000 lbs	2.15	1003-42MB	BOLTS-UTV15	24240-21MB

About Fuel UTV

Established in 2009, Fuel Off-Road rapidly became a dominant force in the aftermarket wheel industry by delivering cutting-edge designs time and time again. Relentless engineering also fueled their explosive growth, and due to the extreme physical demands of the side-by-side market, they launched Fuel UTV to bring their world-class truck wheel expertise directly to the powersports market.

Whether you are conquering technical rock crawls, flying across desert dunes, or burying your machine deep in the mud, Fuel UTV wheels are engineered to get you back to camp.

Race-Proven Durability: Built to withstand the harshest off-road environments without bending or cracking under pressure.

Innovative Aesthetics: Industry-leading, aggressive designs that guarantee your rig stands out from the pack.

Uncompromising Quality: Manufactured using state-of-the-art processes, offering everything from heavy-duty cast wheels to true SXS beadlock options for serious enthusiasts.

When you equip your machine with Fuel UTV, you aren't just buying a wheel—you are investing in a legacy of off-road supremacy.
