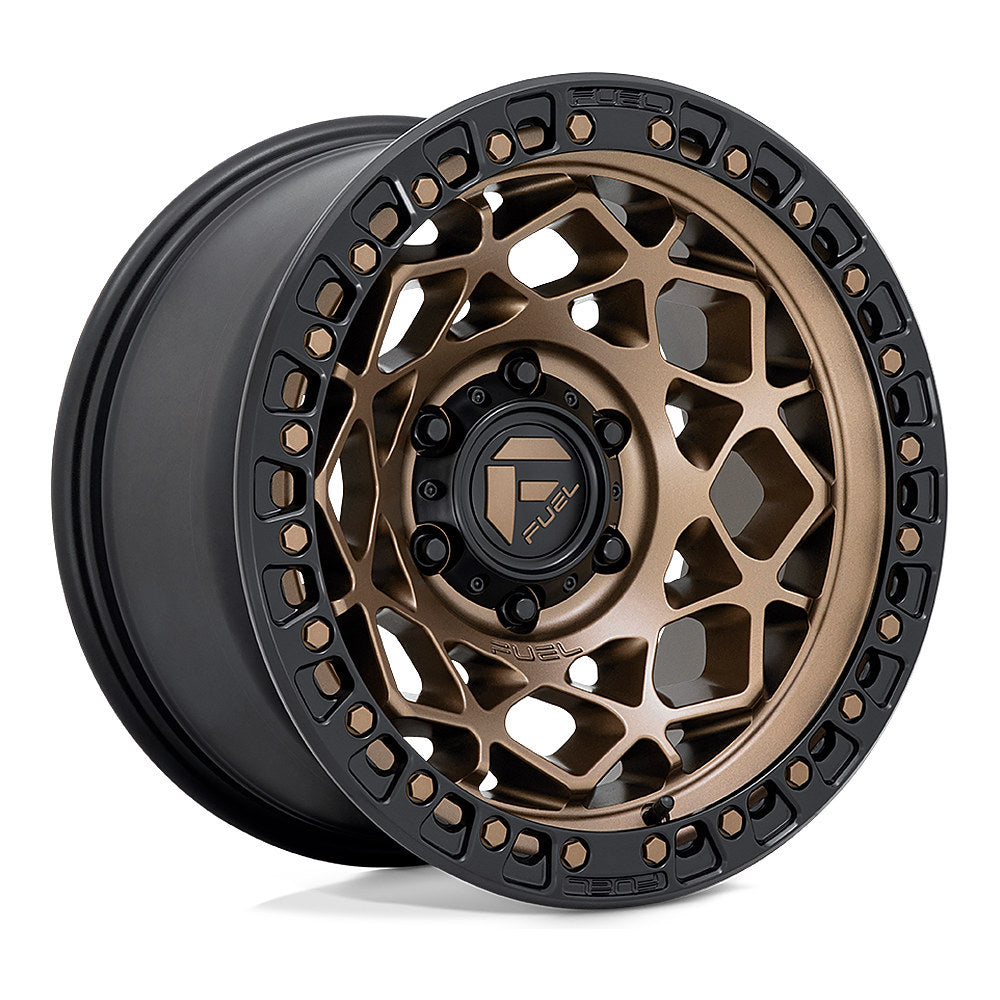

Fuel Unit D785 UTV wheel in bronze with matte black ring, angled front view, 15x7

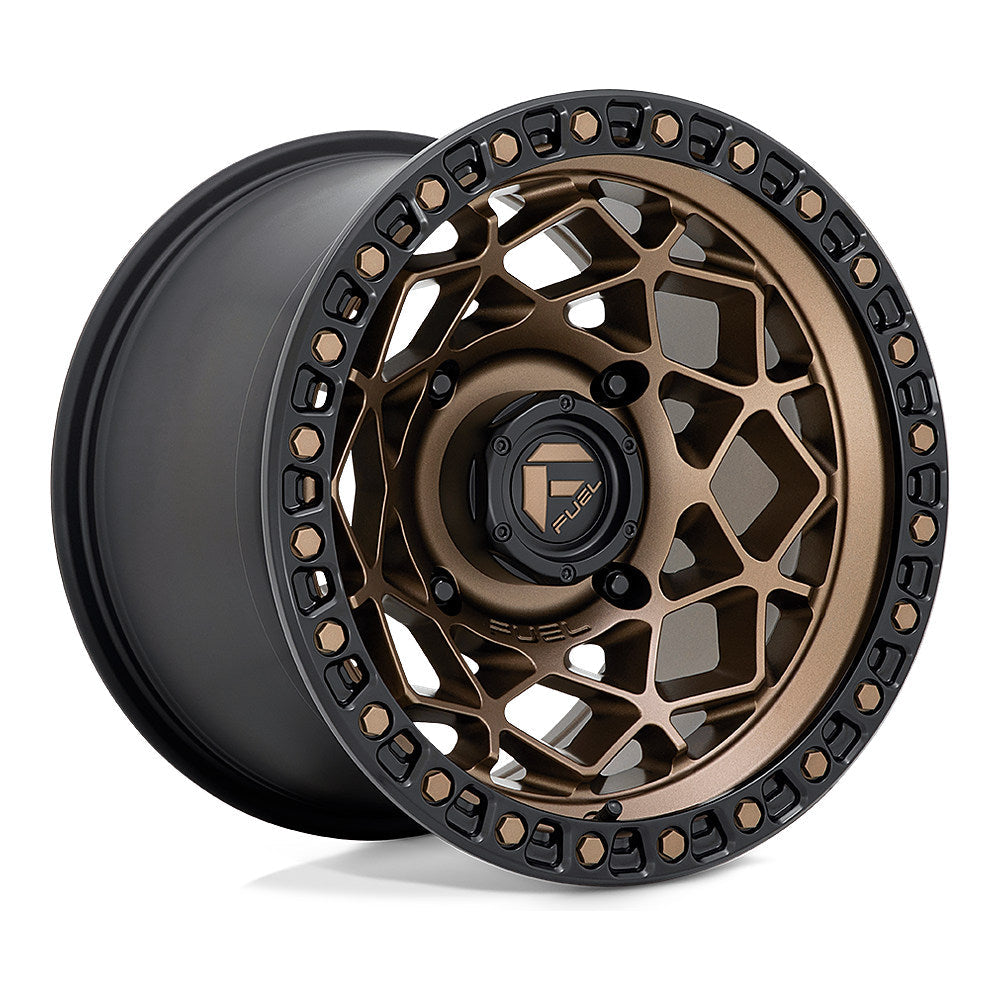

Fuel Unit D785 UTV wheel in bronze with matte black ring, angled front view, 15x10

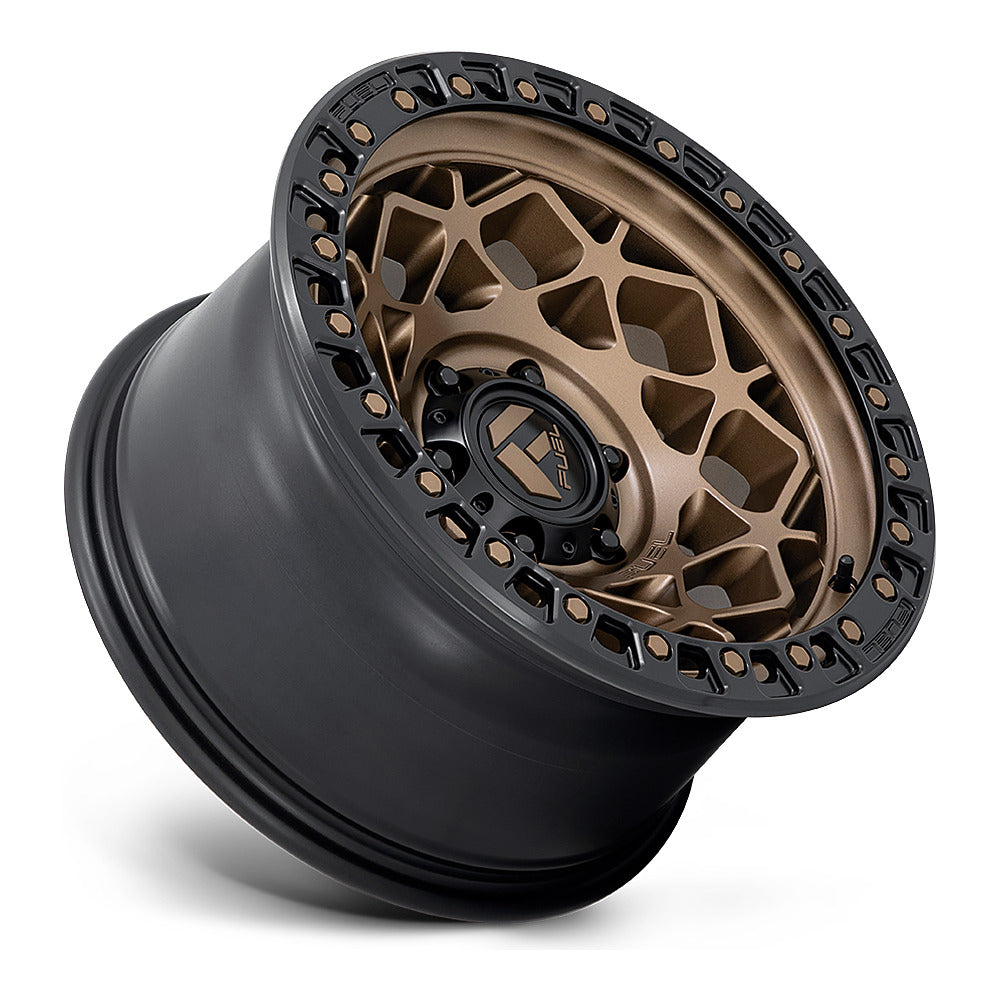

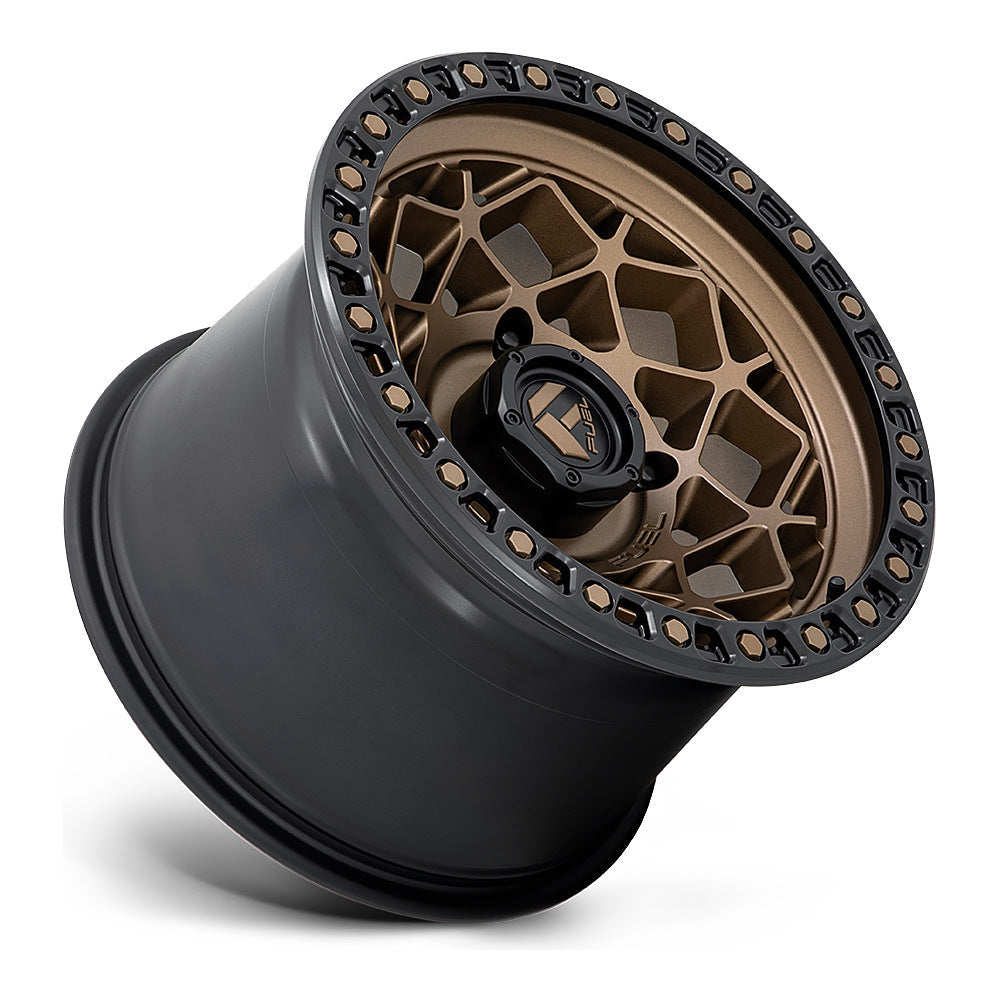

Fuel Unit D785 UTV wheel in bronze with matte black ring, side angle showing the barrel and lip

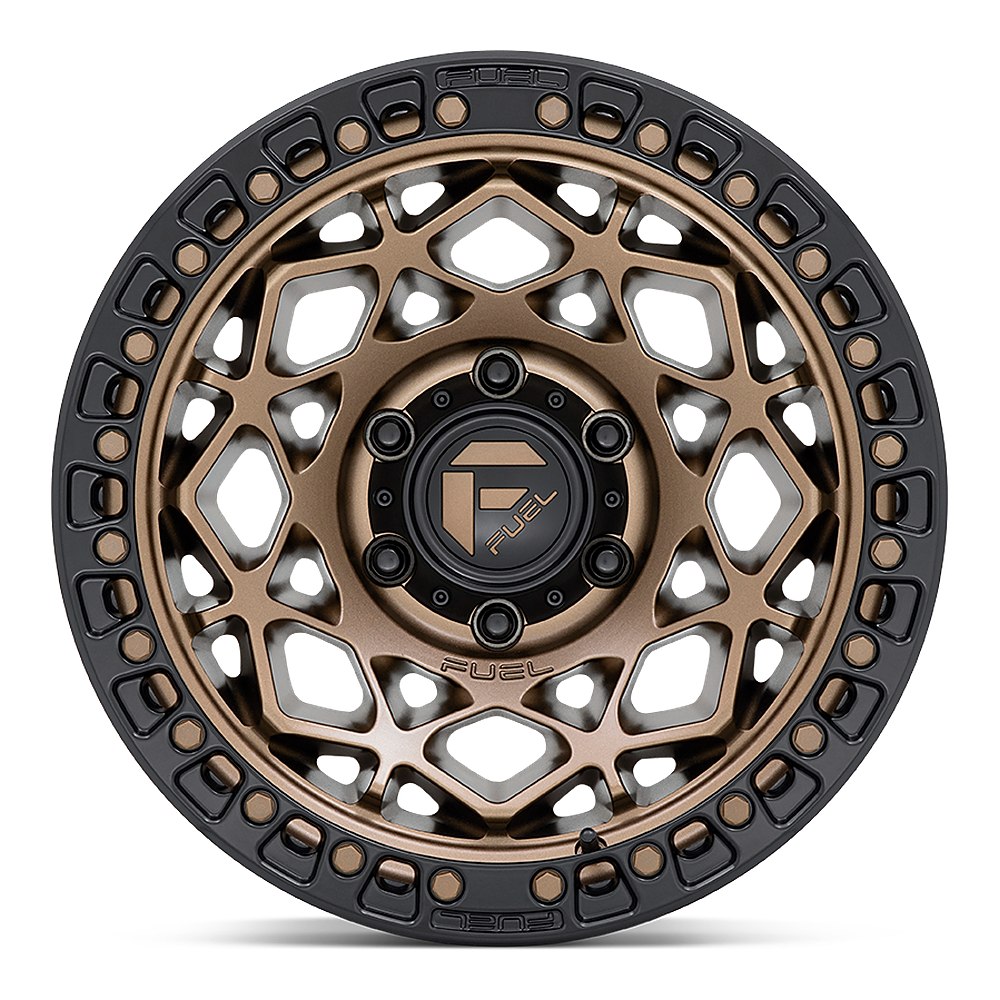

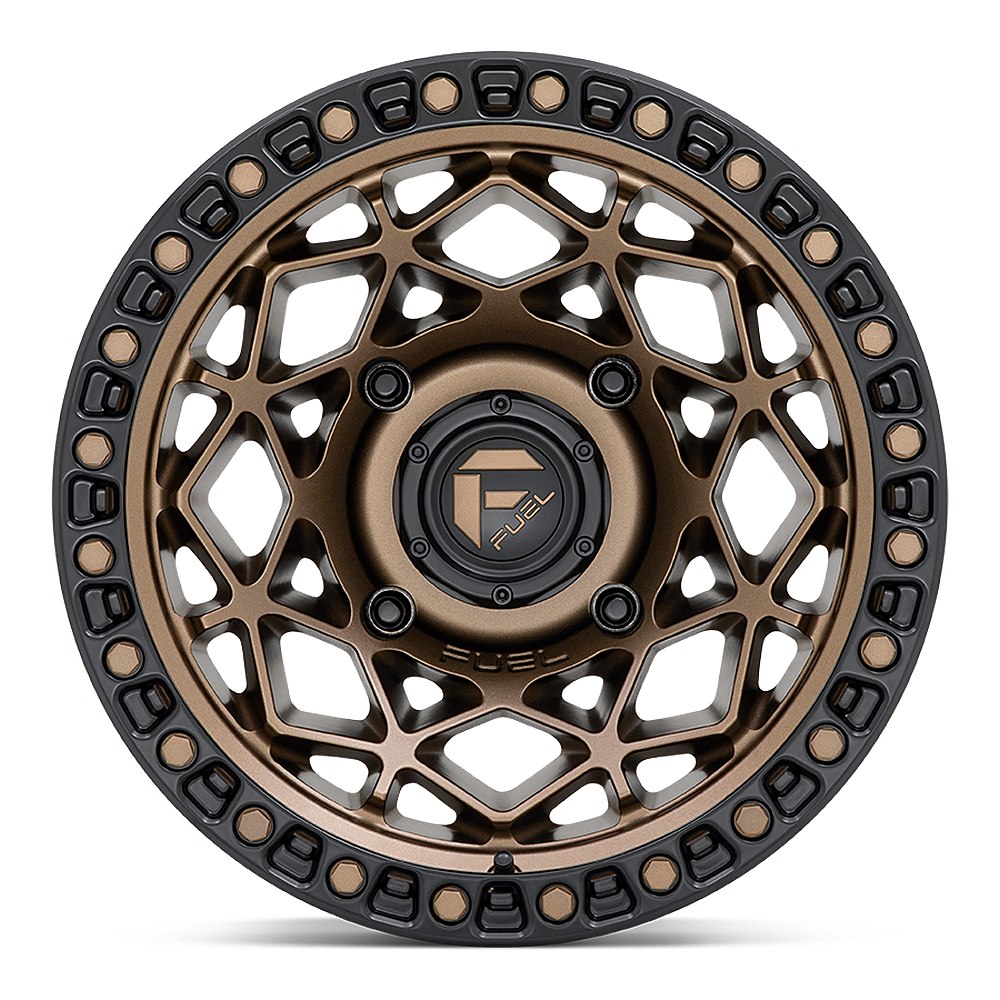

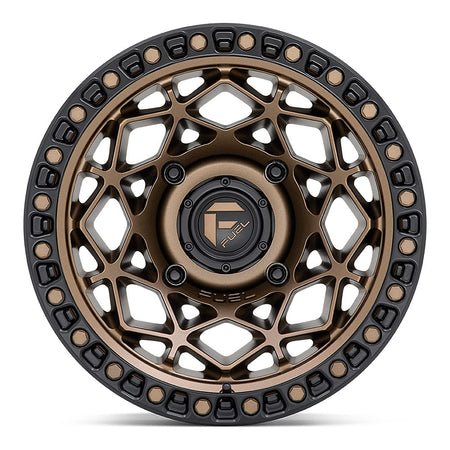

Fuel Unit D785 UTV wheel in bronze with matte black ring, straight-on face view

Fuel UTV

Fuel Unit (D785) UTV Wheel - Bronze w/ Matte Black Ring

$232.00 – $237.00

Wheel Size: 15x7 | 15x10
Bolt Pattern: 4/137 | 4/156
Offset: 0 mm | +10 mm
Wheel Type: Standard

Bronze and black is a classic off-road pairing, and on the Unit it makes the warmest-looking member of the family. A bronze mesh face contrasts with a matte black simulated beadlock ring, a combination that works on nearly any machine color.

It's offered in 15x7 and 15x10, each in 4x137 and 4x156, so Can-Am, Polaris, Honda, Kawasaki, and Yamaha owners can choose a matching set or mix widths for a wider rear stance.

Fuel Unit (D785) Key Features

Width and Offset: The 15x7 uses a +10mm offset (4.39" backspacing); the 15x10 uses 0mm (5.50"). The wider wheel supports wider tires and extends about 1.9" farther out and 1.1" farther in than the 15x7. Check suspension clearance before running the 15x10.
Mesh Face: Many short, interlocking spokes give the Unit its technical look and spread loads evenly across the one-piece casting.
Simulated Beadlock: The black ring and bolt heads are styling only. Tires mount normally, there are no ring bolts to maintain, and the wheel can be used on street-legal builds.
Bronze Finish Care: Bronze hides dust well. Wash with mild soap and water and avoid acid-based cleaners to protect the finish.
Weight and Rating: 17.4 lbs (15x7) and 18.7 lbs (15x10), each rated to 1,000 lbs with a lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Unit (D785) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore) – 15x7 and 15x10: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore) – 15x7 and 15x10: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
Center Cap: Replacement center cap is Fuel part number 1003-42MBZ.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before operating on public roads.

Fuel Unit (D785) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
15x7	D7851570A643	194933187072	Bronze w/ Matte Black Ring	Cast Aluminum	4/137	+10mm	4.39	110.10	17.40	1,000 lbs	1.50	1003-42MBZ
15x7	D7851570A543	194933187089	Bronze w/ Matte Black Ring	Cast Aluminum	4/156	+10mm	4.39	132.00	17.40	1,000 lbs	1.50	1003-42MBZ
15x10	D7851500A655	194933151905	Bronze w/ Matte Black Ring	Cast Aluminum	4/137	0mm	5.50	110.10	18.70	1,000 lbs	1.93	1003-42MBZ
15x10	D7851500A555	194933151912	Bronze w/ Matte Black Ring	Cast Aluminum	4/156	0mm	5.50	132.00	18.70	1,000 lbs	1.93	1003-42MBZ
