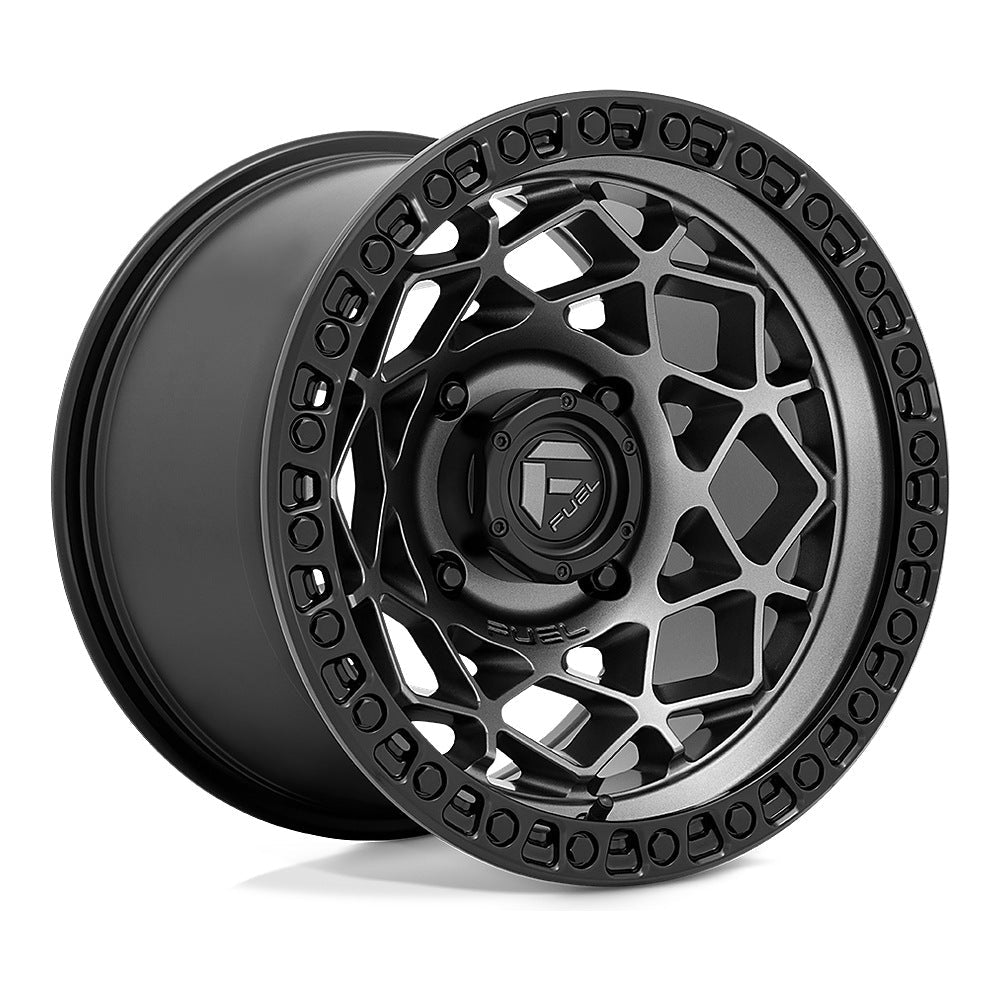

Fuel Unit D784 UTV wheel in gunmetal with matte black ring, angled front view, 15x10 / 15x7

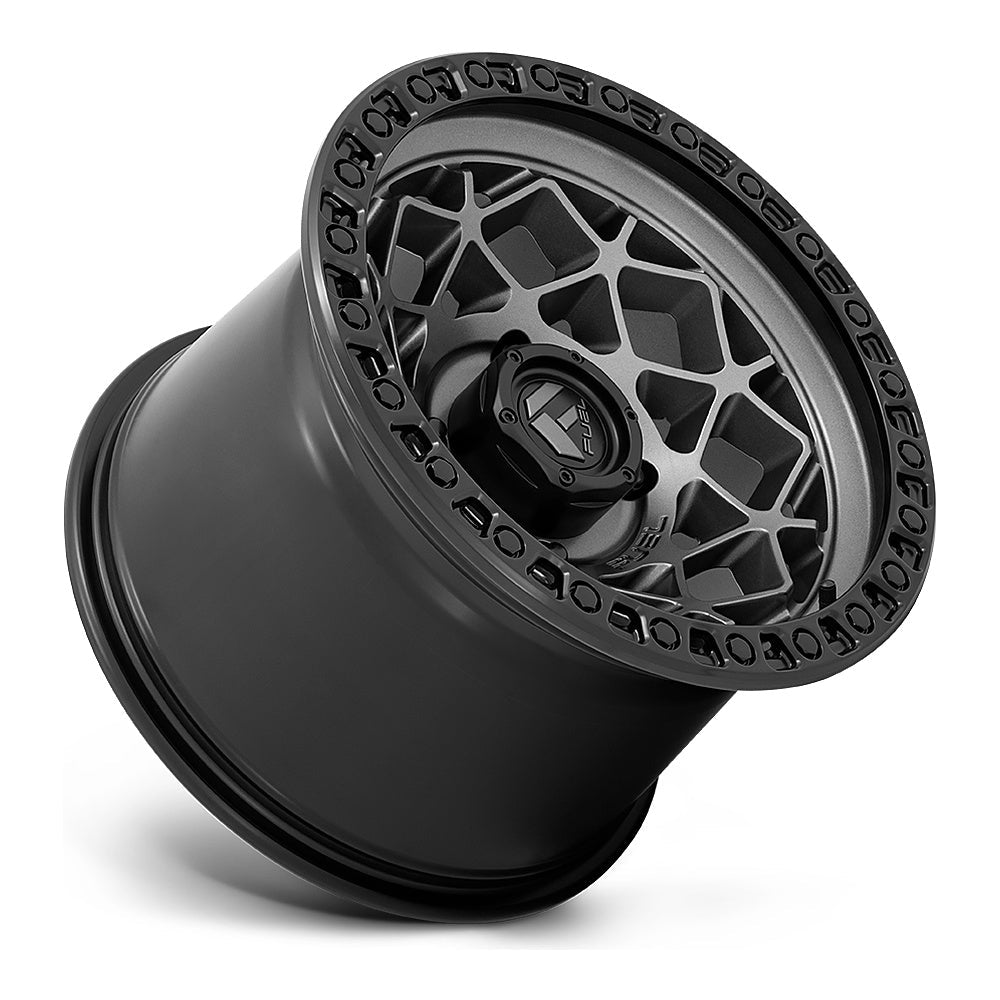

Fuel Unit D784 UTV wheel in gunmetal with matte black ring, side angle showing the barrel and lip

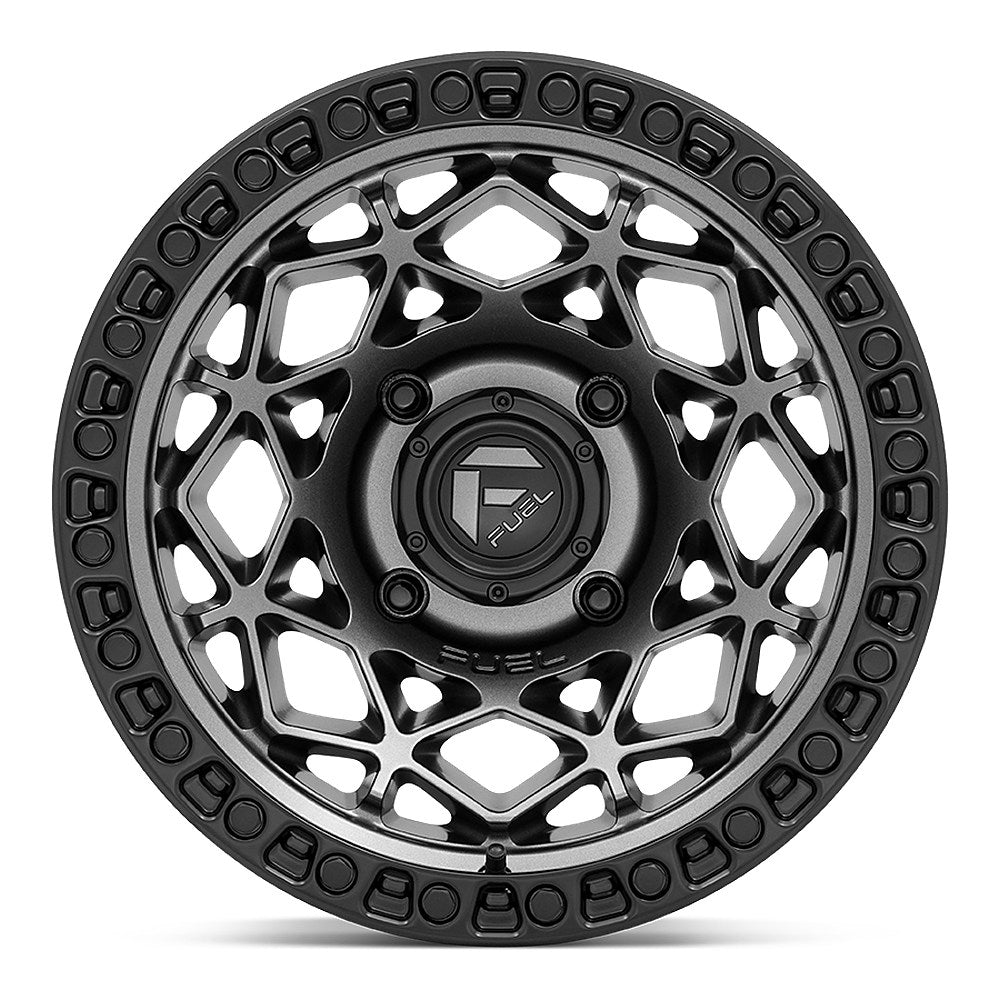

Fuel Unit D784 UTV wheel in gunmetal with matte black ring, straight-on face view

Fuel UTV

Fuel Unit (D784) UTV Wheel - Gunmetal w/ Matte Black Ring

$232.00 – $237.00

Wheel Size: 15x7 | 15x10
Bolt Pattern: 4/137 | 4/156
Offset: 0 mm | +10 mm
Wheel Type: Standard

If you like the beadlock look but don't want the mounting work or road restrictions of a true beadlock, this Unit in Gunmetal with a Matte Black Ring is made for that. It pairs a modern mesh face with a simulated beadlock ring.

It's a one-piece (monoblock) 15" wheel offered in 15x7 and 15x10, with 4x137 and 4x156 bolt patterns for popular Can-Am, Polaris, Kawasaki, Honda, and Yamaha fitments.

Fuel Unit (D784) Key Features

15x7 or 15x10: How They Fit: The 15x7 runs a +10mm offset with 4.39" of backspacing. The 15x10 runs 0mm with 5.50", which places its outer edge about 1.9" farther out and its inner edge about 1.1" farther in than the 15x7. Choose the 15x10 for wider tires and a wider stance, and check inner clearance to your suspension before ordering.
Mesh Design, Monoblock Build: The mesh pattern spreads load across many short spokes, and the single-piece casting has no bolted sections to loosen. The 15x7 weighs 17.4 lbs and the 15x10 weighs 18.7 lbs.
Simulated Beadlock Ring: The black ring and bolt heads are cosmetic. Tires mount like they would on any standard wheel, and the wheel is suitable for street-legal builds where true beadlocks are not allowed.
Gunmetal Finish: Gunmetal sits between black and silver, so it hides trail dust well while still showing the mesh detail. Clean with mild soap and water; avoid acid-based cleaners.
Load Rating: Rated to 1,000 lbs per wheel, with a lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Unit (D784) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore) – 15x7 and 15x10: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore) – 15x7 and 15x10: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
Center Cap: Replacement center cap is Fuel part number 1003-42MBV.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before operating on public roads.

Fuel Unit (D784) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
15x7	D7841570A643	194933187096	Gunmetal w/ Matte Black Ring	Cast Aluminum	4/137	+10mm	4.39	110.10	17.40	1,000 lbs	1.50	1003-42MBV
15x7	D7841570A543	194933187102	Gunmetal w/ Matte Black Ring	Cast Aluminum	4/156	+10mm	4.39	132.00	17.40	1,000 lbs	1.50	1003-42MBV
15x10	D7841500A655	194933151929	Gunmetal w/ Matte Black Ring	Cast Aluminum	4/137	0mm	5.50	110.10	18.70	1,000 lbs	1.93	1003-42MBV
15x10	D7841500A555	194933151936	Gunmetal w/ Matte Black Ring	Cast Aluminum	4/156	0mm	5.50	132.00	18.70	1,000 lbs	1.93	1003-42MBV
