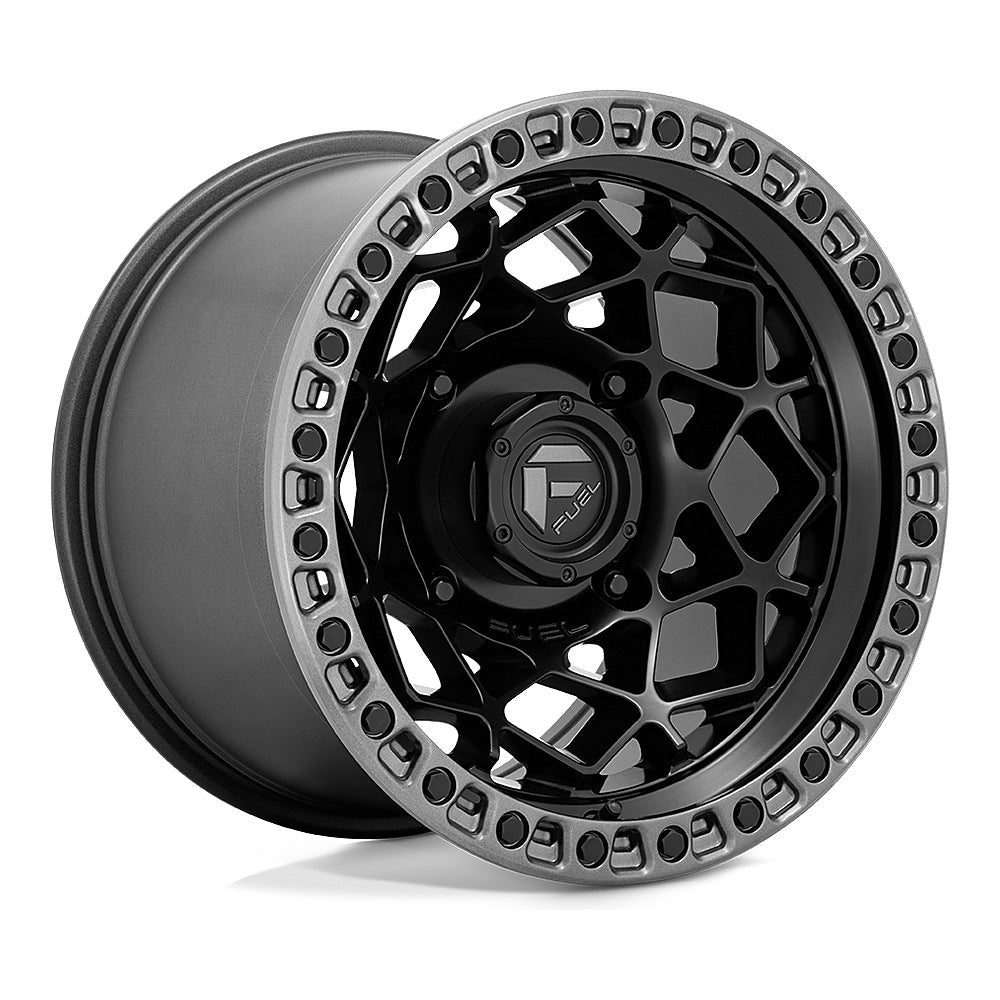

Fuel Unit D783 UTV wheel in matte black with gunmetal ring, angled front view, 15x10 / 15x7

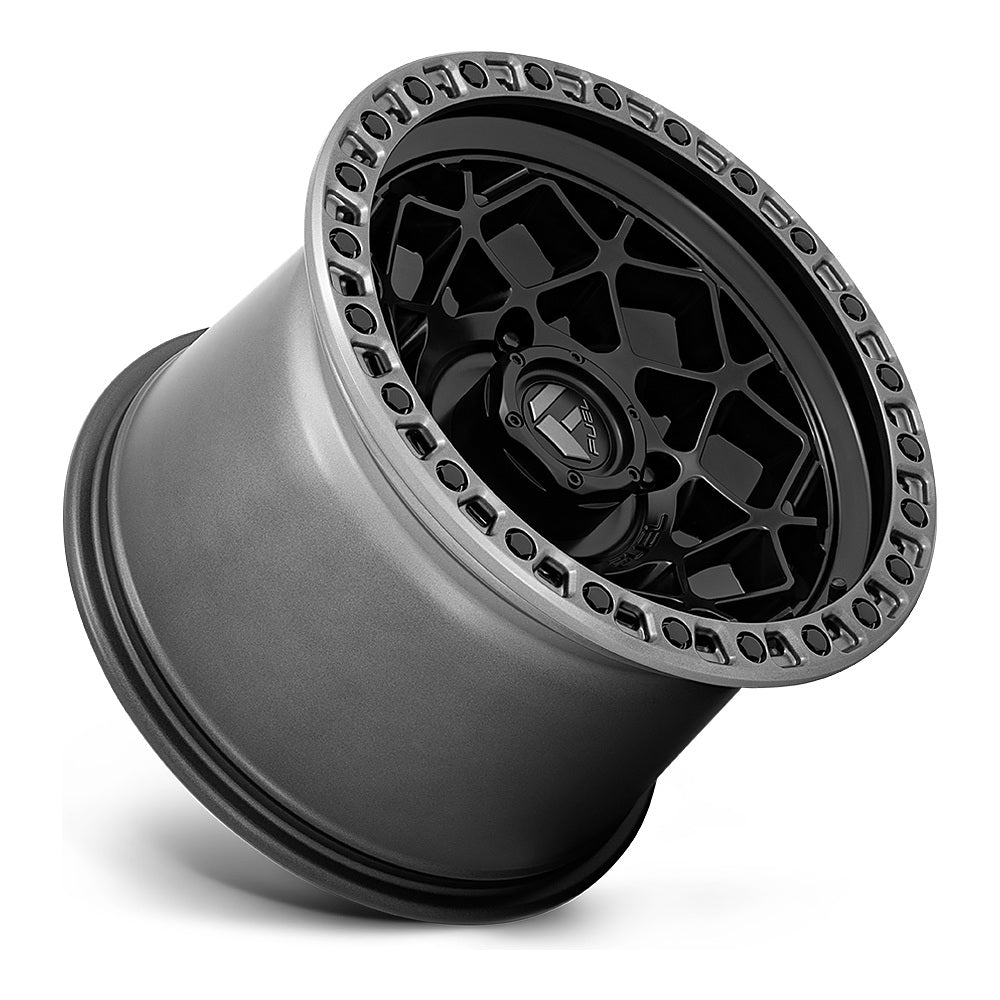

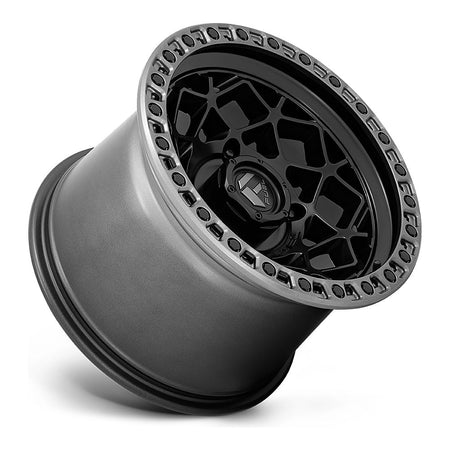

Fuel Unit D783 UTV wheel in matte black with gunmetal ring, side angle showing the barrel and lip

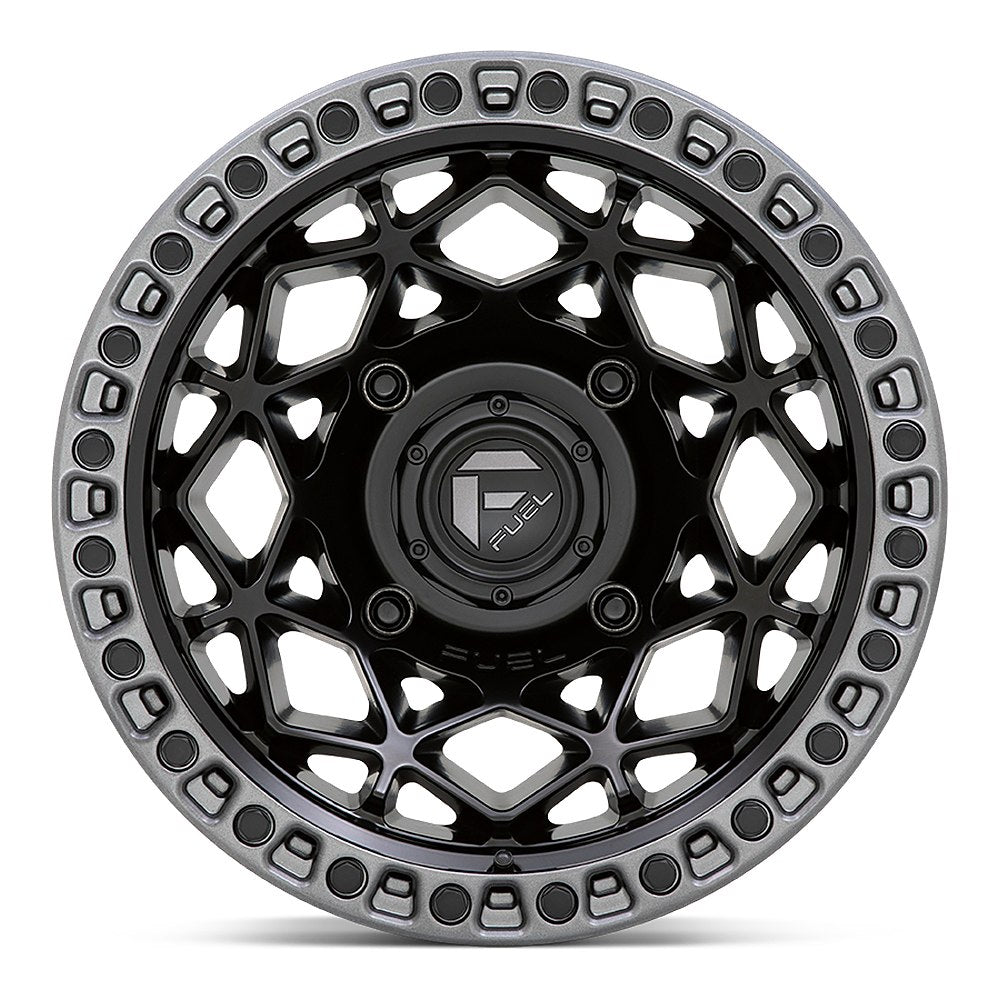

Fuel Unit D783 UTV wheel in matte black with gunmetal ring, straight-on face view

Fuel UTV

Fuel Unit (D783) UTV Wheel - Matte Black w/ Gunmetal Ring

$232.00 – $237.00

Wheel Size: 15x7 | 15x10
Bolt Pattern: 4/137 | 4/156
Offset: 0 mm | +10 mm
Wheel Type: Standard

Here the Unit's colors are flipped from the gunmetal version: a stealthy matte black mesh face is framed by a gunmetal simulated beadlock ring, drawing the eye to the outer edge of the wheel.

This listing includes the 15x7 in 4x137 and the 15x10 in both 4x137 and 4x156, giving Can-Am, Honda, Kawasaki, and Polaris owners a one-piece wheel with a beadlock look.

Fuel Unit (D783) Key Features

Two Widths, Two Stances: The 15x7 (+10mm, 4.39" backspacing) keeps a moderate track width. The 15x10 (0mm, 5.50" backspacing) supports wider tires and sits roughly 1.9" farther out and 1.1" farther in than the 15x7. Confirm inner clearance to your suspension and brakes before choosing the 10" width.
Beadlock Style, Standard Function: The gunmetal ring and its bolt heads are cosmetic, so tire mounting and maintenance are the same as any standard wheel, and there are no ring bolts to re-torque.
Weight: 17.4 lbs for the 15x7 and 18.7 lbs for the 15x10, light for a 15" mesh wheel.
Matte Black Care: Matte black hides scuffs and dust but can be dulled by harsh chemicals. Wash with mild soap and water and skip acid-based wheel cleaners.
Load Rating: One-piece cast construction rated to 1,000 lbs per wheel, with a lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Unit (D783) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore) – 15x7 and 15x10: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore) – 15x10 only: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
Center Cap: Replacement center cap is Fuel part number 1003-42MBV.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before operating on public roads.

Fuel Unit (D783) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
15x7	D7831570A643	194933187119	Matte Black w/ Gunmetal Ring	Cast Aluminum	4/137	+10mm	4.39	110.10	17.40	1,000 lbs	1.50	1003-42MBV
15x10	D7831500A655	194933151943	Matte Black w/ Gunmetal Ring	Cast Aluminum	4/137	0mm	5.50	110.10	18.70	1,000 lbs	1.93	1003-42MBV
15x10	D7831500A555	194933151950	Matte Black w/ Gunmetal Ring	Cast Aluminum	4/156	0mm	5.50	132.00	18.70	1,000 lbs	1.93	1003-42MBV

About Fuel UTV

Established in 2009, Fuel Off-Road rapidly became a dominant force in the aftermarket wheel industry by delivering cutting-edge designs time and time again. Relentless engineering also fueled their explosive growth, and due to the extreme physical demands of the side-by-side market, they launched Fuel UTV to bring their world-class truck wheel expertise directly to the powersports market.

Whether you are conquering technical rock crawls, flying across desert dunes, or burying your machine deep in the mud, Fuel UTV wheels are engineered to get you back to camp.

Race-Proven Durability: Built to withstand the harshest off-road environments without bending or cracking under pressure.

Innovative Aesthetics: Industry-leading, aggressive designs that guarantee your rig stands out from the pack.

Uncompromising Quality: Manufactured using state-of-the-art processes, offering everything from heavy-duty cast wheels to true SXS beadlock options for serious enthusiasts.

When you equip your machine with Fuel UTV, you aren't just buying a wheel—you are investing in a legacy of off-road supremacy.
