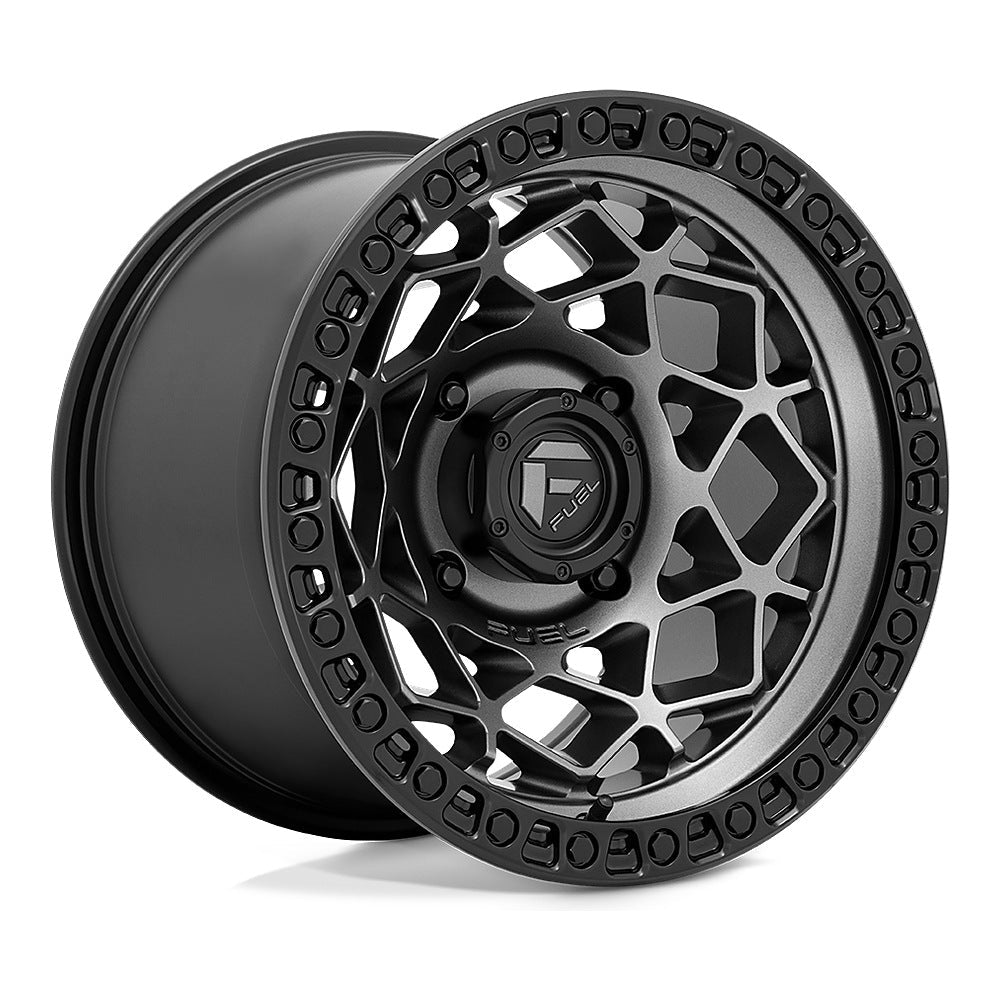

Fuel Unit D784 UTV wheel in gunmetal with matte black ring, angled front view, 15x10 / 15x7

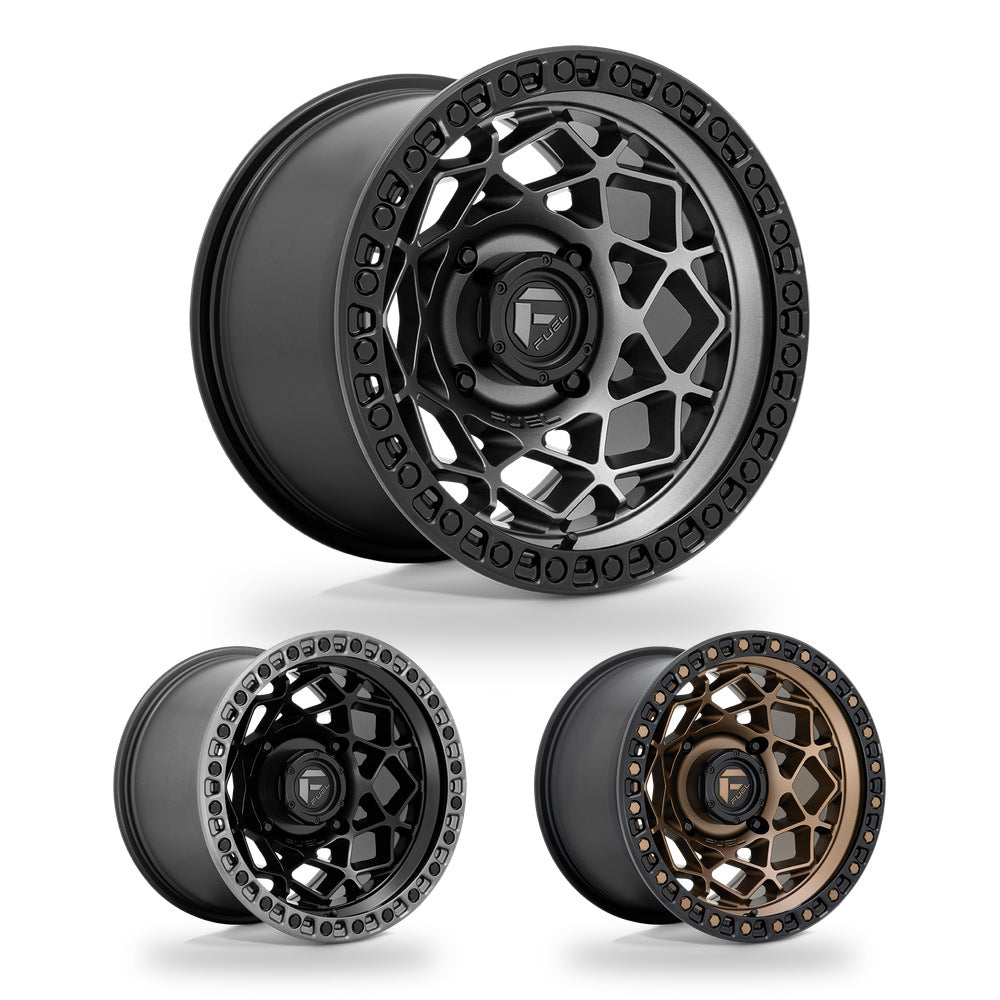

Fuel Unit (D783 / D784 / D785) UTV wheel in every finish: gunmetal with matte black ring, matte black with gunmetal ring and bronze with matte black ring

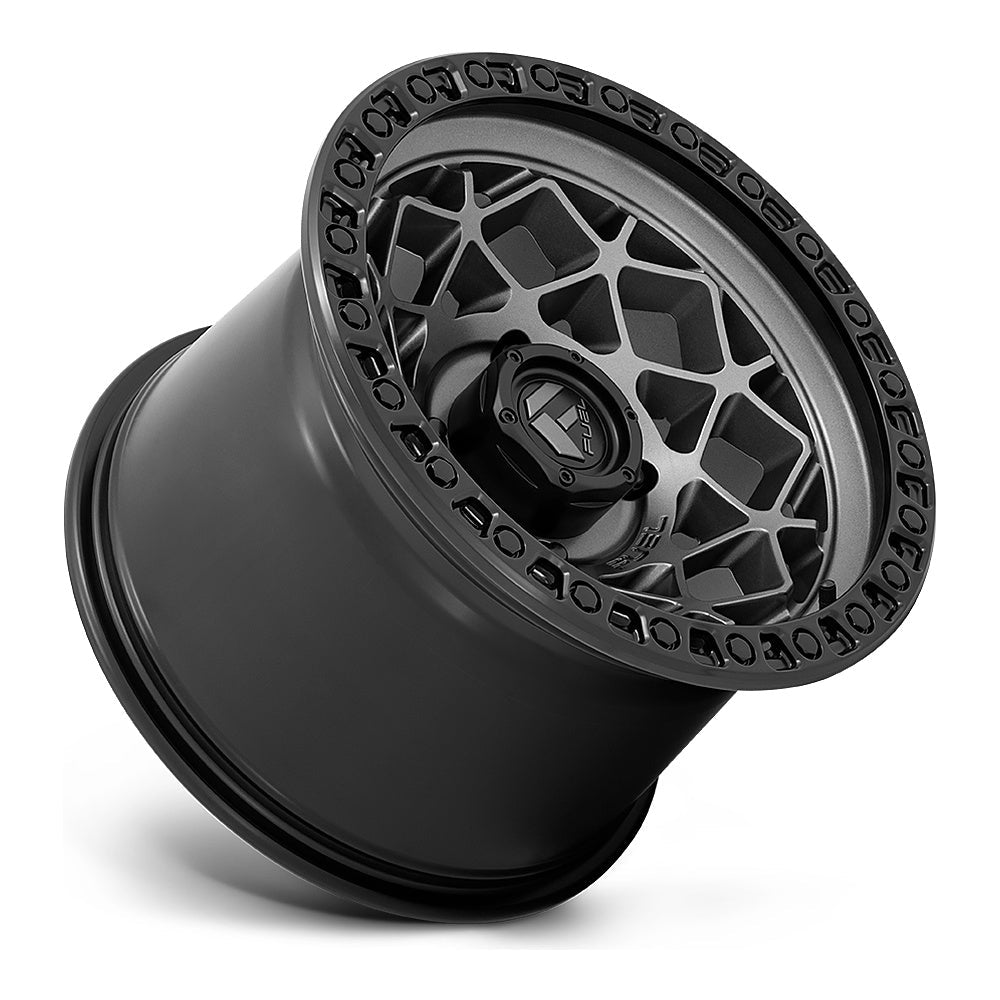

Fuel Unit D784 UTV wheel in gunmetal with matte black ring, side angle showing the barrel and lip

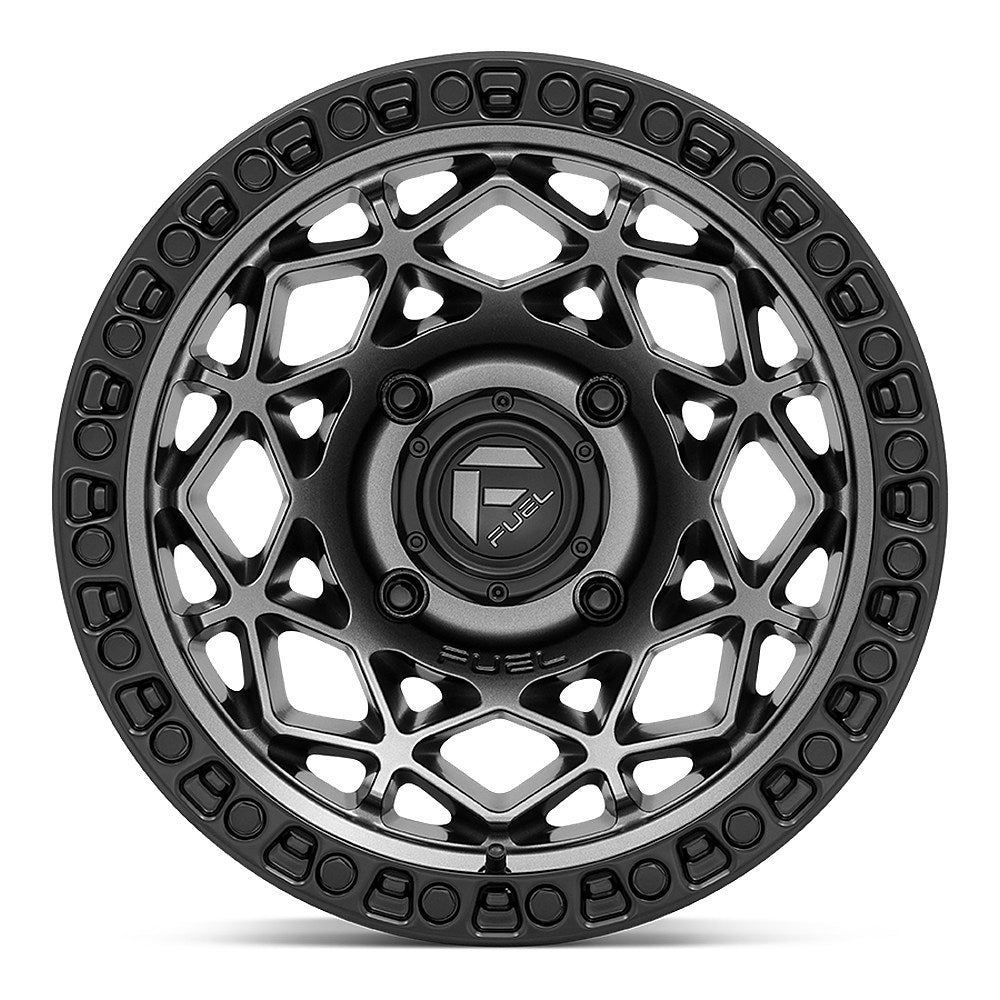

Fuel Unit D784 UTV wheel in gunmetal with matte black ring, straight-on face view

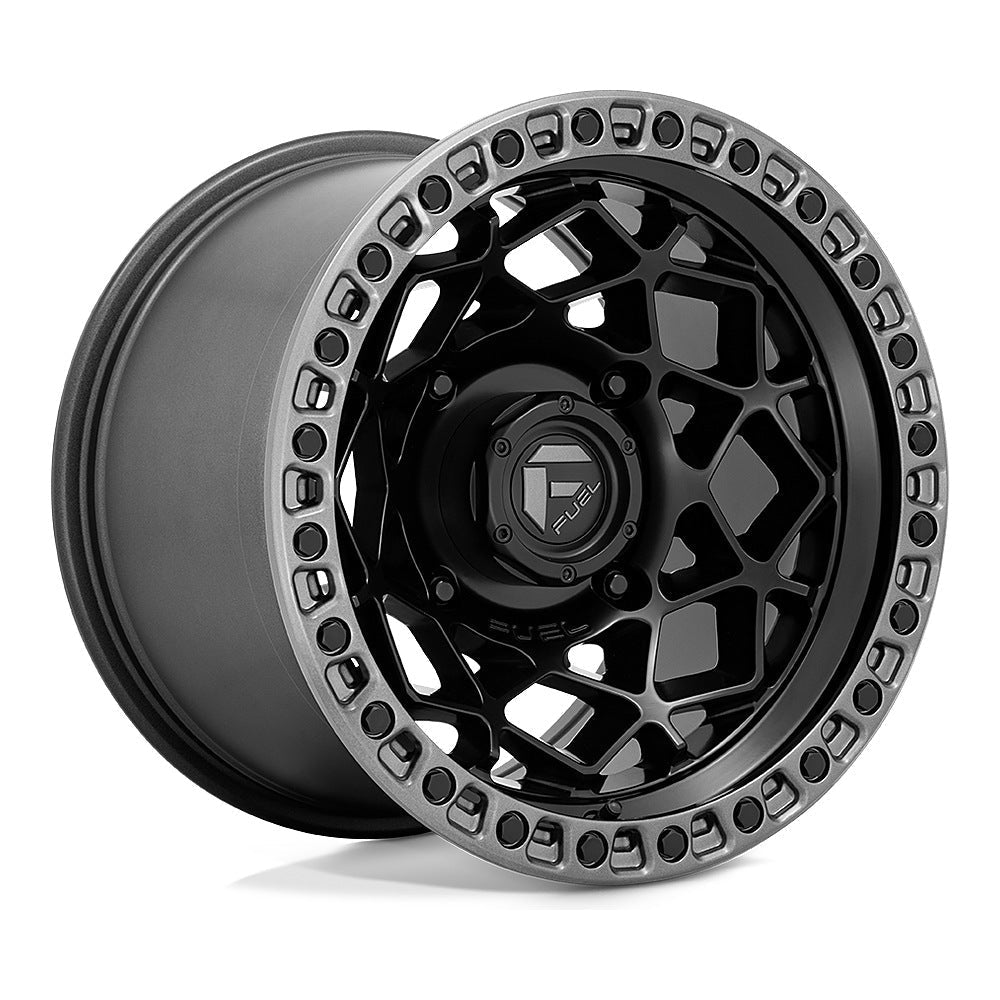

Fuel Unit D783 UTV wheel in matte black with gunmetal ring, angled front view, 15x10 / 15x7

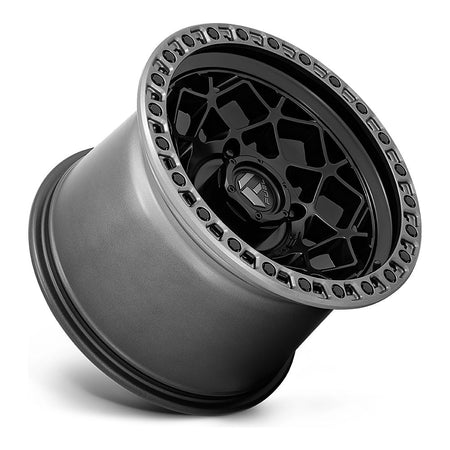

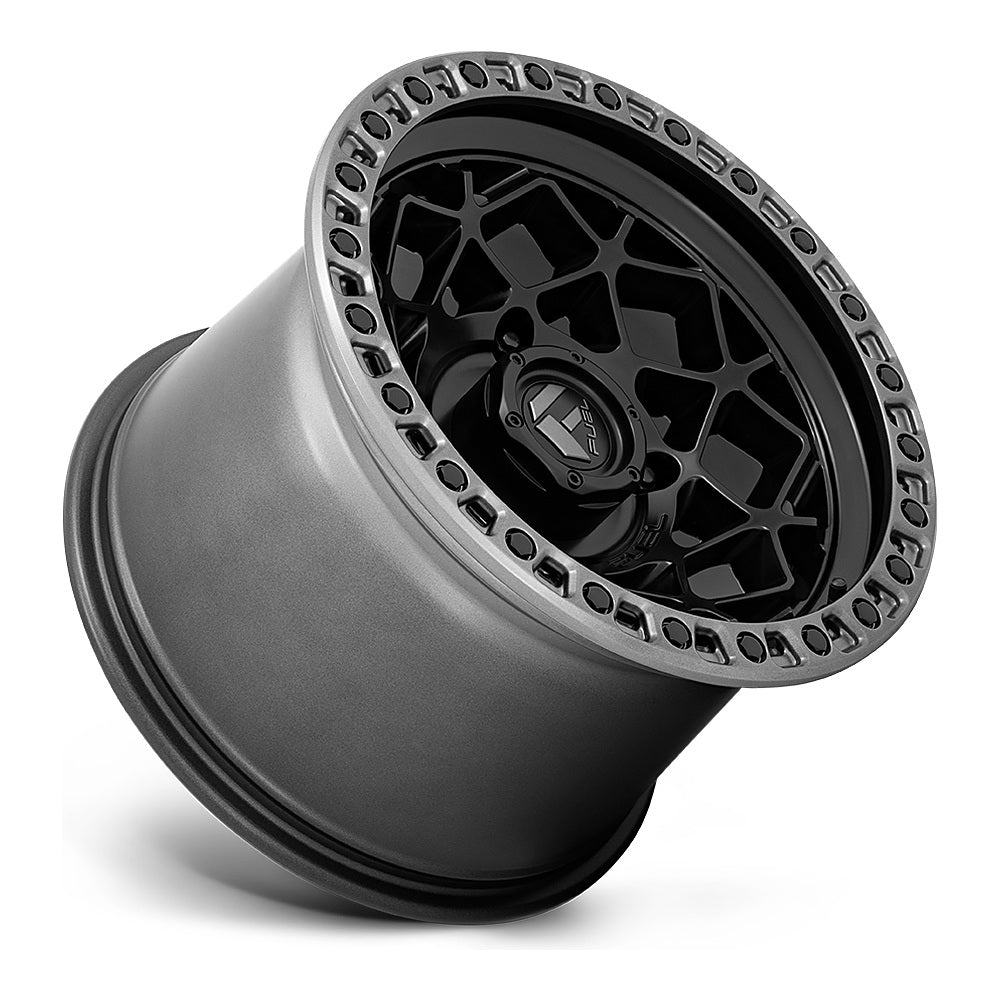

Fuel Unit D783 UTV wheel in matte black with gunmetal ring, side angle showing the barrel and lip

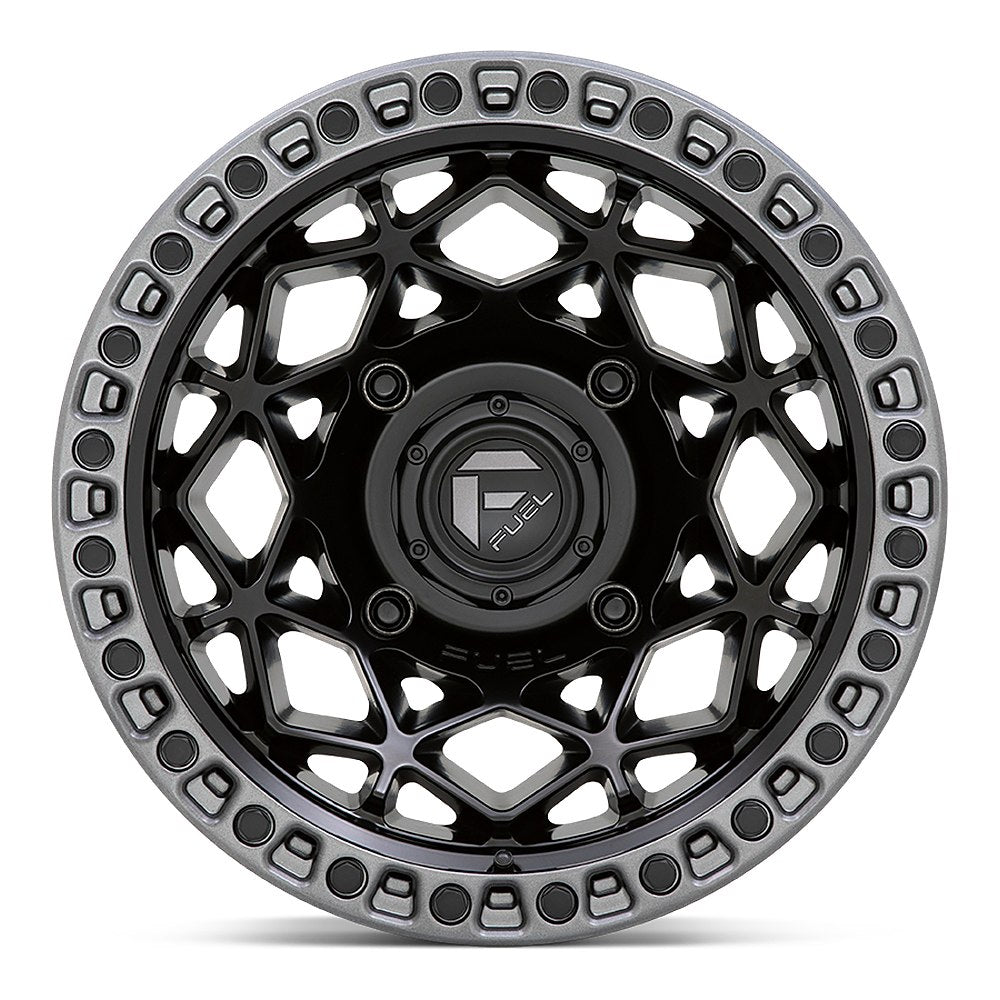

Fuel Unit D783 UTV wheel in matte black with gunmetal ring, straight-on face view

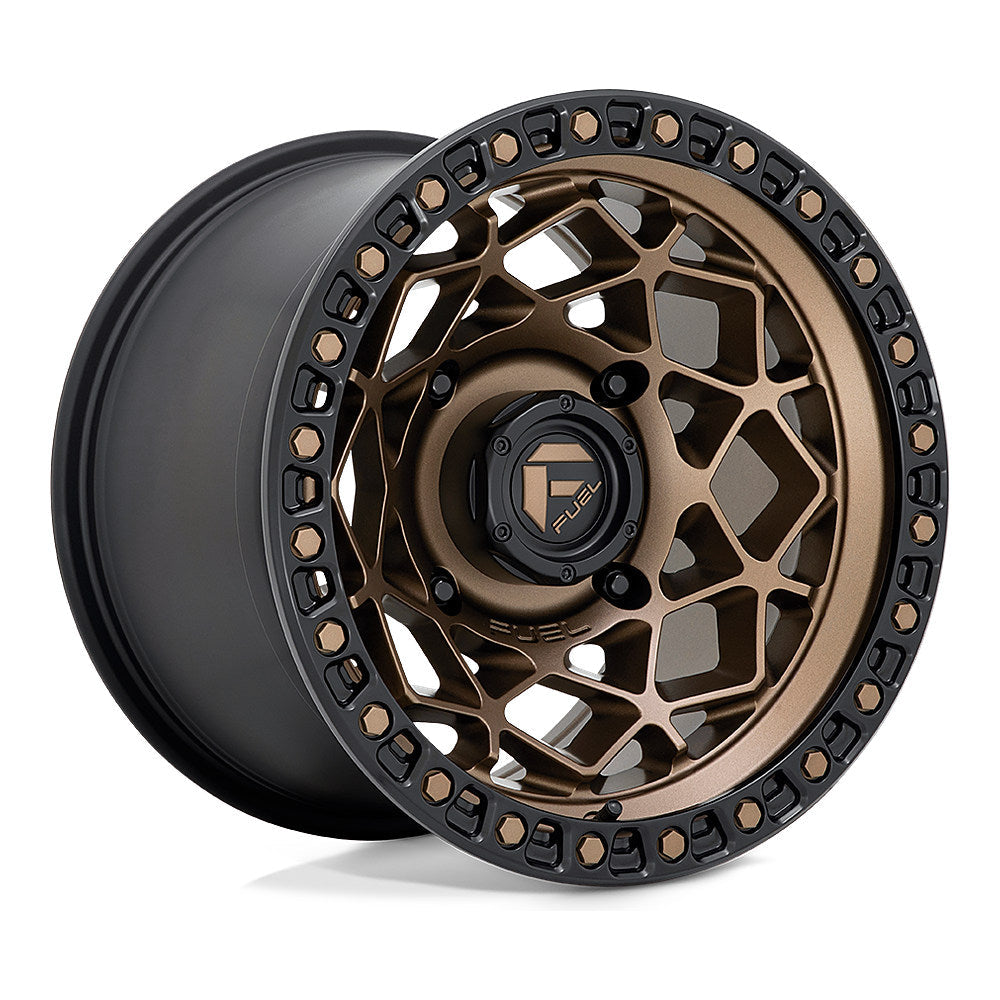

Fuel Unit D785 UTV wheel in bronze with matte black ring, angled front view, 15x10

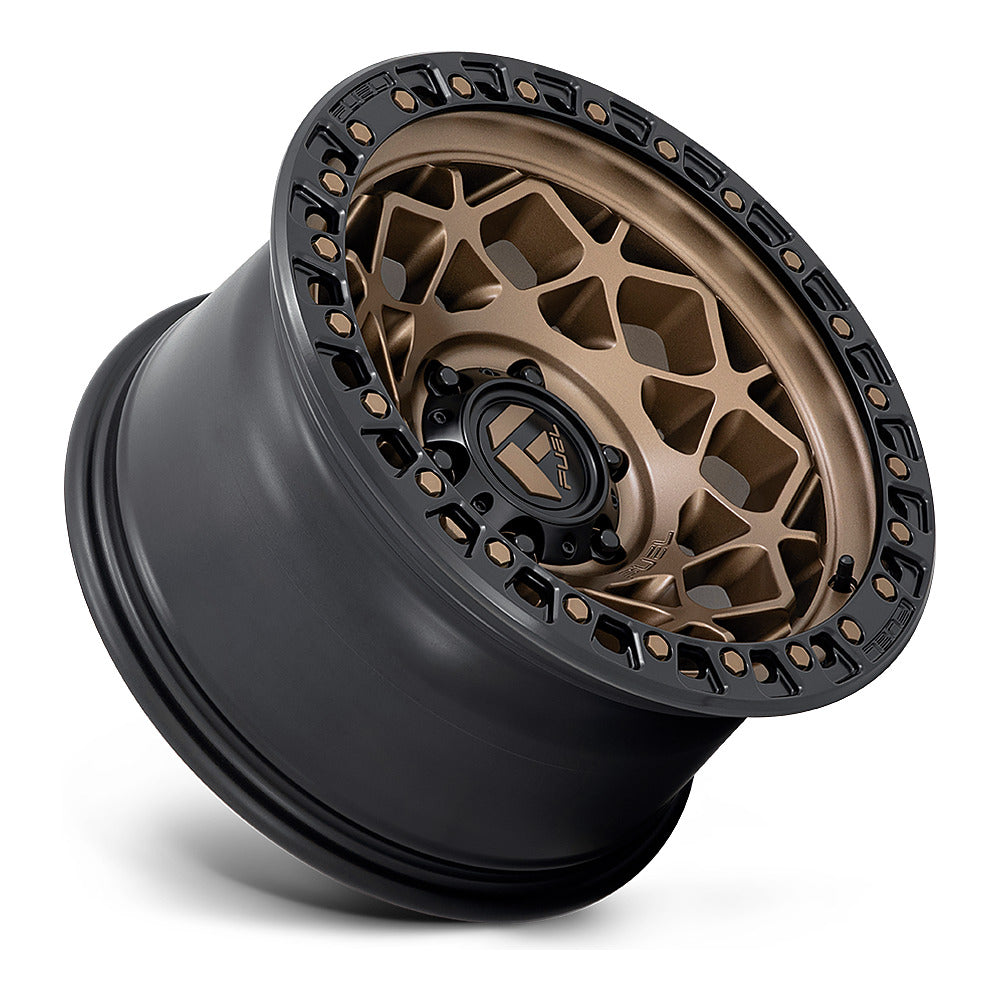

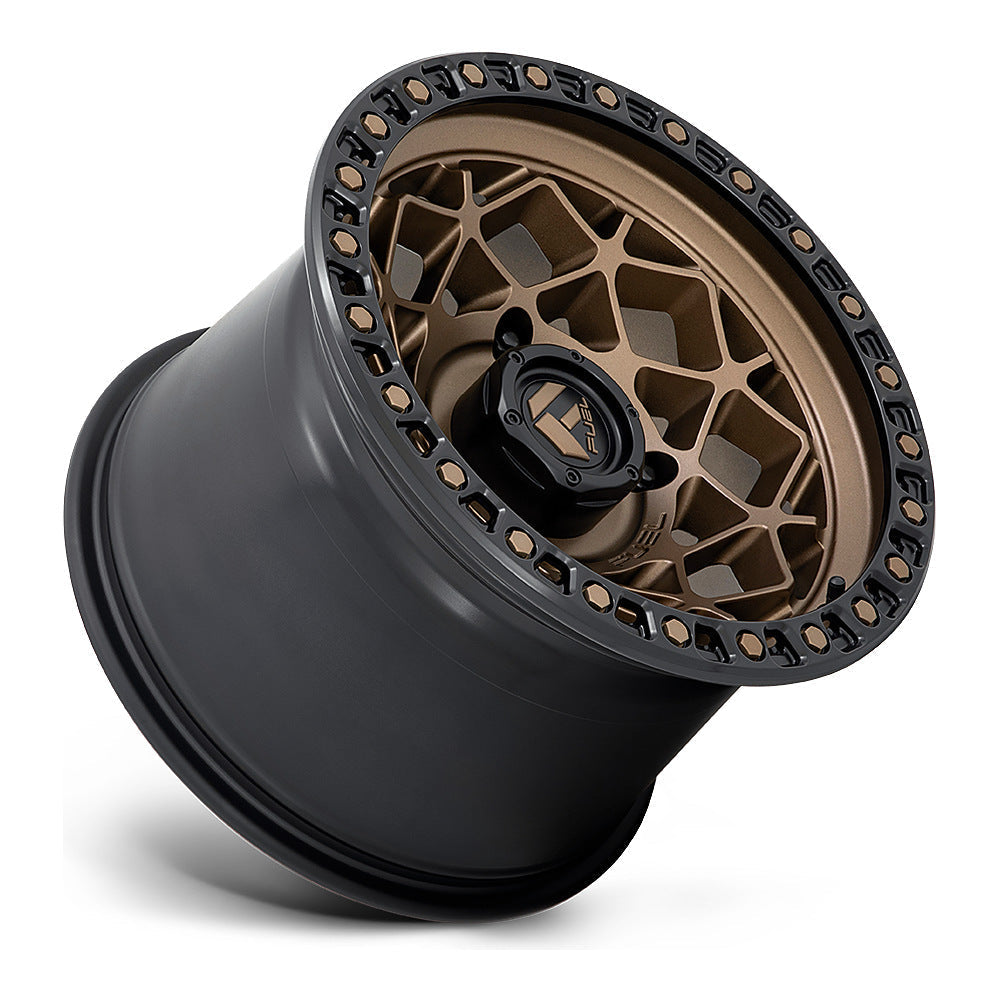

Fuel Unit D785 UTV wheel in bronze with matte black ring, side angle showing the barrel and lip

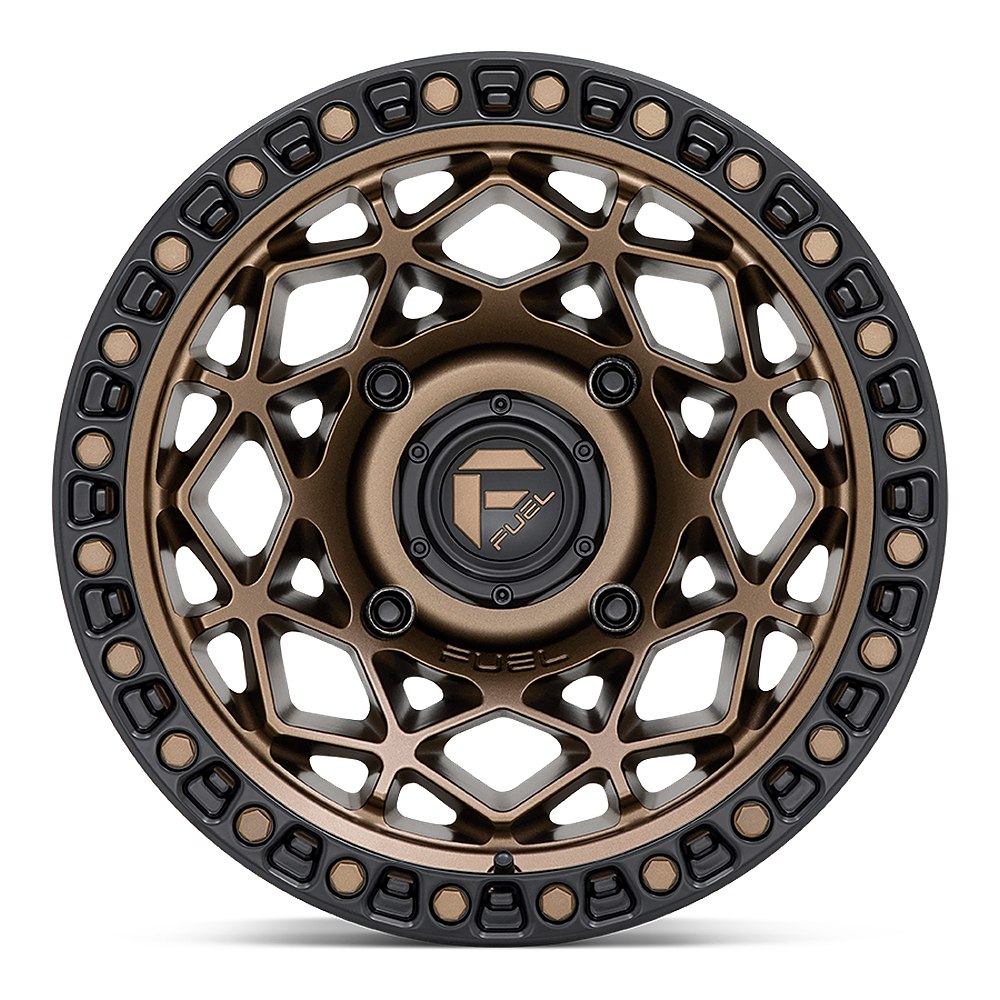

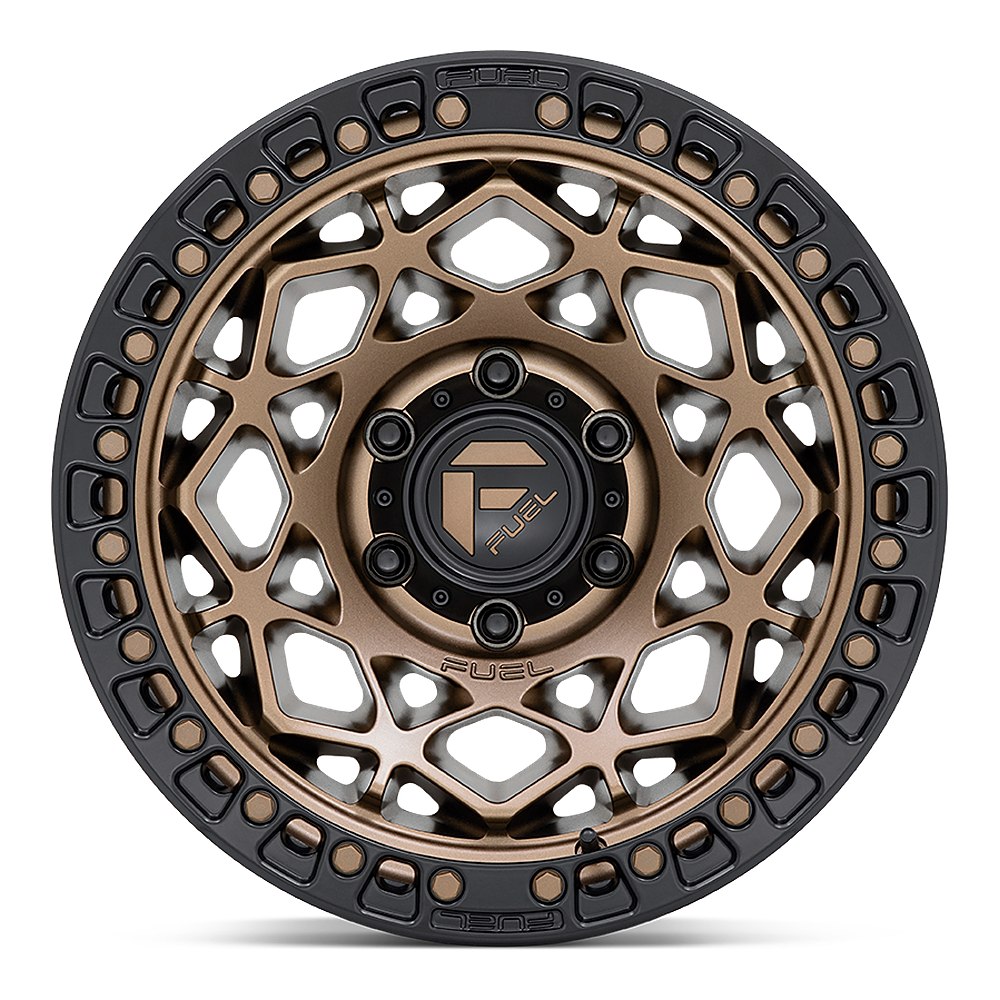

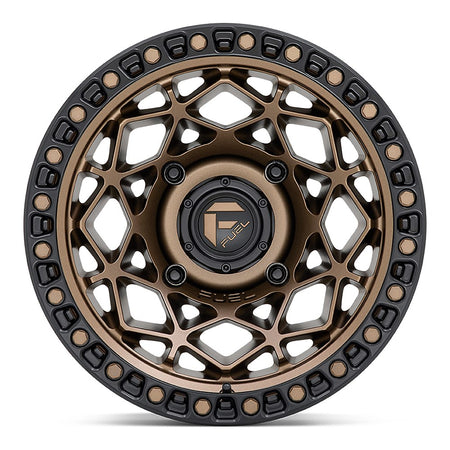

Fuel Unit D785 UTV wheel in bronze with matte black ring, straight-on face view

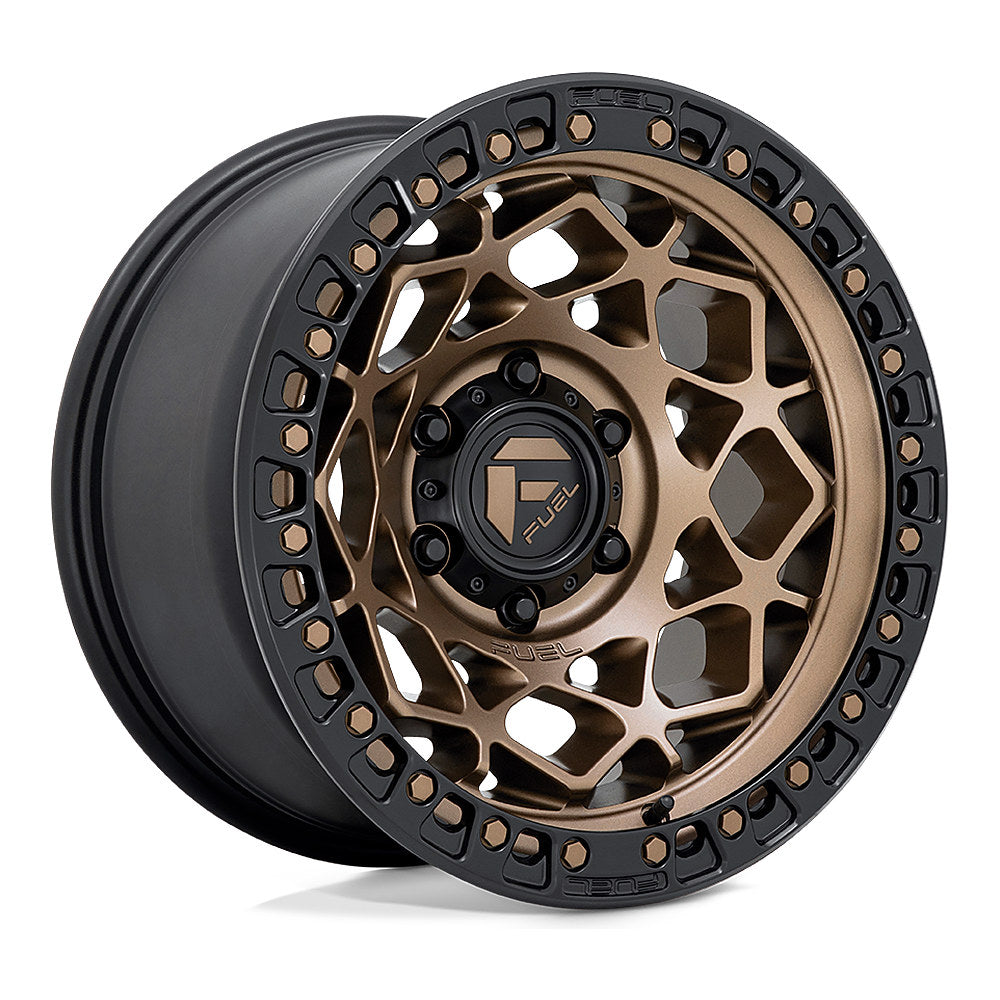

Fuel Unit D785 UTV wheel in bronze with matte black ring, angled front view, 15x7

Fuel UTV

Fuel Unit (D783 / D784 / D785) UTV Wheel

$232.00 – $237.00

Wheel Color: Gunmetal w/ Matte Black Ring | Matte Black w/ Gunmetal Ring | Bronze w/ Matte Black Ring
Size: 15x7 | 15x10
Bolt Pattern: 4/137 | 4/156
Offset: +10 mm | 0 mm
Wheel Type: Standard

Many short, interlocking spokes form the mesh face of the Fuel Unit, and a simulated beadlock ring with bolt heads frames the edge. It is a one-piece cast wheel, so you get the beadlock look with normal tire mounting and no ring bolts to check.

Three two-tone finishes are offered: gunmetal with a matte black ring (D784), matte black with a gunmetal ring (D783), and bronze with a matte black ring (D785).

Every Unit is a 15-inch wheel. The 15x7 runs +10mm with 4.39" of backspacing and the 15x10 runs 0mm with 5.50", which places the wider wheel about 1.9" farther out and 1.1" farther in. Gunmetal and bronze come in both widths in 4x137 and 4x156; matte black is a 15x7 in 4x137 or a 15x10 in either pattern.

Fuel Unit (D783 / D784 / D785) Key Features

Interlocking Mesh: Many short spokes give the face its technical look.
Cosmetic Bolt Ring: Beadlock styling with no ring bolts to torque.
Two Widths: 15x7 at 17.4 lbs or 15x10 at 18.7 lbs.
Mix Front and Rear: Pair 15x7 fronts with 15x10 rears in the same finish for a wider rear stance.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore; 15x7, 15x10): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore; 15x7, 15x10): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Use Notes

Lug Nut Hardware: The Unit uses a conical (60° tapered) lug seat. Match your lug nuts to that seat and to your machine's thread pitch; aftermarket lug nuts are sold separately.
15x10 Clearance: Check inner clearance to your suspension and brakes before running the 10-inch width.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before riding on public roads.
Replacement Center Caps: Fuel part numbers by finish: Gunmetal w/ Matte Black Ring: 1003-42MBV; Matte Black w/ Gunmetal Ring: 1003-42MBV; Bronze w/ Matte Black Ring: 1003-42MBZ.
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Unit (D783 / D784 / D785) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
Gunmetal w/ Matte Black Ring	15x7	D7841570A643	194933187096	Cast Aluminum	4/137	+10mm	4.39	110.10	17.40	1,000 lbs	1.50	1003-42MBV
Gunmetal w/ Matte Black Ring	15x7	D7841570A543	194933187102	Cast Aluminum	4/156	+10mm	4.39	132.00	17.40	1,000 lbs	1.50	1003-42MBV
Gunmetal w/ Matte Black Ring	15x10	D7841500A655	194933151929	Cast Aluminum	4/137	0mm	5.50	110.10	18.70	1,000 lbs	1.93	1003-42MBV
Gunmetal w/ Matte Black Ring	15x10	D7841500A555	194933151936	Cast Aluminum	4/156	0mm	5.50	132.00	18.70	1,000 lbs	1.93	1003-42MBV
Matte Black w/ Gunmetal Ring	15x7	D7831570A643	194933187119	Cast Aluminum	4/137	+10mm	4.39	110.10	17.40	1,000 lbs	1.50	1003-42MBV
Matte Black w/ Gunmetal Ring	15x10	D7831500A655	194933151943	Cast Aluminum	4/137	0mm	5.50	110.10	18.70	1,000 lbs	1.93	1003-42MBV
Matte Black w/ Gunmetal Ring	15x10	D7831500A555	194933151950	Cast Aluminum	4/156	0mm	5.50	132.00	18.70	1,000 lbs	1.93	1003-42MBV
Bronze w/ Matte Black Ring	15x7	D7851570A643	194933187072	Cast Aluminum	4/137	+10mm	4.39	110.10	17.40	1,000 lbs	1.50	1003-42MBZ
Bronze w/ Matte Black Ring	15x7	D7851570A543	194933187089	Cast Aluminum	4/156	+10mm	4.39	132.00	17.40	1,000 lbs	1.50	1003-42MBZ
Bronze w/ Matte Black Ring	15x10	D7851500A655	194933151905	Cast Aluminum	4/137	0mm	5.50	110.10	18.70	1,000 lbs	1.93	1003-42MBZ
Bronze w/ Matte Black Ring	15x10	D7851500A555	194933151912	Cast Aluminum	4/156	0mm	5.50	132.00	18.70	1,000 lbs	1.93	1003-42MBZ
