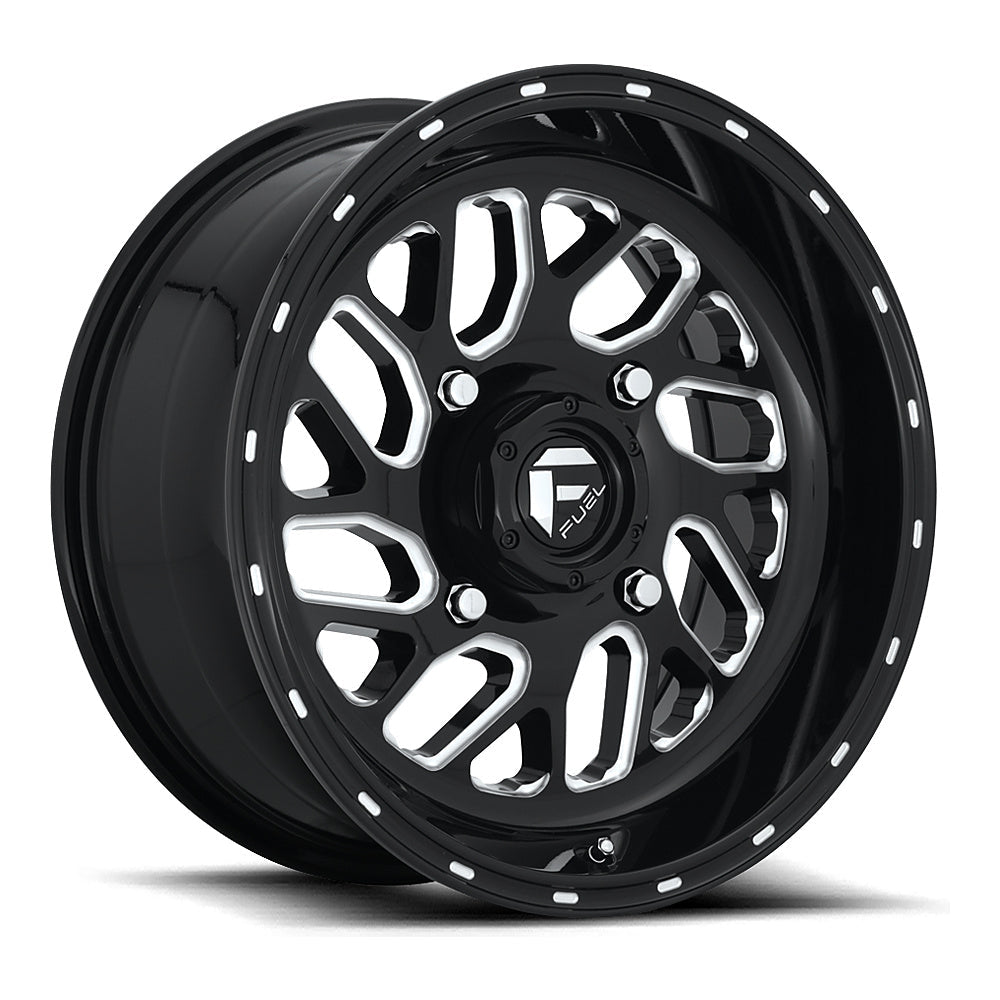

Fuel Triton D581 UTV wheel in gloss black milled, angled front view, 16x7

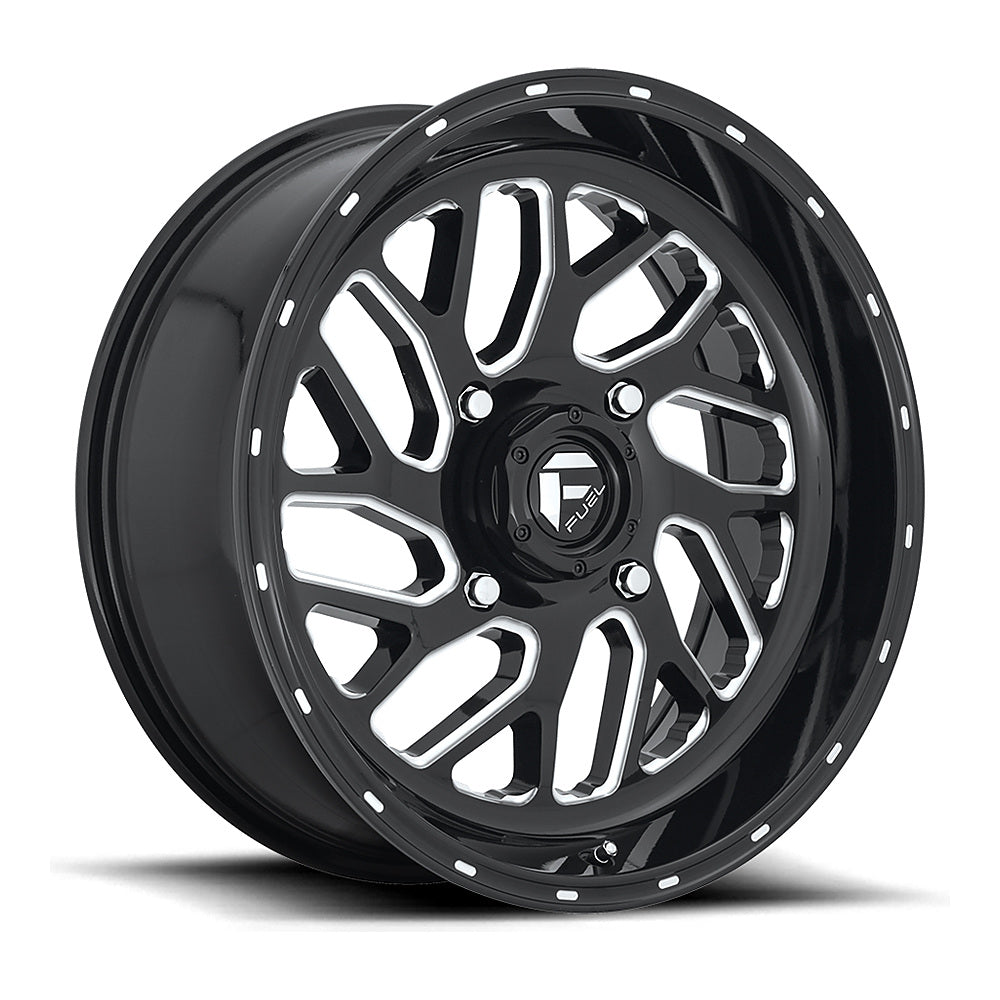

Fuel Triton D581 UTV wheel in gloss black milled, angled front view, 18x7

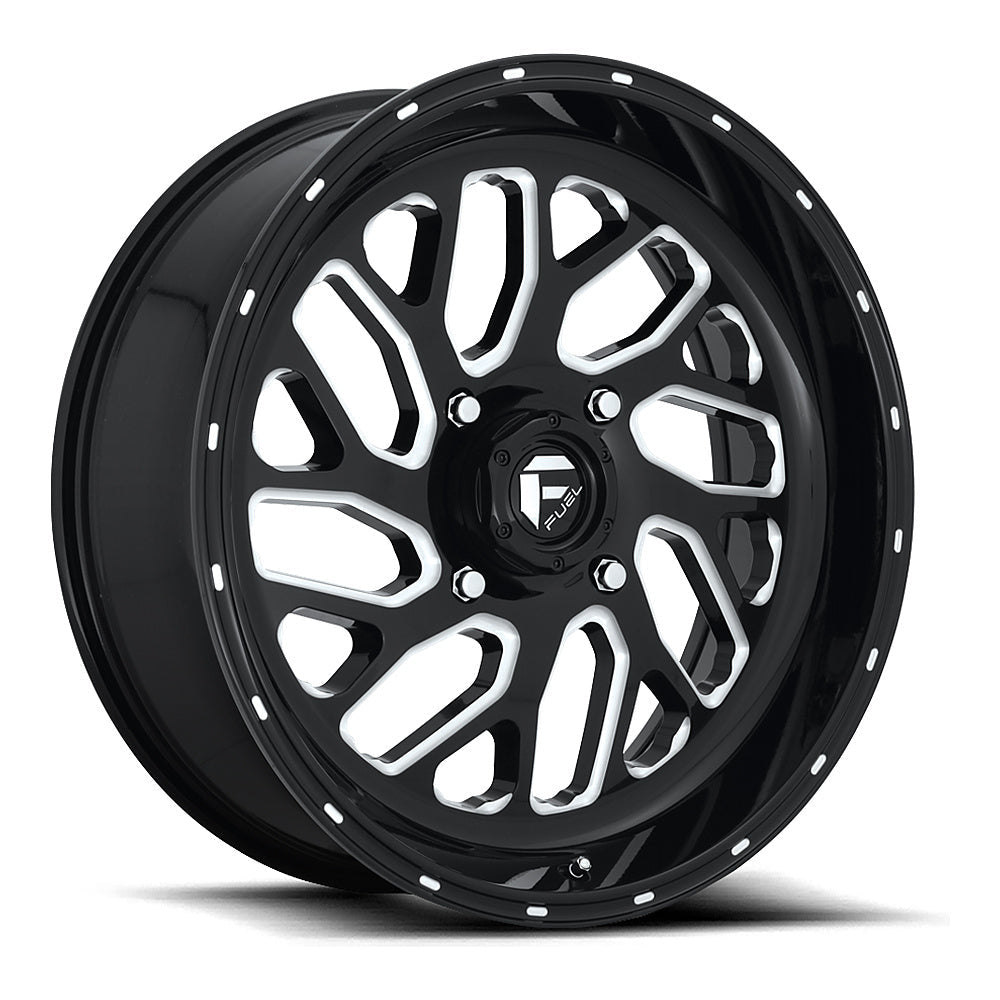

Fuel Triton D581 UTV wheel in gloss black milled, angled front view, 20x7

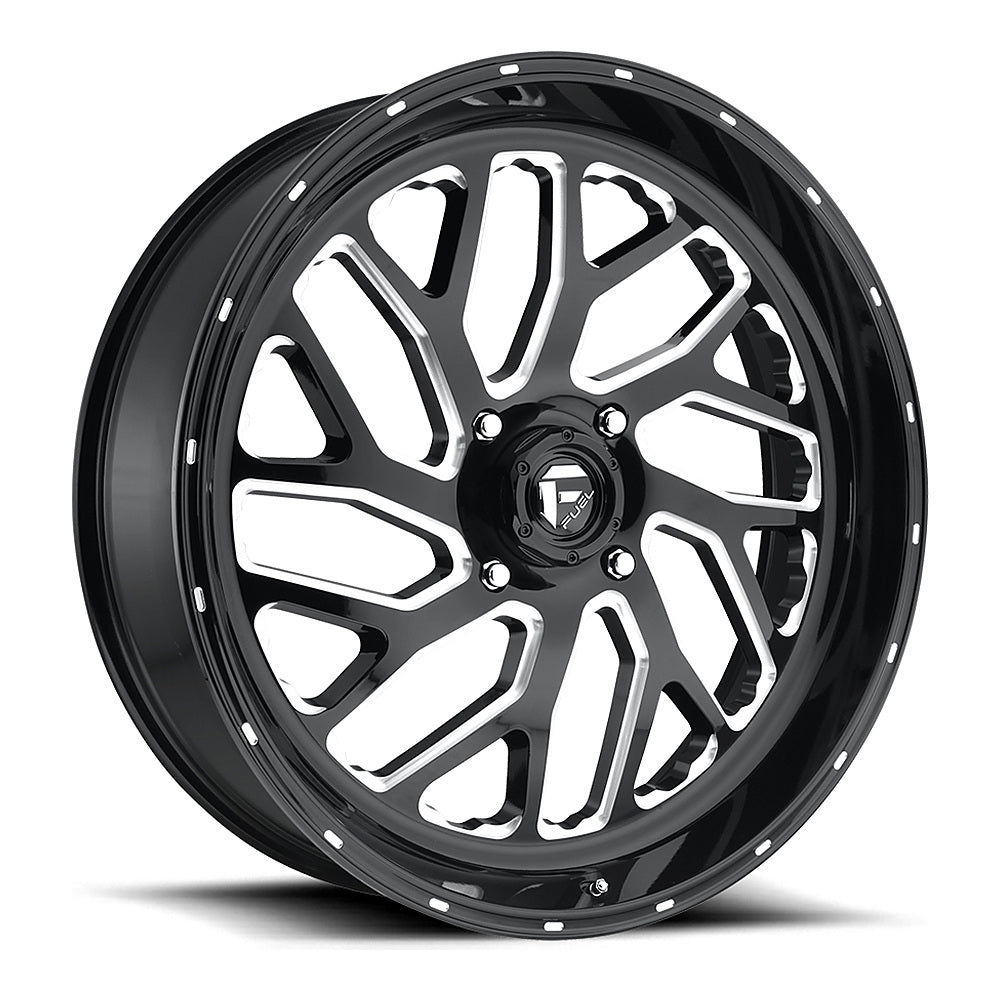

Fuel Triton D581 UTV wheel in gloss black milled, angled front view, 24x7

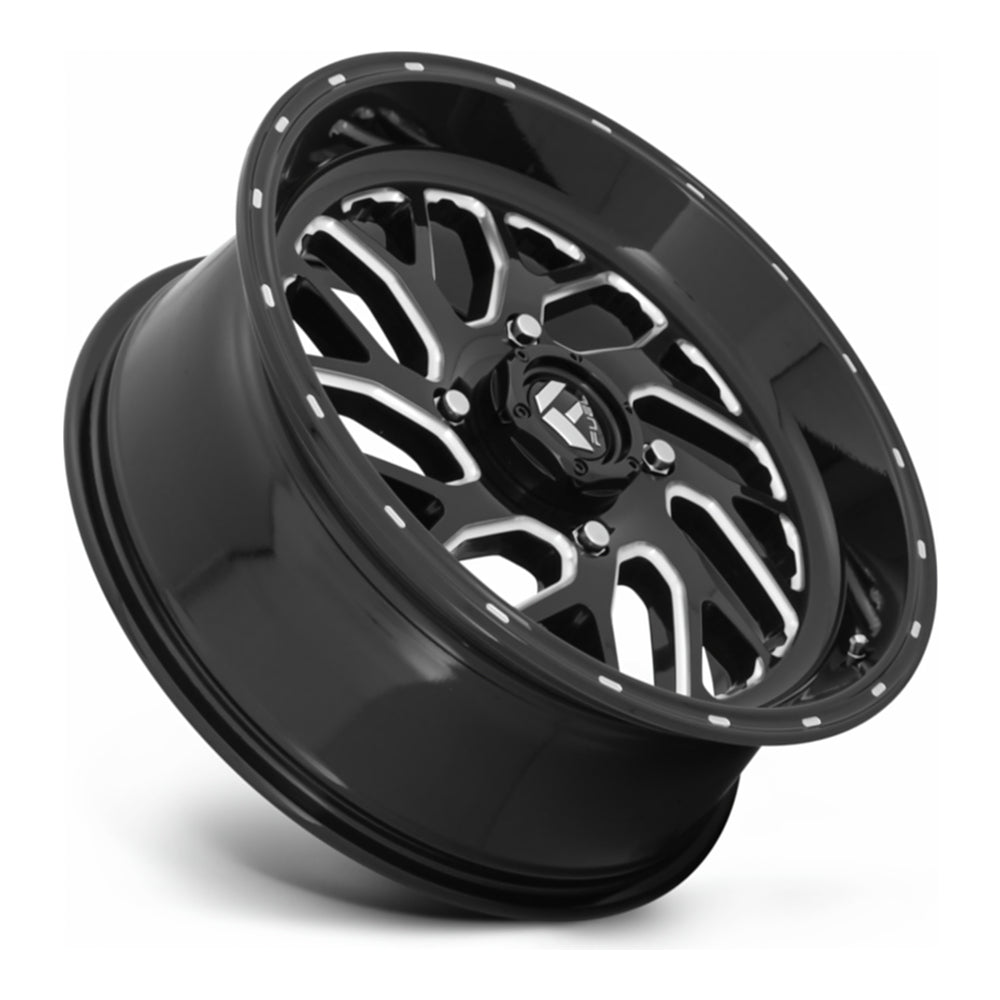

Fuel Triton D581 UTV wheel in gloss black milled, side angle showing the barrel and lip

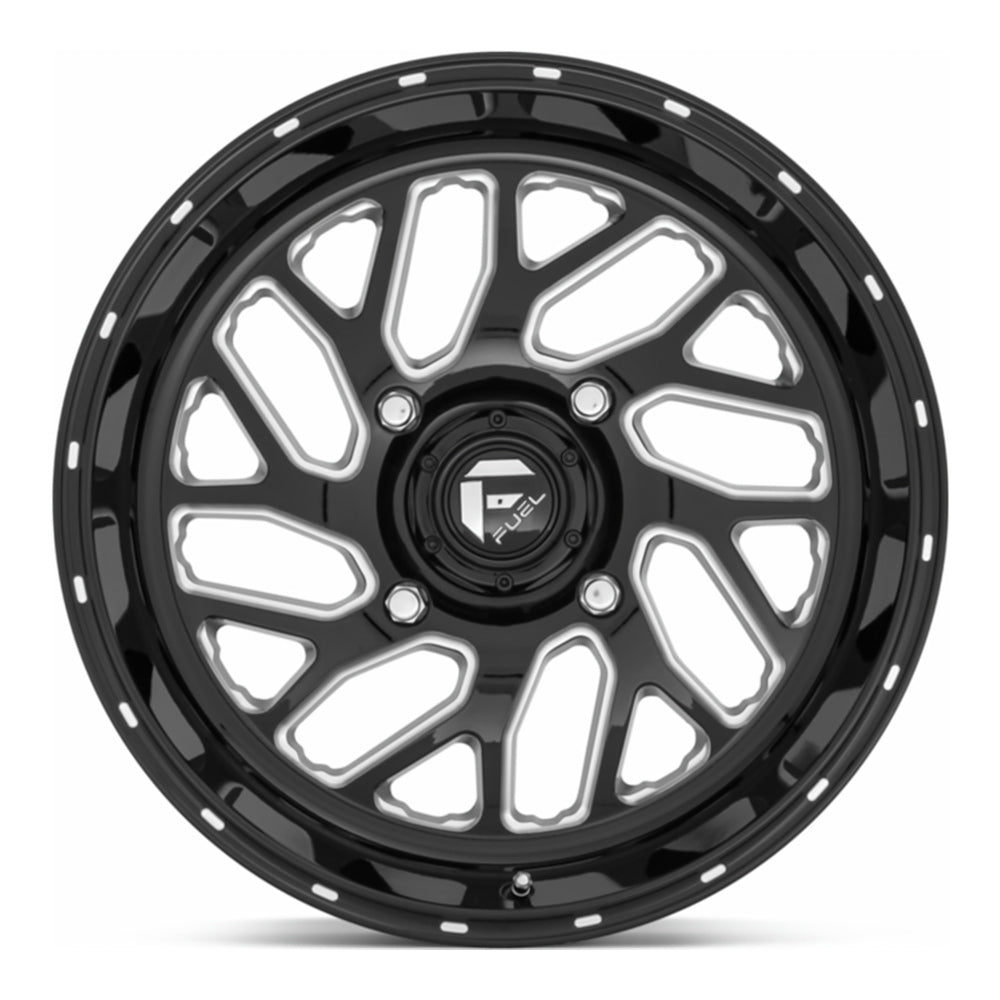

Fuel Triton D581 UTV wheel in gloss black milled, straight-on face view

Fuel UTV

Fuel Triton (D581) UTV Wheel - Gloss Black Milled

$286.00 – $489.00

Wheel Size: 16x7 | 18x7 | 20x7 | 24x7
Bolt Pattern: 4/137 | 4/156
Offset: +13 mm
Wheel Type: Standard

Swept spokes, milled accents, and a deep lip are the design cues that made Fuel famous, and the Triton puts all three into a gloss black UTV wheel.

It's offered here in 16", 18", 20", and 24" diameters with a 7" width and +13mm offset, making it a strong fit for riders who want a larger-diameter look on Can-Am, Polaris, Honda, Kawasaki, or Yamaha machines.

Fuel Triton (D581) Key Features

Deep Lip, Swept Spokes: A 2.22" to 2.26" lip (depending on size) gives the Triton a stepped, dimensional face, and the spokes curve toward the rim for a sense of motion.
Diameter vs. Ride: The 16" keeps a usable sidewall for mixed terrain. The 18" and 20" step into low-profile tires, and the 24" is built for street-legal and show-focused builds where a short, stiff sidewall is acceptable.
Weight by Size: 18 lbs (16x7), 22 lbs (18x7), 26 lbs (20x7), and 32 lbs (24x7). Heavier wheel and tire packages may call for clutch tuning to keep acceleration crisp.
Gloss Black Milled: Gloss is easy to wipe clean but shows swirl marks, so use a soft mitt and pH-neutral soap. Backed by a one-year manufacturer finish warranty.
Load Rating: 1,000 lbs per wheel, with a lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Triton (D581) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore) – 16x7, 18x7, 20x7, and 24x7: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore) – 16x7 and 24x7: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
Center Cap: Replacement center cap is Fuel part number 1003-42GB.
Clearance Check: Larger wheel and tire packages change your overall tire height. Before ordering tires, confirm they clear your fenders, suspension, and frame at full steering lock and full suspension compression.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before operating on public roads.

Fuel Triton (D581) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
16x7	D5811670A644	885463811635	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	18.00	1,000 lbs	2.22	1003-42GB
16x7	D5811670A544	885463811642	Gloss Black Milled	Cast Aluminum	4/156	+13mm	4.51	132.00	18.00	1,000 lbs	2.22	1003-42GB
18x7	D5811870A644	885463811611	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	22.00	1,000 lbs	2.22	1003-42GB
20x7	D5812070A644	885463811598	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	26.00	1,000 lbs	2.26	1003-42GB
24x7	D5812470A644	885463811550	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	32.00	1,000 lbs	2.26	1003-42GB
24x7	D5812470A544	885463811567	Gloss Black Milled	Cast Aluminum	4/156	+13mm	4.51	132.00	32.00	1,000 lbs	2.26	1003-42GB
