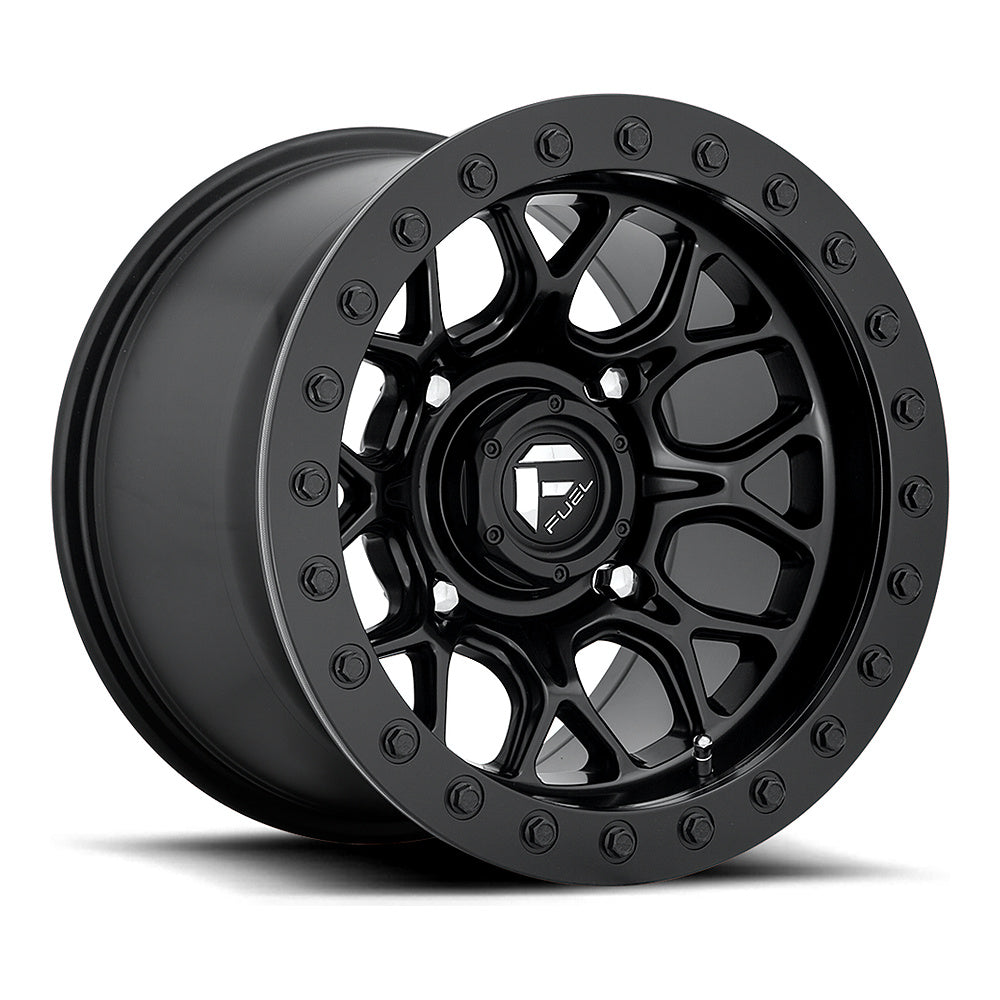

Fuel Tech Beadlock D916 UTV wheel in matte black, angled front view

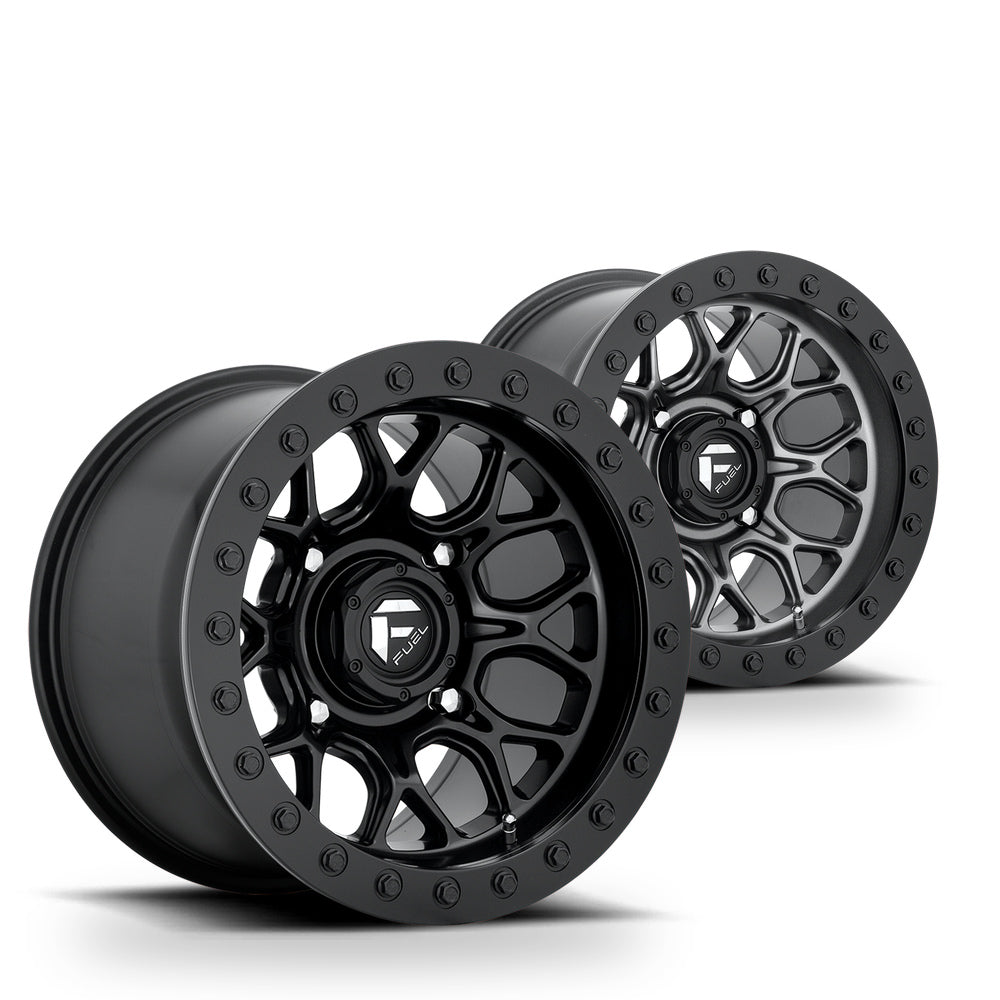

Fuel Tech Beadlock (D916 / D919) UTV wheel in every finish: matte black and matte gunmetal with black bead ring

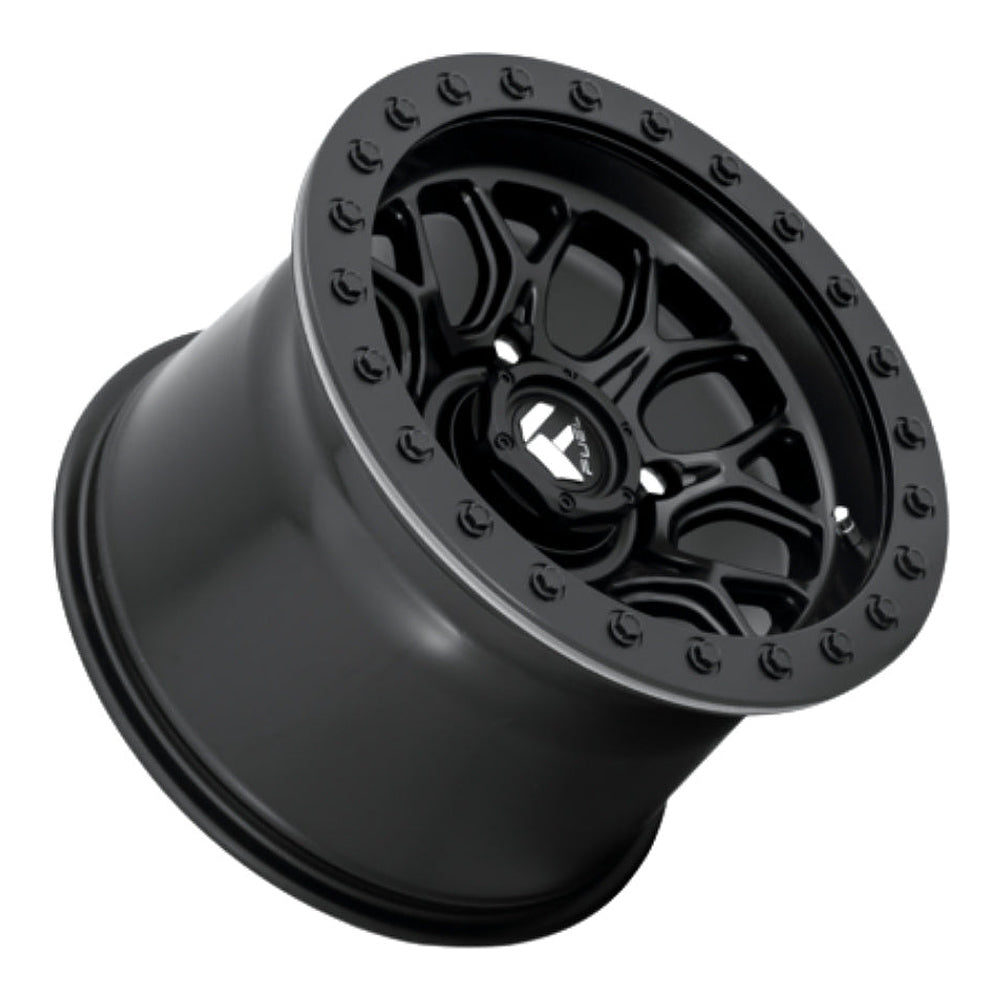

Fuel Tech Beadlock D916 UTV wheel in matte black, side angle showing the barrel and lip

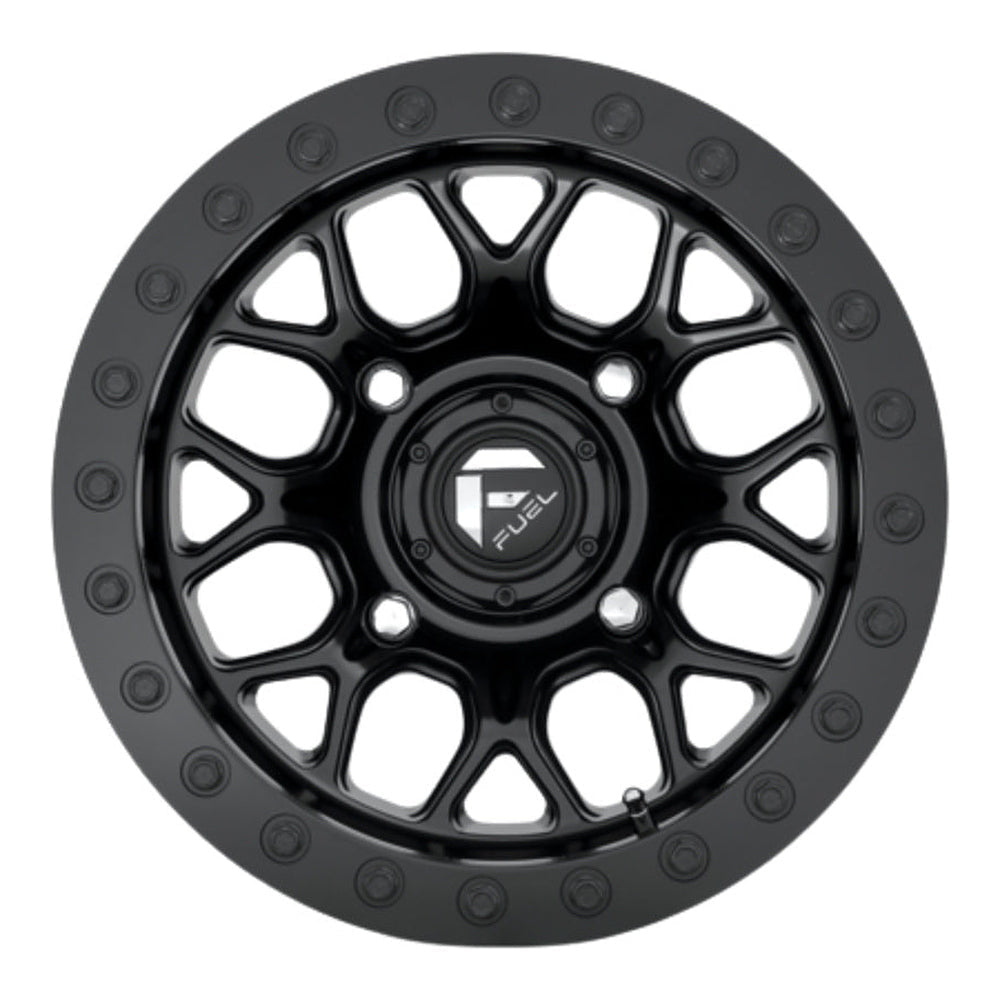

Fuel Tech Beadlock D916 UTV wheel in matte black, straight-on face view

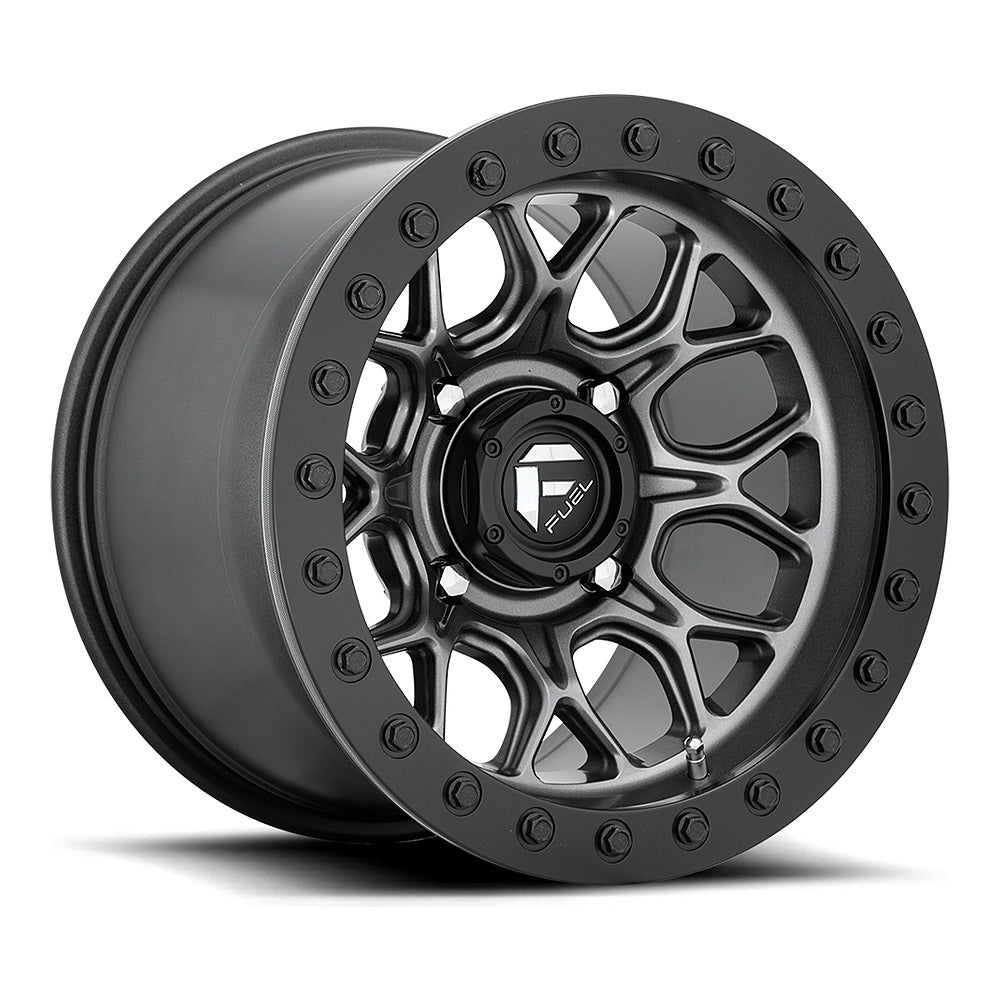

Fuel Tech Beadlock D919 UTV wheel in matte gunmetal with black bead ring, angled front view

Fuel UTV

Fuel Tech Beadlock (D916 / D919) UTV Wheel

$374.00 – $397.00

Wheel Color: Matte Black | Matte Gunmetal w/ Black Bead Ring
Size: 15x7 | 15x10
Bolt Pattern: 4/137 | 4/156
Offset: +38 mm | 0 mm
Wheel Type: Beadlock

Split spokes and a bolted beadlock ring make the Fuel Tech Beadlock a wheel built for running very low tire pressure. The ring clamps the outer bead, so the tire stays seated in deep sand, rock gardens and thick mud.

The D916 is matte black from hub to ring for a blacked-out look. The D919 pairs a matte gunmetal face with a black ring, which shows the spoke shape more clearly.

Both finishes share the same four fitments: a 15x7 at +38mm and a 15x10 at 0mm, each in 4x137 and 4x156, all with 5.50" of backspacing. The 15x7 weighs 19 lbs and the 15x10 weighs 21 lbs, and every size is rated to 1,000 lbs and sold for off-road use only.

Fuel Tech Beadlock (D916 / D919) Key Features

Bolted Beadlock: Locks the outer bead so low pressures won't let the tire slip on the rim.
Same Backspacing, Two Widths: 5.50" on both, so the 15x10's extra width extends outward.
Same Ring Parts Throughout: Every Tech size uses ring bolt kit BOLTS-UTV15 and replacement ring 24240-21MB.
Two Dark Finishes: All matte black, or matte gunmetal inside a black ring.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore; 15x7, 15x10): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore; 15x7, 15x10): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Off-Road Use Only: True beadlock wheels are sold for off-road use only and are illegal on public roads in many states and provinces. It is the buyer's responsibility to check state and local laws.
Beadlock Maintenance: Torque the ring bolts to Fuel's specification when mounting, then recheck them after the first few rides and after any hard hit. Mounting takes longer than a standard wheel, so use a shop that knows beadlocks if you aren't set up for it.
Lug Nut Hardware: The Tech has recessed lug pockets, and factory lug nuts typically will not fit. Plan on aftermarket splined or tapered lug nuts matched to your machine's thread pitch (sold separately).
Replacement Center Caps: Fuel part number for every finish: 1003-42MB.
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Tech Beadlock (D916 / D919) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap	Ring Bolts	Ring Part No.
Matte Black	15x7	D9161570A654	885463811000	Cast Aluminum Beadlock	4/137	+38mm	5.50	110.10	19.00	1,000 lbs	0.55	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Black	15x7	D9161570A554	885463811017	Cast Aluminum Beadlock	4/156	+38mm	5.50	132.00	19.00	1,000 lbs	0.55	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Black	15x10	D9161500A654	885463811024	Cast Aluminum Beadlock	4/137	0mm	5.50	110.10	21.00	1,000 lbs	2.15	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Black	15x10	D9161500A554	885463811031	Cast Aluminum Beadlock	4/156	0mm	5.50	132.00	21.00	1,000 lbs	2.15	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Gunmetal w/ Black Bead Ring	15x7	D9191570A654	885463810805	Cast Aluminum Beadlock	4/137	+38mm	5.50	110.10	19.00	1,000 lbs	0.55	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Gunmetal w/ Black Bead Ring	15x7	D9191570A554	885463810812	Cast Aluminum Beadlock	4/156	+38mm	5.50	132.00	19.00	1,000 lbs	0.55	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Gunmetal w/ Black Bead Ring	15x10	D9191500A654	885463810829	Cast Aluminum Beadlock	4/137	0mm	5.50	110.10	21.00	1,000 lbs	2.15	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Gunmetal w/ Black Bead Ring	15x10	D9191500A554	885463810836	Cast Aluminum Beadlock	4/156	0mm	5.50	132.00	21.00	1,000 lbs	2.15	1003-42MB	BOLTS-UTV15	24240-21MB
