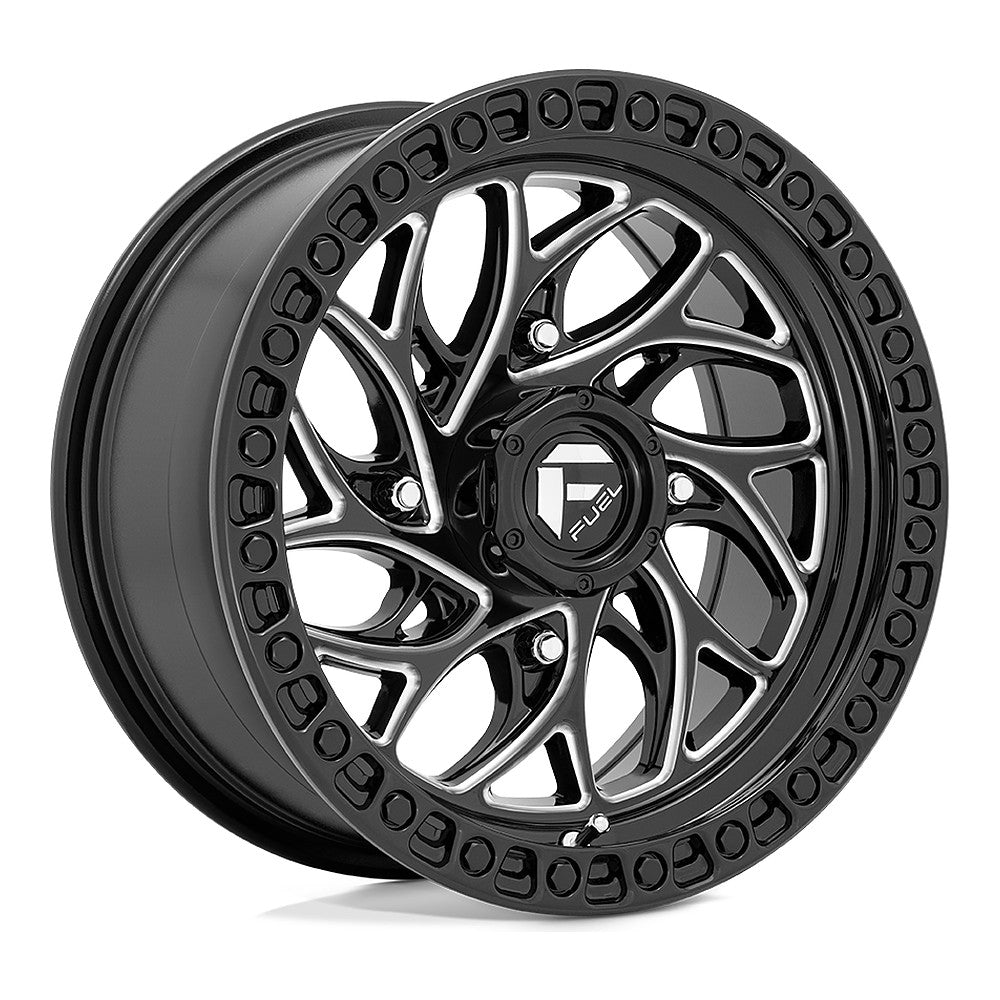

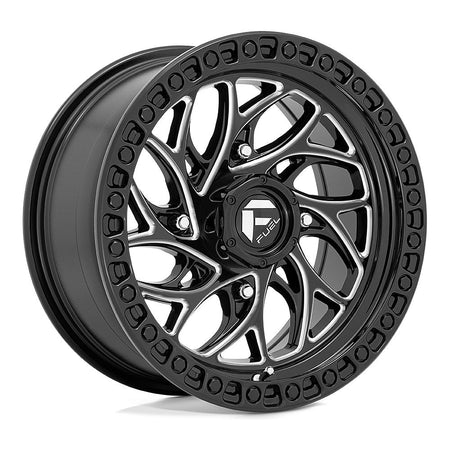

Fuel Runner D741 UTV wheel in gloss black milled, angled front view, 15x7

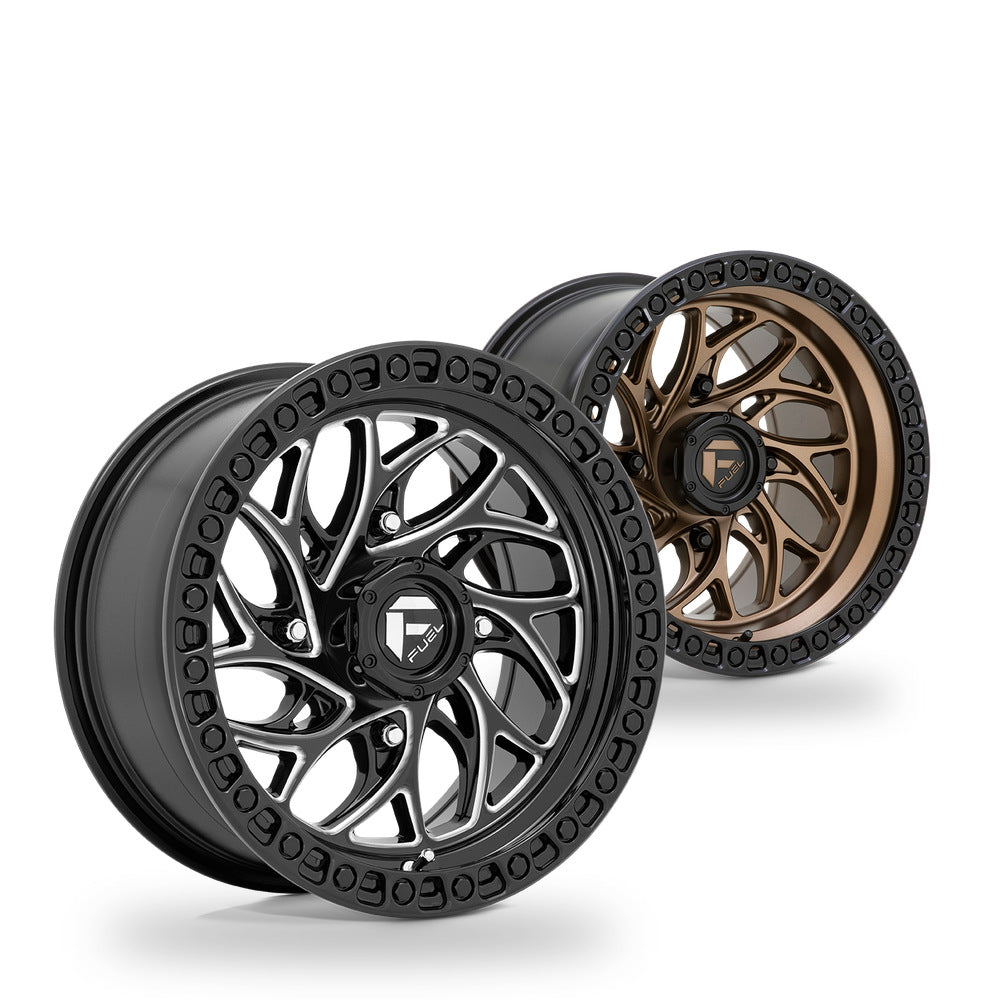

Fuel Runner (D741 / D777) UTV wheel in every finish: gloss black milled and bronze with black ring

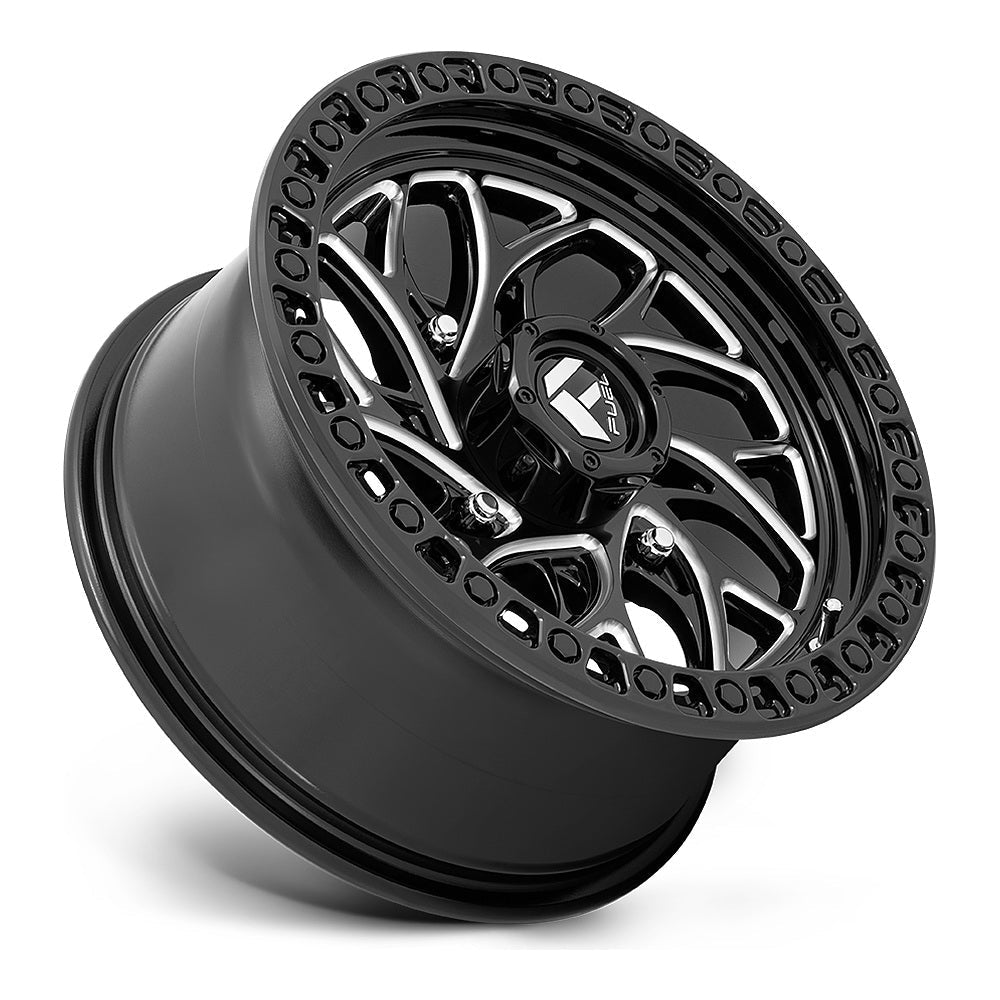

Fuel Runner D741 UTV wheel in gloss black milled, side angle showing the barrel and lip, 15x7

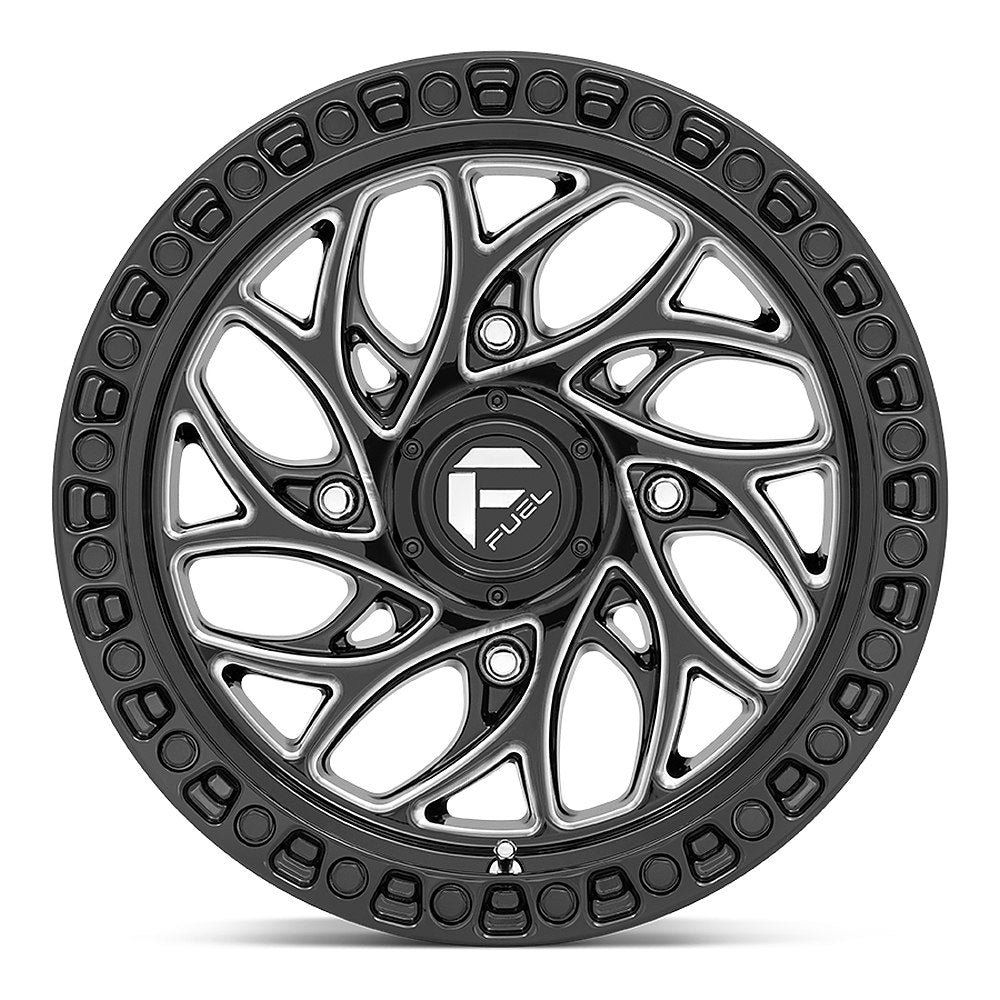

Fuel Runner D741 UTV wheel in gloss black milled, straight-on face view, 15x7

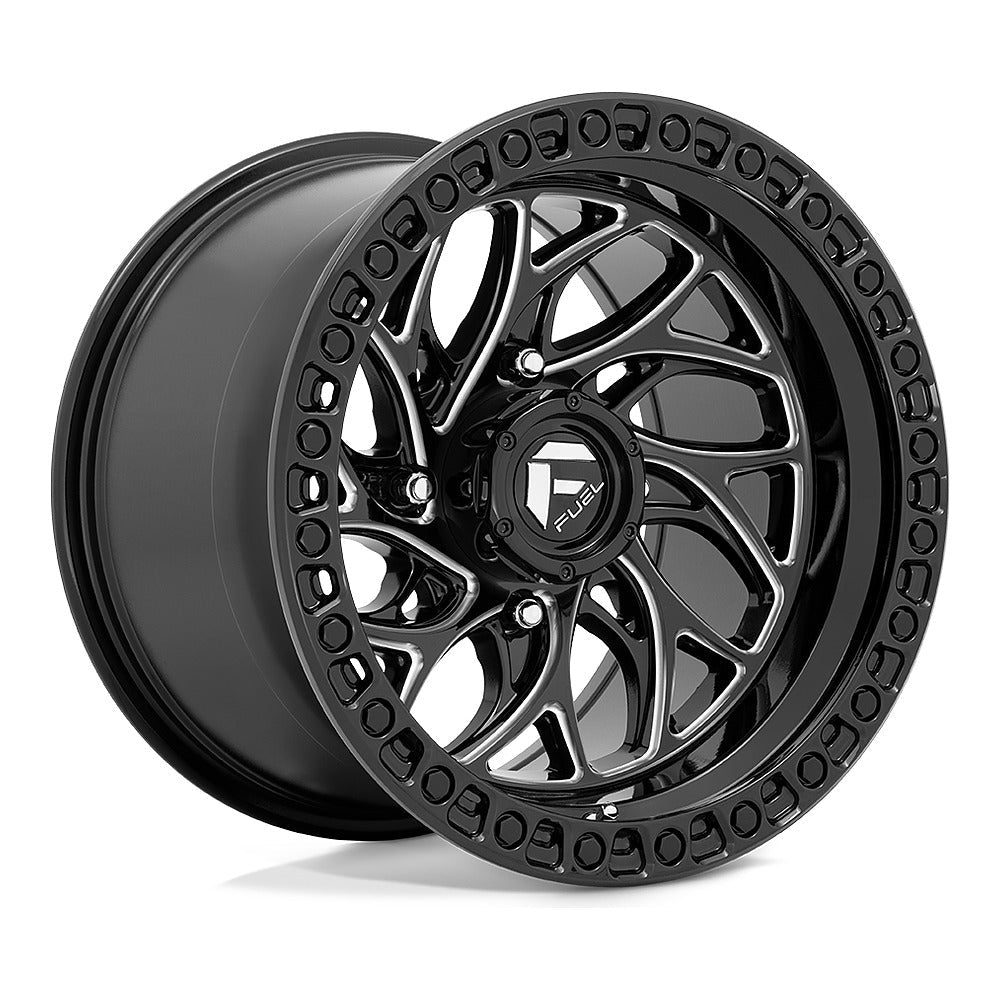

Fuel Runner D741 UTV wheel in gloss black milled, angled front view, 15x10

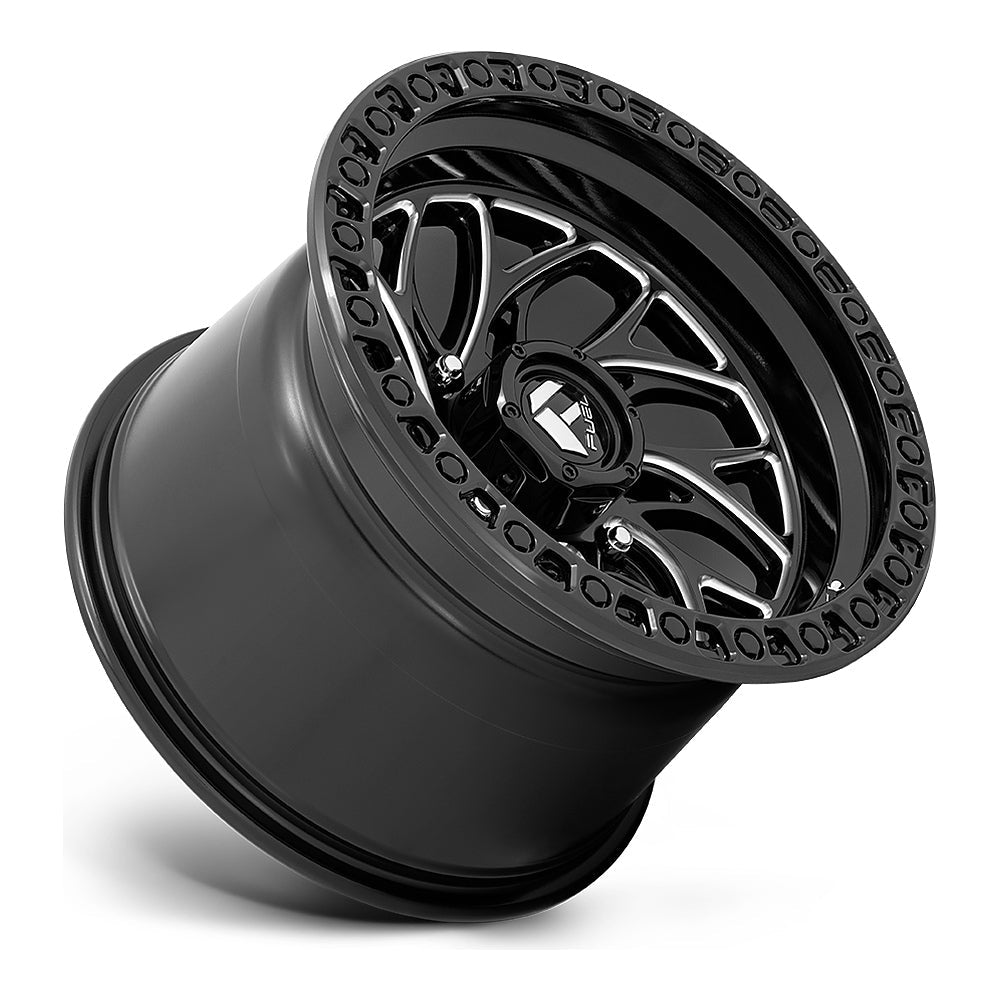

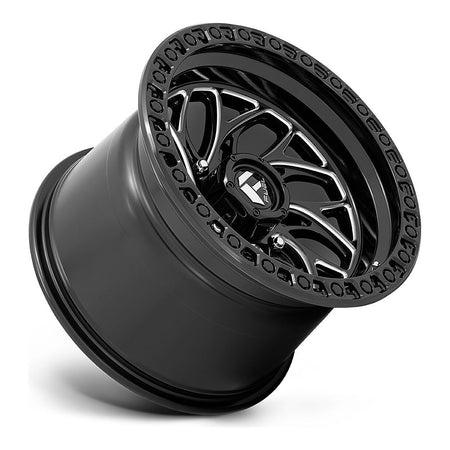

Fuel Runner D741 UTV wheel in gloss black milled, side angle showing the barrel and lip, 15x10

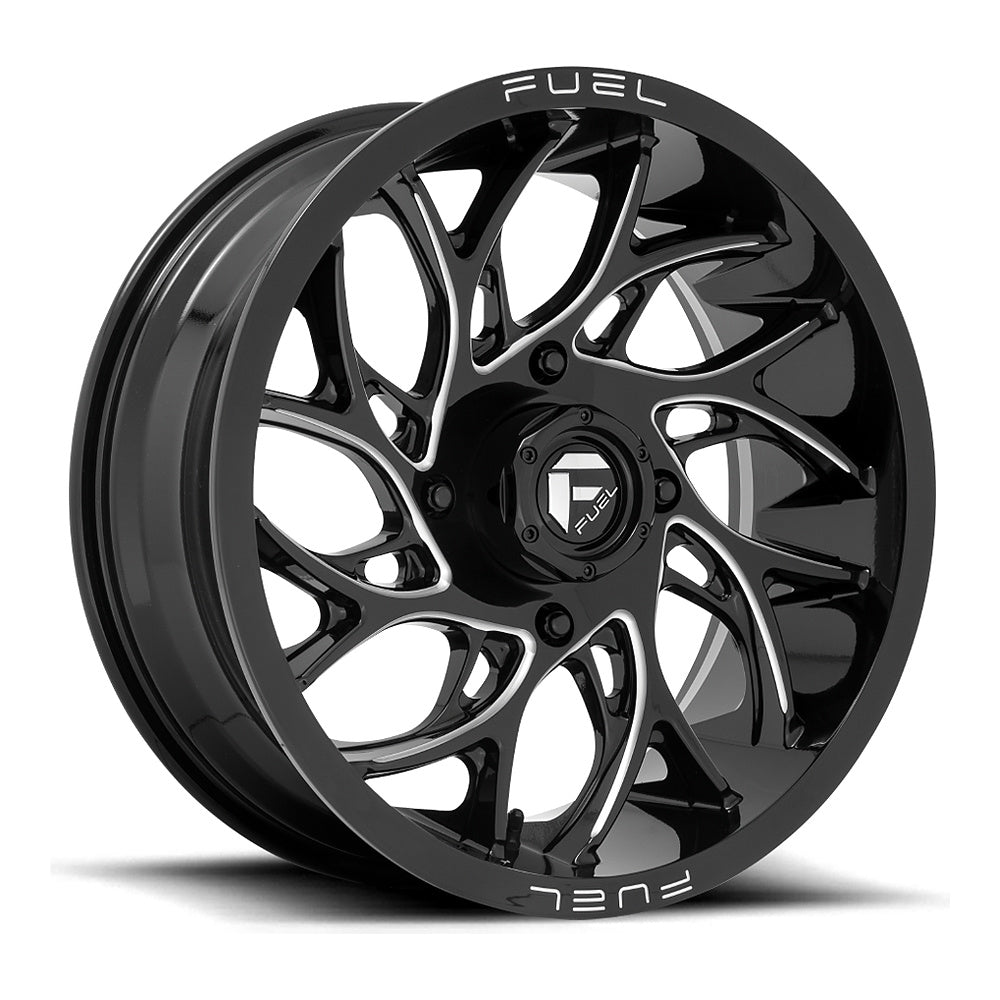

Fuel Runner D741 UTV wheel in gloss black milled, angled front view, 18x7 / 20x7 / 24x7

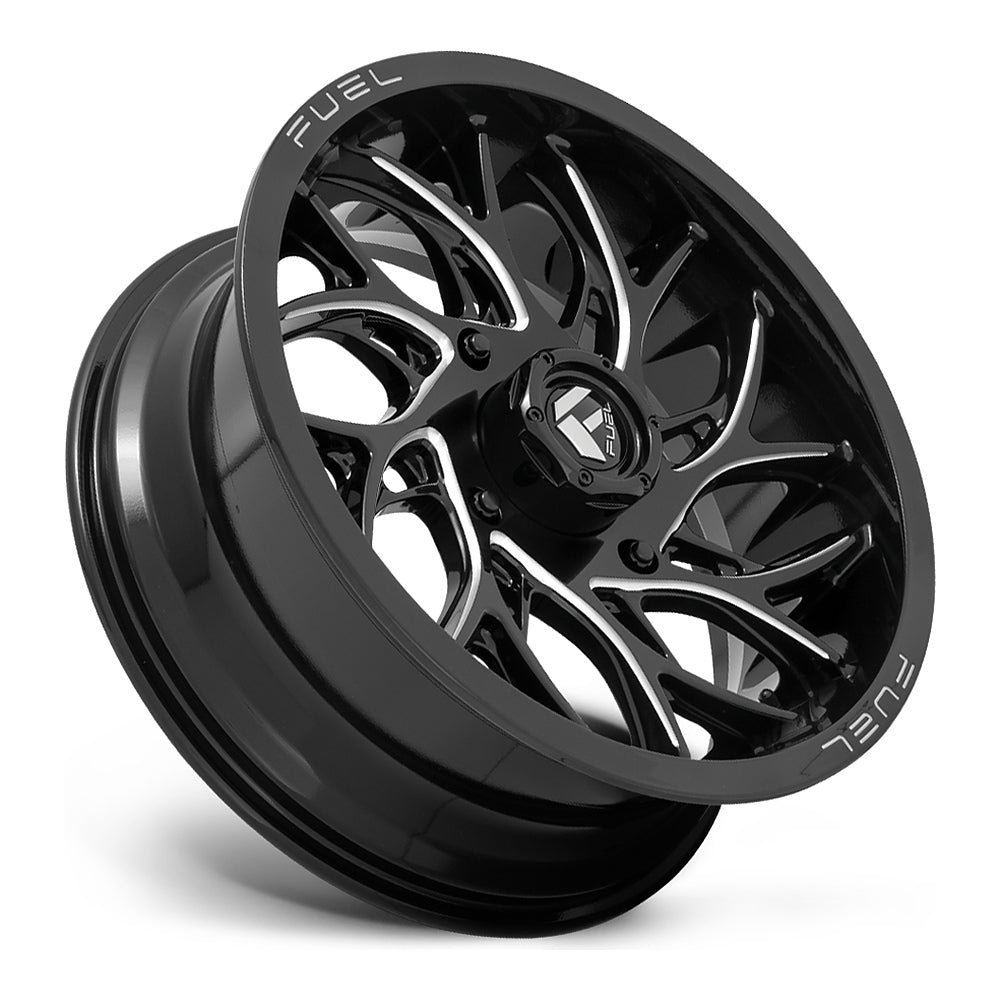

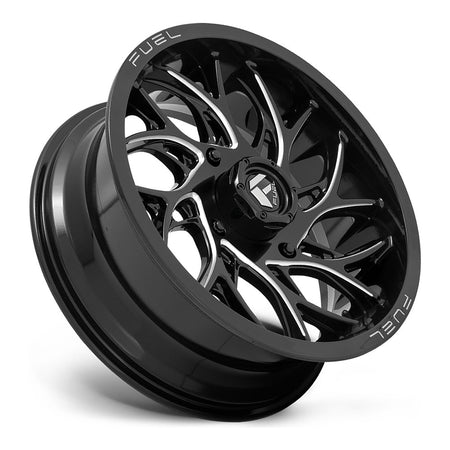

Fuel Runner D741 UTV wheel in gloss black milled, side angle showing the barrel and lip, 18x7 / 20x7 / 24x7

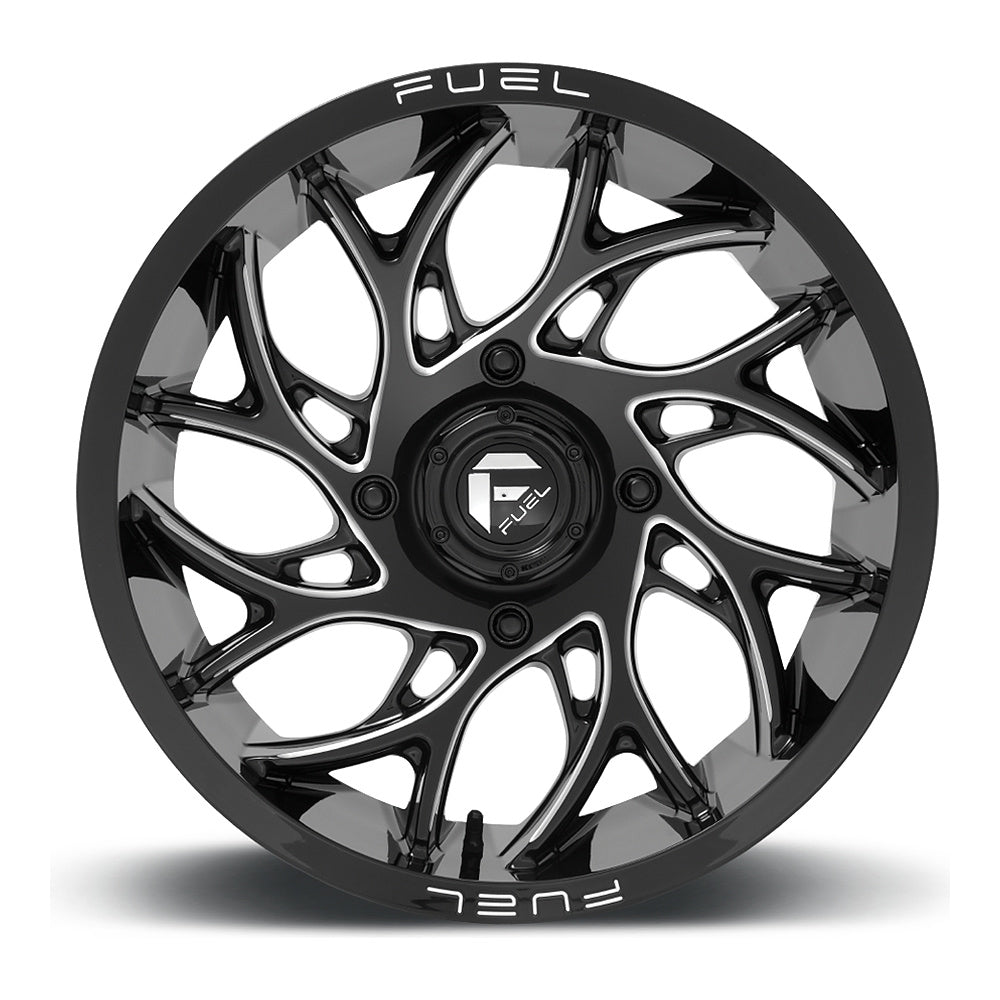

Fuel Runner D741 UTV wheel in gloss black milled, straight-on face view, 18x7 / 20x7 / 24x7

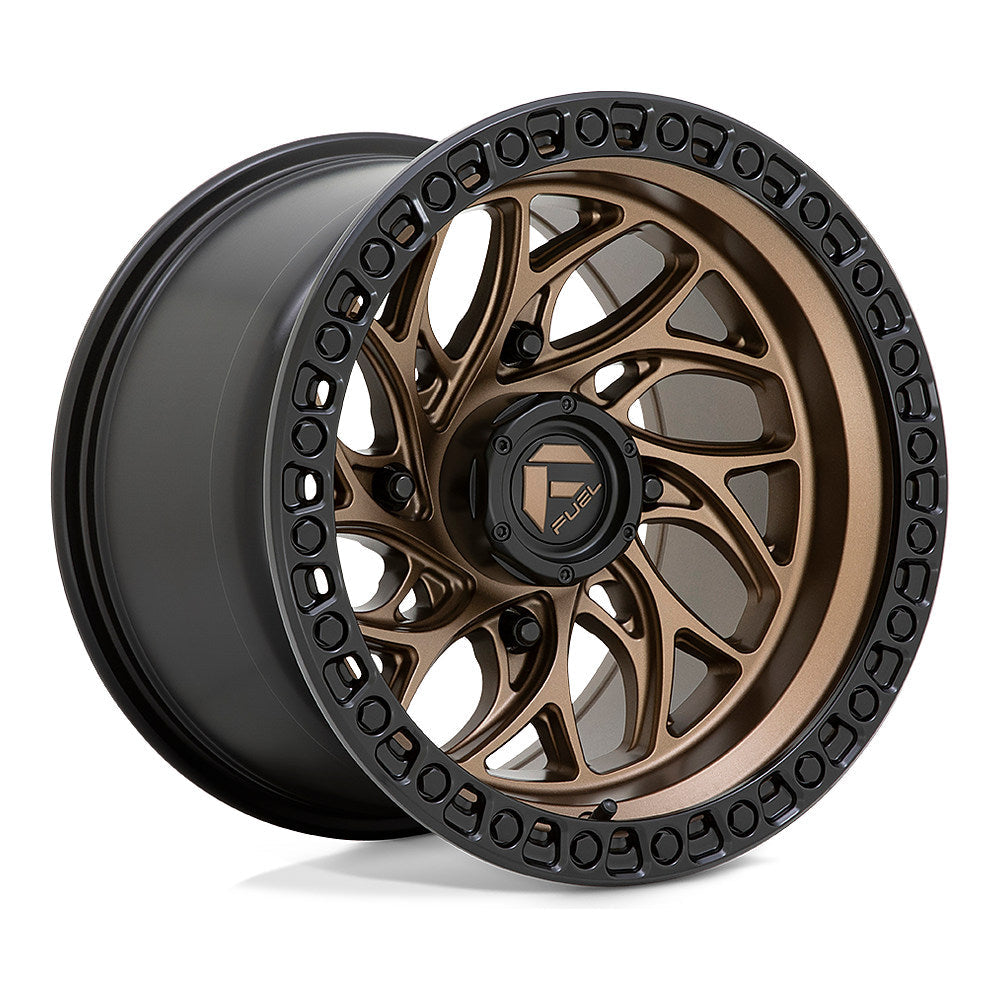

Fuel Runner D777 UTV wheel in bronze with black ring, angled front view

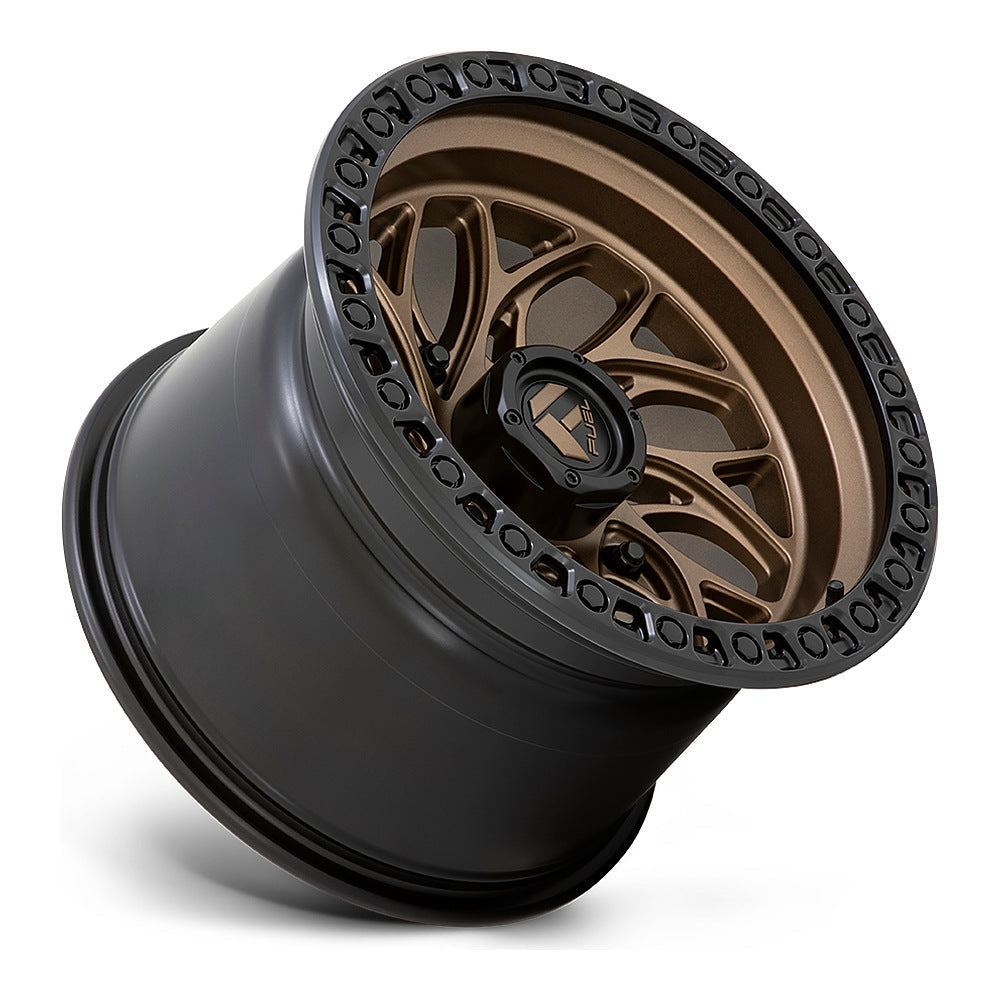

Fuel Runner D777 UTV wheel in bronze with black ring, side angle showing the barrel and lip

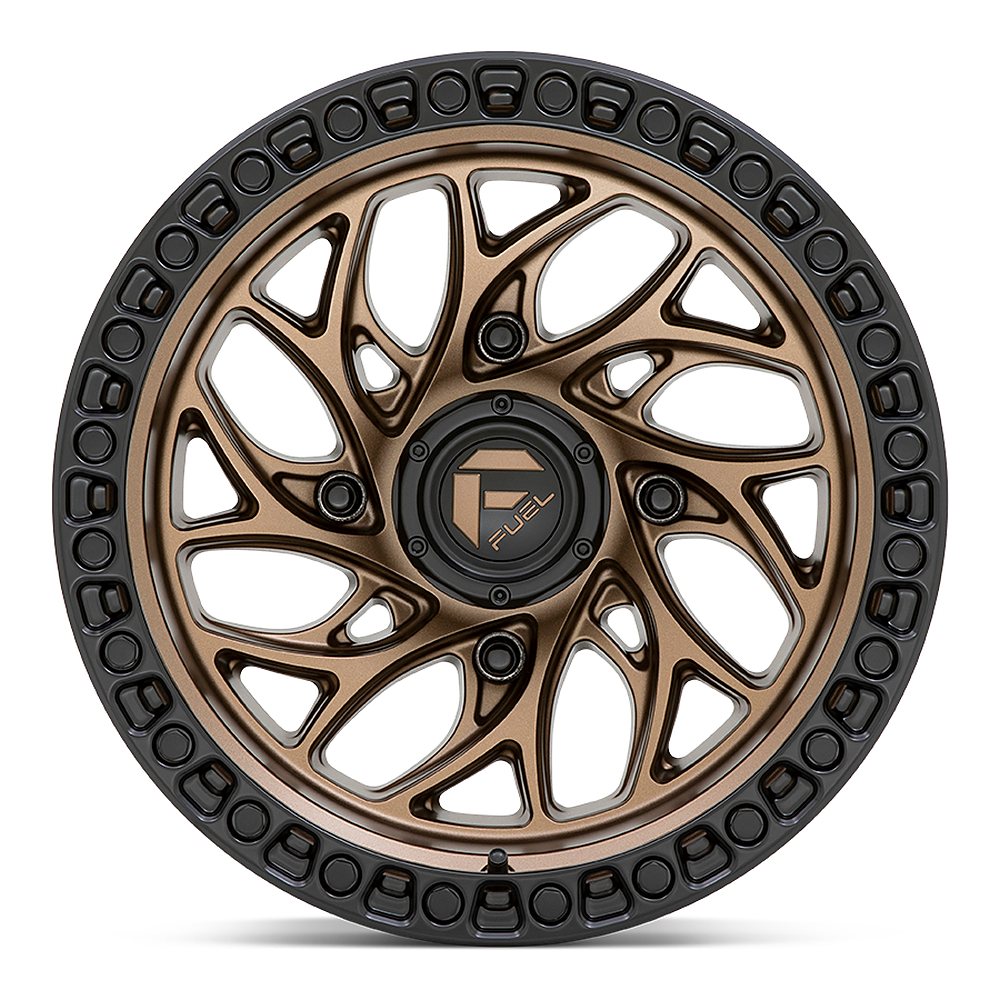

Fuel Runner D777 UTV wheel in bronze with black ring, straight-on face view

Fuel UTV

Fuel Runner (D741 / D777) UTV Wheel

$232.00 – $489.00

Wheel Color: Gloss Black Milled | Bronze w/ Black Ring
Size: 15x7 | 15x10 | 18x7 | 20x7 | 24x7
Bolt Pattern: 4/137 | 4/156
Offset: +13 mm | +10 mm | 0 mm
Wheel Type: Standard

Swept, split spokes give the Fuel Runner a directional look, and on the 15-inch sizes a riveted ring around the lip adds a simulated beadlock style. Underneath, it is a one-piece cast wheel rated to 1,000 lbs, with no ring bolts to maintain.

Gloss black milled (D741) cuts bright edges into every spoke and spans the biggest size range. Bronze with a black ring (D777) comes as a 15x7 at +10mm in 4x137, or as a 15x10 at 0mm for riders who want a wider, more stable stance.

In gloss black milled you can pick a 15x7 at +10mm, a 15x10 at 0mm, or 18, 20 and 24-inch sizes at +13mm for big-wheel builds. Every gloss black milled size is offered in both 4x137 and 4x156.

Fuel Runner (D741 / D777) Key Features

Swept Split Spokes: Directional spokes with milled or painted detail.
Riveted Ring on 15-Inch Sizes: M8X7MB rivets on the 15x7 and 15x10; the 18 to 24-inch sizes have a plain lip.
15x10 Wide Stance: 0mm offset with 5.50" of backspacing and a 2.93" lip.
Trail to Show Diameters: From 15 inches up to 24 inches in gloss black milled.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore; 15x7, 15x10, 18x7, 20x7, 24x7): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore; 15x7, 15x10, 18x7, 20x7, 24x7): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Use Notes

Lug Nut Hardware: The Runner has recessed lug pockets, and factory lug nuts typically will not fit. Plan on aftermarket splined or tapered lug nuts matched to your machine's thread pitch (sold separately).
Not a True Beadlock: The riveted ring is cosmetic, so tires mount like any standard wheel.
Big-Wheel Clearance: Check fender, suspension and frame clearance at full lock and full compression before running 18 to 24-inch packages.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before riding on public roads.
Replacement Center Caps: Fuel part numbers by finish: Gloss Black Milled: 1003-42GB; Bronze w/ Black Ring: 1003-42MBZ.
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Runner (D741 / D777) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap	Rivet Part No.
Gloss Black Milled	15x7	D7411570A643	194933168538	Cast Aluminum	4/137	+10mm	4.39	110.10	15.80	1,000 lbs	1.77	1003-42GB	M8X7MB
Gloss Black Milled	15x7	D7411570A543	194933168545	Cast Aluminum	4/156	+10mm	4.39	132.00	15.80	1,000 lbs	1.77	1003-42GB	M8X7MB
Gloss Black Milled	15x10	D7411500A655	194933152100	Cast Aluminum	4/137	0mm	5.50	110.10	17.60	1,000 lbs	2.93	1003-42GB	M8X7MB
Gloss Black Milled	15x10	D7411500A555	194933152117	Cast Aluminum	4/156	0mm	5.50	132.00	17.60	1,000 lbs	2.93	1003-42GB	M8X7MB
Gloss Black Milled	18x7	D7411870A644	194933066179	Cast Aluminum	4/137	+13mm	4.51	110.10	23.32	1,000 lbs	1.09	1003-42GB	—
Gloss Black Milled	18x7	D7411870A544	194933066186	Cast Aluminum	4/156	+13mm	4.51	132.00	23.32	1,000 lbs	1.09	1003-42GB	—
Gloss Black Milled	20x7	D7412070A644	194933066155	Cast Aluminum	4/137	+13mm	4.51	110.10	32.10	1,000 lbs	1.09	1003-42GB	—
Gloss Black Milled	20x7	D7412070A544	194933066162	Cast Aluminum	4/156	+13mm	4.51	132.00	32.10	1,000 lbs	1.09	1003-42GB	—
Gloss Black Milled	24x7	D7412470A644	194933066421	Cast Aluminum	4/137	+13mm	4.51	110.10	33.88	1,000 lbs	1.09	1003-42GB	—
Gloss Black Milled	24x7	D7412470A544	194933066438	Cast Aluminum	4/156	+13mm	4.51	132.00	33.88	1,000 lbs	1.09	1003-42GB	—
Bronze w/ Black Ring	15x7	D7771570A643	194933168217	Cast Aluminum	4/137	+10mm	4.39	110.10	15.80	1,000 lbs	1.77	1003-42MBZ	—
Bronze w/ Black Ring	15x10	D7771500A655	194933152087	Cast Aluminum	4/137	0mm	5.50	110.10	17.60	1,000 lbs	2.93	1003-42MBZ	M8X7MB
Bronze w/ Black Ring	15x10	D7771500A555	194933152094	Cast Aluminum	4/156	0mm	5.50	132.00	17.60	1,000 lbs	2.93	1003-42MBZ	M8X7MB
