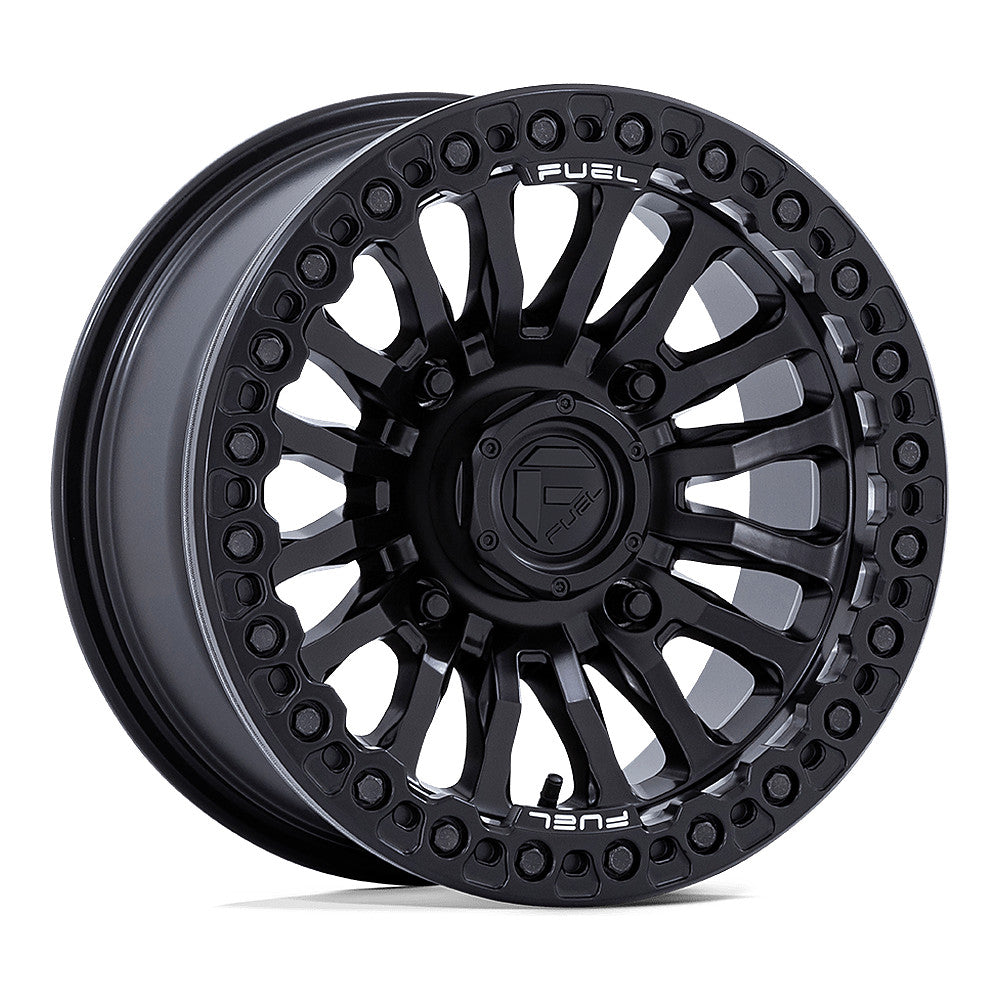

Fuel Rincon Beadlock FV125 UTV wheel in blackout, angled front view

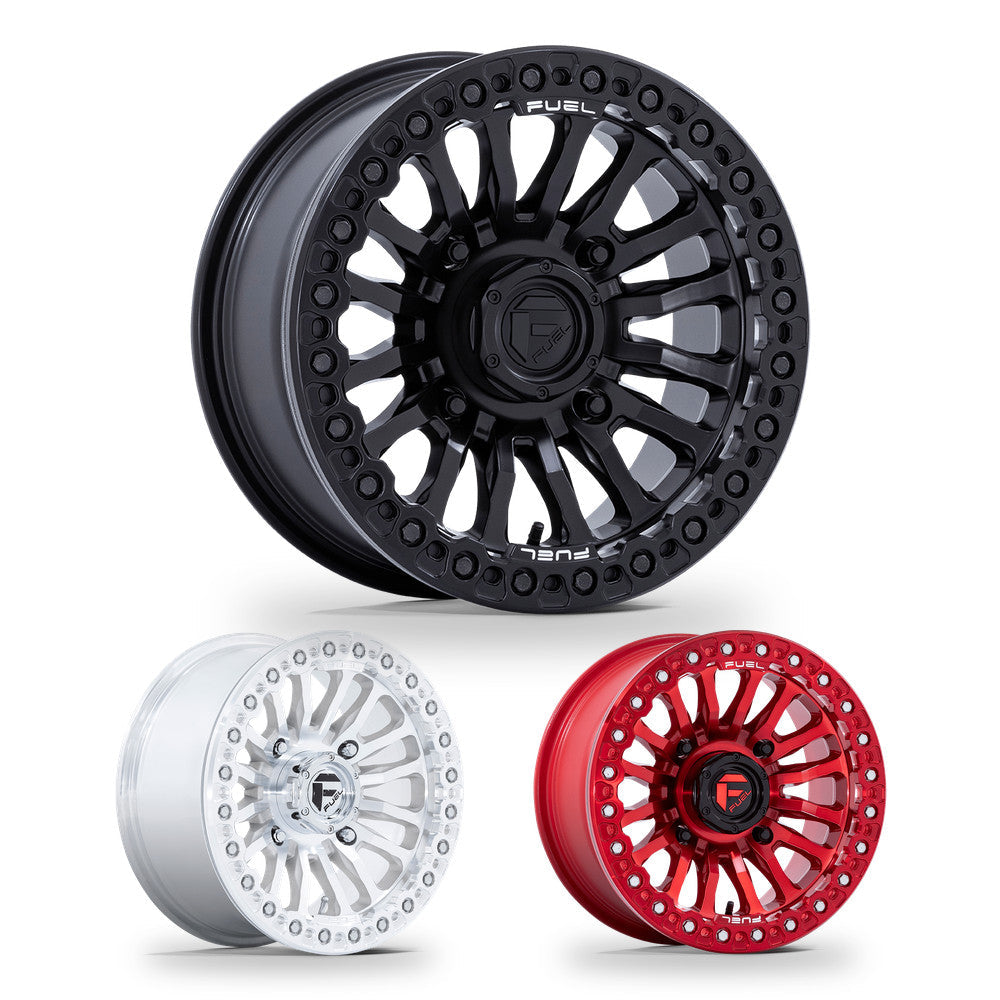

Fuel Rincon Beadlock (FV125) UTV wheel in every finish: blackout, machined and candy red

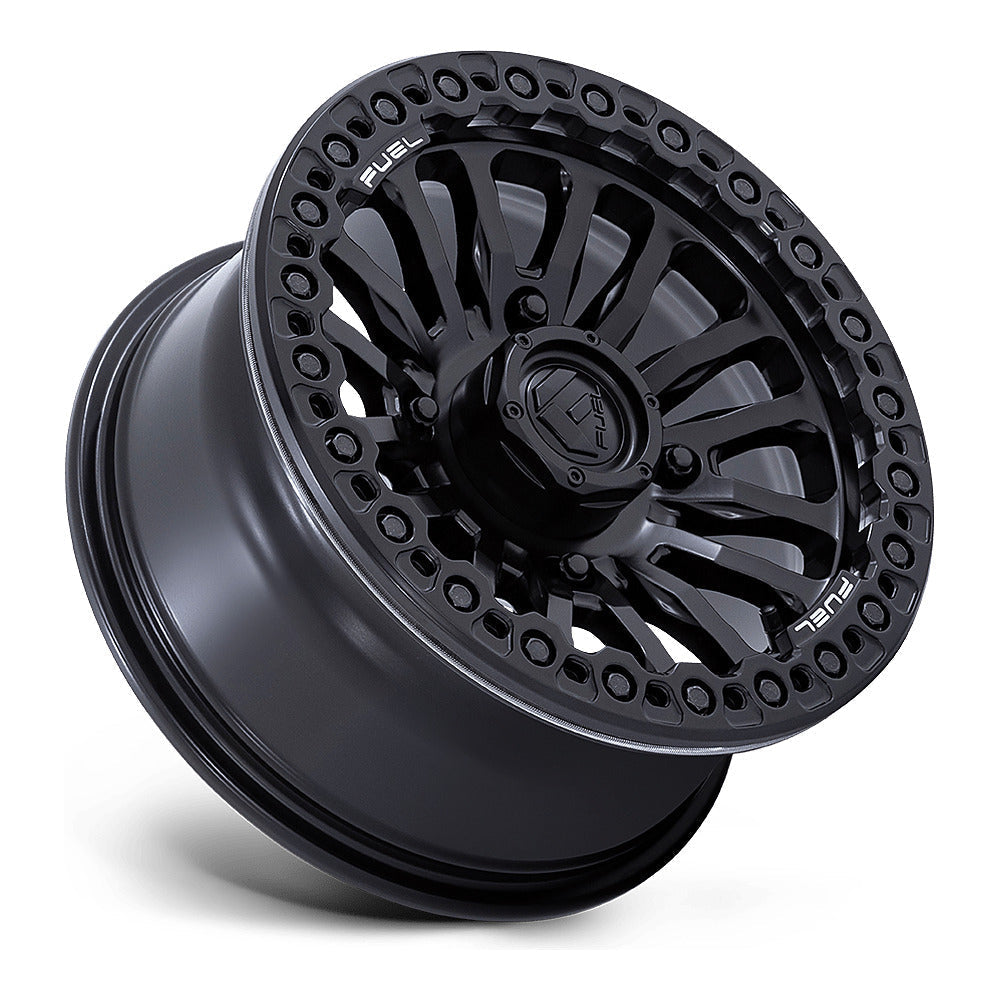

Fuel Rincon Beadlock FV125 UTV wheel in blackout, side angle showing the barrel and lip

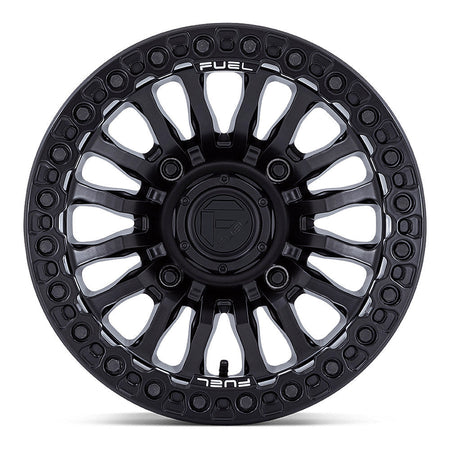

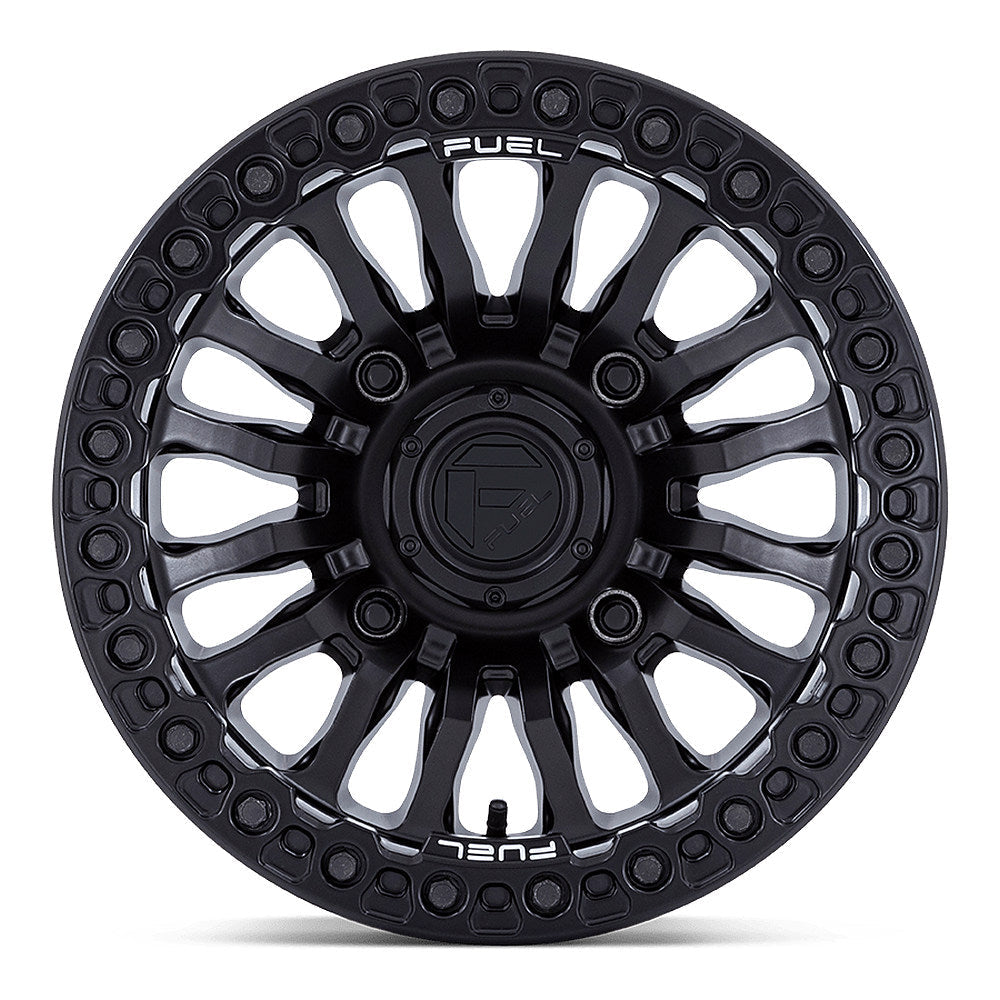

Fuel Rincon Beadlock FV125 UTV wheel in blackout, straight-on face view

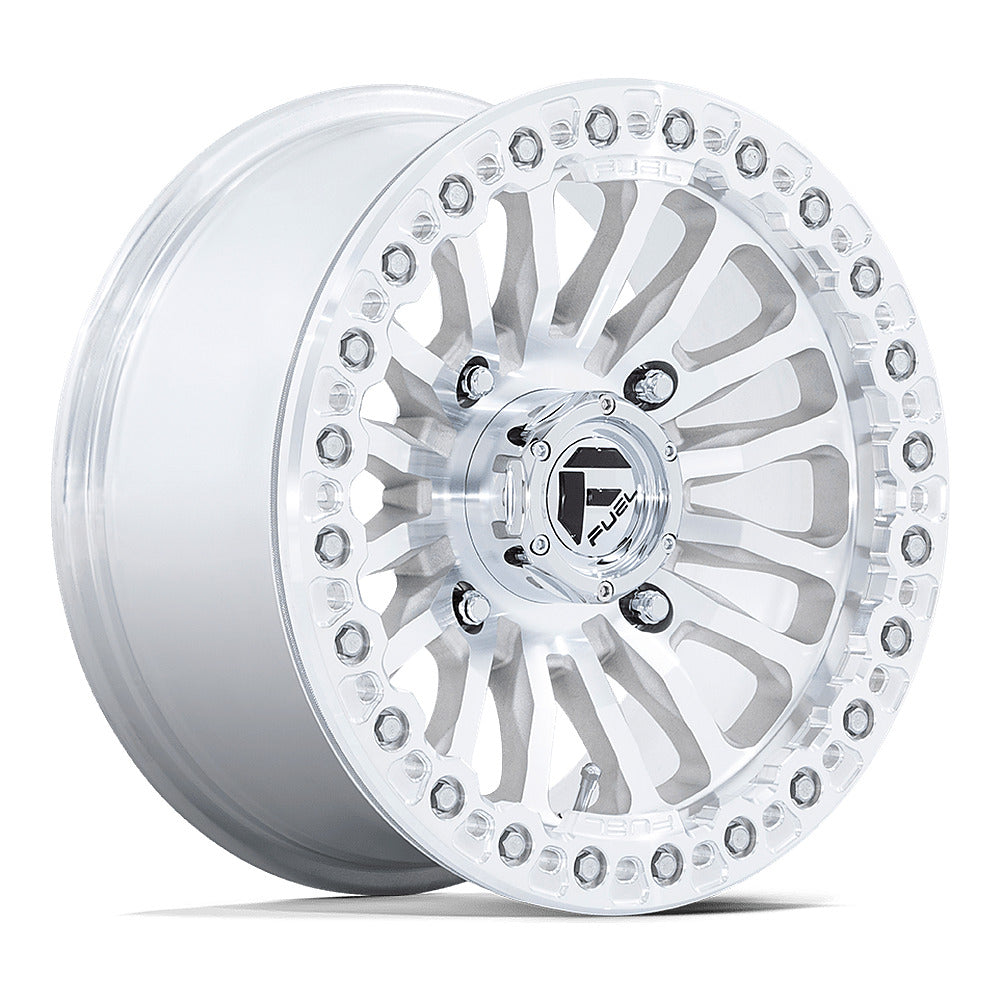

Fuel Rincon Beadlock FV125 UTV wheel in machined, angled front view

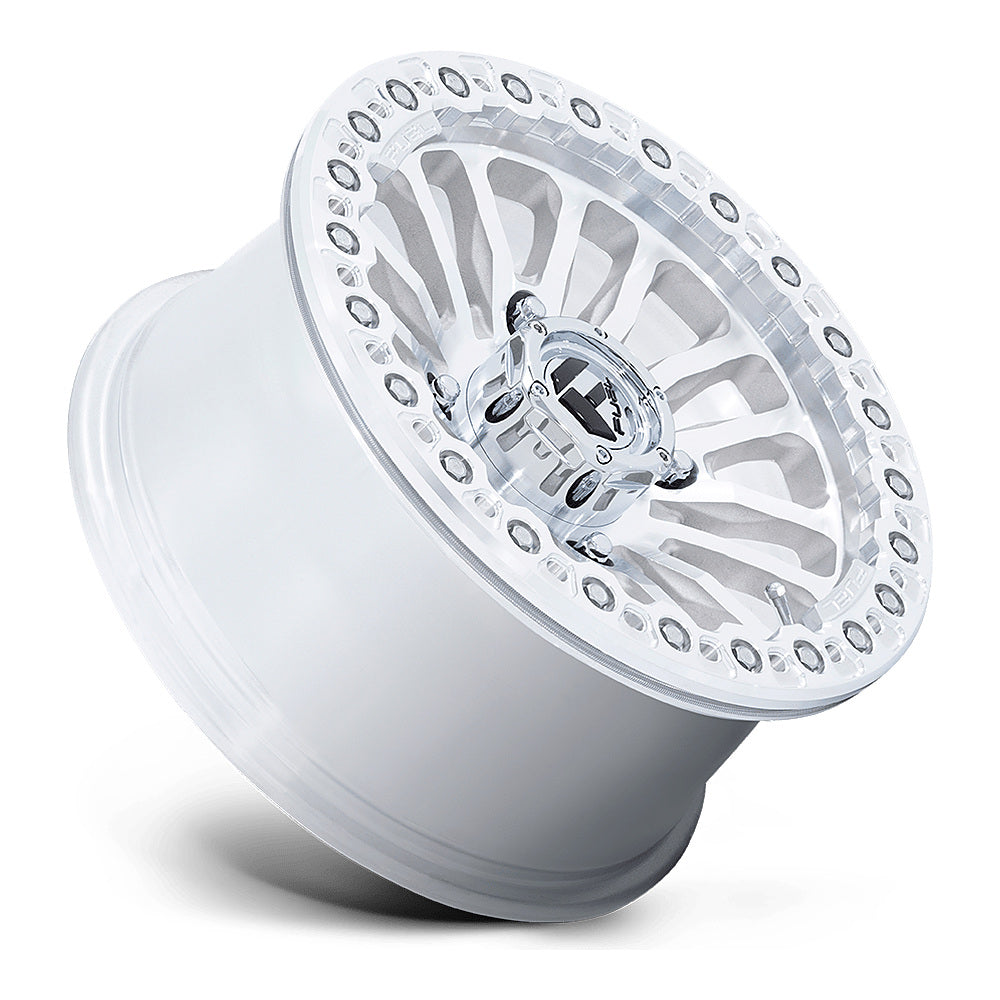

Fuel Rincon Beadlock FV125 UTV wheel in machined, side angle showing the barrel and lip

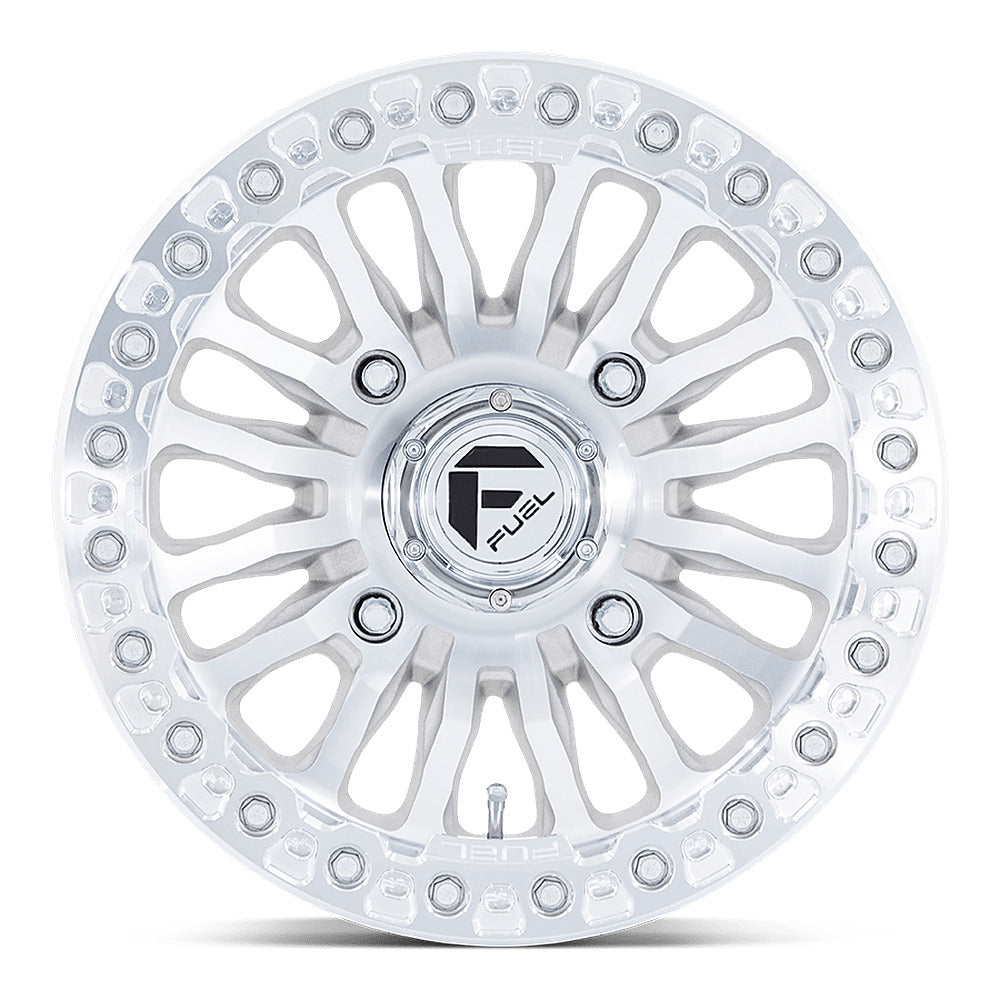

Fuel Rincon Beadlock FV125 UTV wheel in machined, straight-on face view

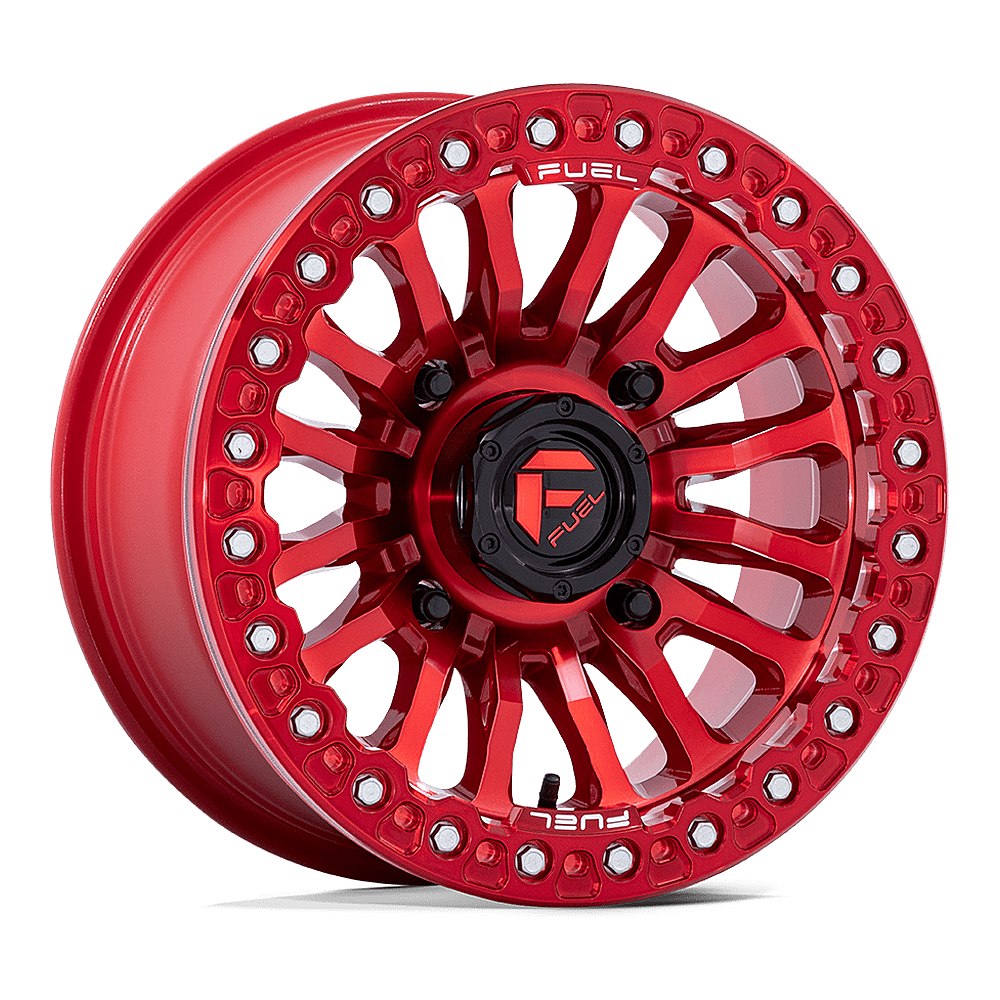

Fuel Rincon Beadlock FV125 UTV wheel in candy red, angled front view

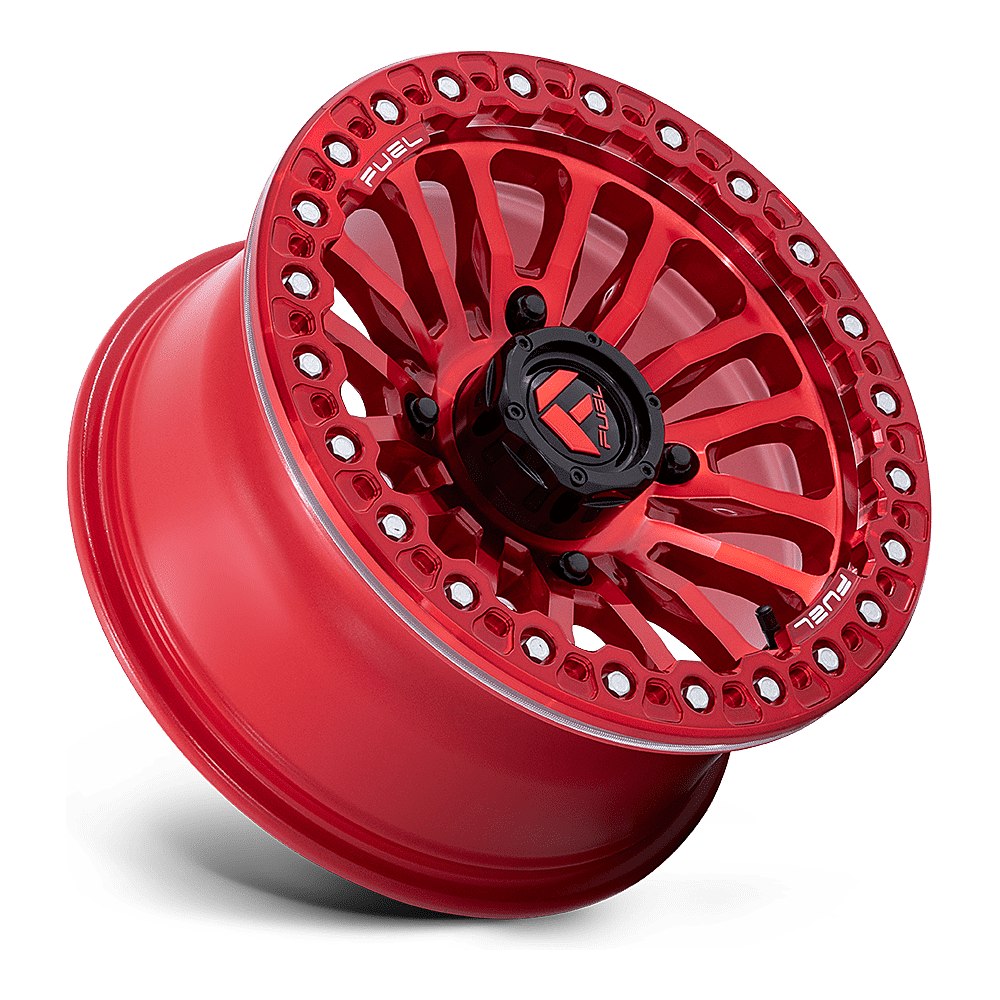

Fuel Rincon Beadlock FV125 UTV wheel in candy red, side angle showing the barrel and lip

Fuel UTV

Fuel Rincon Beadlock (FV125) UTV Wheel

$403.00

Wheel Color: Blackout | Machined | Candy Red
Size: 15x7
Bolt Pattern: 4/137 | 4/156
Offset: +10 mm
Wheel Type: Beadlock

Concave spokes dish in toward the hub on the Fuel Rincon Beadlock (FV125), and a bolted outer ring frames the face. That ring is a true beadlock, clamping the tire bead so you can air down for rocks, dunes and fast desert trails without the tire unseating.

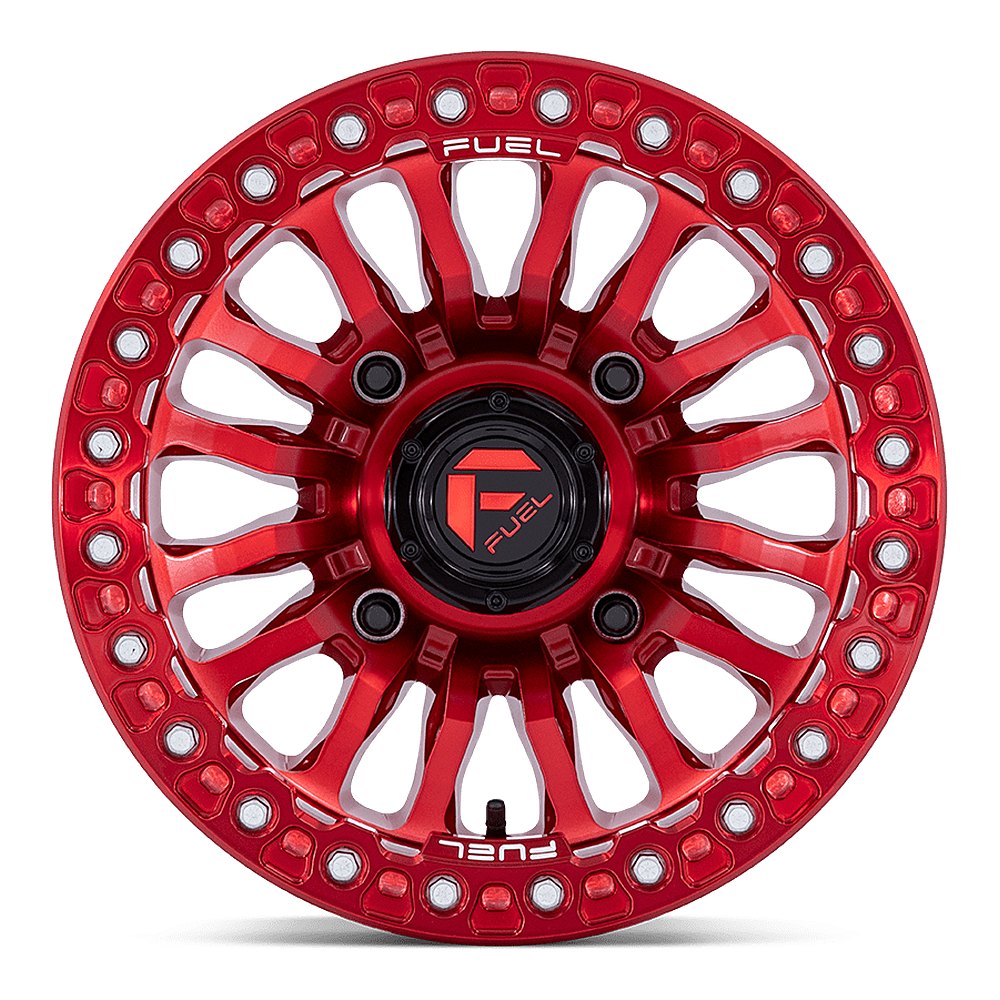

Blackout covers the wheel, ring and bolts in black, machined goes the other direction with a bright face and ring, and Candy Red uses a translucent red layer that gives the finish depth.

Each Rincon is a 15x7 at +10mm with 4.39" of backspacing. Blackout and Candy Red come in 4x137 and 4x156, and machined is offered in 4x156. The 1,250 lb rating is higher than many UTV wheels, and Fuel lists the Rincon as compatible with tire pressure monitoring sensors.

Fuel Rincon Beadlock (FV125) Key Features

Bead Clamped Mechanically: Air pressure alone isn't holding the tire on, so you can run lower pressures for grip.
Concave Face: The dished spokes give the wheel depth inside the ring.
1,250 lb Rating: Suited to four-seaters and heavily accessorized machines.
Three Finishes, One Fitment: Every color shares the same 15x7 +10mm sizing.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore; 15x7): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (115.10mm center bore; 15x7): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Off-Road Use Only: True beadlock wheels are sold for off-road use only and are illegal on public roads in many states and provinces. It is the buyer's responsibility to check state and local laws.
Beadlock Maintenance: Torque the ring bolts to Fuel's specification when mounting, then recheck them after the first few rides and after any hard hit. Mounting takes longer than a standard wheel, so use a shop that knows beadlocks if you aren't set up for it.
Ring Hardware: Fuel lists ring bolt kit 10285002116 for the Rincon, with replacement ring 43600-18 (machined) and 43600-18QL (Candy Red).
Lug Nut Hardware: The Rincon uses a conical (60° tapered) lug seat. Match your lug nuts to that seat and to your machine's thread pitch; aftermarket lug nuts are sold separately.
Replacement Center Caps: Fuel part numbers by finish: Blackout: 1003-42BLD; Machined: 1003-42; Candy Red: 1003-42GBQ.
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Rincon Beadlock (FV125) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
Blackout	15x7	FV125MX15704810A	194933447510	Cast Aluminum Beadlock	4/137	+10mm	4.39	110.10	18.48	1,250 lbs	1.26	1003-42BLD
Blackout	15x7	FV125MX15704410	194933317998	Cast Aluminum Beadlock	4/156	+10mm	4.39	115.10	18.04	1,250 lbs	1.26	1003-42BLD
Machined	15x7	FV125DX15704410	194933318025	Cast Aluminum Beadlock	4/156	+10mm	4.39	115.10	18.04	1,250 lbs	1.26	1003-42
Candy Red	15x7	FV125QX15704810A	194933447503	Cast Aluminum Beadlock	4/137	+10mm	4.39	110.10	18.48	1,250 lbs	1.26	1003-42GBQ
Candy Red	15x7	FV125QX15704410	194933317967	Cast Aluminum Beadlock	4/156	+10mm	4.39	115.10	18.04	1,250 lbs	1.26	1003-42GBQ
