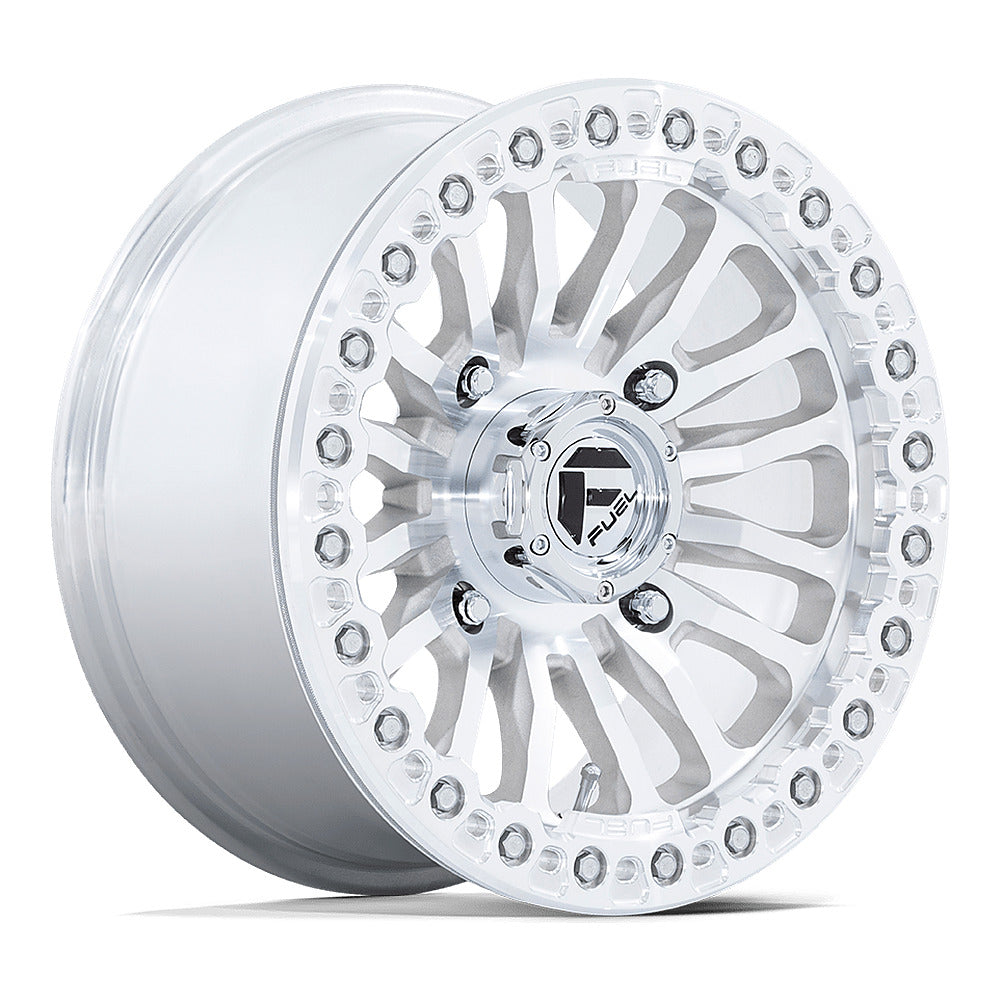

Fuel Rincon Beadlock FV125 UTV wheel in machined, angled front view

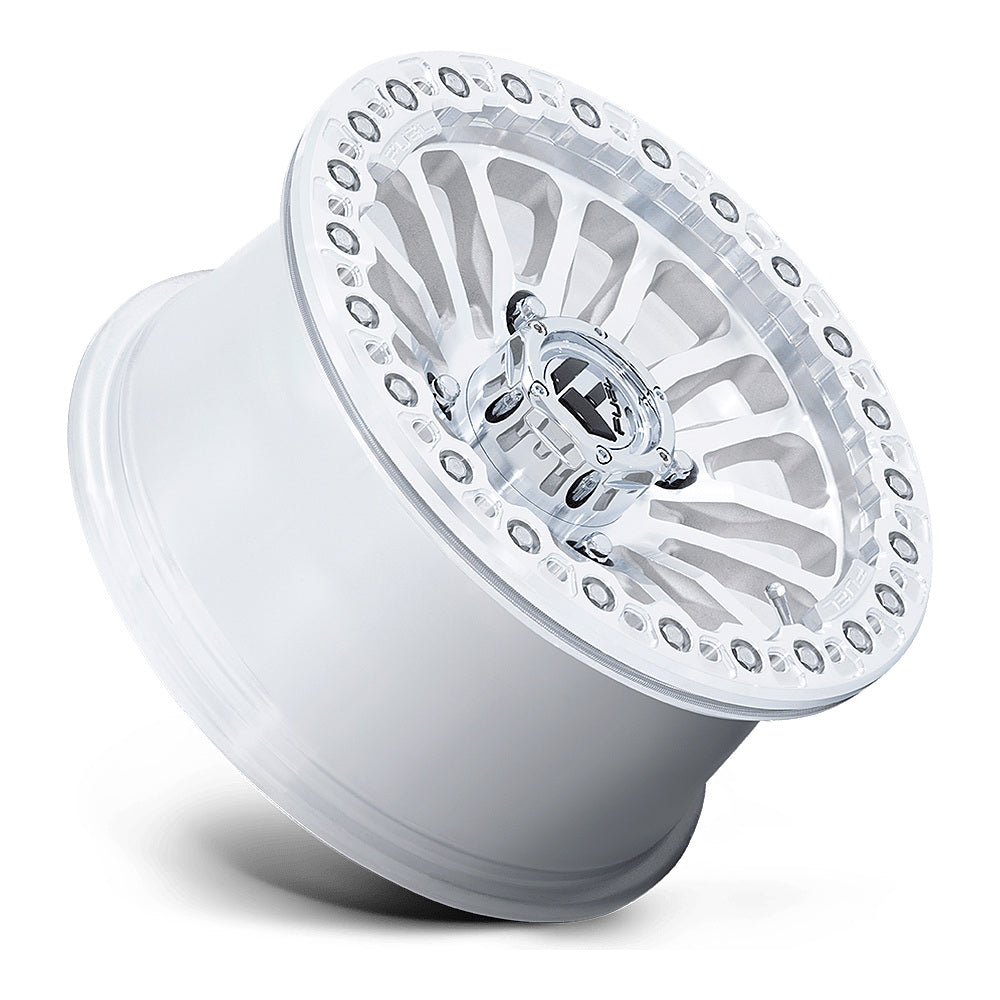

Fuel Rincon Beadlock FV125 UTV wheel in machined, side angle showing the barrel and lip

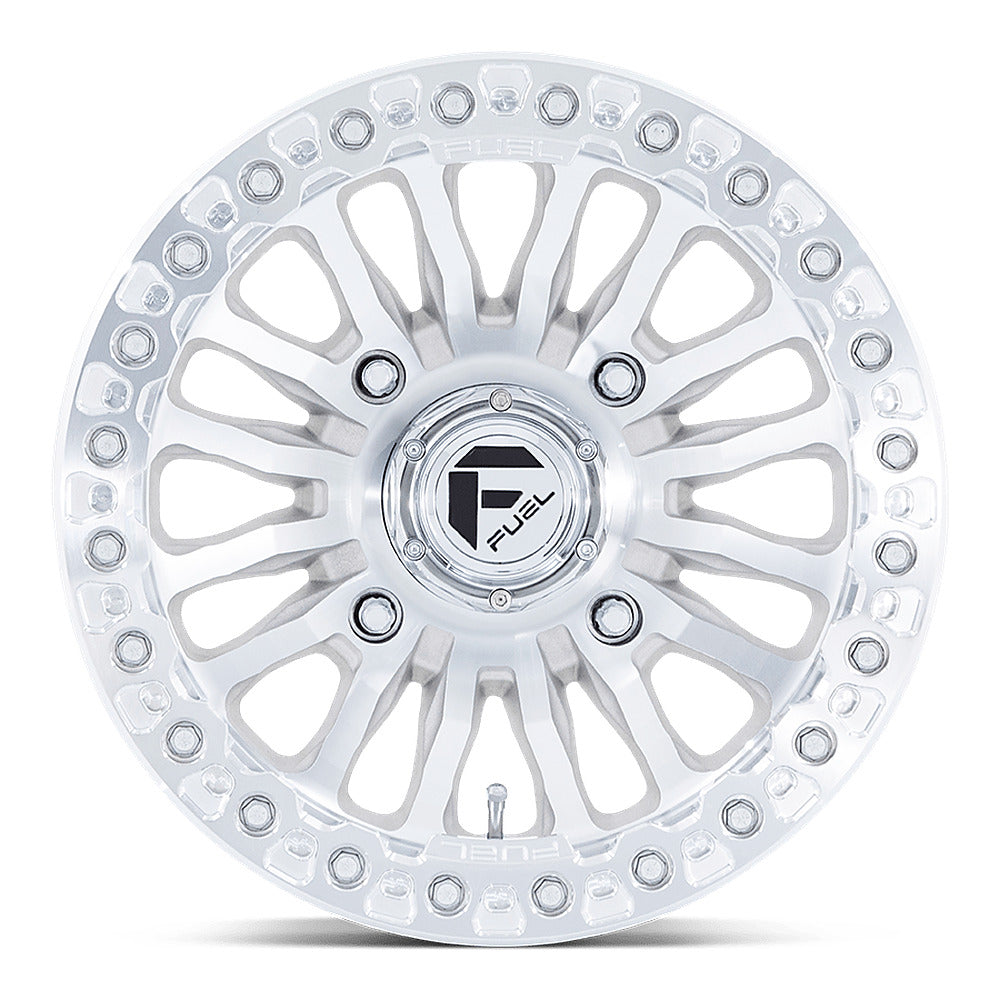

Fuel Rincon Beadlock FV125 UTV wheel in machined, straight-on face view
Fuel Rincon Beadlock FV125 UTV wheel in machined, angled front view
Fuel Rincon Beadlock FV125 UTV wheel in machined, side angle showing the barrel and lip
Fuel Rincon Beadlock FV125 UTV wheel in machined, straight-on face view
Fuel UTV

Fuel Rincon Beadlock (FV125) 15x7 UTV Wheel - Machined

SKU: FV125DX15704410
(0)

$403.00

  • Wheel Size: 15x7
  • Bolt Pattern: 4/156
  • Offset: +10 mm
  • Wheel Type: Beadlock
$403.00
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...
Fuel UTV Logo

A fully machined face, beadlock ring, and bolts give this Rincon Beadlock a bright finish, so the concave spoke design reads clearly from every angle.

It's a true beadlock for riders who run low tire pressures in rocks, sand, and desert terrain. This listing is the 15x7 in 4x156 with a +10mm offset, built for Polaris and other 4x156 machines.

Fuel Rincon Beadlock (FV125) Key Features

  • Locks the Bead at Low Pressure: The outer ring is bolted down over the tire bead, holding it in place when pressure is too low for a standard wheel to do so. That's what lets you air down for grip without de-beading.
  • Machined Finish: A machined surface shows dirt and water spots faster than black or red, so rinse and dry after rides and use a non-acidic cleaner. Backed by a one-year manufacturer finish warranty.
  • Fitment: 15x7, 4x156 bolt pattern, 115.10mm center bore, +10mm offset with 4.39" of backspacing. Weighs 18.04 lbs.
  • Built Heavy-Duty: Rated to 1,250 lbs per wheel, cast aluminum, TPMS compatible, and backed by a lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Rincon Beadlock (FV125) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

  • 4x156 Bolt Pattern (115.10mm center bore) – 15x7: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

  • Off-Road Use Only: True beadlock wheels are sold for off-road use only and are illegal on public roads in many states and provinces. It is the buyer's responsibility to check state and local laws.
  • Beadlock Maintenance: Beadlock ring bolts must be torqued to the manufacturer's specification during mounting and rechecked regularly, especially after the first few rides and after any hard impact. Mounting a beadlock takes more time than a standard wheel, so have it done by a shop experienced with beadlocks if you aren't set up for it.
  • Beadlock Ring Hardware: Ring bolt kit: Fuel part number 10285002116. Replacement ring: 43600-18.
  • Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
  • Center Cap: Replacement center cap is Fuel part number 1003-42.

Fuel Rincon Beadlock (FV125) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
15x7 FV125DX15704410 194933318025 Machined Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 18.04 1,250 lbs 1.26 1003-42
