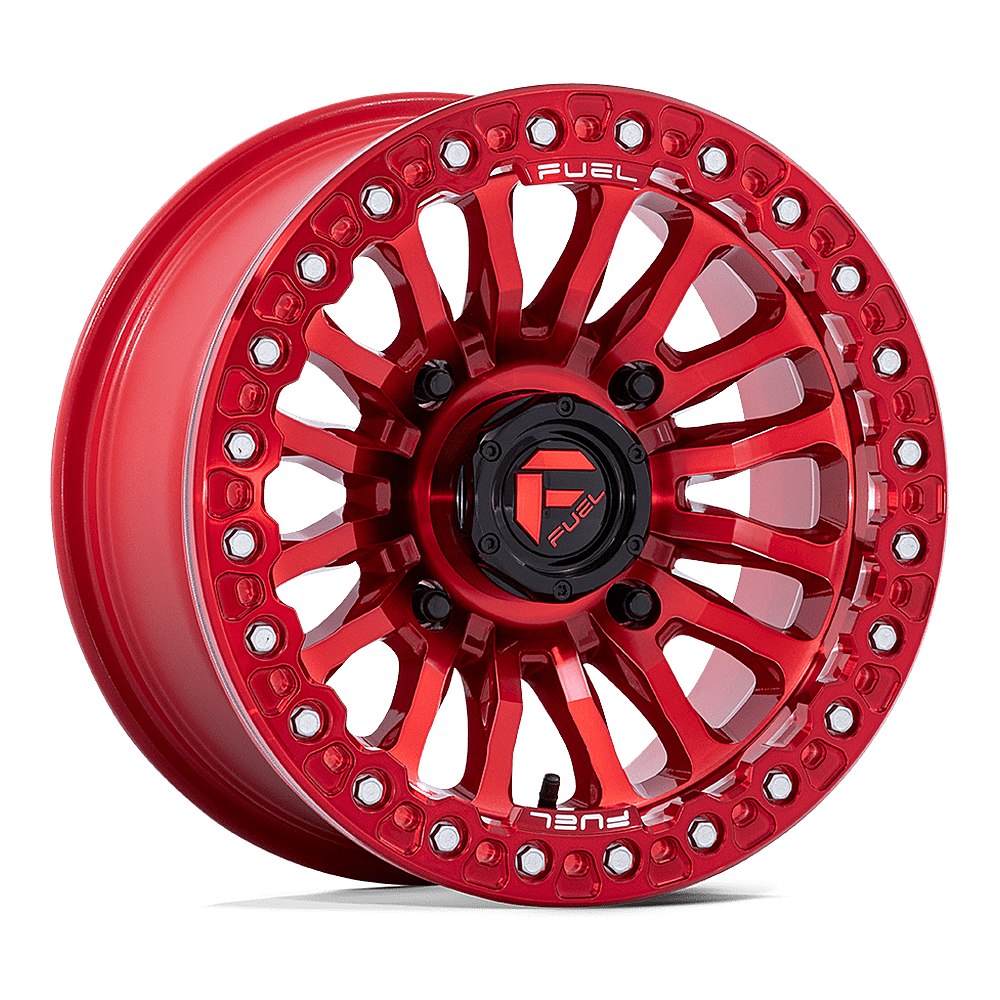

Fuel Rincon Beadlock FV125 UTV wheel in candy red, angled front view

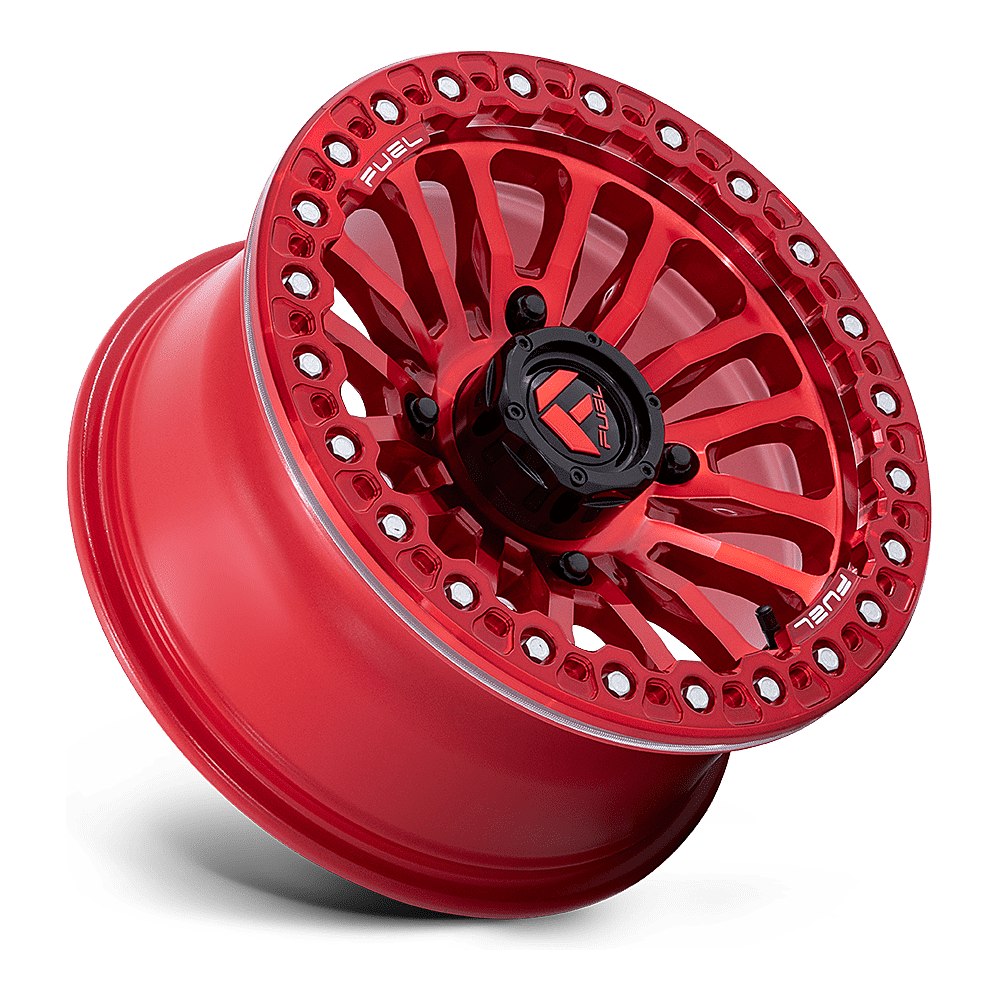

Fuel Rincon Beadlock FV125 UTV wheel in candy red, side angle showing the barrel and lip

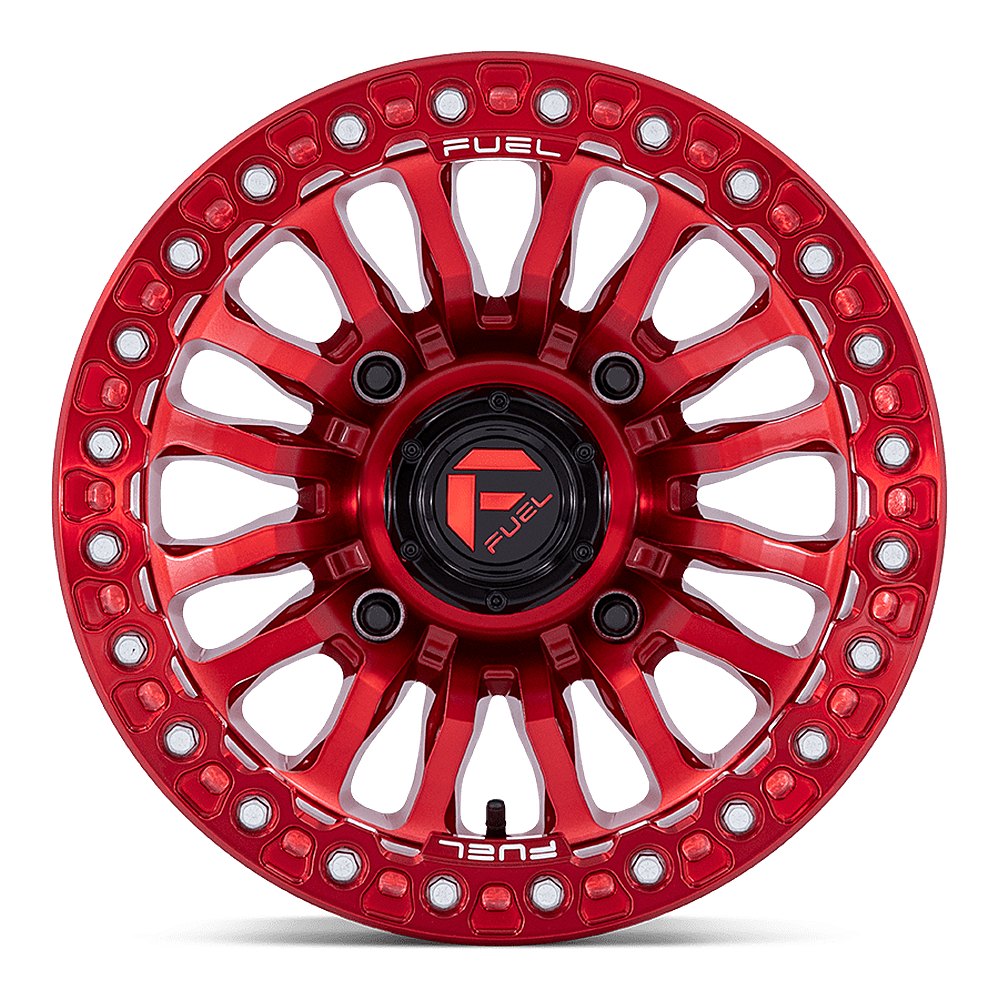

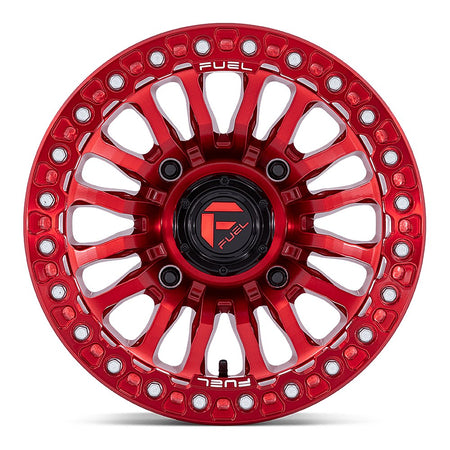

Fuel Rincon Beadlock FV125 UTV wheel in candy red, straight-on face view
Fuel Rincon Beadlock FV125 UTV wheel in candy red, angled front view
Fuel Rincon Beadlock FV125 UTV wheel in candy red, side angle showing the barrel and lip
Fuel Rincon Beadlock FV125 UTV wheel in candy red, straight-on face view
Fuel UTV

Fuel Rincon Beadlock (FV125) 15x7 UTV Wheel - Candy Red

$403.00

  • Wheel Size: 15x7
  • Bolt Pattern: 4/137 | 4/156
  • Offset: +10 mm
  • Wheel Type: Beadlock
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...
Fuel UTV Logo

Built for riders who air down, the Rincon Beadlock in Candy Red is a true beadlock with a finish that's hard to miss. Its bolted outer ring clamps the tire bead to the wheel, so you can run very low pressures for traction in rocks, sand, and desert terrain without the tire peeling off the rim.

A concave spoke profile and a deep candy red finish make it one of the boldest wheels in the Fuel UTV lineup. This listing is the 15x7 with a +10mm offset in 4x137 and 4x156.

Fuel Rincon Beadlock (FV125) Key Features

  • True Beadlock: Why It Matters: At low pressure, a standard wheel relies on air pressure alone to hold the bead. The Rincon's ring mechanically locks the outer bead, preventing de-beading and tire spin on the rim during hard launches and low-speed crawling. Lower pressure = a bigger footprint and more grip.
  • Higher Load Rating: Rated to 1,250 lbs per wheel, higher than the 1,000 lb rating common to many UTV wheels, which suits heavier four-seat machines and loaded builds.
  • Fitment Details: +10mm offset with 4.39" of backspacing. The 4x137 weighs 18.48 lbs with a 110.10mm center bore; the 4x156 weighs 18.04 lbs with a 115.10mm center bore.
  • Candy Red Finish: Candy finishes are translucent color layers, which is what gives them depth. Wash with a pH-neutral cleaner and a soft mitt. Backed by a one-year manufacturer finish warranty.
  • Construction: Cast aluminum with a lifetime manufacturer structural warranty, and compatible with tire pressure monitoring sensors.

Vehicle Application Guide

The Fuel Rincon Beadlock (FV125) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

  • 4x137 Bolt Pattern (110.10mm center bore) – 15x7: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
  • 4x156 Bolt Pattern (115.10mm center bore) – 15x7: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

  • Off-Road Use Only: True beadlock wheels are sold for off-road use only and are illegal on public roads in many states and provinces. It is the buyer's responsibility to check state and local laws.
  • Beadlock Maintenance: Beadlock ring bolts must be torqued to the manufacturer's specification during mounting and rechecked regularly, especially after the first few rides and after any hard impact. Mounting a beadlock takes more time than a standard wheel, so have it done by a shop experienced with beadlocks if you aren't set up for it.
  • Beadlock Ring Hardware: Ring bolt kit: Fuel part number 10285002116. Replacement Candy Red ring: 43600-18QL.
  • Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
  • Center Cap: Replacement center cap is Fuel part number 1003-42GBQ.

Fuel Rincon Beadlock (FV125) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
15x7 FV125QX15704810A 194933447503 Candy Red Cast Aluminum Beadlock 4/137 +10mm 4.39 110.10 18.48 1,250 lbs 1.26 1003-42GBQ
15x7 FV125QX15704410 194933317967 Candy Red Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 18.04 1,250 lbs 1.26 1003-42GBQ
