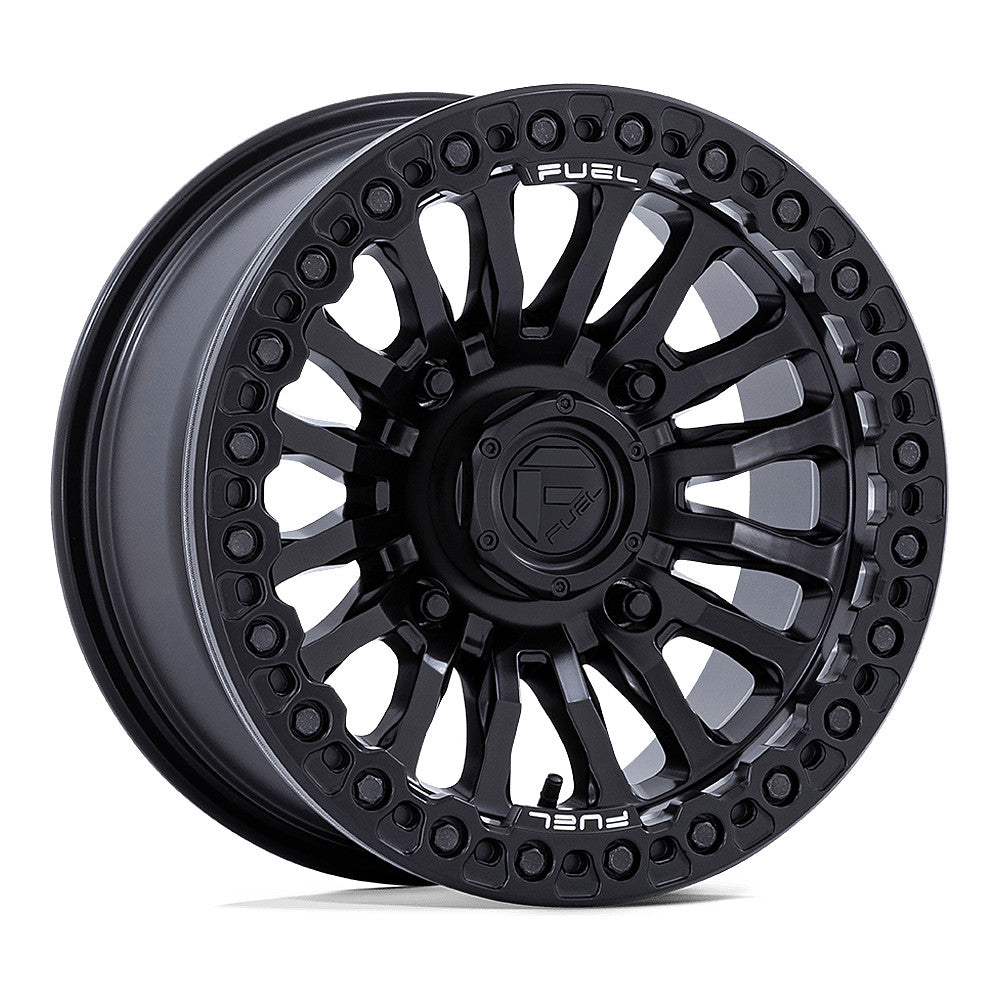

Fuel Rincon Beadlock FV125 UTV wheel in blackout, angled front view

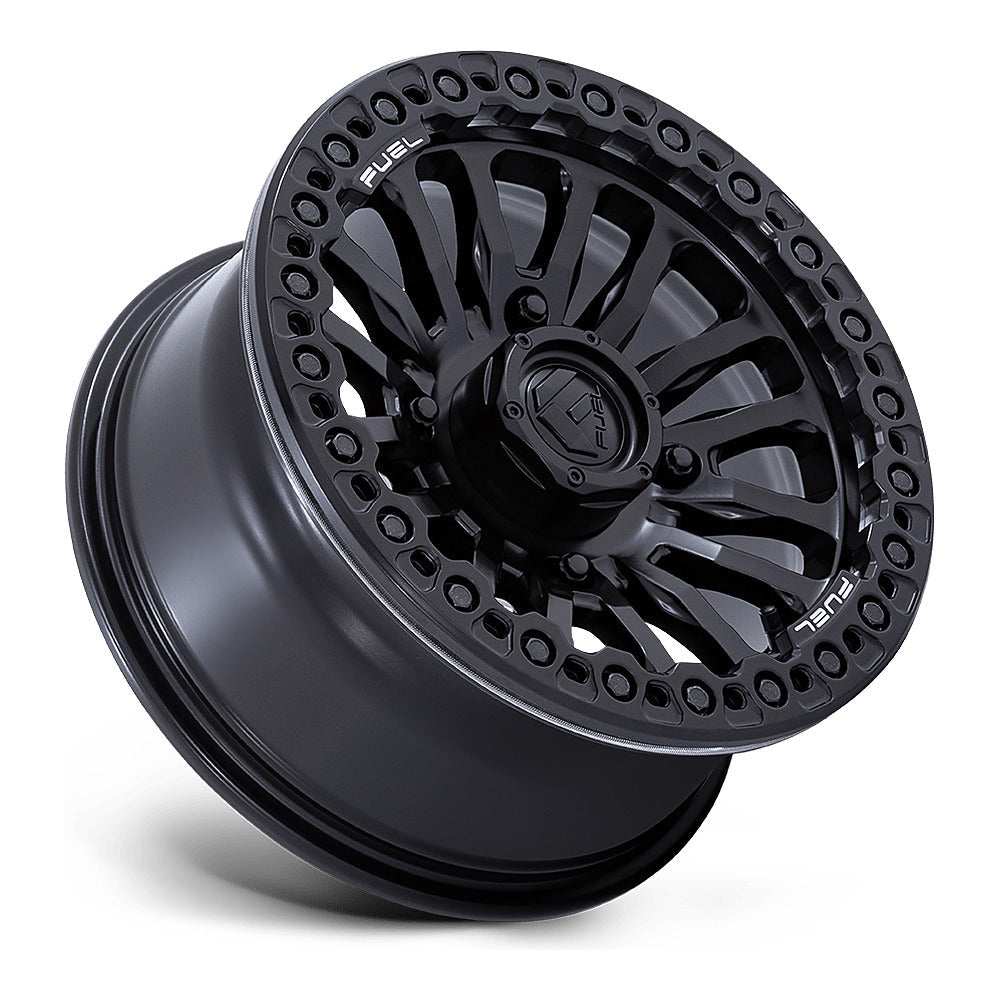

Fuel Rincon Beadlock FV125 UTV wheel in blackout, side angle showing the barrel and lip

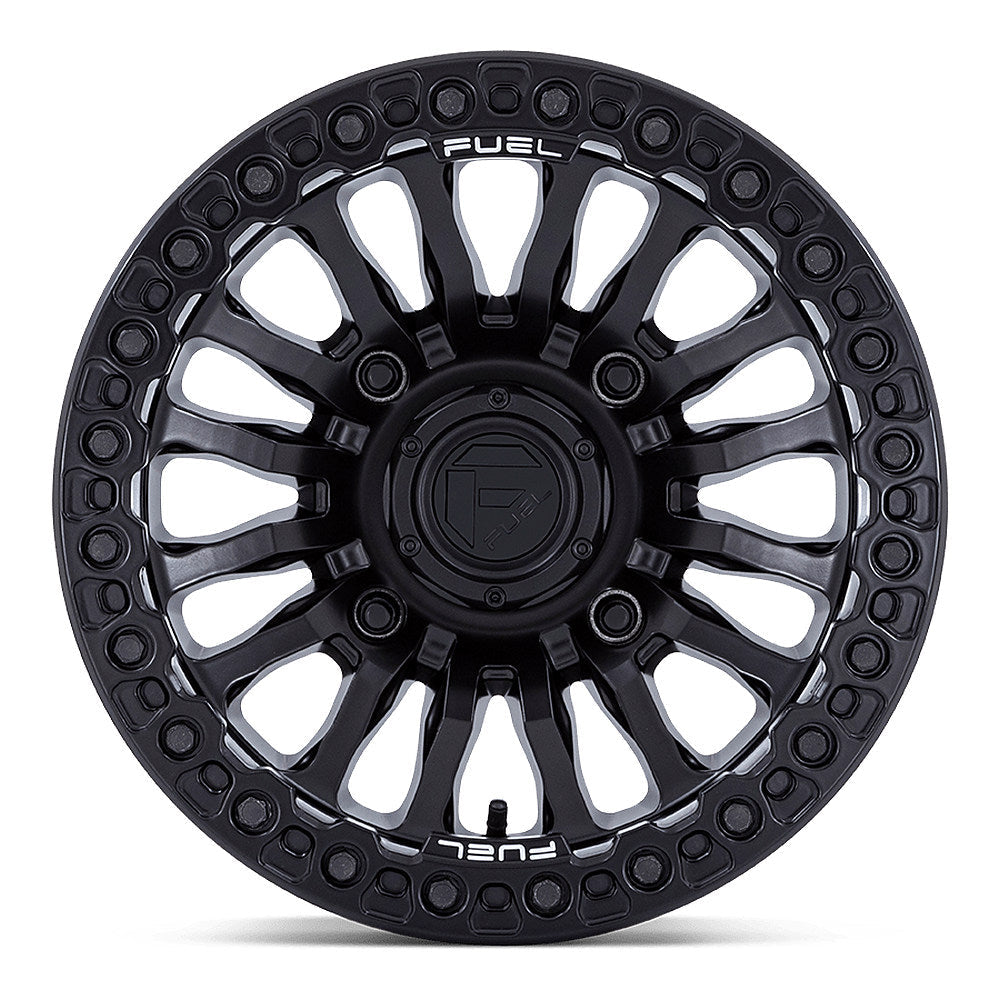

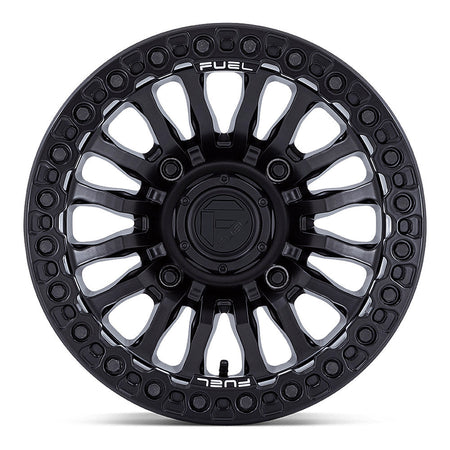

Fuel Rincon Beadlock FV125 UTV wheel in blackout, straight-on face view
Fuel Rincon Beadlock FV125 UTV wheel in blackout, angled front view
Fuel Rincon Beadlock FV125 UTV wheel in blackout, side angle showing the barrel and lip
Fuel Rincon Beadlock FV125 UTV wheel in blackout, straight-on face view
Fuel UTV

Fuel Rincon Beadlock (FV125) 15x7 UTV Wheel - Blackout

$403.00

  • Wheel Size: 15x7
  • Bolt Pattern: 4/137 | 4/156
  • Offset: +10 mm
  • Wheel Type: Beadlock
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...
Fuel UTV Logo

Every surface on this Rincon, from the spokes to the beadlock ring and bolts, is finished in black. It's the low-key version of Fuel's concave beadlock, with a clean, all-business look.

Underneath is a true beadlock designed for airing down on rocks, dunes, and fast desert trails. This listing covers the 15x7 with a +10mm offset in 4x137 and 4x156.

Fuel Rincon Beadlock (FV125) Key Features

  • Air Down With Confidence: The bolted ring clamps the tire's outer bead to the wheel, so very low pressures won't let the tire unseat or spin on the rim. That lets you widen the tire's footprint for traction and a softer ride over chop.
  • Concave Profile: The spokes dish inward toward the hub, giving the face depth while the beadlock ring frames the outer edge.
  • Rated to 1,250 lbs: A higher-than-typical load rating for the UTV segment, useful for four-seaters and heavily accessorized machines.
  • Weights and Bores: 18.48 lbs with a 110.10mm center bore in 4x137; 18.04 lbs with a 115.10mm center bore in 4x156. Both use a +10mm offset and 4.39" of backspacing.
  • Blackout Finish and Warranty: An all-black finish hides trail grime and scuffs. Clean with mild soap and water. Cast aluminum, TPMS compatible, with a one-year manufacturer finish warranty and lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Rincon Beadlock (FV125) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

  • 4x137 Bolt Pattern (110.10mm center bore) – 15x7: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
  • 4x156 Bolt Pattern (115.10mm center bore) – 15x7: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

  • Off-Road Use Only: True beadlock wheels are sold for off-road use only and are illegal on public roads in many states and provinces. It is the buyer's responsibility to check state and local laws.
  • Beadlock Maintenance: Beadlock ring bolts must be torqued to the manufacturer's specification during mounting and rechecked regularly, especially after the first few rides and after any hard impact. Mounting a beadlock takes more time than a standard wheel, so have it done by a shop experienced with beadlocks if you aren't set up for it.
  • Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
  • Center Cap: Replacement center cap is Fuel part number 1003-42BLD.

Fuel Rincon Beadlock (FV125) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
15x7 FV125MX15704810A 194933447510 Blackout Cast Aluminum Beadlock 4/137 +10mm 4.39 110.10 18.48 1,250 lbs 1.26 1003-42BLD
15x7 FV125MX15704410 194933317998 Blackout Cast Aluminum Beadlock 4/156 +10mm 4.39 115.10 18.04 1,250 lbs 1.26 1003-42BLD
