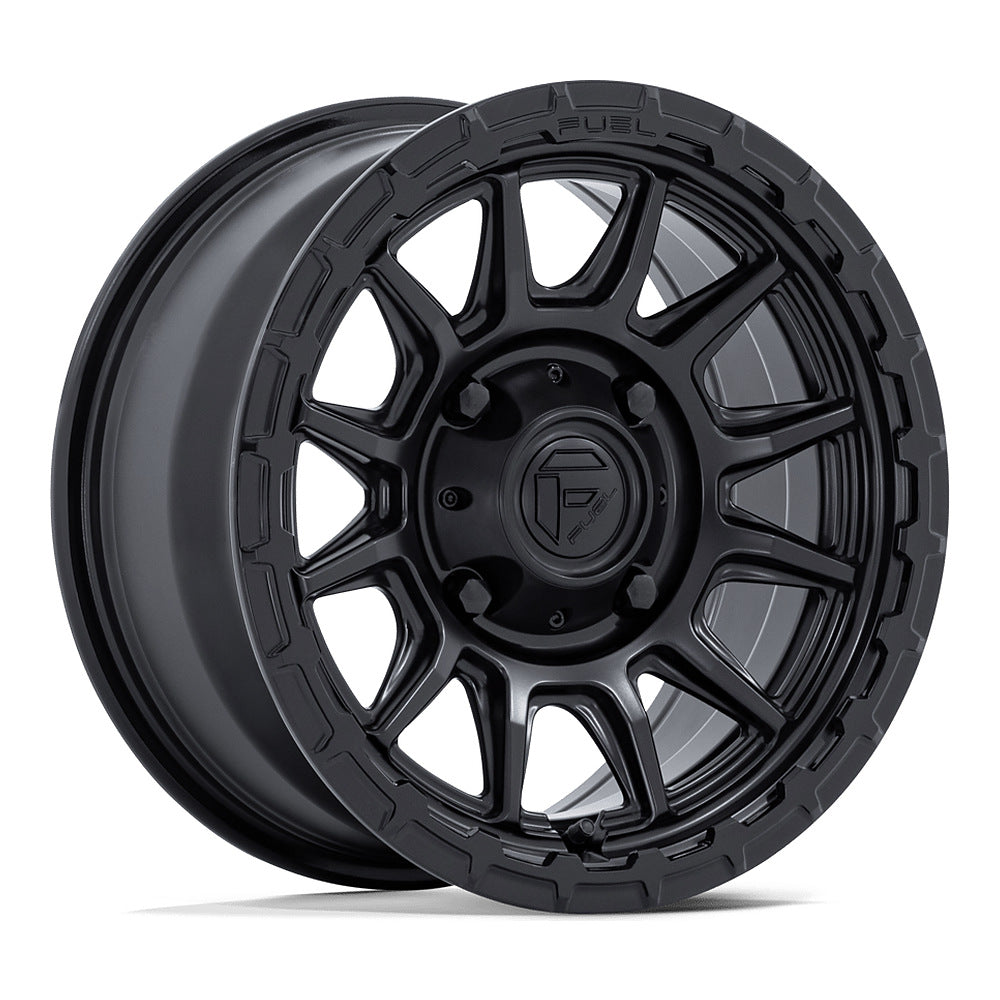

Fuel Piston FV866 UTV wheel in matte black with gloss black lip, angled front view

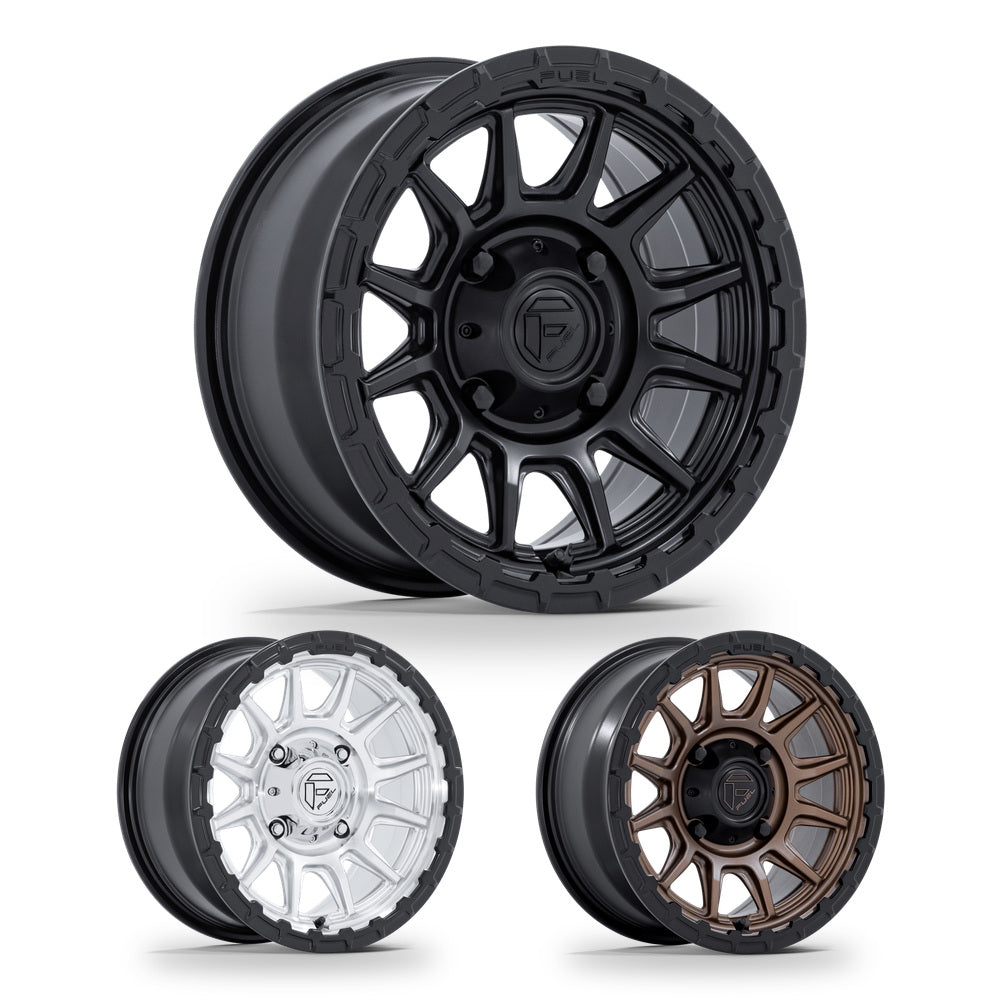

Fuel Piston (FV866) UTV wheel in every finish: matte black with gloss black lip, hyper silver machined with matte black lip and matte bronze with matte black lip

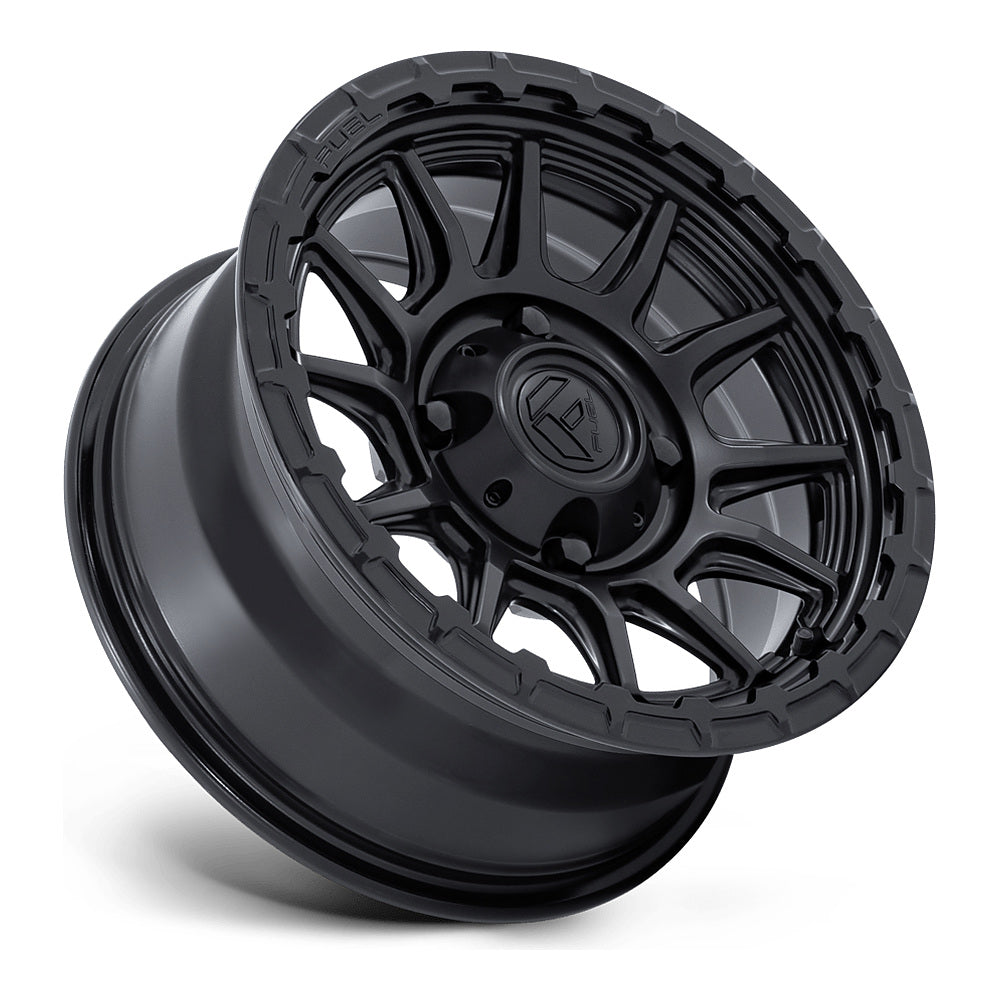

Fuel Piston FV866 UTV wheel in matte black with gloss black lip, side angle showing the barrel and lip

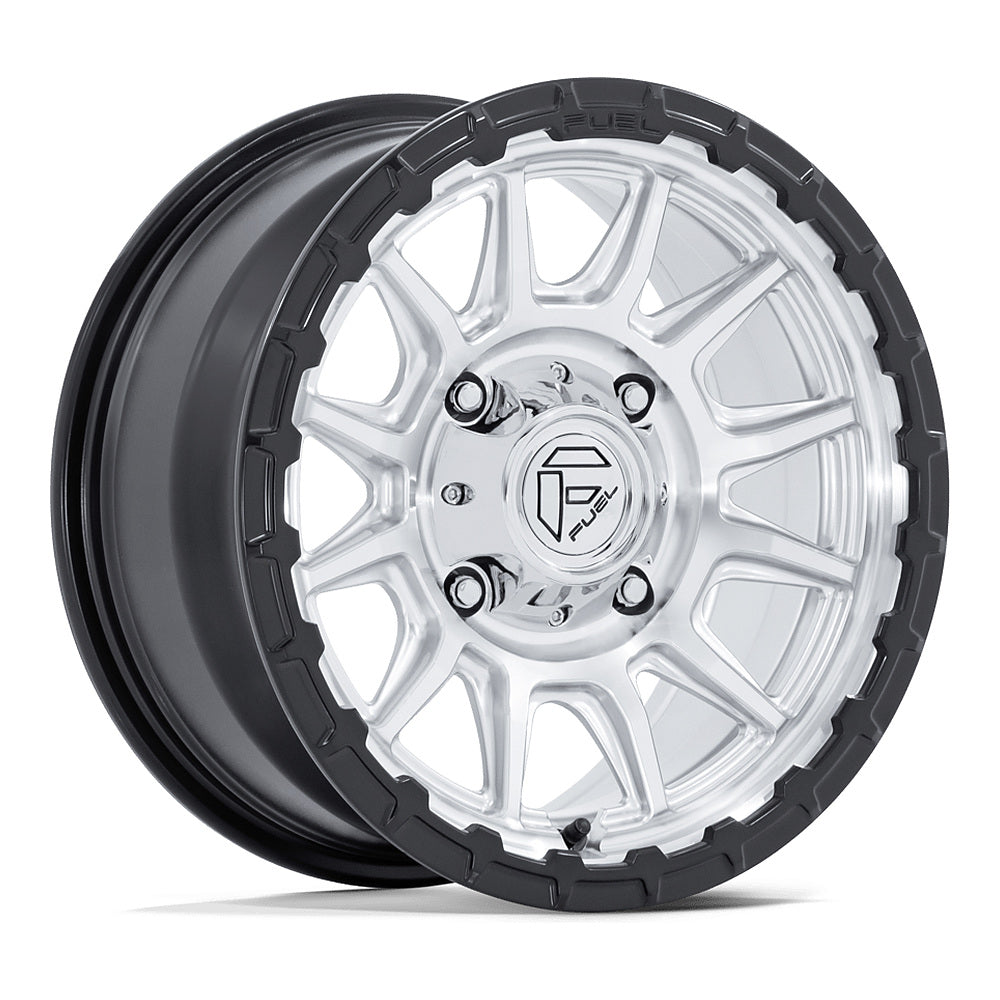

Fuel Piston FV866 UTV wheel in hyper silver machined with matte black lip, angled front view

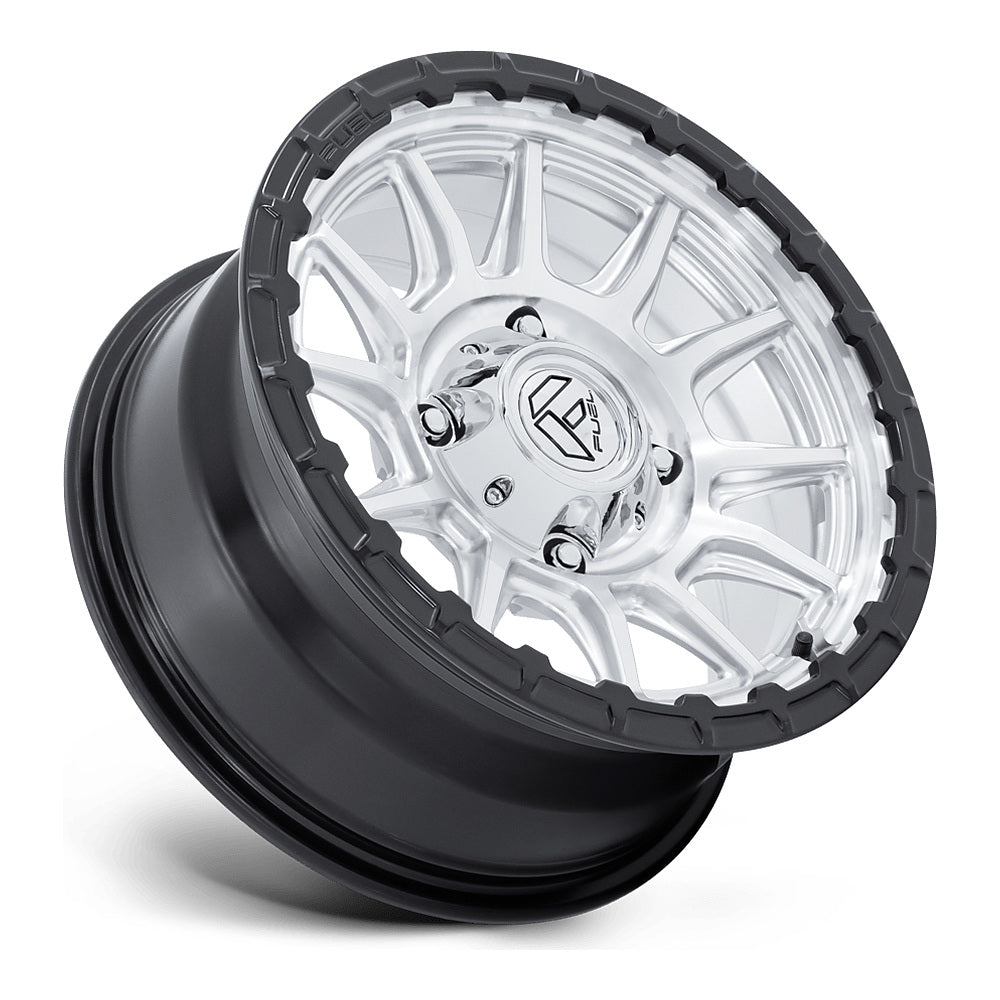

Fuel Piston FV866 UTV wheel in hyper silver machined with matte black lip, side angle showing the barrel and lip

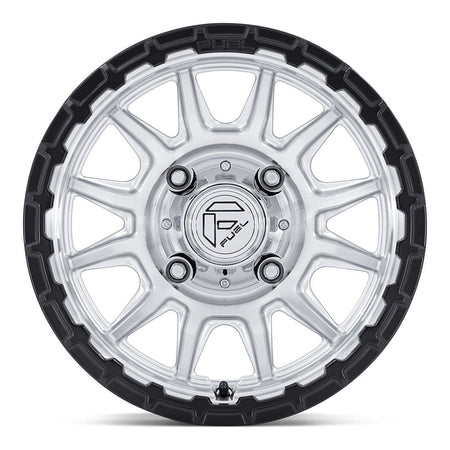

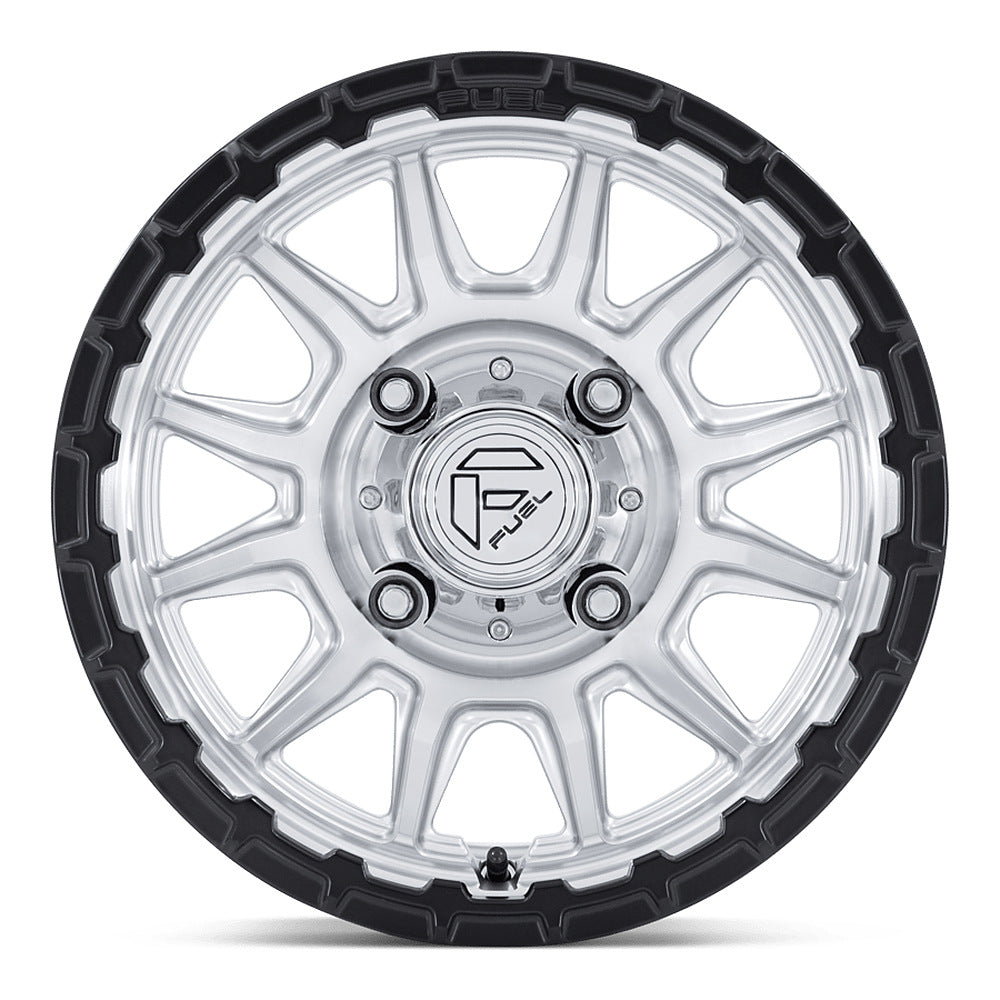

Fuel Piston FV866 UTV wheel in hyper silver machined with matte black lip, straight-on face view

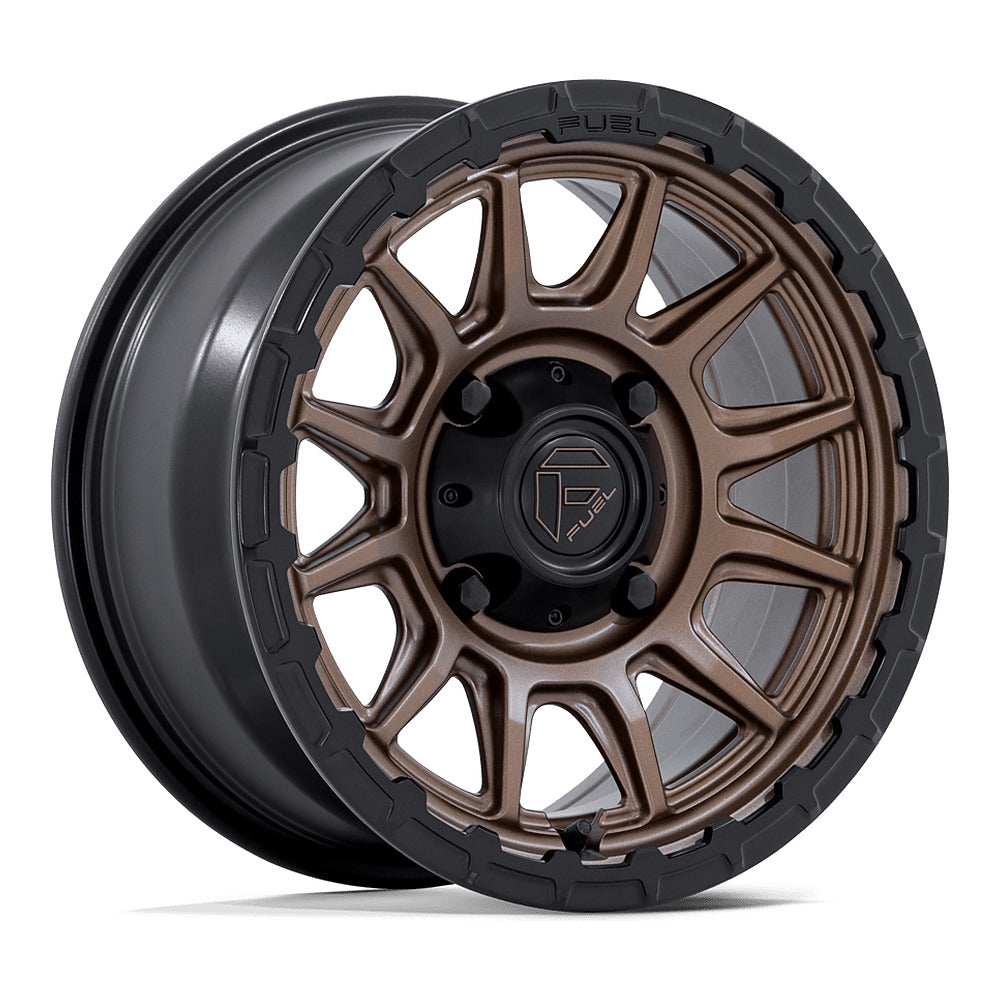

Fuel Piston FV866 UTV wheel in matte bronze with matte black lip, angled front view

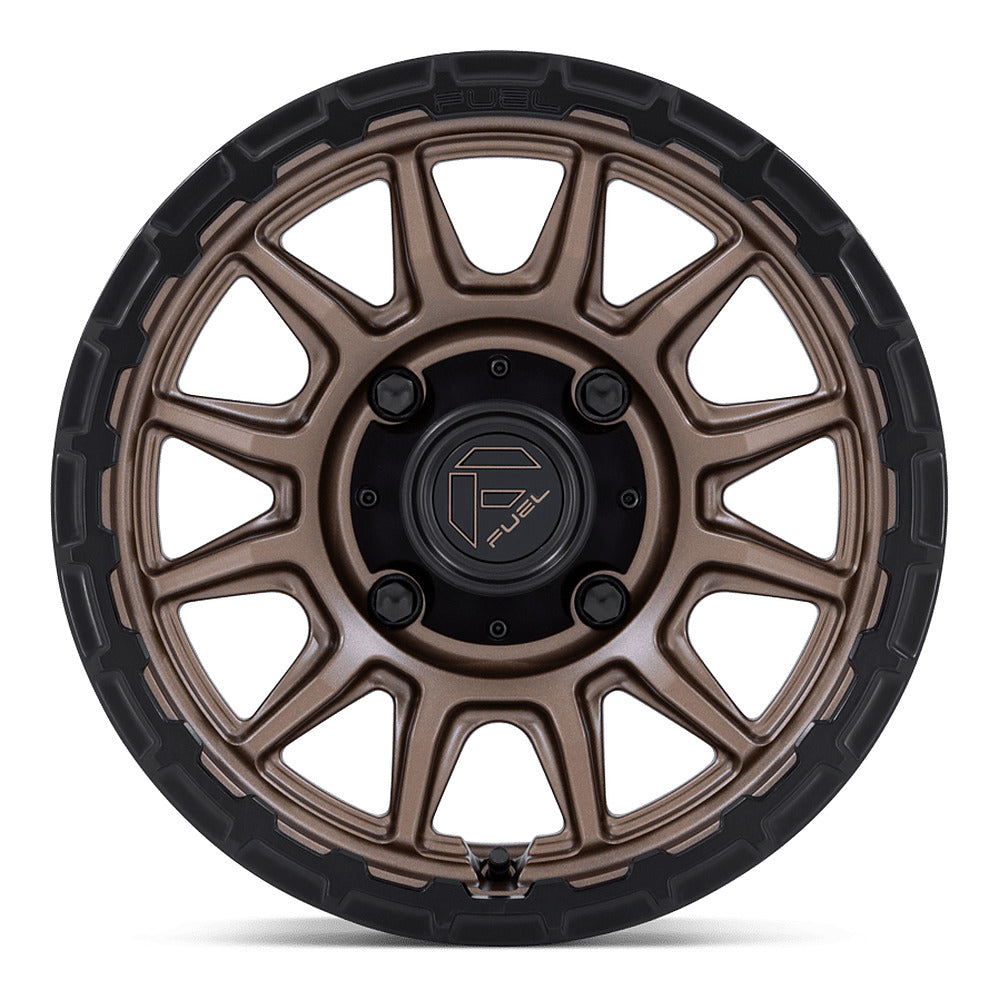

Fuel Piston FV866 UTV wheel in matte bronze with matte black lip, straight-on face view
Fuel Piston FV866 UTV wheel in matte black with gloss black lip, angled front view
Fuel Piston (FV866) UTV wheel in every finish: matte black with gloss black lip, hyper silver machined with matte black lip and matte bronze with matte black lip
Fuel Piston FV866 UTV wheel in matte black with gloss black lip, side angle showing the barrel and lip
Fuel Piston FV866 UTV wheel in hyper silver machined with matte black lip, angled front view
Fuel Piston FV866 UTV wheel in hyper silver machined with matte black lip, side angle showing the barrel and lip
Fuel Piston FV866 UTV wheel in hyper silver machined with matte black lip, straight-on face view
Fuel Piston FV866 UTV wheel in matte bronze with matte black lip, angled front view
Fuel Piston FV866 UTV wheel in matte bronze with matte black lip, straight-on face view
Fuel UTV

Fuel Piston (FV866) UTV Wheel

$232.00

  • Wheel Color: Matte Black w/ Gloss Black Lip | Hyper Silver Machined w/ Matte Black Lip | Matte Bronze w/ Matte Black Lip
  • Size: 15x7
  • Bolt Pattern: 4/110 | 4/137 | 4/156 | 5/114.3 | 6/139.7
  • Offset: +38 mm | +10 mm
  • Wheel Type: Standard
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...

Clean, evenly spaced spokes give the Fuel Piston (FV866) a modern face that is easy to spray clean after a ride. It is a one-piece cast aluminum wheel rated to 1,250 lbs, so it holds up under heavy four-seaters and high-horsepower machines.

Each of the three finishes uses a two-tone lip. Matte black pairs with a gloss black lip for a low-key look, hyper silver machined puts a bright face inside a matte black lip, and matte bronze with a matte black lip gives an earthy contrast.

Every Piston is a 15x7, drilled for 4x110, 4x137, 4x156, 5x114.3 or 6x139.7. Most patterns come in +10mm or +38mm, and weights stay between about 18.7 and 19.4 lbs no matter which you choose.

Fuel Piston (FV866) Key Features

  • 1,250 lb Load Rating: Rated for heavier side-by-sides and loaded builds.
  • Two-Tone Lips: Every finish contrasts the face with a black lip.
  • 4-, 5- and 6-Lug Fitments: Covers Honda, Yamaha, Suzuki, Can-Am, Kawasaki, Polaris Pro R and six-lug platforms in one size.
  • Caps for Each Finish: Fuel makes a matching center cap for every Piston finish, listed by part number in the table.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

  • 4x110 Bolt Pattern (79.40mm center bore; 15x7): Common on many Honda, Yamaha, Kawasaki, and Suzuki ATVs and some utility side-by-sides.
  • 4x137 Bolt Pattern (96.00mm center bore; 15x7): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
  • 4x156 Bolt Pattern (115.10mm center bore; 15x7): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.
  • 5x114.3 Bolt Pattern (72.56mm center bore; 15x7): Also listed as 5/4.5. Used on next-generation 5-lug machines like the Polaris RZR Pro R and Turbo R.
  • 6x139.7 Bolt Pattern (100.30mm center bore; 15x7): Also listed as 6/5.5. Used on 6-lug setups such as the Can-Am Maverick R and many portal gear lifts.

Important Fitment & Use Notes

  • Lug Nut Hardware: The Piston has recessed lug pockets, and factory lug nuts typically will not fit. Plan on aftermarket splined or tapered lug nuts matched to your machine's thread pitch (sold separately).
  • Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before riding on public roads.
  • Replacement Center Caps: Fuel part numbers by finish: Matte Black w/ Gloss Black Lip: 1007-07BLD (4/110), 1007-06BLD (4/137), 1007-04BLD (4/156), 1007-40BLD (5/114.3), 1007-12BLD (6/139.7); Hyper Silver Machined w/ Matte Black Lip: 1007-07 (4/110), 1007-06 (4/137), 1007-04 (4/156), 1007-40 (5/114.3), 1007-12 (6/139.7); Matte Bronze w/ Matte Black Lip: 1007-07MBZ (4/110), 1007-06MBZ (4/137), 1007-04MBZ (4/156), 1007-40MBZ (5/114.3), 1007-12MBZ (6/139.7).
  • Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Piston (FV866) Specifications

Finish Wheel Size SKU UPC Code Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
Matte Black w/ Gloss Black Lip 15x7 FV866MB15704B10 194933406845 Cast Aluminum 4/110 +10mm 4.39 79.40 19.18 1,250 lbs 0.98 1007-07BLD
Matte Black w/ Gloss Black Lip 15x7 FV866MB15704838A 194933447428 Cast Aluminum 4/137 +38mm 5.50 96.00 19.20 1,250 lbs 0.98 1007-06BLD
Matte Black w/ Gloss Black Lip 15x7 FV866MB15704810A 194933447435 Cast Aluminum 4/137 +10mm 4.39 96.00 19.40 1,250 lbs 0.98 1007-06BLD
Matte Black w/ Gloss Black Lip 15x7 FV866MB15704438 194933406876 Cast Aluminum 4/156 +38mm 5.50 115.10 18.74 1,250 lbs 0.98 1007-04BLD
Matte Black w/ Gloss Black Lip 15x7 FV866MB15704410 194933406883 Cast Aluminum 4/156 +10mm 4.39 115.10 18.96 1,250 lbs 0.98 1007-04BLD
Matte Black w/ Gloss Black Lip 15x7 FV866MB15701238 194933406890 Cast Aluminum 5/114.3 +38mm 5.50 72.56 18.99 1,250 lbs 0.98 1007-40BLD
Matte Black w/ Gloss Black Lip 15x7 FV866MB15701210 194933406906 Cast Aluminum 5/114.3 +10mm 4.39 72.56 19.18 1,250 lbs 0.98 1007-40BLD
Matte Black w/ Gloss Black Lip 15x7 FV866MB15706U38 194933406838 Cast Aluminum 6/139.7 +38mm 5.50 100.30 18.74 1,250 lbs 0.98 1007-12BLD
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15704B10 194933406760 Cast Aluminum 4/110 +10mm 4.39 79.40 19.18 1,250 lbs 0.98 1007-07
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15704838A 194933447404 Cast Aluminum 4/137 +38mm 5.50 96.00 19.20 1,250 lbs 0.98 1007-06
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15704810A 194933447411 Cast Aluminum 4/137 +10mm 4.39 96.00 19.40 1,250 lbs 0.98 1007-06
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15704438 194933406791 Cast Aluminum 4/156 +38mm 5.50 115.10 18.74 1,250 lbs 0.98 1007-04
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15704410 194933406807 Cast Aluminum 4/156 +10mm 4.39 115.10 18.96 1,250 lbs 0.98 1007-04
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15701238 194933406814 Cast Aluminum 5/114.3 +38mm 5.50 72.56 18.99 1,250 lbs 0.98 1007-40
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15701210 194933406821 Cast Aluminum 5/114.3 +10mm 4.39 72.56 19.18 1,250 lbs 0.98 1007-40
Hyper Silver Machined w/ Matte Black Lip 15x7 FV866SB15706U38 194933406753 Cast Aluminum 6/139.7 +38mm 5.50 100.30 18.74 1,250 lbs 0.98 1007-12
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15704B10 194933406586 Cast Aluminum 4/110 +10mm 4.39 79.40 19.18 1,250 lbs 0.98 1007-07MBZ
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15704838A 194933447381 Cast Aluminum 4/137 +38mm 5.50 96.00 19.20 1,250 lbs 0.98 1007-06MBZ
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15704810A 194933447398 Cast Aluminum 4/137 +10mm 4.39 96.00 19.40 1,250 lbs 0.98 1007-06MBZ
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15704438 194933406715 Cast Aluminum 4/156 +38mm 5.50 115.10 18.74 1,250 lbs 0.98 1007-04MBZ
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15704410 194933406722 Cast Aluminum 4/156 +10mm 4.39 115.10 18.96 1,250 lbs 0.98 1007-04MBZ
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15701238 194933406739 Cast Aluminum 5/114.3 +38mm 5.50 72.56 18.99 1,250 lbs 0.98 1007-40MBZ
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15701210 194933406746 Cast Aluminum 5/114.3 +10mm 4.39 72.56 19.18 1,250 lbs 0.98 1007-40MBZ
Matte Bronze w/ Matte Black Lip 15x7 FV866ZB15706U38 194933406579 Cast Aluminum 6/139.7 +38mm 5.50 100.30 18.74 1,250 lbs 0.98 1007-12MBZ
