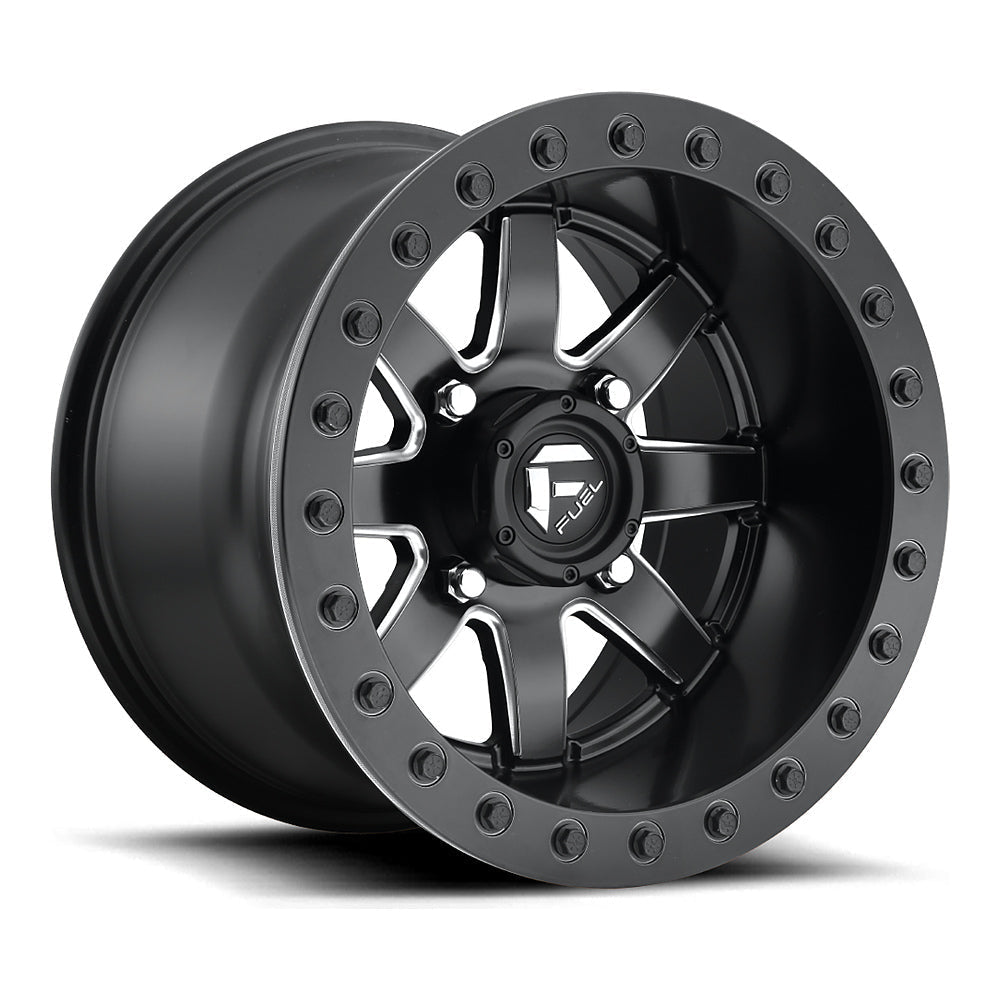

Fuel Maverick Beadlock D928 / D936 UTV wheel in matte black, angled front view

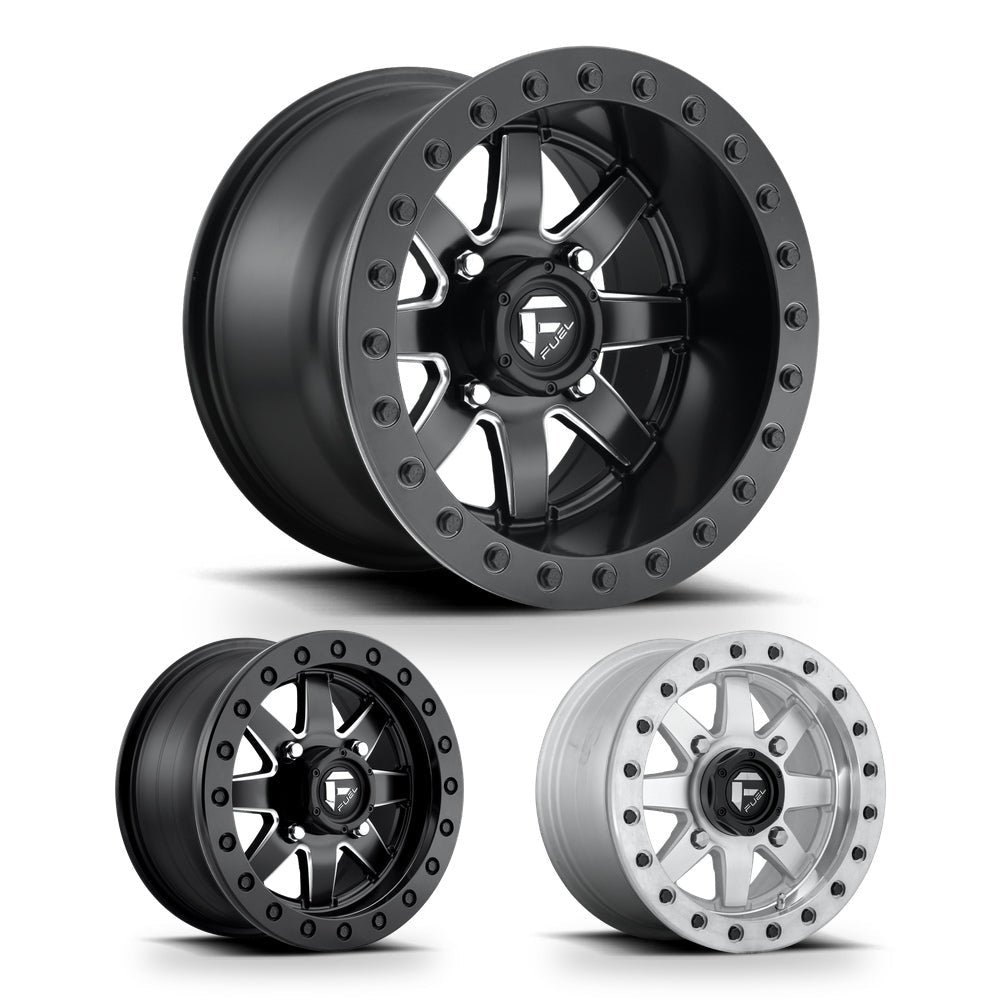

Fuel Maverick Beadlock (D928 / D936 / D937 / D938) UTV wheel in every finish: matte black, matte black milled and raw machined

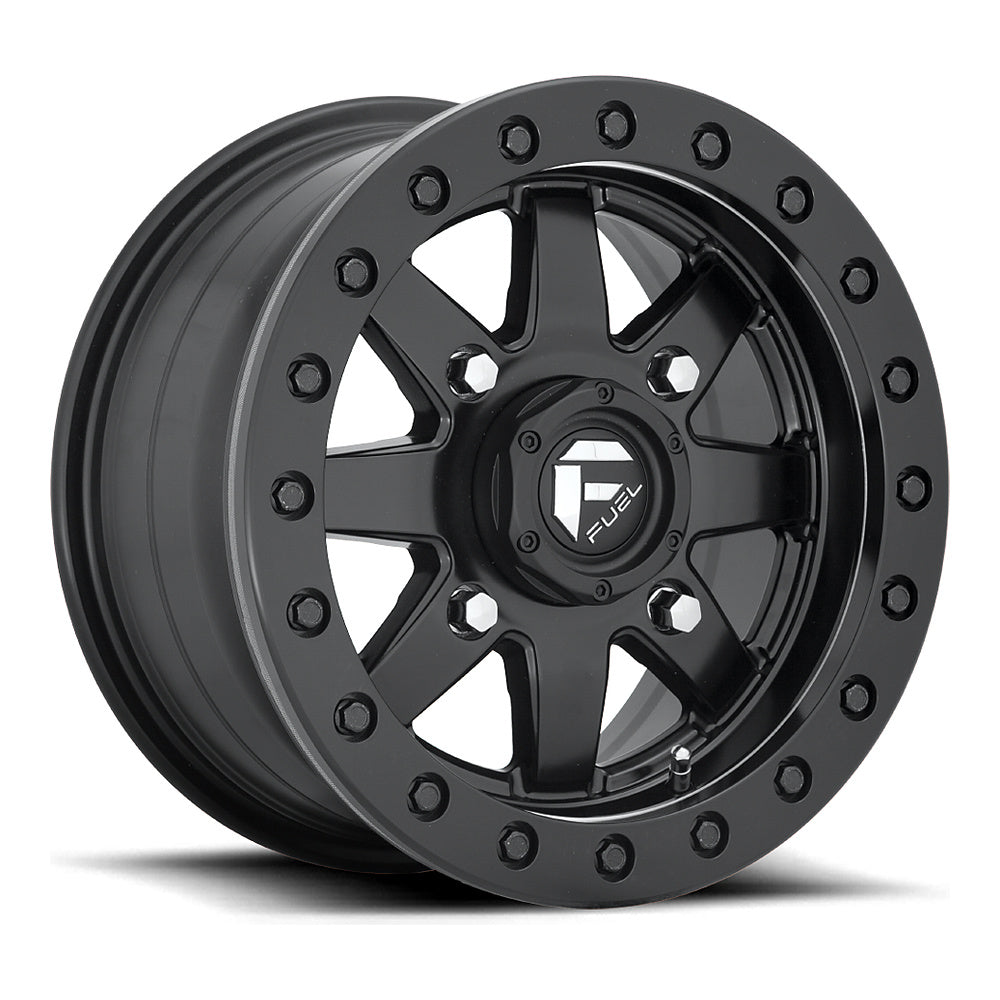

Fuel Maverick Beadlock D928 / D936 UTV wheel in matte black, straight-on face view

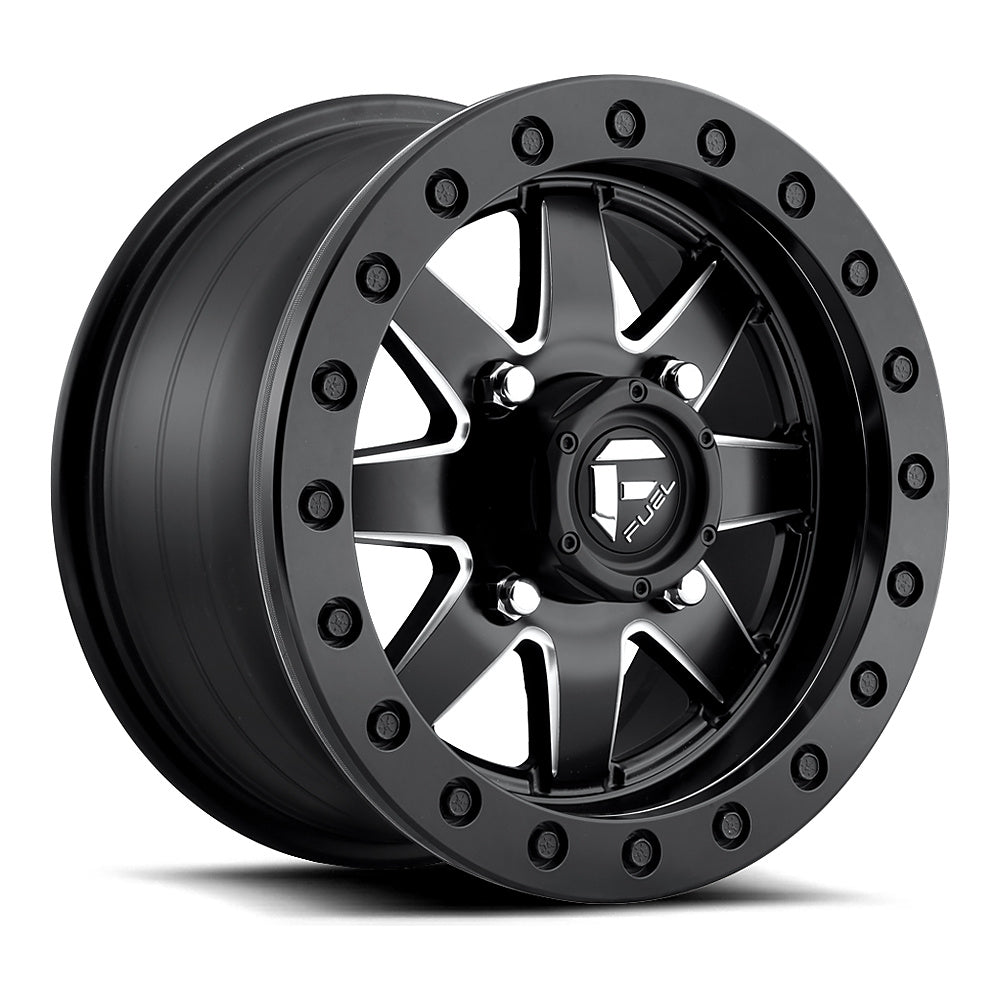

Fuel Maverick Beadlock D938 UTV wheel in matte black milled, angled front view

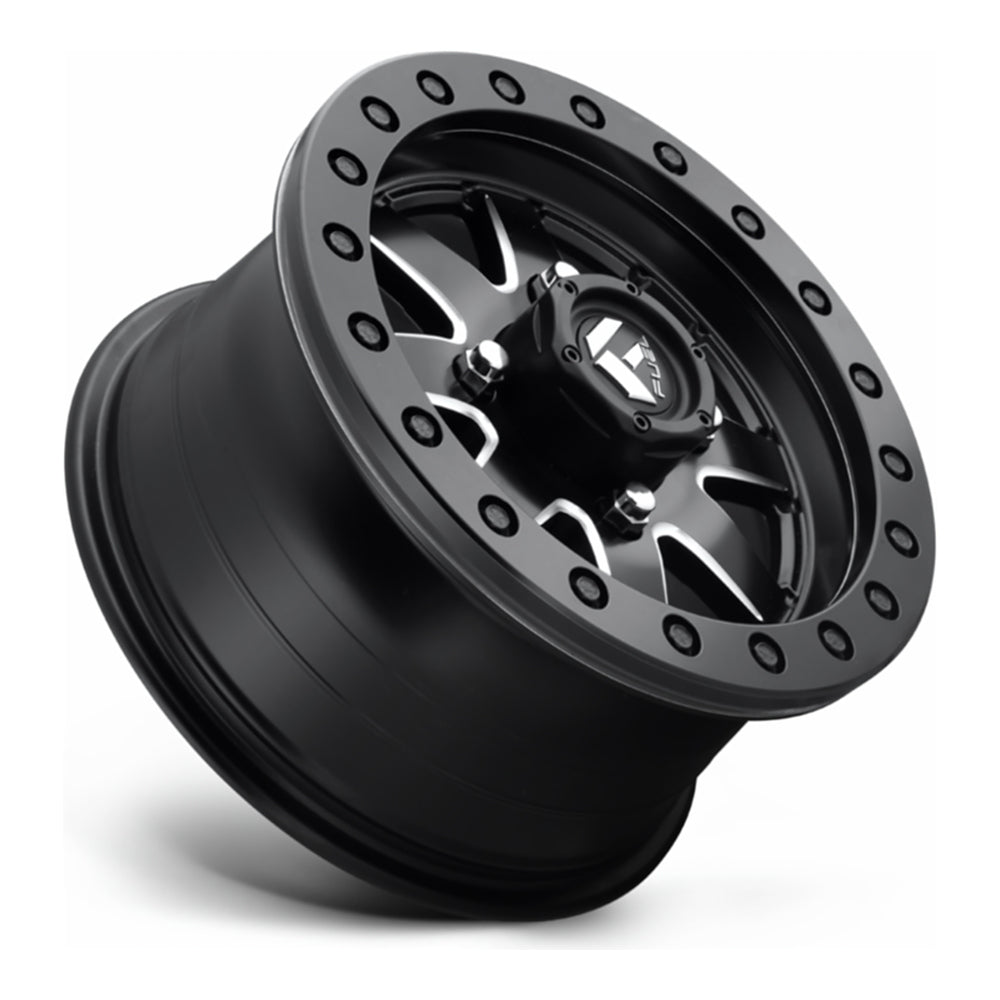

Fuel Maverick Beadlock D938 UTV wheel in matte black milled, side angle showing the barrel and lip

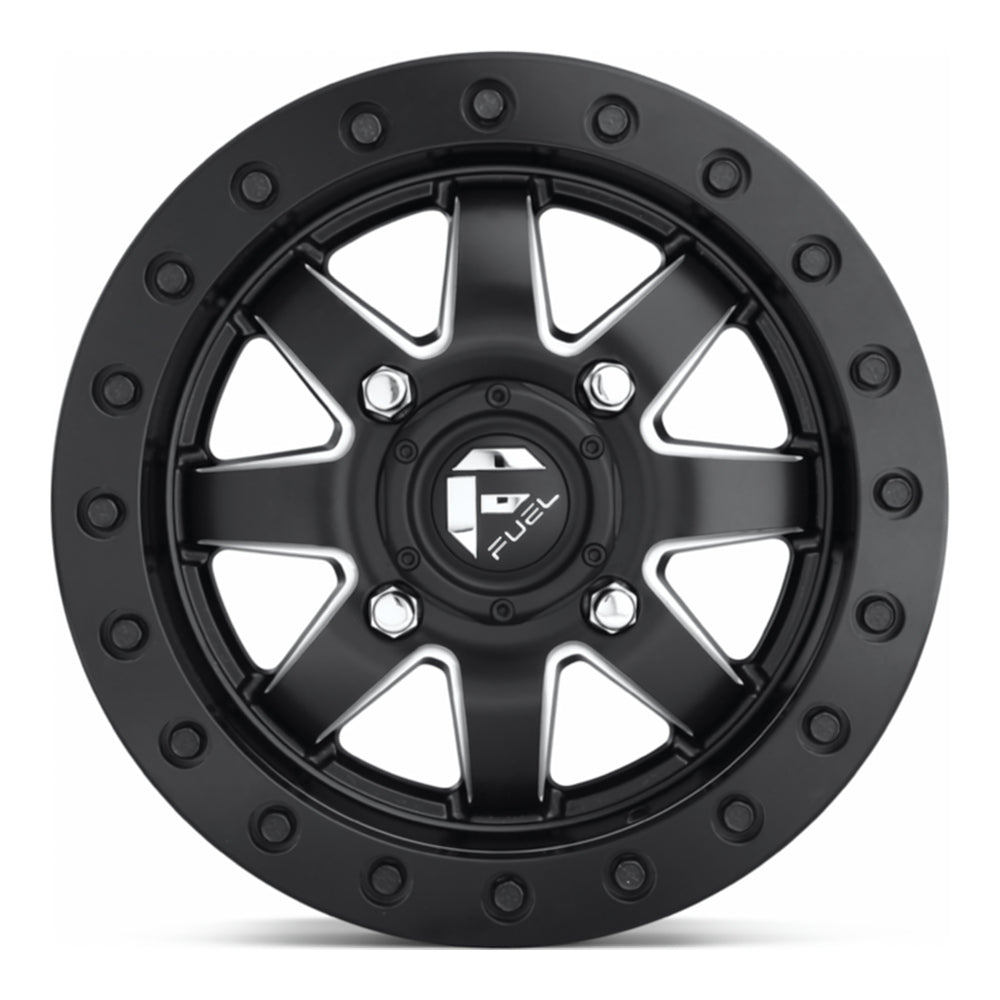

Fuel Maverick Beadlock D938 UTV wheel in matte black milled, straight-on face view

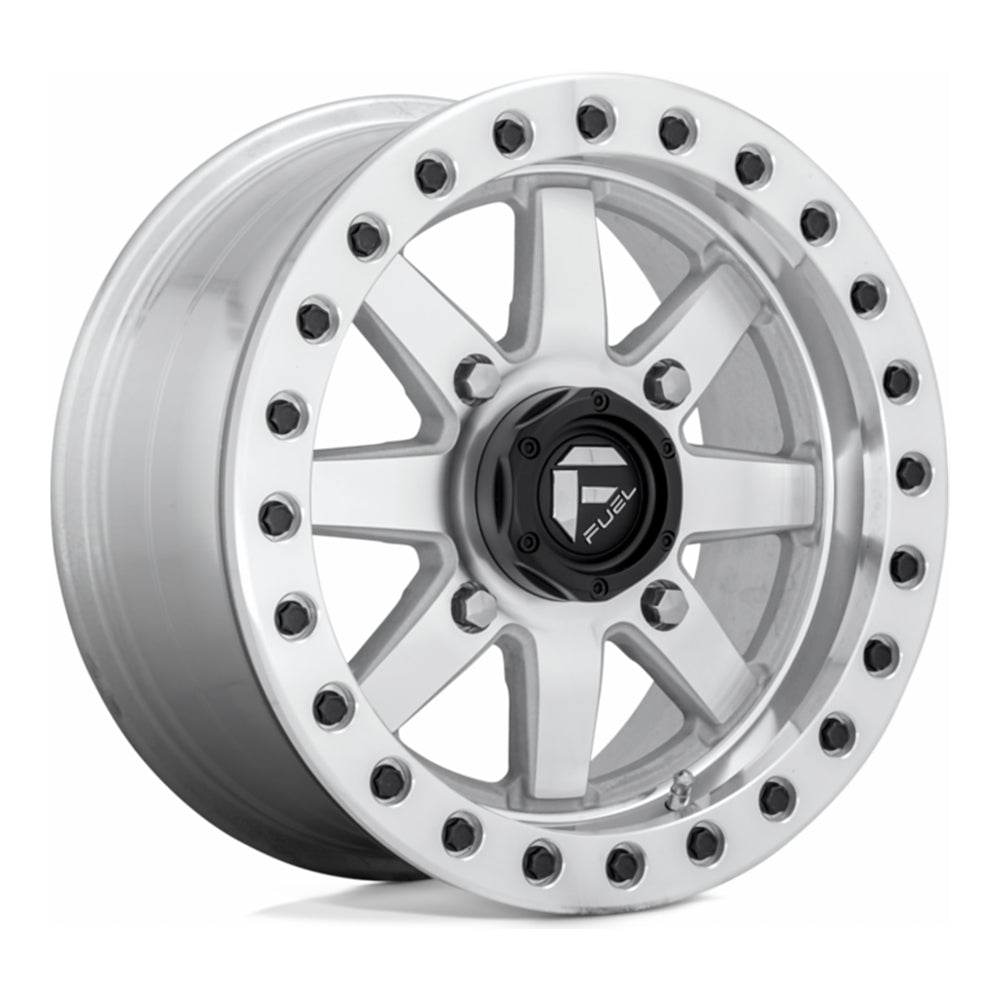

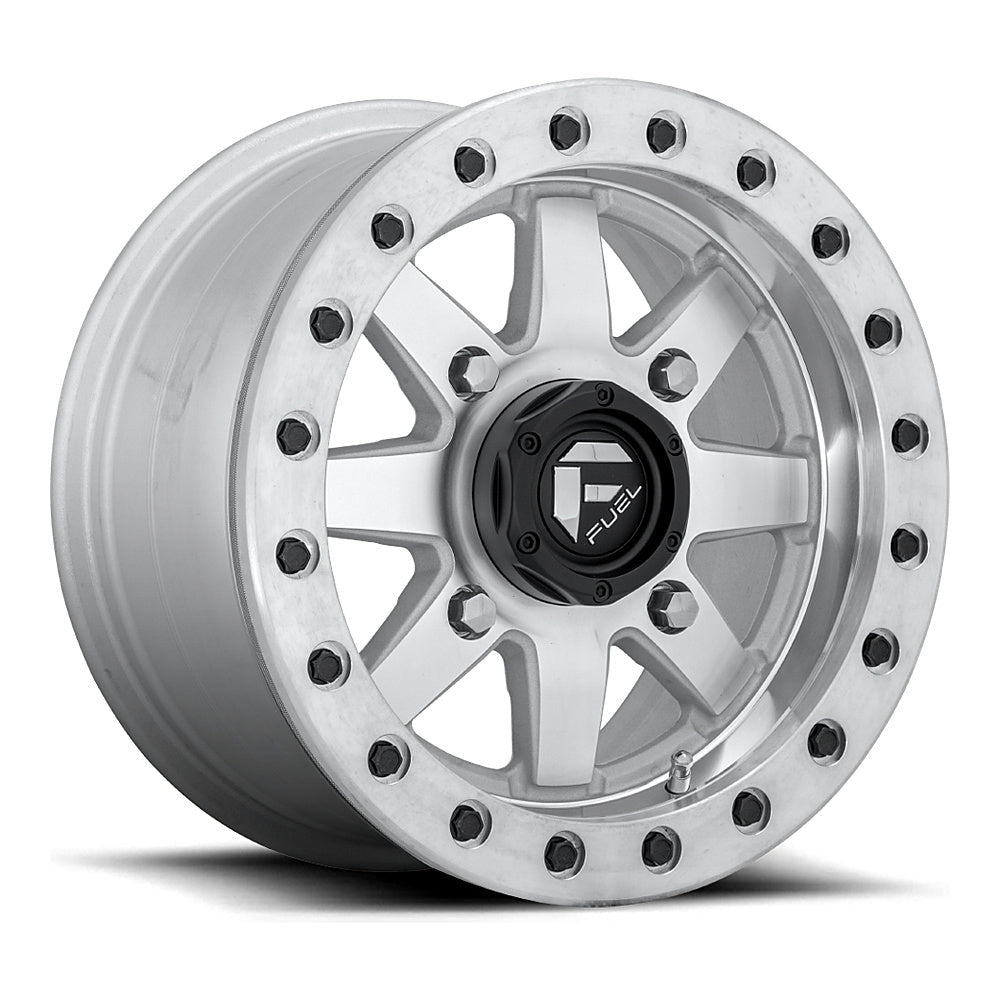

Fuel Maverick Beadlock D937 UTV wheel in raw machined, angled front view

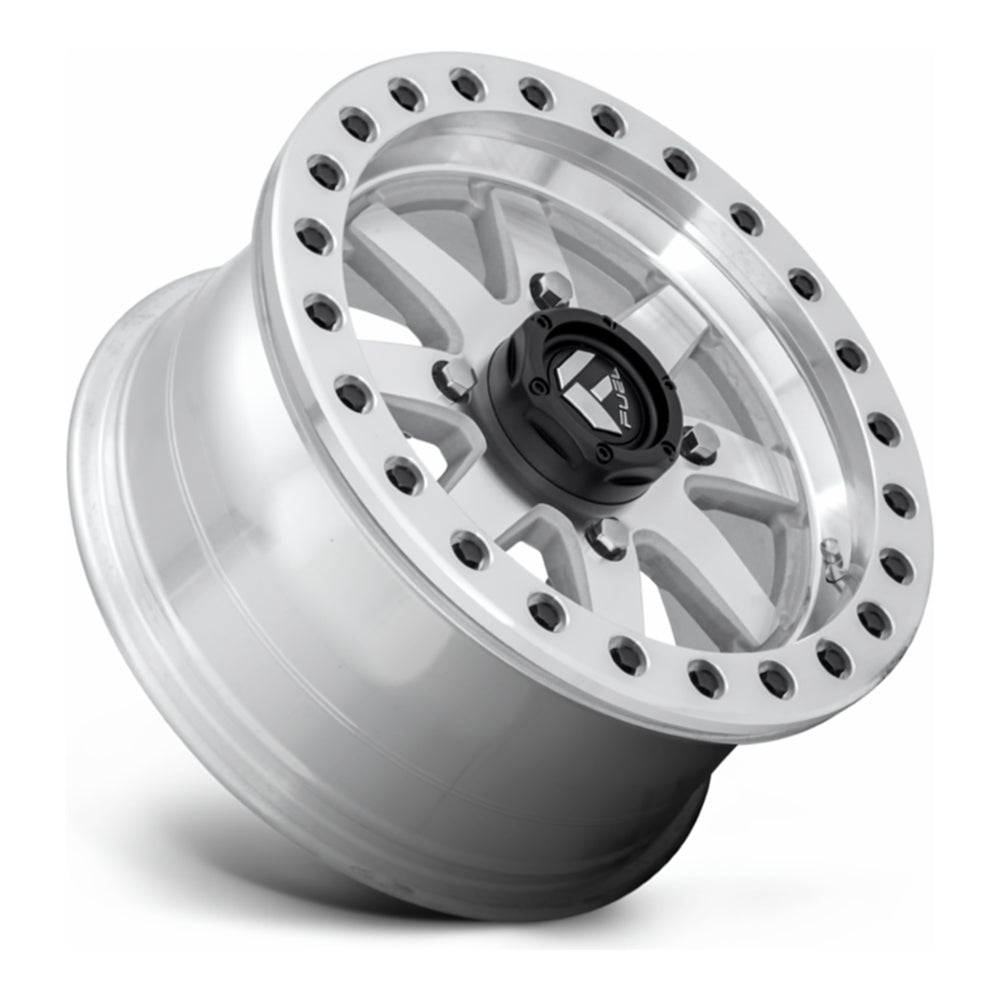

Fuel Maverick Beadlock D937 UTV wheel in raw machined, side angle showing the barrel and lip

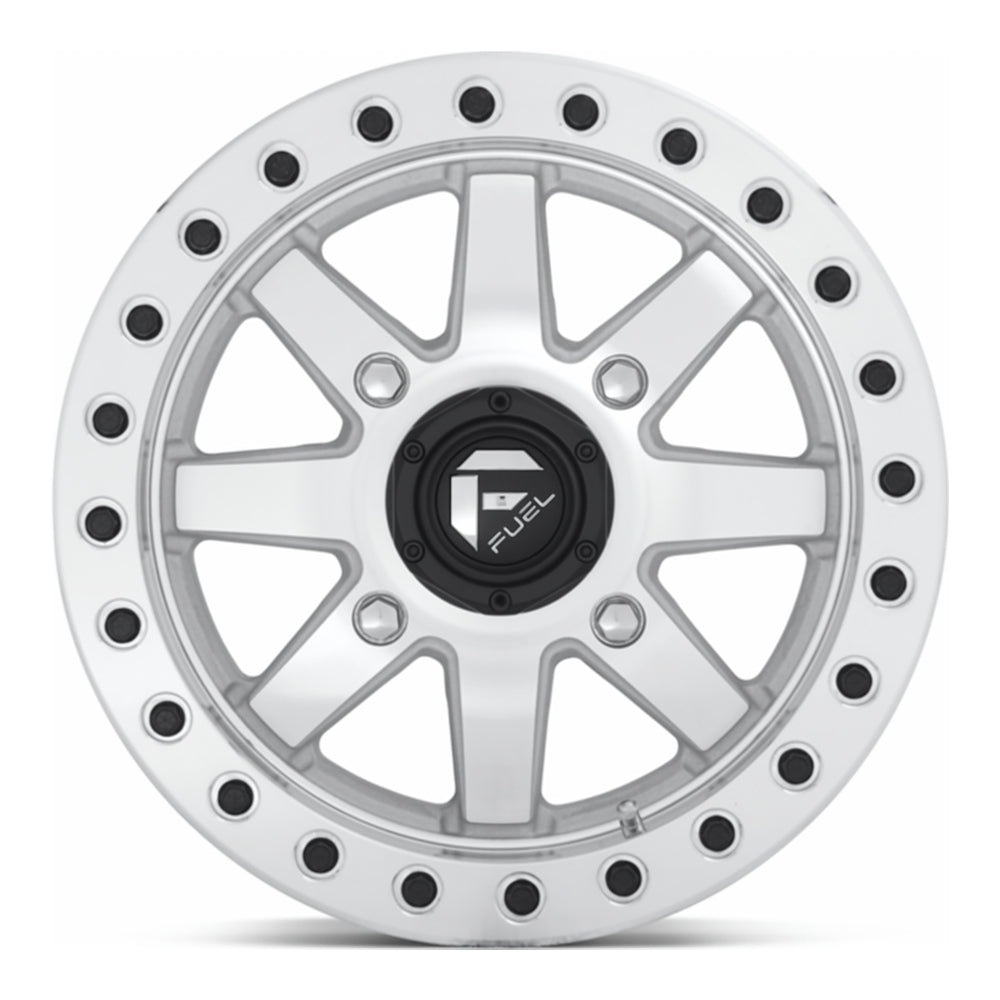

Fuel Maverick Beadlock D937 UTV wheel in raw machined, straight-on face view

Fuel UTV

Fuel Maverick Beadlock (D928 / D936 / D937 / D938) UTV Wheel

$309.00 – $397.00

Wheel Color: Matte Black | Matte Black Milled | Raw Machined
Size: 14x8 | 15x7 | 15x8 | 15x10
Bolt Pattern: 4/137 | 4/156
Offset: +38 mm | +13 mm | 0 mm
Wheel Type: Beadlock

The Fuel Maverick Beadlock takes the thick, symmetrical spokes of Fuel's Maverick and adds a true bolted beadlock ring. With the outer bead clamped in place, you can drop pressure for rocks, sand or mud and the tire stays put on the rim.

Finish choices run from dark to bright: matte black (D928 and D936), matte black with milled spoke edges (D938), and raw machined (D937) for a bare-metal look that shows off the spoke shape.

Matte black carries the widest size range, with 14x8, 15x8 and 15x10 at 0mm plus a 15x7 at +38mm. The milled version is a 15x7 at +13mm or +38mm, and raw machined is a 15x7 at +38mm. All are cast aluminum, rated to 1,000 lbs and sold for off-road use only.

Fuel Maverick Beadlock (D928 / D936 / D937 / D938) Key Features

Bolt-On Bead Security: A ring of bolts holds the tire's outer edge against the wheel, even when you air down hard.
Widths From 7 to 10 Inches: 14x8, 15x7, 15x8 and 15x10 cover narrow trail setups through wide sand builds.
Ring Hardware Listed: Fuel's ring bolt kits and replacement ring part numbers are in the spec table where Fuel publishes them.
Raw Machined Option: The D937 is machined bare across the face for the brightest look in the family.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore; 14x8, 15x7, 15x8, 15x10): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore; 14x8, 15x7, 15x8, 15x10): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Off-Road Use Only: True beadlock wheels are sold for off-road use only and are illegal on public roads in many states and provinces. It is the buyer's responsibility to check state and local laws.
Beadlock Maintenance: Torque the ring bolts to Fuel's specification when mounting, then recheck them after the first few rides and after any hard hit. Mounting takes longer than a standard wheel, so use a shop that knows beadlocks if you aren't set up for it.
Lug Nut Hardware: Use lug nuts that match this wheel's lug seat and your machine's thread pitch. Factory lug nuts may not fit, and aftermarket lug nuts are sold separately.
Caring for Raw Machined: With no paint on the face, water spots and grime show up fast, so rinse, dry and skip acid-based cleaners after each ride.
Replacement Center Caps: Fuel part number for every finish: 1003-42MB.
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Maverick Beadlock (D928 / D936 / D937 / D938) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap	Ring Bolts	Ring Part No.
Matte Black	14x8	D9281480A645	885463810720	Cast Aluminum Beadlock	4/137	0mm	4.50	110.10	17.00	1,000 lbs	2.99	1003-42MB	BOLTS-UTV14	24240-20MB
Matte Black	14x8	D9281480A545	885463810737	Cast Aluminum Beadlock	4/156	0mm	4.50	132.00	17.00	1,000 lbs	2.99	1003-42MB	BOLTS-UTV14	24240-20MB
Matte Black	15x7	D9361570A554	885463810652	Cast Aluminum Beadlock	4/156	+38mm	5.50	132.00	19.00	1,000 lbs	1.97	1003-42MB	BOLTS-UTV15	24240-13MB
Matte Black	15x8	D9281580A645	885463810683	Cast Aluminum Beadlock	4/137	0mm	4.50	110.10	17.00	1,000 lbs	3.01	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Black	15x8	D9281580A545	885463810690	Cast Aluminum Beadlock	4/156	0mm	4.50	132.00	17.00	1,000 lbs	3.01	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Black	15x10	D9281500A655	885463810706	Cast Aluminum Beadlock	4/137	0mm	5.50	110.10	18.00	1,000 lbs	3.99	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Black	15x10	D9281500A555	885463810713	Cast Aluminum Beadlock	4/156	0mm	5.50	132.00	18.00	1,000 lbs	3.99	1003-42MB	BOLTS-UTV15	24240-21MB
Matte Black Milled	15x7	D9381570A554	885463810546	Cast Aluminum Beadlock	4/156	+38mm	5.50	132.00	17.00	1,000 lbs	1.97	1003-42MB	BOLTS-UTV15	24240-13MB
Matte Black Milled	15x7	D9381570A544	885463810553	Cast Aluminum Beadlock	4/156	+13mm	4.51	132.00	20.00	1,000 lbs	2.27	1003-42MB	—	—
Raw Machined	15x7	D9371570A654	885463810607	Cast Aluminum Beadlock	4/137	+38mm	5.50	110.10	19.00	1,000 lbs	1.97	1003-42MB	—	—
Raw Machined	15x7	D9371570A554	885463810614	Cast Aluminum Beadlock	4/156	+38mm	5.50	132.00	19.00	1,000 lbs	1.97	1003-42MB	—	—
