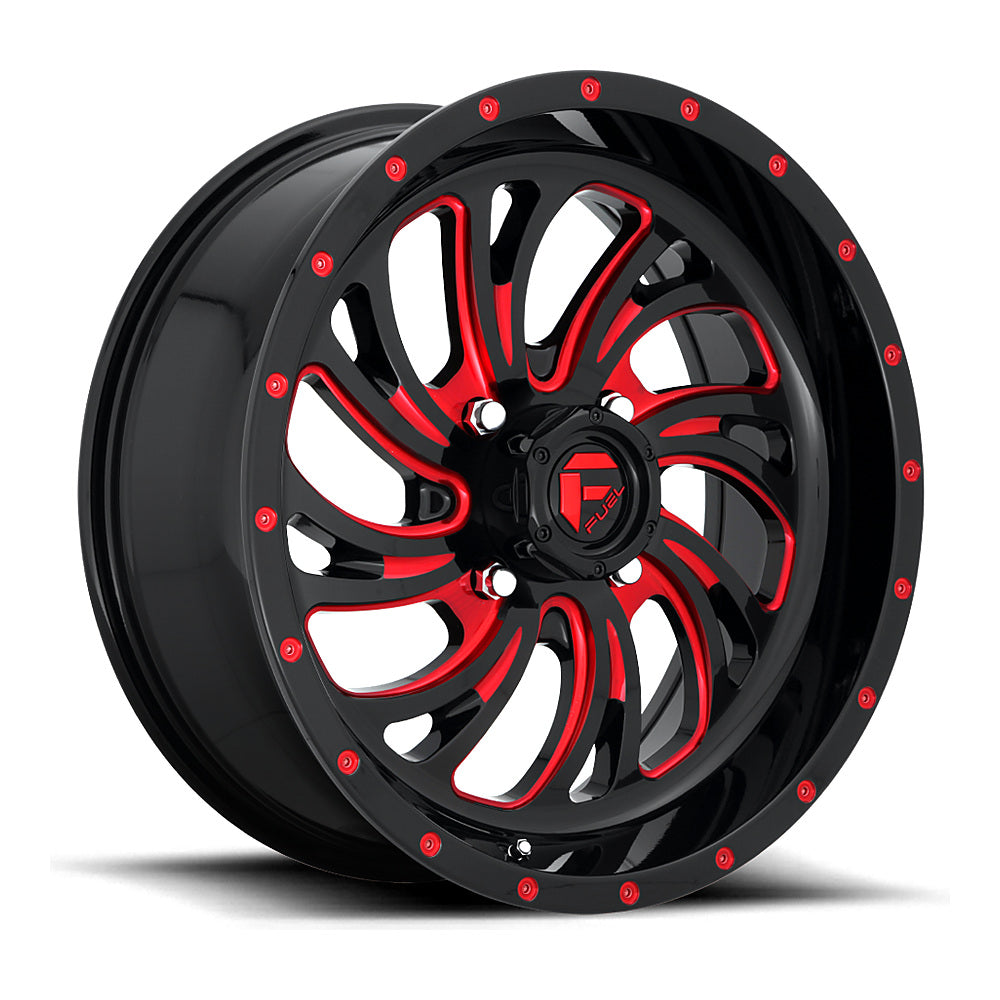

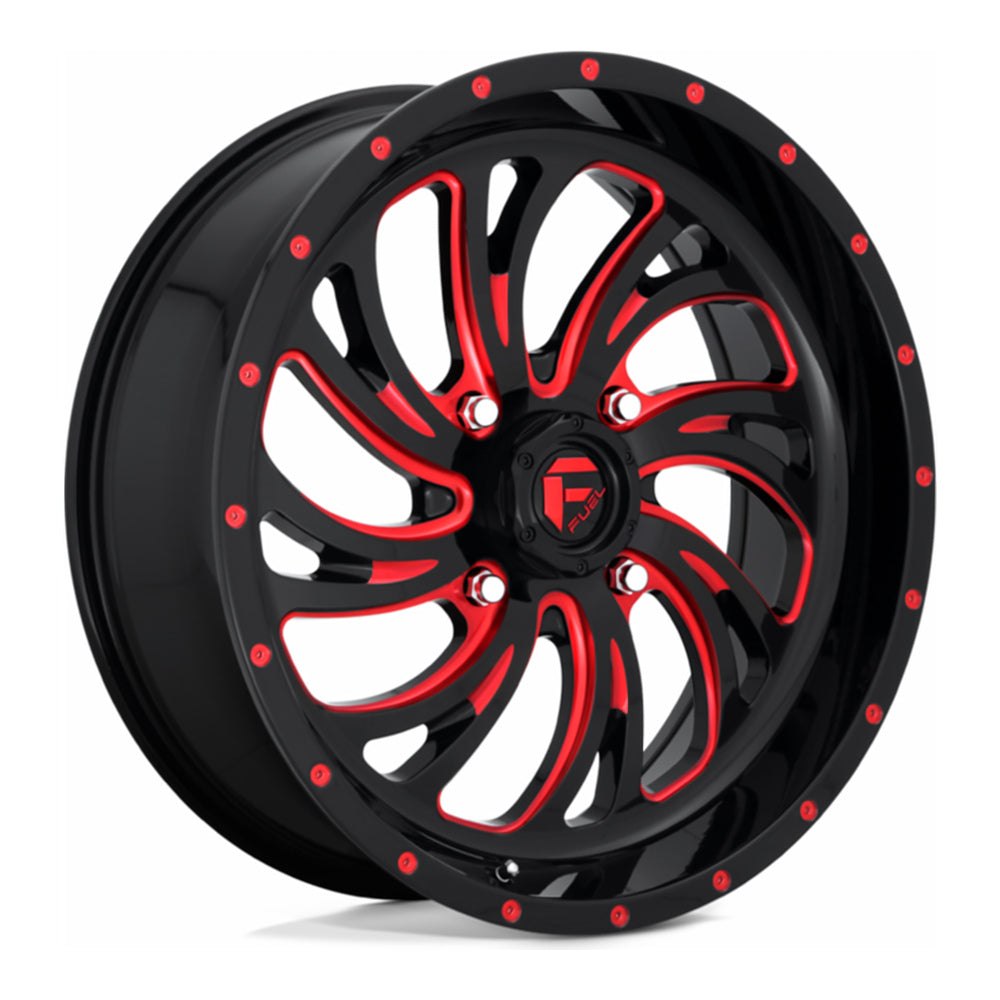

Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, angled front view
Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, angled front view

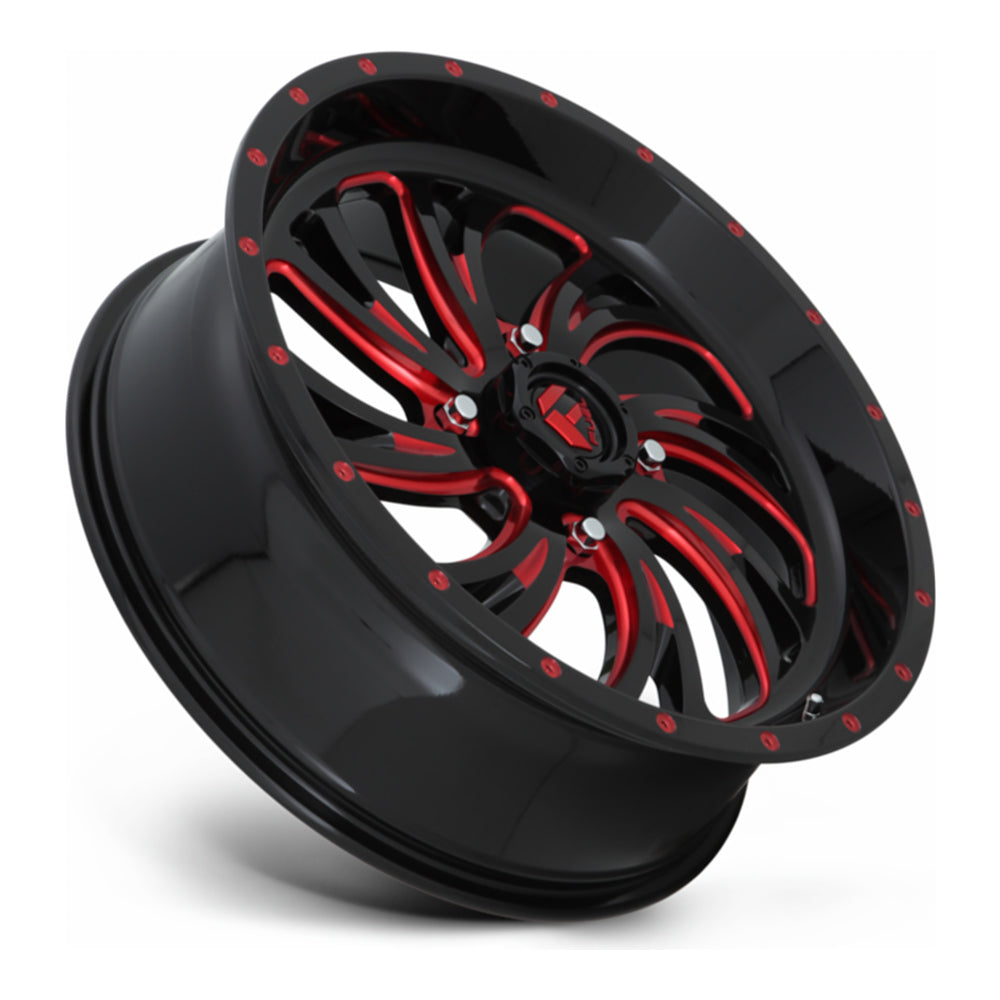

Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, side angle showing the barrel and lip

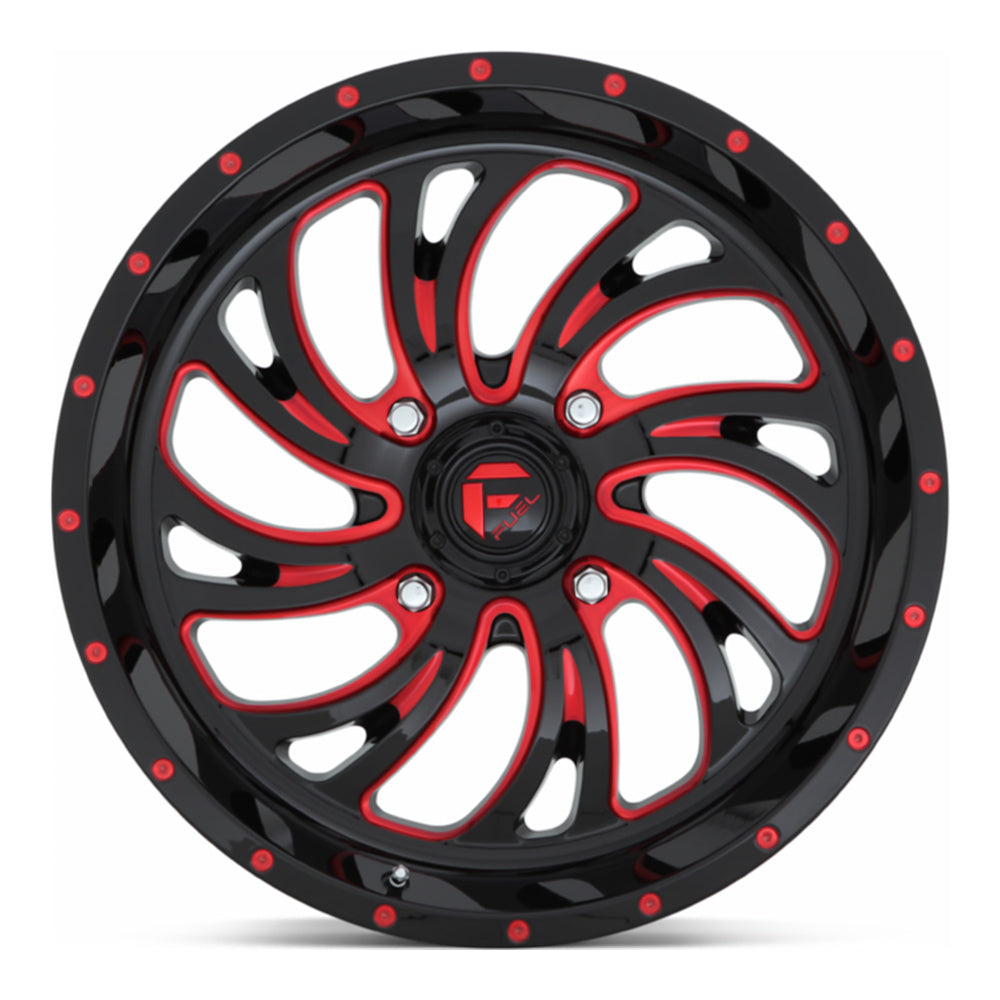

Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, straight-on face view
Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, angled front view
Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, angled front view
Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, side angle showing the barrel and lip
Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, straight-on face view
Fuel UTV

Fuel Kompressor (D642) 20x7 UTV Wheel - Gloss Black Red Tinted Clear

SKU: D6422070A644
(0)

$374.00

  • Wheel Size: 20x7
  • Bolt Pattern: 4/137
  • Offset: +13 mm
  • Wheel Type: Standard
$374.00
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...
Fuel UTV Logo

Red is the difference on this 20x7 Kompressor. It keeps Fuel's swept-spoke design but puts the milled spoke accents under a red-tinted clear coat, so they glow red against the gloss black base instead of showing bare aluminum.

This listing is the 20x7 with a 4x137 bolt pattern and +13mm offset, a direct fit for popular Can-Am, Honda, and Kawasaki machines. At 20", it's a step up in diameter that still leaves usable sidewall with the right tire.

Fuel Kompressor (D642) Key Features

  • Red Tinted Clear Over Milled Accents: Instead of bright silver accents, the red-tinted clear colors every milled edge. It's an easy way to match red machines or red accessories without painting the whole wheel.
  • 20" Diameter, Explained: A 20" wheel typically pairs with low-profile radial tires in the low-to-mid 30-inch range. Compared with a 14" or 15" wheel, you get crisper steering on hardpack and pavement but less sidewall to absorb rocks and square-edged hits.
  • Weight to Plan Around: At 23 lbs per wheel, it carries more rotating mass than a typical 15" wheel. Expect slightly slower spin-up and plan your tire choice with that in mind.
  • Deep Lip, Moderate Offset: A 2.22" lip gives the face depth, and the +13mm offset with 4.51" of backspacing keeps the tire tucked under the fender. The bolt-style ring around the lip is cosmetic.
  • Care and Warranty: Wash with a pH-neutral cleaner and a soft mitt to keep the gloss and tinted clear looking sharp. Cast aluminum, rated to 1,000 lbs, with a lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Kompressor (D642) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

  • 4x137 Bolt Pattern (110.10mm center bore) – 20x7: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.

Important Fitment & Legal Notes

  • Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
  • Center Cap: Replacement center cap is Fuel part number 1003-42GBQ.
  • Not a Beadlock: The bolt-style ring around the lip is a styling detail only. It does not clamp the tire bead, and the wheel mounts tires like any standard wheel.
  • Clearance Check: Larger wheel and tire packages change your overall tire height. Before ordering tires, confirm they clear your fenders, suspension, and frame at full steering lock and full suspension compression.
  • Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before operating on public roads.

Fuel Kompressor (D642) Specifications

Wheel Size SKU UPC Code Finish Construction Bolt Pattern Offset (mm) Backspacing (in) Center Bore (mm) Weight (lbs) Load Rating Lip Depth (in) Replacement Cap
20x7 D6422070A644 885463811161 Gloss Black Red Tinted Clear Cast Aluminum 4/137 +13mm 4.51 110.10 23.00 1,000 lbs 2.22 1003-42GBQ
