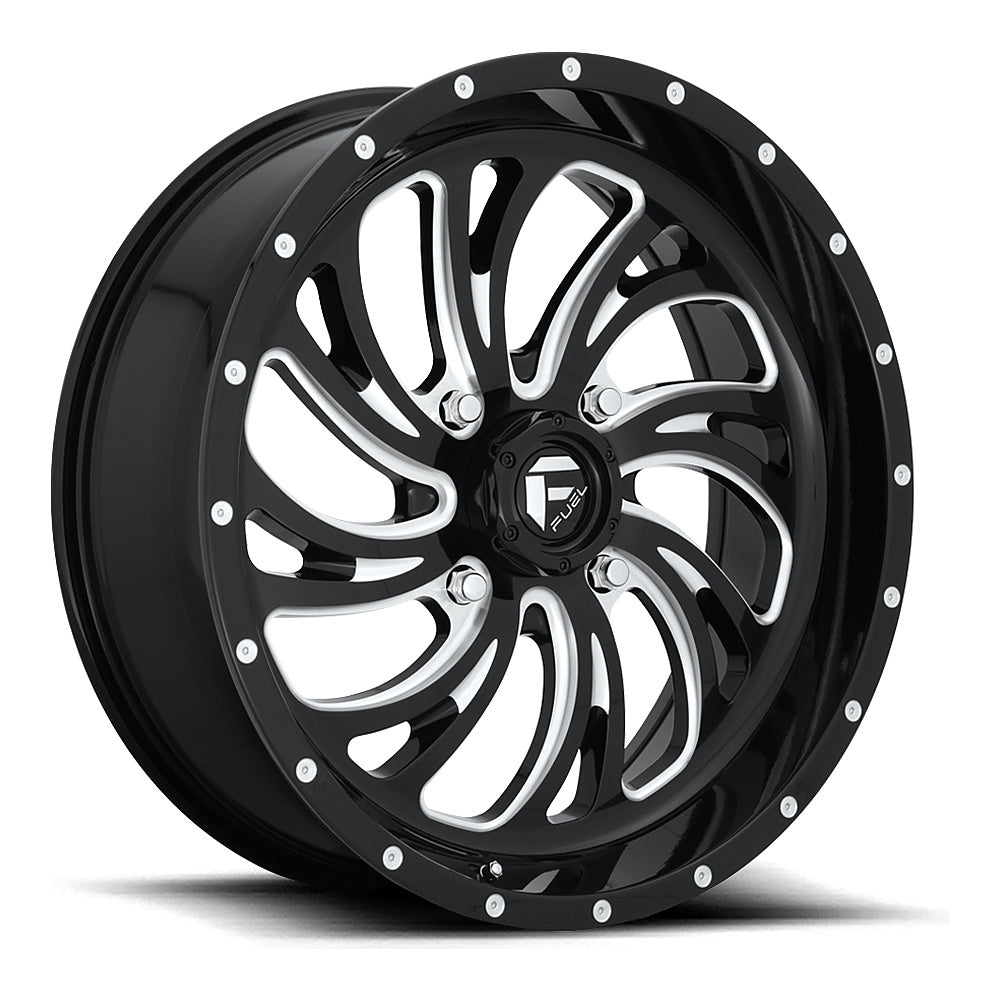

Fuel Kompressor D641 UTV wheel in gloss black milled, angled front view, 18x7 / 20x7 / 22x7 / 24x7

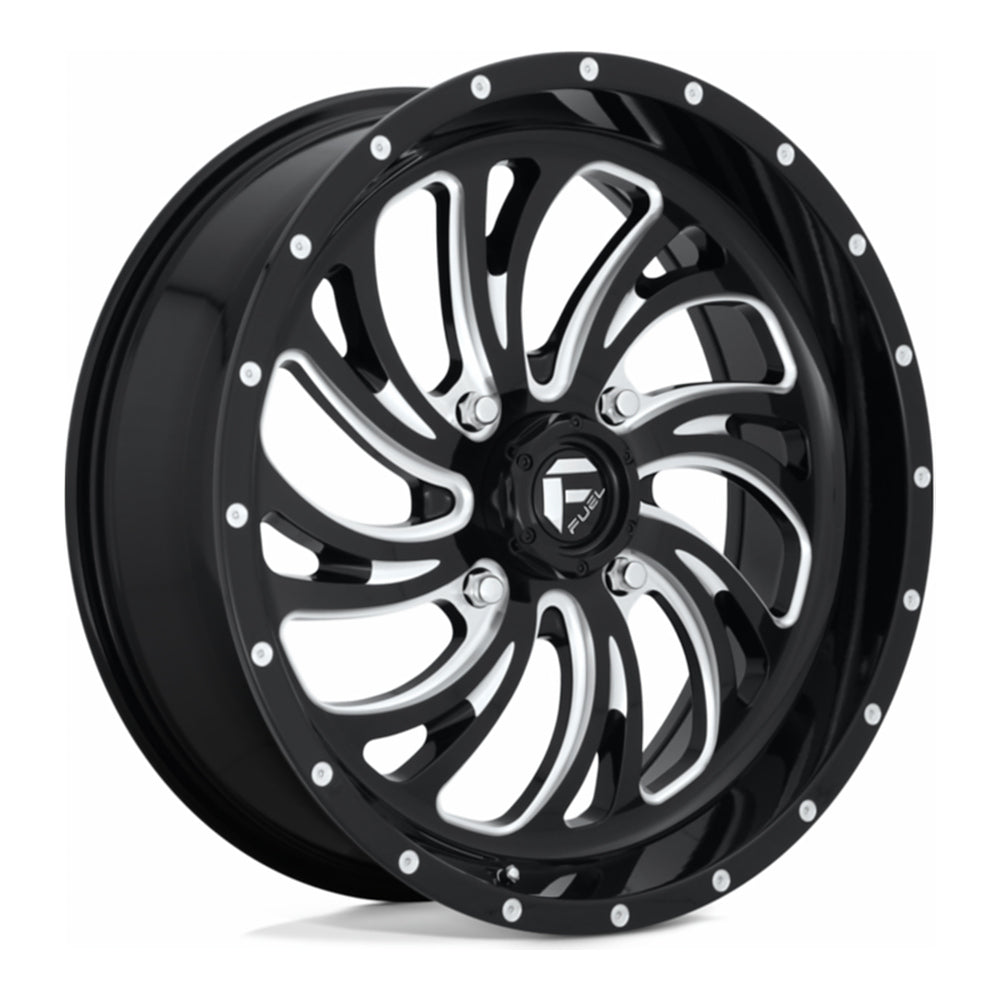

Fuel Kompressor D641 UTV wheel in gloss black milled, angled front view

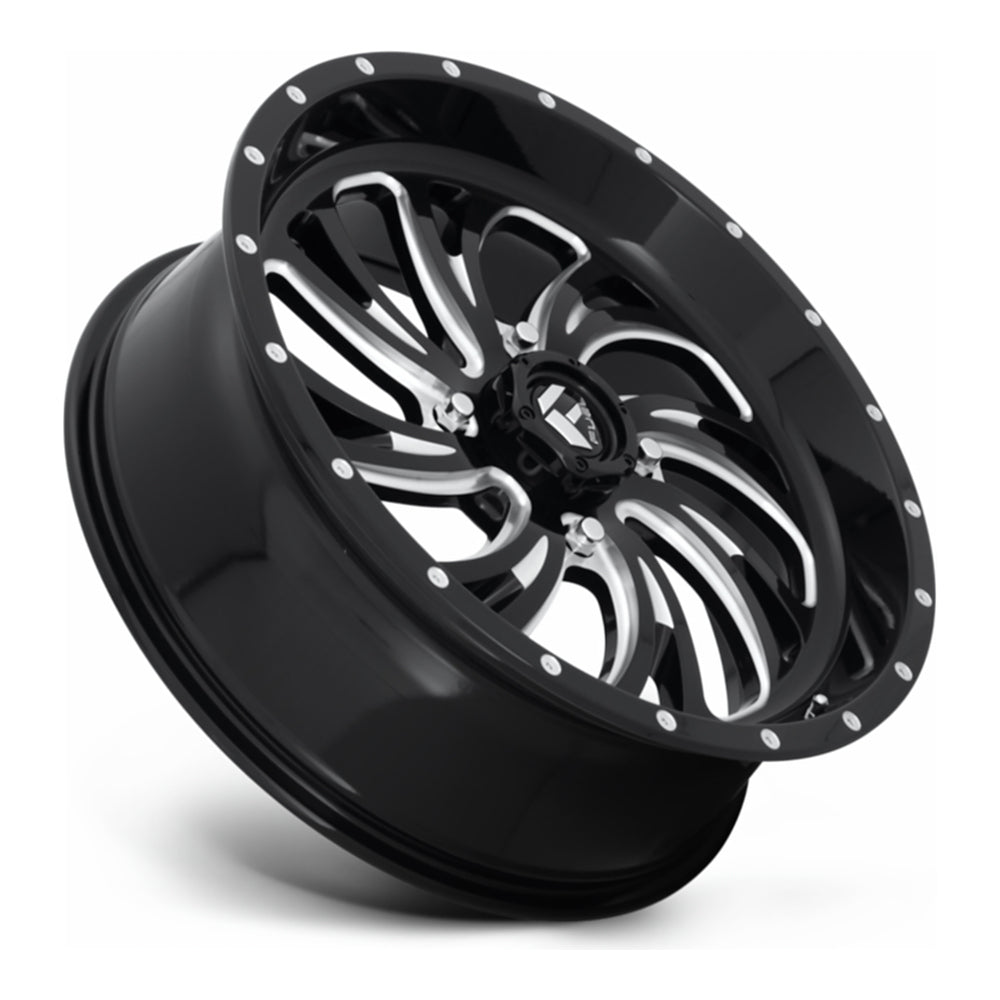

Fuel Kompressor D641 UTV wheel in gloss black milled, side angle showing the barrel and lip

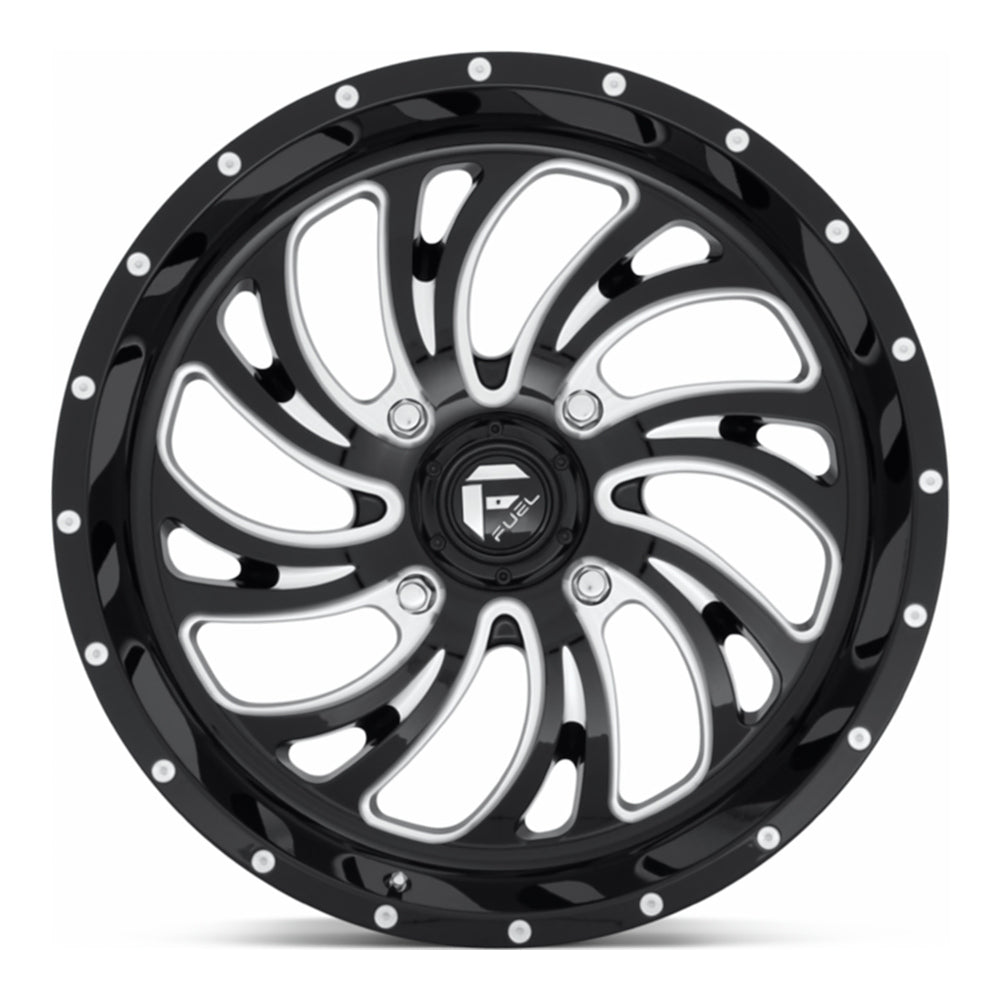

Fuel Kompressor D641 UTV wheel in gloss black milled, straight-on face view

Fuel UTV

Fuel Kompressor (D641) UTV Wheel - Gloss Black Milled

$317.00 – $489.00

Wheel Size: 18x7 | 20x7 | 22x7 | 24x7
Bolt Pattern: 4/137 | 4/156
Offset: +13 mm
Wheel Type: Standard

Big diameters are where the Kompressor lives: this Gloss Black Milled version comes in 18", 20", 22", and 24" sizes for big-wheel UTV builds. Its spokes sweep from the hub out to a deep lip, and milled accents cut along each spoke turn a solid gloss black wheel into a high-contrast one up close.

Every size runs a 7" width and a +13mm offset, so you can step up in diameter without changing how far the tire sits from the hub. Pick your diameter based on the ride you want, not just the look; the sizing notes below explain the tradeoffs.

Fuel Kompressor (D641) Key Features

Choosing a Diameter: Bigger wheels pair with lower-profile tires. The 18" leaves the most sidewall for cushioning, while the 22" and 24" trade sidewall for sharper steering on pavement and hardpack. On rocky trails, a shorter sidewall protects the rim less, so the larger sizes are best for street-legal builds and smoother terrain.
Weight by Size: Each wheel weighs 20 lbs in 18x7, 23 lbs in 20x7, 29 lbs in 22x7, and 33 lbs in 24x7. Every step up adds rotating mass your engine and brakes have to manage, which is why many owners pair 22" and 24" packages with a clutch recalibration or upgrade.
Swept Spokes and a Deep Lip: The curved spokes and 2.22" lip give the face real depth, which keeps a large wheel from looking flat. The bolt-style ring around the lip is cosmetic.
Gloss Black Milled Finish: Gloss wipes clean easily but shows swirl marks more than matte, so use a soft wash mitt and a pH-neutral cleaner. Backed by a one-year manufacturer finish warranty.
Strength: Cast aluminum with a 1,000 lb load rating per wheel, backed by a lifetime manufacturer structural warranty.

Vehicle Application Guide

The Fuel Kompressor (D641) is made in specific bolt patterns for popular off-road machines. Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore) – all sizes: Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore) – 20x7, 22x7, and 24x7 only: Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Legal Notes

Lug Nut Hardware: This wheel uses a conical (60° tapered) lug seat. Confirm your lug nuts match that seat and your machine's thread pitch before mounting; aftermarket lug nuts are sold separately.
Center Cap: Replacement center cap is Fuel part number 1003-42GB.
Not a Beadlock: The bolt-style ring around the lip is a styling detail only. It does not clamp the tire bead, and the wheel mounts tires like any standard wheel.
Clearance Check: Larger wheel and tire packages change your overall tire height. Before ordering tires, confirm they clear your fenders, suspension, and frame at full steering lock and full suspension compression.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before operating on public roads.

Fuel Kompressor (D641) Specifications

Wheel Size	SKU	UPC Code	Finish	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
18x7	D6411870A644	885463811260	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	20.00	1,000 lbs	2.22	1003-42GB
20x7	D6412070A644	885463811246	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	23.00	1,000 lbs	2.22	1003-42GB
20x7	D6412070A544	885463811253	Gloss Black Milled	Cast Aluminum	4/156	+13mm	4.51	132.00	23.00	1,000 lbs	2.22	1003-42GB
22x7	D6412270A644	885463811222	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	29.00	1,000 lbs	2.22	1003-42GB
22x7	D6412270A544	885463811239	Gloss Black Milled	Cast Aluminum	4/156	+13mm	4.51	132.00	29.00	1,000 lbs	2.22	1003-42GB
24x7	D6412470A644	885463811208	Gloss Black Milled	Cast Aluminum	4/137	+13mm	4.51	110.10	33.00	1,000 lbs	2.22	1003-42GB
24x7	D6412470A544	885463811215	Gloss Black Milled	Cast Aluminum	4/156	+13mm	4.51	132.00	33.00	1,000 lbs	2.22	1003-42GB
