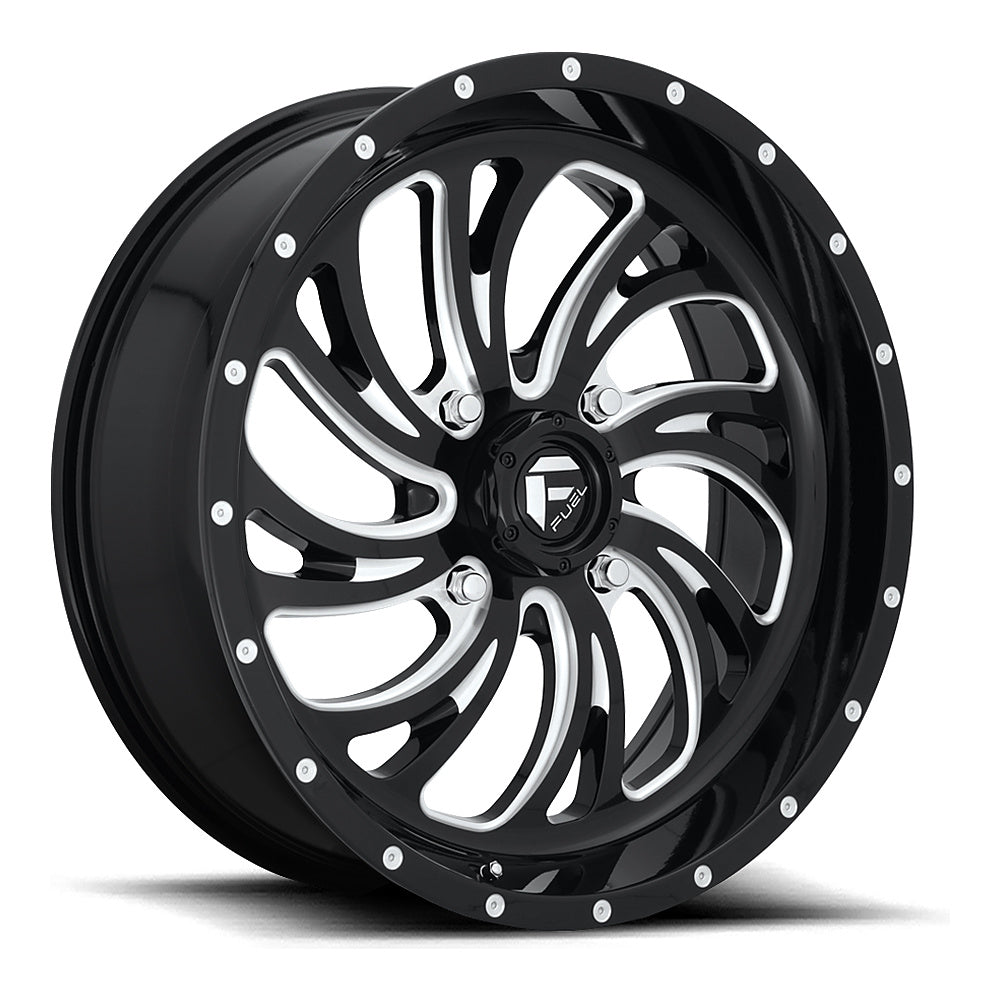

Fuel Kompressor D641 UTV wheel in gloss black milled, angled front view, 18x7 / 20x7 / 22x7 / 24x7

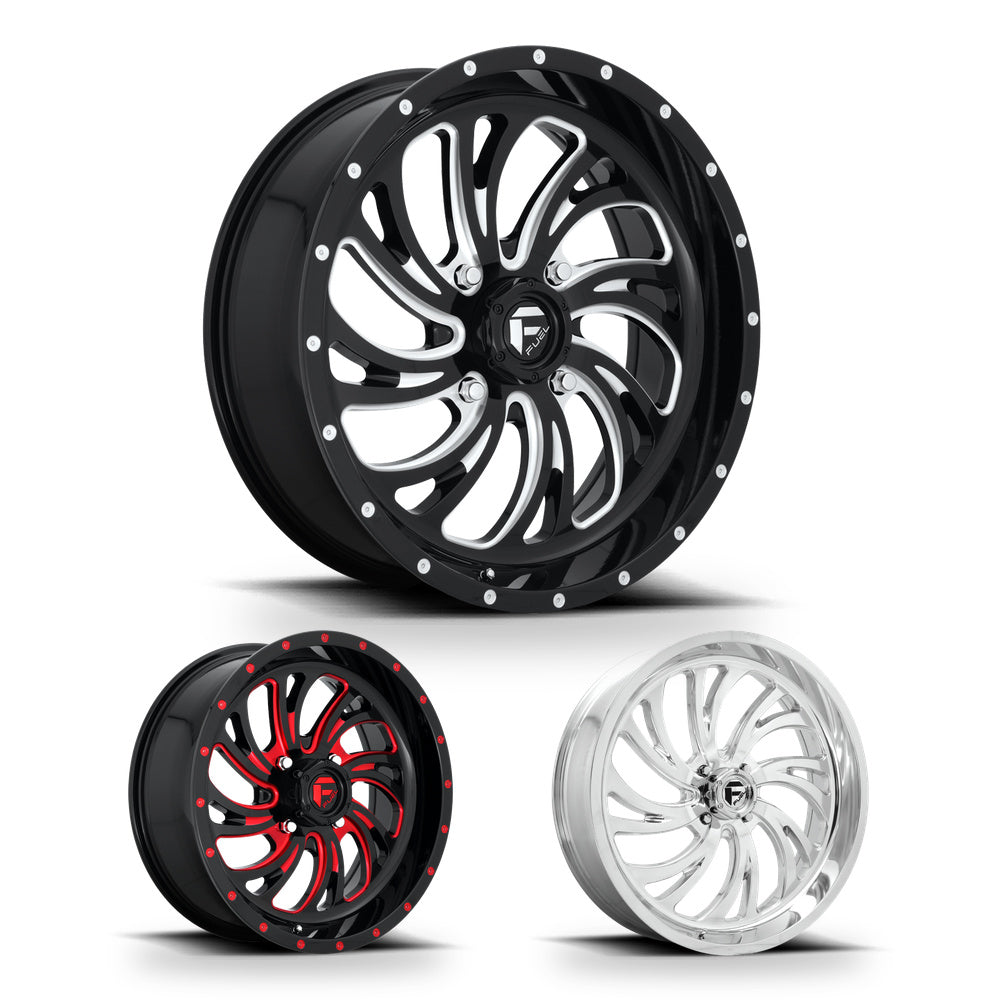

Fuel Kompressor (D641 / D642 / D203) UTV wheel in every finish: gloss black milled, gloss black red tinted clear and high luster polished

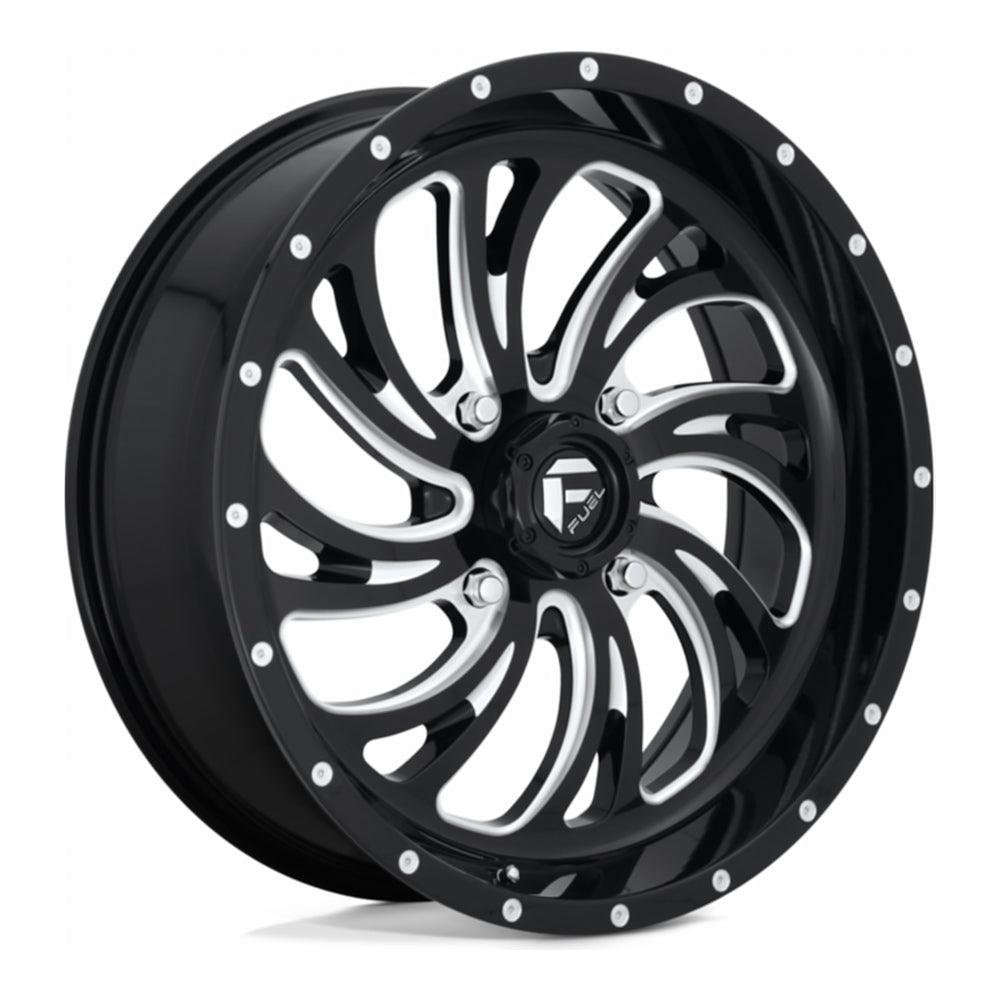

Fuel Kompressor D641 UTV wheel in gloss black milled, angled front view

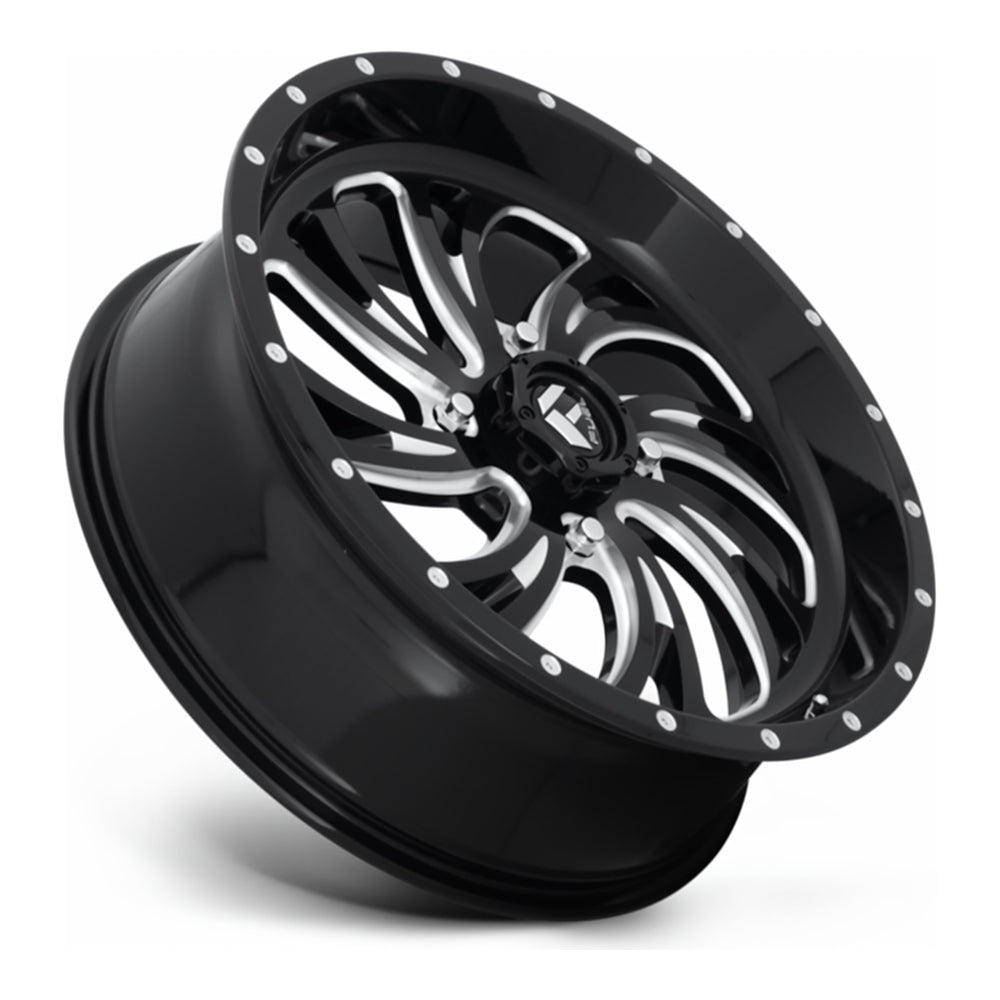

Fuel Kompressor D641 UTV wheel in gloss black milled, side angle showing the barrel and lip

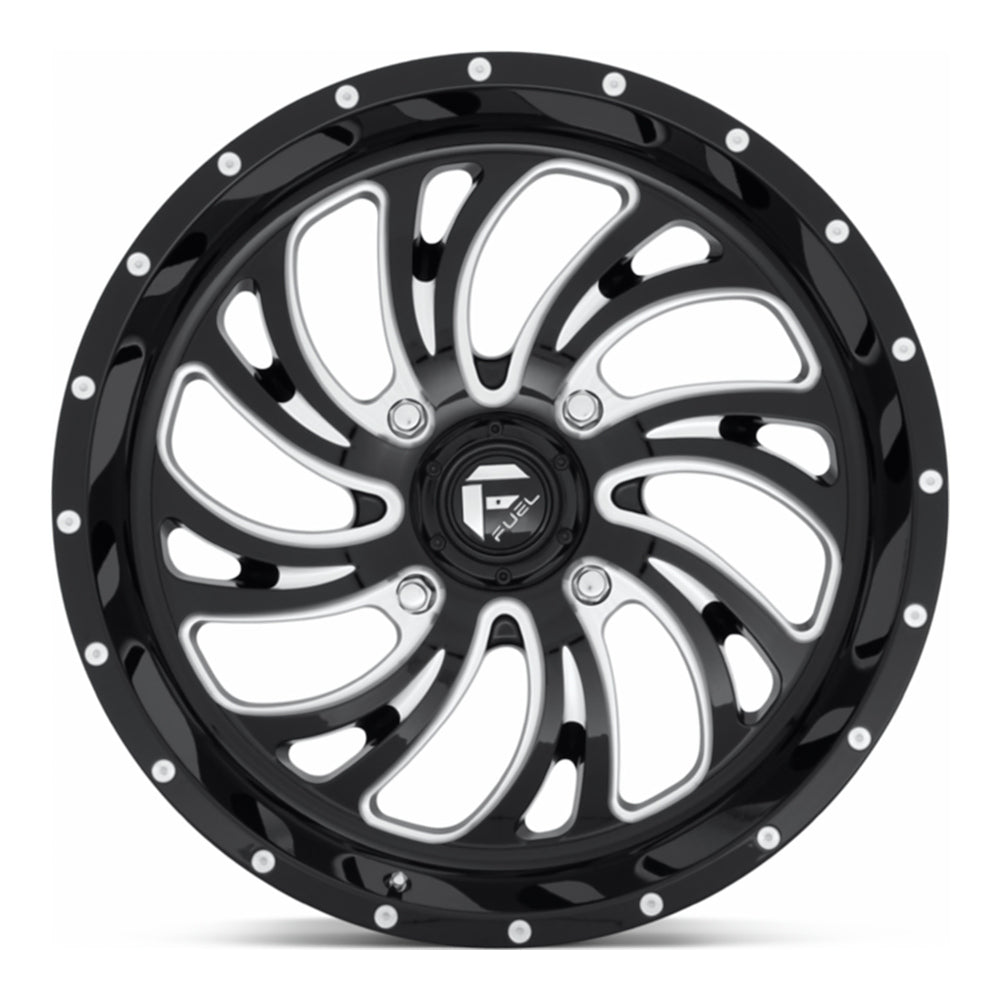

Fuel Kompressor D641 UTV wheel in gloss black milled, straight-on face view

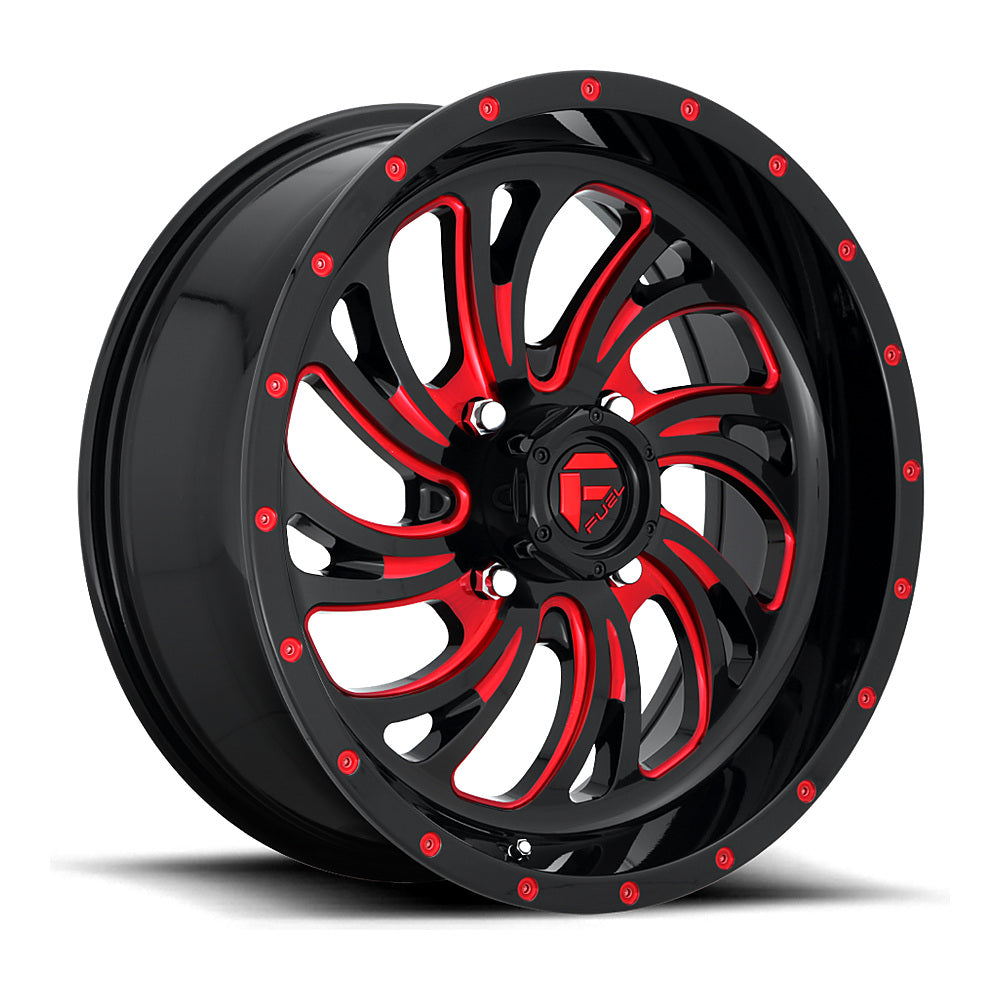

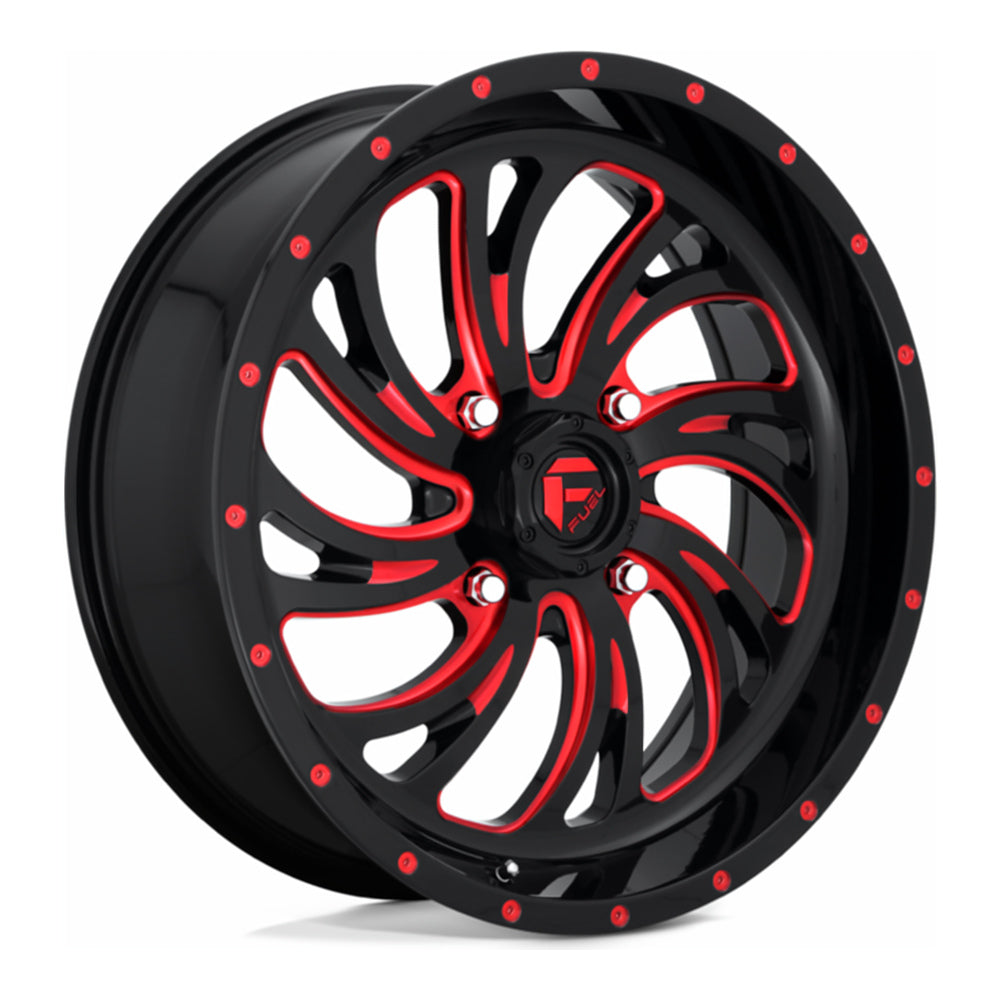

Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, angled front view

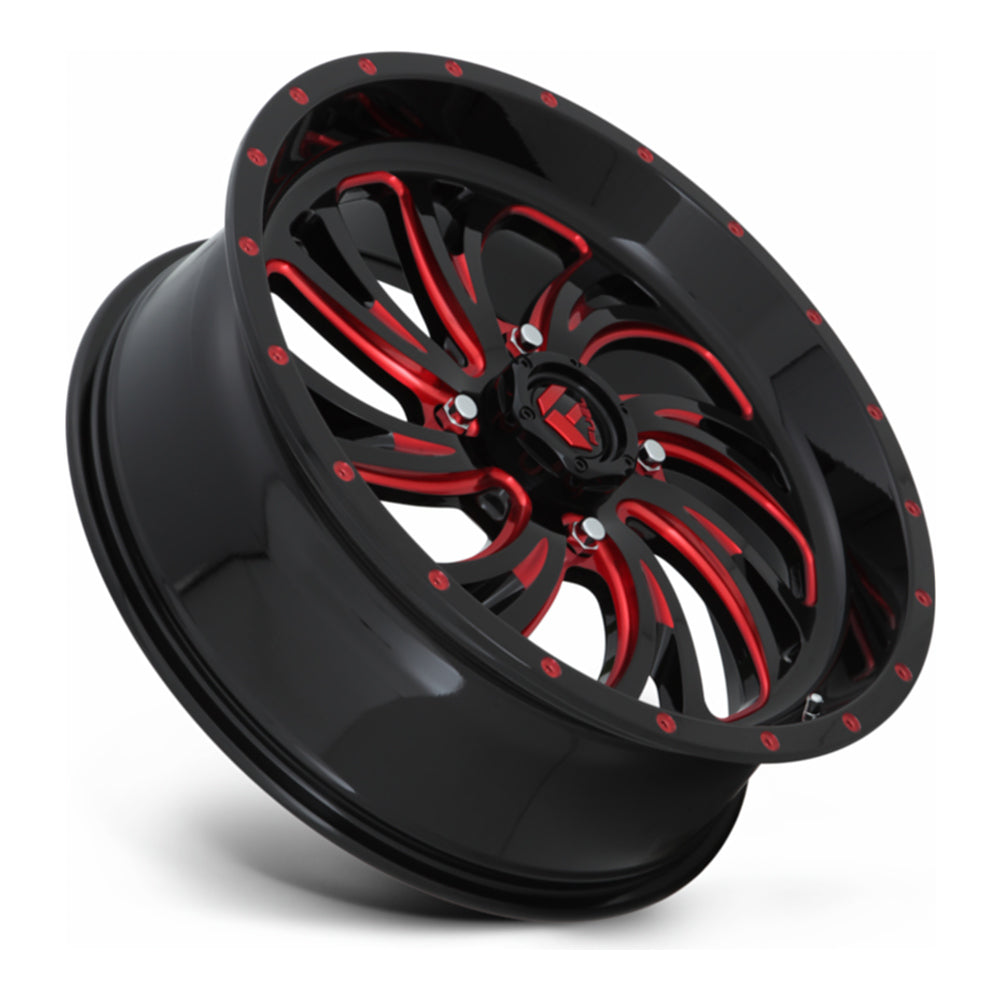

Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, side angle showing the barrel and lip

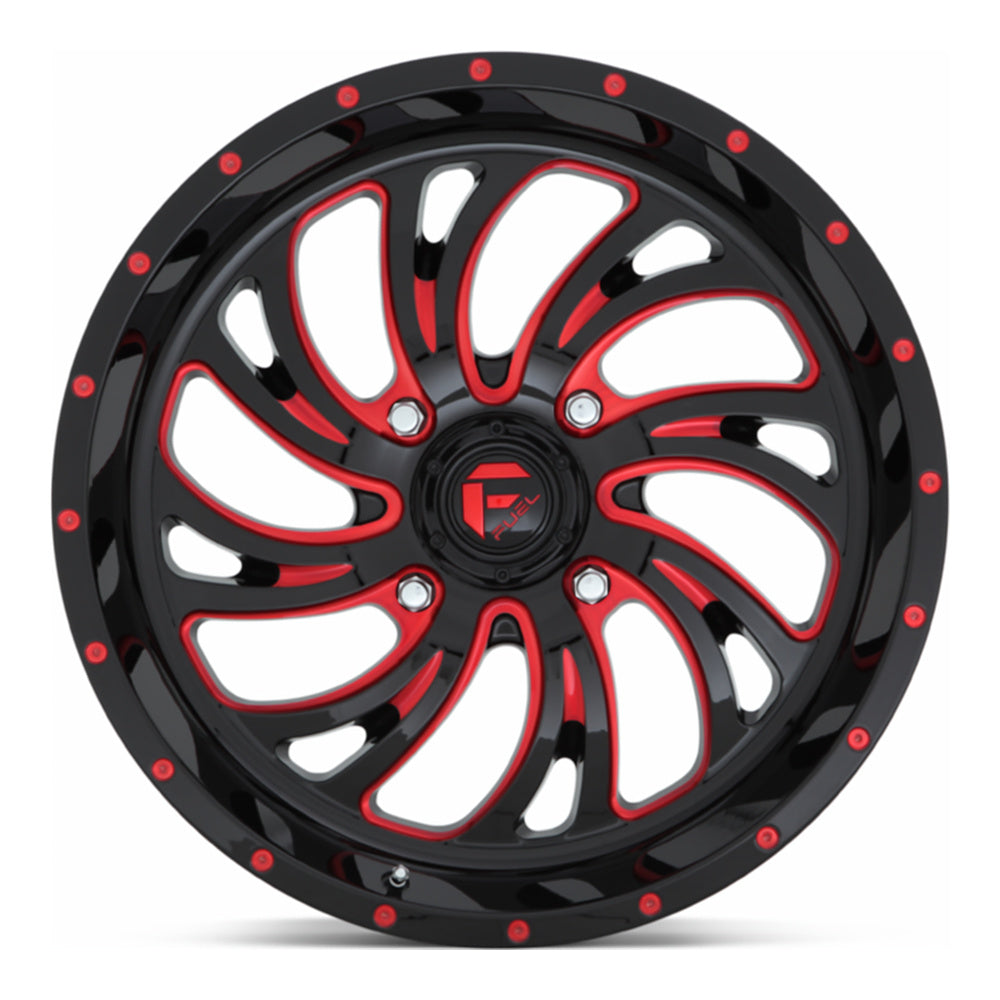

Fuel Kompressor D642 UTV wheel in gloss black red tinted clear, straight-on face view

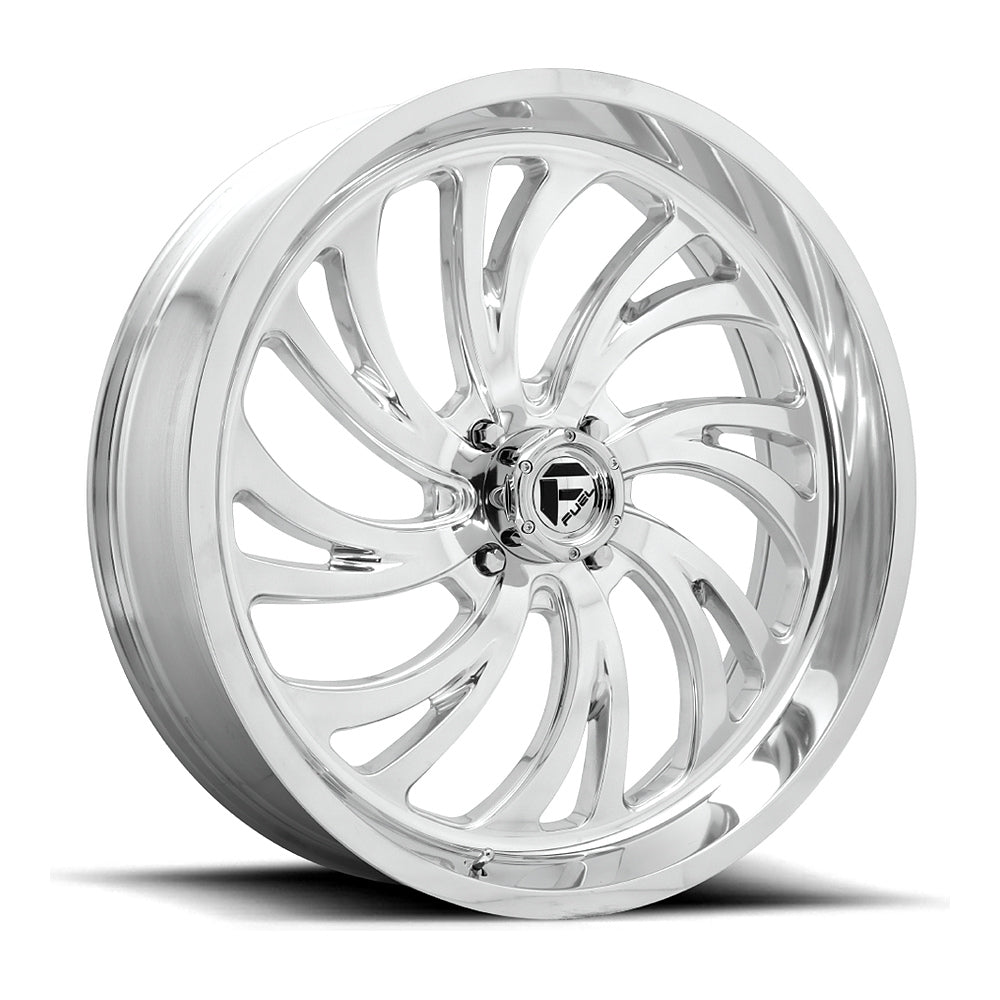

Fuel Kompressor D203 UTV wheel in high luster polished, angled front view

Fuel UTV

Fuel Kompressor (D641 / D642 / D203) UTV Wheel

$317.00 – $518.00

Wheel Color: Gloss Black Milled | Gloss Black Red Tinted Clear | High Luster Polished
Size: 18x7 | 20x7 | 22x7 | 24x7
Bolt Pattern: 4/137 | 4/156
Offset: +13 mm
Wheel Type: Standard

Fuel built the Kompressor for big-wheel UTV builds. Curved spokes sweep out to a 2.22" lip, and a bolt-style ring finishes the edge, so even a 24-inch wheel keeps some depth instead of looking flat.

Pick the finish to suit the build. The D641 is gloss black with milled spoke edges, the D642 lays a red-tinted clear over those milled edges so they glow red, and the D203 is high luster polished from face to lip.

Widths stay at 7 inches across the range, with a +13mm offset and 4.51" backspacing throughout. Gloss black milled runs from 18 to 24 inches, polished from 20 to 24, and the red tint is a 20x7 in 4x137. These sizes pair with low-profile tires, which suit street-legal machines and smoother terrain better than rock crawling.

Fuel Kompressor (D641 / D642 / D203) Key Features

Swept Spokes, Deep Lip: A consistent 2.22" lip across every diameter keeps the face dimensional.
Same Offset at Every Diameter: +13mm on all sizes, so moving up a size doesn't change how far the tire sits from the hub.
Weight by Diameter: About 20 lbs at 18 inches, 23 at 20, 27 to 29 at 22 and 32 to 33 at 24.
Three Ways to Finish It: Milled black, red-tinted milled black, or bright polished aluminum.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore; 18x7, 20x7, 22x7, 24x7): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (132.00mm center bore; 20x7, 22x7, 24x7): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.

Important Fitment & Use Notes

Lug Nut Hardware: The Kompressor uses a conical (60° tapered) lug seat. Match your lug nuts to that seat and to your machine's thread pitch; aftermarket lug nuts are sold separately.
Cosmetic Ring: The bolt-style ring around the lip is a styling detail and does not clamp the tire bead.
Big-Wheel Tradeoffs: Larger diameters add rotating weight and leave less tire sidewall to absorb hits. Many owners of 22 and 24-inch packages recalibrate or upgrade the clutch, and every package should be checked for fender, suspension and frame clearance at full lock and full compression.
Polished Finish Care: Road film and brake dust stand out on bright polish, so wash after rides with a non-acidic cleaner and towel it dry.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before riding on public roads.
Replacement Center Caps: Fuel part numbers by finish: Gloss Black Milled: 1003-42GB; Gloss Black Red Tinted Clear: 1003-42GBQ; High Luster Polished: 1003-42.
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Kompressor (D641 / D642 / D203) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
Gloss Black Milled	18x7	D6411870A644	885463811260	Cast Aluminum	4/137	+13mm	4.51	110.10	20.00	1,000 lbs	2.22	1003-42GB
Gloss Black Milled	20x7	D6412070A644	885463811246	Cast Aluminum	4/137	+13mm	4.51	110.10	23.00	1,000 lbs	2.22	1003-42GB
Gloss Black Milled	20x7	D6412070A544	885463811253	Cast Aluminum	4/156	+13mm	4.51	132.00	23.00	1,000 lbs	2.22	1003-42GB
Gloss Black Milled	22x7	D6412270A644	885463811222	Cast Aluminum	4/137	+13mm	4.51	110.10	29.00	1,000 lbs	2.22	1003-42GB
Gloss Black Milled	22x7	D6412270A544	885463811239	Cast Aluminum	4/156	+13mm	4.51	132.00	29.00	1,000 lbs	2.22	1003-42GB
Gloss Black Milled	24x7	D6412470A644	885463811208	Cast Aluminum	4/137	+13mm	4.51	110.10	33.00	1,000 lbs	2.22	1003-42GB
Gloss Black Milled	24x7	D6412470A544	885463811215	Cast Aluminum	4/156	+13mm	4.51	132.00	33.00	1,000 lbs	2.22	1003-42GB
Gloss Black Red Tinted Clear	20x7	D6422070A644	885463811161	Cast Aluminum	4/137	+13mm	4.51	110.10	23.00	1,000 lbs	2.22	1003-42GBQ
High Luster Polished	20x7	D2032070A644	194933005468	Cast Aluminum	4/137	+13mm	4.51	110.10	23.08	1,000 lbs	2.22	1003-42
High Luster Polished	20x7	D2032070A544	194933005475	Cast Aluminum	4/156	+13mm	4.51	132.00	22.90	1,000 lbs	2.22	1003-42
High Luster Polished	22x7	D2032270A644	194933005444	Cast Aluminum	4/137	+13mm	4.51	110.10	27.48	1,000 lbs	2.22	1003-42
High Luster Polished	22x7	D2032270A544	194933005451	Cast Aluminum	4/156	+13mm	4.51	132.00	27.74	1,000 lbs	2.22	1003-42
High Luster Polished	24x7	D2032470A644	194933005420	Cast Aluminum	4/137	+13mm	4.51	110.10	32.49	1,000 lbs	2.22	1003-42
High Luster Polished	24x7	D2032470A544	194933005437	Cast Aluminum	4/156	+13mm	4.51	132.00	32.36	1,000 lbs	2.22	1003-42
