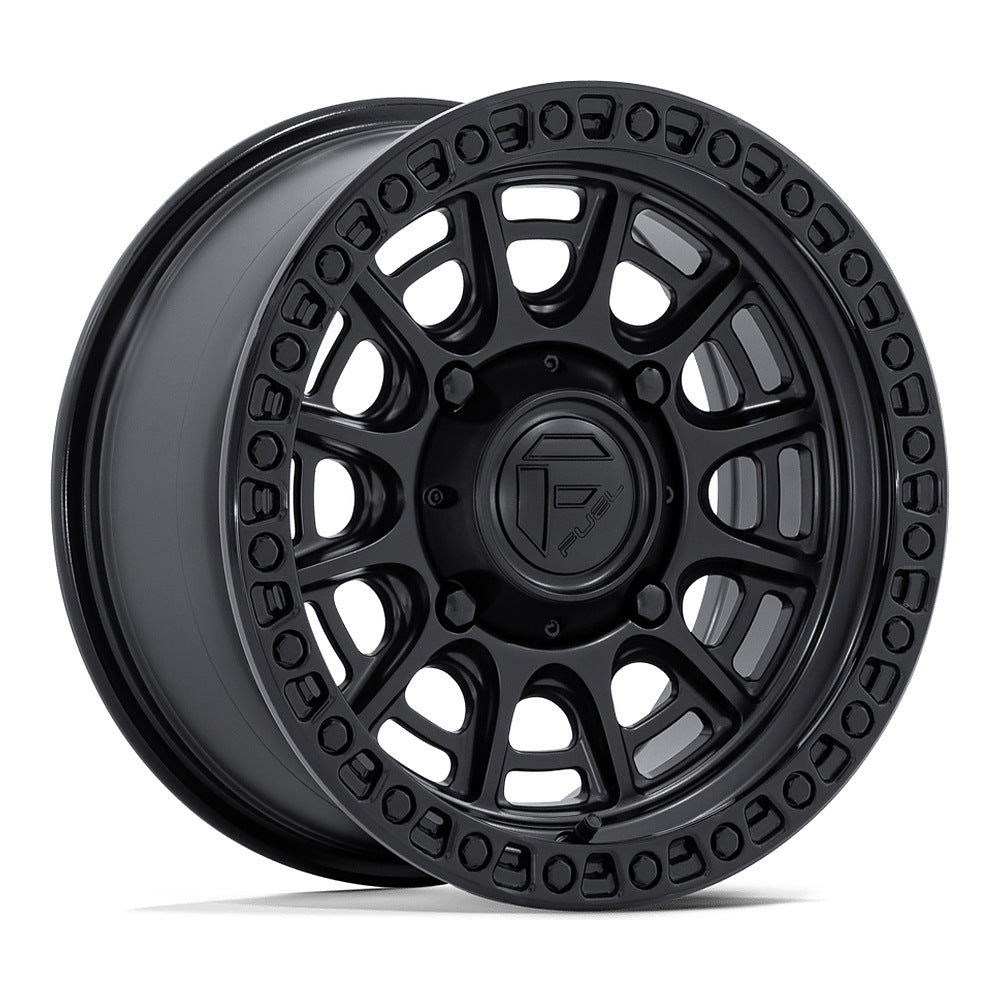

Fuel Cycle FV832 UTV wheel in matte black with gloss black lip, angled front view

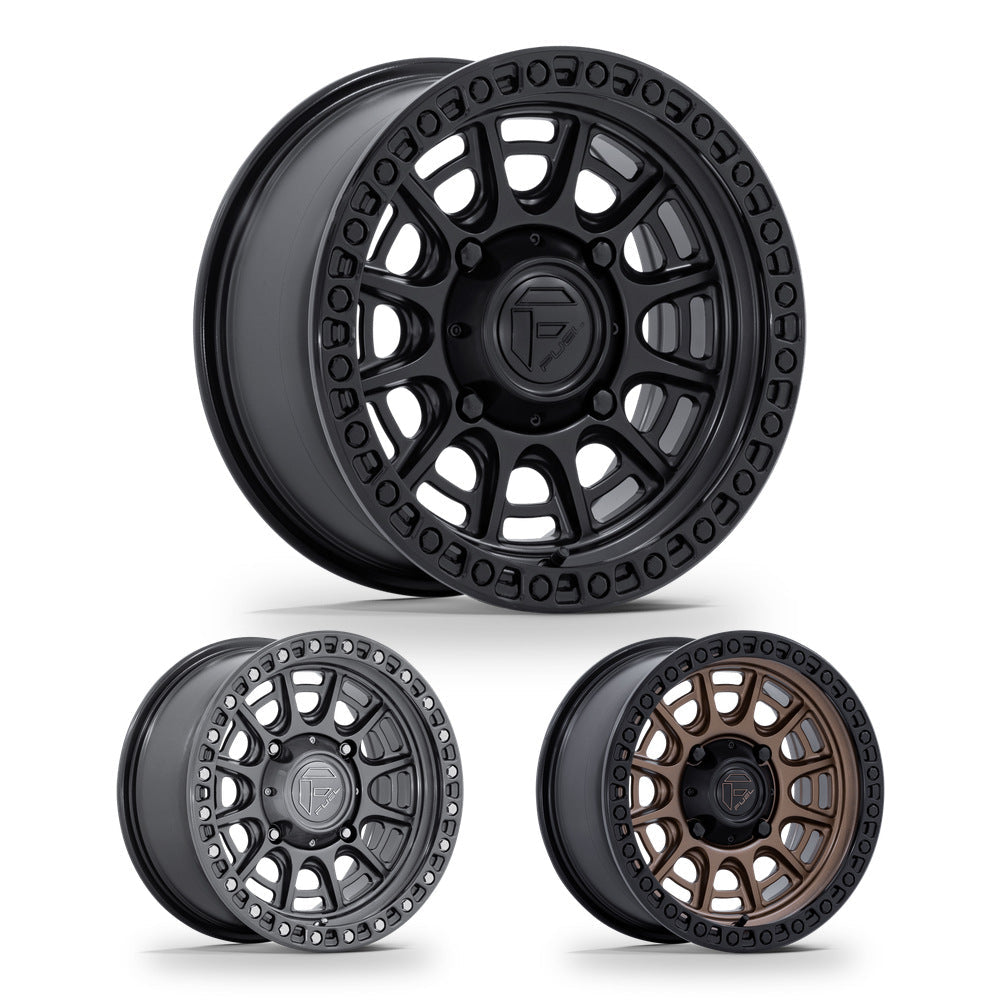

Fuel Cycle (FV832) UTV wheel in every finish: matte black with gloss black lip, gloss gunmetal and matte bronze with matte black lip

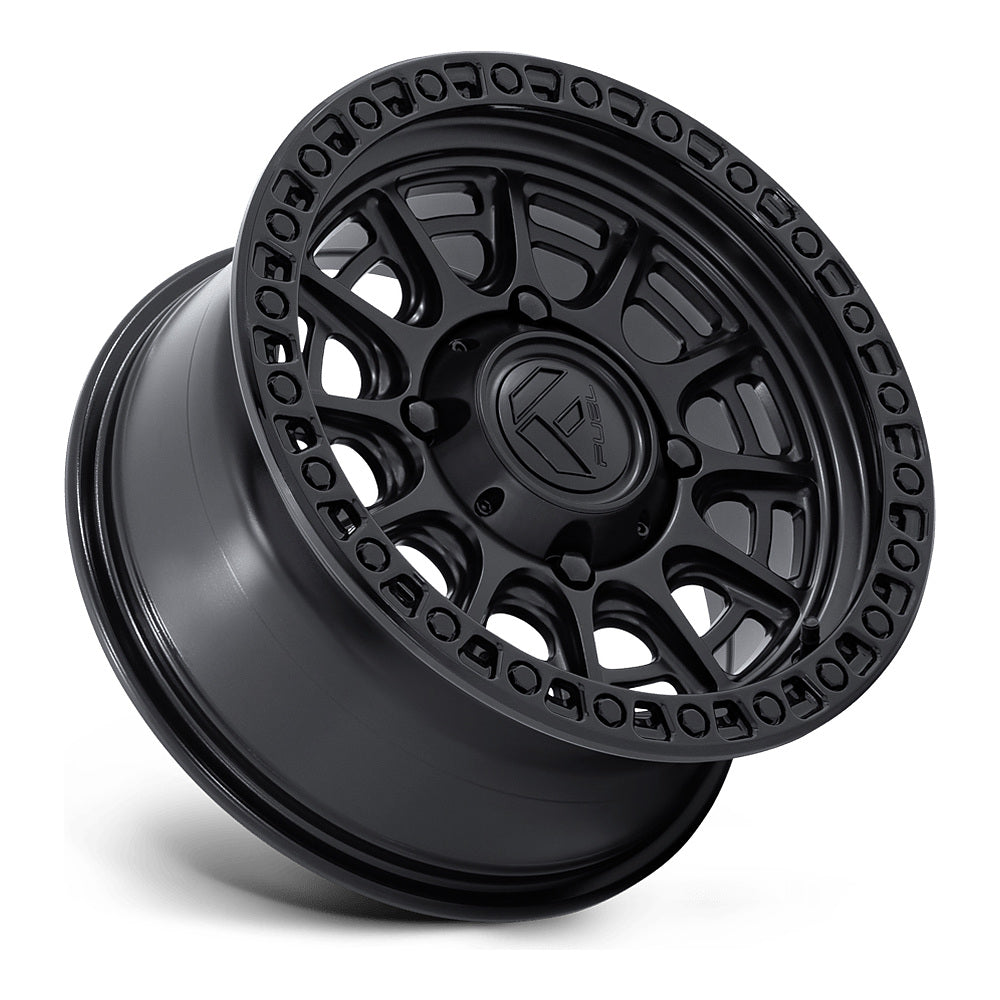

Fuel Cycle FV832 UTV wheel in matte black with gloss black lip, side angle showing the barrel and lip

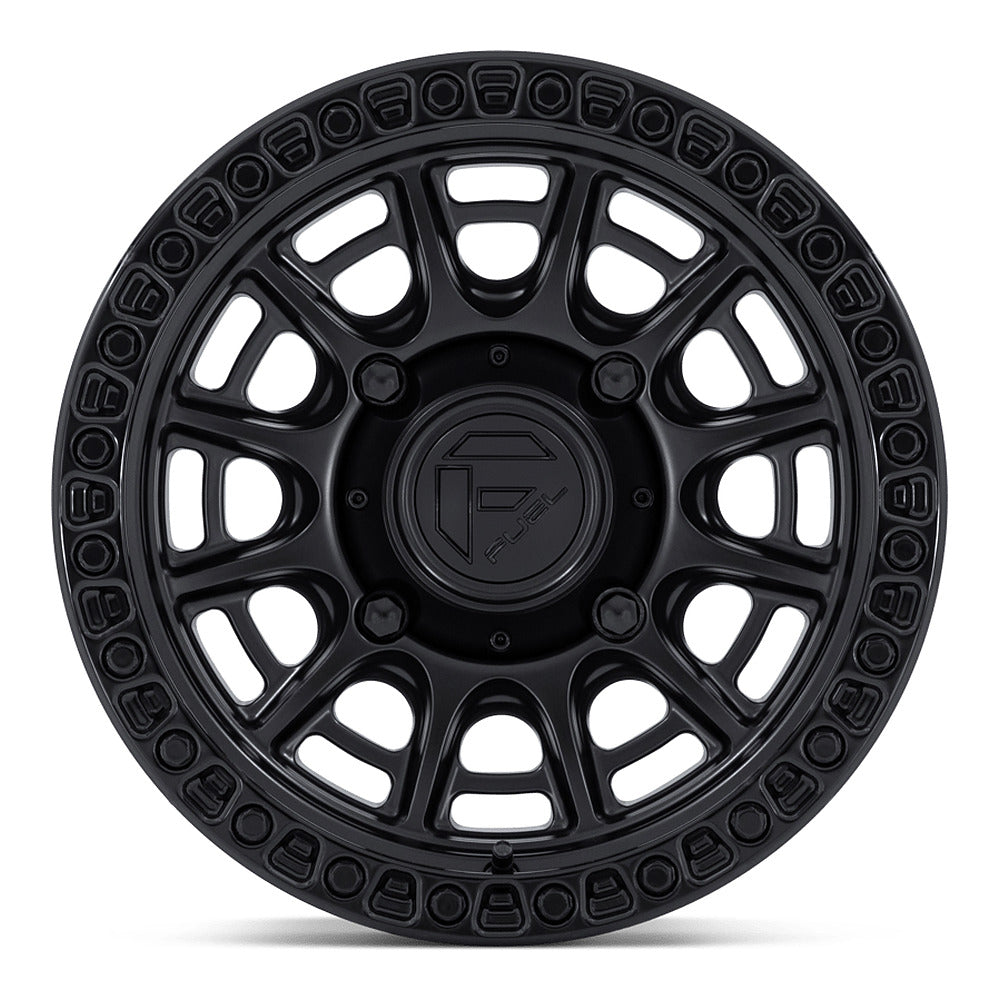

Fuel Cycle FV832 UTV wheel in matte black with gloss black lip, straight-on face view

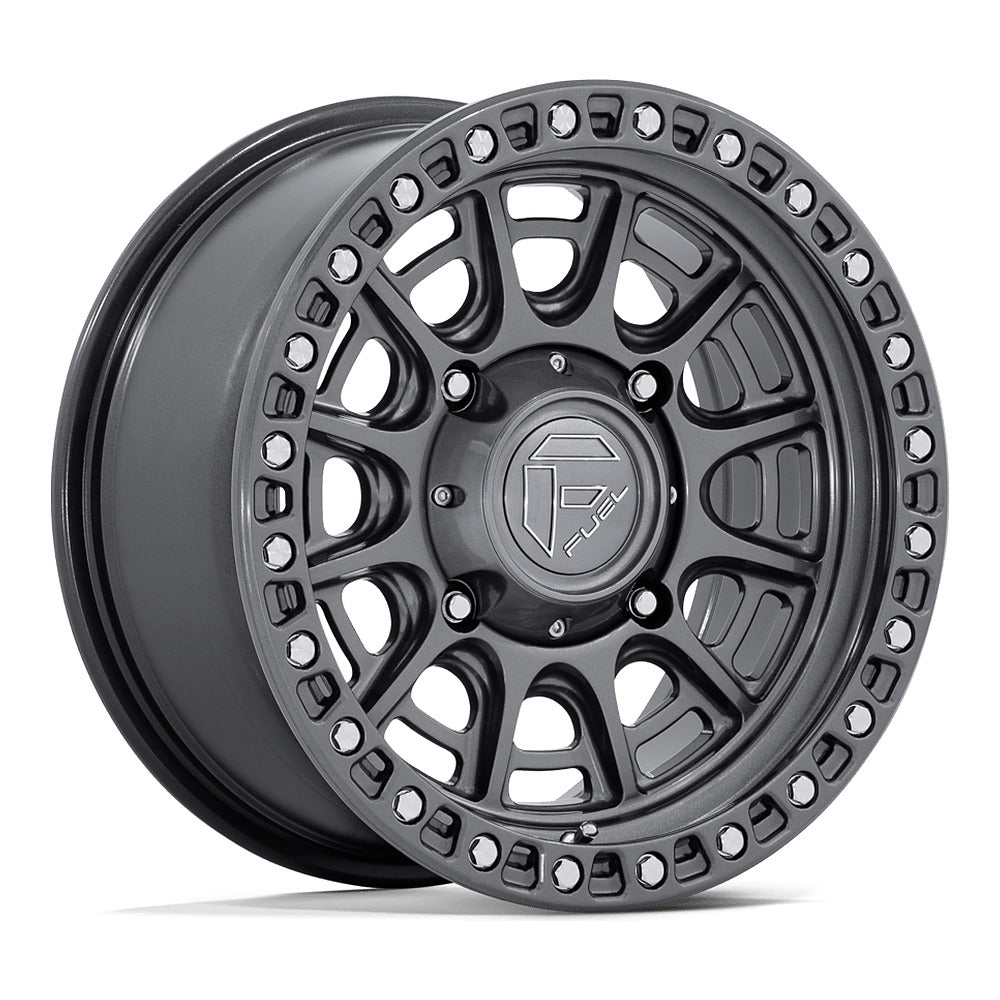

Fuel Cycle FV832 UTV wheel in gloss gunmetal, angled front view

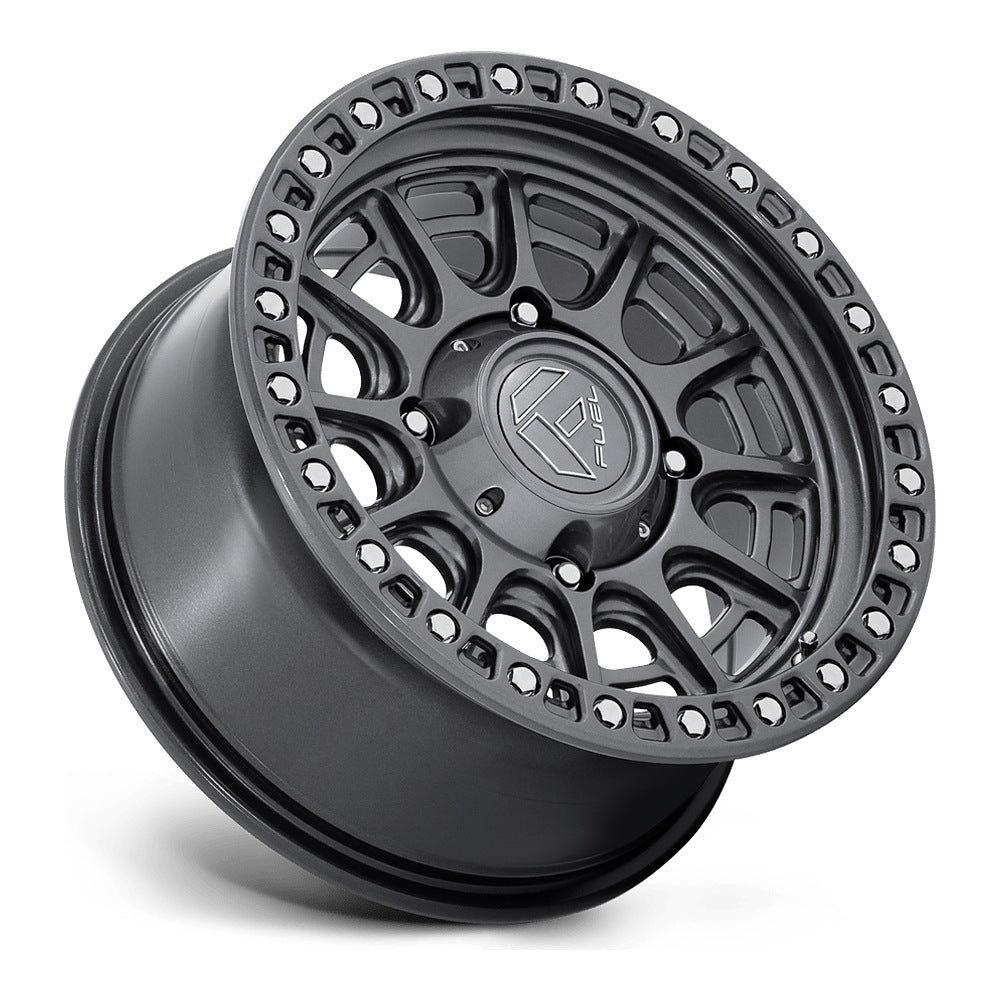

Fuel Cycle FV832 UTV wheel in gloss gunmetal, side angle showing the barrel and lip

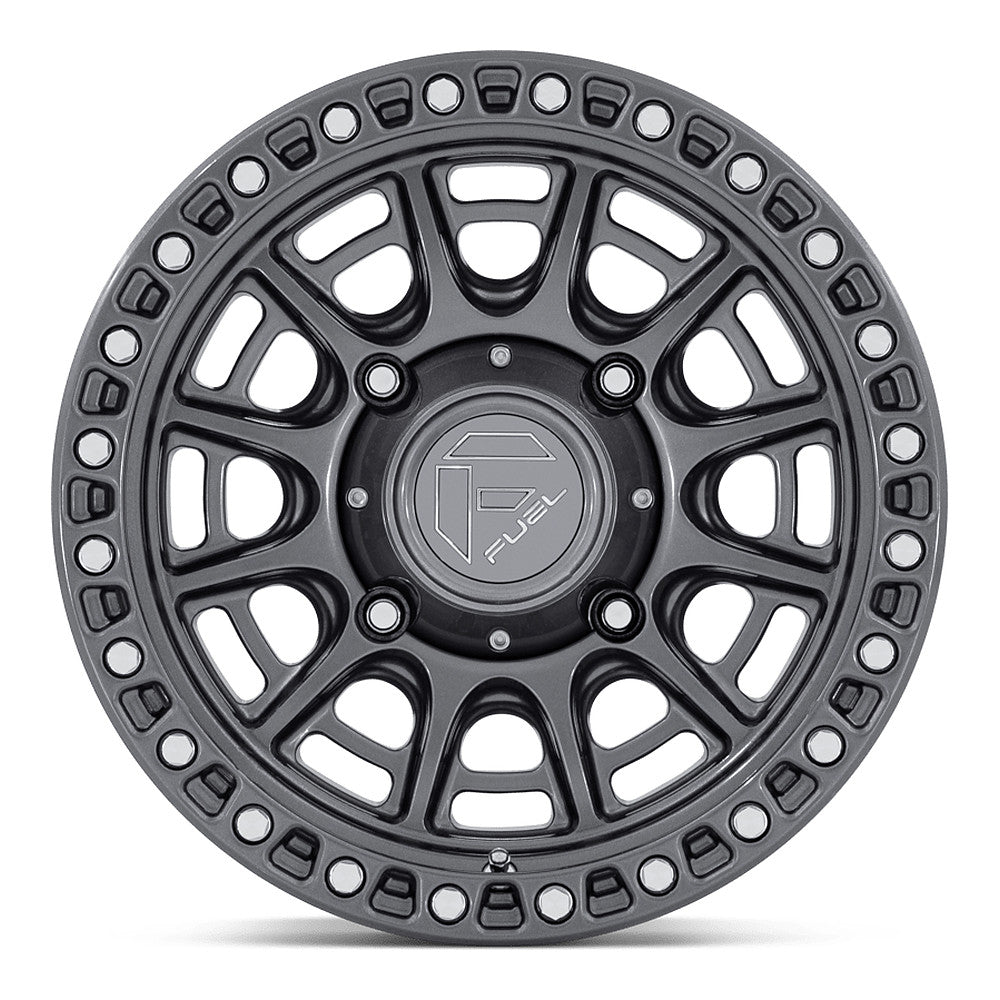

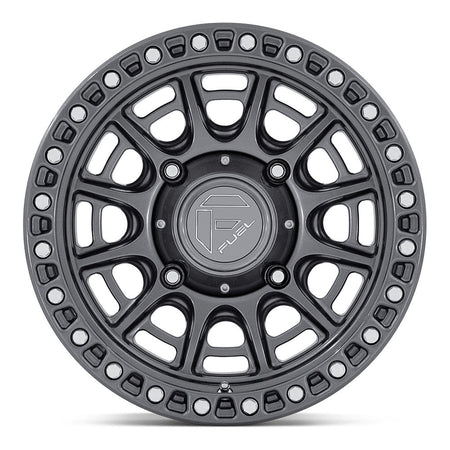

Fuel Cycle FV832 UTV wheel in gloss gunmetal, straight-on face view

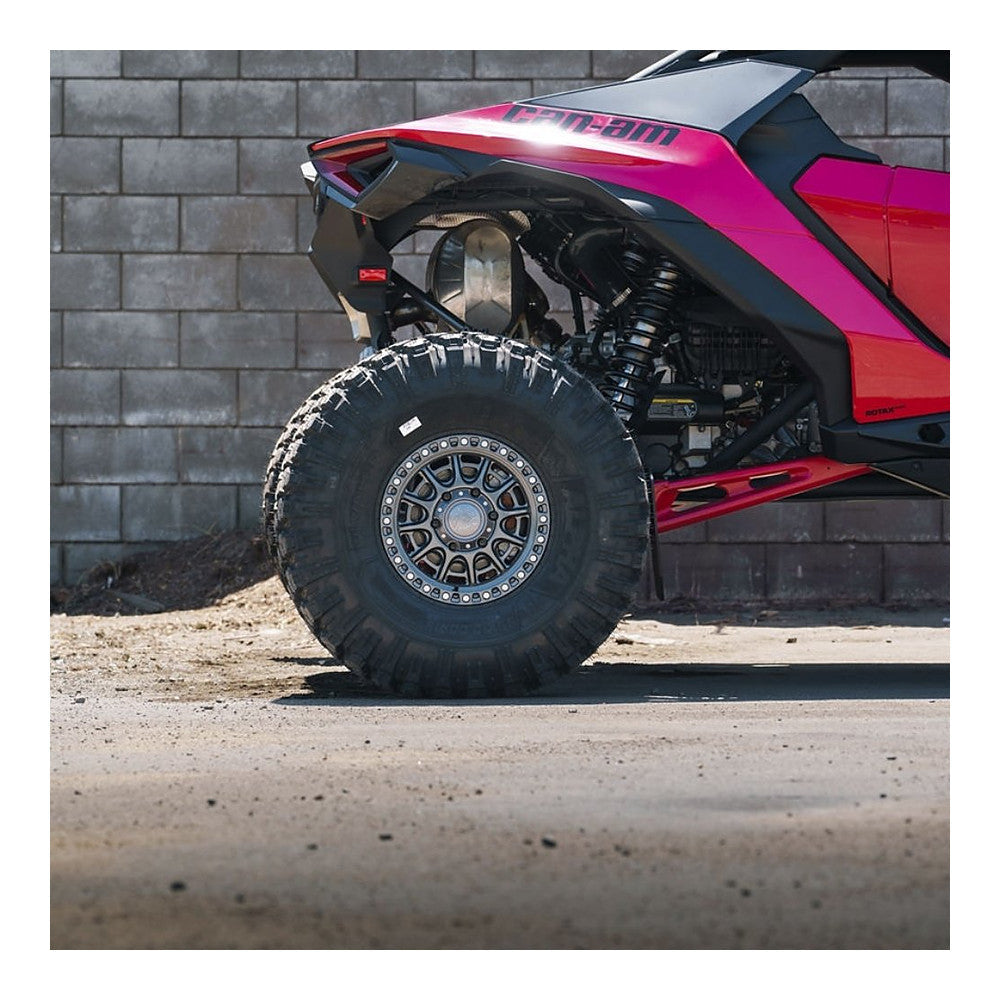

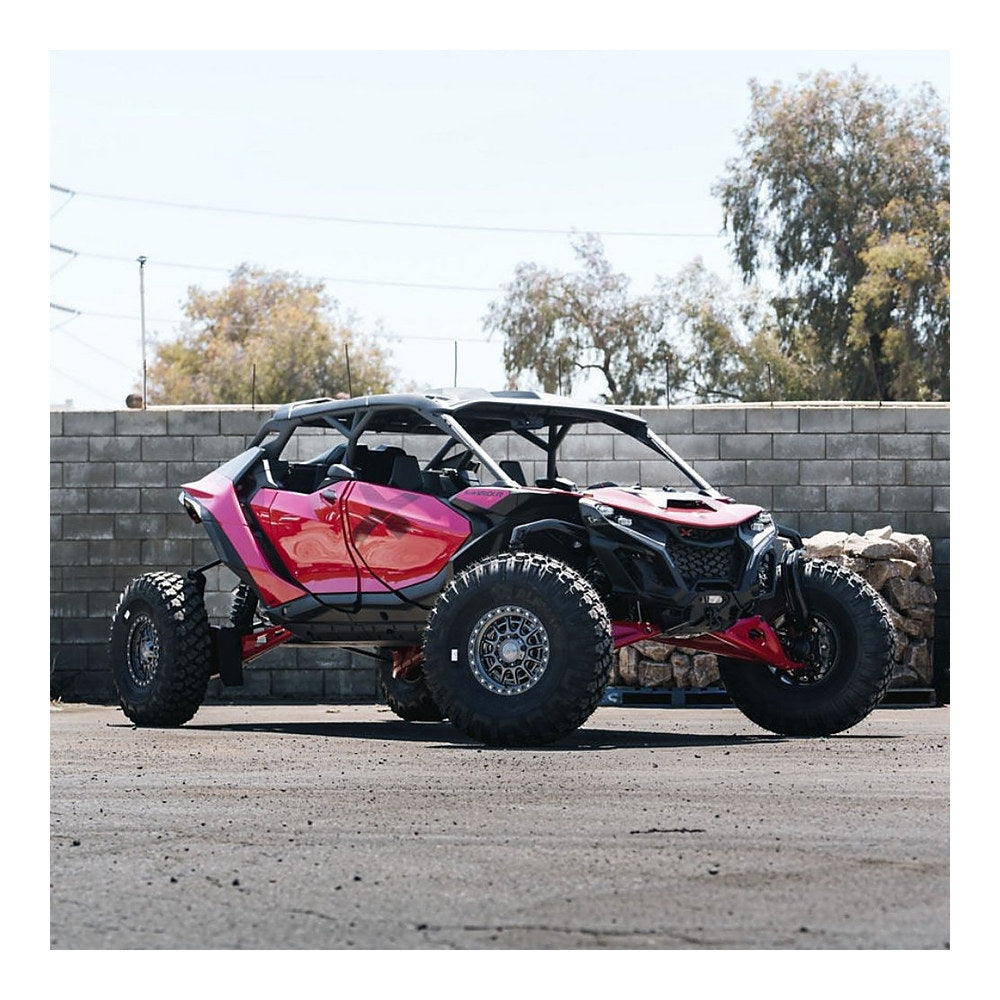

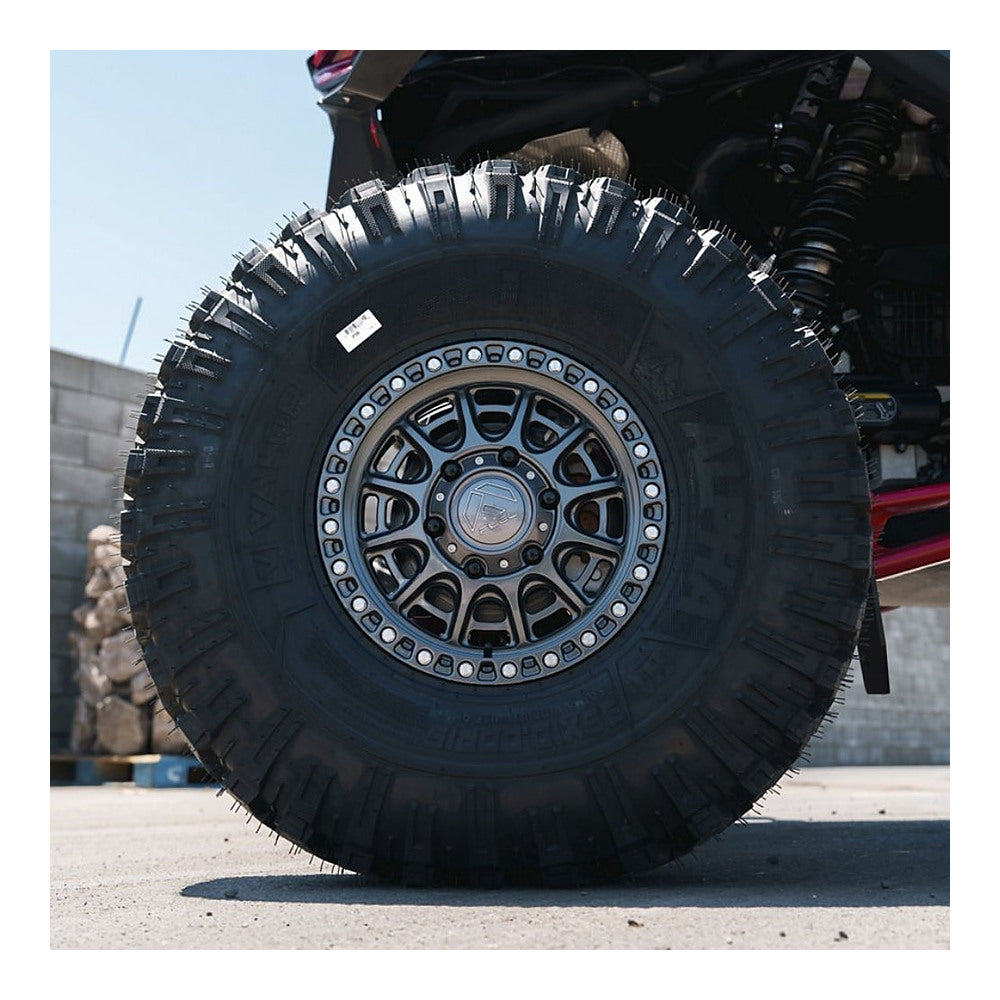

Fuel Cycle FV832 UTV wheel in gloss gunmetal, mounted on a UTV

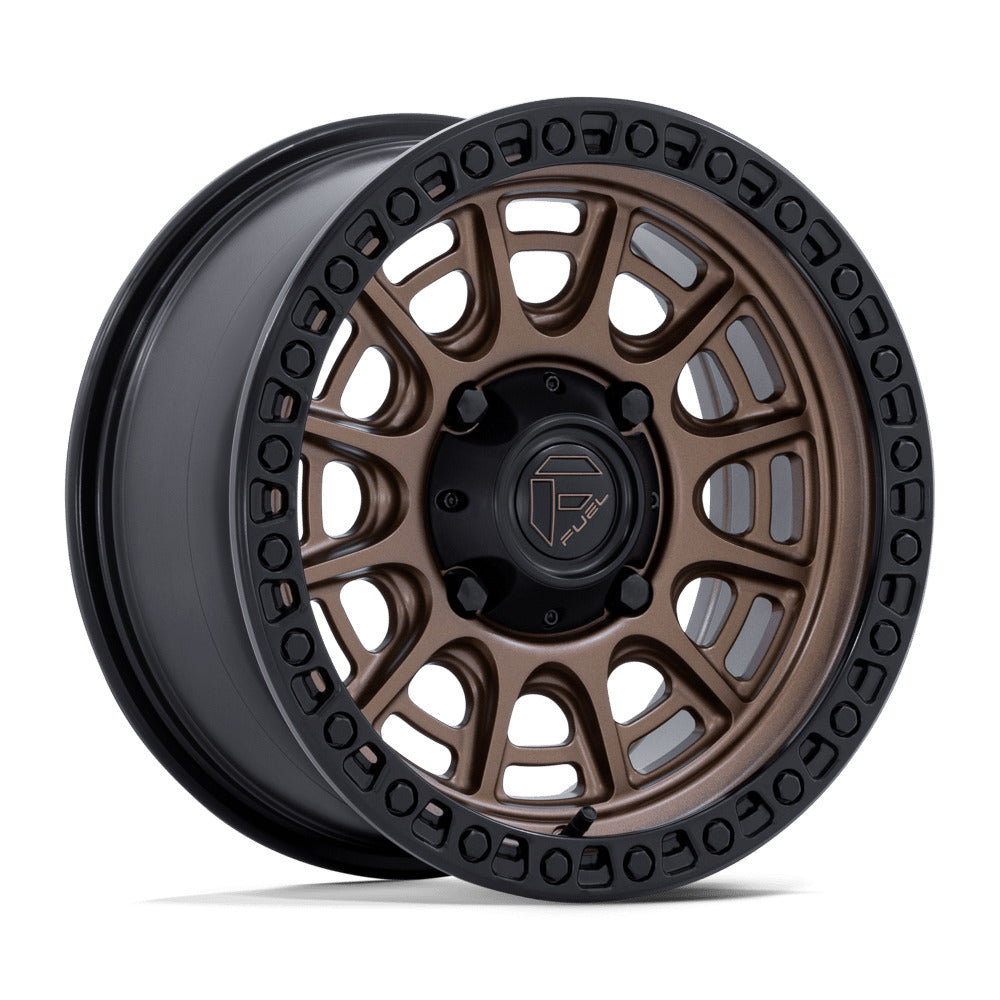

Fuel Cycle FV832 UTV wheel in matte bronze with matte black lip, angled front view

Fuel UTV

Fuel Cycle (FV832) UTV Wheel

$232.00

Wheel Color: Matte Black w/ Gloss Black Lip | Gloss Gunmetal | Matte Bronze w/ Matte Black Lip
Size: 15x7
Bolt Pattern: 4/110 | 4/137 | 4/156 | 5/114.3 | 6/139.7
Offset: +38 mm | +10 mm
Wheel Type: Standard

A busy multi-spoke face with webbed detailing and a ring of 24 rivets around the lip gives the Fuel Cycle (FV832) the look of a beadlock, but it is a one-piece cast wheel with nothing to re-torque. That makes it an easy upgrade for riders who want the style without the upkeep.

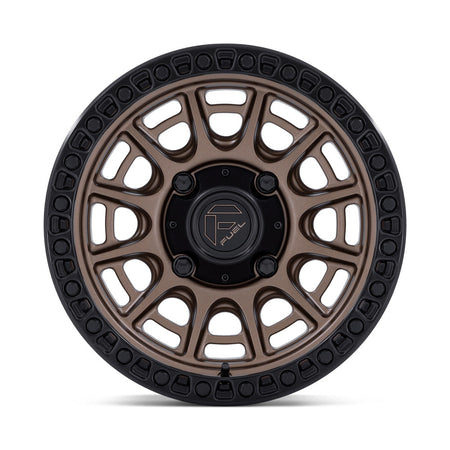

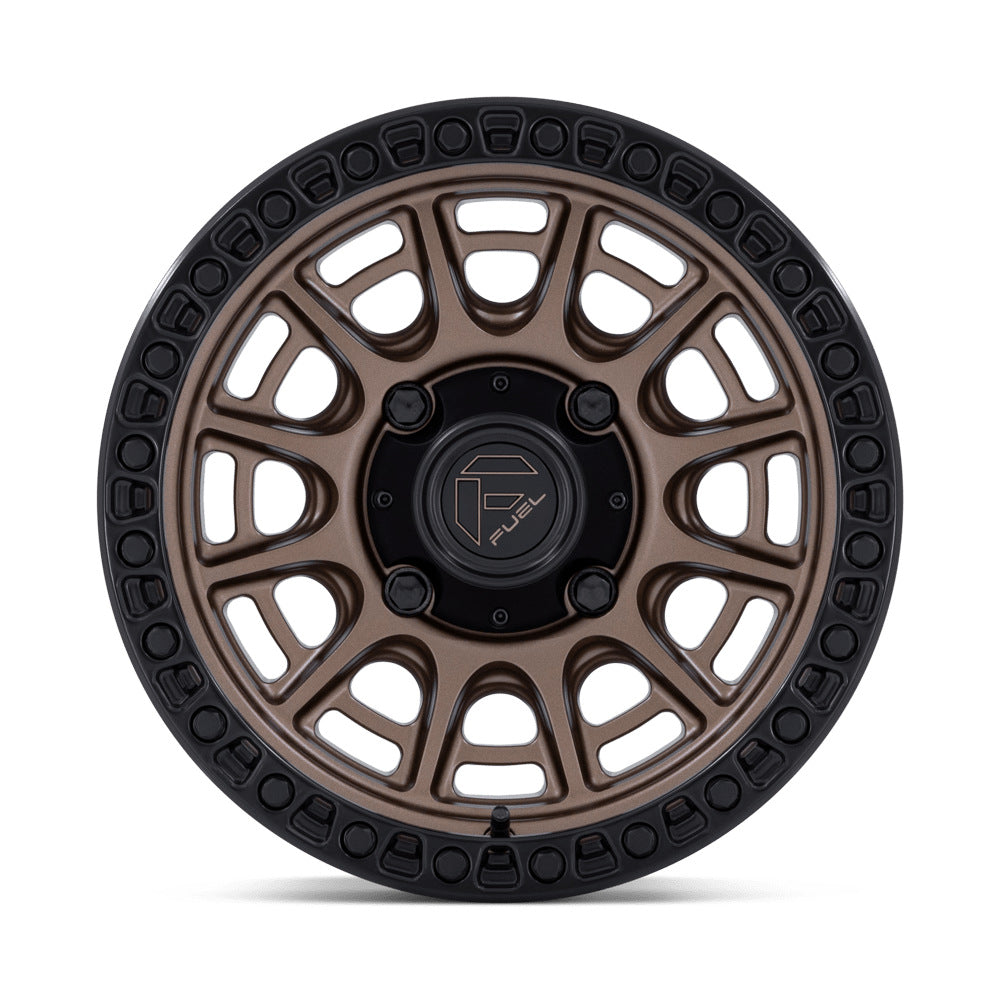

Three finishes are offered: matte black with a gloss black lip and black rivets for a stealthy two-tone look, gloss gunmetal with chrome rivets if you want the hardware to catch the light, and matte bronze with a matte black lip for a warmer color against dark plastics.

Every Cycle is a 15x7 with a 1,250 lb load rating, and the hub list is unusually long: 4x110, 4x137, 4x156, 5x114.3 and 6x139.7, with +10mm and +38mm offsets in most of them. That covers machines from Honda and Yamaha to the Polaris Pro R and six-lug platforms.

Fuel Cycle (FV832) Key Features

Simulated Beadlock Lip: 24 rivets ring the outer edge. Fuel lists gloss black rivets (M8X7GB) for matte black and chrome (M8X7CH) for gunmetal.
1,250 lb Rating: Each wheel is rated to 1,250 lbs for heavier, high-horsepower side-by-sides.
Five Hub Patterns: 4-, 5- and 6-lug fitments in one 15x7 size.
Offset Options: +10mm (4.39" backspacing, 1.76" lip) or +38mm (5.50", 1.49" lip).

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x110 Bolt Pattern (79.40mm center bore; 15x7): Common on many Honda, Yamaha, Kawasaki, and Suzuki ATVs and some utility side-by-sides.
4x137 Bolt Pattern (96.00mm center bore; 15x7): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.
4x156 Bolt Pattern (115.10mm center bore; 15x7): Fits popular Polaris models, including the RZR, Ranger, and General, plus late-model Yamahas such as the YXZ.
5x114.3 Bolt Pattern (72.56mm center bore; 15x7): Also listed as 5/4.5. Used on next-generation 5-lug machines like the Polaris RZR Pro R and Turbo R.
6x139.7 Bolt Pattern (100.30mm center bore; 15x7): Also listed as 6/5.5. Used on 6-lug setups such as the Can-Am Maverick R and many portal gear lifts.

Important Fitment & Use Notes

Lug Nut Hardware: The Cycle has deep, recessed lug pockets, and factory lug nuts typically will not fit. Plan on aftermarket splined or tapered lug nuts matched to your machine's thread pitch (sold separately).
Not a True Beadlock: The rivet ring is cosmetic and the wheel mounts tires like any standard wheel.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before riding on public roads.
Replacement Center Caps: Fuel part numbers by finish: Matte Black w/ Gloss Black Lip: 1007-07BLD (4/110), 1007-06BLD (4/137), 1007-04BLD (4/156), 1007-40BLD (5/114.3), 1007-12BLD (6/139.7); Gloss Gunmetal: 1007-07DGVC (4/110), 1007-06DGVC (4/137), 1007-04DGVC (4/156), 1007-40DGVC (5/114.3), 1007-12DGVC (6/139.7); Matte Bronze w/ Matte Black Lip: 1007-07MBZ (4/110), 1007-06MBZ (4/137), 1007-04MBZ (4/156), 1007-40MBZ (5/114.3), 1007-12MBZ (6/139.7).
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Cycle (FV832) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap	Rivet Part No.
Matte Black w/ Gloss Black Lip	15x7	FV832MB15704B10	194933406418	Cast Aluminum	4/110	+10mm	4.39	79.40	16.68	1,250 lbs	1.76	1007-07BLD	M8X7GB
Matte Black w/ Gloss Black Lip	15x7	FV832MB15704838A	194933447466	Cast Aluminum	4/137	+38mm	5.50	96.00	17.20	1,250 lbs	1.49	1007-06BLD	M8X7GB
Matte Black w/ Gloss Black Lip	15x7	FV832MB15704810A	194933447473	Cast Aluminum	4/137	+10mm	4.39	96.00	16.90	1,250 lbs	1.76	1007-06BLD	M8X7GB
Matte Black w/ Gloss Black Lip	15x7	FV832MB15704438	194933406449	Cast Aluminum	4/156	+38mm	5.50	115.10	16.76	1,250 lbs	1.49	1007-04BLD	M8X7GB
Matte Black w/ Gloss Black Lip	15x7	FV832MB15704410	194933406456	Cast Aluminum	4/156	+10mm	4.39	115.10	16.46	1,250 lbs	1.76	1007-04BLD	M8X7GB
Matte Black w/ Gloss Black Lip	15x7	FV832MB15701238	194933406463	Cast Aluminum	5/114.3	+38mm	5.50	72.56	16.76	1,250 lbs	1.49	1007-40BLD	M8X7GB
Matte Black w/ Gloss Black Lip	15x7	FV832MB15701210	194933406470	Cast Aluminum	5/114.3	+10mm	4.39	72.56	16.46	1,250 lbs	1.76	1007-40BLD	M8X7GB
Matte Black w/ Gloss Black Lip	15x7	FV832MB15706U38	194933406401	Cast Aluminum	6/139.7	+38mm	5.50	100.30	16.32	1,250 lbs	1.49	1007-12BLD	M8X7GB
Gloss Gunmetal	15x7	FV832AX15704B10	194933406494	Cast Aluminum	4/110	+10mm	4.39	79.40	16.68	1,250 lbs	1.76	1007-07DGVC	M8X7CH
Gloss Gunmetal	15x7	FV832AX15704838A	194933447480	Cast Aluminum	4/137	+38mm	5.50	96.00	17.20	1,250 lbs	1.49	1007-06DGVC	M8X7CH
Gloss Gunmetal	15x7	FV832AX15704810A	194933447497	Cast Aluminum	4/137	+10mm	4.39	96.00	16.90	1,250 lbs	1.76	1007-06DGVC	M8X7CH
Gloss Gunmetal	15x7	FV832AX15704438	194933406524	Cast Aluminum	4/156	+38mm	5.50	115.10	16.76	1,250 lbs	1.49	1007-04DGVC	M8X7CH
Gloss Gunmetal	15x7	FV832AX15704410	194933406531	Cast Aluminum	4/156	+10mm	4.39	115.10	16.46	1,250 lbs	1.76	1007-04DGVC	M8X7CH
Gloss Gunmetal	15x7	FV832AX15701238	194933406548	Cast Aluminum	5/114.3	+38mm	5.50	72.56	16.76	1,250 lbs	1.49	1007-40DGVC	M8X7CH
Gloss Gunmetal	15x7	FV832AX15701210	194933406555	Cast Aluminum	5/114.3	+10mm	4.39	72.56	16.46	1,250 lbs	1.76	1007-40DGVC	M8X7CH
Gloss Gunmetal	15x7	FV832AX15706U38	194933406487	Cast Aluminum	6/139.7	+38mm	5.50	100.30	16.32	1,250 lbs	1.49	1007-12DGVC	M8X7CH
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15704B10	194933406333	Cast Aluminum	4/110	+10mm	4.39	79.40	16.68	1,250 lbs	1.76	1007-07MBZ	—
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15704838A	194933447442	Cast Aluminum	4/137	+38mm	5.50	96.00	17.20	1,250 lbs	1.49	1007-06MBZ	—
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15704810A	194933447459	Cast Aluminum	4/137	+10mm	4.39	96.00	16.90	1,250 lbs	1.76	1007-06MBZ	—
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15704438	194933406364	Cast Aluminum	4/156	+38mm	5.50	115.10	16.76	1,250 lbs	1.49	1007-04MBZ	—
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15704410	194933406371	Cast Aluminum	4/156	+10mm	4.39	115.10	16.46	1,250 lbs	1.76	1007-04MBZ	—
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15701238	194933406388	Cast Aluminum	5/114.3	+38mm	5.50	72.56	16.76	1,250 lbs	1.49	1007-40MBZ	—
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15701210	194933406395	Cast Aluminum	5/114.3	+10mm	4.39	72.56	16.46	1,250 lbs	1.76	1007-40MBZ	—
Matte Bronze w/ Matte Black Lip	15x7	FV832ZB15706U38	194933406326	Cast Aluminum	6/139.7	+38mm	5.50	100.30	16.32	1,250 lbs	1.49	1007-12MBZ	—
