Fuel UTV

Fuel Arc (D821) UTV Wheel

$317.00 – $489.00

Wheel Color: Gloss Black Milled
Size: 18x7 | 24x7
Bolt Pattern: 4/137
Offset: +13 mm
Wheel Type: Standard

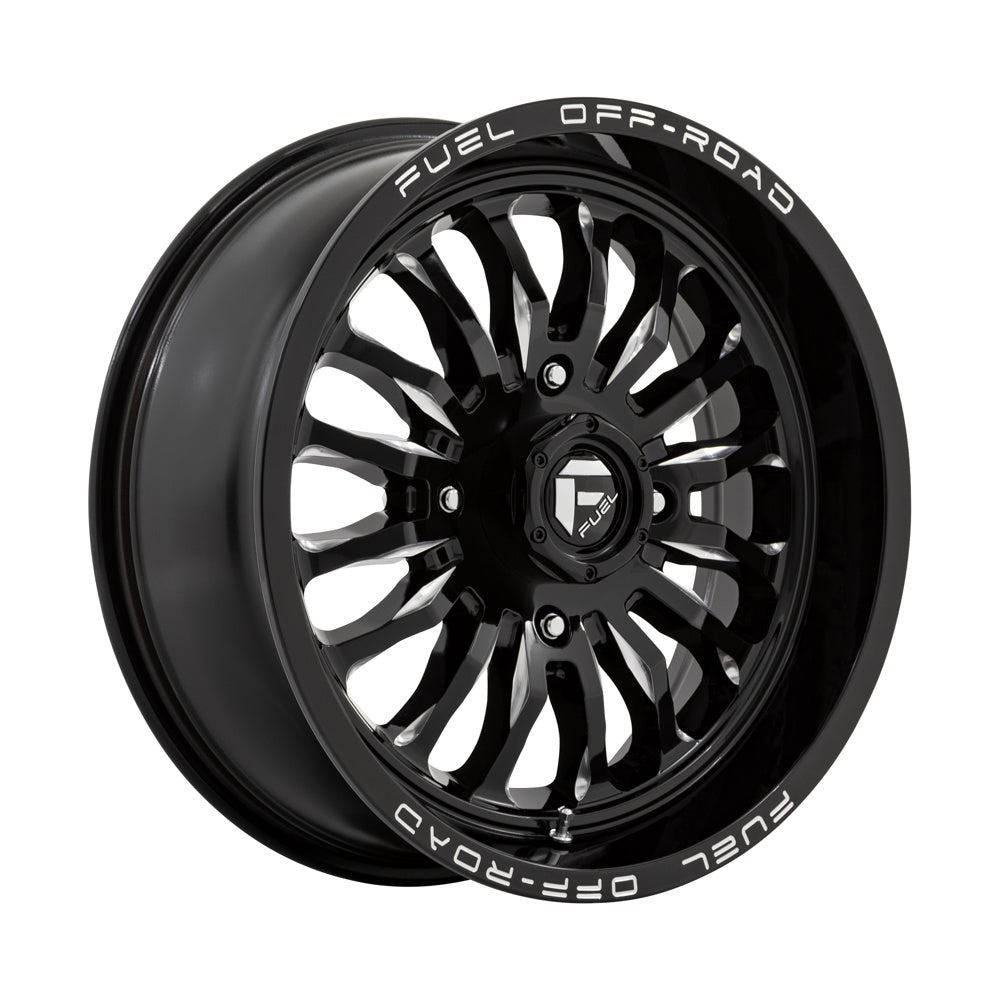

Fuel designed the Arc (D821) for riders who want their machine to look as good parked as it does on the trail. It is a one-piece cast wheel in Gloss Black Milled, with milled accents set against a gloss black base.

We carry it in two big-wheel sizes, both 4x137 at +13mm: an 18x7 and a 24x7. Fuel rates each wheel to 1,000 lbs, and the 7-inch width lines up with the other large-diameter Fuel UTV designs such as the Reaction and Runner.

Weight is 25.60 lbs for the 18x7 and 37.20 lbs for the 24x7, and both sizes share 4.51" of backspacing, a 110.10mm center bore and a 1.91" lip. Fuel also makes 20x7 and 22x7 sizes and 4x156 versions, so contact us if you need one of those.

Fuel Arc (D821) Key Features

Gloss Black Milled Finish: Bright milled edges cut through a gloss black base.
Two Big-Wheel Sizes: 18x7 and 24x7, both with a +13mm offset.
1,000 lb Load Rating: Per wheel, from Fuel's spec table.
4x137 Hub Fitment: 110.10mm center bore for Can-Am, Honda and Kawasaki machines.

Vehicle Application Guide

Always confirm your machine's bolt pattern and hub before ordering.

4x137 Bolt Pattern (110.10mm center bore; 18x7, 24x7): Fits popular Can-Am (Maverick, Defender), Honda (Talon, Pioneer), and Kawasaki (Teryx) models.

Important Fitment & Use Notes

Clearance Check: Larger diameters change how much room the tire has to move. Cycle the suspension and steering with the wheel and tire mounted to check that nothing rubs.
Street Use: This is a standard (non-beadlock) wheel and is suitable for street-legal UTV conversions. Always check your state and local laws before riding on public roads.
Replacement Center Cap: Fuel part number 1003-42GB.
Warranty: Backed by a lifetime manufacturer structural warranty and a one-year manufacturer finish warranty.

Fuel Arc (D821) Specifications

Finish	Wheel Size	SKU	UPC Code	Construction	Bolt Pattern	Offset (mm)	Backspacing (in)	Center Bore (mm)	Weight (lbs)	Load Rating	Lip Depth (in)	Replacement Cap
Gloss Black Milled	18x7	D8211870A644	194933190041	Cast Aluminum	4/137	+13mm	4.51	110.10	25.60	1,000 lbs	1.91	1003-42GB
Gloss Black Milled	24x7	D8212470A644	194933189984	Cast Aluminum	4/137	+13mm	4.51	110.10	37.20	1,000 lbs	1.91	1003-42GB

About Fuel UTV

Established in 2009, Fuel Off-Road rapidly became a dominant force in the aftermarket wheel industry by delivering cutting-edge designs time and time again. Relentless engineering also fueled their explosive growth, and due to the extreme physical demands of the side-by-side market, they launched Fuel UTV to bring their world-class truck wheel expertise directly to the powersports market.

Whether you are conquering technical rock crawls, flying across desert dunes, or burying your machine deep in the mud, Fuel UTV wheels are engineered to get you back to camp.

Race-Proven Durability: Built to withstand the harshest off-road environments without bending or cracking under pressure.

Innovative Aesthetics: Industry-leading, aggressive designs that guarantee your rig stands out from the pack.

Uncompromising Quality: Manufactured using state-of-the-art processes, offering everything from heavy-duty cast wheels to true SXS beadlock options for serious enthusiasts.

When you equip your machine with Fuel UTV, you aren't just buying a wheel—you are investing in a legacy of off-road supremacy.
