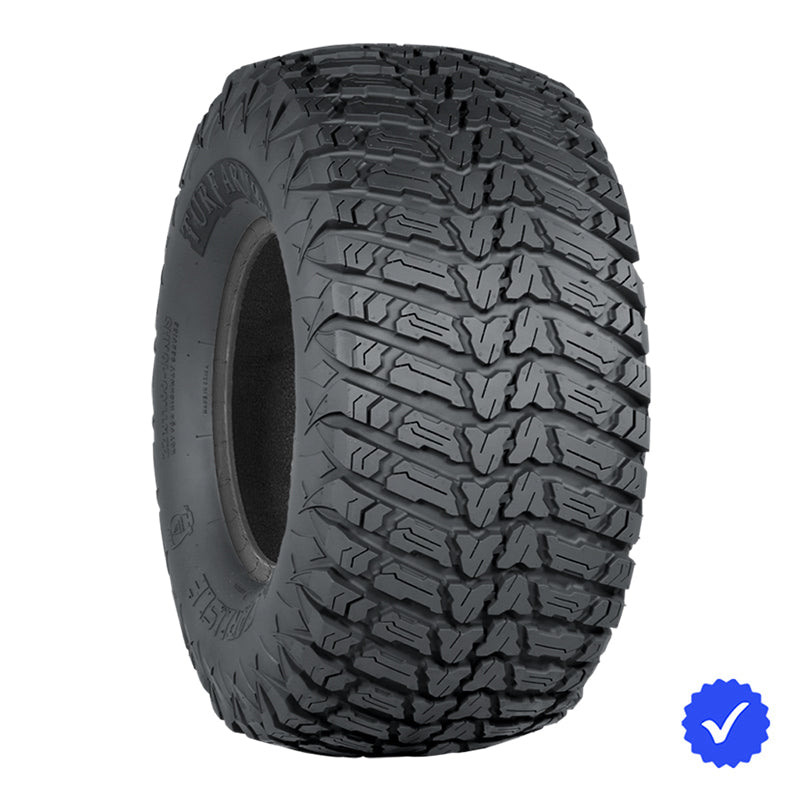

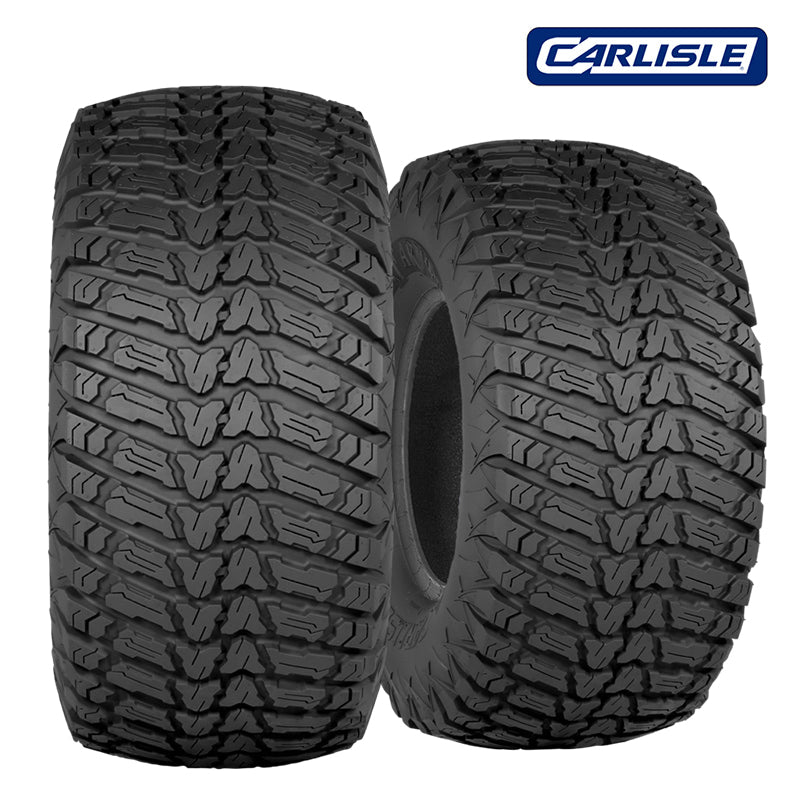

Carlisle® Turf Armor 4-Ply Bias ZTR & Lawn Mower Tires — Superior Hillside Grip with Zero Lawn Tearing!

Elevate your commercial lawn care and property maintenance with the Carlisle® Turf Armor 4-Ply Bias Tire. Specifically engineered for zero-turn mowers (ZTR), commercial lawn tractors, and light utility vehicles, the Turf Armor provides maximum hillside traction while ensuring minimal damage to pristine grass and turf. If your commercial mowers struggle with slipping on damp morning grass, sliding across steep slopes, or chewing up turn points, this tire is the ultimate high-traction, turf-friendly upgrade.

The secret lies in Carlisle’s innovative multi-angled tread design. These multi-faceted biting edges interact evenly with the soil, distributing machine weight across a wide footprint to virtually eliminate tire rutting and soil compaction. Constructed with a resilient 4-Ply rated (Load Range B) bias casing, the Turf Armor resists curb scrubbing, thorn punctures, and sidewall pinching, keeping your commercial zero-turn equipment operating at peak productivity all season long.

📍 Local Athens Landscapers & Property Owners: Tired of mower wheel spin on hills? Order your Carlisle Turf Armor tires online and select in-store pickup at our Athens, TN shop. We offer fast, professional in-house mounting to get your commercial mowing equipment dialed in without missing a beat.

PLEASE NOTE: Tire only, wheel NOT included! Double-check your front and rear rim diameter, overall height, and deck clearance before ordering to ensure proper fitment on your mower.

Carlisle Turf Armor Key Features & Highlights

  • Multi-Angled Tread Pattern: Delivers superior forward bite and lateral hillside stability without aggressive squared edges that tear delicate sod during tight zero-point turns.
  • Wide Profile Contact Patch: Disperses machine weight evenly to minimize compaction, preventing unsightly ruts in wet or soft turf.
  • Heavy-Duty 4-Ply Bias Casing: Load Range B construction provides reinforced sidewall puncture resistance against curb strikes, roots, and yard debris.
  • Superior Slope & Hill Performance: Eliminates dangerous wheel slippage and loss of steering control on sloping ditch banks and damp grass.
  • High Payload Capacities: Built to carry heavy commercial mower diesel engines and collection systems, handling loads up to 1,710 lbs per tire.
  • Tubeless (TL) Bead: Seats cleanly and securely on standard commercial turf wheels for trouble-free, reliable air retention.

Carlisle Turf Armor Master Sizing & Technical Specifications

PART # TIRE SIZE PLY RATING MOUNTED DIA. MOUNTED WIDTH DESIGN RIM WIDTH MAX LOAD (lbs / kg) MAX PSI WEIGHT (lbs / kg)
8" WHEEL APPLICATIONS
6L17931 20x8.00-8 4-Ply (LRB) 20.0" (508 mm) 8.4" (213.4 mm) 7.0" (177.8 mm) 965 lbs (437.7 kg) 22 PSI 11.8 lbs (5.3 kg)
6L17941 20x10.00-8 4-Ply (LRB) 20.1" (510.5 mm) 10.3" (260.4 mm) 7.0" (177.8 mm) 1,200 lbs (544.3 kg) 22 PSI 15.5 lbs (7.0 kg)
10" WHEEL APPLICATIONS
6L19651 20x7.00-10 4-Ply (LRB) 20.0" (508 mm) 7.4" (188.0 mm) 6.0" (152.4 mm) 910 lbs (412.8 kg) 26 PSI 11.9 lbs (5.4 kg)
6L19641 20x10.00-10 4-Ply (LRB) 20.0" (508 mm) 9.6" (242.6 mm) 7.0" (177.8 mm) 1,170 lbs (530.7 kg) 22 PSI 14.9 lbs (6.8 kg)
6L19631 22x11.00-10 4-Ply (LRB) 22.0" (558.8 mm) 10.5" (265.4 mm) 7.0" (177.8 mm) 1,480 lbs (671.3 kg) 22 PSI 17.4 lbs (7.9 kg)
12" WHEEL APPLICATIONS
6L17951 24x12.00-12 4-Ply (LRB) 23.8" (603.3 mm) 11.7" (297.2 mm) 9.5" (241.3 mm) 1,710 lbs (775.6 kg) 20 PSI 22.0 lbs (10.0 kg)
The videos below demonstrate the real-world hillside traction, stability, and turf-protection benefits of upgrading to Carlisle commercial mower tires.
Carlstar/Carlisle UTV/ATV Tires Lifestyle

About Carlstar (Formerly Carlisle) Tires

Providing tires for lawn and garden, ATV/UTV, trailer/hauling, agriculture/construction, and industrial segments, Carlstar is a force to be reckoned with. By having experience in a wide variety of tire applications, Carlstar knows how to get the best out of its tires. In addition, by investing heavily in manufacturing process technology and analytical testing equipment, Carlstar can ensure that all of its tires meet or exceed its customer's expectations. By purchasing Carlstar tires, you can put as much confidence in your machine as they do in their tires.
