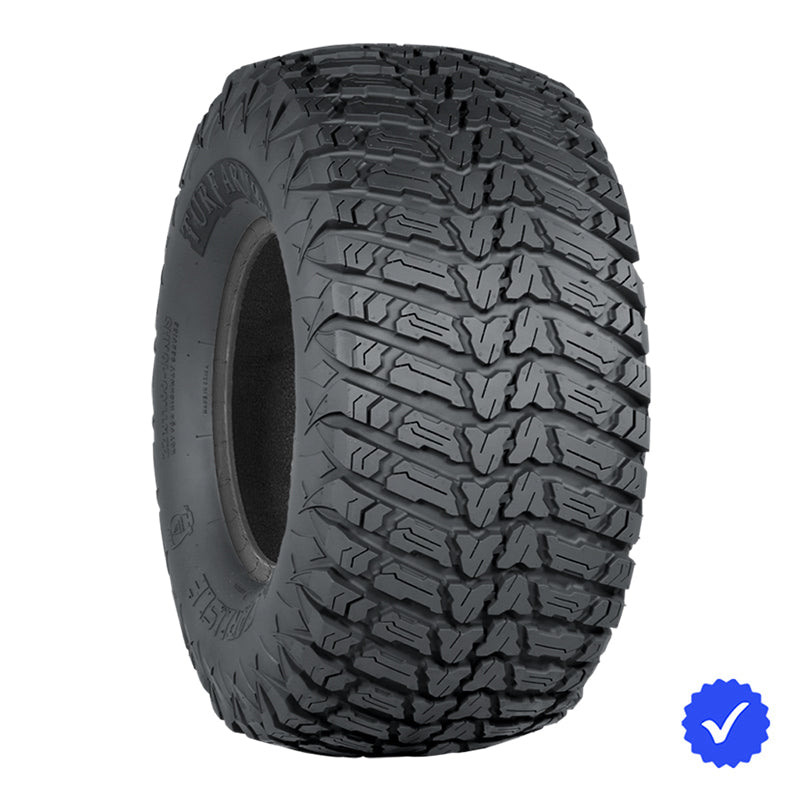

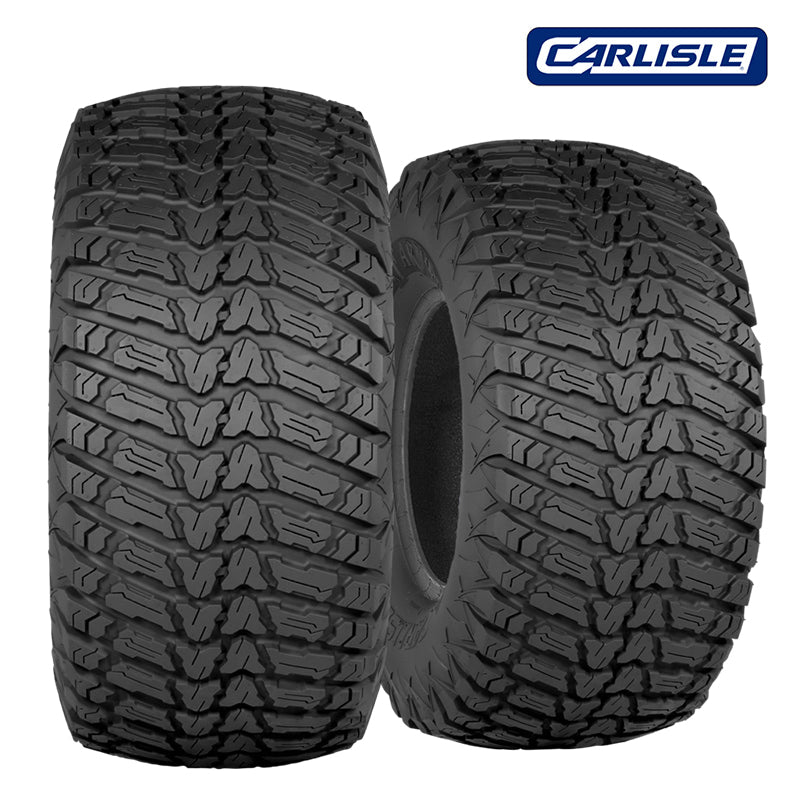

Elevate your commercial lawn care and property maintenance with the Carlisle® Turf Armor 4-Ply Bias Tire. Specifically engineered for zero-turn mowers (ZTR), commercial lawn tractors, and light utility vehicles, the Turf Armor provides maximum hillside traction while ensuring minimal damage to pristine grass and turf. If your commercial mowers struggle with slipping on damp morning grass, sliding across steep slopes, or chewing up turn points, this tire is the ultimate high-traction, turf-friendly upgrade.
The secret lies in Carlisle’s innovative multi-angled tread design. These multi-faceted biting edges interact evenly with the soil, distributing machine weight across a wide footprint to virtually eliminate tire rutting and soil compaction. Constructed with a resilient 4-Ply rated (Load Range B) bias casing, the Turf Armor resists curb scrubbing, thorn punctures, and sidewall pinching, keeping your commercial zero-turn equipment operating at peak productivity all season long.
📍 Local Athens Landscapers & Property Owners: Tired of mower wheel spin on hills? Order your Carlisle Turf Armor tires online and select in-store pickup at our Athens, TN shop. We offer fast, professional in-house mounting to get your commercial mowing equipment dialed in without missing a beat.
PLEASE NOTE: Tire only, wheel NOT included! Double-check your front and rear rim diameter, overall height, and deck clearance before ordering to ensure proper fitment on your mower.
| PART # | TIRE SIZE | PLY RATING | MOUNTED DIA. | MOUNTED WIDTH | DESIGN RIM WIDTH | MAX LOAD (lbs / kg) | MAX PSI | WEIGHT (lbs / kg) |
|---|---|---|---|---|---|---|---|---|
| 8" WHEEL APPLICATIONS | ||||||||
| 6L17931 | 20x8.00-8 | 4-Ply (LRB) | 20.0" (508 mm) | 8.4" (213.4 mm) | 7.0" (177.8 mm) | 965 lbs (437.7 kg) | 22 PSI | 11.8 lbs (5.3 kg) |
| 6L17941 | 20x10.00-8 | 4-Ply (LRB) | 20.1" (510.5 mm) | 10.3" (260.4 mm) | 7.0" (177.8 mm) | 1,200 lbs (544.3 kg) | 22 PSI | 15.5 lbs (7.0 kg) |
| 10" WHEEL APPLICATIONS | ||||||||
| 6L19651 | 20x7.00-10 | 4-Ply (LRB) | 20.0" (508 mm) | 7.4" (188.0 mm) | 6.0" (152.4 mm) | 910 lbs (412.8 kg) | 26 PSI | 11.9 lbs (5.4 kg) |
| 6L19641 | 20x10.00-10 | 4-Ply (LRB) | 20.0" (508 mm) | 9.6" (242.6 mm) | 7.0" (177.8 mm) | 1,170 lbs (530.7 kg) | 22 PSI | 14.9 lbs (6.8 kg) |
| 6L19631 | 22x11.00-10 | 4-Ply (LRB) | 22.0" (558.8 mm) | 10.5" (265.4 mm) | 7.0" (177.8 mm) | 1,480 lbs (671.3 kg) | 22 PSI | 17.4 lbs (7.9 kg) |
| 12" WHEEL APPLICATIONS | ||||||||
| 6L17951 | 24x12.00-12 | 4-Ply (LRB) | 23.8" (603.3 mm) | 11.7" (297.2 mm) | 9.5" (241.3 mm) | 1,710 lbs (775.6 kg) | 20 PSI | 22.0 lbs (10.0 kg) |
