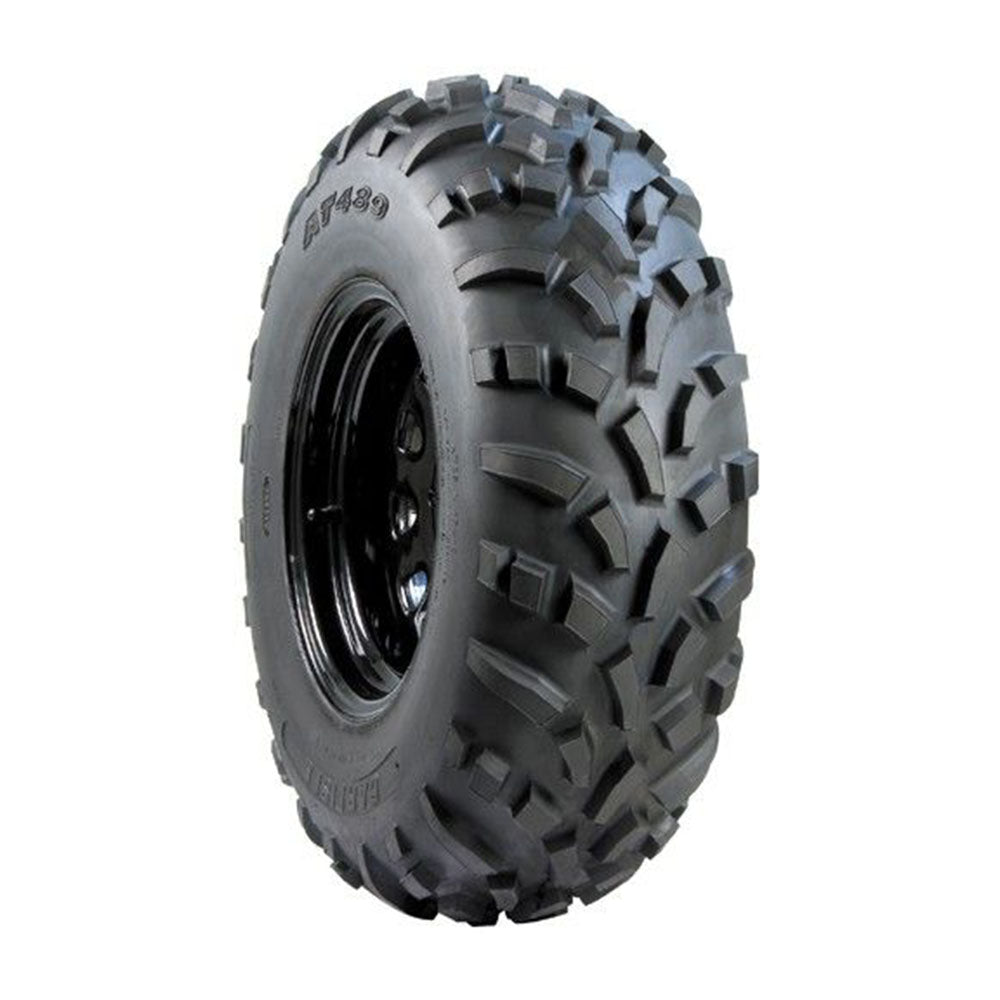

Carlisle AT489 TL front tire.

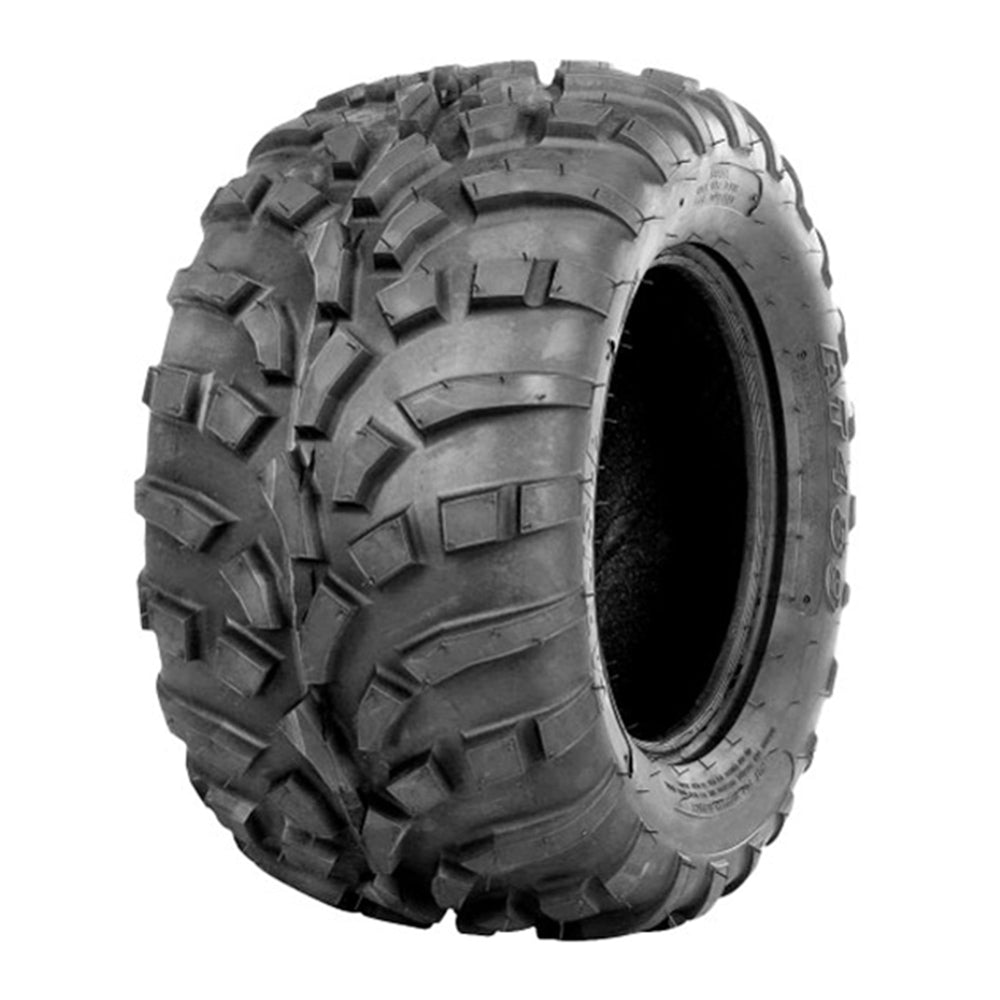

Carlisle AT489 TL rear tire for ATV and UTV..

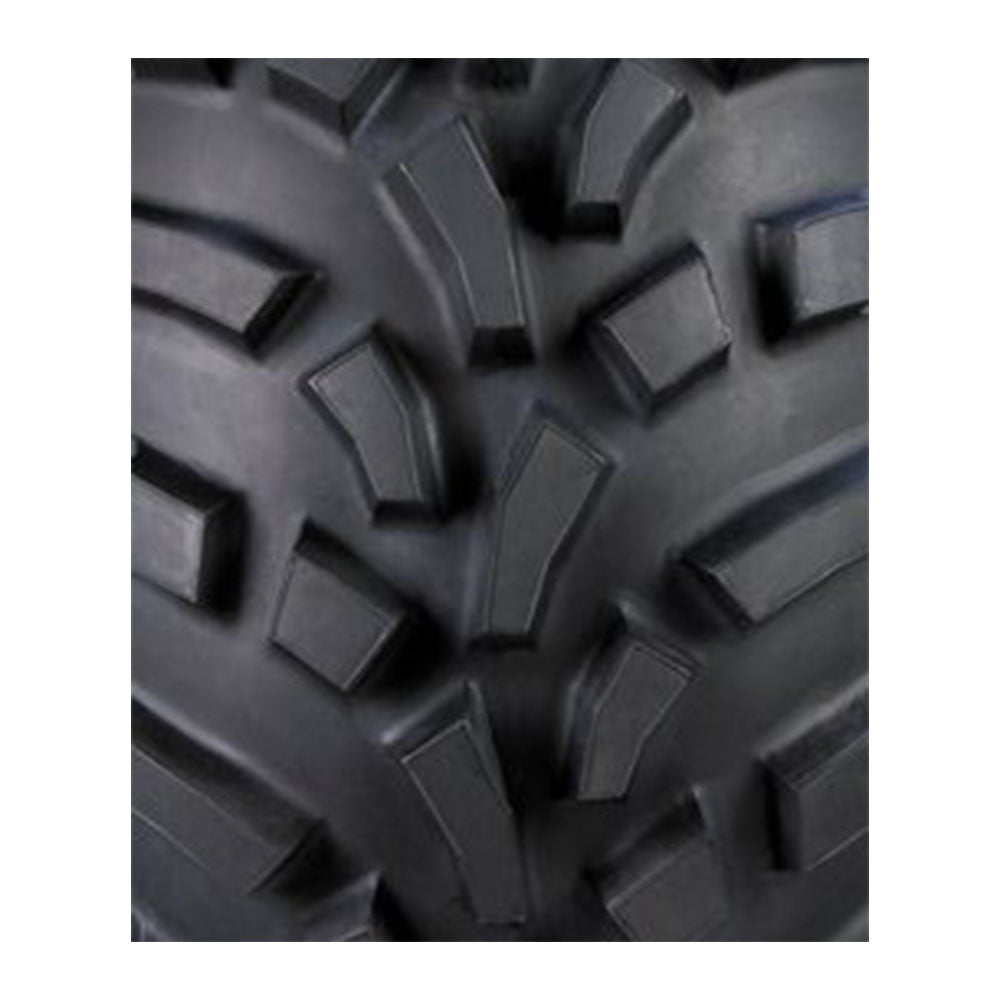

Close up tread on Carlisle AT489 TL ATV and UTV tire.

Carlisle® AT489 ATV / UTV Tire

By Carlisle®
From $110.99 $196.88
Rocket ship image

Fast & Free shipping on every order

Shipping FAQ's

Continental US (48 States)- We offer free shipping on every order with a delivery address in the continental US.

Alaska, Hawaii and Canada- For accurate and up-to-date shipping costs, please see our dedicated tire collection purely for Canada, Hawaii, and Alaska customers. For more information, please see our dedicated shipping page for customers in these locations.
View details
Carlisle tire small horizontal color logo.

The Carlisle® AT489 TL ATV/UTV/SxS bias-ply tire is a standout in the power sports industry.

It has earned acclaim for its lightweight yet strong and stable construction, as well as its puncture-resistant tread compounds. Designed for aggressive control, the tire is ideal for off-road adventures, providing reliable traction, enduring quality, and a smooth ride on soft to intermediate surfaces and mud. As an OE replacement, the AT489 is the benchmark for ATV tires and a popular choice for those seeking performance, no matter the terrain. Made in U.S.A.!

Choose your correct tire size from the dropdown menu and select the quantity you need for quick and accurate delivery!

PLEASE NOTE: Tire only, wheel NOT included! Double check your tire size before ordering to ensure accuracy when ordering your new tires!

AT489 Features/Benefits

  • Puncture resistant tread compounds
  • Tread designed for aggressive yet smooth control
  • Soft to intermediate surfaces and mud
  • Superior shock absorption

Carlisle AT489 Tires

AT489 10" Specifications

AT22x11-10

  • Ply Rating: 4-Ply
  • Overall Diameter: 22 inches
  • Weight: 15.37 lbs
  • Rim Size: 10x8 inches
  • Max Load: 620 lbs
  • Inflated Pressure: 12 psi
  • Tread Depth: 15.08 mm
  • Section Width: 10 inches
  • Part #: 5893H5

AT23x7-10

  • Ply Rating: 2-Ply
  • Overall Diameter: 23 inches
  • Weight: 12.4 lbs
  • Rim Size: 10x6 inches
  • Max Load: 240 lbs
  • Inflated Pressure: 5 psi
  • Tread Depth: 15.08 mm
  • Section Width: 7 inches
  • Part #: 5893M0

AT24x9.5-10

  • Ply Rating: 4-Ply
  • Overall Diameter: 24.2 inches
  • Weight: 18.00 lbs
  • Rim Size: 10x7.8 inches
  • Max Load: 870 lbs
  • Inflated Pressure: 22 psi
  • Tread Depth: 15.08 mm
  • Section Width: 9.6 inches
  • Part #: 5793P2

AT24x11-10

  • Ply Rating: 3-Ply
  • Overall Diameter: 24.3 inches
  • Weight: 17.95 lbs
  • Rim Size: 10x9 inches
  • Max Load: 440 lbs
  • Inflated Pressure: 7 psi
  • Tread Depth: 15.08 mm
  • Section Width: 9.8 inches
  • Part #: 589305

AT24x12-10

  • Ply Rating: 4-Ply
  • Overall Diameter: 24 inches
  • Weight: 23 lbs
  • Rim Size: 10x9.5 inches
  • Max Load: 1020 lbs
  • Inflated Pressure: 20 psi
  • Tread Depth: 15.08 mm
  • Section Width: 12 inches
  • Part #: 5793A6

AT25x11-10

  • Ply Rating: 3-Ply
  • Overall Diameter: 25.1 inches
  • Weight: 20.95 lbs
  • Rim Size: 10x9 inches
  • Max Load: 455 lbs
  • Inflated Pressure: 7 psi
  • Tread Depth: 15.08 mm
  • Section Width: 10.6 inches
  • Part #: 589308
      AT489 11" Specifications

      AT23x8-11

      • Ply Rating: 3-Ply
      • Overall Diameter: 23.5 inches
      • Weight: 14.38 lbs
      • Rim Size: 11x6.5 inches
      • Max Load: 290 lbs
      • Inflated Pressure: 7 psi
      • Tread Depth: 15.08 mm
      • Section Width: 7.5 inches
      • Part #: 589304

      AT24x9-11

      • Ply Rating: 3-Ply
      • Overall Diameter: 24.3 inches
      • Weight: 16.89 lbs
      • Rim Size: 11x7.5 inches
      • Max Load: 365 lbs
      • Inflated Pressure: 7 psi
      • Tread Depth: 15.08 mm
      • Section Width: 9.1 inches
      • Part #: 5893A9

      AT24x10-11

      • Ply Rating: 3-Ply
      • Overall Diameter: 24.6 inches
      • Weight: 19.31 lbs
      • Rim Size: 11x8 inches
      • Max Load: 395 lbs
      • Inflated Pressure: 7 psi
      • Tread Depth: 15.08 mm
      • Section Width: 9.6 inches
      • Part #: 589328
        AT489 12" Specifications

        AT24x8-12

        • Ply Rating: 4-Ply
        • Overall Diameter: 24 inches
        • Weight: 14 lbs
        • Rim Size: 12x6.5 inches
        • Max Load: 505 lbs
        • Inflated Pressure: 12 psi
        • Tread Depth: 15.08 mm
        • Section Width: 7.5 inches
        • Part #: 6P0819

        AT25x8-12

        • Ply Rating: 4-Ply
        • Overall Diameter: 25.3 inches
        • Weight: 14.4 lbs
        • Rim Size: 12x6 inches
        • Max Load: 495 lbs
        • Inflated Pressure: 10 psi
        • Tread Depth: 15.08 mm
        • Section Width: 7.4 inches
        • Part #: 589306

        AT25x10-12

        • Ply Rating: 4-Ply
        • Overall Diameter: 25.3 inches
        • Weight: 17 lbs
        • Rim Size: 12x8 inches
        • Max Load: 600 lbs
        • Inflated Pressure: 10 psi
        • Tread Depth: 15.08 mm
        • Section Width: 9.4 inches
        • Part #: 589335

        AT25x11-12

        • Ply Rating: 4-Ply
        • Overall Diameter: 25.4 inches
        • Weight: 20.1 lbs
        • Rim Size: 12x8 inches
        • Max Load: 1050 lbs
        • Inflated Pressure: 22 psi
        • Tread Depth: 15.08 mm
        • Section Width: 10.2 inches
        • Part #: 589351
        All AT489 Specifications
        SKU Size Ply Mounted Diameter (in) Mounted Width (in) Rated Load (lb) PSI Tread Depth Weight (lb) Additional Information
        5793N1 22x9.50-10NHS 4 22 9.5 600 14 19 /32 15.8
        5893H5 22x11.00-10NHS 4 22.8 10.2 600 12 19 /32 16
        5893V0 AT22x11-10 2_star 22 11.1 5 19 /32 16
        5370461 AT22x10-10 3_star 21.7 9.9 355 7 19 /32 18
        5893M0 AT23x7-10 2_star 23 7 240 5 19 /32 11.6
        589304 AT23x8-11 3_star 23.5 7.5 290 7 19 /32 14.1
        5793A6 24x12.00-10NHS 4 24 12 1050 20 19 /32 23
        589327 AT23x10-10 3_star 23.4 9.5 375 7 19 /32 18
        5793P2 24x9.50-10 4 24.2 9.6 855 22 19 /32 17.8
        589305 AT24X11-10 3_star 24 10 440 7 19 /32 17
        5893A9 AT24x9-11 3_star 24 8.9 365 7 19 /32 17.2
        5793N9 24x10.50-10NHS 4 24 10.5 715 14 19 /32 20
        589328 AT24x10-11 3_star 24.6 9.6 395 7 19 /32 18
        6P0819 24x8.00-12 4 24 7.5 505 12 19 /32 14
        6P0818 24x9.00-12 NHS 4 24.3 8.5 565 12 19 /32 16.8
        589332 AT24x8-11 3_star 24.2 8.6 320 7 19 /32 18
        589344 AT24x11-12 3_star 24 10.9 430 7 19 /32 20.3
        589308 AT25x11-10 3_star 25.7 10.5 455 7 19 /32 20.9
        589306 25x8.00-12NHS 4 25.1 7.5 495 10 19 /32 14.1
        589329 AT23x8-12 3_star 23.1 7.4 280 7 19 /32 14
        589335 25x10.00-12NHS 4 25.3 9 600 10 19 /32 17
        589330 AT23X10-12 3_star 23 9 365 7 19 /32 17
        589351 25x11.00-12NHS 4 25.4 10.5 1050 22 19 /32 20.1
        589337 AT24x8-12 3_star 24.2 8 310 7 19 /32 14
        589342 AT24x9-12 2_star 23.8 8.9 5 19 /32 17
        6P07681 25x8.00-12 NHS 4 25.3 7.7 495 10 19 /32 15
        6P07691 25x10.00-12 NHS 4 25.3 9.4 600 10 19 /32 20
        589359 25x8.00-12NHS 4 25 8 22 19 /32 15
        6P07701 25x11.00-12 NHS 4 25.4 10.5 1050 22 19 /32 21
        589336 AT26x10-12 2_star 25.7 9.8 385 5 19 /32 19
        560416 25x10.00-12NHS 4 25.8 9.1 24 19 /32 20
        560414 25x11.00-12NHS 4 25.5 10.5 22 19 /32 22


        Footnotes:
        NHS tires are Non-Highway Service Tires. “AT” tires are designed for ATV applications. “NHS” tires are designed for Utility Vehicle applications. † Indicates mounted diameter and mounted width
        *NOTE: “AT” tires are STAR Rated. “NHS” tires are Ply Rated. (PR).
          Carlstar/Carlisle UTV/ATV Tires Lifestyle

          About Carlstar (Formerly Carlisle) Tires

          Providing tires for lawn and garden, ATV/UTV, trailer/hauling, agriculture/construction, and industrial segments, Carlstar is a force to be reckoned with. By having experience in a wide variety of tire applications, Carlstar knows how to get the best out of its tires. In addition, by investing heavily in manufacturing process technology and analytical testing equipment, Carlstar can ensure that all of its tires meet or exceed its customer's expectations. By purchasing Carlstar tires, you can put as much confidence in your machine as they do in their tires.
