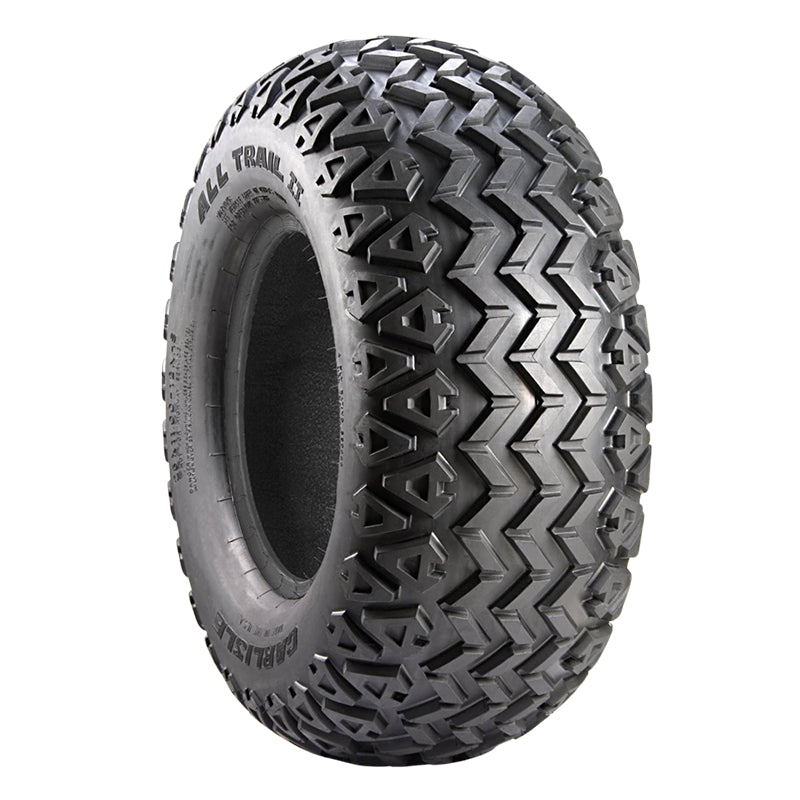

Angled view of the Carlisle All Trail II all-terrain 4-ply bias construction tire designed for ATV and UTV, featuring the classic all purpose chevron lug design, and offered with free shipping in a variety of popular sizes.

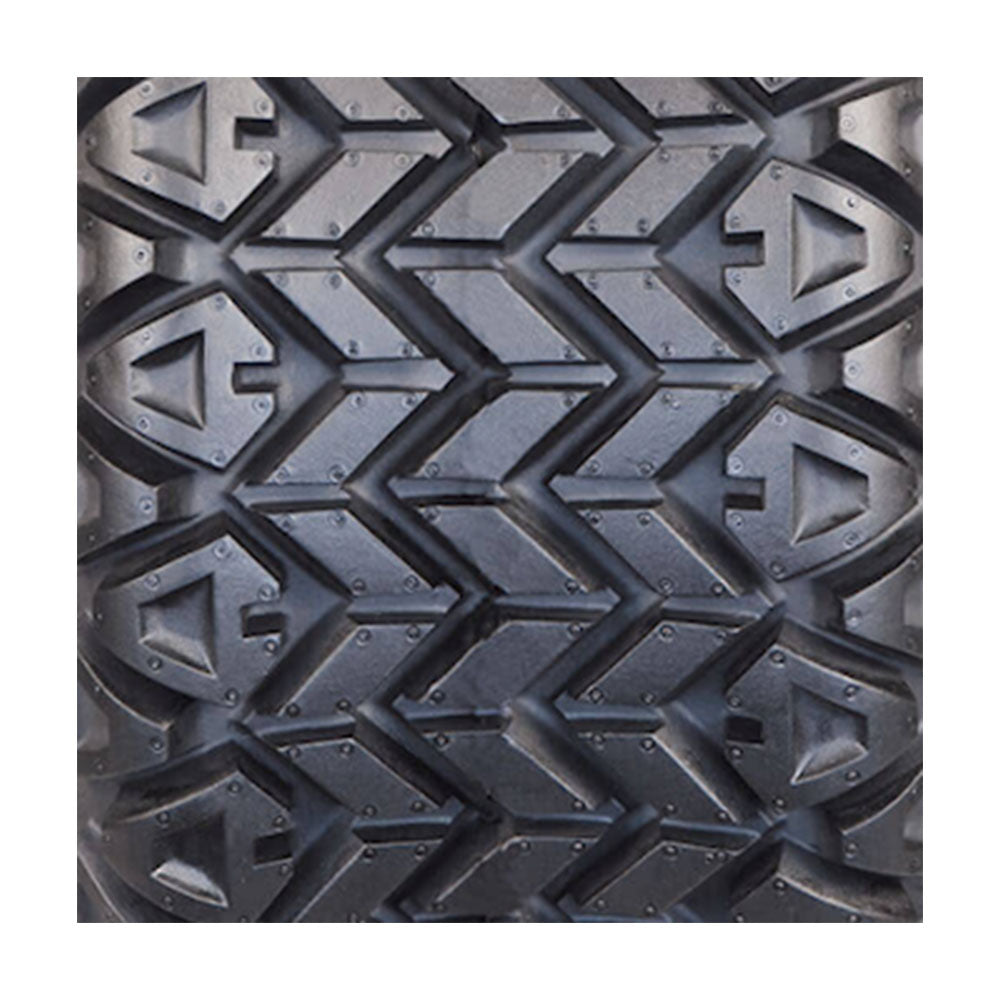

Carlisle All Trail II Tire Terrain Close-up

Carlisle® All Trail II UTV / SxS Tire | 4-Ply

By Carlisle®
From $112.99
Rocket ship image

Fast & Free shipping on every order

Shipping FAQ's

Continental US (48 States)- We offer free shipping on every order with a delivery address in the continental US.

Alaska, Hawaii and Canada- For accurate and up-to-date shipping costs, please see our dedicated tire collection purely for Canada, Hawaii, and Alaska customers. For more information, please see our dedicated shipping page for customers in these locations.
View details
Carlisle tire small horizontal color logo.

The 4-Ply Carlisle® All Trail II UTV / SxS Tire offers a perfect combination of a low and wide profile combined with a tight tread pattern for a smooth and responsive ride on hard surface conditions.

Its specially formulated compound contributes to durable tire life and reliable handling on pavement, concrete, and hard-packed soil. It's a one-stop solution for all your utilitarian off-road needs - crafted in the USA for ultimate traction, stability, and long-lasting performance. Plus, you can cruise in comfort and style - each mile you drive is like a ride on a cushion of air!

Choose your correct tire size from the dropdown menu and select the quantity you need for quick and accurate delivery!

PLEASE NOTE: Tire only, wheel NOT included! Double check your tire size before ordering to ensure accuracy when ordering your new tires!

All Trail II Features/Benefits

  • Tightly grooved tread design for stability on hard-packed terrain
  • Low, wide profile for reduced soft wallowing chassis roll
  • Extended-wear tread compound
  • Intermediate to hard surfaces
  • 4-ply Rating
8" Specifications

20x10-8

  • Ply Rating: 4-Ply
  • Overall Diameter: 19.8 inches
  • Weight: 13.6 lbs
  • Rim Size: 8x8 inches
  • Max Load: 715 lbs
  • Inflated Pressure: 22 psi
  • Tread Depth: 11.11 mm
  • Section Width: 9.4 inches
  • Part #: 510043

22x10-8

  • Ply Rating: 4-Ply
  • Overall Diameter: 22 inches
  • Weight: 15.1 lbs
  • Rim Size: 8x7 inches
  • Max Load: 825 lbs
  • Inflated Pressure: 22 psi
  • Tread Depth: 11.11 mm
  • Section Width: 10.2 inches
  • Part #: 510044
10" Specifications

20x10-10

  • Ply Rating: 4-Ply
  • Overall Diameter: 20.3 inches
  • Weight: 13.9 lbs
  • Rim Size: 10x6 inches
  • Max Load: 695 lbs
  • Inflated Pressure: 22 psi
  • Tread Depth: 11.11 mm
  • Section Width: 8.2 inches
  • Part #: 510045

22x9.5-10

  • Ply Rating: 4-Ply
  • Overall Diameter: 22 inches
  • Weight: 15 lbs
  • Rim Size: 10x8 inches
  • Max Load: 585 lbs
  • Inflated Pressure: 14 psi
  • Tread Depth: 11.11 mm
  • Section Width: 9.6 inches
  • Part #: 55A3N1

    24x9.5-10

    • Ply Rating: 4-Ply
    • Overall Diameter: 24 inches
    • Weight: 16.7 lbs
    • Rim Size: 10x7.5 inches
    • Max Load: 870 lbs
    • Inflated Pressure: 22 psi
    • Tread Depth: 11.11 mm
    • Section Width: 9.5 inches
    • Part #: 55A3P2

    24x10.5-10

    • Ply Rating: 4-Ply
    • Overall Diameter: 24.3 inches
    • Weight: 19.3 lbs
    • Rim Size: 10x8 inches
    • Max Load: 900 lbs
    • Inflated Pressure: 20 psi
    • Tread Depth: 11.11 mm
    • Section Width: 10.8 inches
    • Part #: 55A3N9
        12" Specifications

        25x9-12

        • Ply Rating: 4-Ply
        • Overall Diameter: 25.2 inches
        • Weight: 18.6 lbs
        • Rim Size: 12x7 inches
        • Max Load: 825 lbs
        • Inflated Pressure: 20 psi
        • Tread Depth: 12.70 mm
        • Section Width: 8.6 inches
        • Part #: 560443

        25x11-12

        • Ply Rating: 4-Ply
        • Overall Diameter: 25.5 inches
        • Weight: 20.4 lbs
        • Rim Size: 12x9 inches
        • Max Load: 1050 lbs
        • Inflated Pressure: 22 psi
        • Tread Depth: 12.07 mm
        • Section Width: 10.8 inches
        • Part #: 560444
        All Specifications

        SKU Size Ply Mounted Diameter (in) Mounted Width (in) Rated Load (lb) PSI Tread Depth Weight (lb) Additional Information
        510043 20x10.00-8 4 19.8 9.4 715 22 14 /32 16.3
        510044 22x10.00-8NHS 4 22 10.2 825 22 14 /32 15.1
        510045 20x10.00-10 4 20.3 8.2 695 22 14 /32 14
        55A3N1 22x9.50-10NHS 4 22 9.6 585 14 14 /32 15
        6P0058 23x11.00-10 6 23.5 10.9 1230 34 17 /32 19.9
        55A3P2 24x9.50-10NHS 4 24 9.5 870 22 14 /32 16.7
        55A3N9 24x10.50-10NHS 4 24.3 10.8 900 20 14 /32 19.3
        560443 25x9.00-12NHS 4 25.2 8.6 825 20 16 /32 18.6
        560587 25x9.00-12NHS 6 25.4 8.5 1100 32 16 /32 20
        5E0587 25x9.00-12 6 25.4 8.5 1100 32 16 /32 19.9
        560444 25x11.00-12 4 25.5 10.8 1050 22 16 /32 20.4
        6P0333 25x11.00-12NHS 6 25.5 11.2 1360 34 16 /32 23.2
            Carlstar/Carlisle UTV/ATV Tires Lifestyle

            About Carlstar (Formerly Carlisle) Tires

            Providing tires for lawn and garden, ATV/UTV, trailer/hauling, agriculture/construction, and industrial segments, Carlstar is a force to be reckoned with. By having experience in a wide variety of tire applications, Carlstar knows how to get the best out of its tires. In addition, by investing heavily in manufacturing process technology and analytical testing equipment, Carlstar can ensure that all of its tires meet or exceed its customer's expectations. By purchasing Carlstar tires, you can put as much confidence in your machine as they do in their tires.
