ATV, UTV, SXS Splined 12x1.50 Lug Nuts - Set of 20 - Black

SKU: LUG-NUTKIT52

$24.99

Regular price $24.99
Free Shipping All 48 contiguous states
No Sales Tax Except Indiana & Michigan orders
ORDERED
Today
EXPECTED ARRIVAL
Calculating...

Bullite Wheels and Tires Logo

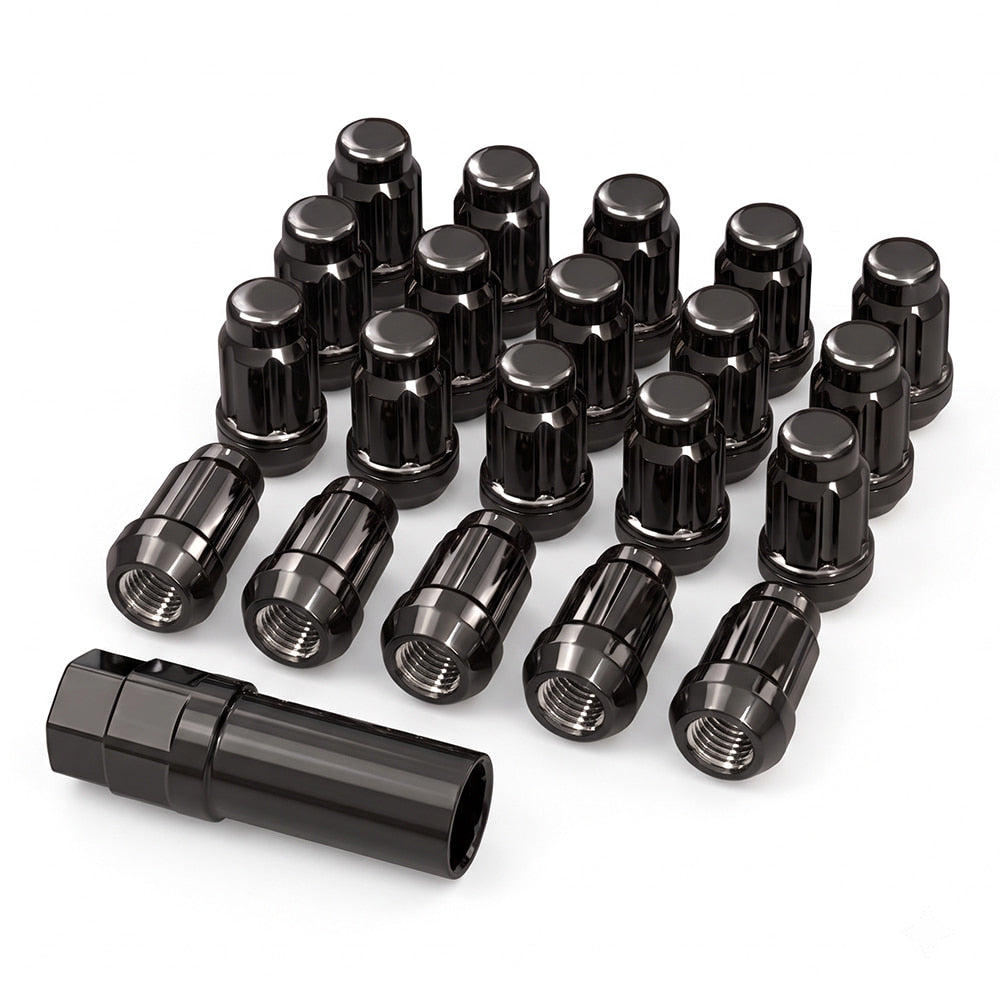

Secure your 5-lug machine with the complete Set of 20 Splined Gloss Black 12mm x 1.50 Lug Nuts with Key Tool!

Upgrade your wheel hardware and protect your investment with this complete 20-piece gloss black spline-drive lug nut kit. Precision-machined from cold-forged, heat-treated carbon steel, these lug nuts are specifically sized in 12mm x 1.50 thread pitch with a standard 60-degree conical seat. Designed for modern 5-lug UTVs and Side-by-Sides—such as the Polaris RZR Turbo R and Pro R platforms—as well as aftermarket 5x4.5 (5x114.3mm) wheel setups, this 20-piece set equips all four wheel positions with complete anti-theft security.

Each lug nut features a slim-diameter spline design that easily clears tight aftermarket wheel lug recesses without scratching or gouging the wheel finish. Coated in a multi-stage electro-deposit gloss black finish to combat road salt, mud abrasion, and corrosion, the set includes a matching spline-drive security socket tool for balanced, damage-free torque application during installation or trailside tire changes.

Select your set above for fast, accurate dispatch straight to your door!

PLEASE NOTE: Hardware kit only, wheels and tires NOT included! Verify your vehicle's wheel stud thread pitch (12mm x 1.50) and 60-degree cone seat profile before ordering to ensure correct fitment.

UTV Black Spline Lug Nut Set Includes

  • (20) Splined Gloss Black Lug Nuts: 12mm x 1.50 thread pitch, closed-end construction, 60-degree conical taper.
  • (1) Spline-Drive Security Key Tool: Dual-hex drive adapter engineered for standard socket tool compatibility.

Hardware Features & Performance Highlights

  • Full 20-Piece 5-Lug Vehicle Set: Complete coverage for 5-lug hubs across all four wheels (5 lugs per corner).
  • Slim-Diameter Spline Architecture: Narrow profile slips smoothly into small-diameter aftermarket wheel pockets where bulky standard hex sockets cannot fit.
  • Cold-Forged Carbon Steel Strength: Heat-treated to Grade 8 / Class 10.9 standards to withstand high torque loads and aggressive rough-trail abuse.
  • Multi-Stage Gloss Black E-Coating: Advanced electro-deposit barrier protects against rust bleed, trail chemical exposure, and chipping.
  • Universal 60-Degree Conical Taper: Direct fitment with virtually all modern aftermarket aluminum and steel ATV/UTV wheels.
  • 360-Degree Theft Deterrence: Every wheel lug requires the matched spline key, providing complete security against wheel theft at trailheads, motels, or storage trailers.

ATV / UTV Lug Nut Master Application & Fitment Guide

MAKE / MODEL YEAR RANGE BOLT PATTERN THREAD SIZE / PITCH 12mm x 1.50 COMPATIBILITY
ARCTIC CAT (TEXTRON)
Wildcat XX 2018–2021+ 4/156 12mm x 1.50 Direct Fit (12x1.50)
CAN-AM
Commander 1000 2011–2021+ 4/137 10mm x 1.25 Requires 10mm x 1.25
Commander 800 2011–2021+ 4/137 10mm x 1.25 Requires 10mm x 1.25
Defender 1000 2016–2021+ 4/137 10mm x 1.25 Requires 10mm x 1.25
Defender 800 2016–2021+ 4/137 10mm x 1.25 Requires 10mm x 1.25
Maverick (Standard) 2013–2019 4/137 10mm x 1.25 Requires 10mm x 1.25
Maverick X3 / Turbo 2017–2021+ 4/137 12mm x 1.50 Direct Fit (12x1.50)
Outlander 330–1000 2003–2021+ 4/137 10mm x 1.25 Requires 10mm x 1.25
Renegade 500 / 800 / 1000 2008–2021+ 4/137 10mm x 1.25 Requires 10mm x 1.25
HONDA
Pioneer 1000 2015–2021+ 4/137 12mm x 1.50 Direct Fit (12x1.50)
Talon 1000 (All Models) 2019–2021+ 4/137 12mm x 1.50 Direct Fit (12x1.50)
KAWASAKI
Teryx KRX 1000 2020–2021+ 4/156 12mm x 1.25 Requires 12mm x 1.25
Mule 2500 / 3000 / 4000 All Years 4/137 12mm x 1.25 Requires 12mm x 1.25
Mule PRO-FXT / FX 2014–2021+ 4/156 12mm x 1.25 Requires 12mm x 1.25
Teryx 750 / Teryx4 750 2008–2014 4/137 12mm x 1.25 Requires 12mm x 1.25
Teryx 800 / Teryx4 800 2015–2021+ 4/137 12mm x 1.25 Requires 12mm x 1.25
POLARIS
ACE 500 / 570 / 900 2014–2021 4/156 3/8"-24 Requires 3/8"-24
General 1000 EPS / General 4 2016–2021+ 4/156 12mm x 1.50 Direct Fit (12x1.50)
Ranger 4x4 / 500 / 700 2003–2021+ 4/156 3/8"-24 Requires 3/8"-24
Ranger 900 XP / 1000 XP 2013–2021+ 4/156 12mm x 1.50 Direct Fit (12x1.50)
RZR 570 2008–2014 4/156 3/8"-24 Requires 3/8"-24
RZR 800 2008–2014 4/156 3/8"-24 Requires 3/8"-24
RZR Turbo R / Turbo R 4 2022+ 5/114.3 (5x4.5) 12mm x 1.50 Direct Fit (5-Lug 12x1.50)
RZR XP 1000 / Turbo / Turbo S 2013–2021+ 4/156 12mm x 1.50 Direct Fit (12x1.50)
Scrambler XP 850 / 1000 2014–2019 4/156 10mm x 1.25 Requires 10mm x 1.25
Sportsman (Legacy Models) 1996–2014 4/156 3/8"-24 Requires 3/8"-24
Sportsman 570 2015+ 4/156 3/8"-24 Requires 3/8"-24
Sportsman XP 550 / 850 / 1000 2009–2021+ 4/156 10mm x 1.25 Requires 10mm x 1.25
YAMAHA
Wolverine RMAX 1000 2021+ 4/156 12mm x 1.25 Requires 12mm x 1.25
YXZ1000R / SS / SE 2016–2021+ 4/156 12mm x 1.25 Requires 12mm x 1.25
