Antego 6x4.5 Glossy Black Mower Wheel, 5/8-Inch Bearings, Single

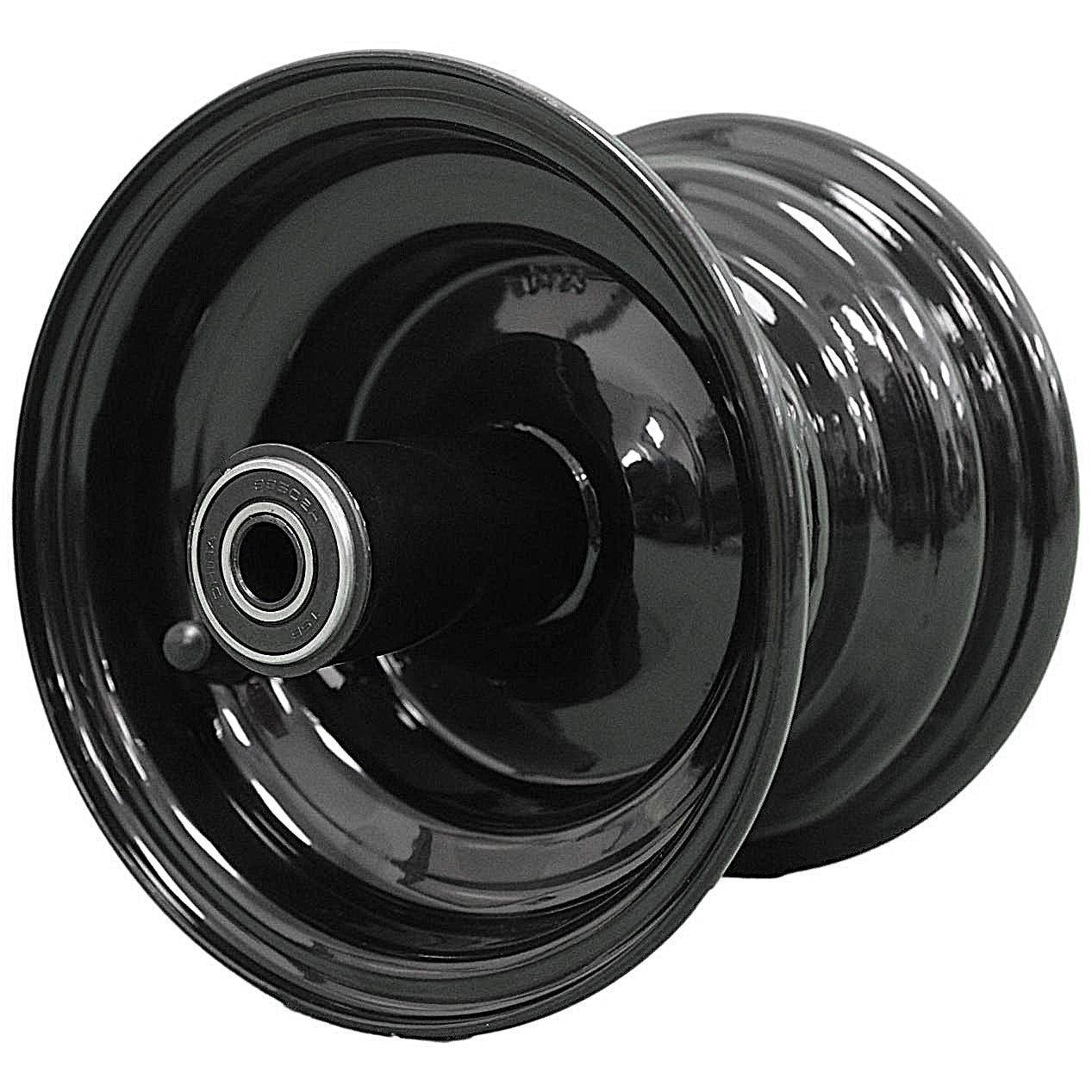

Antego 6x4.5 glossy-black mower wheel. This listing contains 1 bare wheel; tires and external mounting hardware are not included. The wheel is configured for compatible 13x6.50-6 caster assemblies using the dimensions below.

Wheel specifications

• Rim size: 6x4.5.
• Finish: glossy black.
• Overall hub length: approximately 177.9 mm (7.00 inches).
• Bearings: 5/8-inch precision ball-bearing configuration.
• Spanner tube: 1/2 inch, based on the exact-SKU engineering title.
• Common tire fit: compatible 13x6.50-6 tires.
• Catalog offset: zero offset.
• Package quantity: 1 bare wheel.

Fitment checklist

• Bad Boy 022-2017-00 is a complete 13x6.50-6 front tire-and-wheel assembly, not a bare-wheel OEM number. Use it only as an assembly reference.
• Confirm the 7-inch hub length, 5/8-inch bearing bore, bearing width, 1/2-inch spanner tube, axle shoulder and fork spacing.
• Check the mower manual for model and serial-specific fitment before rebuilding the original caster assembly.
• Confirm the tire manufacturer approves a 6x4.5 rim for the intended 13x6.50-6 tire.

Brand: Antego Tire & Wheel. Bad Boy is referenced only to describe compatibility.
