Antego 10x8.5 Chrome-Silver Mower Wheel, 4-on-4, Single

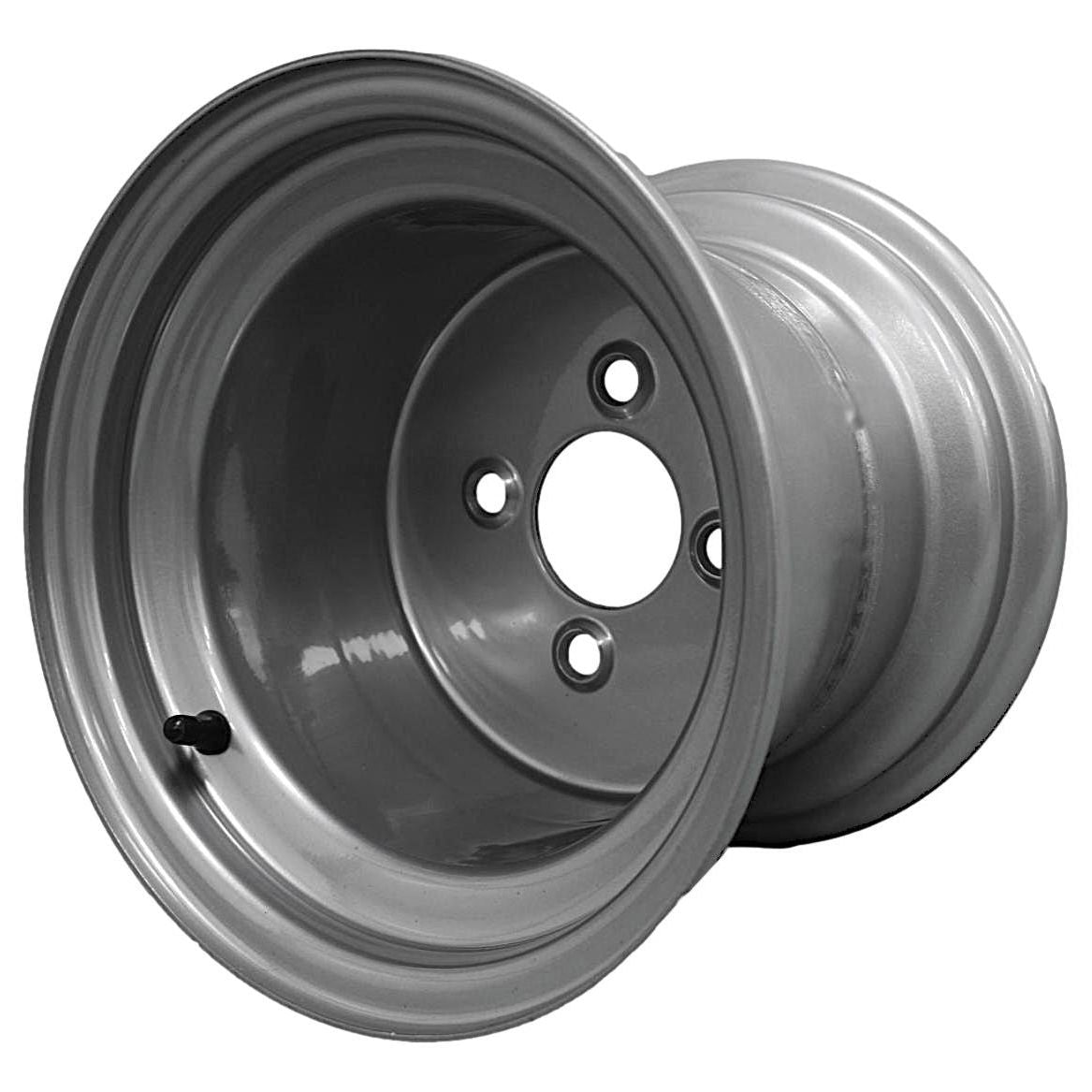

Antego 10x8.5 chrome-silver steel mower wheel. This listing contains 1 bare wheel; tires and mounting hardware are not included. The wheel is intended for mower and utility-equipment applications that match the complete mounting geometry.

Wheel specifications

• Rim size: 10x8.5.
• Finish: chrome silver.
• Bolt pattern: 4-on-4 inches.
• Center bore: approximately 2.52 inches.
• Backspacing: approximately 3.12 inches.
• Catalog offset: approximately -1.232 inches.
• Catalog wheel rating: 1,320 pounds.
• Package quantity: 1 bare wheel.

Fitment checklist

• Confirm the 10-inch bead-seat diameter and 8.5-inch rim width.
• Verify the 4-on-4 bolt pattern, 2.52-inch center bore, backspacing and offset.
• Check stud diameter, lug-seat style, hub and brake clearance, valve-stem position and tire clearance.
• The finish is associated with compatible Hustler mower applications, but no verified OEM wheel number is available; do not order by brand name alone.

Brand: Antego Tire & Wheel. Hustler is referenced only to describe potential compatibility.
