24" Frontline® 556 Gloss Black Wheel / 40x12R24 ACP Tire SXS Combo Package
Couldn't load pickup availability
Continental US (48 States)- We offer free shipping on every order with a delivery address in the continental US.
Alaska, Hawaii and Canada- For accurate and up-to-date shipping costs, please see our dedicated tire collection purely for Canada, Hawaii, and Alaska customers. For more information, please see our dedicated shipping page for customers in these locations.

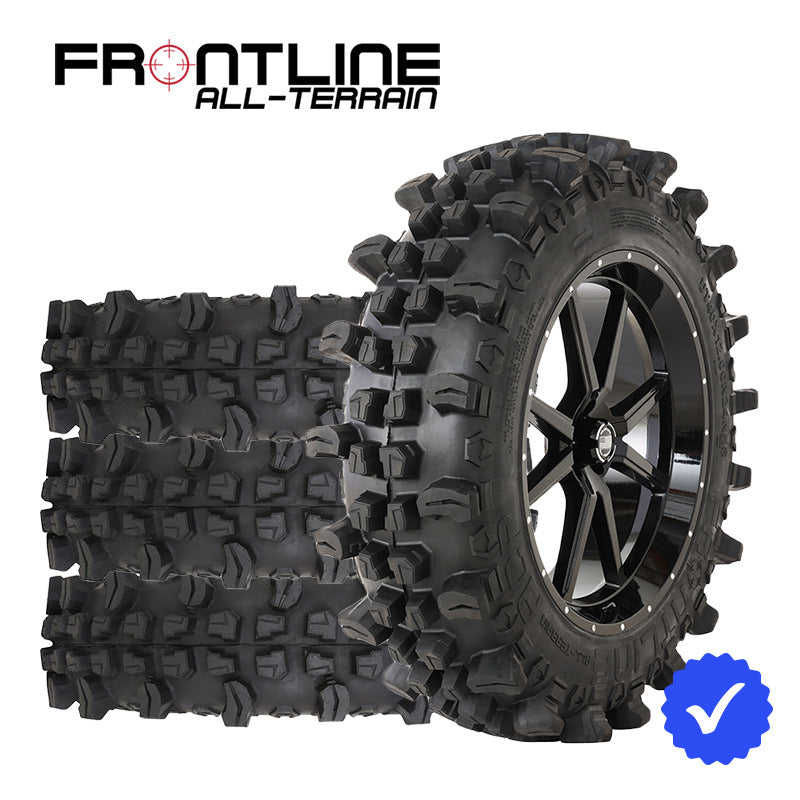

Check out the awesome Gloss Black 24" Frontline 556 UTV/SXS wheel mounted with the aggressive 40" Frontline ACP 10-Ply Radial Tire!
When you are ready to up your wheel and tire game on your UTV or Side-by-Side, this wheel and tire combo checks all the boxes. The overly aggressive 40" tall Frontline ACP tire pairs great with the gloss black finish 24" 556 Model SXS/UTV wheel. This wheel has a striking 8-spoke open design which not only catches the eye, it performs even better! Sold as a set of 4, all you need to do is select your lug nut bolt pattern to match your model and add to cart. (If you're unsure, use the fitment charts located in the listing tabs to locate your UTV or Side-by-Side make and model.)
🟢 New 5-lug option for the Polaris Pro-R, Turbo-R, Xpedition, and Ranger 1500 UTV and SXS models.
Additionally, this UTV and SXS wheel and tire kit also includes a set of new lug nuts. After you place an order for this full package, we'll contact you to make sure fitment is correct and determine which lug nuts are correct for your vehicle before shipping.
Frontline 24" 556 and 40" Tall ACP Package Includes:
- Qty 4: 24x9 Frontline 556 Model Gloss Black Aluminum Wheels
- Qty 4: 40x12R24 Frontline ACP Model All Terrain 10-Ply Radial Tires - All Conditions Performance w/ Deep Integrated Rimguard
- Qty 1: Full Set of Lug Nuts - Chrome or Black
- Qty 4: Screw-in Style Center Caps for Secure Fit
- Wheel and tire kit arrives assembled and pre-mounted for ease of installation.

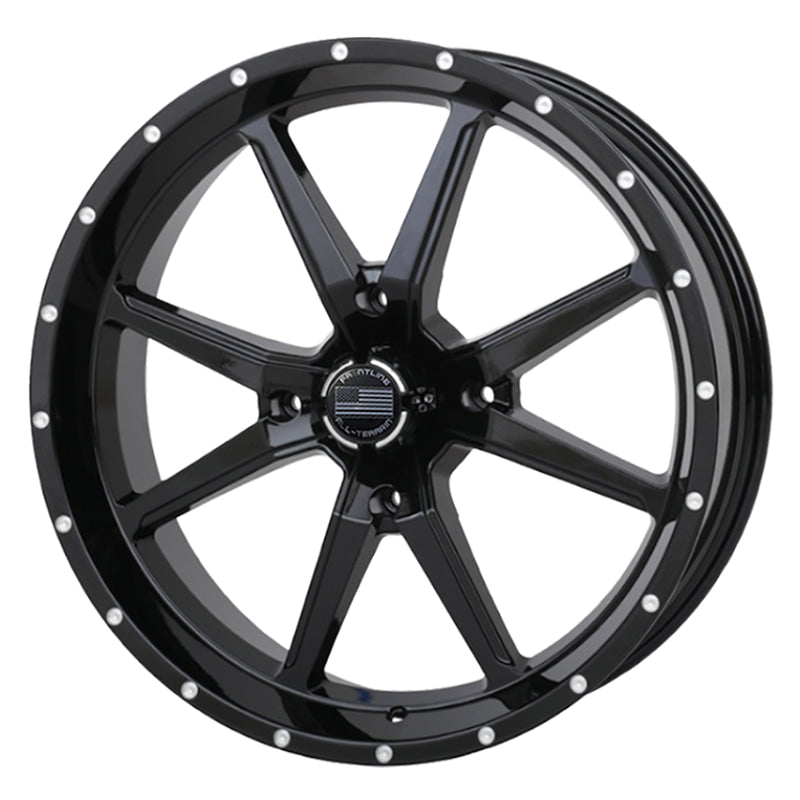

Frontline 556 Gloss Black Wheel Specifications:
- Wheel Diameter: 24 Inches
- Wheel Width: 9 Inches
-
Bolt Patterns Available:
- 4/137 (4x137mm) Part# 24FL01B37
- 4/156 (4x156mm) Part# 24FL01B56
- 5/4.5 (5x4.5 Inches) Part# 24FL01B55
- Offset: 5+4(+5mm)
-
Load Rating: 1,650 Pounds
- Finish: Gloss Black
- Warranty: Frontline Wheel Lifetime Limited Structural Warranty

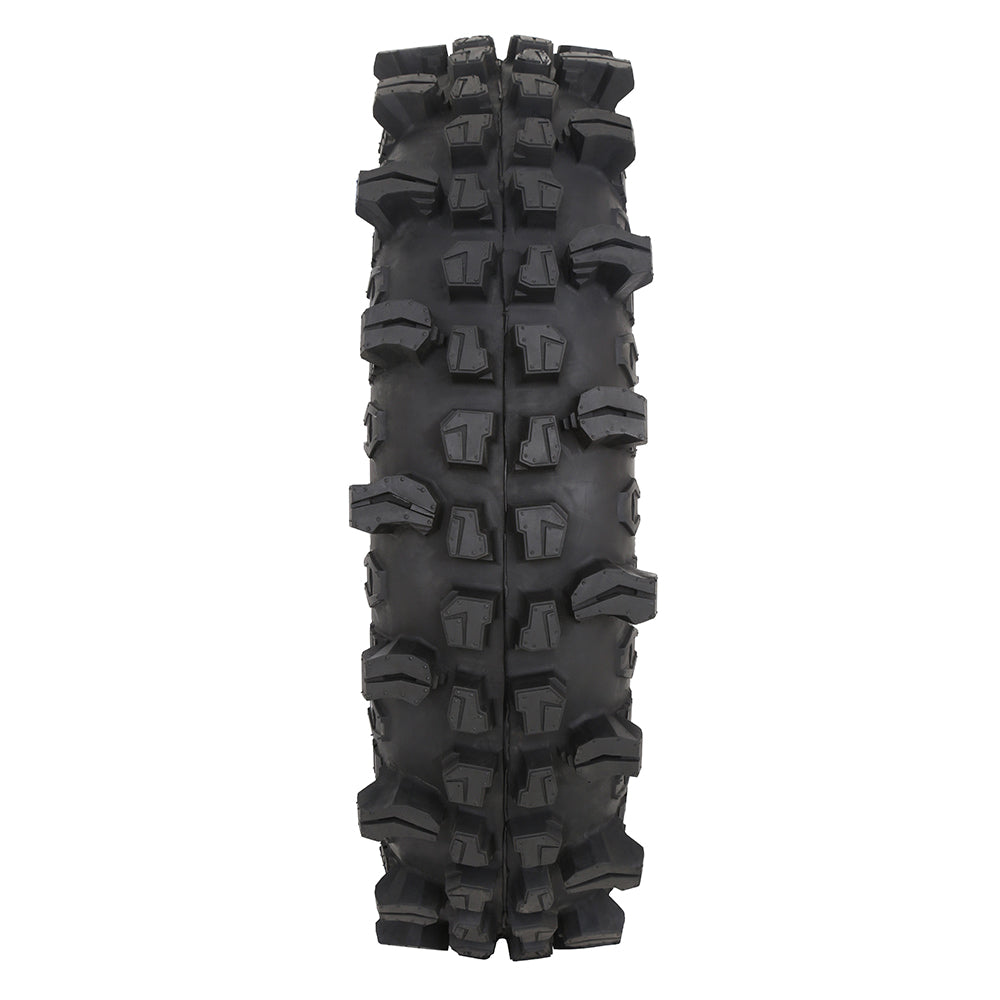

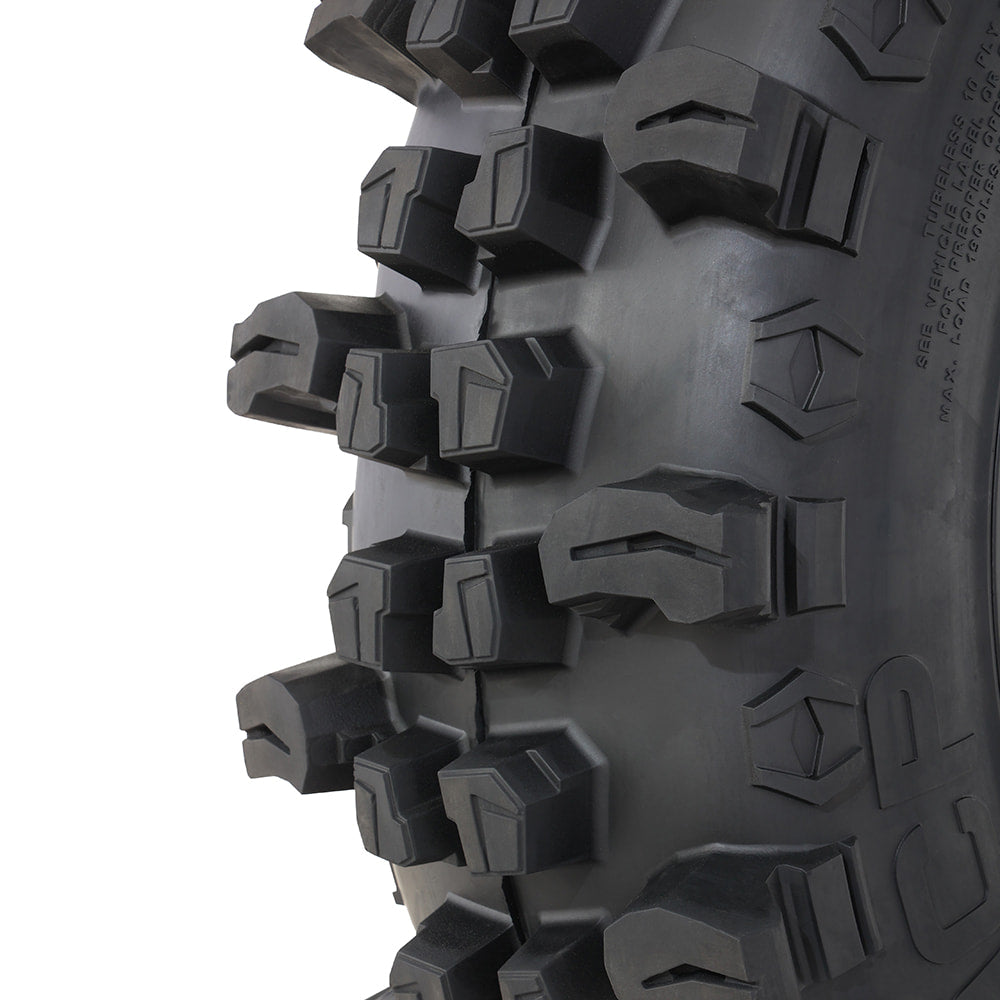

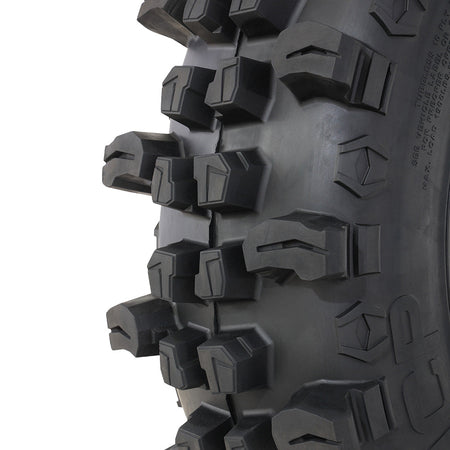

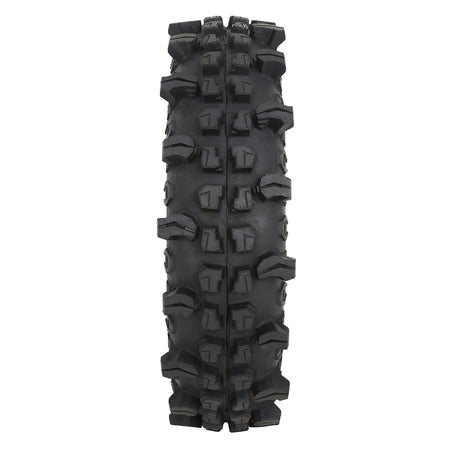

Frontline ACP All-Terrain 10-Ply Radial Tire Specifications:
- Tire Diameter: 40.1 Inches
- Tread Depth: 1.5 Inch Center to 2 Inch Outer
- Construction: Radial (Nylon)
- Ply Rating: 10-Ply Heavy Duty
- Min/Max PSI: 15 PSI - 24 PSI
- Max Load Capacity: 1,900 Pounds
- Weight: 79.4 Pounds
- Part Number: FLACP4024
556 Wheel Specifications
Size | Bolt Pattern | Offset | Finish | Part # |
12x7 | 4/110 | 4+3 (+10mm) | Machined / Gloss Black | 12FL01M10 |
12x7 | 4/110 | 2+5 (-47mm) | Machined / Gloss Black | 12FL01M11 |
12x7 | 4/156 | 4+3 (+5mm) | Machined / Gloss Black | 12FL01M56 |
12x7 | 4/110 | 4+3 (+10mm) | Gloss Black | 12FL01B10 |
12x7 | 4/110 | 2+5 (-47mm) | Gloss Black | 12FL01B11 |
12x7 | 4/156 | 4+3 (+5mm) | Gloss Black | 12FL01B56 |
14x7 | 4/110 | 4+3 (+10mm) | Machined / Gloss Black | 14FL01M10 |
14x7 | 4/110 | 2+5 (-47mm) | Machined / Gloss Black | 14FL01M11 |
14x7 | 4/137 | 4+3 (+10mm) | Machined / Gloss Black | 14FL01M37 |
14x7 | 4/156 | 4+3 (+5mm) | Machined / Gloss Black | 14FL01M56 |
14x7 | 4/110 | 4+3 (+10mm) | Gloss Black | 14FL01B10 |
14x7 | 4/110 | 2+5 (-47mm) | Gloss Black | 14FL01B11 |
14x7 | 4/137 | 4+3 (+10mm) | Gloss Black | 14FL01B37 |
14x7 | 4/156 | 4+3 (+5mm) | Gloss Black | 14FL01B56 |
14x7 | 4/110 | 4+3 (+10mm) | Stealth Black | 14FL01S10 |
14x7 | 4/110 | 2+5 (-47mm) | Stealth Black | 14FL01S11 |
14x7 | 4/137 | 4+3 (+10mm) | Stealth Black | 14FL01S37 |
14x7 | 4/156 | 4+3 (+5mm) | Stealth Black | 14FL01S56 |
20x6.5 | 4/137 | 4+3 (+10mm) | Machined / Gloss Black | 20FL01M37 |
20x6.5 | 4/156 | 4+3 (+5mm) | Machined / Gloss Black | 20FL01M56 |
20x6.5 | 4/137 | 4+3 (+10mm) | Gloss Black | 20FL01B37 |
20x6.5 | 4/156 | 4+3 (+5mm) | Gloss Black | 20FL01B56 |
20x6.5 | 5/4.5 | 4+3 (+10mm) | Gloss Black | 20FL01B55 |
20x6.5 | 4/137 | 4+3 (+10mm) | Stealth Black | 20FL01S37 |
20x6.5 | 4/156 | 4+3 (+5mm) | Stealth Black | 20FL01S56 |
24x9 | 4/137 | 5+4 (+5mm) | Gloss Black | 24FL01B37 |
24x9 | 4/156 | 5+4 (+5mm) | Gloss Black | 24FL01B56 |
24x9 | 5/4.5 | 5+4 (+5mm) | Gloss Black | 24FL01B55 |

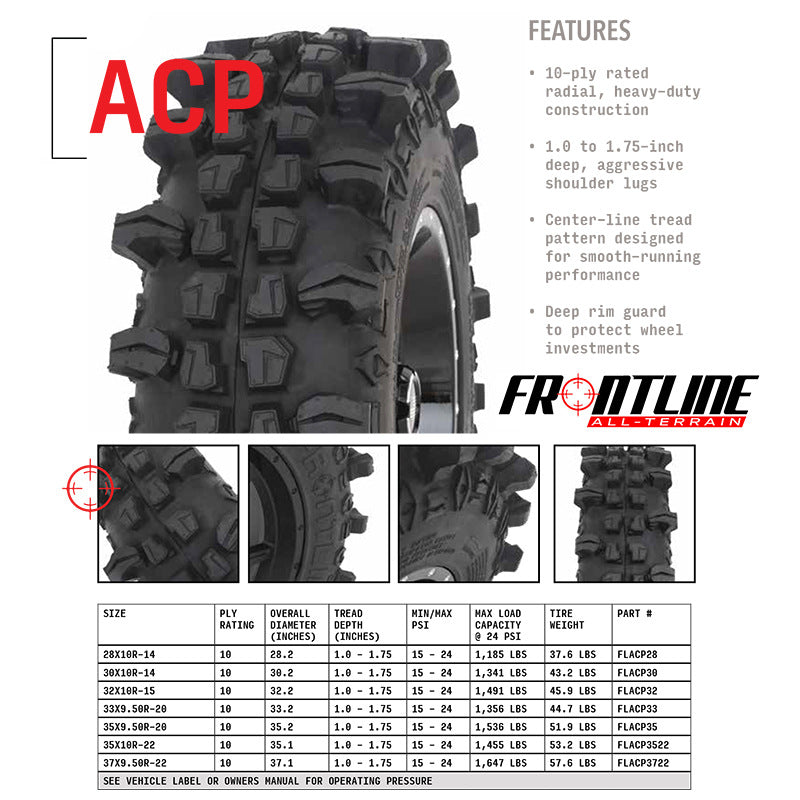

ACP Tire Specifications
Size | Ply Rating | Overall Diameter | Tread Depth | Min/Max PSI | Max Load Capacity @24 PSI | Tire Weight | Part # |
27x10R14 | 10 | 27.2 Inches | 1.0-1.75 Inches | 15-24 | 1,116 Lbs | 34.8 Lbs | FLACP27 |
28x10R14 | 10 | 28.2 Inches |
1.0-1.75 Inches |
15-24 | 1,185 Lbs | 37.6 Lbs | FLACP28 |
30x10R14 | 10 | 30.2 Inches |
1.0-1.75 Inches |
15-24 |
1,341 Lbs | 43.2 Lbs | FLACP30 |
32x10R15 |
10 |
32.2 Inches |
1.0-1.75 Inches | 15-24 | 1,491 Lbs | 45.9 Lbs | FLACP32 |
33x9.5R20 |
10 |
33.2 Inches |
1.0-1.75 Inches | 15-24 | 1,356 Lbs | 44.7 Lbs | FLACP33 |
35x9.5R20 |
10 |
35.2 Inches |
1.0-1.75 Inches |
15-24 |
1,536 Lbs | 51.9 Lbs | FLACP35 |
35x10R22 | 10 |
35.1 Inches |
1.0-1.75 Inches |
15-24 | 1,455 Lbs | 53.2 Lbs | FLACP3522 |
37x9.5R22 | 10 |
37.1 Inches |
1.0-1.75 Inches |
15-24 |
1,647 Lbs | 57.6 Lbs | FLACP3722 |
40x12R24 | 10 |
40.1 Inches |
1.5-2.0 Inches |
15-24 |
1,900 Lbs | 79.4 Lbs | FLACP4024 |
Can-Am Fitment
Can-Am |
F/R |
Size |
Offset/ET |
BP |
Machined/Black |
Gloss Black |
Stealth |
Lug Size |
Lug Kit# |
Commander, Maverick 800/1000, Outlander, Renegade, Defender 16-22 |
F/R |
20x6.5 |
5+2 +10 |
4/137 |
20FL01M37 |
20FL01B37 |
20FL01S37 |
10x1.25 |
NUTKIT01 |
|
|
|
|
|
|
|
|
|
|
Maverick X3 2018-21, X3 Max, Maverick Trail |
F/R |
20x6.5 |
5+2 +10 |
4/137 |
20FL01M37 |
20FL01B37 |
20FL01S37 |
12x1.5 |
NUTKIT11 |
Honda Fitment
Honda |
F/R |
Size |
Offset/ET |
BP |
Machined/Black |
Gloss Black |
Stealth |
Lug Size |
Lug Kit # |
Pioneer 1000 All |
F/R |
20x6.5 |
5+2 +10 |
4/137 |
20FL01M37 |
20FL01B37 |
20FL01S37 |
12x1.5 |
NUTKIT11 |
|
|
|
|
|
|
|
|
|
|
Talon 19-21, Talon 4 All |
F/R |
20x6.5 |
5+2 +10 |
4/137 |
20FL01M37 |
20FL01B37 |
20FL01S37 |
12x1.5 |
NUTKIT11 |
Kawasaki Fitment
Kawasaki |
F/R |
Size |
Offset/ET |
BP |
Machined/Black |
Gloss Black |
Stealth |
Lug Size |
Lug Kit # |
Teryx 750, Mule 2000-3000 Series |
F/R |
20x6.5 |
5+2 +10 |
4/137 |
20FL01M37 |
20FL01B37 |
20FL01S37 |
12x1.25 |
NUTKIT14 |
|
|
|
|
|
|
|
|
|
|
Mule FXT Pro, FXR, MX |
F/R |
20x6.5 |
4+3 +5mm |
4/156 |
20FL01M56 |
20FL01B56 |
20FL01S56 |
12x1.25 |
NUTKIT14 |
|
|
|
|
|
|
|
|
|
|
KRX100 2020-22 |
F/R |
20x6.5 |
4+3 +5mm |
4/156 |
20FL01M56 |
20FL01B56 |
20FL01S56 |
12x1.25 |
NUTKIT14 |
Textron / Arctic Cat Fitment
Textron/Arctic Cat |
F/R |
Size |
Offset/ET |
BP |
Machined/Black |
Gloss Black |
Stealth |
Lug Size |
Lug Kit # |
Wildcat XX 2019 |
F/R |
20x6.5 |
4+3 +5mm |
4/156 |
20FL01M56 |
20FL01B56 |
20FL01S56 |
12x1.5 |
NUTKIT11 |
Polaris Fitment
Polaris |
F/R |
Size |
Offset/ET |
BP |
Machined/Black |
Gloss Black |
Stealth |
Lug Size |
Lug Kit # |
335 Sportsman ‘99-06, 400/450 Sportsman ‘01-21, 500 Magnum ‘02-06 |
F/R |
20x6.5 |
4+3 +5mm |
4/156 |
20FL01M56 |
20FL01B56 |
20FL01S56 |
3/8”-24 |
NUTKIT03 |
500/570 Sportsman ‘96-’22, RZR 570 14-22, 600 Sportsman ‘03-09 |
|
|
|
|
|
|
|
|
|
700 Sportsman ‘02-09, 800 Sportsman ‘05-’14 |
|
|
|
|
|
|
|
|
|
Ranger 500/ETX/570/EV/800 6x6 4x4 ‘03-22 |
|
|
|
|
|
|
|
|
|
RZR800/900XP ‘08-14, ACE 570/900 ‘14-22 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sportsman 550/850/1000 XP ‘09-22, Scrambler 850/1000XP ‘14-22 |
F/R |
20x6.5 |
4+3 +5mm |
4/156 |
20FL01M56 |
20FL01B56 |
20FL01S56 |
10x1.25 |
NUTKIT01 |
|
|
|
|
|
|
|
|
|
|
RZR XP 1000/XP 4 1000 14-22, RZR 900/900 XC/900/1000 S 15-22 |
F/R |
20x6.5 |
4+3 +5mm |
4/156 |
20FL01M56 |
20FL01B56 |
20FL01S56 |
12x1.5 |
NUTKIT11 |
Ranger Diesel/570 Full size/900XP/1000 13-22 |
|
|
|
|
|
|
|
|
|
Yamaha Fitment
Yamaha |
F/R |
Size |
Offset/ET |
BP |
Machined/Black |
Gloss Black |
Stealth |
Lug Size |
Lug Kit # |
Yamaha YXZ 1000R 19-1, R-Max 2021-22 |
F/R |
20x6.5 |
4+3 +5mm |
4/156 |
20FL01M56 |
20FL01B56 |
20FL01S56 |
12x1.25 |
NUTKIT14 |
