$2,198.99
Couldn't load pickup availability

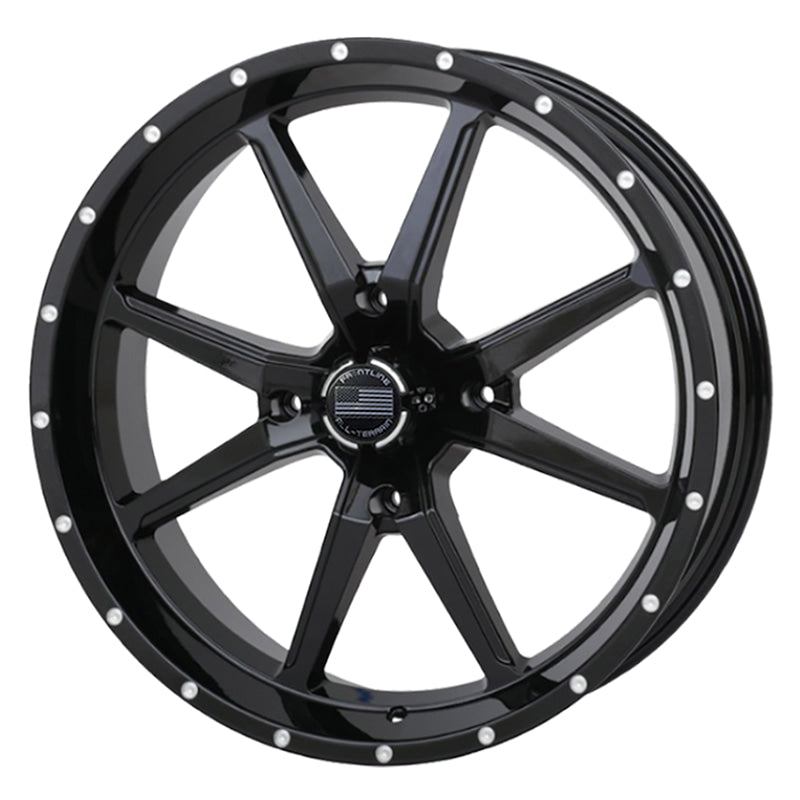

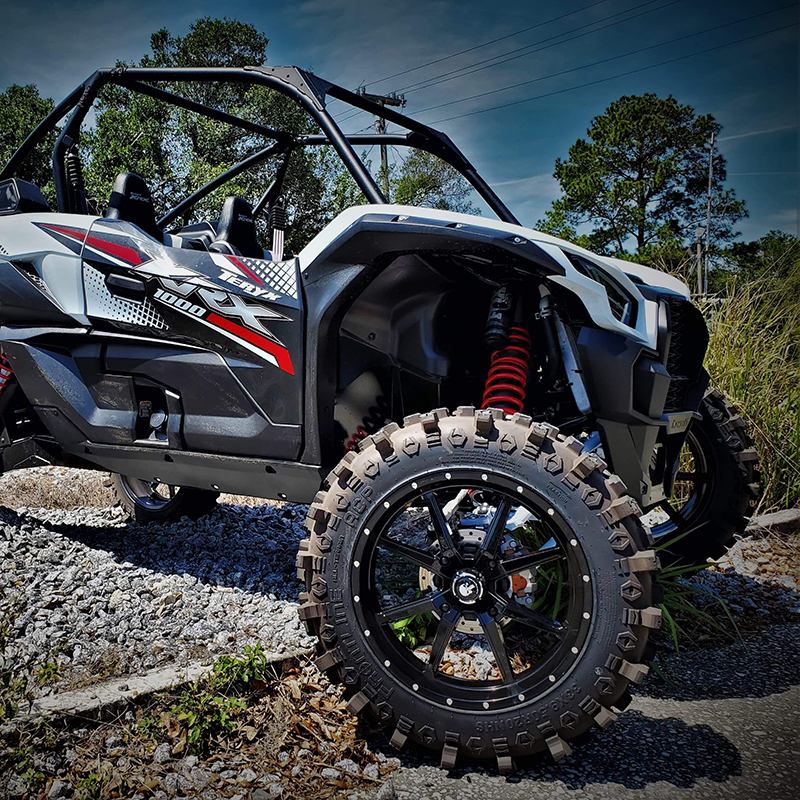

Take your UTV or Side-by-Side to the summit of all-terrain performance and aggressive big-wheel styling with this complete, ready-to-bolt-on package. We have paired Frontline’s popular 556 Model 20" wheels in a deep, automotive-grade gloss black finish with the relentless biting power of the 33" Frontline ACP (All Conditions Performance) 10-ply radial tires. Featuring an eye-catching 8-spoke open design, the 556 wheel provides outstanding strength and trail-debris clearance while maintaining a solid 1,200 lb load rating backed by a Lifetime Limited Structural Warranty.

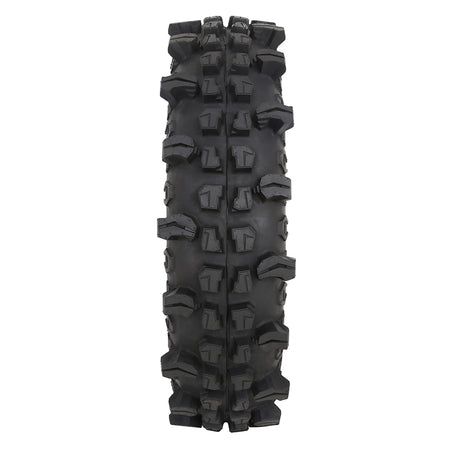

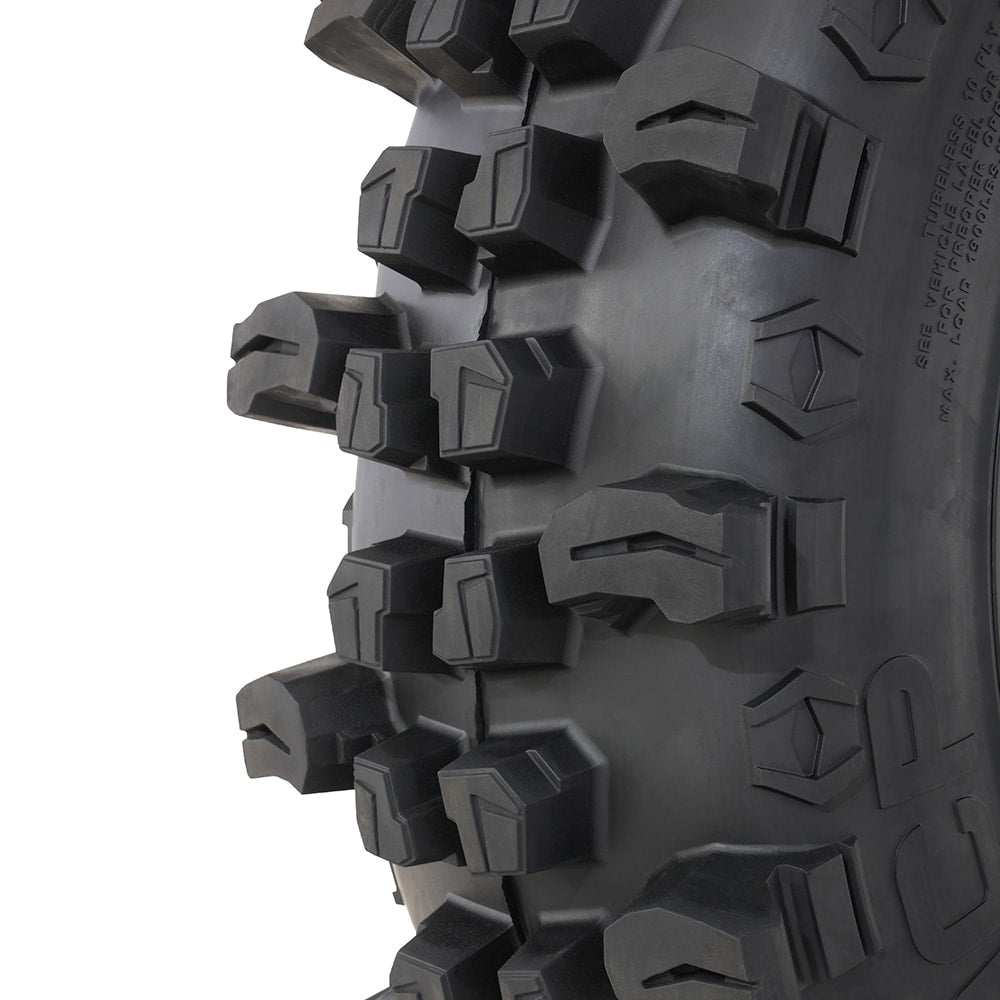

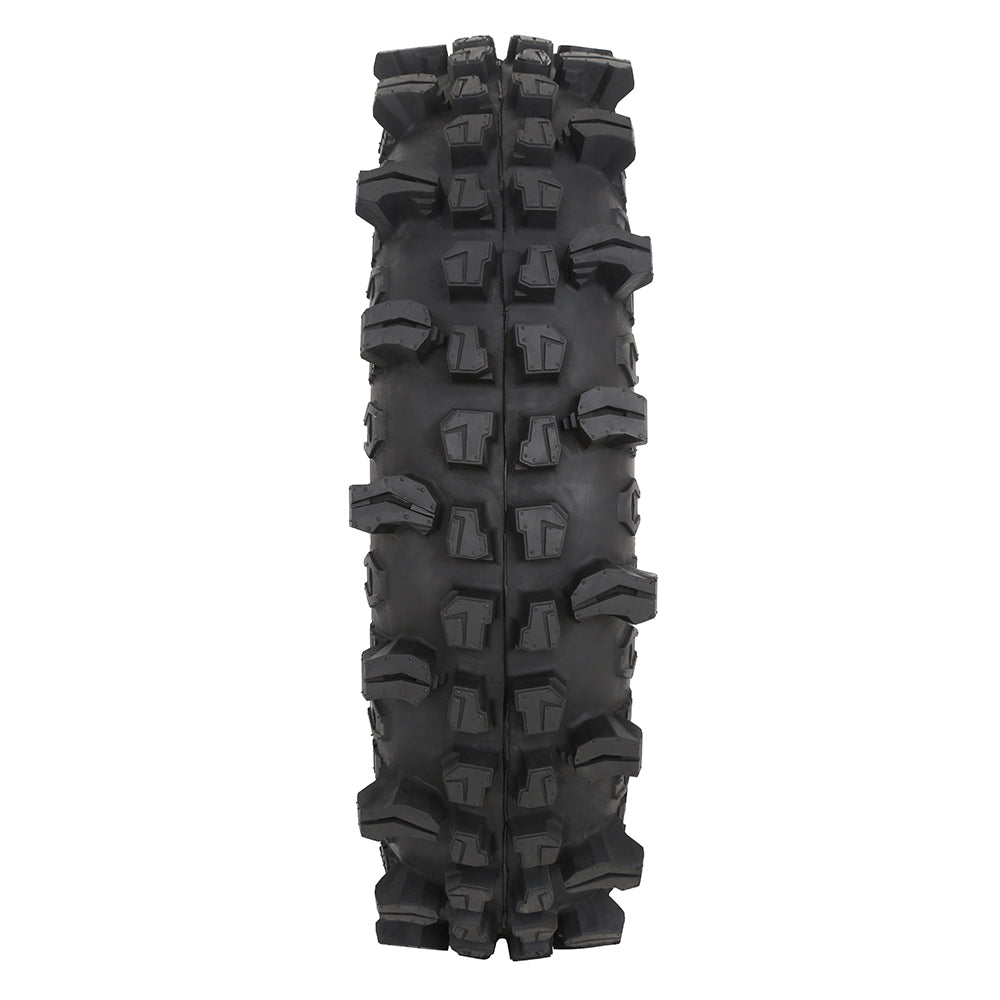

Mounted on the wheels is the 10-ply rated Frontline ACP radial tire, engineered with an aggressive, stepped lug pattern ranging from 1.0" at the center to a massive 1.75" at the shoulders. Equipped with integrated rim-guard protection, smooth-rolling center contact lugs, and a flexible high-strength nylon radial carcass, this setup delivers devastating traction across mud, rocky trails, slick clay, and hardpack surfaces without sacrificing ride quality.

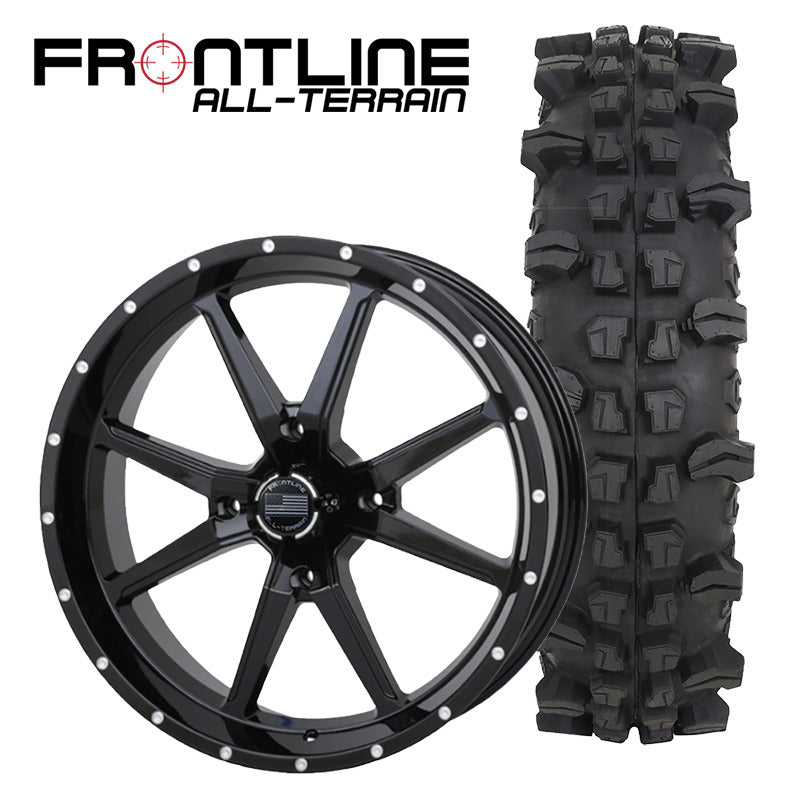

Sold as a complete, pre-mounted set of 4 wheels and tires, this kit arrives at your door aired up, seated, and ready to install. Each package includes a full vehicle set of lug nuts (available in chrome or black) along with secure screw-in center caps. Simply select your vehicle's bolt pattern above, and our technical fitment specialists will verify your exact machine model and lug nut thread pitch before shipping!
➔ View Frontline's official Lifetime Limited Structural Wheel Warranty here.
| SIZE | BOLT PATTERN | OFFSET (ET) | FINISH | LOAD RATING | PART # |
|---|---|---|---|---|---|
| 12x7 | 4/110 | 4+3 (+10mm) | Machined / Gloss Black | 1,200 lbs | 12FL01M10 |
| 12x7 | 4/110 | 2+5 (-47mm) | Machined / Gloss Black | 1,200 lbs | 12FL01M11 |
| 12x7 | 4/156 | 4+3 (+5mm) | Machined / Gloss Black | 1,200 lbs | 12FL01M56 |
| 12x7 | 4/110 | 4+3 (+10mm) | Gloss Black | 1,200 lbs | 12FL01B10 |
| 12x7 | 4/110 | 2+5 (-47mm) | Gloss Black | 1,200 lbs | 12FL01B11 |
| 12x7 | 4/156 | 4+3 (+5mm) | Gloss Black | 1,200 lbs | 12FL01B56 |
| 14x7 | 4/110 | 4+3 (+10mm) | Machined / Gloss Black | 1,200 lbs | 14FL01M10 |
| 14x7 | 4/110 | 2+5 (-47mm) | Machined / Gloss Black | 1,200 lbs | 14FL01M11 |
| 14x7 | 4/137 | 4+3 (+10mm) | Machined / Gloss Black | 1,200 lbs | 14FL01M37 |
| 14x7 | 4/156 | 4+3 (+5mm) | Machined / Gloss Black | 1,200 lbs | 14FL01M56 |
| 14x7 | 4/110 | 4+3 (+10mm) | Gloss Black | 1,200 lbs | 14FL01B10 |
| 14x7 | 4/110 | 2+5 (-47mm) | Gloss Black | 1,200 lbs | 14FL01B11 |
| 14x7 | 4/137 | 4+3 (+10mm) | Gloss Black | 1,200 lbs | 14FL01B37 |
| 14x7 | 4/156 | 4+3 (+5mm) | Gloss Black | 1,200 lbs | 14FL01B56 |
| 14x7 | 4/110 | 4+3 (+10mm) | Stealth Black | 1,200 lbs | 14FL01S10 |
| 14x7 | 4/110 | 2+5 (-47mm) | Stealth Black | 1,200 lbs | 14FL01S11 |
| 14x7 | 4/137 | 4+3 (+10mm) | Stealth Black | 1,200 lbs | 14FL01S37 |
| 14x7 | 4/156 | 4+3 (+5mm) | Stealth Black | 1,200 lbs | 14FL01S56 |
| 20x6.5 | 4/137 | 4+3 (+10mm) | Machined / Gloss Black | 1,200 lbs | 20FL01M37 |
| 20x6.5 | 4/156 | 4+3 (+5mm) | Machined / Gloss Black | 1,200 lbs | 20FL01M56 |
| 20x6.5 | 4/137 | 4+3 (+10mm) | Gloss Black | 1,200 lbs | 20FL01B37 |
| 20x6.5 | 4/156 | 4+3 (+5mm) | Gloss Black | 1,200 lbs | 20FL01B56 |
| 20x6.5 | 5/4.5 (5x114.3mm) | 4+3 (+10mm) | Gloss Black | 1,200 lbs | 20FL01B55 |
| 20x6.5 | 4/137 | 4+3 (+10mm) | Stealth Black | 1,200 lbs | 20FL01S37 |
| 20x6.5 | 4/156 | 4+3 (+5mm) | Stealth Black | 1,200 lbs | 20FL01S56 |
| 24x9 | 4/137 | 5+4 (+5mm) | Gloss Black | 1,200 lbs | 24FL01B37 |
| 24x9 | 4/156 | 5+4 (+5mm) | Gloss Black | 1,200 lbs | 24FL01B56 |
| 24x9 | 5/4.5 (5x114.3mm) | 5+4 (+5mm) | Gloss Black | 1,200 lbs | 24FL01B55 |

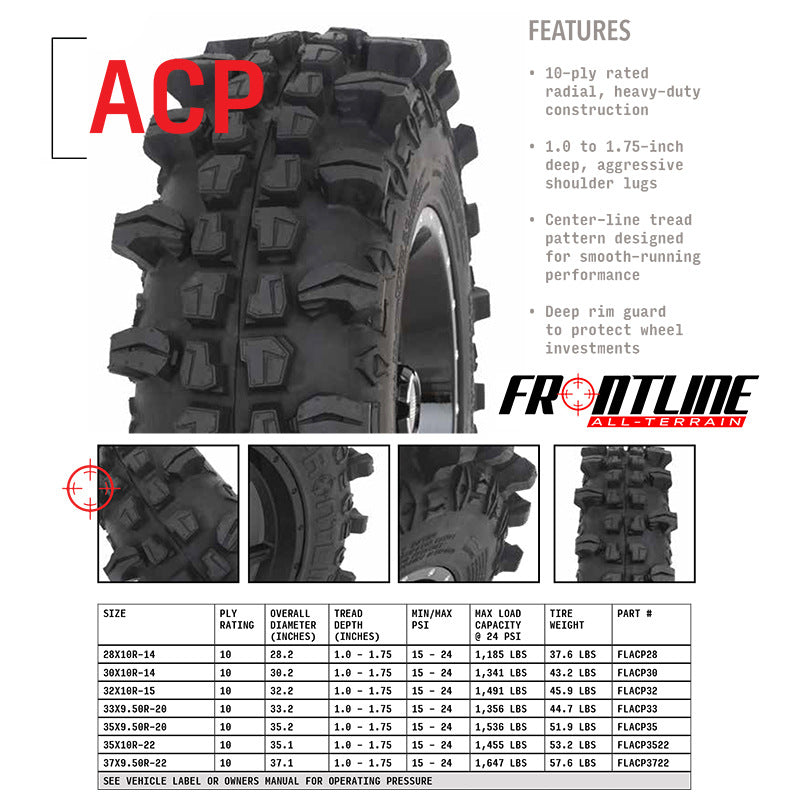

| SIZE | PLY RATING | OVERALL DIA. | TREAD DEPTH | OPERATING PSI | MAX LOAD @ 24 PSI | TIRE WEIGHT | PART # |
|---|---|---|---|---|---|---|---|
| 27x10R14 | 10-Ply Radial | 27.2" | 1.0" – 1.75" | 15 – 24 PSI | 1,116 lbs | 34.8 lbs | FLACP27 |
| 28x10R14 | 10-Ply Radial | 28.2" | 1.0" – 1.75" | 15 – 24 PSI | 1,185 lbs | 37.6 lbs | FLACP28 |
| 30x10R14 | 10-Ply Radial | 30.2" | 1.0" – 1.75" | 15 – 24 PSI | 1,341 lbs | 43.2 lbs | FLACP30 |
| 32x10R15 | 10-Ply Radial | 32.2" | 1.0" – 1.75" | 15 – 24 PSI | 1,491 lbs | 45.9 lbs | FLACP32 |
| 33x9.5R20 | 10-Ply Radial | 33.2" | 1.0" – 1.75" | 15 – 24 PSI | 1,356 lbs | 44.7 lbs | FLACP33 |
| 35x9.5R20 | 10-Ply Radial | 35.2" | 1.0" – 1.75" | 15 – 24 PSI | 1,536 lbs | 51.9 lbs | FLACP35 |
| 35x10R22 | 10-Ply Radial | 35.1" | 1.0" – 1.75" | 15 – 24 PSI | 1,455 lbs | 53.2 lbs | FLACP3522 |
| 37x9.5R22 | 10-Ply Radial | 37.1" | 1.0" – 1.75" | 15 – 24 PSI | 1,647 lbs | 57.6 lbs | FLACP3722 |
| 40x12R24 | 10-Ply Radial | 40.1" | 1.5" – 2.00" | 15 – 24 PSI | 1,900 lbs | 79.4 lbs | FLACP4024 |
| MAKE | MODEL FITMENT | POSITION | BOLT PATTERN | WHEEL SIZE / OFFSET | LUG THREAD | LUG KIT # |
|---|---|---|---|---|---|---|
| Can-Am | Commander, Maverick 800/1000, Defender ('16–'22), Outlander, Renegade | Front / Rear | 4/137 | 20x6.5 (5+2 / +10mm) | 10x1.25 | NUTKIT01 |
| Can-Am | Maverick X3 ('18–'21), X3 Max, Maverick Trail | Front / Rear | 4/137 | 20x6.5 (5+2 / +10mm) | 12x1.50 | NUTKIT11 |
| Honda | Pioneer 1000 (All Years), Talon 1000 / Talon 4 ('19–'21) | Front / Rear | 4/137 | 20x6.5 (5+2 / +10mm) | 12x1.50 | NUTKIT11 |
| Kawasaki | Teryx 750, Mule 2000–3000 Series | Front / Rear | 4/137 | 20x6.5 (5+2 / +10mm) | 12x1.25 | NUTKIT14 |
| Kawasaki | Mule FXT Pro, FXR, MX | Front / Rear | 4/156 | 20x6.5 (4+3 / +5mm) | 12x1.25 | NUTKIT14 |
| Kawasaki | Teryx KRX 1000 ('20–'22) | Front / Rear | 4/156 | 20x6.5 (4+3 / +5mm) | 12x1.25 | NUTKIT14 |
| Textron / Arctic Cat | Wildcat XX ('19+) | Front / Rear | 4/156 | 20x6.5 (4+3 / +5mm) | 12x1.50 | NUTKIT11 |
| Polaris | Sportsman 335/400/450/500/570 ('96–'22), RZR 570, Sportsman 600/700/800, Ranger 500/ETX/570/EV/800 ('03–'22), RZR 800/900XP ('08–'14), ACE | Front / Rear | 4/156 | 20x6.5 (4+3 / +5mm) | 3/8"-24 | NUTKIT03 |
| Polaris | Sportsman 550/850/1000 XP ('09–'22), Scrambler 850/1000 XP ('14–'22) | Front / Rear | 4/156 | 20x6.5 (4+3 / +5mm) | 10x1.25 | NUTKIT01 |
| Polaris | RZR XP 1000 / XP 4 ('14–'22), RZR 900 / 1000 S ('15–'22), Ranger 570 Full Size / 900XP / 1000 ('13–'22) | Front / Rear | 4/156 | 20x6.5 (4+3 / +5mm) | 12x1.50 | NUTKIT11 |
| Yamaha | YXZ 1000R ('19+), Wolverine RMAX 1000 ('21–'22) | Front / Rear | 4/156 | 20x6.5 (4+3 / +5mm) | 12x1.25 | NUTKIT14 |
