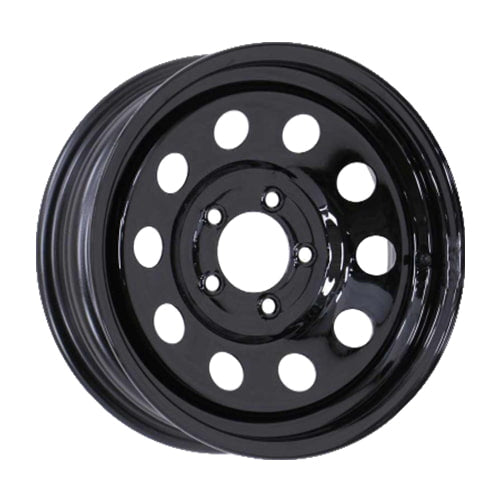

Heavy-Duty Kenda® 15x5JJ Zero-Offset Steel Modular (MOD) Replacement Trailer Wheel in Gloss Black!
Ditch old, rusted, or damaged rims and upgrade your rig with the commercial-grade 15" Steel Modular (MOD) replacement trailer wheel from Kenda® / Americana Tire and Wheel. Precision-engineered to demanding OEM standards, this 15x5JJ wheel is roll-formed from heavy-gauge high-strength steel and finished in a durable e-coated gloss black powder finish built to fight corrosion, chipping, road salts, and harsh trailering elements.
Engineered with a true 0-offset (zero-offset) configuration, a standard 5-on-4.5" (5x4.5) bolt circle, and a universal 3.19" center pilot bore, this wheel serves as a direct bolt-on replacement for boat trailers, travel trailers, equipment flatbeds, and enclosed cargo rigs. Boasting an upgraded 2,200 lb load rating per wheel (4,400 lbs on a single axle or 8,800 lbs across tandem axles), it provides the heavy payload capacity, centered tracking, and rock-solid towing stability you need on highway hauls.
PLEASE NOTE: Wheel only, tire NOT included! Double-check your trailer hub's bolt pattern (5 on 4.5"), center pilot bore (3.19"), and 15-inch rim specifications before ordering to ensure proper fitment.
Unsure of your bolt pattern? Simply measure center-to-center from one stud to the directly opposing point across the 4.5" circle, or remove an existing wheel to verify the stamped identification code on the backside of the wheel face.
Lead Time Notice: Due to revolving warehouse inventory, please allow 3–4 business days of additional handling lead time for shipping.
Kenda 15" Modular Steel Wheel Features & Performance Highlights
-
Heavy-Gauge Roll-Formed Steel: Maximum structural toughness designed to withstand repeated curb impacts, gravel roads, and heavy cargo shock loads without cracking.
-
Formidable 2,200 lb Load Capacity: Supports heavy payloads up to 4,400 lbs on single axles and 8,800 lbs across tandem-axle trailers.
-
True Zero (0) Offset: Centers the tire perfectly within standard trailer fender wells, ensuring even bearing load and uniform tread wear.
-
E-Coated Gloss Black Finish: Multi-stage electro-deposit protective barrier guards against rust, humidity, road grime, and chemical pitting.
-
Universal 5-on-4.5" Bolt Pattern: Direct OEM replacement for utility, marine, cargo, and recreational trailer hubs.
-
Classic Modular Hole Pattern: Combines proven structural rigidity with continuous airflow to keep brake drums and wheel hubs running cool.
Steel vs. Aluminum Trailer Wheels: Comparison Guide
-
Steel Wheels (Strength, Value & Heavy Payloads): Steel wheels offer unmatched cost efficiency and superior impact resilience. While heavier than aluminum and requiring a high-quality protective finish to prevent corrosion, steel flexes and resists cracking under severe impact, making it the top choice for commercial hauling and heavy-duty utility trailers.
-
Aluminum Wheels (Weight & Corrosion Resistance): Aluminum alloy wheels are naturally rust-proof and reduce unsprung rotating mass for easier towing efficiency. However, alloy wheels carry a higher initial investment and are more susceptible to hairline cracking under extreme overloading or severe curb strikes.
Kenda 15x5JJ MOD Steel Wheel Technical Specifications
| PART # |
SIZE |
BOLT PATTERN |
OFFSET |
CENTER PILOT |
FINISH |
LOAD CAPACITY |
MATERIAL |
| 20440 |
15x5JJ |
5 on 4.5" (5-4.5) |
0 (Zero) |
3.19" |
E-Coated Gloss Black |
2,200 lbs |
Steel |
